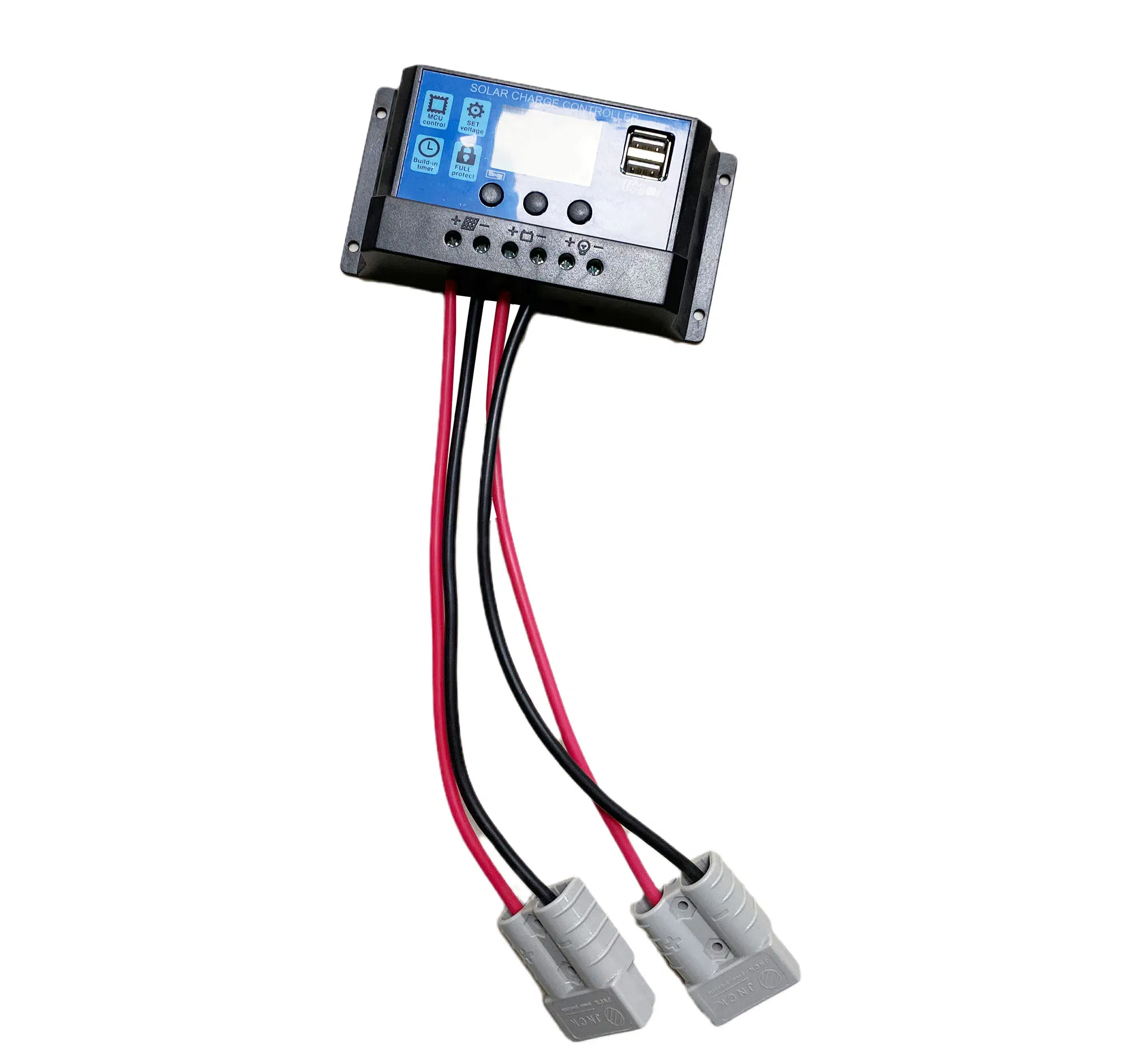

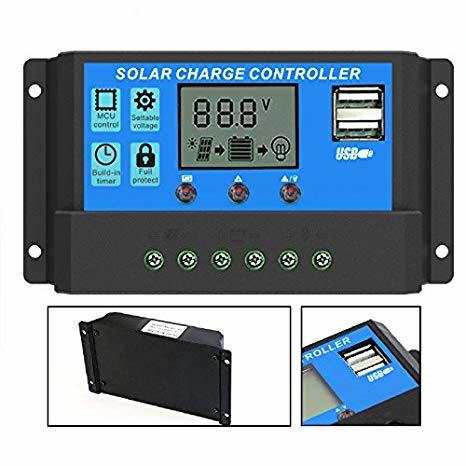

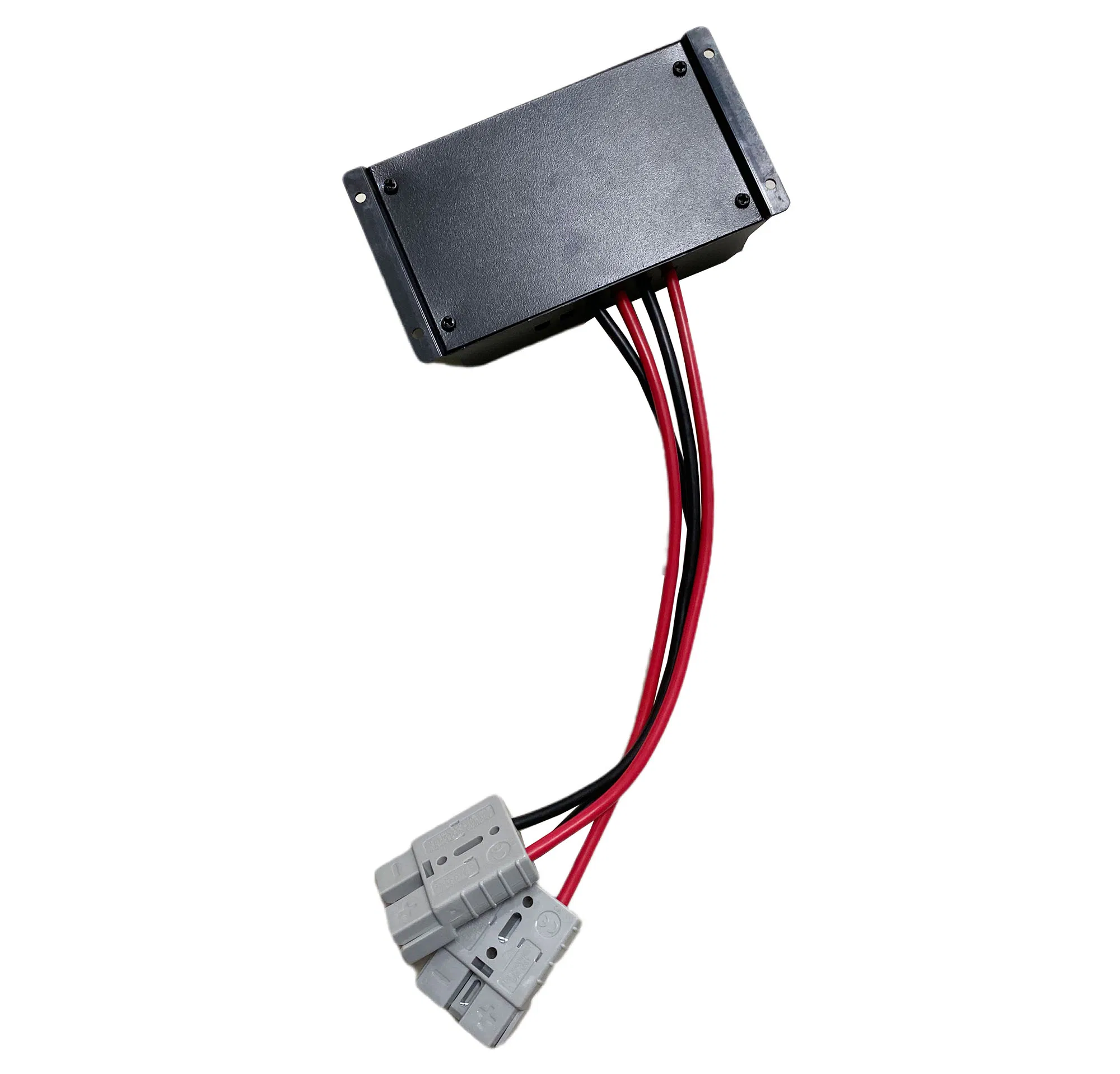

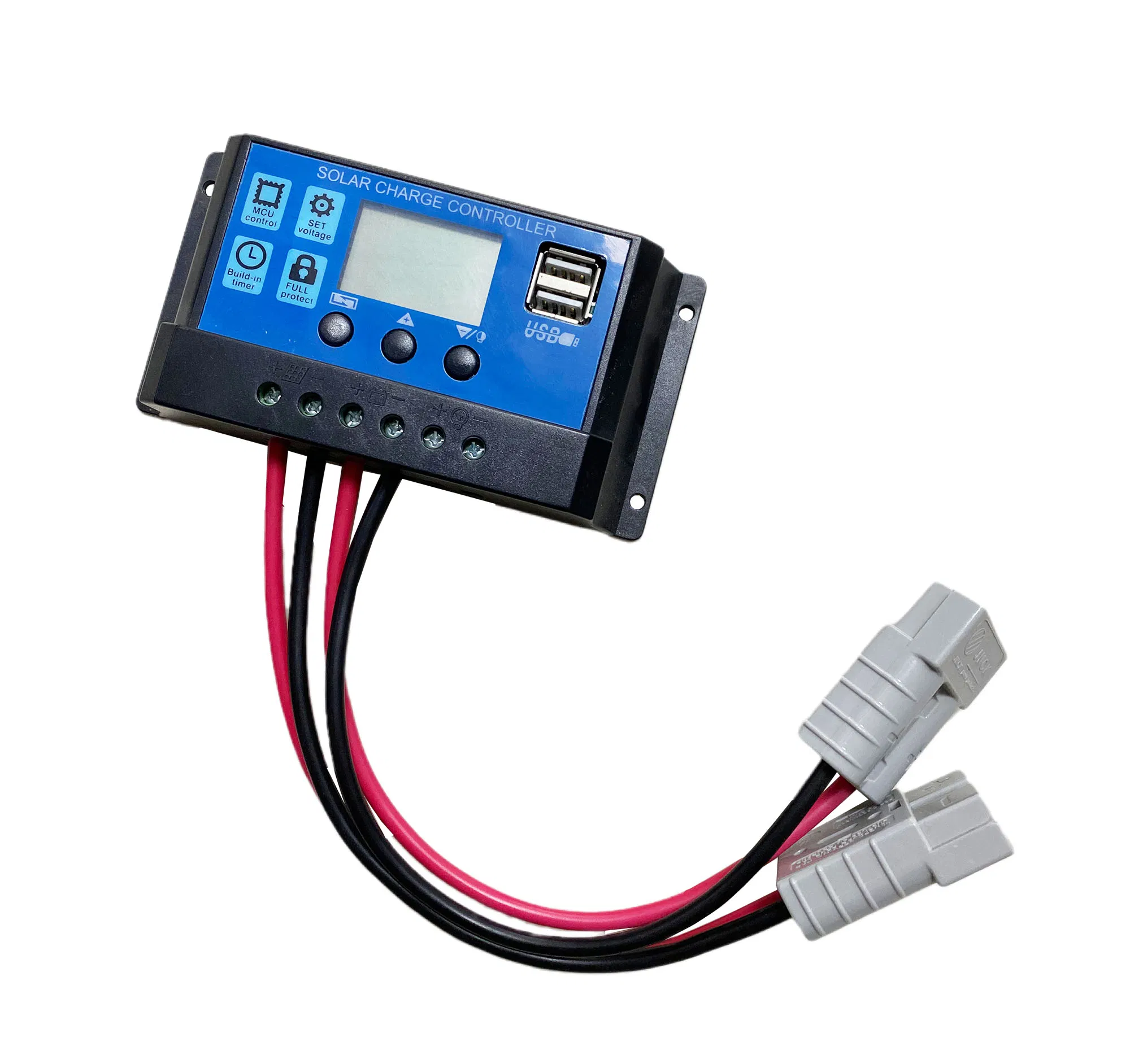

USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
1 / 5
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller
USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller

USB LCD Controller Intelligent Panel Battery Power Manual PWM MPPT Solar Charge Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
FSCC-12V20A-001
Certification
ISO, CB, CE
Rated Voltage
12/24V Automatic Recognition
Display
LCD
Rated Current
20A
Battery Type
Lead Acid & Lithium Optional
Charging Mode
PWM Charging
Functions
Time & Light Control
Protection
Full Protection System
HS Code
8537101190
Product Description & Technical Parameters
Parameter FSC-HP2410 FSC-HP2420
Rated current 10A 20A
System voltage Automatic recognition of 12 V/ 24 V
Dimension 103×71×36(mm) 130×75×38(mm)
No-load loss < 5mA/12V; < 10mA/24V
Maximum solar input voltage < 55V
Over voltage protection 17.0V; ×2/24V
Floating charging voltage 13.8V; ×2/24V
Operating temperature -25ºC to +55ºC
IP protection degree IP30
Key Features
  • Automatic Recognition: 12V/ 24 V system voltages are automatically identified upon connection.
  • Enhanced PWM Charging: Upgraded 3-stage PWM algorithm prevents battery sulfuration and extends service life.
  • Temperature Compensation: Charging parameters automatically adjust based on environmental conditions.
  • Comprehensive Protection: Built-in overcharge, over-discharge, overload, and short-circuit protection.
  • LCD Interface: Dot matrix graphic LCD screen with user-friendly key operation for intuitive monitoring.
  • Industrial Design: Robust build quality suitable for various tough environmental conditions with TVS lighting protection.
How It Works & Connection Diagram

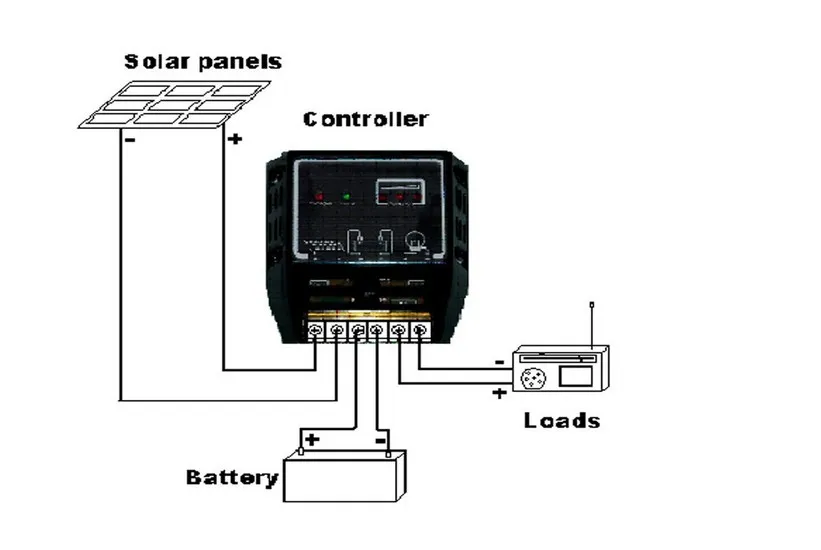

How product works

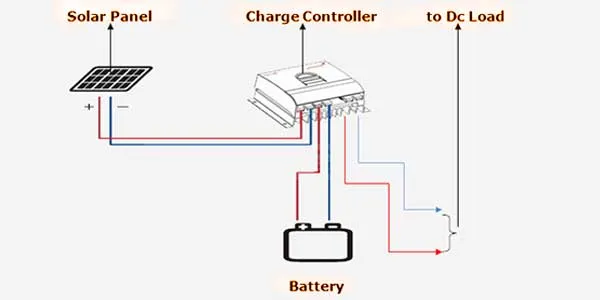

Solar system operation
Connection Step 1
Connection Step 2
Packaging & Shipping

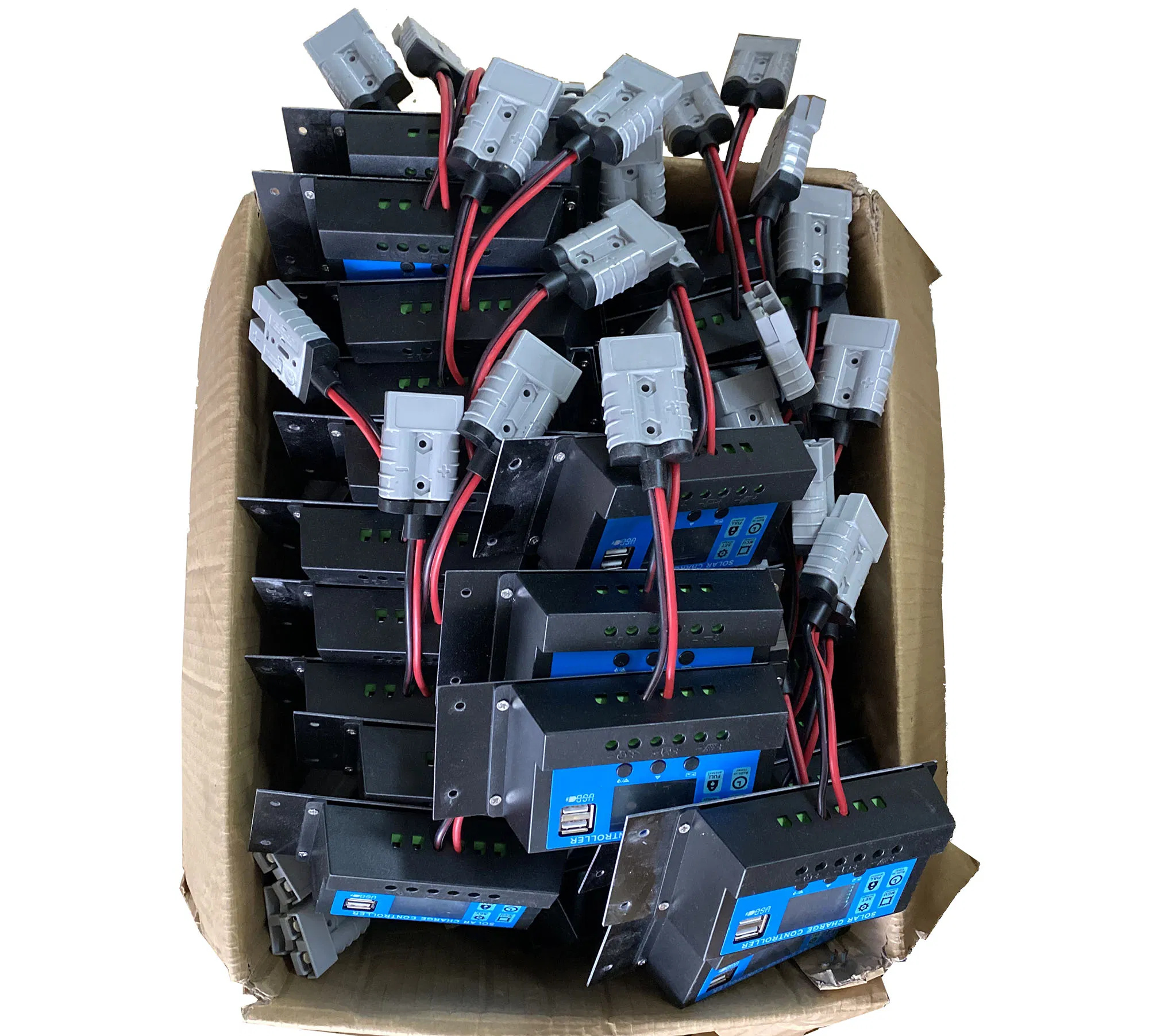

Package
Standard export carton packing
Delivery Time
3-15 days after confirming order
Shipping Port
SHANGHAI / NINGBO
Method
Air, Sea, or Express for batch goods
Frequently Asked Questions
What system voltages does this controller support?
The controller automatically recognizes and supports both 12V and 24V systems.
What type of charging technology is used?
It utilizes an upgraded 3-stage PWM (Pulse Width Modulation) charging algorithm to optimize battery health.
Can this controller be used with Lithium batteries?
Yes, the controller is compatible with both Lead Acid and Lithium battery types as an optional setting.
What is the IP protection rating of this device?
This solar charge controller has an IP30 protection degree, suitable for indoor or protected environments.
Does it have protection against short circuits?
Yes, it features full protection functions including solar panel short circuit, reverse-connection, over-temperature, and overload protection.
What is the typical delivery time for orders?
The standard delivery time ranges from 3 to 15 days, depending on the production season and specific order quantity.
