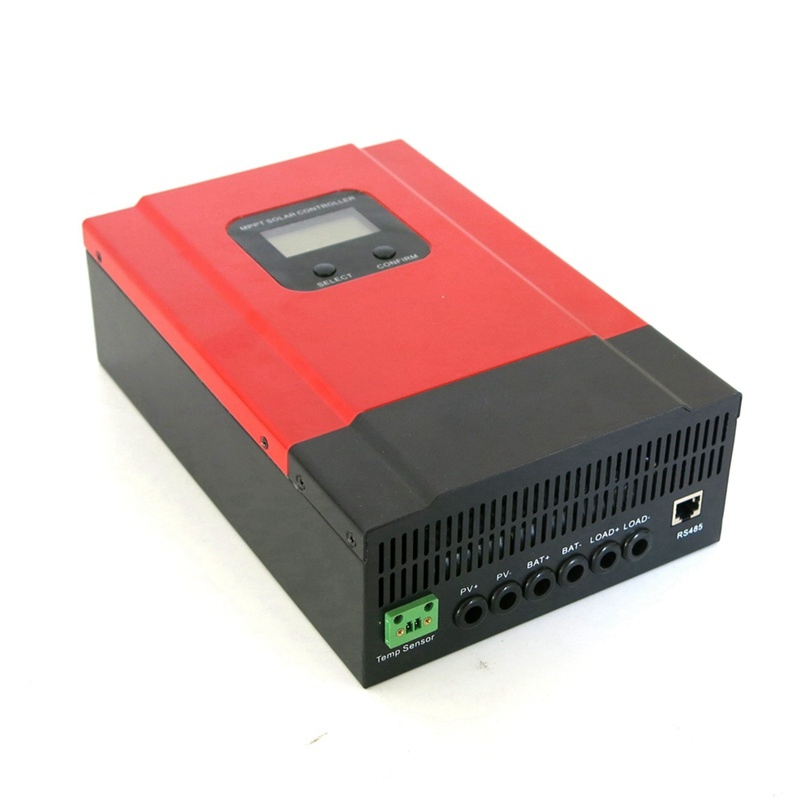

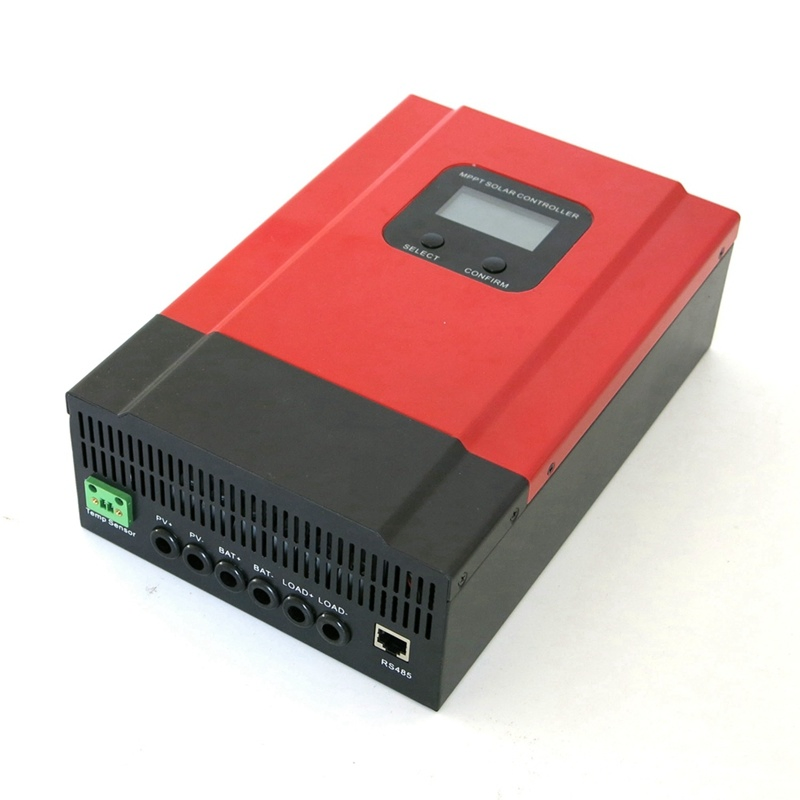

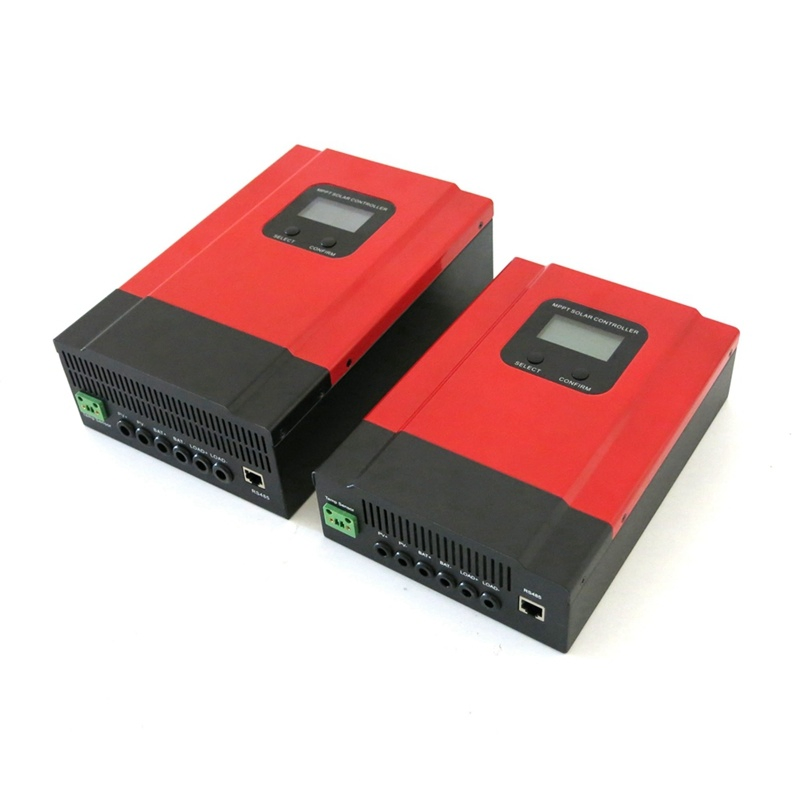

Smart DC 10A Manual PWM MPPT Solar Charge Controller

1 / 5

Smart DC 10A Manual PWM MPPT Solar Charge Controller

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

OPM1260

Certification

Application

Collector Controller

Rated Voltage

12V/24V/36V/48V

Color

Red

MOQ

1 PC

Weight

3.5kg

USB

5V 3A

MPPT Efficiency

99.5%

Communication

RS485

HS Code

8504401990

Capacity

6000PCS/Month

★

Product Features

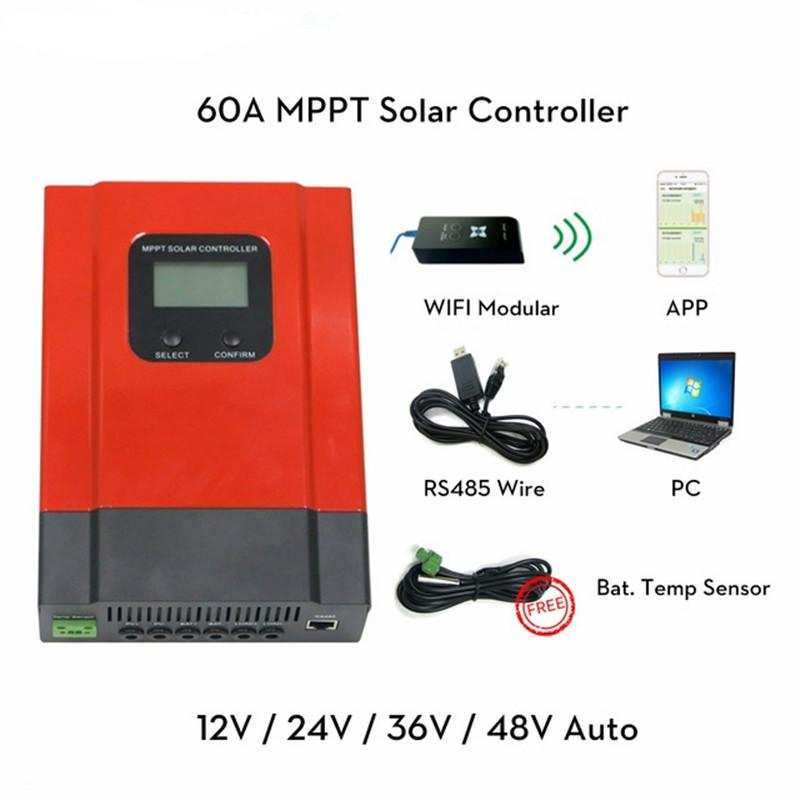

Smart Solar Controller 60A 12V/24V/48V with CE

Efficient MPPT algorithm: MPPT efficiency ≥99.5%, converter efficiency up to 98%.
Three-stage charge mode: Constant current, constant voltage, and floating charge to prolong battery life.
Four load mode selection: ON/OFF, PV voltage control, Dual Time control, and PV+Time control.
Battery system voltage automatic recognition.
Compatible with multiple battery types: Seal, Gel, Flooded parameter settings, plus customizable options.
Current limiting function: Automatically protects the controller when PV power exceeds rated values.
High-definition LCD display for real-time monitoring of device data and status.
Advanced communication: RS485 support, PC software monitoring, and WiFi module for APP cloud monitoring.
Certifications: Approved by CE, RoHS, and FCC.

⚙

Technical Parameters

Category	Properties	20A	40A	60A
MPPT Efficiency	Efficiency Rate	≥99.5%
System Voltage	Recognition	Automatic Recognition
Input VOC	Max Voltage	DC150V
Rated PV Power	12V System	260W	520W	780W
Rated PV Power	48V System	1040W	2080W	3120W
Charge Method	3-Stage	Constant current - Constant voltage - Floating charge
Display	Communication	LCD / RS485 / WiFi App / PC Software
Size (mm)	Product Dimensions	24016866	24016866	27018085

📷

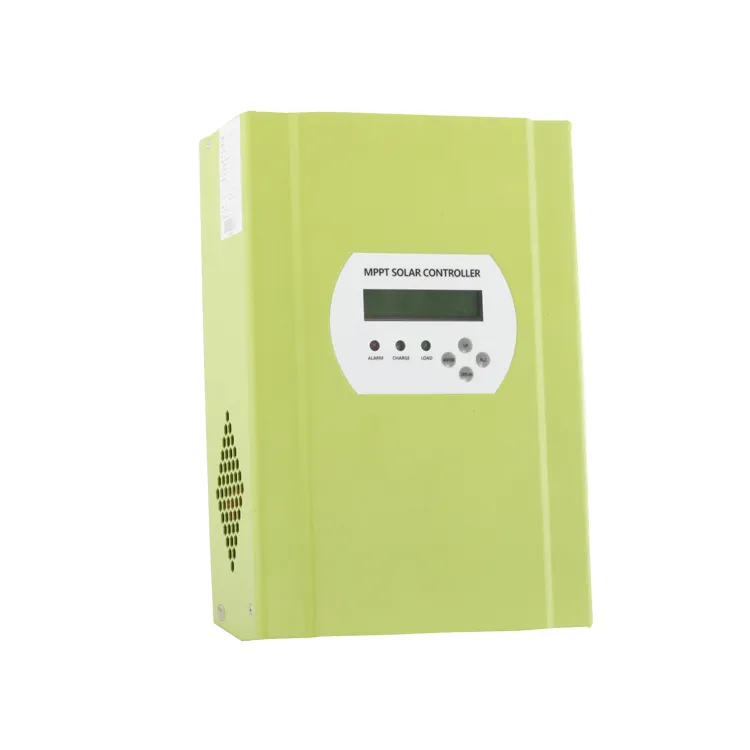

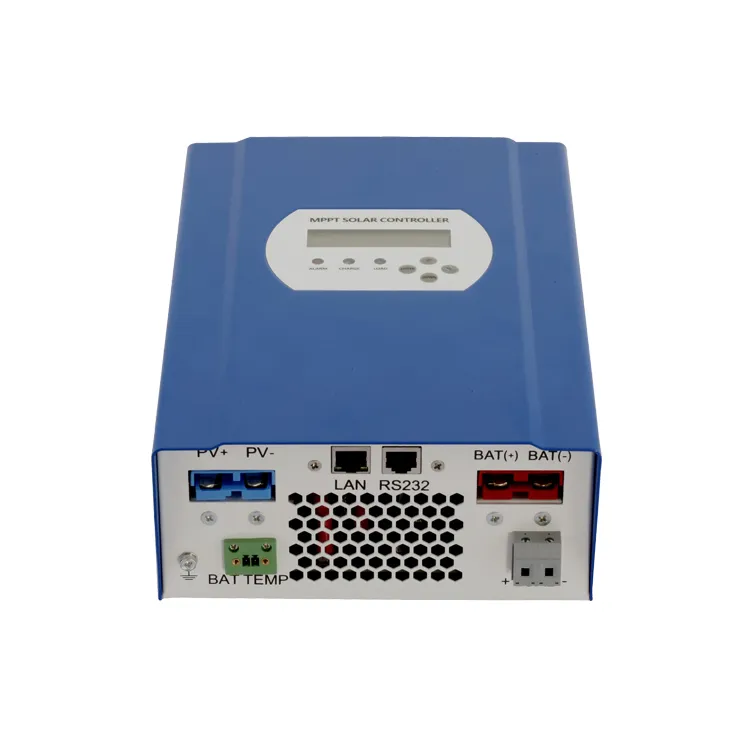

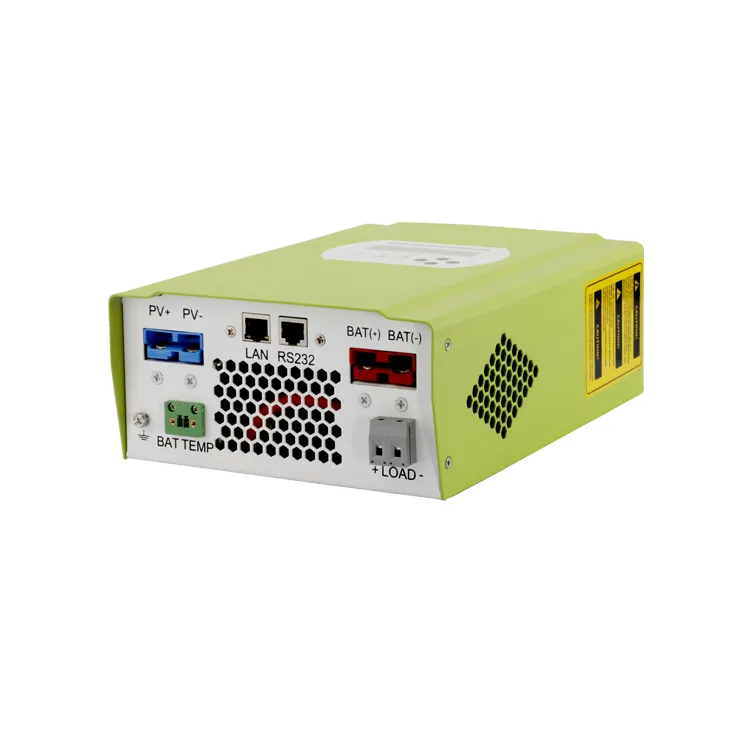

Product Gallery

Frequently Asked Questions

What is the MPPT efficiency of this controller?

The controller features an advanced MPPT algorithm with an efficiency of ≥99.5% and a conversion efficiency of up to 98%.

What types of batteries are compatible with this device?

It supports Sealed lead-acid, Gel, and Flooded batteries by default. Users can also customize parameters for other battery types.

Can I monitor the system remotely?

Yes, it supports RS485 communication. You can use PC software or an optional WiFi module to realize APP cloud monitoring.

Does the controller support different system voltages?

Yes, the controller features automatic recognition for 12V, 24V, 36V, and 48V battery systems.

What kind of charging stages does it use?

It utilizes a 3-stage charging method: constant current (fast charging), constant voltage, and floating charge to maximize battery life.

Is there any protection against over-voltage?

Yes, it includes comprehensive protection functions such as input-output over/under voltage protection, reverse connection protection, and battery shedding protection.
