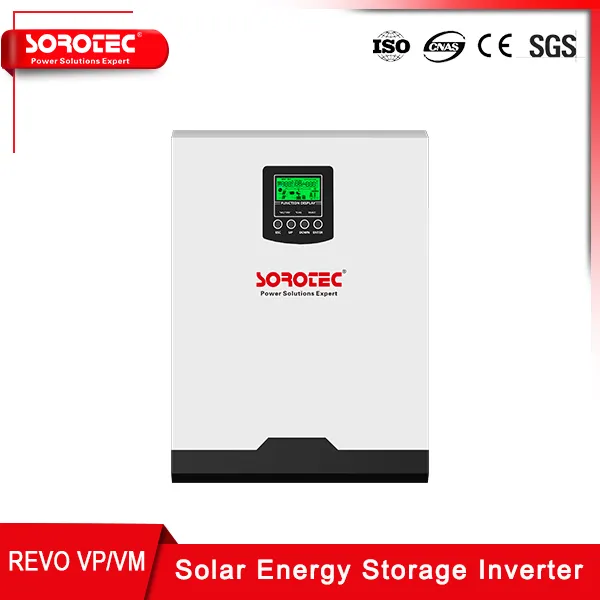

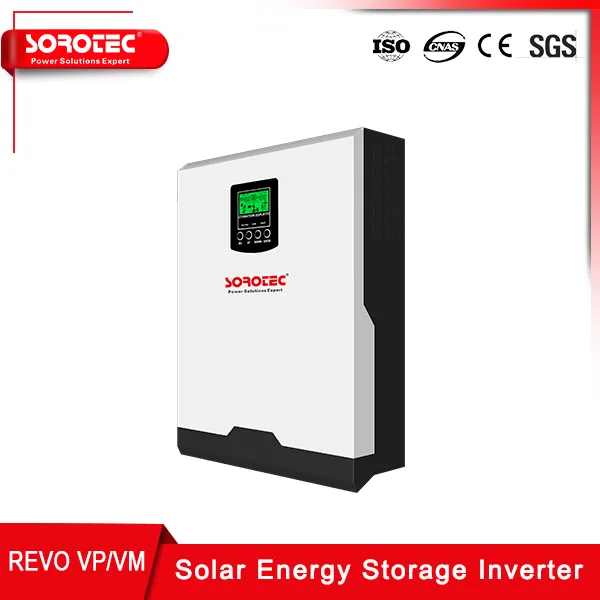

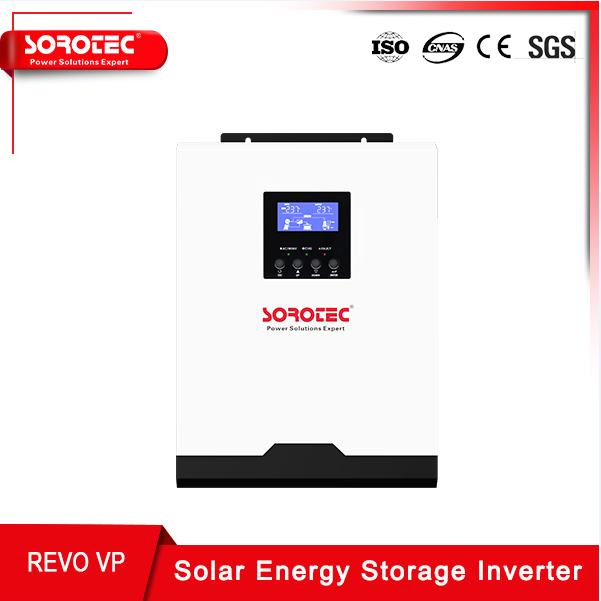

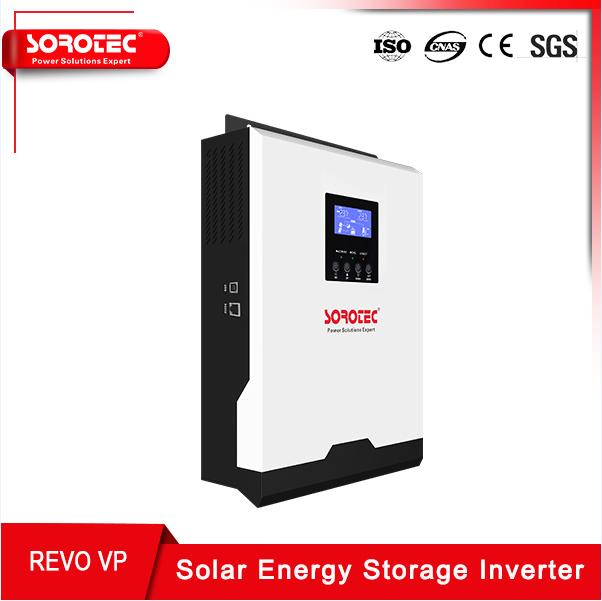

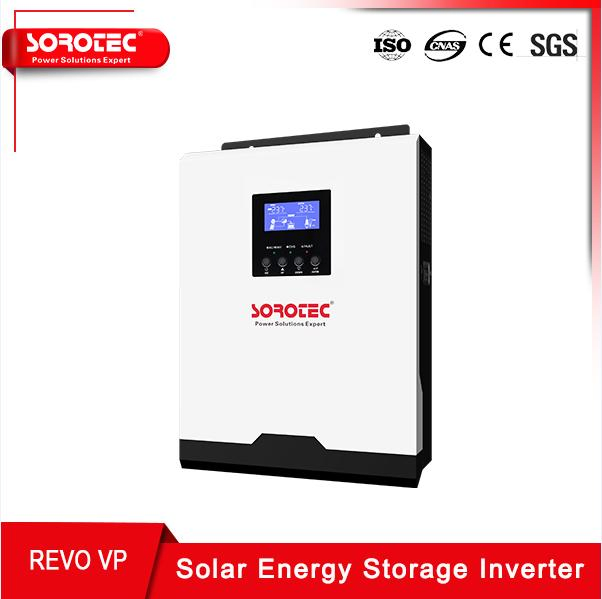

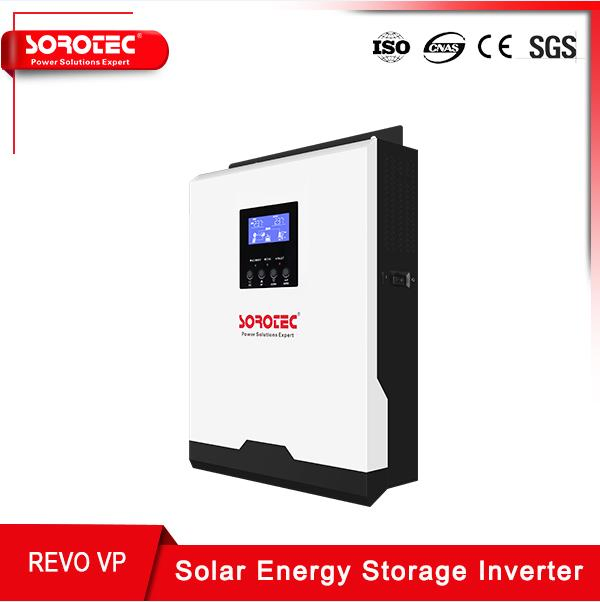

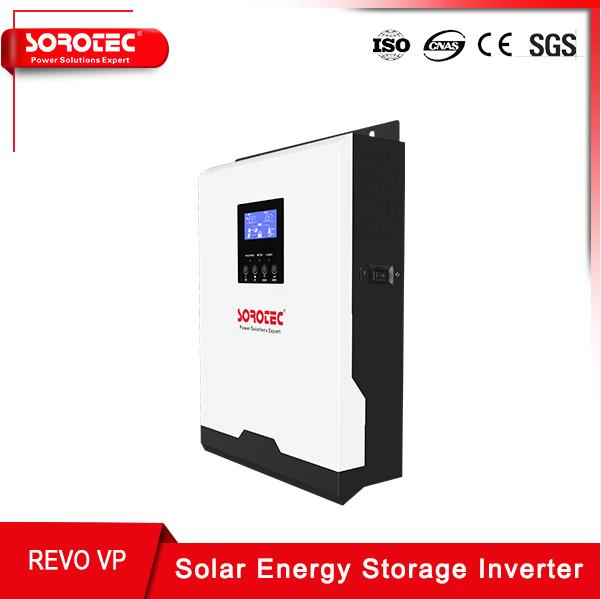

MPPT Solar 1-5kw MPPT PWM Auto Solar Charger Controller with One Stop Service

1 / 5

MPPT Solar 1-5kw MPPT PWM Auto Solar Charger Controller with One Stop Service

Customization:	Available
Nature of Source Flow:	Active Inverter
Phase:	Single

Send Inquiry

Product Description

Basic Specifications

Model NO.

REVO VP

Output Power

>1000W

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Pure Sine Wave

Output Voltage

220/230/240VAC

Efficiency

Up to 93.5%

Solar Charger

MPPT / PWM

Battery Voltage

24 VDC

Origin

China

Operating Temp

0 to 50 °C

Product Description

MPPT Solar Inverter Smart String Inverter High Efficiency OFF grid Inverter for PV system

Key Features:

✔ Pure sine wave solar inverter
✔ Output power factor 1
✔ Selectable high power charging current
✔ Wide DC input range
✔ Configurable AC/Solar input priority via LCD setting
✔ Compatible to AC mains or generator power
✔ Auto restart while AC is recovering
✔ Overload and short circuit protection
✔ Smart battery charger design for optimized battery performance
✔ Cold start function

Technical Specifications

MODEL	VP 1000-12	VM 1200-12	VP 2000-24	VM 2200-24	VP 3000-24	VM 3200-24	VP 5000-48	VM 5000-48
Rated Power	1000W	1200W	2000W	2200W	3000W	3200W	5000W
INPUT / OUTPUT
Voltage	230 VAC
AC Regulation	230VAC ± 5%
Surge Power	2000VA		4000VA		6000VA		10000VA
Waveform	Pure sine wave
SOLAR CHARGER
Charger Type	PWM	MPPT	PWM	MPPT	PWM	MPPT	PWM	MPPT
Max PV Array	600W	700W	1200W	1400W	1200W	1800W	2400W	3000W
Max Charge Current	50A	60A	50A	60A	70A	60A	110A	120A

Product Applications

Ideal for various scenarios:

🏠 Living houses and home buildings
🏢 Office buildings, factories, and warehouses
🛒 Shopping malls and stadiums
⚡ Power stations and field operations
⛵ Camping, Boat trips, and Journeys

Manufacturing Excellence

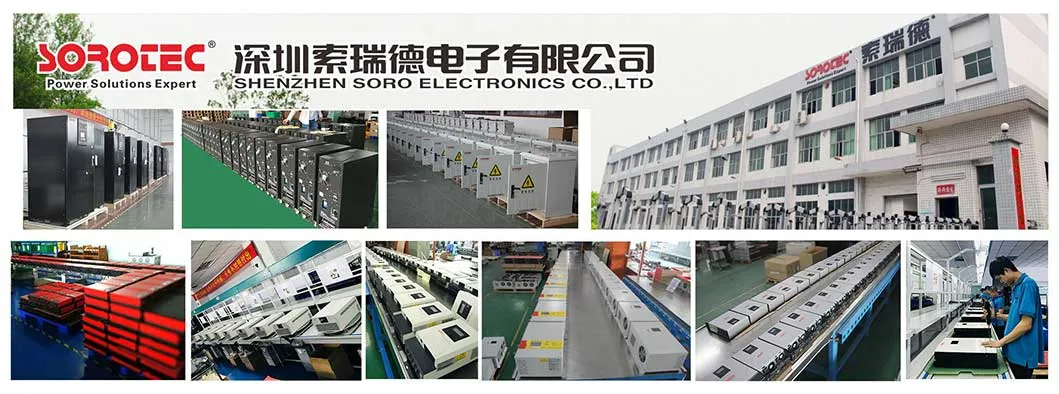

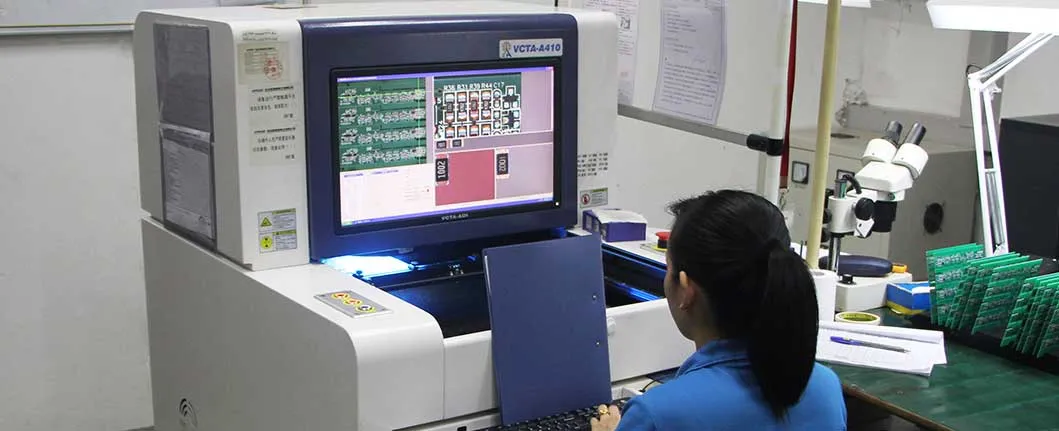

Our manufacturing facility is a leading enterprise in the power electronics industry with over 15 years of expertise. We operate large-scale production sites equipped with advanced SMT departments and international testing equipment.

Quality Control: We hold ISO9001 international quality system certification. Every product undergoes rigorous testing from material sourcing to final assembly. Most products meet CE (LVD/EMC), CUL, and FCC standards.

Frequently Asked Questions

How to choose a suitable inverter?

For resistive loads like bulbs, a modified wave inverter is sufficient. For inductive loads (fans, AC, fridges, coffee machines), we highly recommend a pure sine wave inverter to protect the equipment life.

How do I determine the correct inverter size?

For resistive loads, match the load power. For capacitive loads, choose 2-5 times the power. For inductive loads (motors/compressors), choose 4-7 times the rated power to handle the starting surge.

What is the requirement for battery cables?

Shorter cables are better (ideally under 0.5M) to prevent voltage drop. If cables are too long, the inverter may trigger a low voltage alarm because the voltage at the inverter side will be lower than at the battery terminal.

How to calculate the working hours for my battery?

Use this formula: Work hours = Battery Capacity (AH) * Battery Voltage (V) * 0.8 / Load Power (W). Note that battery condition and age will affect the actual performance.

What is the difference between MPPT and PWM models?

MPPT controllers offer higher conversion efficiency (up to 98%) and better performance in varying light conditions compared to PWM models, allowing you to harvest more energy from your solar array.

Does this inverter support cold start?

Yes, it features a cold start function, allowing the inverter to be powered up directly from the battery even when AC mains power is not available.
