High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
1 / 5
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller
High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller

High Quality Solar System Charger Panel Charge Fangpusun PWM Pump Station MPPT Controller

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
stin-480V
Condition
New
Certification
ISO, CE
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
480V
Package
Wooden Case
Capacity
20000PCS/Month

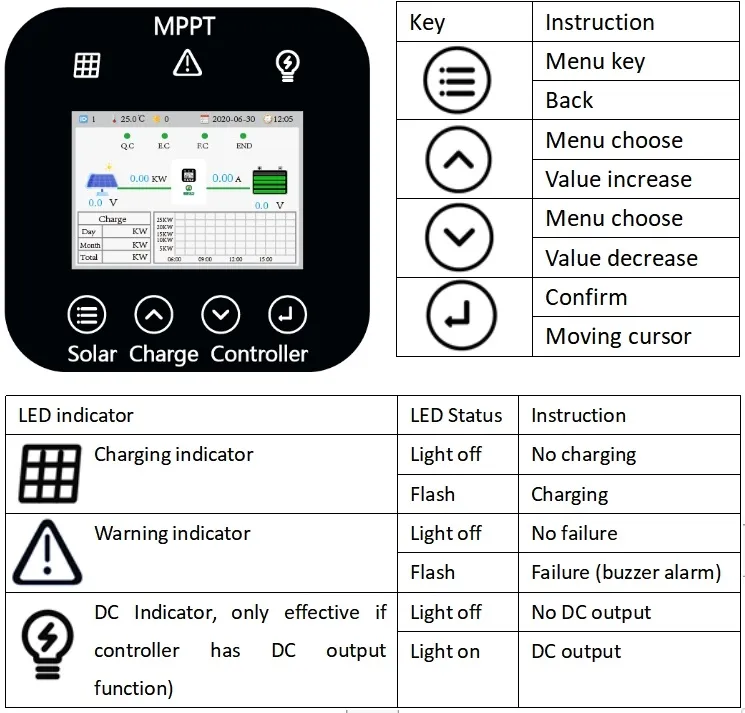

Solar MPPT Controller

Core Features

✓
High speed and high performance 32-bit processor with excellent EMC design.
✓
Advanced MPPT tracking algorithm, the tracking efficiency more than 99%.
✓

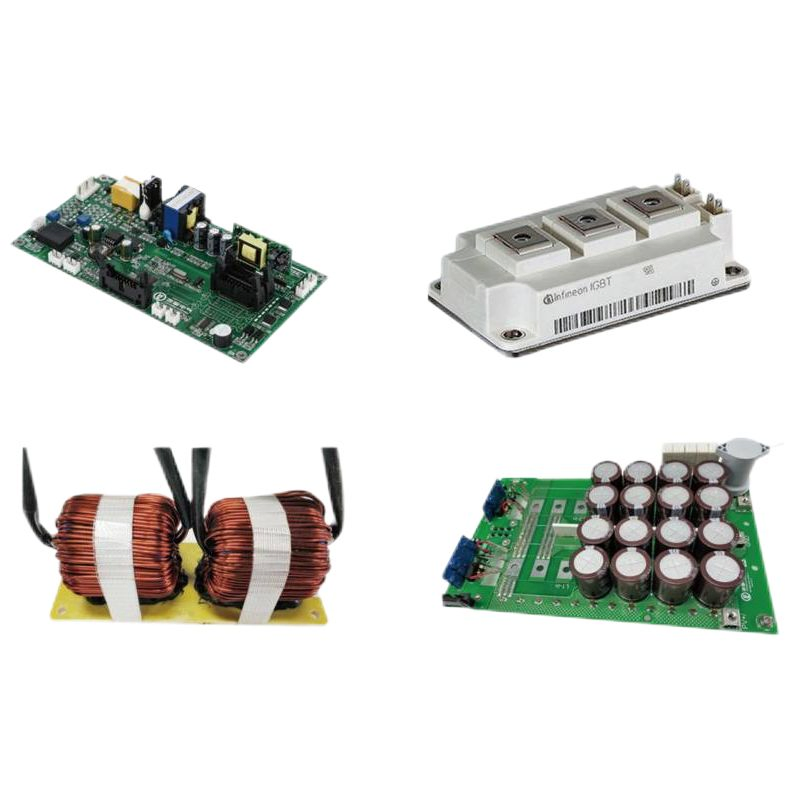

High performance IGBT power module as electronic switch for enhanced stability.
✓
Ultrafast maximum power point tracking speed to ensure tracking efficiency.
✓
With current-limiting charging function, compatible with various capacity batteries.
✓
Full enclosed duct design and high-speed fan for cooling in harsh environments.
✓
Automatic temperature compensation function and RTC real time function.
✓
Statistical function of generating capacity to view daily, monthly and total charging.
✓
Compatible with GEL, LEAD-ACID, LITHIUM and other battery types.

Technical Parameters

Rated system voltage 192V240V288V300V360V384V420V480V540V
Rated Charging current 50A / 60A / 70A / 80A / 100A
Charging technology MPPT (Max. Power Point Tracking)
MPPT efficiency >99.9%
Max. input voltage 750V
Charging method Four stages: MPPT fast charging, equalize charging, float charging, end charging
Over voltage disconnect (V) 256320384400480512560640720
Equalize charging (V) 230.4288345.6360432460.8504576648
Float charging (V) 220.8276331.2345414441.6483552621
Protection level IP32 (indoor)
Dimension / Weight 494*384*197mm / 27KG

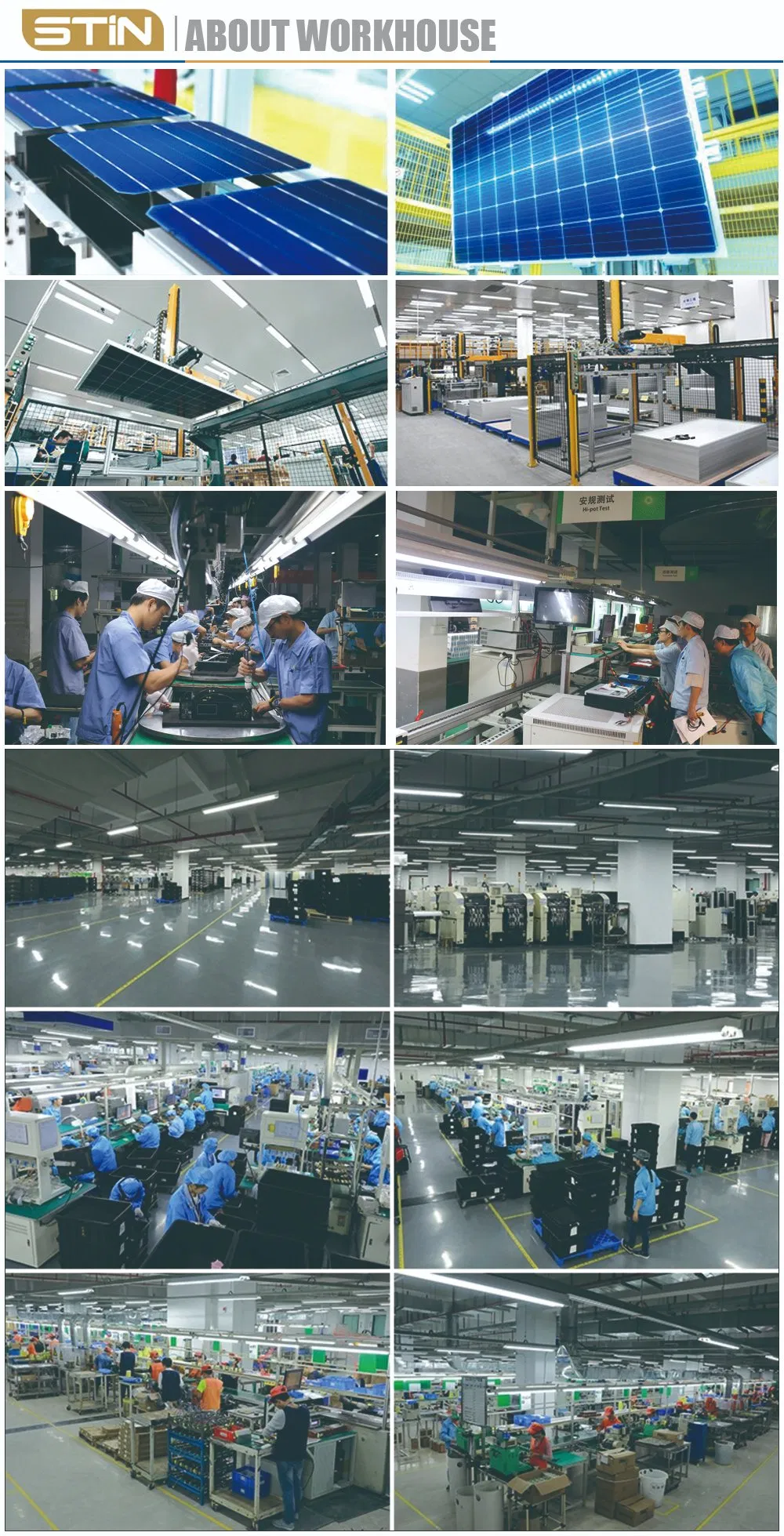

Controller Details

Frequently Asked Questions

What are the main products available?
We offer mono and poly solar panels, gel and lithium-ion batteries, on-grid and off-grid solar systems, solar inverters, and MPPT/PWM charge controllers.
What are the advantages of your solar products?
With over 10 years in the solar industry, we provide rich experience and full support from design to installation across multiple international regions.
Can samples be provided?
It depends on the product type. Normally, any sample fees paid are credited back once a massive order is placed.
How is shipping cost calculated?
Shipping costs are determined by the quantity, preferred mode of transport (sea, air, or express like DHL/Fedex), and the destination port.
What is the Minimum Order Quantity (MOQ)?
Our minimum order quantity starts from just 1 piece.
What payment methods are accepted?
We accept several payment methods including T/T, L/C, Paypal, and Western Union.
