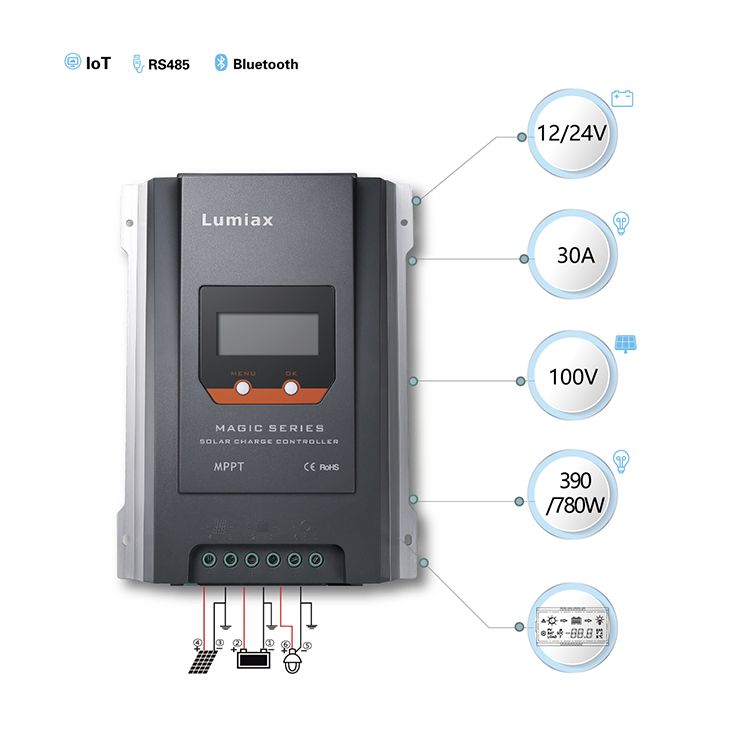

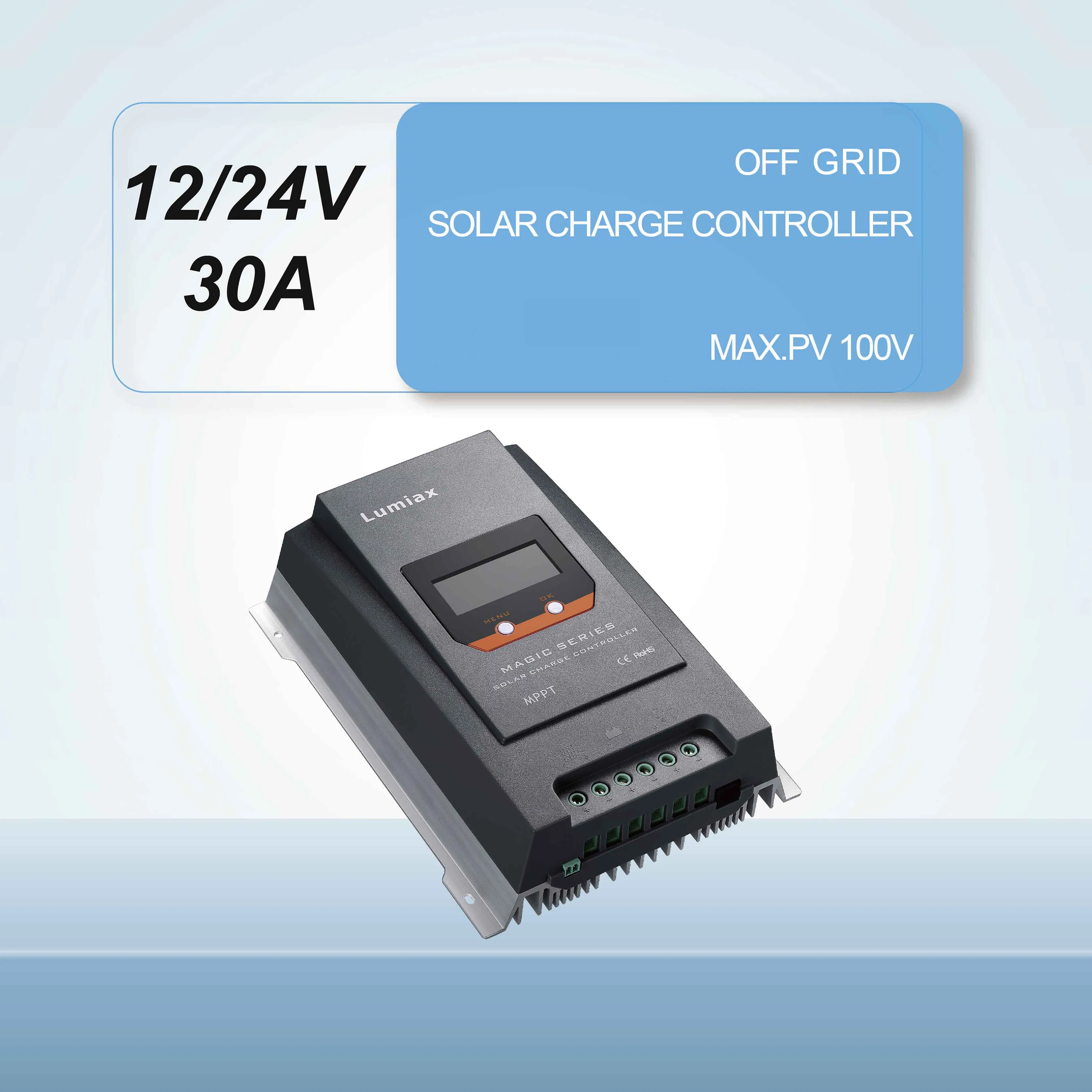

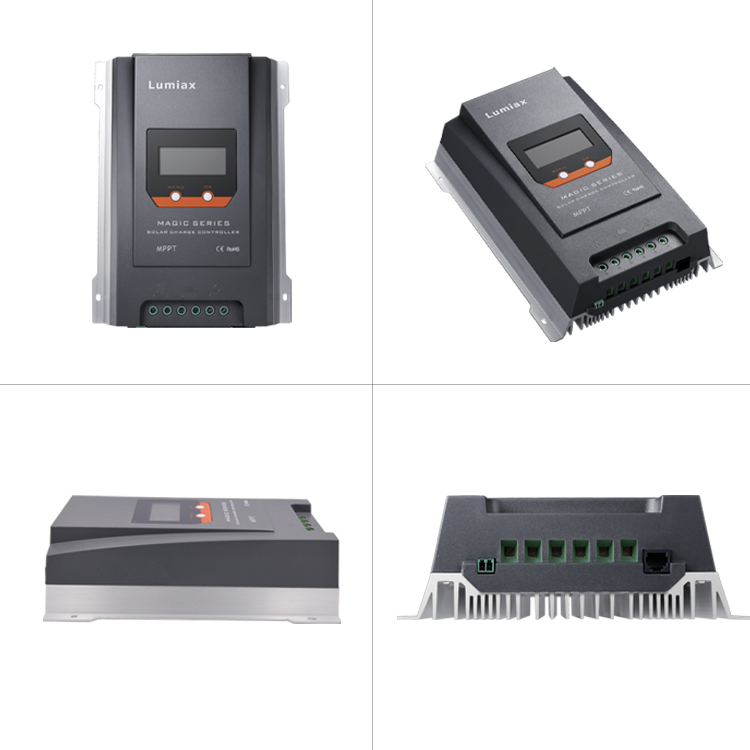

30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
1 / 5
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer
30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer

30A 12V 24V Waterproof PWM MPPT Solar Charge Controller with Aluminium Outer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

iBasic Information
Model NO.
MT3010
Condition
New
Certification
ISO, CE, RoHS, FCC
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
12V/24V
Tracking Efficiency
99.9%
Max Charge Current
30A
Battery Type
Liquid, Gel, AGM, Lithium
Protection Degree
IP32
HS Code
9032899099

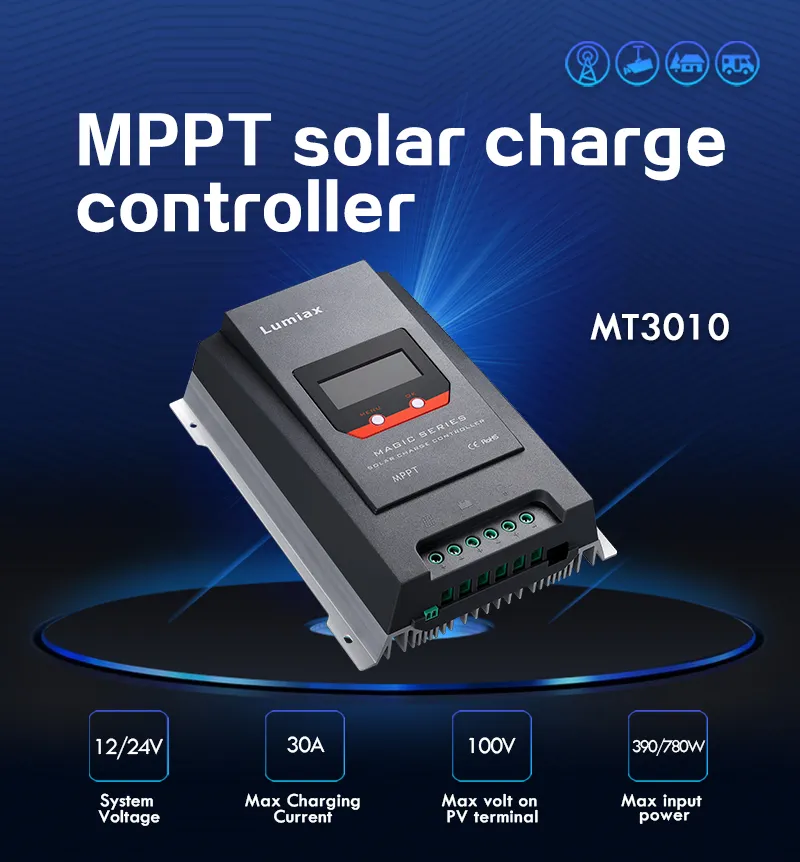

MPPT Solar Charge Controller
⚙Product Parameters
Item MT2010 MT3010 MT2075 MT3075
Max Charging Current 20A 30A 20A 30A
System Voltage 12V/24V Auto Recognition
Battery Type Gel, AGM, Liquid, Lithium (Default: Gel)
Max tracking efficiency >99.9%
Max charge conversion 98.0%
Max input power 260/520W 390/780W 260/520W 390/780W
Dimensions (mm) 189*182*64 189*255*63 189*182*58 189*182*64
Protection Degree IP32
Communication RS485 (RJ11 interface)
★Product Gallery

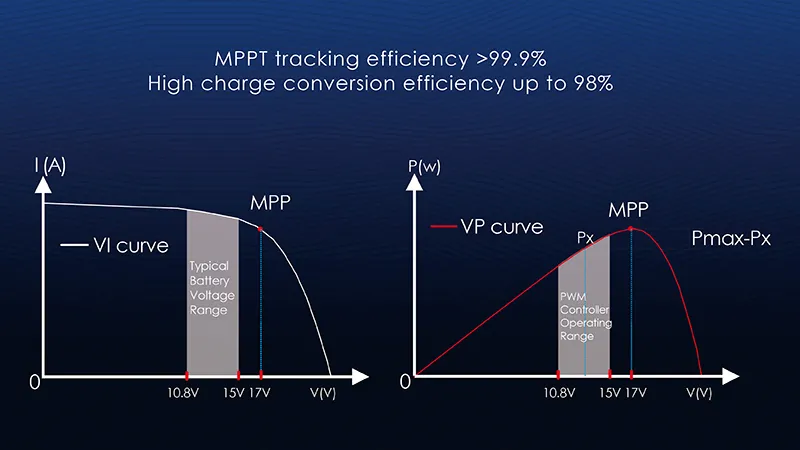

Details 1
Details 2
Details 3

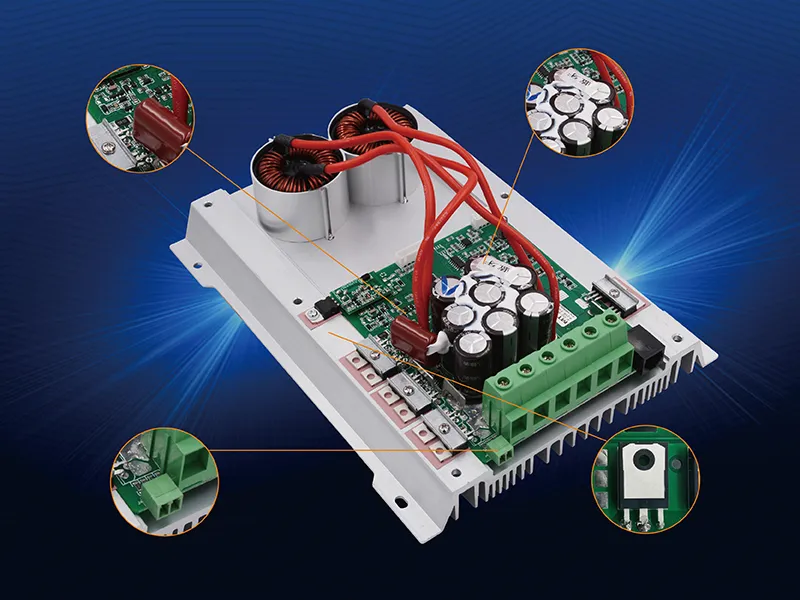

Details 4
Details 5
✔Our Advantages
Advantage 1
Advantage 2

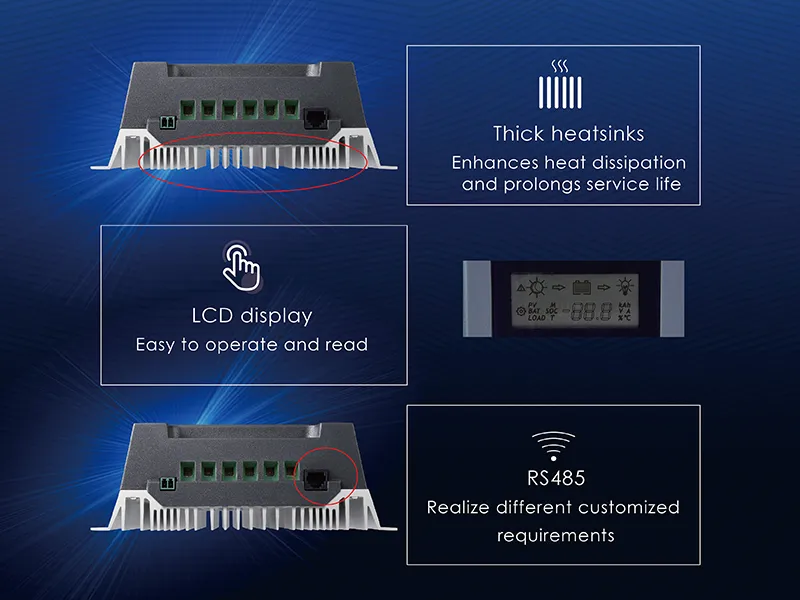

Advantage 3
◈Certifications & Production
Certificates
Factory

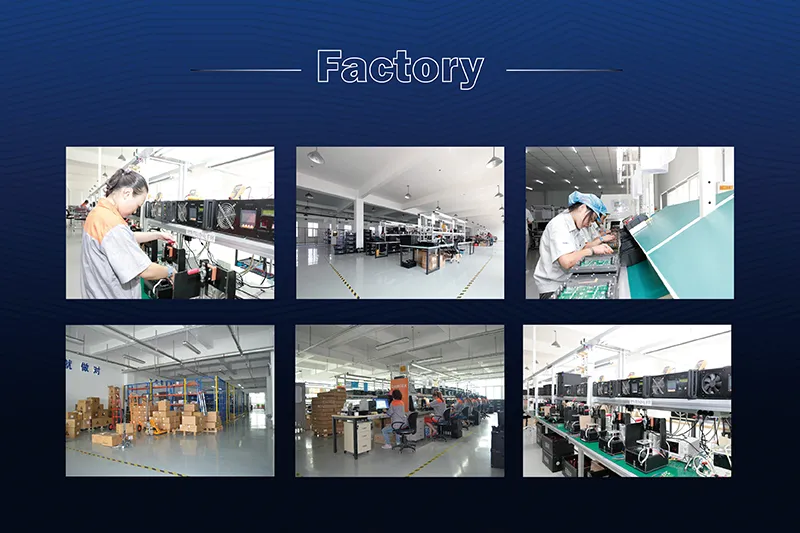

Testing

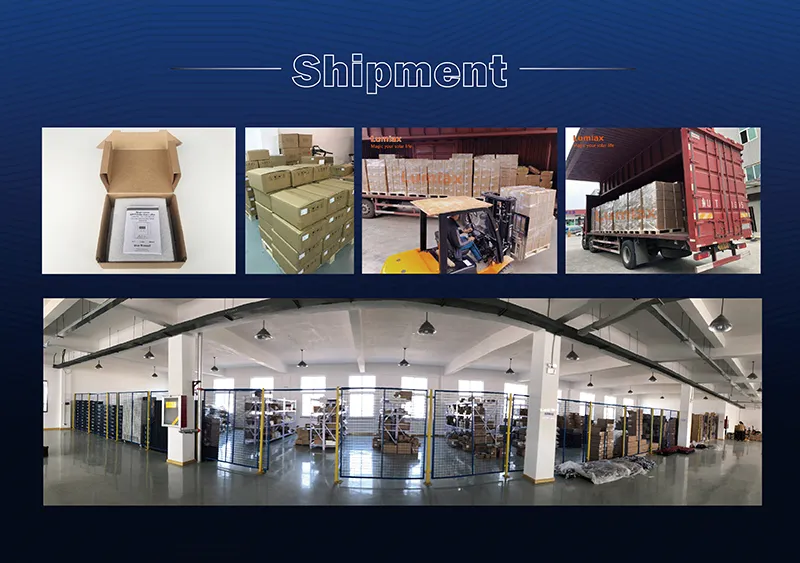

Production
Workshop

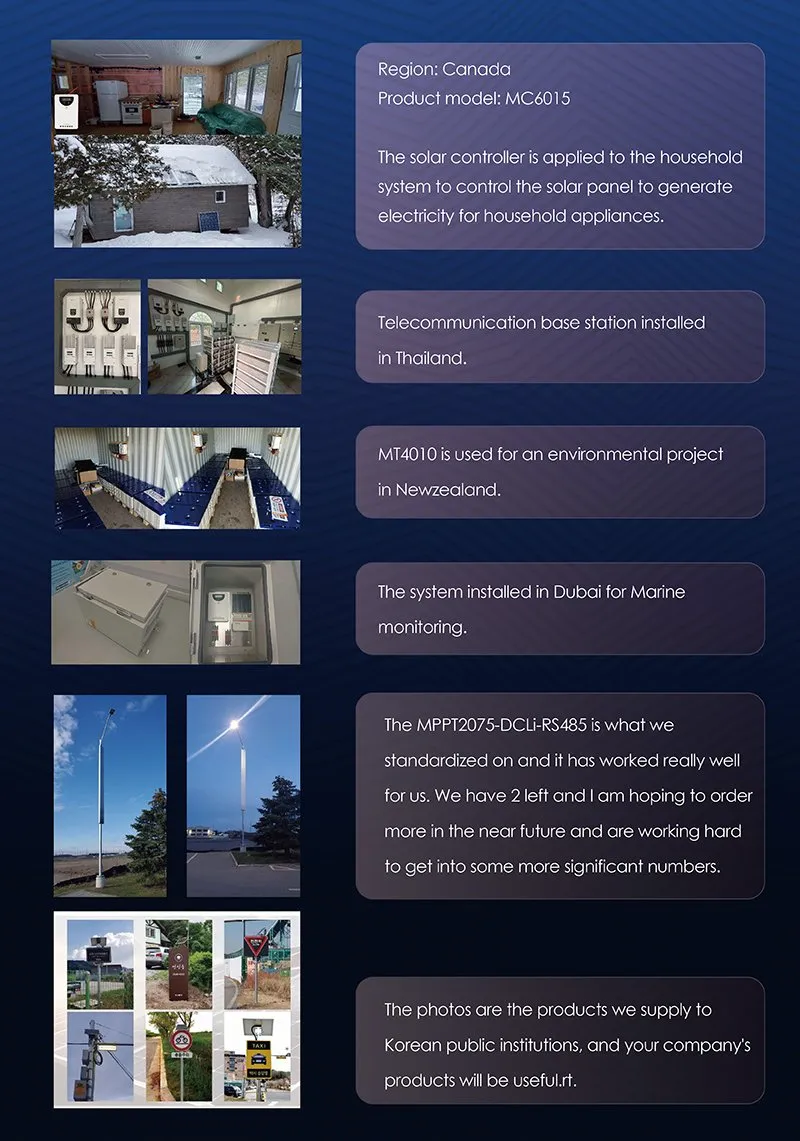

Process
?Frequently Asked Questions
Q1: What is the maximum tracking efficiency of this controller?
The controller features advanced MPPT technology with a maximum tracking efficiency of over 99.9%.
Q2: Does it support lithium battery charging?
Yes, it is compatible with Liquid, Gel, AGM, and Lithium battery types with programmable parameters.
Q3: Can the controller automatically recognize the system voltage?
Yes, the device supports 12V and 24V system voltage automatic recognition for easier installation.
Q4: What are the protection features included?
It includes overcharge protection, low voltage disconnect, over-temperature protection, and an IP32 protection degree.
Q5: Are there any communication options for remote monitoring?

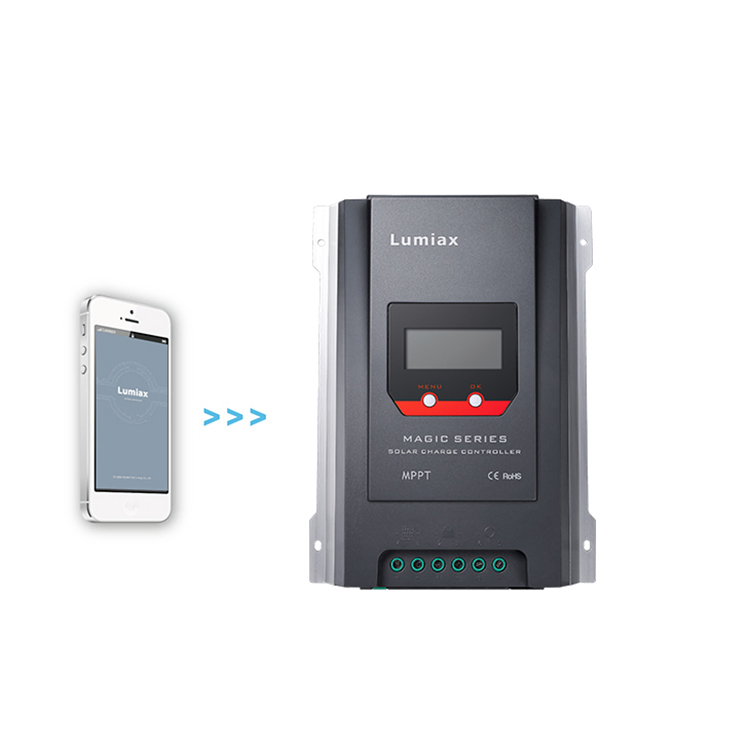

Yes, it features an RS485 communication interface (RJ11) and supports optional IoT or Bluetooth modules for internal or external monitoring.
Q6: What is the maximum PV input voltage?
For the MT3010 model, the maximum PV input voltage is up to 100V (at -20ºC) or 90V (at 25ºC).
