Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
stin-480V
Condition
New
Certification
ISO, CE
Application
Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station
Rated Voltage
480V
Transport Package
Wooden Case
HS Code
9032899090
Production Capacity
20000PCS/Month
★

Product Highlights

MPPT Solar Charge Controller
  • High speed and high performance 32-bit processor with excellent EMC design
  • Advanced MPPT tracking algorithm, the tracking efficiency more than 99%

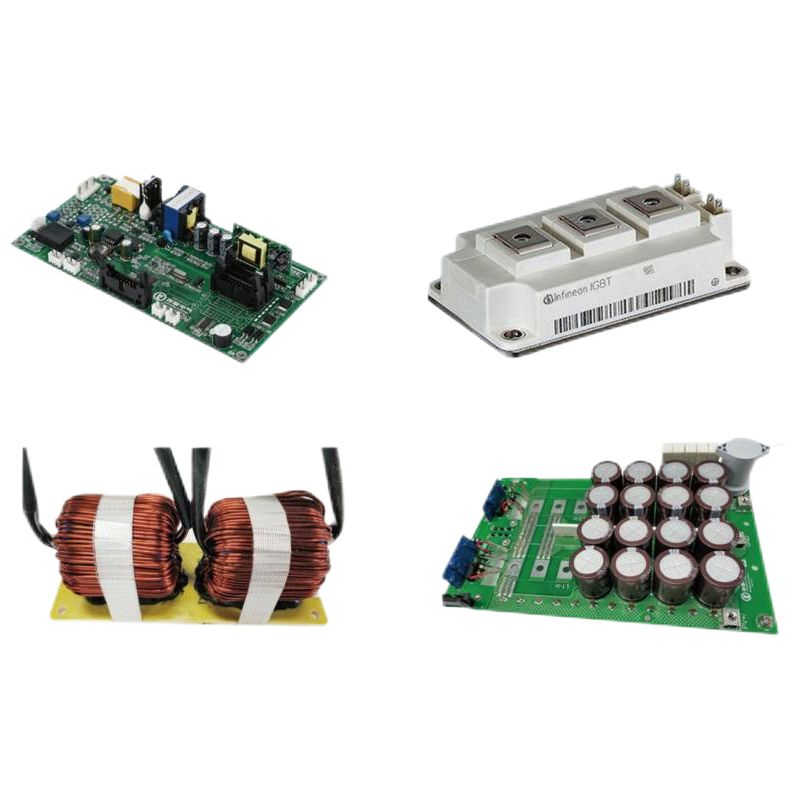

  • High performance IGBT power module as electronic switch with multiphase synchronous rectification
  • Ultrafast maximum power point tracking speed to ensure tracking efficiency
  • Accurate identification and tracking of multi-peak maximum power points
  • Current-limiting charging function, compatible with various capacity batteries
  • Wide PV arrays voltage input to save costs on combiner boxes and wiring
  • Full enclosed duct design and high-speed fan for harsh environments
  • Automatic temperature compensation and RTC real-time function
  • Statistical function for daily, monthly, and total generating capacity
  • Compatible with GEL, LEAD-ACID, LITHIUM and other battery types
  • Double protection function for battery safety
⚙

Technical Parameters

Rated system voltage 192V240V288V300V360V384V420V480V540V
Rated Charging current 50A / 60A / 70A / 80A / 100A
Charging technology MPPT (Max. Power Point Tracking)
MPPT efficiency >99.9%
Max. input voltage 750V
Charging method Four stages: MPPT fast charging, equalize, float, end charging
Over voltage disconnect (V) 256320384400480512560640720
Equalize charging (V) 230.4288345.6360432460.8504576648

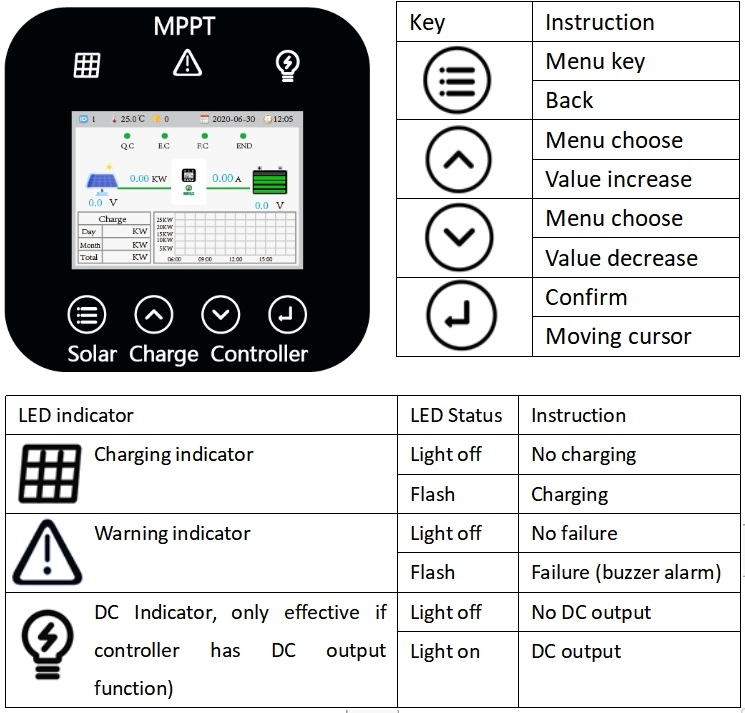

Display & Language LCD+LED / English
Protection level IP32 (indoor)
Technical Specs Diagram
?

Frequently Asked Questions

What are the main products available?
We offer mono and poly solar panels, gel and lithium-ion solar batteries, on-grid and off-grid solar systems, solar inverters, and both MPPT and PWM solar charge controllers.
What is the advantage of these solar products?
With over 10 years in the solar industry, our expertise covers the full spectrum from system design to installation support across international markets.
Are samples available?
Availability depends on the product type. Generally, sample fees can be credited back once a bulk order is placed.
How is shipping cost calculated?
Shipping costs are determined by the quantity, preferred transportation method (sea, air, or express courier like DHL/Fedex), and the destination port.
What is the Minimum Order Quantity (MOQ)?
Our minimum order quantity starts from just 1 piece.
What payment methods are accepted?
We accept various payment methods including T/T, L/C, Paypal, and Western Union.
