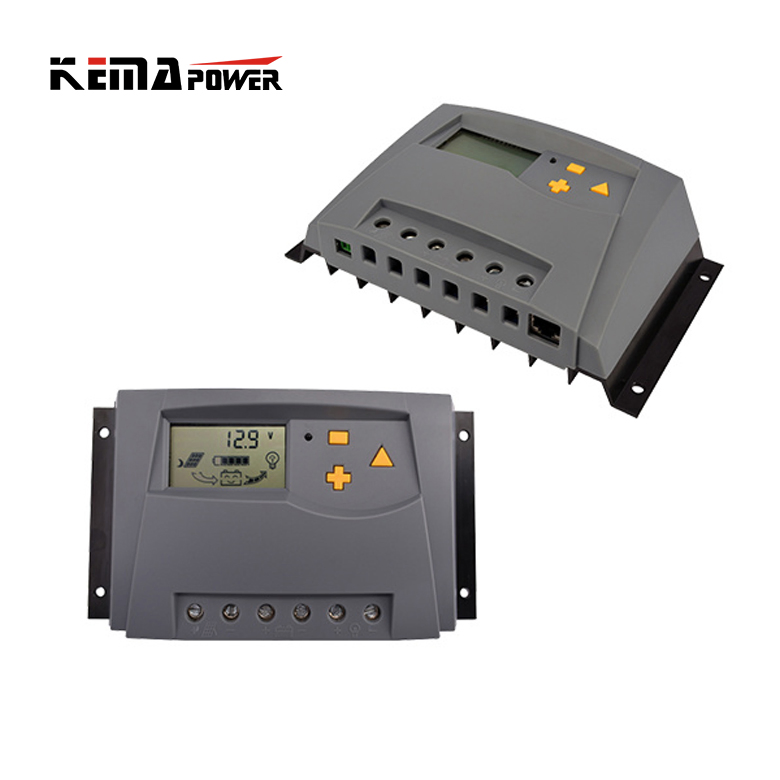

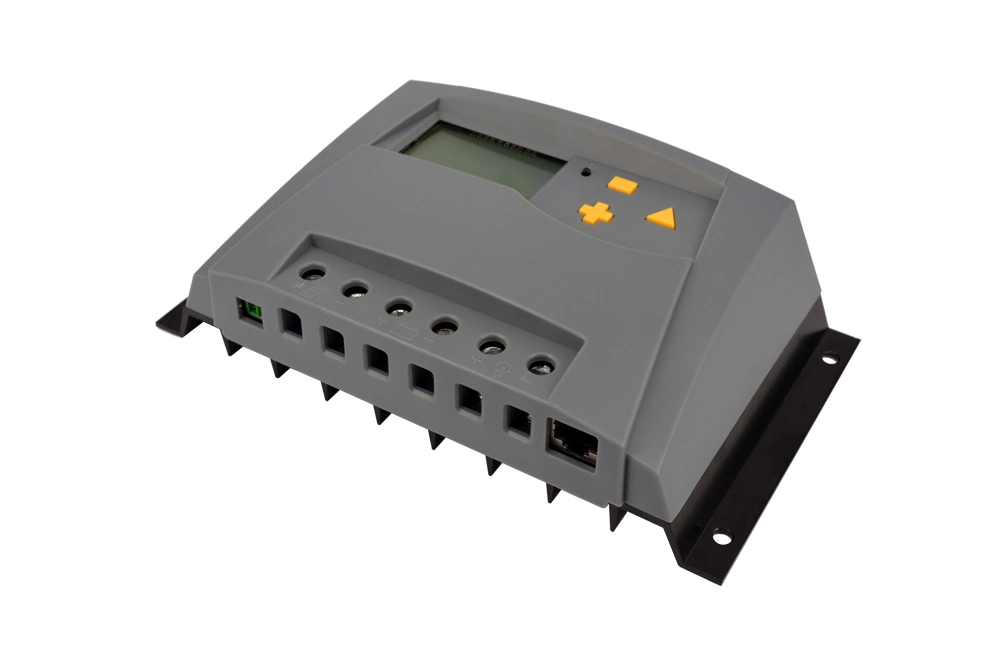

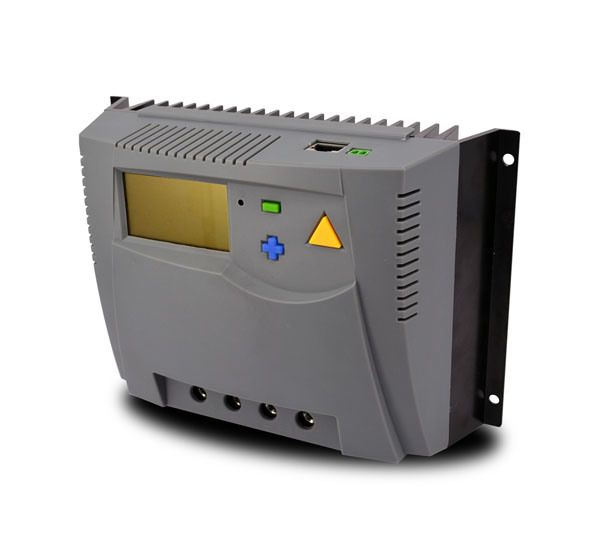

Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
1 / 5
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller
Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller

Kemapower 12V 24V 20A MPPT PWM Solar Charge Controller

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
HS20/30/38
Condition
New
Certification
ISO, CB, CE
Rated Voltage
12VDC 24VDC 48VDC
Product Name
PWM LCD Solar Charge Controller
Packing
Safety Packing
Specification
80Amp 100Amp
Capacity
50000PCS/Year

PWM Solar Charge Controller HS80D

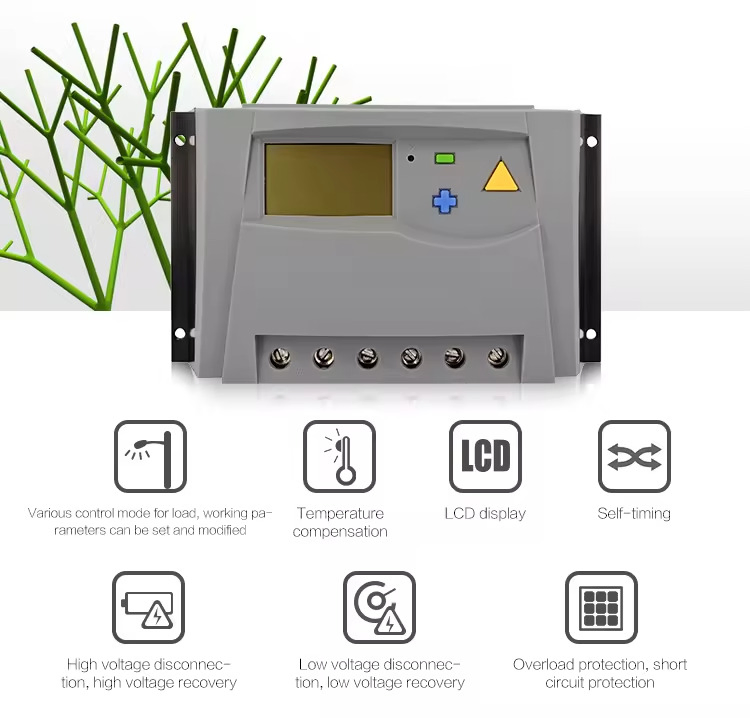

  • ✓ PWM solar charge controller 12/24V 80A, 48VDC 80A
  • ✓ Advanced LCD display: monitoring generated energy, battery status, PV input, and load discharge details
  • ✓ Enhanced terminals for safer and easier high-current installation
  • ✓ Support for various battery types with 4-stage intelligent charging (adjustable parameters)
  • ✓ Temperature compensation and built-in clock function
  • ✓ Multiple load working modes: Normal, Light Control, Light and Double Time control
  • ✓ Comprehensive protection: Over-charge, over-discharge, overload, short circuit, and reverse polarity
  • ✓ External communication: RJ45, RS232, or RS485 options available

Technical Specifications

ITEM / MODEL HS80D-8024 HS80D-8048
Rated Charge/Load Current 80A 80A
System Voltage 12/24V AUTO 12/24/48VDC AUTO
Protection Thresholds
Over Load ≥120% 60s; ≥150% 10s; ≥180% 0.2s
Low Voltage Disconnection (LVD) 10.7V (12V) / 21.4V (24V) / 42.8V (48V)
Static Current ≤15mA ≤18mA
Charging Voltage
Absorption / Float / Equalizing 14.4V / 13.8V / 15.1V (for 12VDC)
Solar Panel Open Circuit Voltage 12V/24V ≤ 50V; 48V ≤ 100V
Physical & Environment
Running Temperature -20 ~ +55 °C
Protection Class / Material IP30 / ABS
Product Size / Weight 187*98.5*49.5 mm / ~0.4kg

Product Display

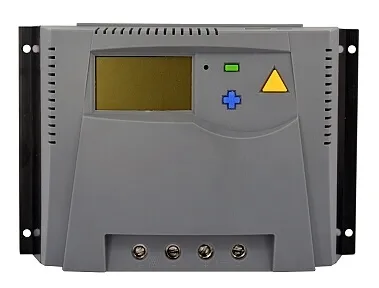

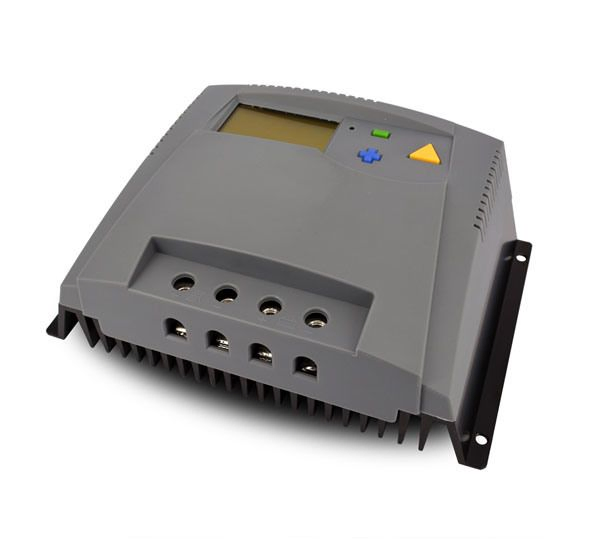

Solar Charge Controller Front
Solar Charge Controller Detail
Solar Charge Controller Back
Instruction Diagram 1
Instruction Diagram 2
Instruction Diagram 3
Instruction Diagram 4

Frequently Asked Questions

What is the maximum current supported by the HS80D model?
The HS80D model supports a rated charge and load current of up to 80A.
Can this controller work with a 48V battery system?
Yes, the HS80D-8048 model is designed to automatically work with 12V, 24V, and 48VDC systems.
What type of charging technology does it use?
It uses a PWM 4-stage charging mode, including bulk, absorption, float, and equalized charging.
Does the unit provide protection against reverse polarity?
Yes, it includes built-in protection for the solar panel, battery, and DC load against reverse polarity.
What information is displayed on the LCD screen?
The LCD displays battery type and voltage, PV output, generated energy (KWH), load power, internal temperature, and fault codes.
Is there a USB port for charging mobile devices?
No, the HS**D model series (LCD version) does not include a USB charging port.
