High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
1 / 5
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller
High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller

High Quality Solar System Charger MPPT Fangpusun PWM Pump Station Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
480V Series
Condition
New
Certification
ISO, CE
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
480V
Package
Wooden Case
Trademark
OEM/ODM
Capacity
20000PCS/Month
Solar Charge Controller
Key Features
High speed 32-bit processor with excellent EMC design
Advanced MPPT algorithm, efficiency > 99%

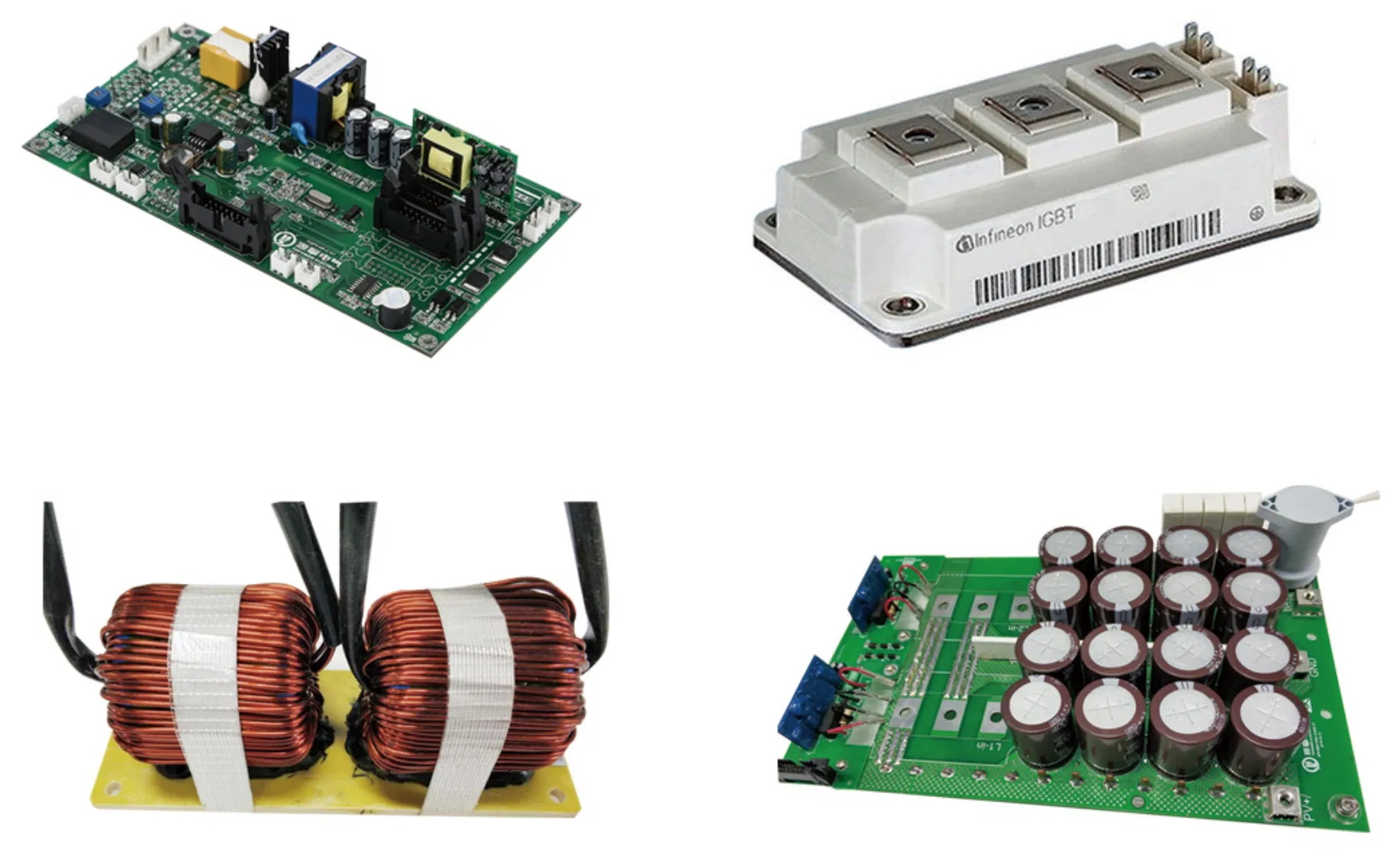

High performance IGBT power module electronic switch
Ultrafast maximum power point tracking speed
Accurate tracking of multi-peak power points
Current-limiting charging function for battery safety
Wide PV array voltage input range for cost saving
Enclosed duct design with high-speed cooling fan
Automatic temperature compensation & RTC function
Statistical function for daily and total capacity
Compatible with GEL, Lead-Acid, and Lithium batteries
Dual protection to prevent battery damage
Technical Parameters
Rated System Voltage 192V240V288V300V360V384V420V480V540V
Rated Charging Current 50A / 60A / 70A / 80A / 100A
Charging Technology MPPT (Max. Power Point Tracking)
MPPT Efficiency >99.9%
Max. Input Voltage 750V
Charging Method Four stages: MPPT fast, Equalize, Float, End charging
Over Voltage Disconnect (V) 256320384400480512560640720
Equalize Charging (V) 230.4288345.6360432460.8504576648

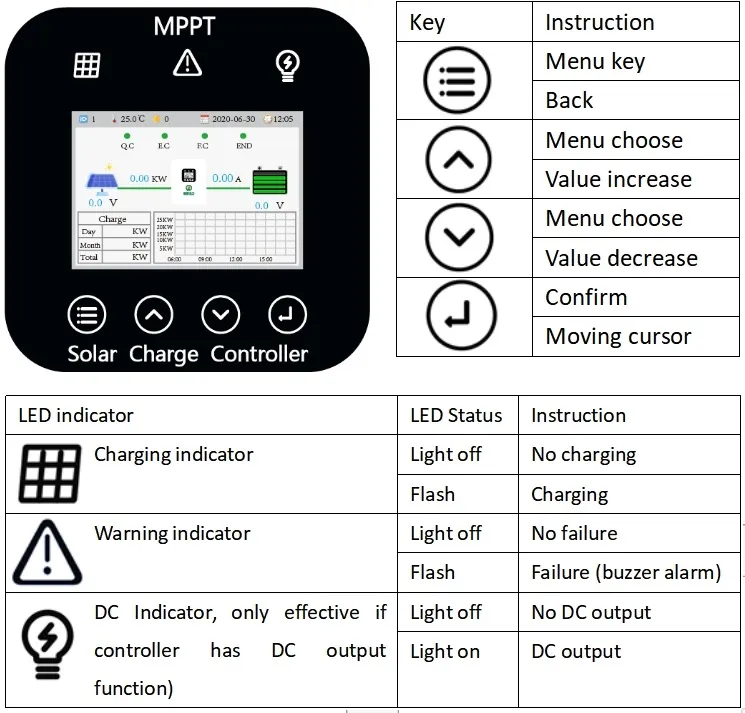

Display & Language LCD + LED / English
Ambient Temperature -25°C ~ 55°C
Protection Level IP32 (Indoor)
Technical Specifications
Graphic 1
Graphic 2
Graphic 3
Graphic 4
Graphic 5
Graphic 6
Frequently Asked Questions
What are your main products?
We specialize in mono and poly solar panels, solar gel and lithium-ion batteries, on-grid and off-grid solar systems, solar inverters, and high-efficiency MPPT/PWM solar charge controllers.
What is your advantage in the solar industry?
With over 10 years of experience in the solar industry, we provide comprehensive technical support ranging from system design to installation guidance.
Are samples available for testing?
Sample availability depends on the product type. Generally, sample fees can be credited back once a bulk order is placed.
How is the shipping cost calculated?
Shipping costs are based on the quantity and your preferred method (Sea, Air, or Express like DHL/FedEx). Once confirmed, we provide a detailed quote including estimated delivery time.
What is the Minimum Order Quantity (MOQ)?
Our minimum order quantity starts from 1 piece to accommodate various project requirements.
What payment methods do you accept?
We accept various payment methods including T/T (Bank Transfer), L/C, PayPal, and Western Union.
