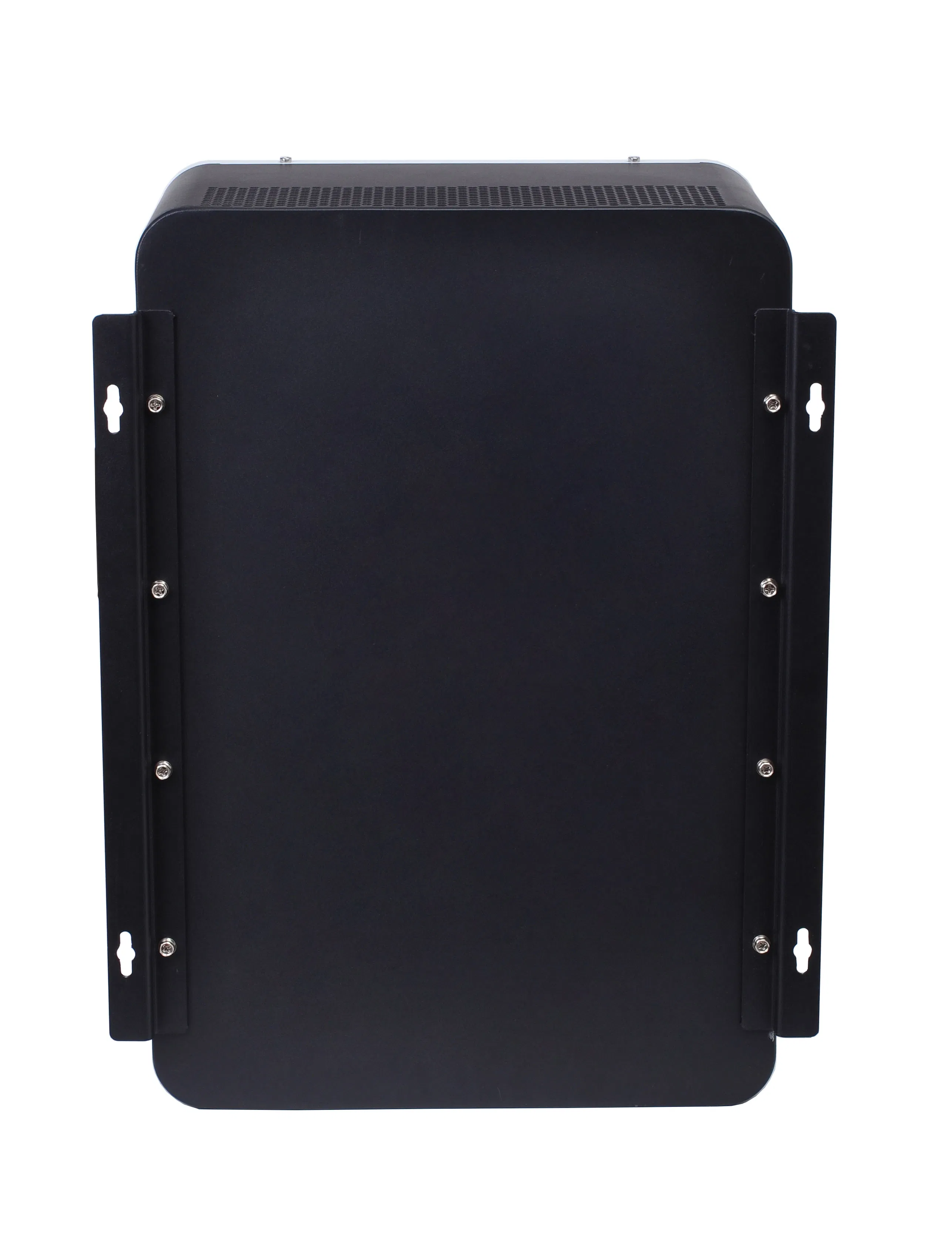

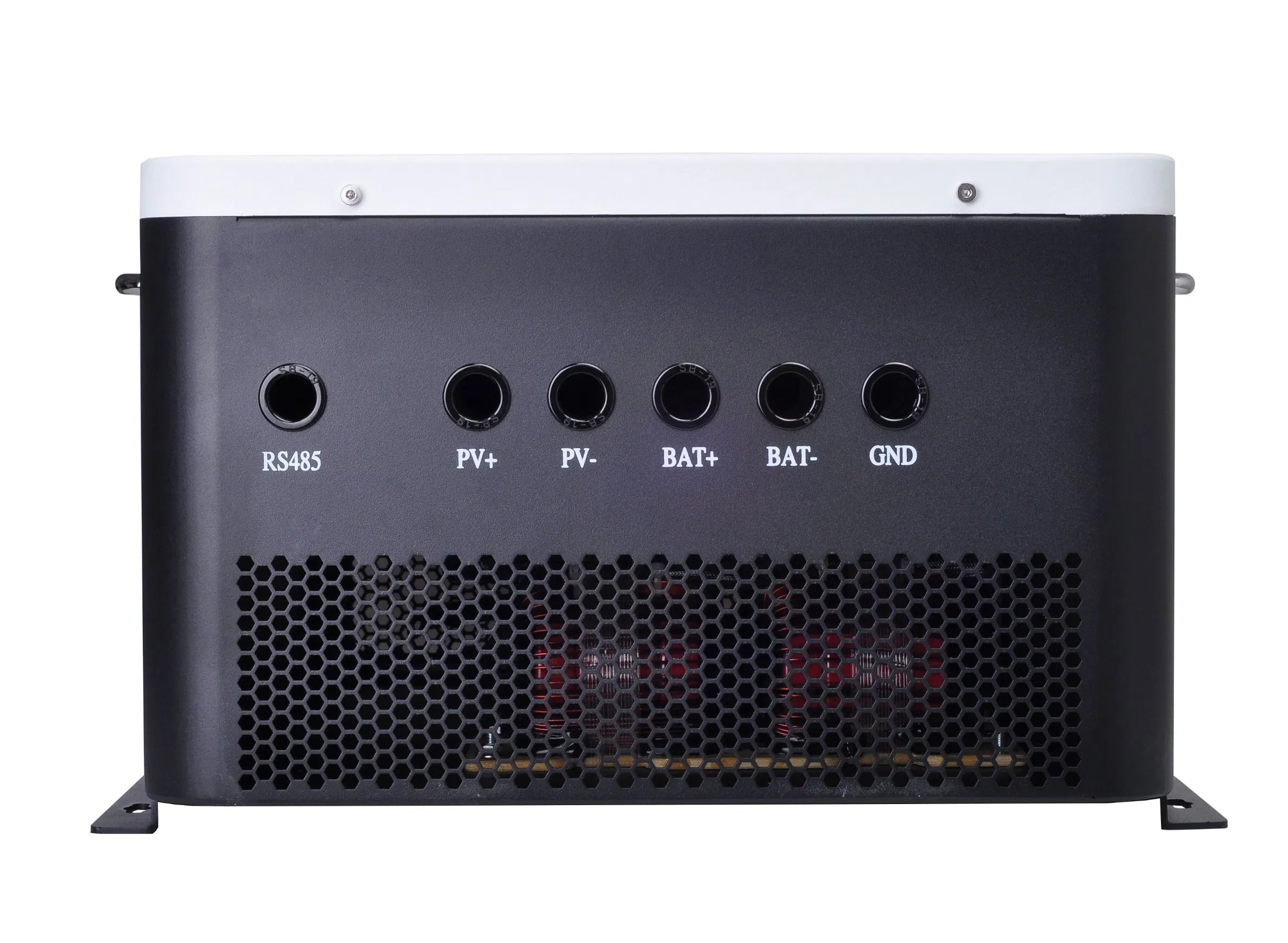

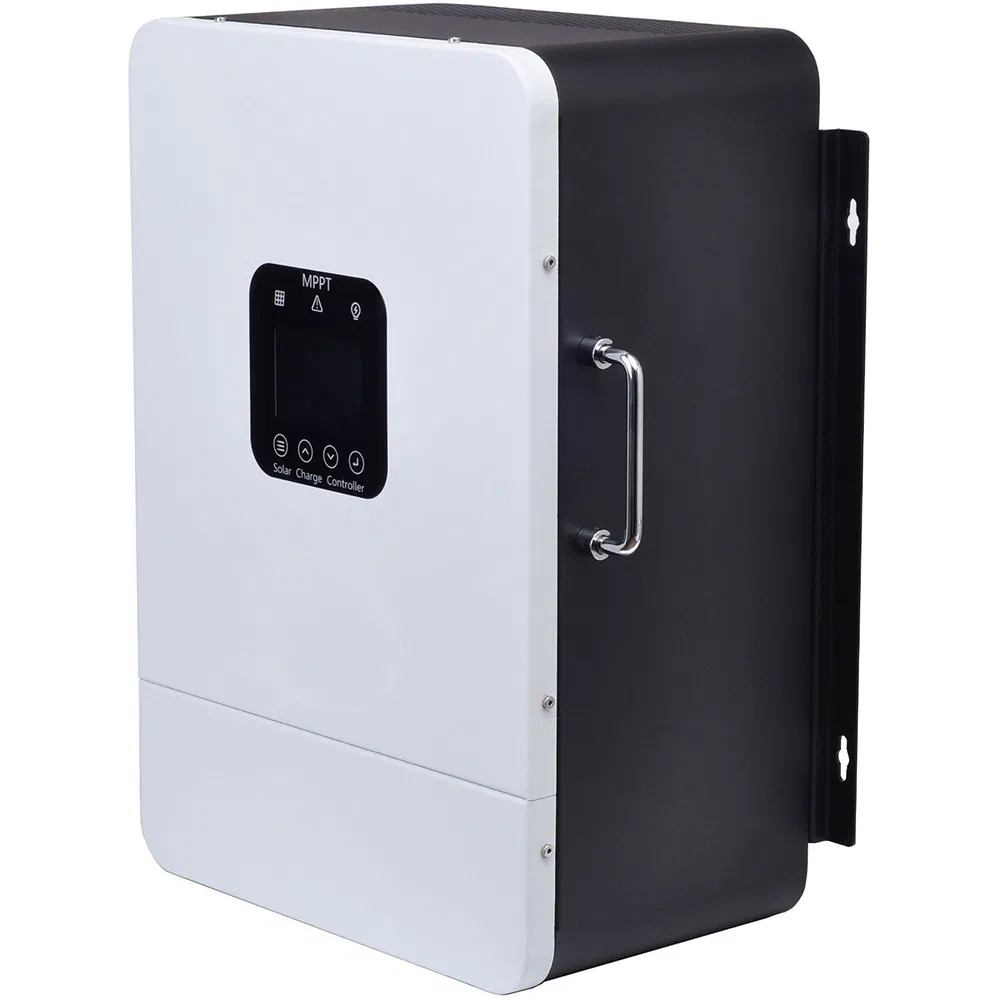

2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
1 / 5
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM
2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM

2 Years System Charge Fangpusun PWM MPPT Hybrid Solar Panel Controller OEM

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
480V Series
Condition
New
Certification
ISO, CE
Application
Solar System, Charger, Lighting Controller
Rated Voltage
480V
Package
Wooden Case
Trademark
OEM/ODM Available
Capacity
20,000 PCS/Month
Solar Charge Controller

Key Features

✓
High Performance: 32-bit processor with excellent EMC design for high-speed operation.
✓
Advanced MPPT: Tracking algorithm with efficiency greater than 99%.
✓

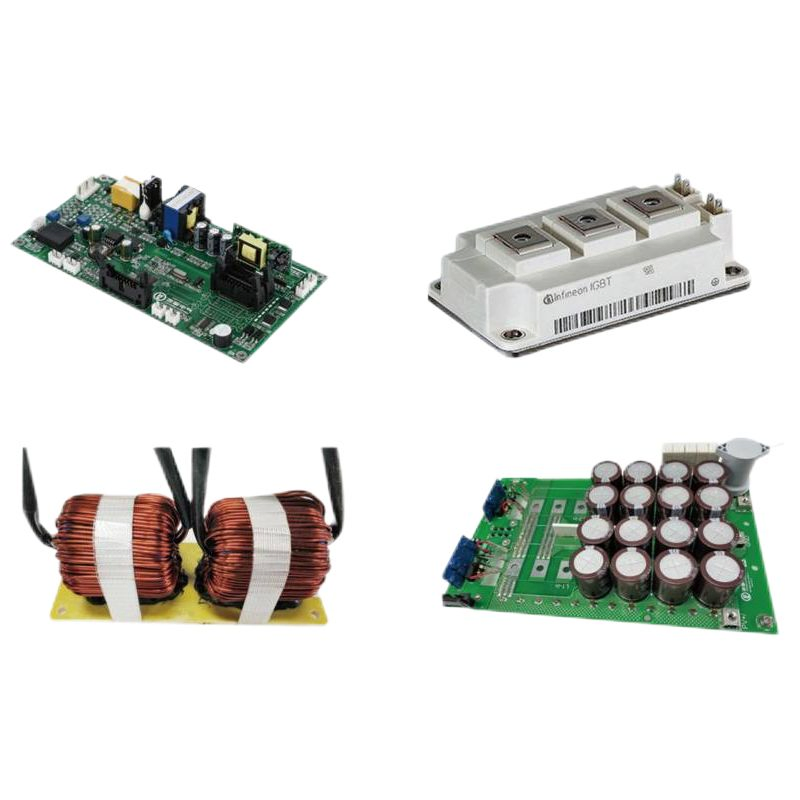

Electronic Switch: High performance IGBT power module ensures stability without mechanical wear.
✓
Current-Limiting: Programmable charging current compatible with various battery capacities.
✓
Versatile Input: Wide PV array voltage input range saves costs on combiner boxes and wiring.
✓
Smart Thermal Management: Enclosed duct design with high-speed cooling fans for harsh environments.
✓

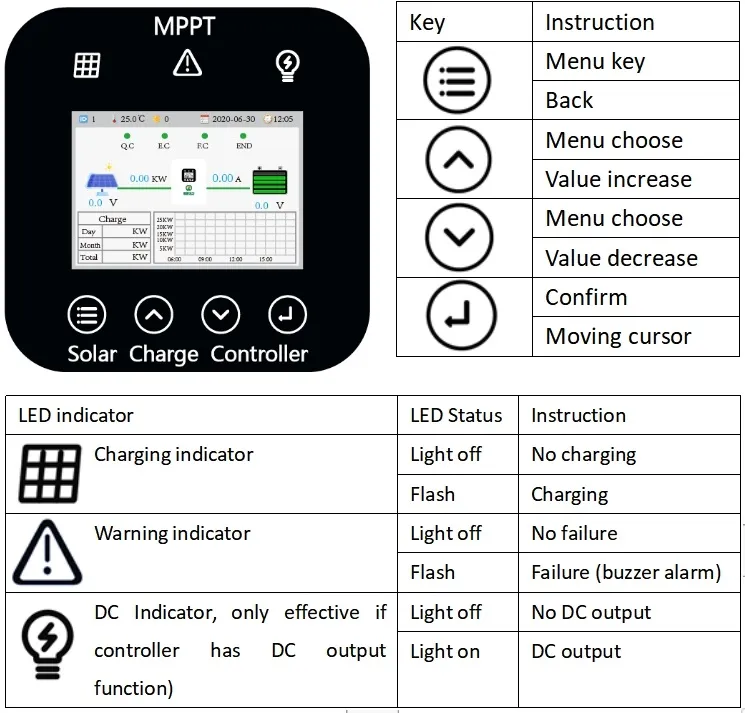

Data Statistics: Conveniently view daily, monthly, and total charging capacity.
✓
Multi-Battery Support: Compatible with GEL, LEAD-ACID, LITHIUM, and other battery types.

Technical Parameters

Rated System Voltage 192V240V288V300V360V384V420V480V540V
Rated Charging Current 50A / 60A / 70A / 80A / 100A
Charging Technology MPPT (Maximum Power Point Tracking)
MPPT Efficiency >99.9%
Max. Input Voltage 750V
Charging Method Four stages: MPPT Fast, Equalize, Float, End Charging
Over Voltage Disconnect (V) 256320384400480512560640720
Over Voltage Reconnect (V) 240300360375450480525600675
Protection Level IP32 (Indoor)
Dimensions / Weight 494*384*197mm / 27KG
Technical Specifications Diagram

Frequently Asked Questions

What are the main products available?
We offer mono and poly solar panels, solar gel and lithium-ion batteries, on-grid and off-grid solar systems, inverters, and both MPPT and PWM solar charge controllers.
What is your experience in the solar industry?
With over 10 years in the solar industry, we have accumulated rich experience and provide full support from initial design to final installation.
Can I request a sample?
Sample availability depends on the specific product. Typically, sample fees are returned after placing a bulk order.
How are shipping costs and times calculated?
Once the quantity is confirmed, shipping is calculated based on your preferred transportation method (Sea, Air, or Express like DHL/FedEx) and the destination port.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity starts from just 1 piece.
What payment methods are accepted?
We accept various payment methods including T/T, L/C, PayPal, and Western Union.
