📊 Basic Information
Model NO.XD-Solar controller
ConditionNew
CertificationISO, CE
ApplicationCollector Controller, Charger Controller, Voltage Controller
Rated Voltage12V~48V(MPPT) ; 12V~384V (PWM)
Rated Current10A~100A(MPPT) ; 10A~200A(PWM)
MPPT Tracking Efficiency>99% (MPPT)
Max PV Power140W~5600W (MPPT)
Conversion Efficiency>98% (MPPT)
Cooling MethodIntelligent Fan Control

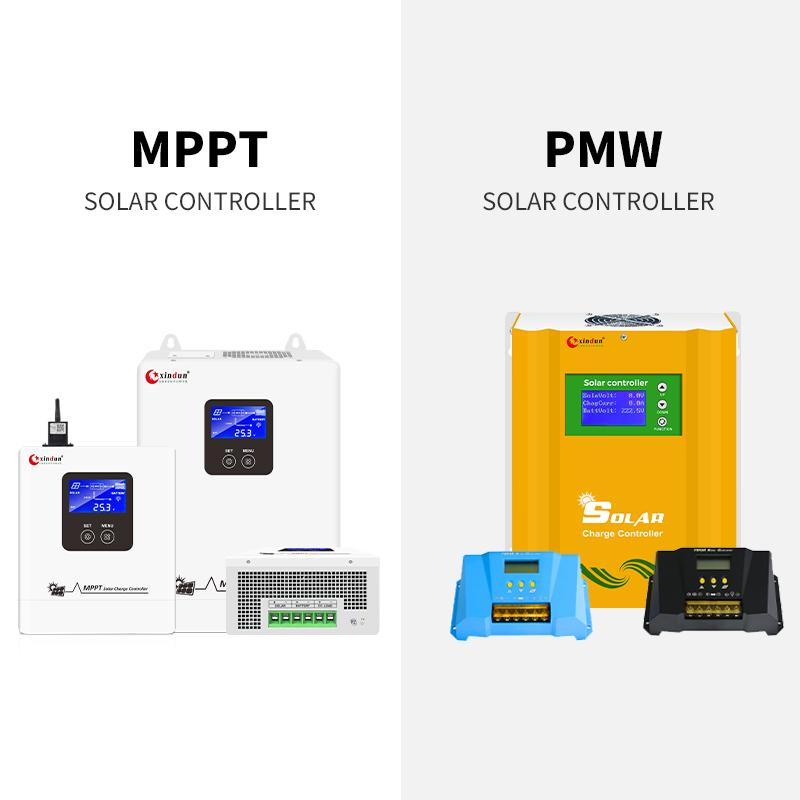

💡 Note: This details page is for MPPT. If you require PWM solar controller information, we can provide relevant video, pictures, and technical parameters upon request.
⭐ Inverter & Controller Features
01

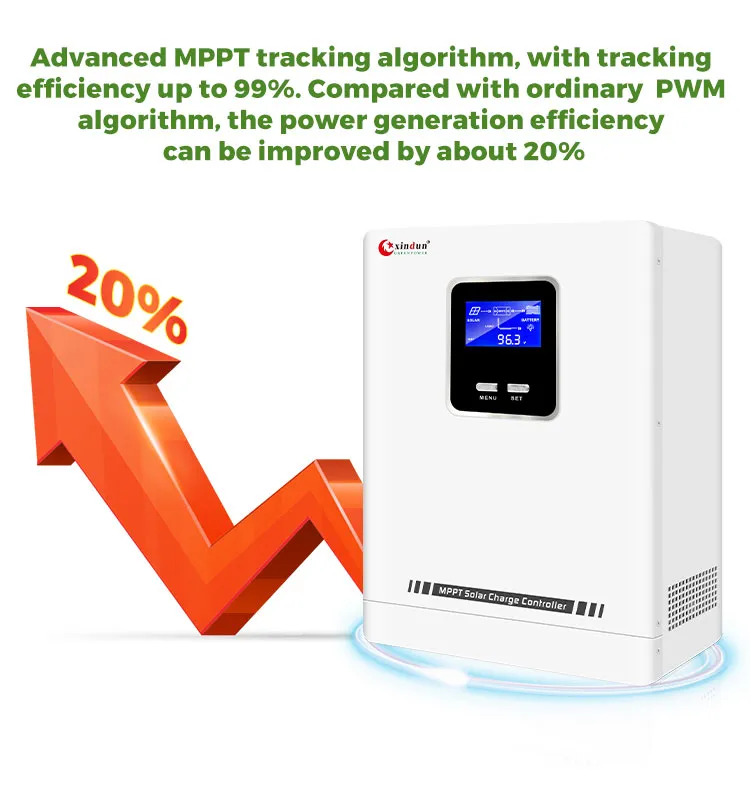

Advanced MPPT tracking algorithm with tracking efficiency up to 99%. Power generation efficiency improved by ~20% over PWM.
02
LCD graphic display for real-time PV data and power generation simulation.
03
Multiple load working modes to adapt to different application scenarios.
04

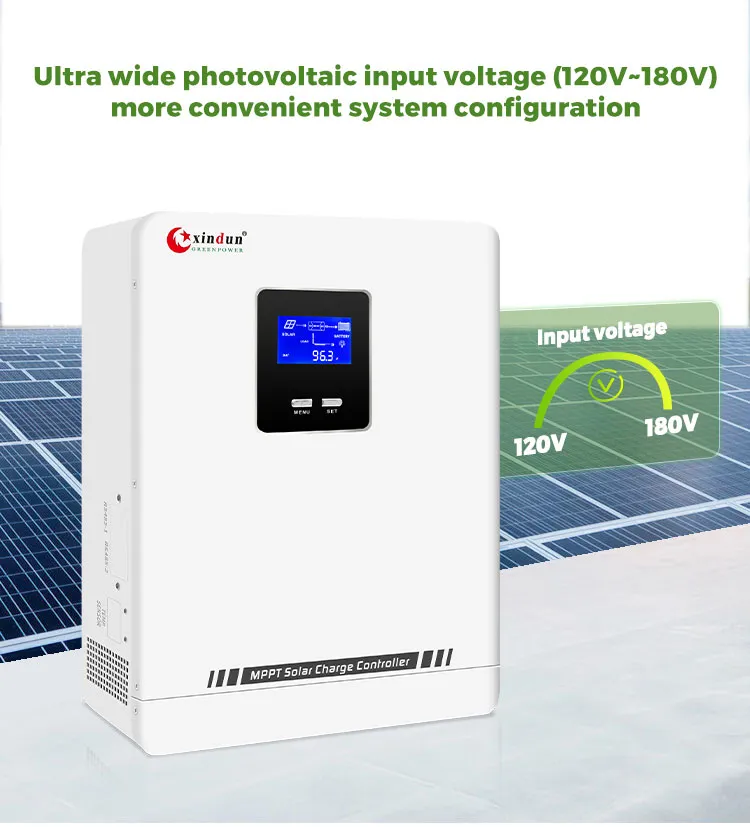

Ultra-wide PV input voltage range for more flexible system configuration.
05

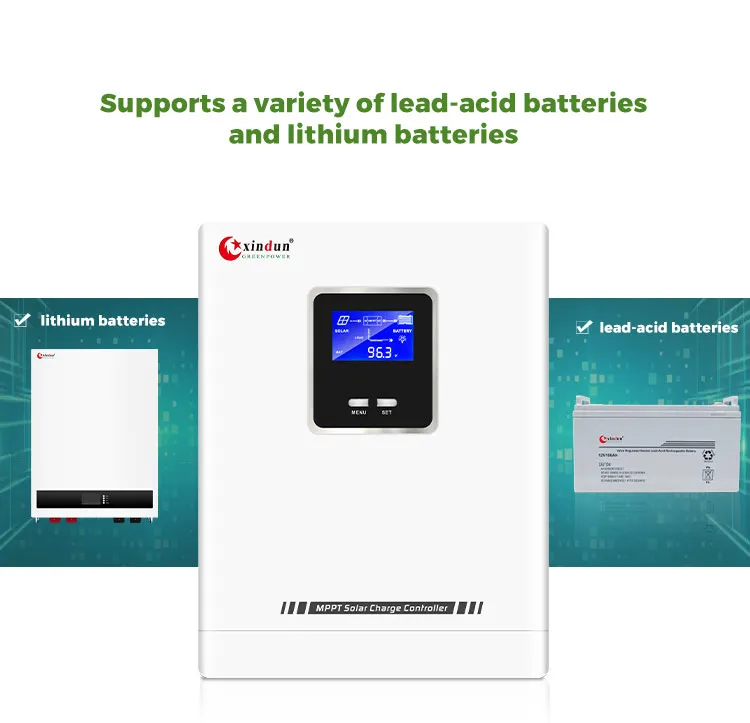

Supports various lead-acid and lithium batteries with customizable charging/discharging parameters.
06

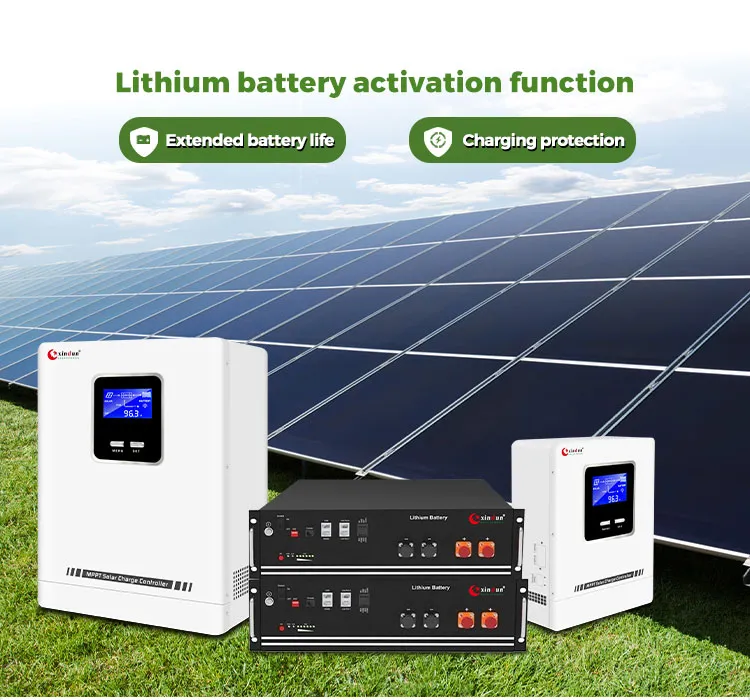

Integrated Lithium battery activation function.
07
Full electronic protection: Anti-reverse connection (Battery/PV), over-current, over-temperature, and voltage protection.
08
Intelligent battery management to significantly extend battery life cycle.
09

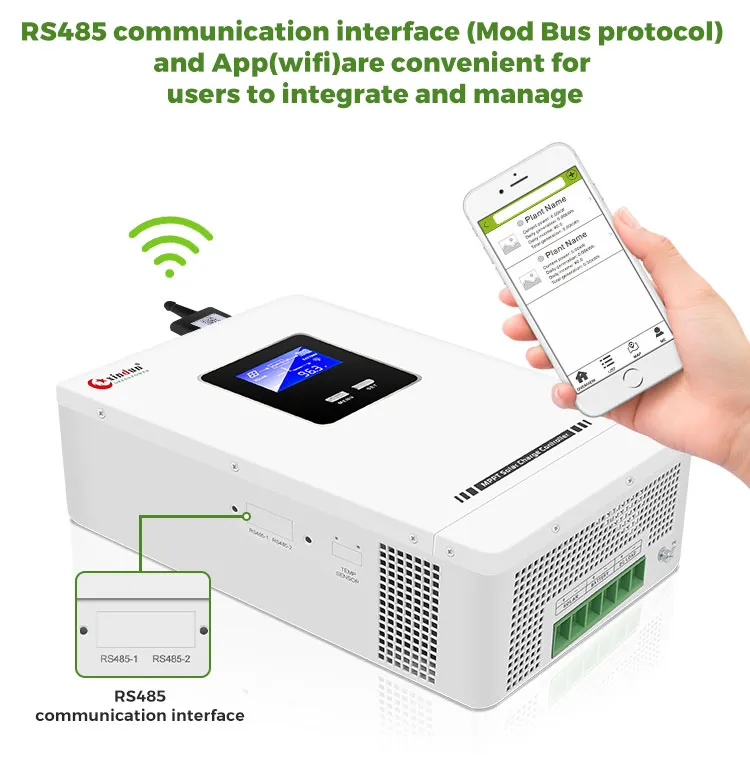

RS485 communication (Mod Bus) and mobile APP support for WiFi or GPRS monitoring.
📋 Technical Specifications
| Rated Current |
10A/20A/30A |
10A/20A/30A |
40A/50A/60A |
40A/50A/60A |
80A/100A |
80A/100A |
| Rated System Voltage |
12V/24V |
48V |
12V/24V |
48V |
12V/24V |
48V |
| Max PV Input Voltage (Voc) |
120V |
180V |
120V |
180V |
120V |
180V |
| Conversion Efficiency |
>98% |
| MPPT Tracking Efficiency |
>99% |
| Battery Type |
Lead acid / Lithium / Customizable |
| Machine Size (mm) |
214*155*72.8 |
238*180*82 |
315*210*106.5 |
| Communication |
RS485/APP (WIFI or GPRS monitoring) |

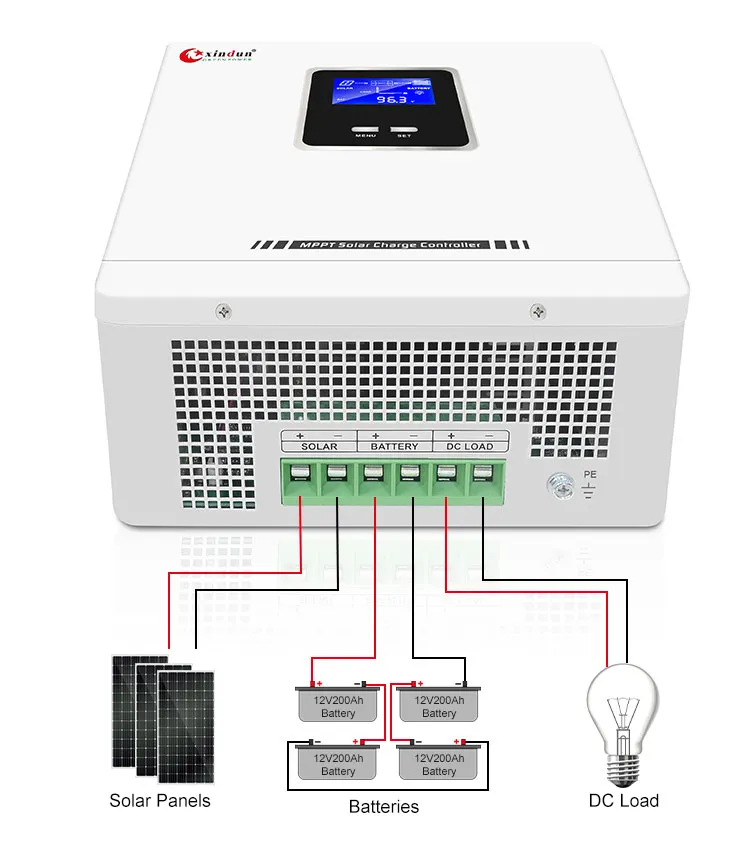

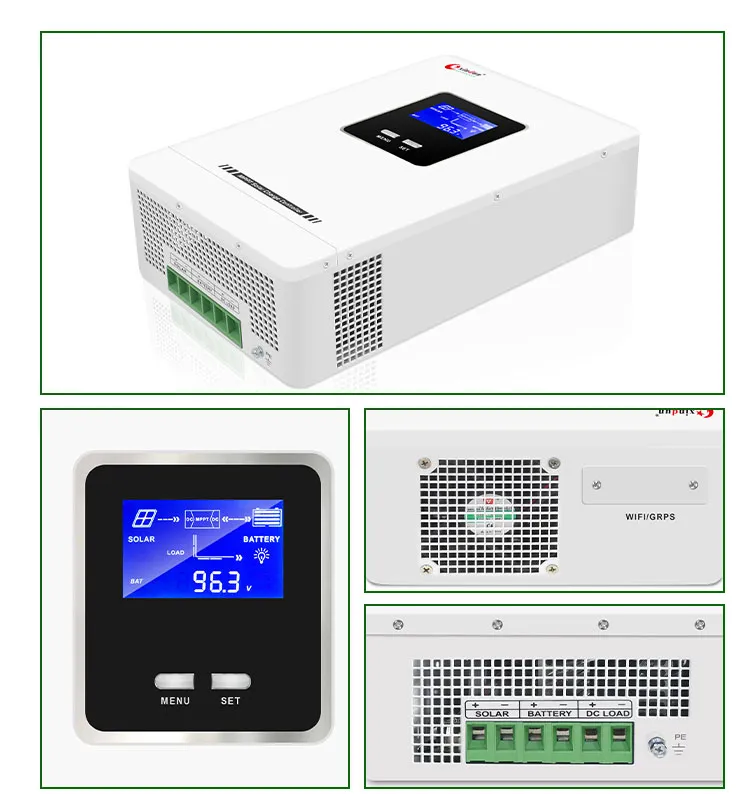

⚙️ Product Detail & Wiring
📦 Packing & Delivery

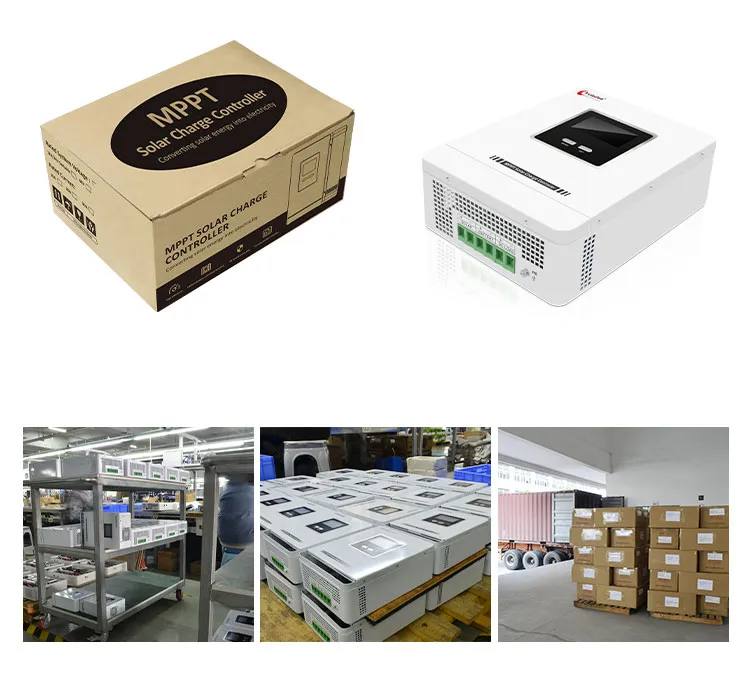

Package
Carton Box for standard packaging. Wooden Box is advised for samples to ensure maximum protection during transportation.
Shipping
1. Door-to-door: Fedex/DHL/TNT/UPS.
2. Bulk: By air or by sea to your nearest port.
3. Flexible: Customer specified freight forwarders are accepted.
❓ Frequently Asked Questions
1. What is the efficiency of the MPPT tracking algorithm?
The controller features an advanced MPPT algorithm with a tracking efficiency of over 99%, which can improve power generation by approximately 20% compared to traditional PWM controllers.
2. Can I use this controller with lithium batteries?
Yes, it supports a wide variety of lead-acid and lithium batteries. Users can also customize charging and discharging parameters to suit specific battery requirements.
3. How does the remote monitoring system work?
The controller includes an RS485 communication interface using the Mod Bus protocol. It can be paired with a mobile APP for WiFi or GPRS monitoring, allowing for easy system management.
4. What kind of protections are built into the device?
It includes a full range of electronic protections: battery and PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, and over/under-voltage protection.
5. What is the maximum conversion efficiency?
The system achieves a conversion efficiency of over 98%, ensuring minimal energy loss during the solar power conversion process.
6. Does the controller help in extending battery life?
Yes, it features an intelligent battery management function that optimizes charging cycles, which significantly helps in extending the overall battery life.
