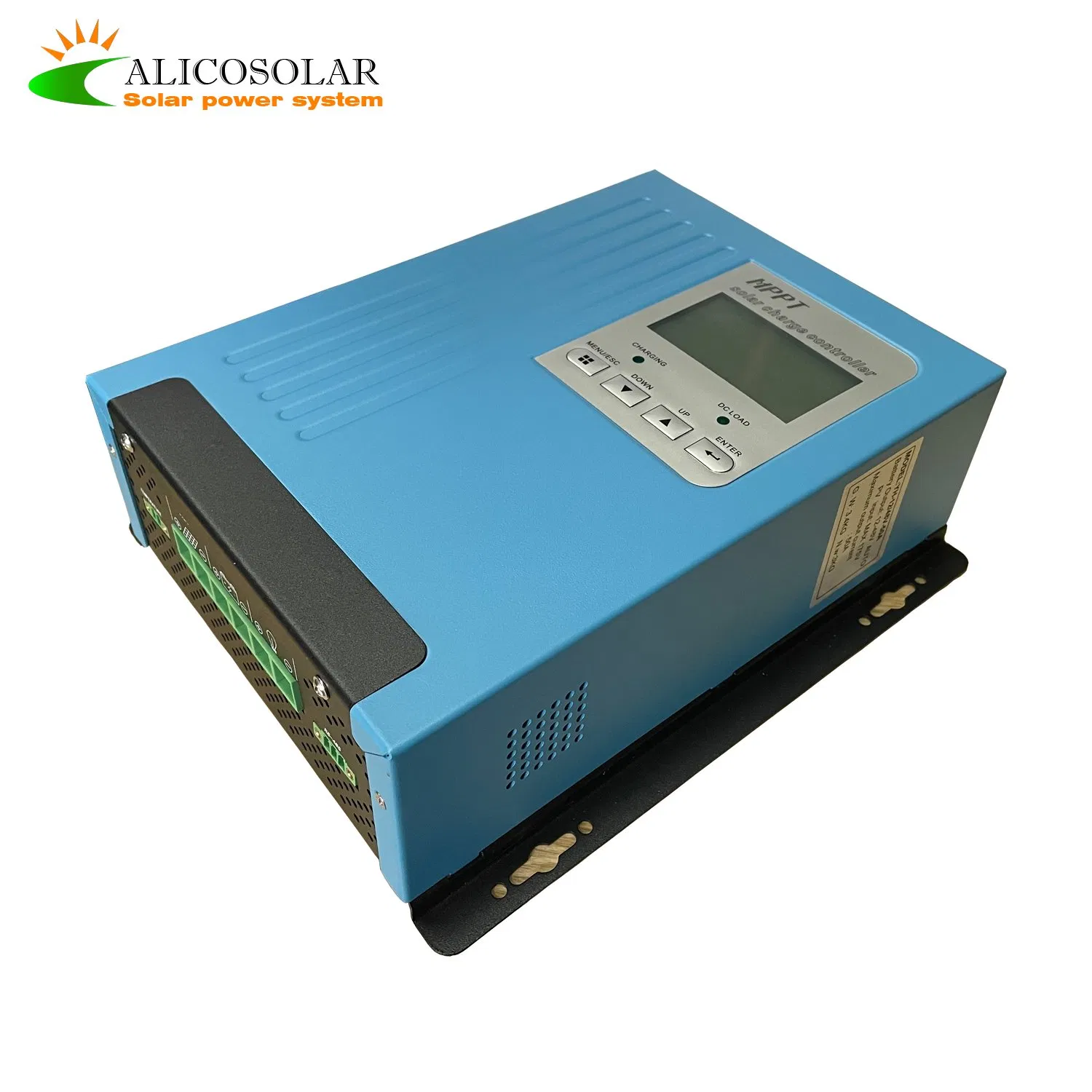

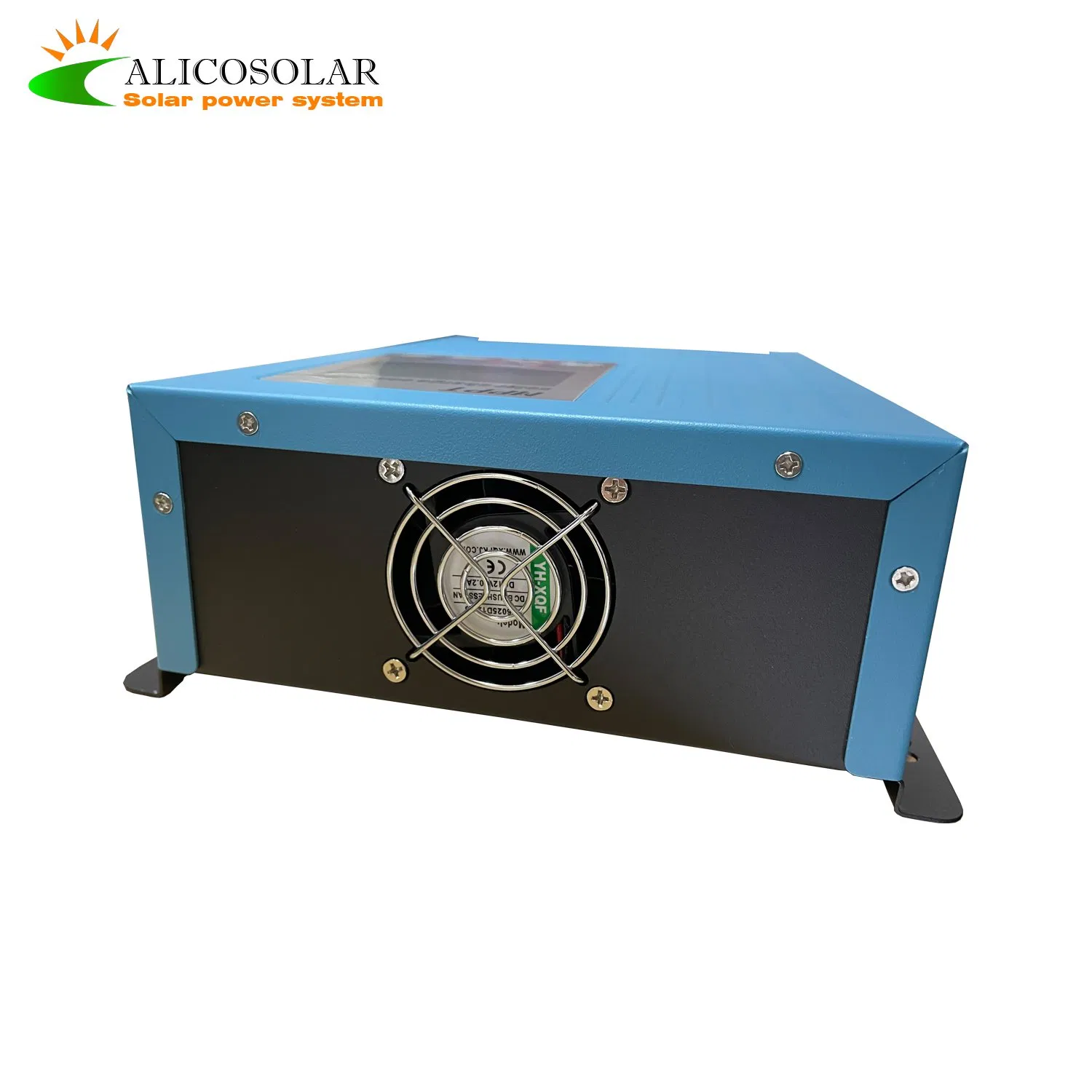

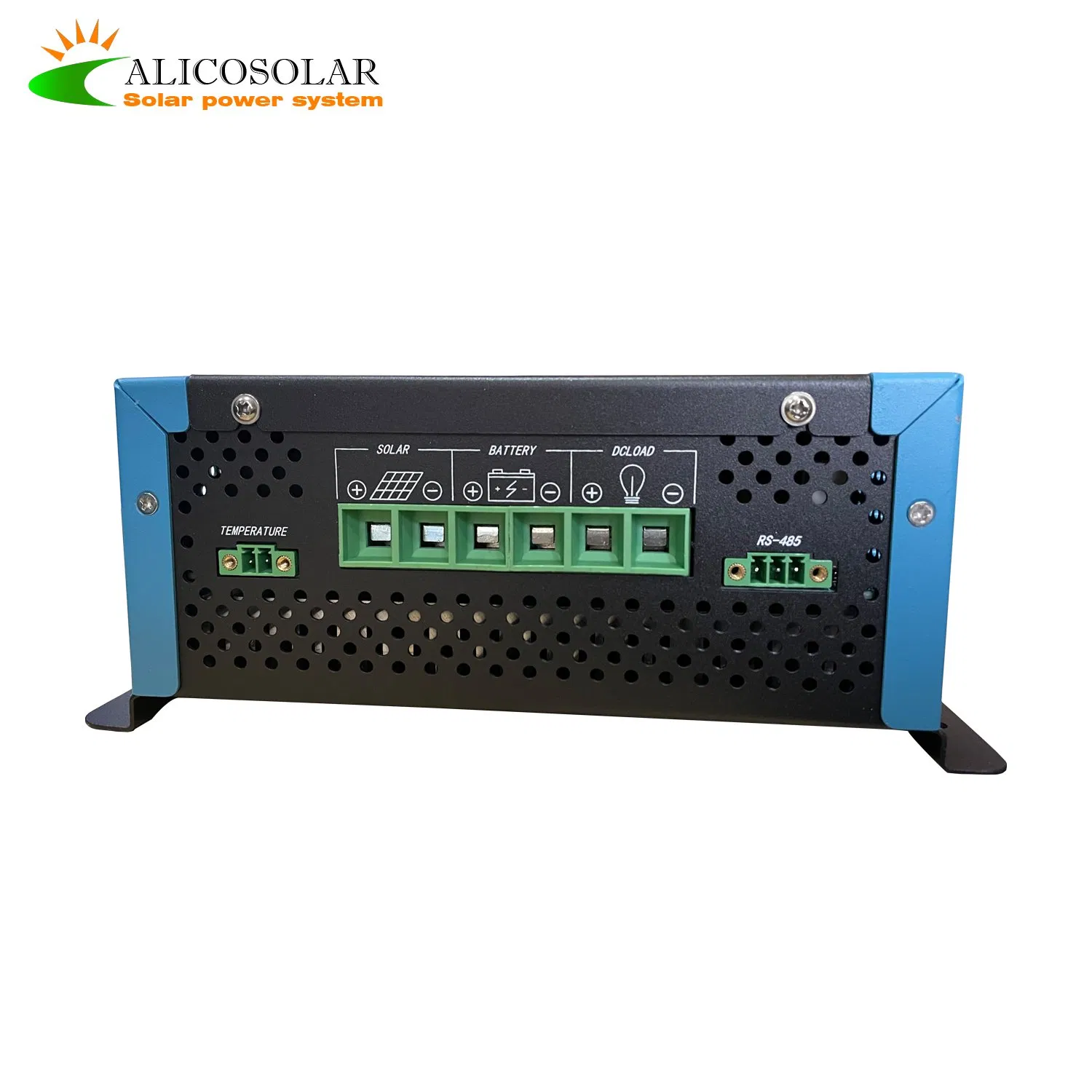

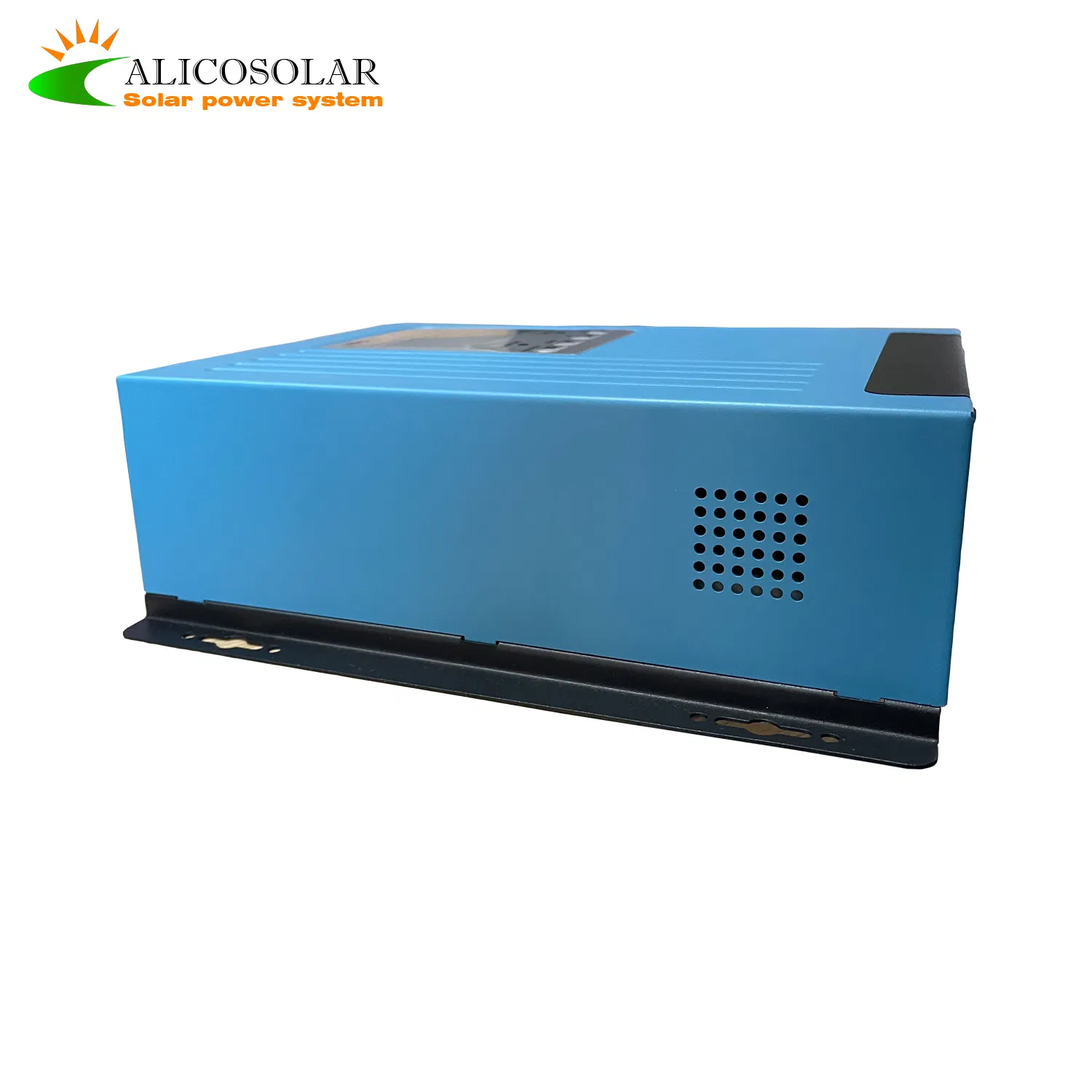

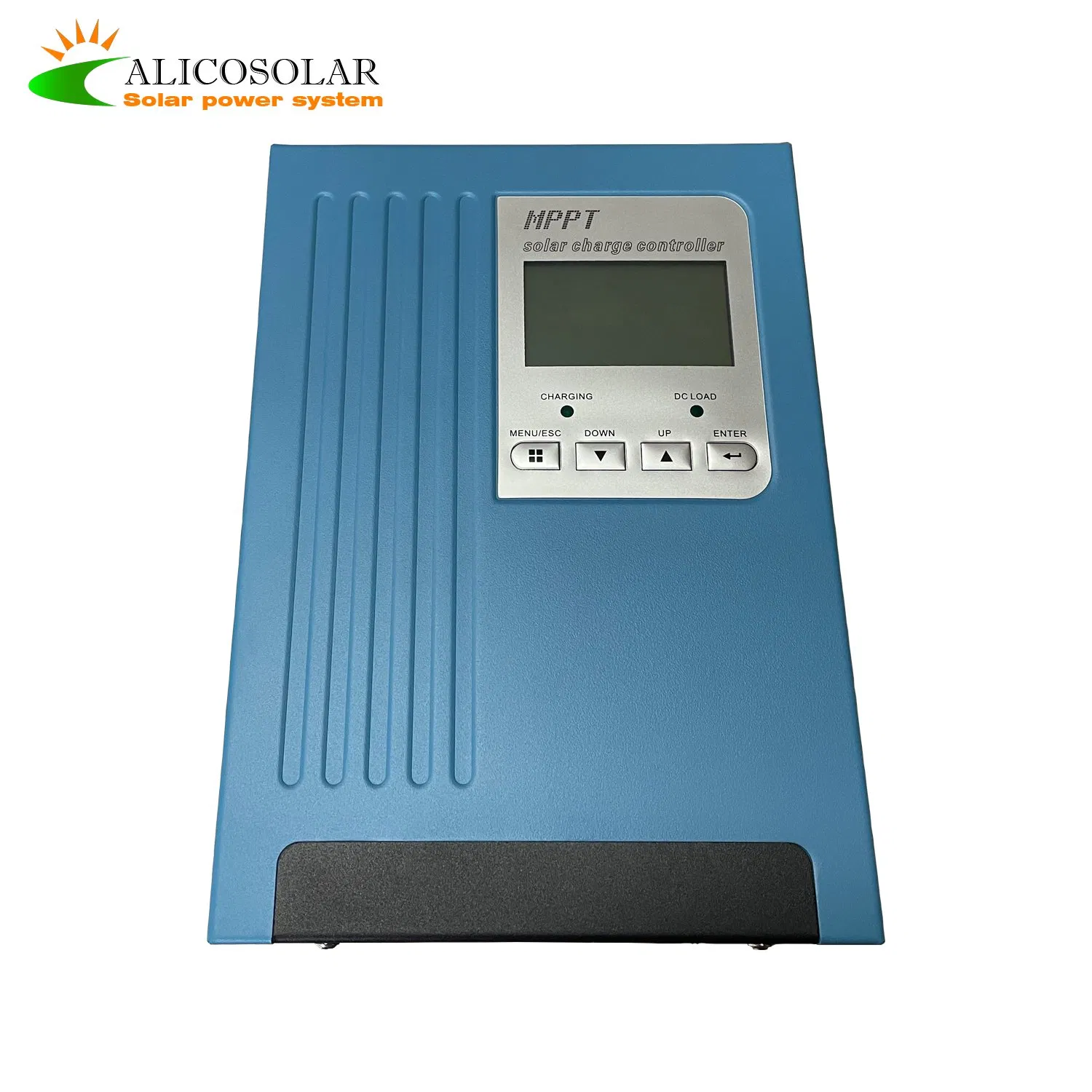

2930 Alicosolar MPPT Solar Charge Controller 12V 24V 36V 48V 20A 30A 40A 50A 60A PWM Solar Charger Controller Price Factory

1 / 5

2930 Alicosolar MPPT Solar Charge Controller 12V 24V 36V 48V 20A 30A 40A 50A 60A PWM Solar Charger Controller Price Factory

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

AS-12-48V-MPPT

Application

Solar System Controller, Charger Controller, Light

Rated Voltage

12-24-48V

Nominal Power

600/1200W

Max.out.Current

50A

Efficiency

≥96.5%

Weight

3.5kg

Warranty

2 Years

Technical Parameters

Category	Specifications (40A/50A/60A Series)
Charging Pattern	MPPT automatic maximum power point tracking
Charging Mode	Three stages: Constant current(MPPT), Equalizing charging, Float charging
System Type	DC12V/24V/48V (Auto Recognition)
Soft Start Time	≤10s
Dynamic Recovery	≤500us
Overall Efficiency	≥96.5%
PV Utilization	≤99.97%
MPPT Working Voltage	12V: DC18-150V \| 24V: DC34-150V \| 48V: DC65-150V
Max Input Power (48V)	2270W / 2800W / 3400W

Global Project Showcases

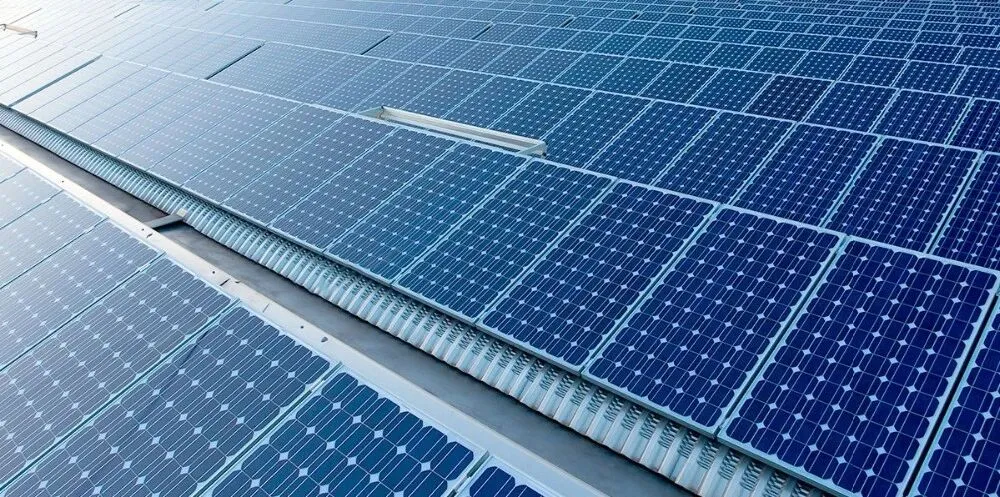

12MW Commercial Metal Roof Solar Plant, Finished in Nov, 2015

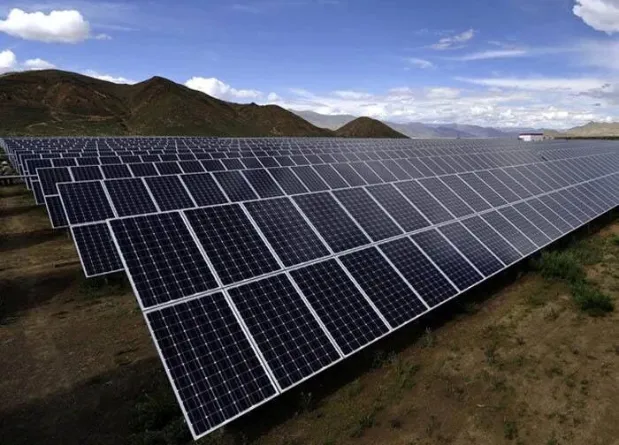

20MW Ground Solar Plant in USA

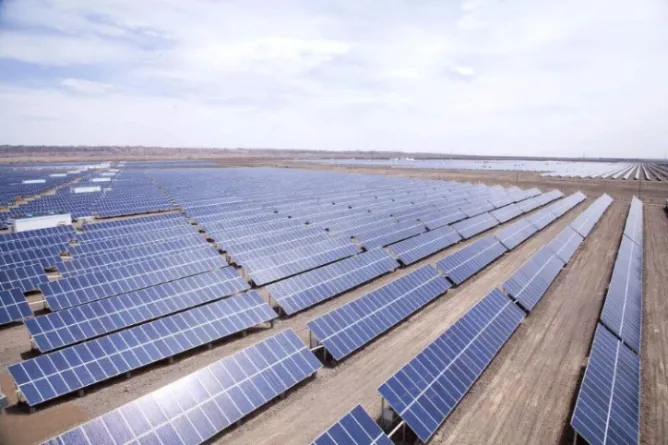

50MW Solar Plant in Brazil

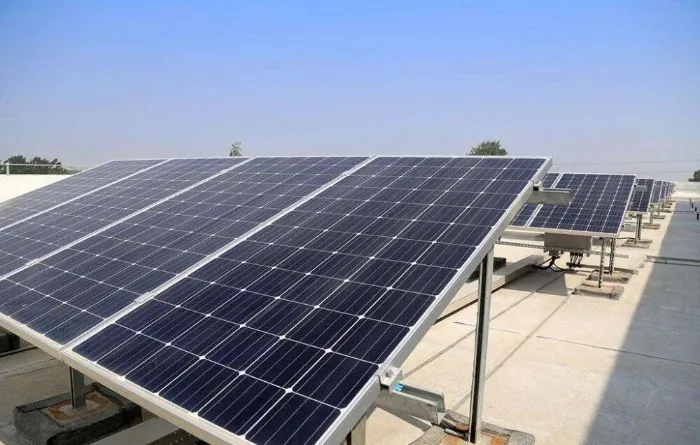

20KW Solar Plant in Mexico

Rudong, China, 1.1MW

Laiyuan, China, 13.8MW

Denmark 180KW

Chizhou, Anhui, China

India, 200KW

Xinjiang, China 60MW

Frequently Asked Questions

What is the conversion efficiency of this MPPT controller?

This controller features an overall efficiency of ≥96.5% and a PV module utilization rate of up to 99.97%.

Does the system automatically recognize battery voltage?

Yes, the system supports DC 12V, 24V, and 48V automatic recognition for seamless integration.

What are the protection features for input voltage?

The controller includes input low-voltage protection, over-voltage protection, and voltage limiters (up to DC 170V for 12/24/48V systems).

What is the operating temperature range?

The device is designed to operate reliably within a temperature range of -25 to 60 degrees Centigrade.

How many charging stages does this controller use?

It utilizes a three-stage charging mode: Constant Current (MPPT), Equalizing Charging, and Float Charging to optimize battery life.

Is a soft start feature included?

Yes, the controller includes a soft start function with a response time of ≤10 seconds to protect your components.
