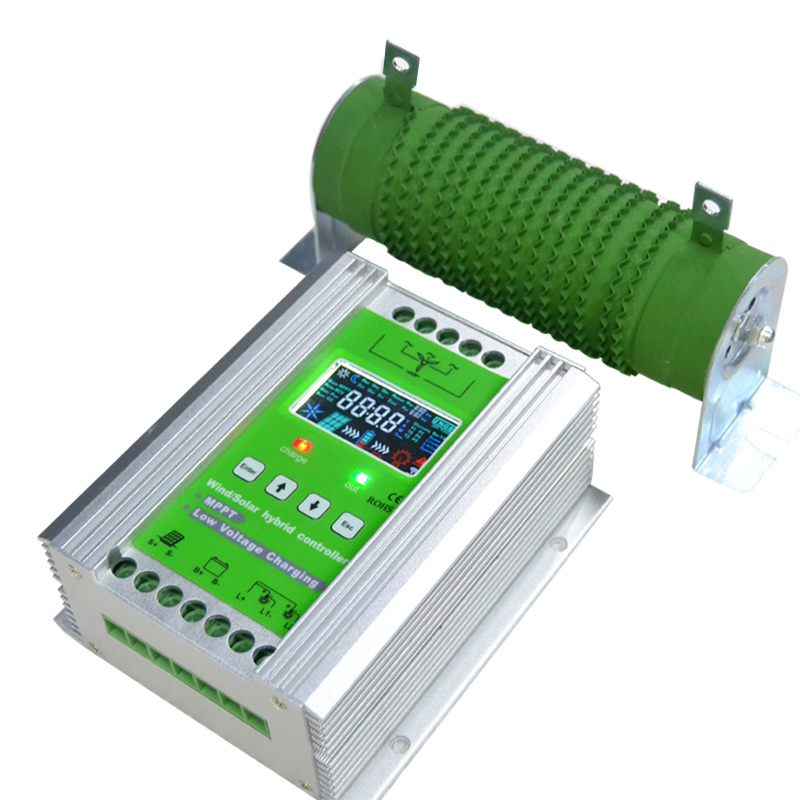

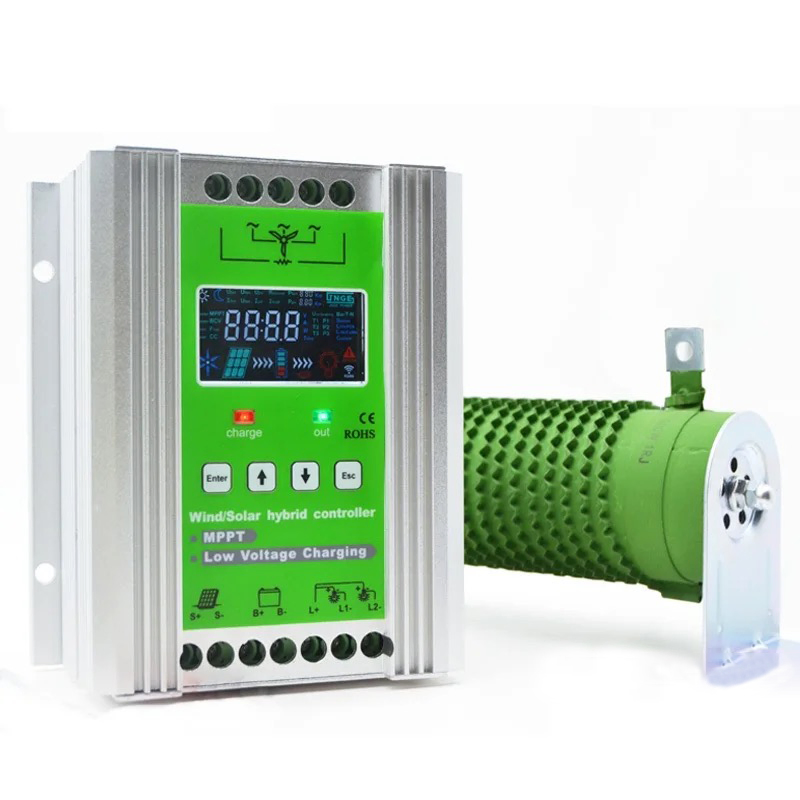

24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
1 / 5
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System

24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📊

Overview & Basic Info

Model NO.
JN-24-W600/S600
Condition
New
Certification
ISO, CB, CE
Rated Voltage
24V
Charge Mode
MPPT Tracking
Efficiency
>98%
Weight
2.4kg
Dimensions
140*66*165mm
💡

Product Description

24V 600W MPPT PWM Overload Protection Hybrid Charge Controller for Wind Solar Hybrid Generator System
Product Description 1

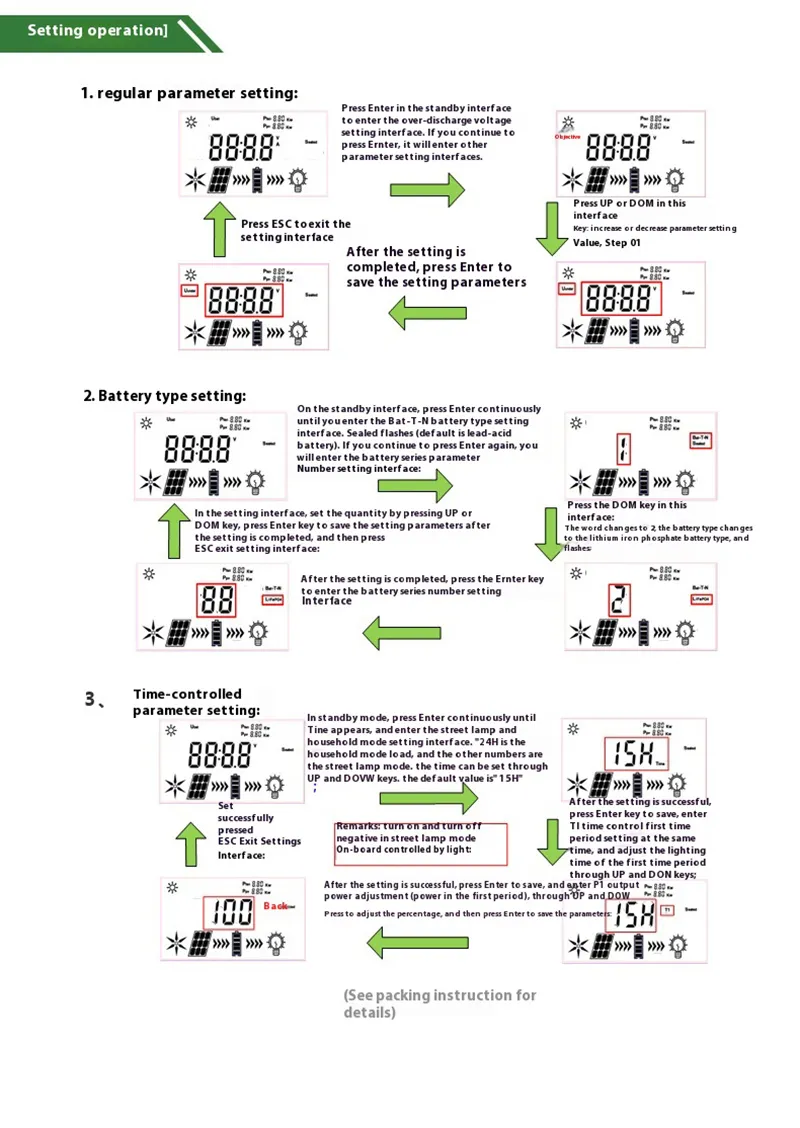

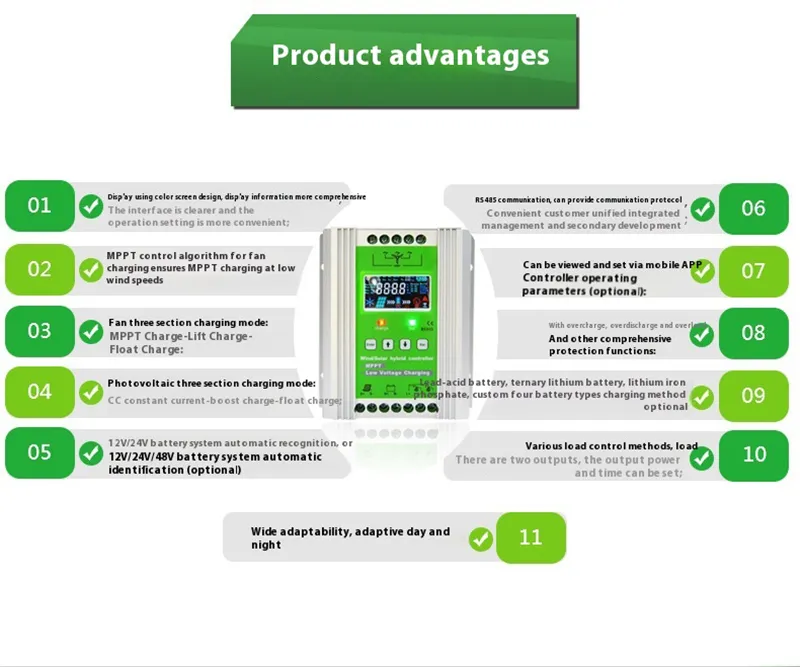

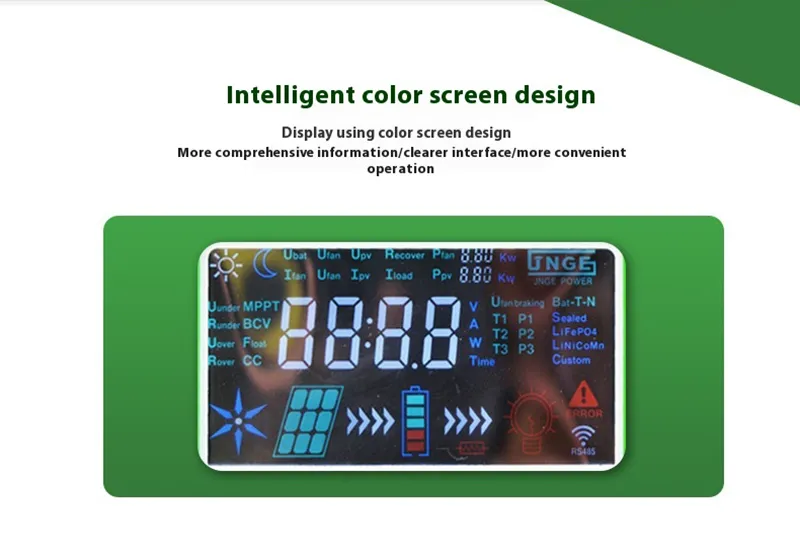

Product View 1 Product View 2 Product View 3

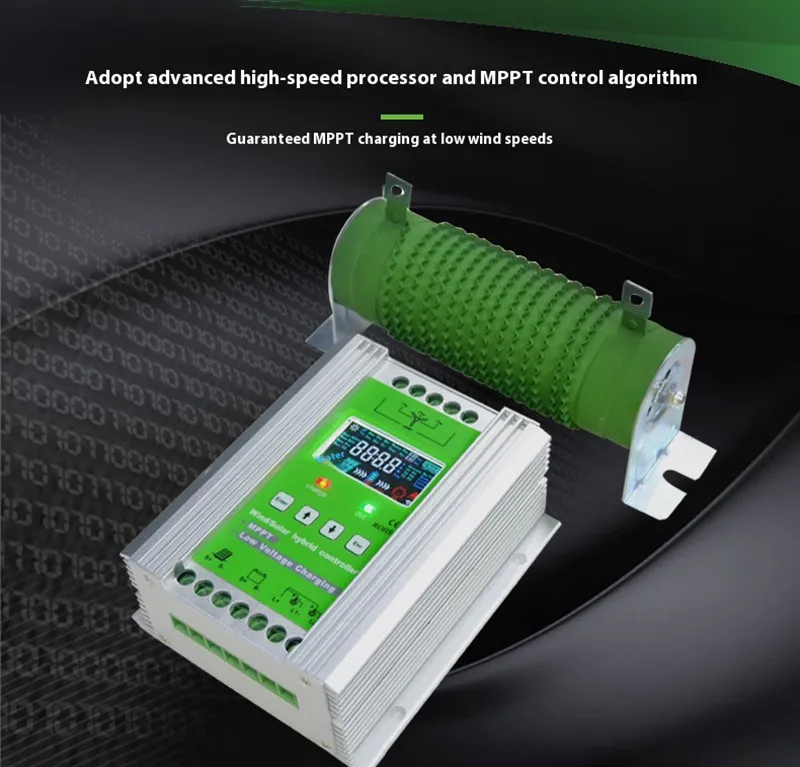

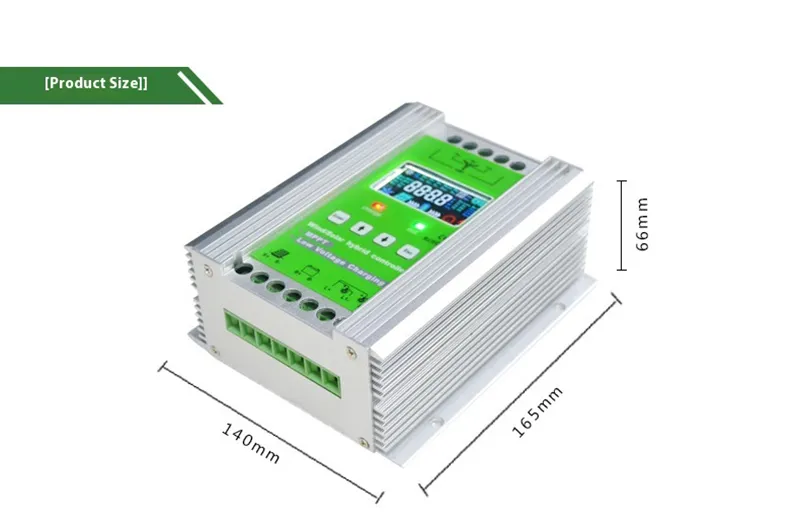

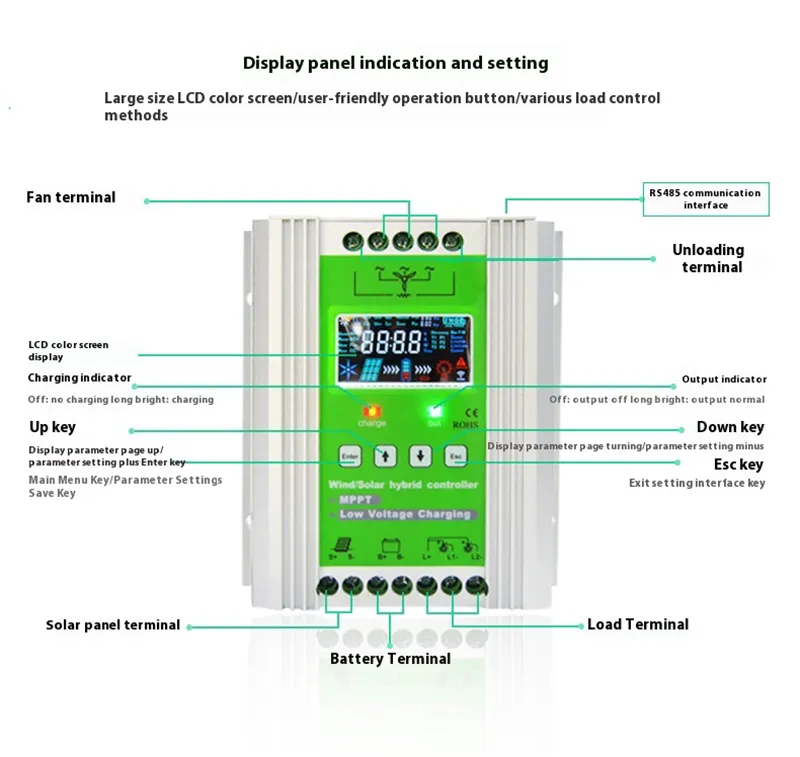

Product Features 1 Product Features 2 Product Features 3
📋

Technical Parameters

Parameter Name JN-12-W300/S300 JN-24-W600/S600 JN-48-W1000/S1000 JN-48-W1500/S1000
Battery Voltage (V) 12 24 48 48
PV Array Max VOC (V) 27.6 55.2 105 105
Fan Rated Voltage (V) 12 24 48 48
Wind Turbine Power (W) ≤300 ≤600 ≤1000 ≤1500
PV Module Power (W) ≤300 ≤600 ≤1000 ≤1000
Conversion Efficiency >98%
Protection Level IP30
Remarks:
- 12V system: Max Fan 500W, Max PV 500W.
- 24V system: Max Fan 800W, Max PV 800W.
- 48V system: Max Fan 1500W, Max PV 1000W.
📸

Detailed Photos

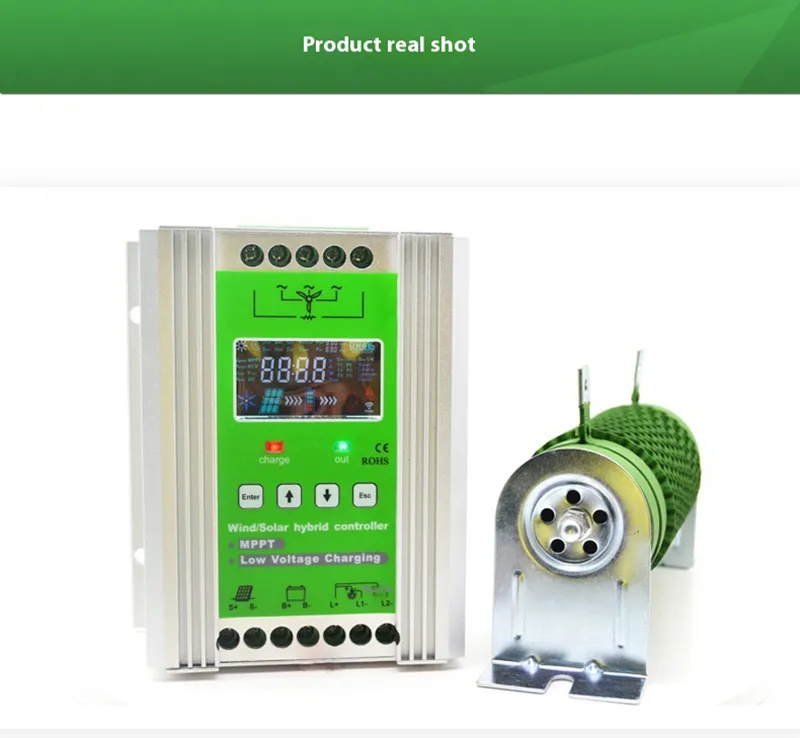

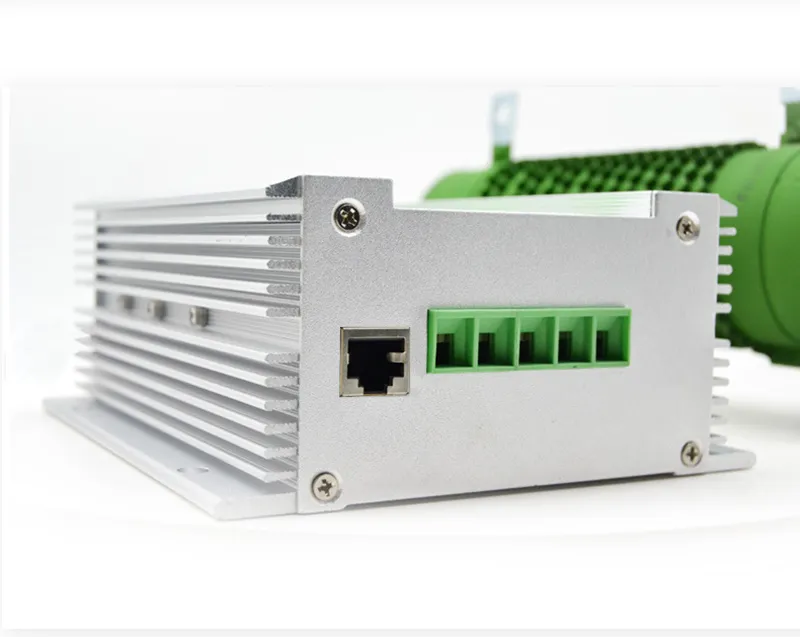

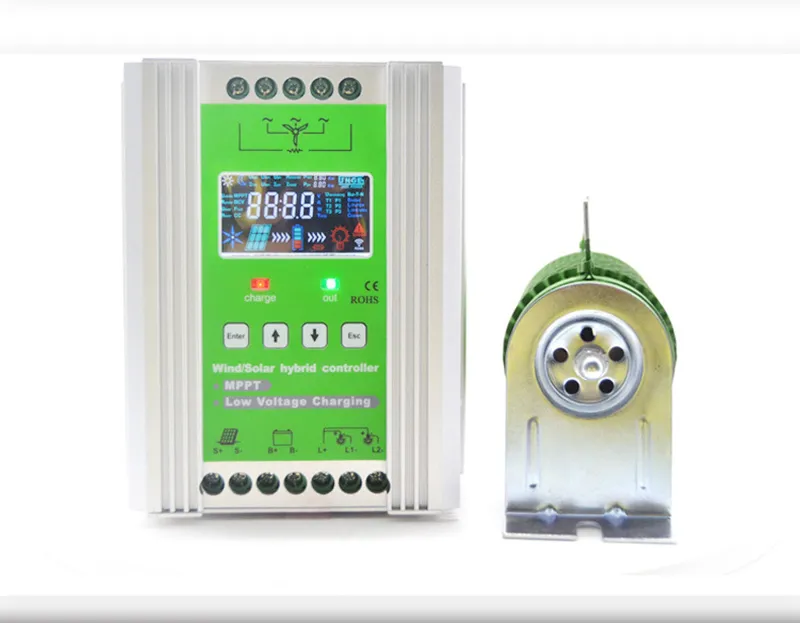

Detail 1 Detail 2 Detail 3

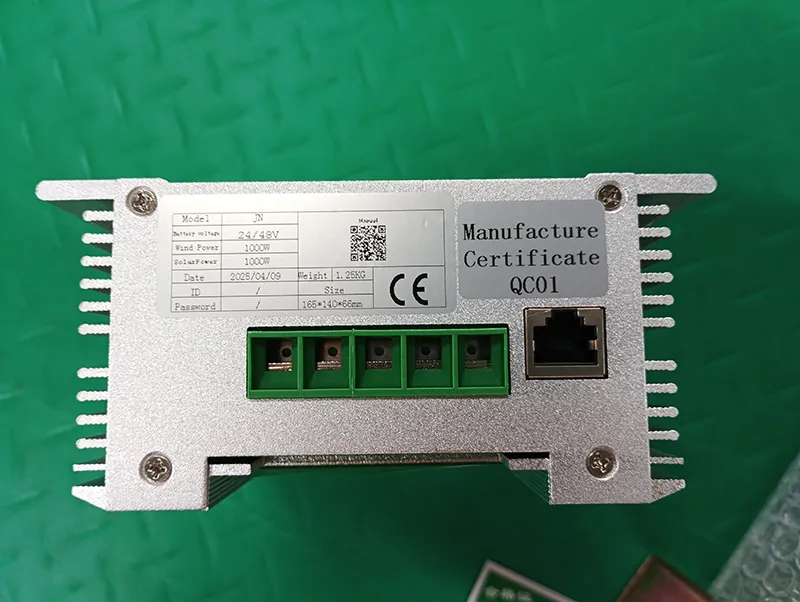

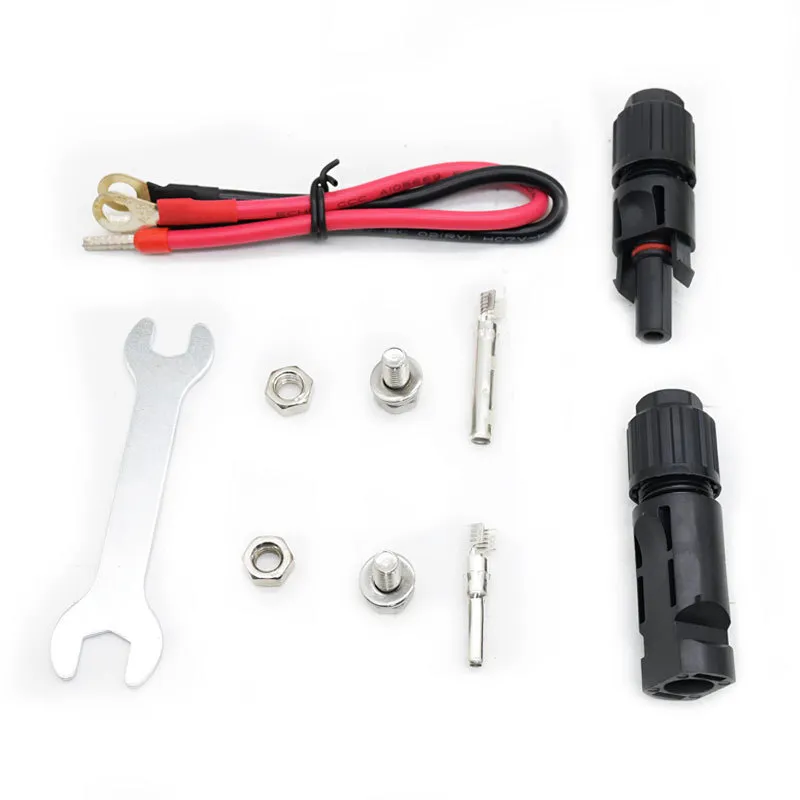

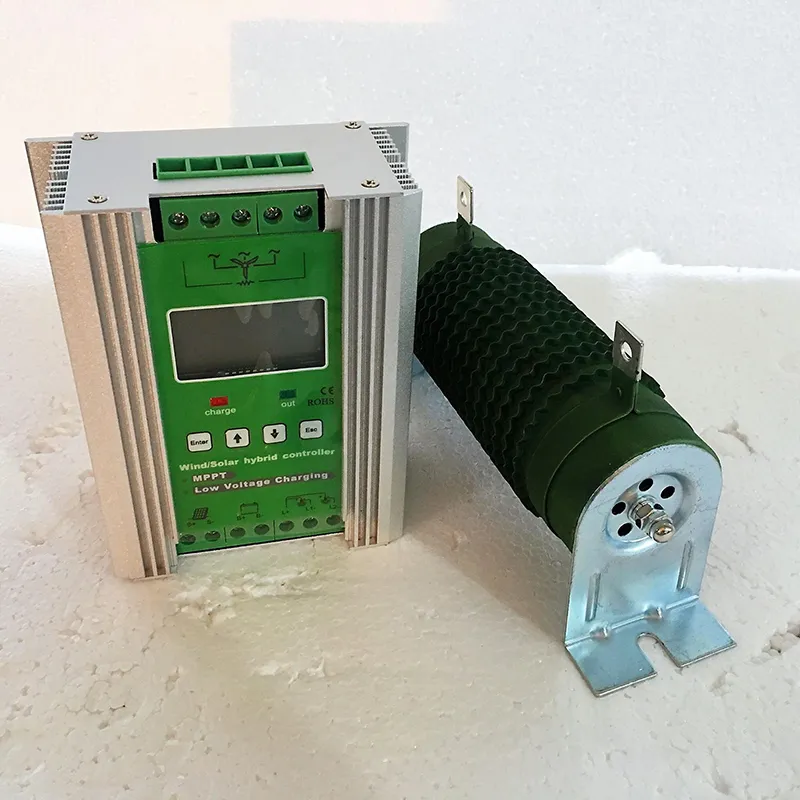

Detail 4 Detail 5 Detail 6
🏠

Application Areas

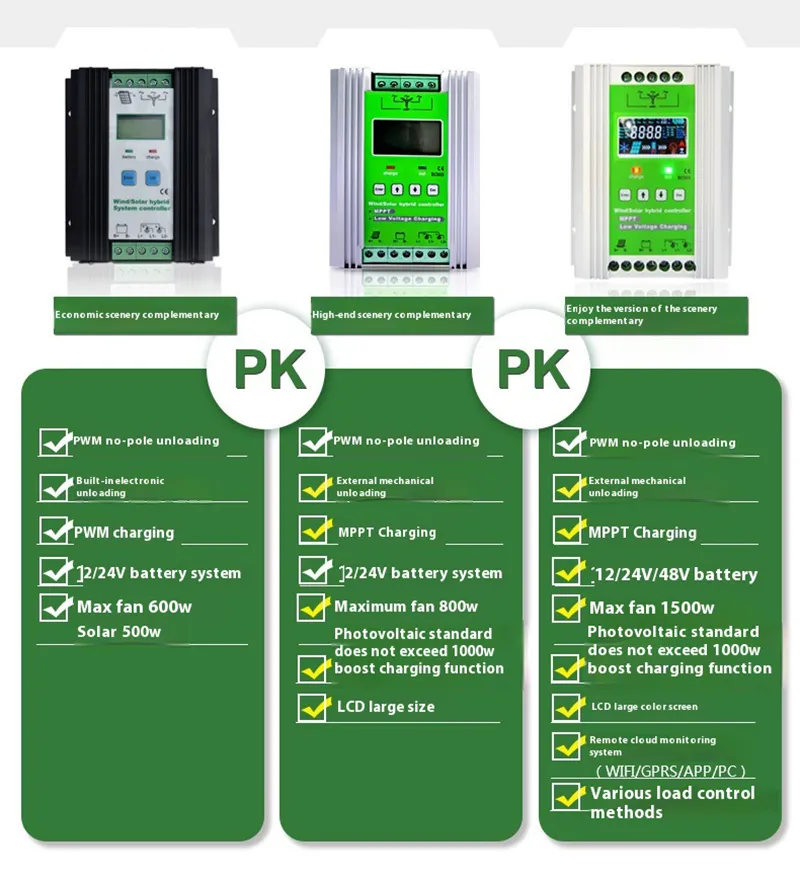

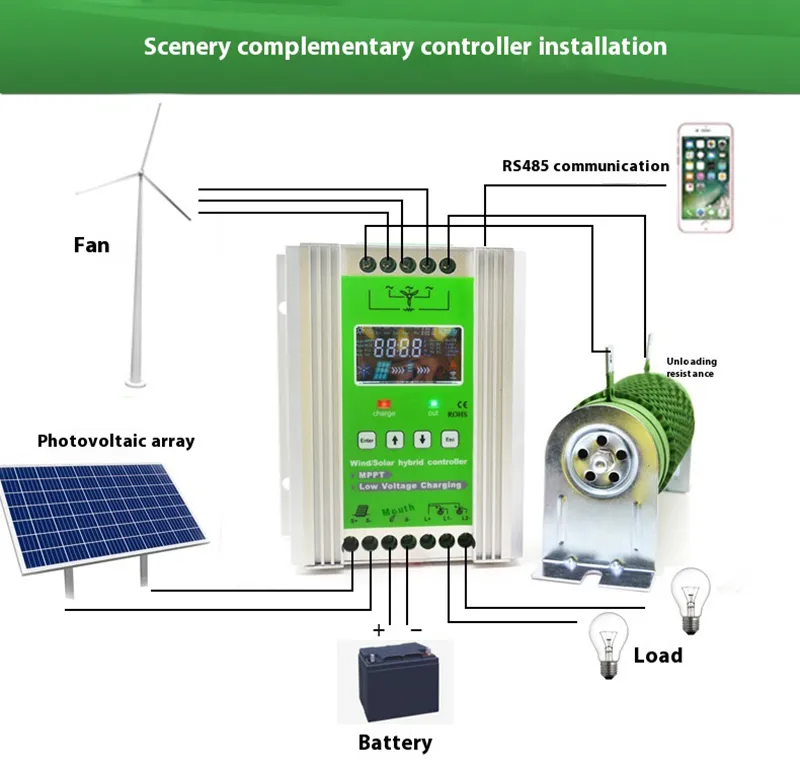

Application 1 Application 2 Application 3

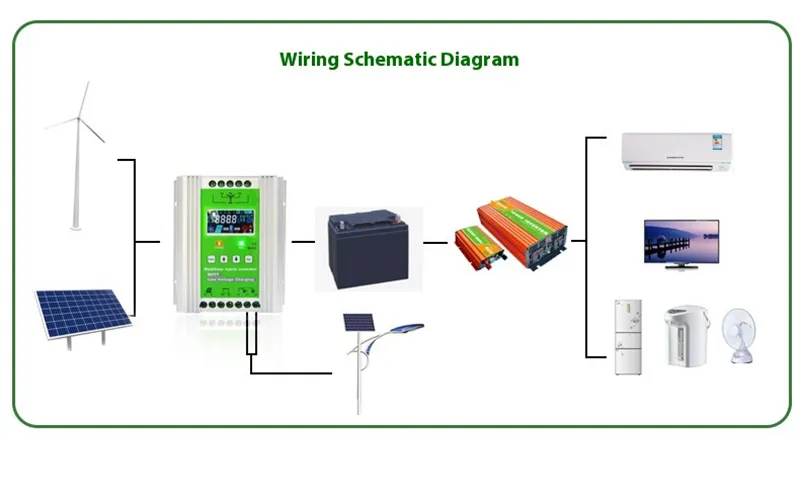

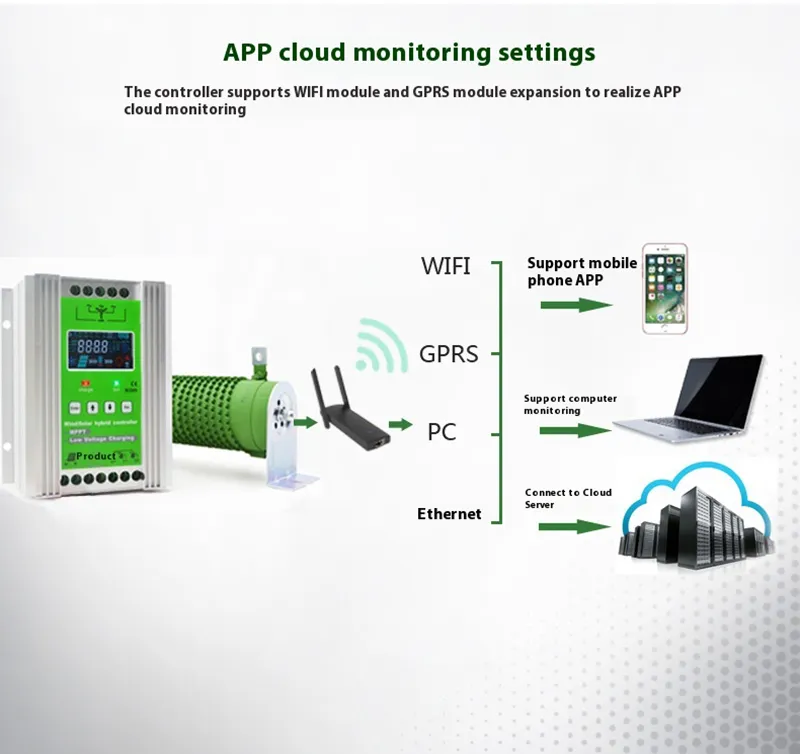

Application 4 Application 5
🏭

Production Environment

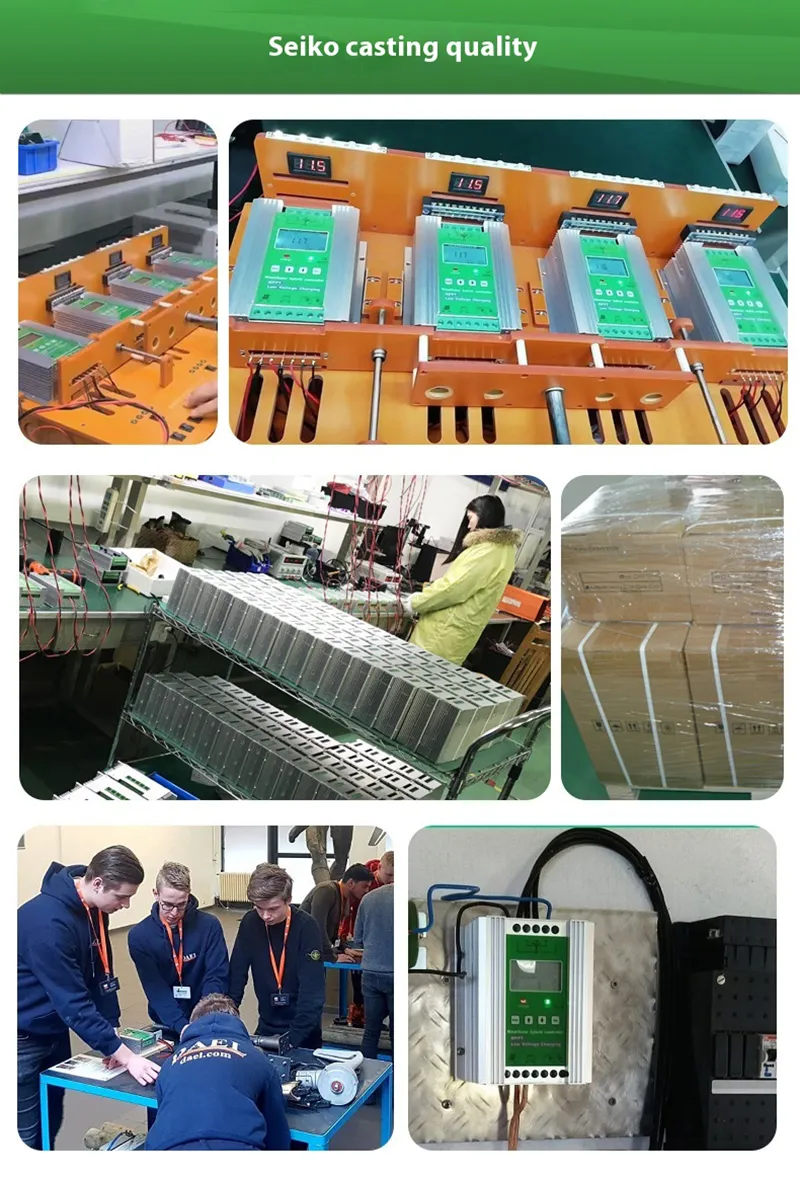

Factory View

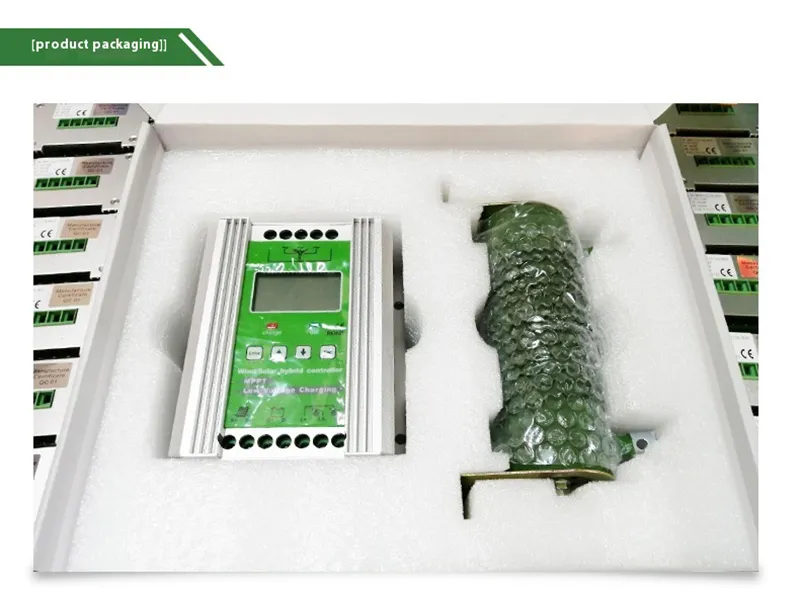

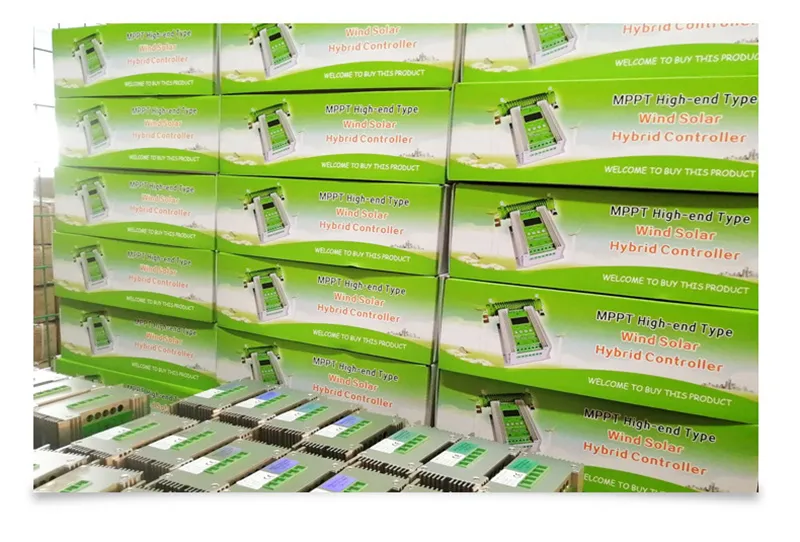

Production 1 Production 2 Production 3
❓

Frequently Asked Questions

1. What is the maximum efficiency of this hybrid controller? The controller utilizes MPPT (Maximum Power Point Tracking) technology, achieving a conversion efficiency of over 98%.
2. Which battery systems is this controller compatible with? It is designed to work with 12V, 24V, and 48V battery systems, depending on the specific model selected.
3. Can it handle both wind and solar power simultaneously? Yes, it is a hybrid controller specifically designed to manage power from both wind turbines and photovoltaic (solar) arrays.
4. What are the operating environment requirements? The controller operates effectively in temperatures ranging from -20℃ to 50℃ and humidity levels of 10% to 90% (non-condensation).
5. What is the protection rating for this device? This hybrid charge controller features an IP30 protection level, making it suitable for indoor or protected enclosure installations.
6. Does it support remote communication? Yes, RS 485 communication is available as an optional feature for monitoring and data management.
