2 Years System Pump Station PWM MPPT Charge Solar Panel Controller OEM

1 / 5

2 Years System Pump Station PWM MPPT Charge Solar Panel Controller OEM

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

stin-480V

Condition

New

Certification

ISO, CE

Application

Solar System Controller, Charger Controller, Solar Station

Rated Voltage

480V

Package

Wooden Case

Trademark

OEM/ODM

HS Code

9032899090

Capacity

20000PCS/Month

★

Key Features

High speed and high performance 32-bit processor with excellent EMC design

Advanced MPPT tracking algorithm, tracking efficiency more than 99%

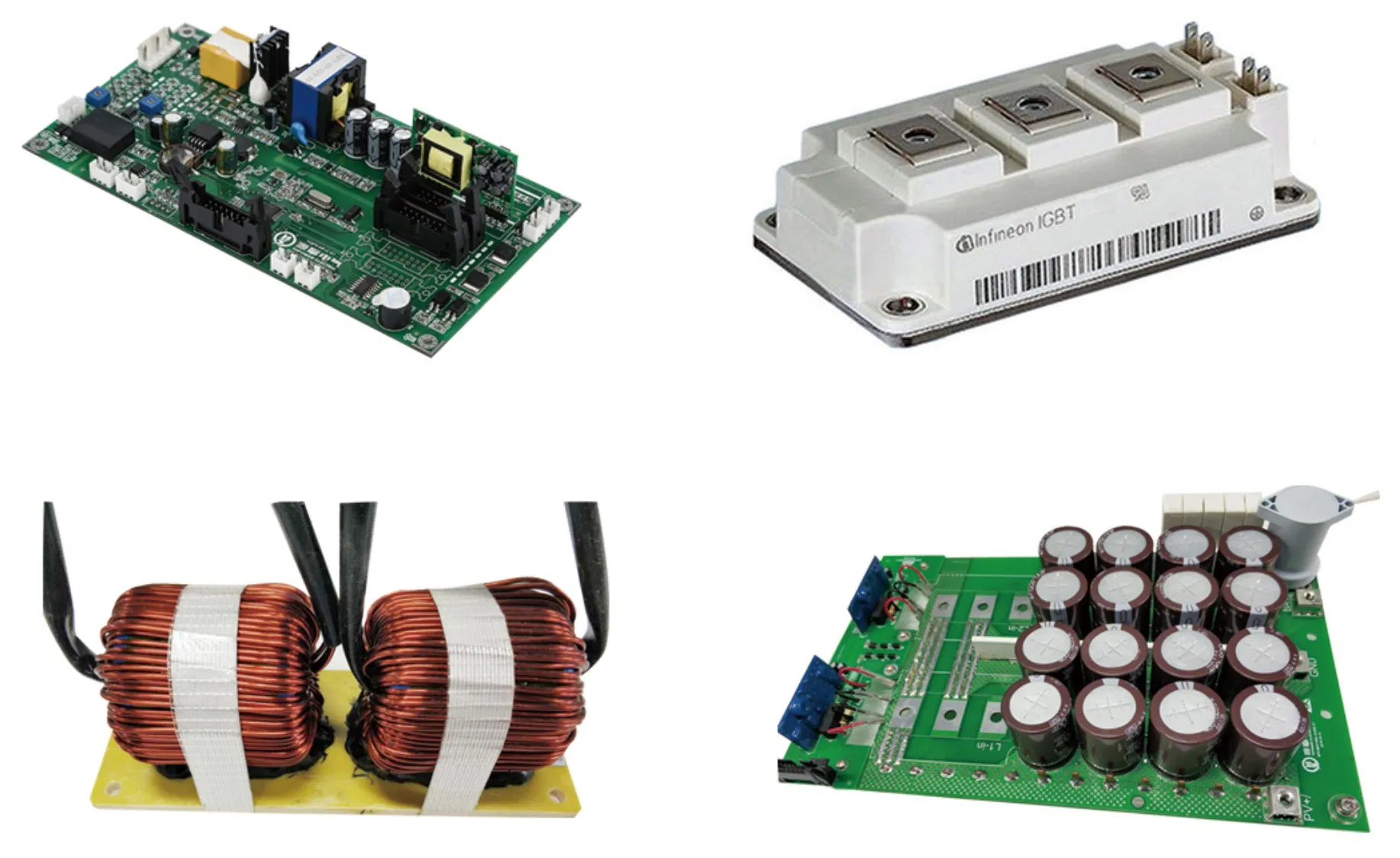

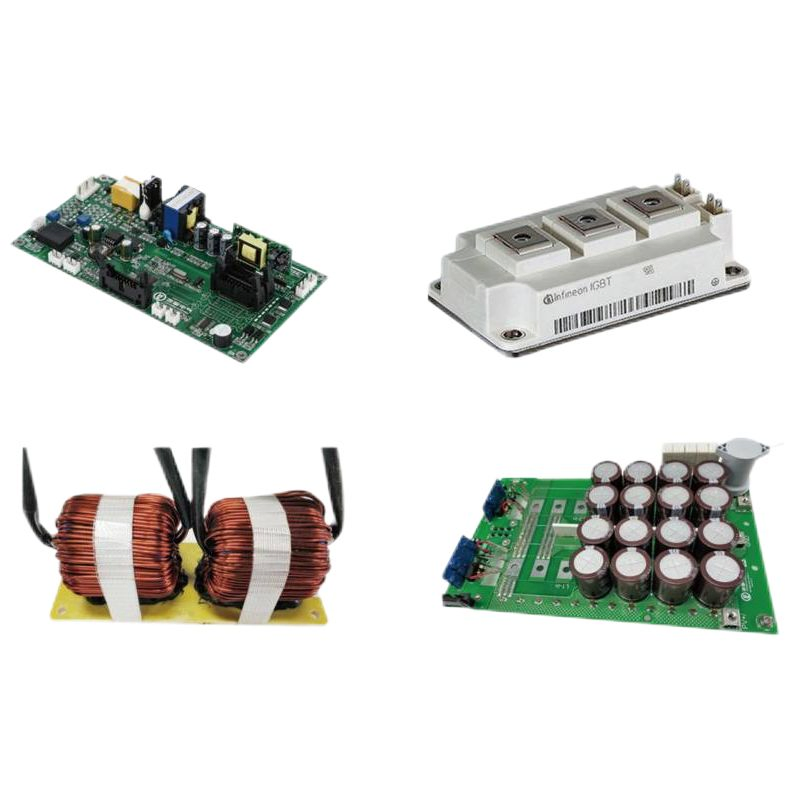

High performance IGBT power module electronic switch for superior stability

Ultrafast maximum power point tracking speed ensuring efficiency

Accurate identification and tracking of multi-peak power points

Current-limiting charging function compatible with various battery capacities

Wide PV array voltage input range to reduce combiner box and wiring costs

Full enclosed duct design and high-speed fan for harsh environments

Real-time ambient temperature display with automatic compensation and RTC function

Multi-stage charging and perfect battery protection to improve battery life

Statistical generating capacity function (daily, monthly, and total)

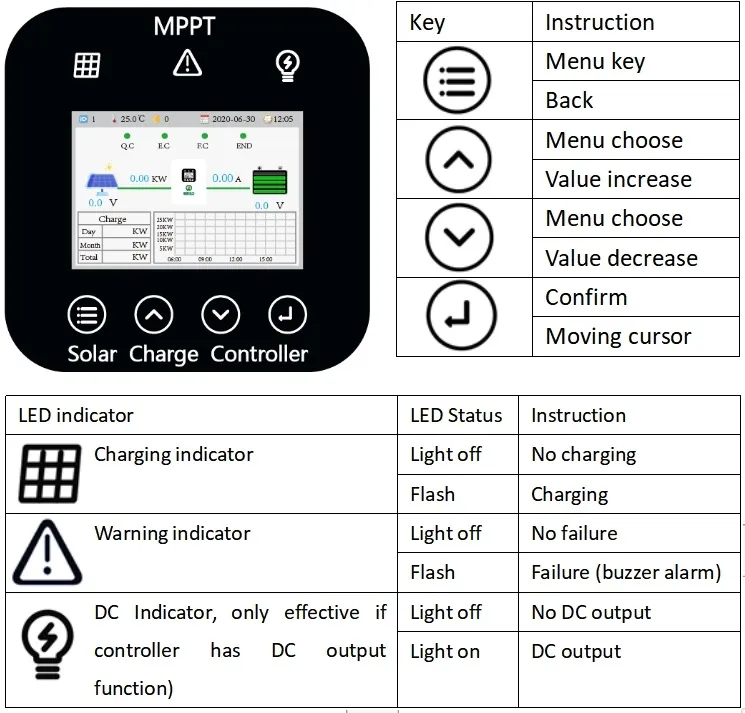

User-friendly menu display and interface for easy operation

Compatible with GEL, Lead-Acid, Lithium, and other battery types

Double protection function to safeguard battery health

⚙

Technical Parameters

Rated system voltage	192V	240V	288V	300V	360V	384V	420V	480V	540V
Rated Charging current	50A / 60A / 70A / 80A / 100A
Charging technology	MPPT (Max. Power Point Tracking)
MPPT efficiency	>99.9%
Max. input voltage	750V
Charging method	Four stages: MPPT fast, equalize, float, end charging
Over voltage disconnect (V)	256	320	384	400	480	512	560	640	720
Equalize charging (V)	230.4	288	345.6	360	432	460.8	504	576	648
Display	LCD + LED
Protection level	IP32 (Indoor)
Dimension	494384197mm
Weight	27KG

ℹ

Industry Expertise

Addressing global energy challenges requires a commitment to clean, sustainable solutions. We focus on providing a total solution based on solar energy, covering everything from high-quality raw materials to advanced equipment and residential solutions. Our efforts are dedicated to promoting green energy independence and solving global environmental problems through innovation and quality.

We recognize the vital importance of green energy and strive to protect these precious resources for future generations.

Frequently Asked Questions

1. What are your main product categories?

We offer mono and poly solar panels, gel and lithium-ion solar batteries, on-grid and off-grid solar systems, solar inverters, and both MPPT and PWM solar charge controllers.

2. What advantages do your solar products offer?

With over 10 years of industry experience, we provide comprehensive support from initial design to installation, backed by a wealth of technical expertise in the global market.

3. Can I request product samples?

Sample availability depends on the specific product. In most cases, the sample fee can be credited back once a bulk order is placed.

4. How are shipping costs and times determined?

Once the quantity and preferred transportation method (sea, air, or express like DHL/FedEx) are confirmed, we will provide a detailed quote covering costs and estimated delivery time to your destination port.

5. What is the minimum order quantity (MOQ)?

Our minimum order quantity starts from as low as 1 piece.

6. Which payment methods are accepted?

We accept payments via T/T, L/C, PayPal, and Western Union.
