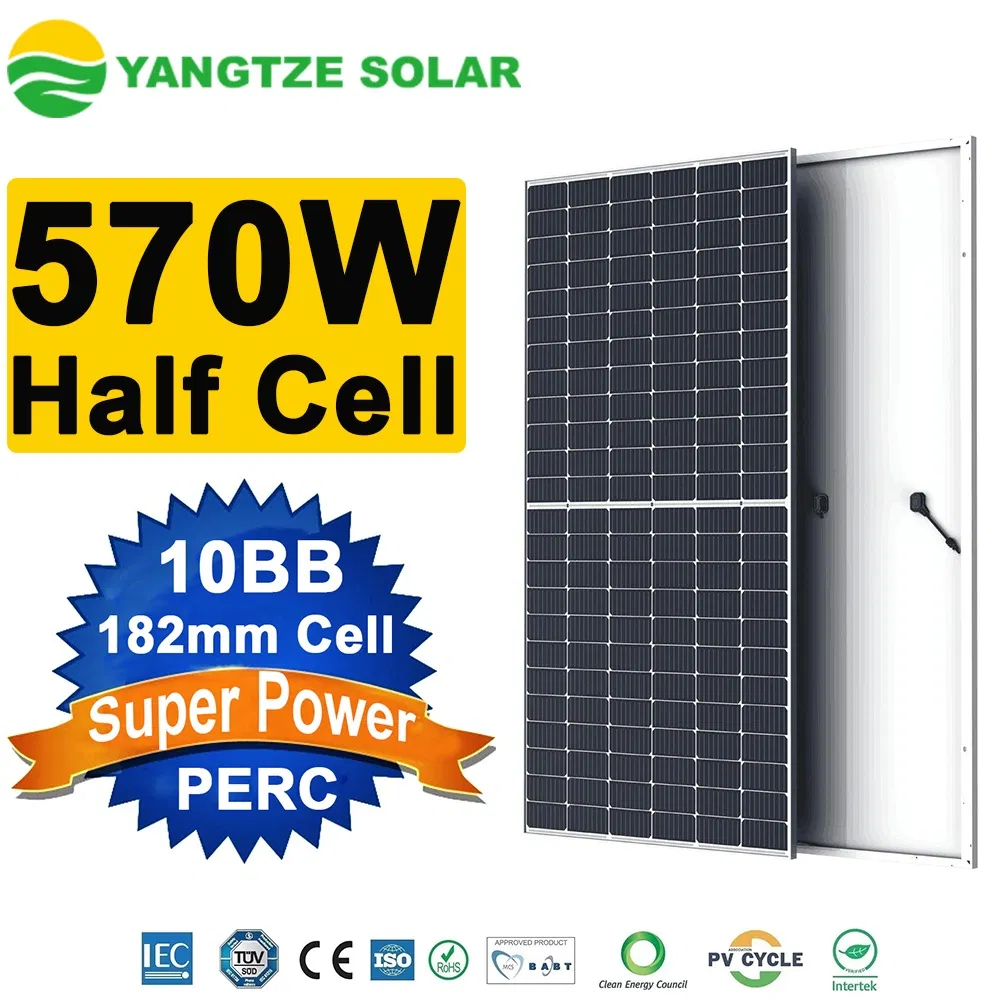

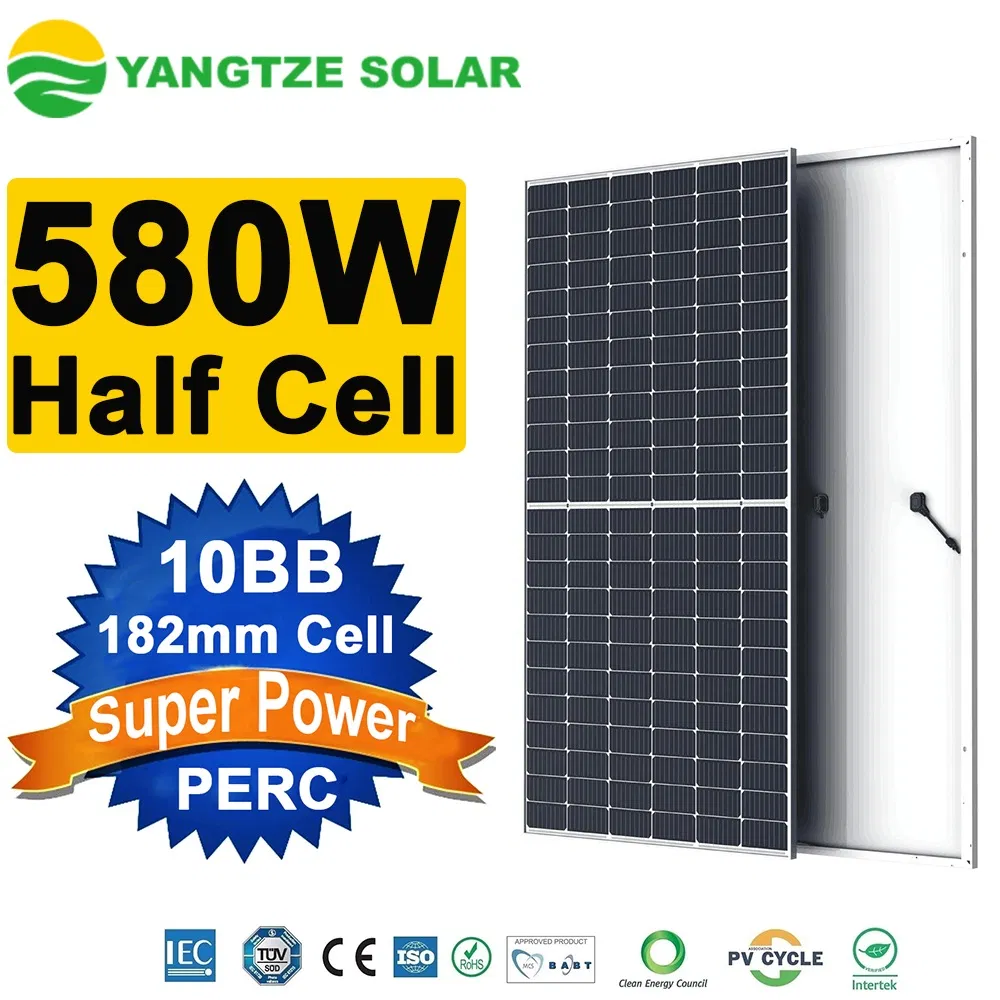

Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
1 / 5
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price
Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price

Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
YS600M-72
Number of Cells
144 PCS
Application
Industrial
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 182X91mm Half Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
2274*1134*35mm
Connector
Mc4 Compatible Connector
Weight
28.9 Kg
Production Capacity
500,000 Piece/Year

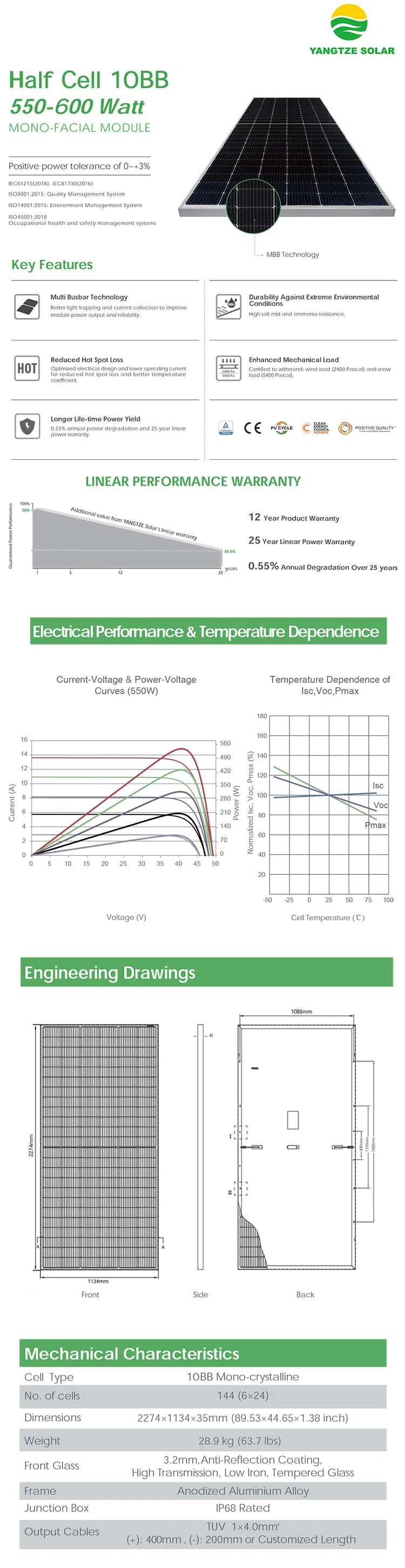

Monocrystalline Solar Panel
📊

Technical Performance

Module type YS550M-72 YS560M-72 YS570M-72 YS580M-72 YS590M-72 YS600M-72
Maximum Power (Pmax) 550W 560W 570W 580W 590W 600W
Maximum Power Voltage (Vmp) 40.90V 41.10V 41.30V 41.50V 41.90V 42.10V
Maximum Power Current (Imp) 13.45A 13.63A 13.27A 13.98A 14.08A 14.25A
Open-circuit Voltage (Voc) 49.62V 49.72V 49.82V 49.91V 49.95V 49.99V
Short-circuit Current (Isc) 14.03A 14.33A 14.62A 14.81A 14.92A 14.97A
Module Efficiency STC 21.33% 21.72% 22.10% 22.49% 22.87% 23.27%
Operating Temperature -40~+85ºC
Max System Voltage 1000VDC/1500VDC (IEC)

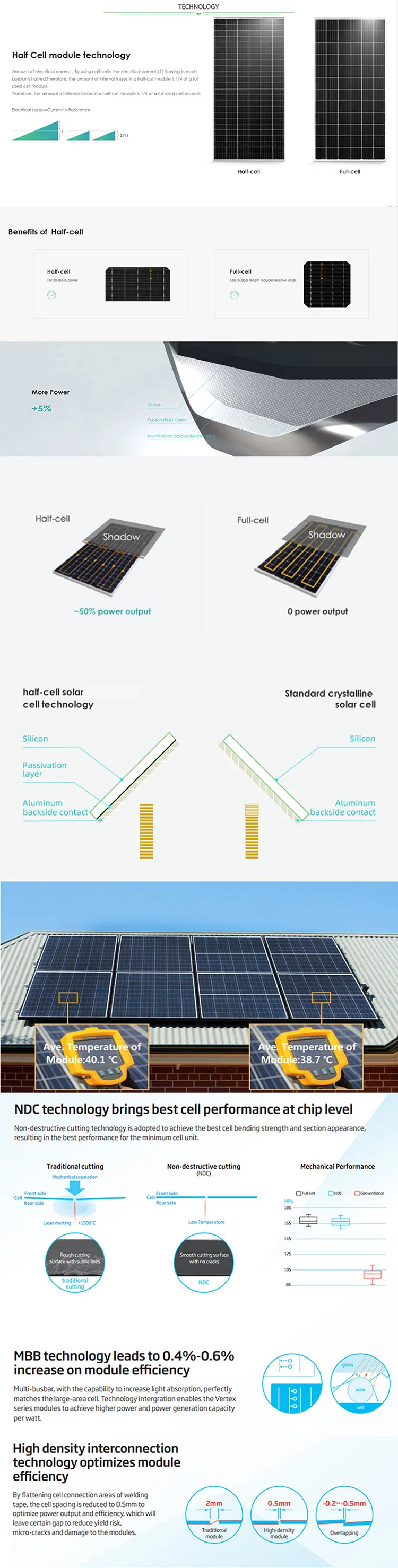

Solar Module Detail
Solar Cell Technology
★

Key Features & Quality

  • High production capacity with power range from 3W to 800W for monocrystalline panels.
  • 10 years workmanship and materials warranty.
  • Linear power output warranty: 10 years at 90% and 25 years at 80%.
  • 100% EL (Electroluminescence) test conducted before packaging and shipping.
  • Certified by TUV (Germany) and CE for international safety standards.
  • Rich experience in overseas construction and turn-key solar system solutions.
  • Advanced 182mm Half-Cell technology for improved efficiency and shade tolerance.
Production View 1

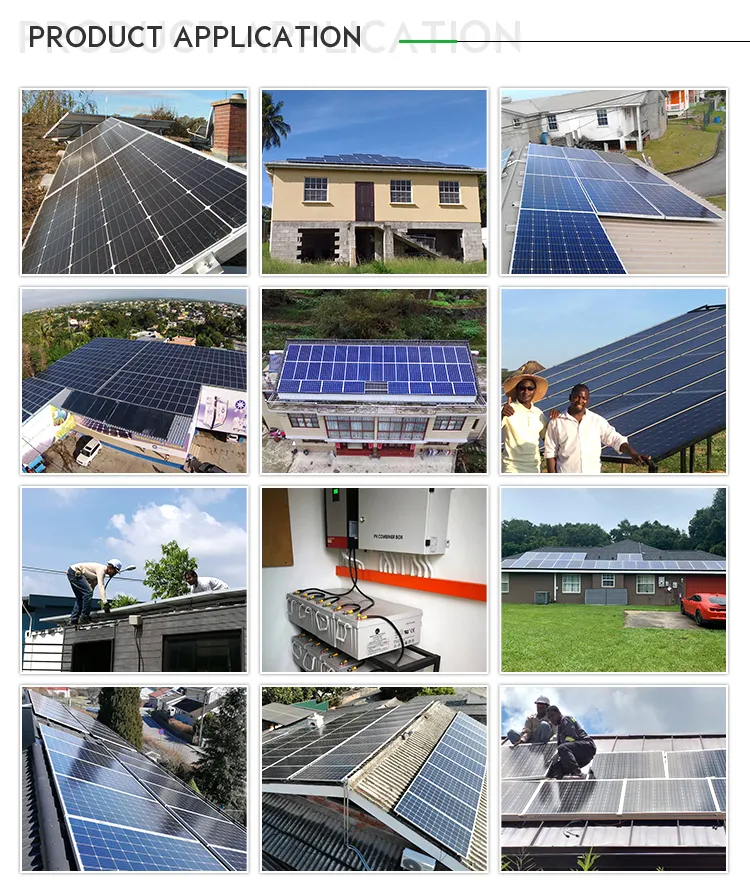

Production View 2

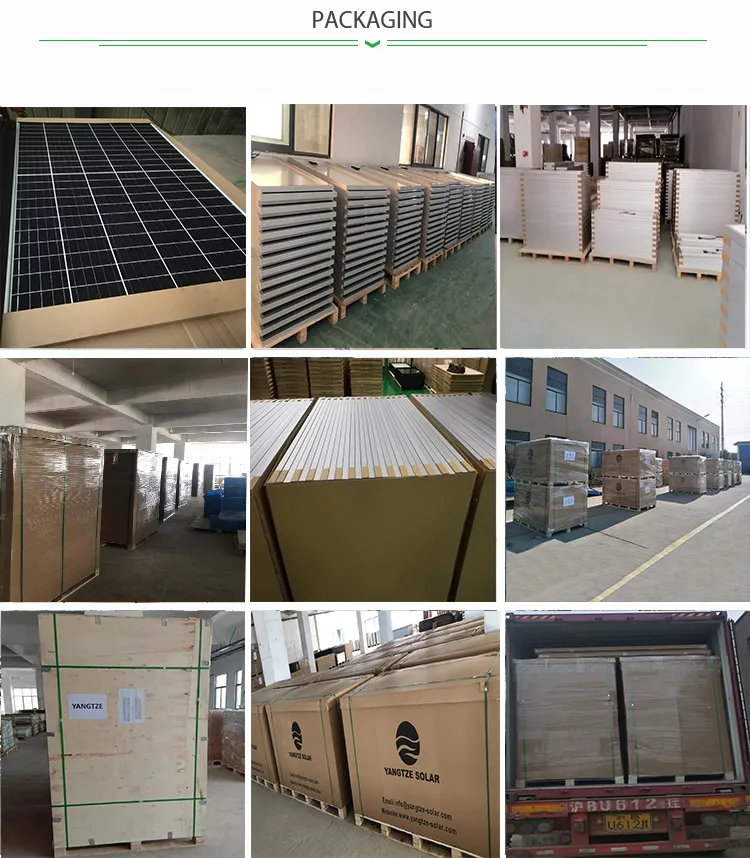

Packaging Detail
Solar Project 1
Solar Project 2
?

Frequently Asked Questions

1. What is the efficiency of these monocrystalline solar panels? The panels offer a high module efficiency ranging from 21.33% up to 23.27%, depending on the specific model.
2. What kind of warranty is provided? We provide a 10-year workmanship warranty and a 25-year linear power output warranty ensuring long-term reliability.
3. Are the panels resistant to harsh weather conditions? Yes, the panels feature 3.2mm high transmission tempered glass and an IP68 waterproof junction box, designed to withstand extreme temperatures and environmental stress.
4. What is the benefit of the 182mm Half-Cell technology? Half-cell technology reduces internal power loss and improves performance under partial shading, leading to higher overall energy yields.
5. Do you perform quality testing before delivery? Every panel undergoes a 100% EL (Electroluminescence) test before packaging to ensure there are no micro-cracks or hidden defects.
6. Can these panels be used for industrial projects? Absolutely. These panels are specifically designed for industrial applications and large-scale solar energy systems.
