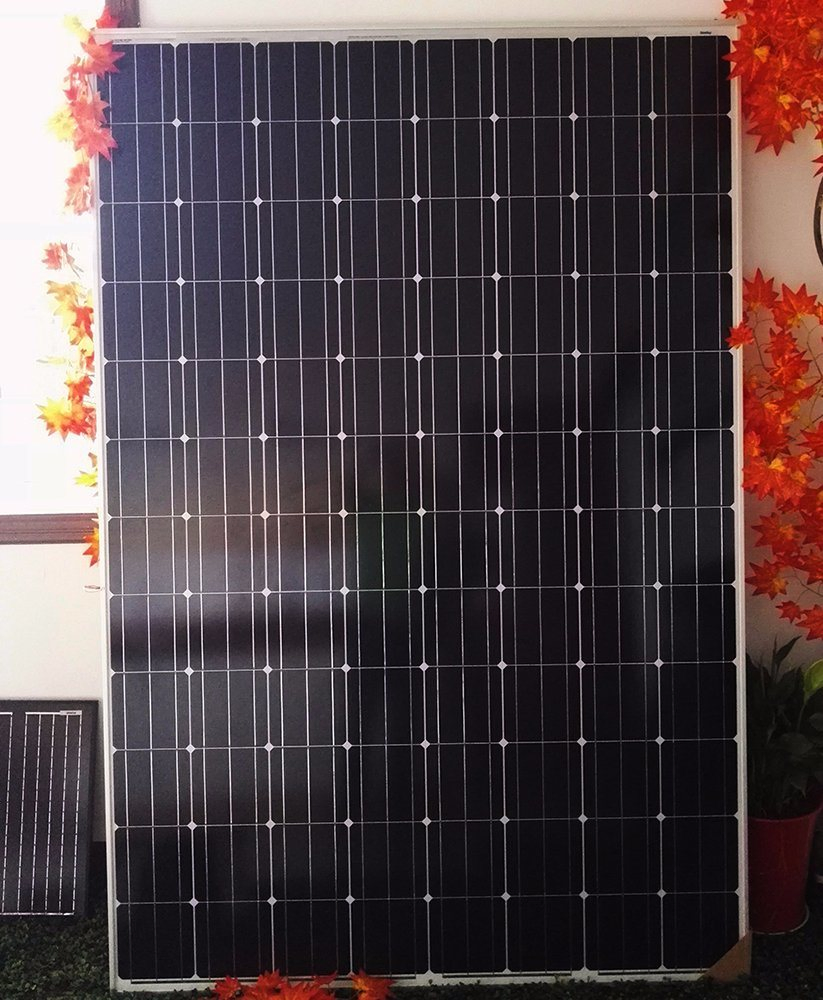

High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
1 / 5
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam
High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam

High Quality Monocrystalline Solar Panel 500W Power Bank for Vietnam

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
YS500M-96
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Mono 156X156mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
1956X1310X45mm
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
Weight
27 Kg
Production Capacity
500,000 Piece/Year
Technical Parameters
Model YS450M-96 YS460M-96 YS470M-96 YS480M-96 YS490M-96 YS500M-96 YS510M-72
Maximum Power (Pmax) 450W 460W 470W 480W 490W 500W 510W
Power Voltage (Vmp) 47.9V 48.0V 48.1V 48.2V 48.3V 48.4V 48.5V
Power Current (Imp) 9.40A 9.59A 9.77A 9.96A 10.15A 10.33A 10.51A
Open Circuit Voltage (Voc) 58.3V 58.5V 58.7V 58.9V 59.1V 59.3V 59.5V
Module Efficiency 17.56% 17.95% 18.34% 18.73% 19.12% 19.51% 19.59%
Key Features & Factory Advantages
  • High Production Capacity: 300MW solar panel production capacity with a power range from 3W to 510W.
  • Premium Warranty: 10 years workmanship and materials warranty; 25 years linear power output warranty.
  • Rigorous Testing: 100% EL test performed before packaging and shipping to ensure zero defects.
  • Global Reach: Products are exported to more than 150 countries worldwide.
  • Certified Quality: Certified by TUV (Germany), UL (America), and CE.
  • Full Solutions: Turn-key solar systems offered to save time and cost for clients.
Product Gallery

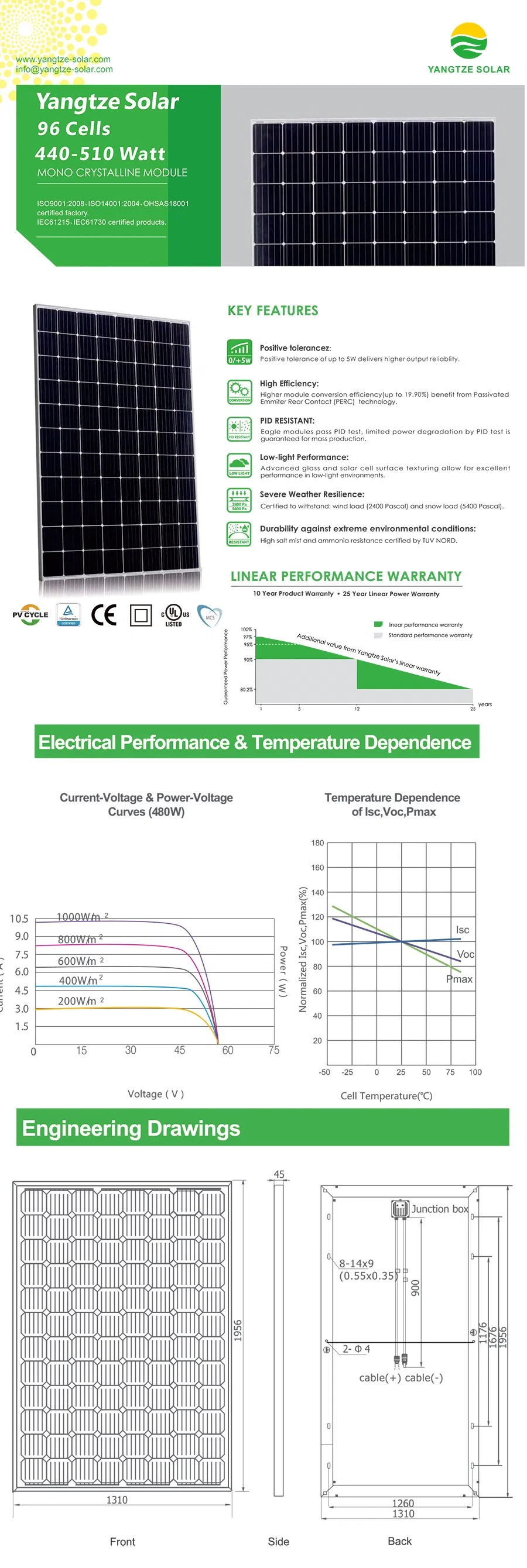

Monocrystalline Solar Panel

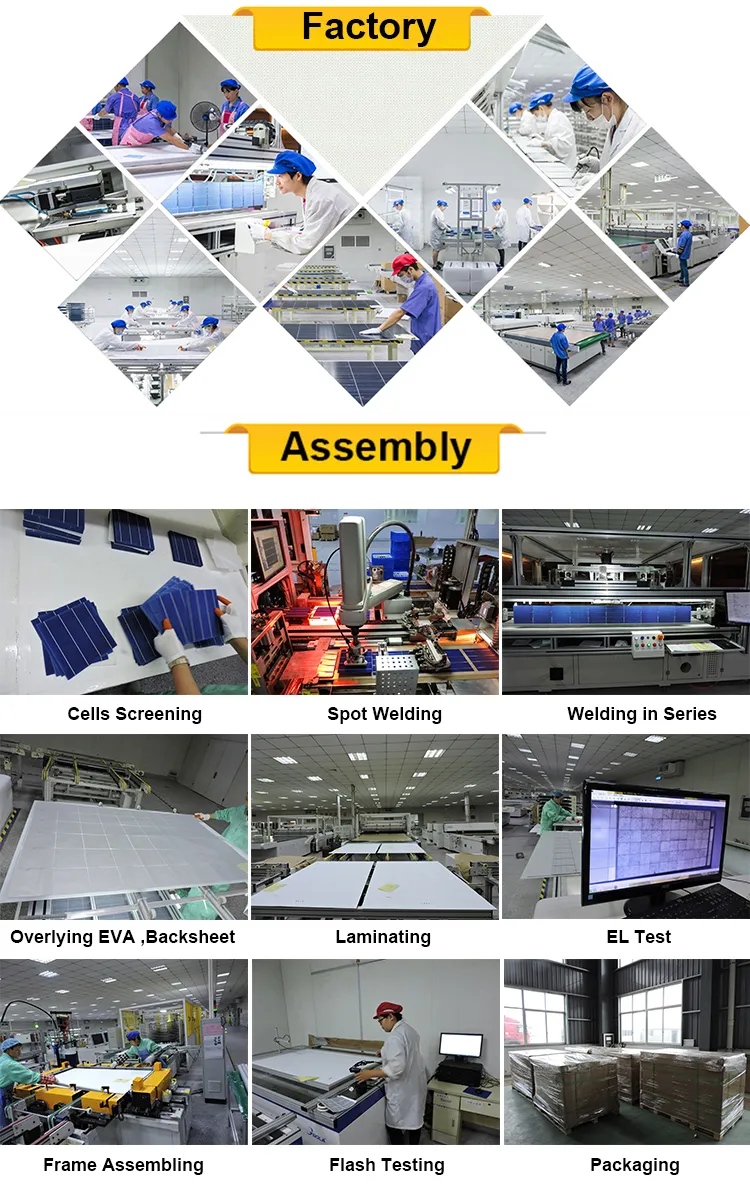

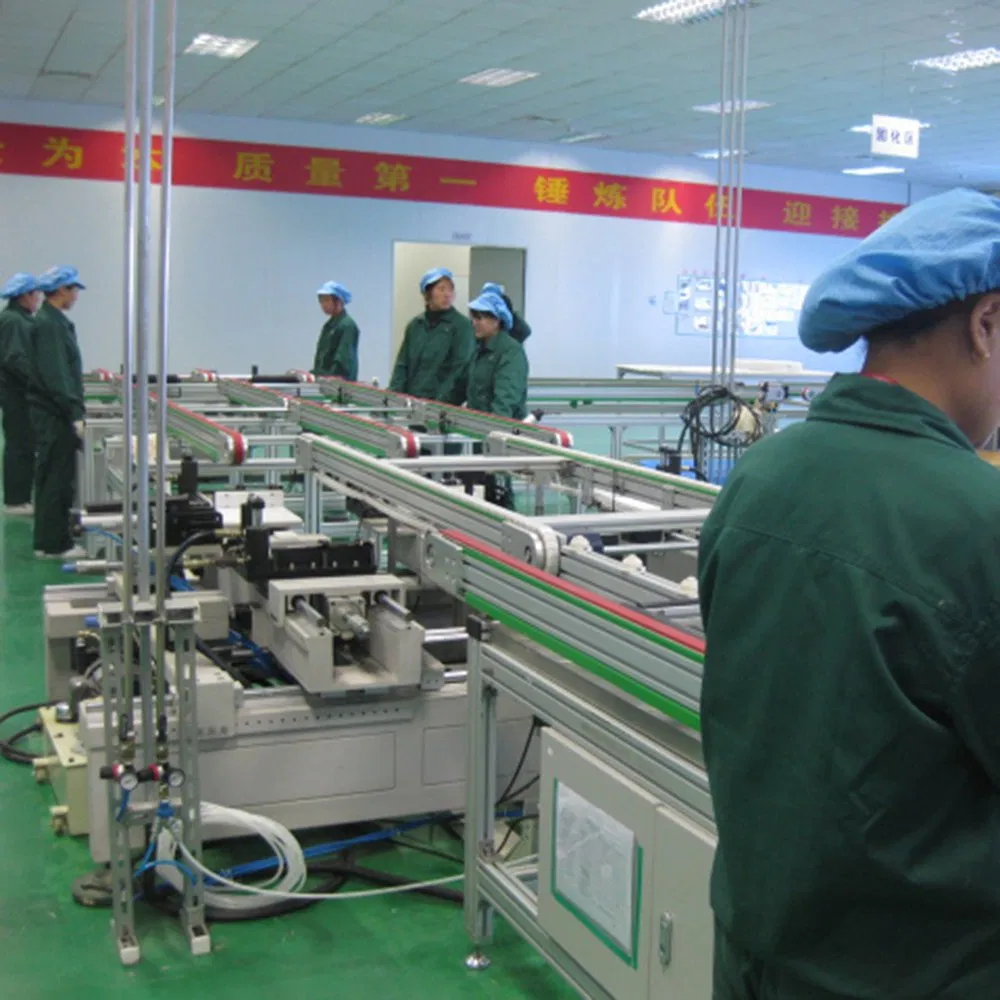

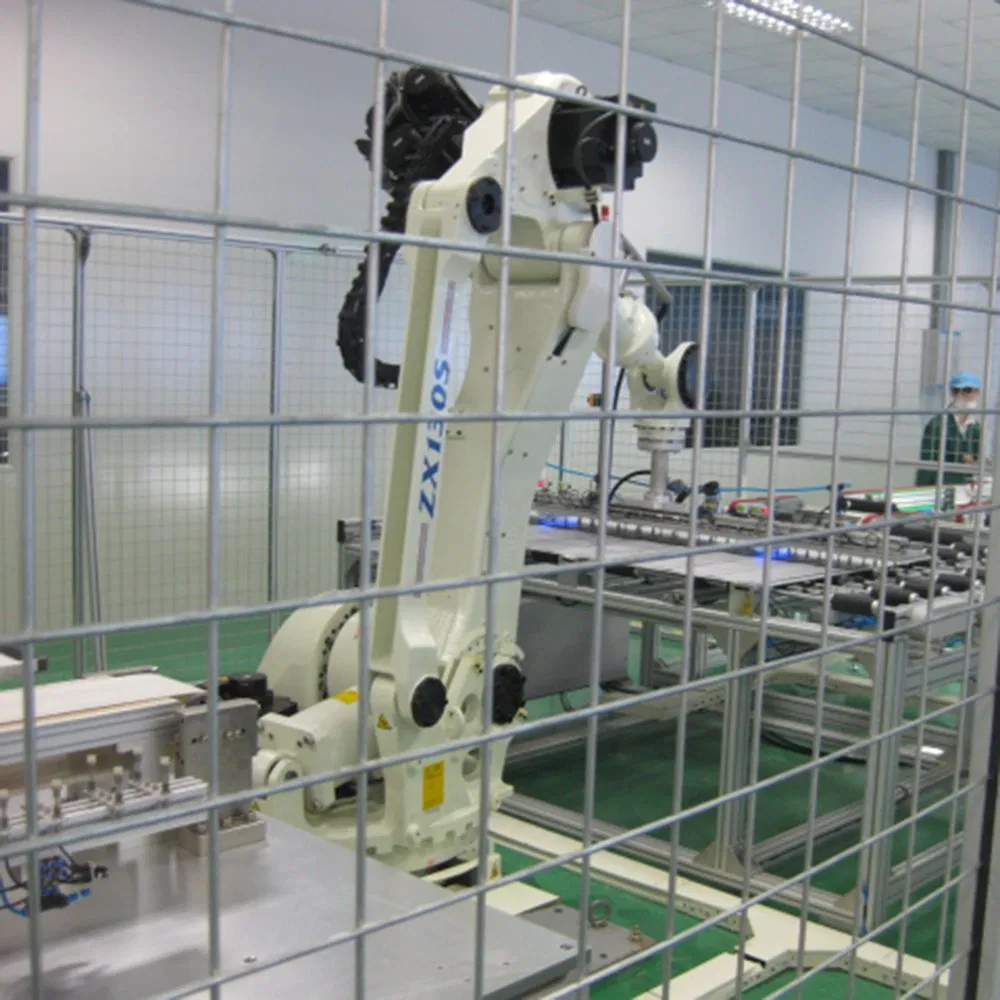

Solar Panel Production
Solar Module Testing
Solar Panel Details

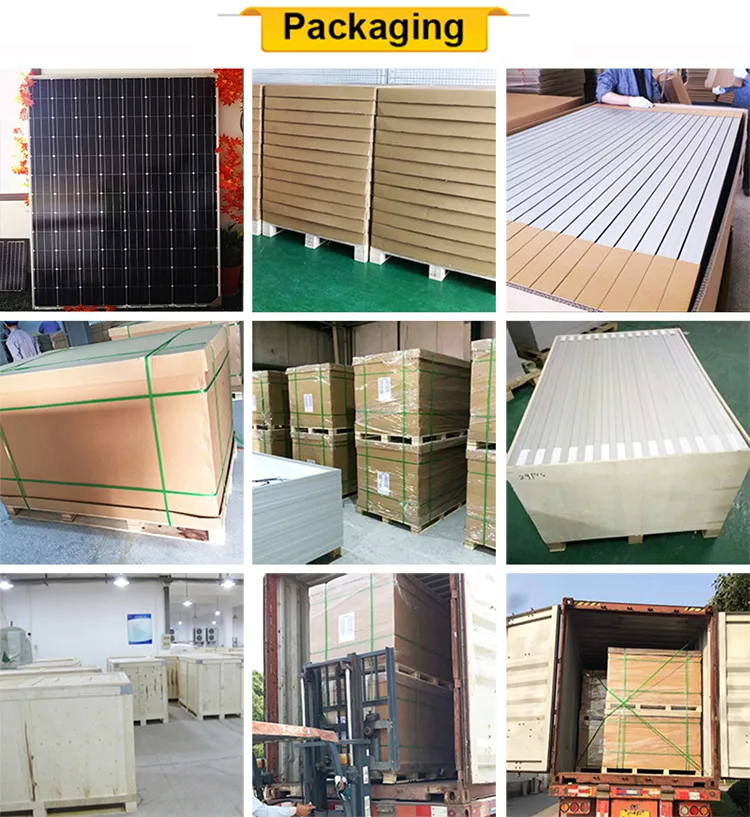

Warehouse Storage

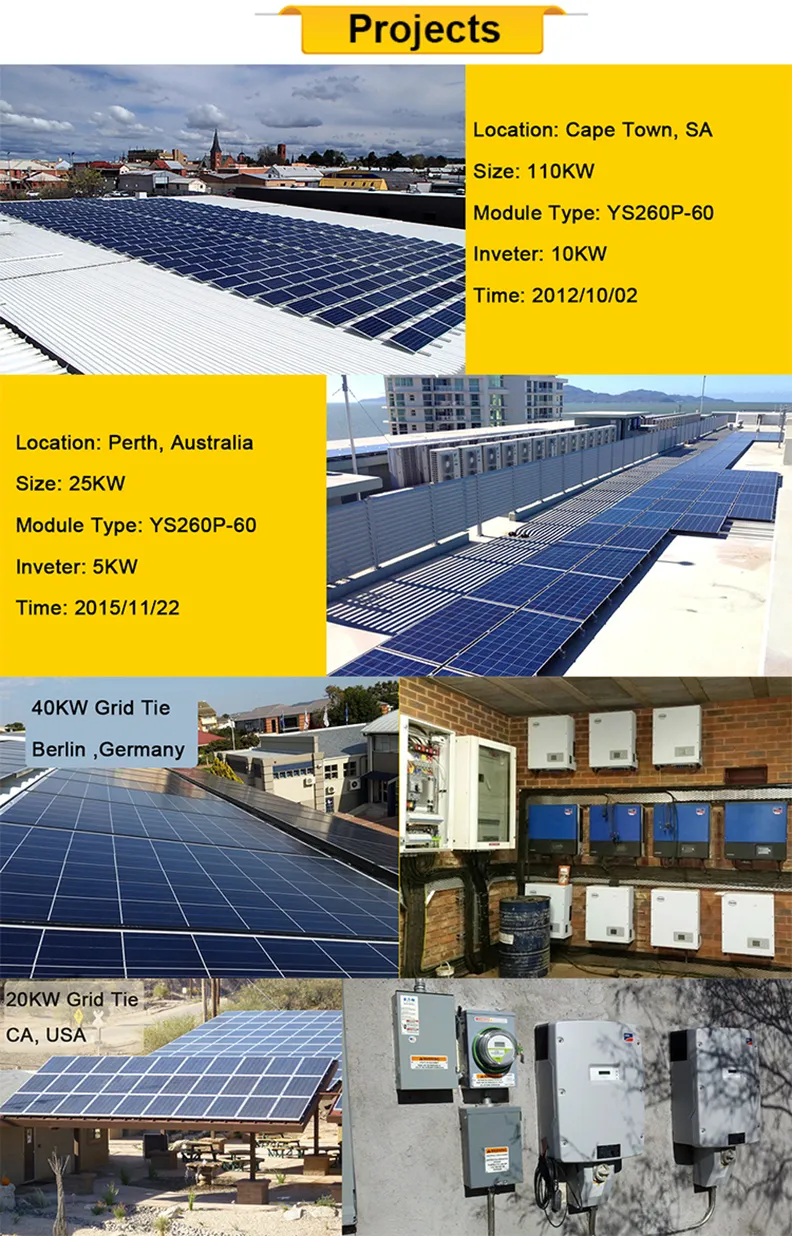

Solar Project Installation
Frequently Asked Questions
What is the warranty period for these solar panels?
We provide a 10-year total workmanship and materials warranty, along with a linear power output warranty of at least 90% for 10 years and 80% for 25 years.
Are the solar panels tested before shipment?
Yes, 100% EL (Electroluminescence) testing is conducted on all modules before packaging and shipping to ensure there are no micro-cracks or defects.
What certifications do your products hold?
Our solar panels are certified by internationally recognized bodies including TUV (Germany), UL (America), CE, ISO, and IEC (61215, 61730).
Can these panels withstand extreme weather conditions?
Absolutely. The panels feature 3.2mm high transmission low iron tempered glass and an IP67 waterproof junction box, designed to operate in temperatures ranging from -40°C to +85°C.
Do you support OEM orders?
Yes, OEM orders are acceptable. We can customize frame colors (silvery or black) and backsheet colors (white, black, or transparent) according to your requirements.
What is the efficiency range of the YS series?
The module efficiency ranges from 17.56% up to 19.59% for the high-power 510W monocrystalline modules.
