| Mechanical Data | |
|---|---|

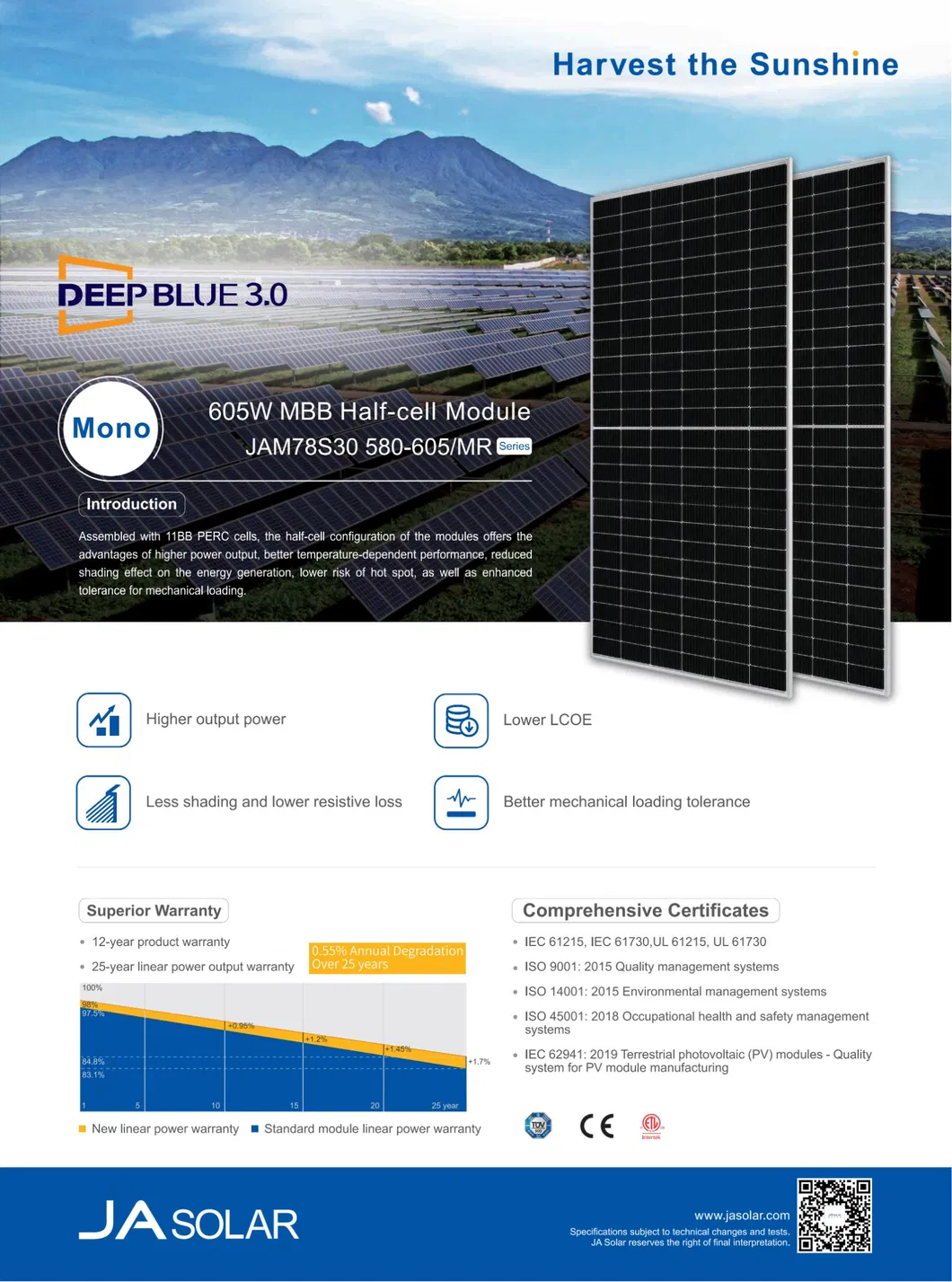

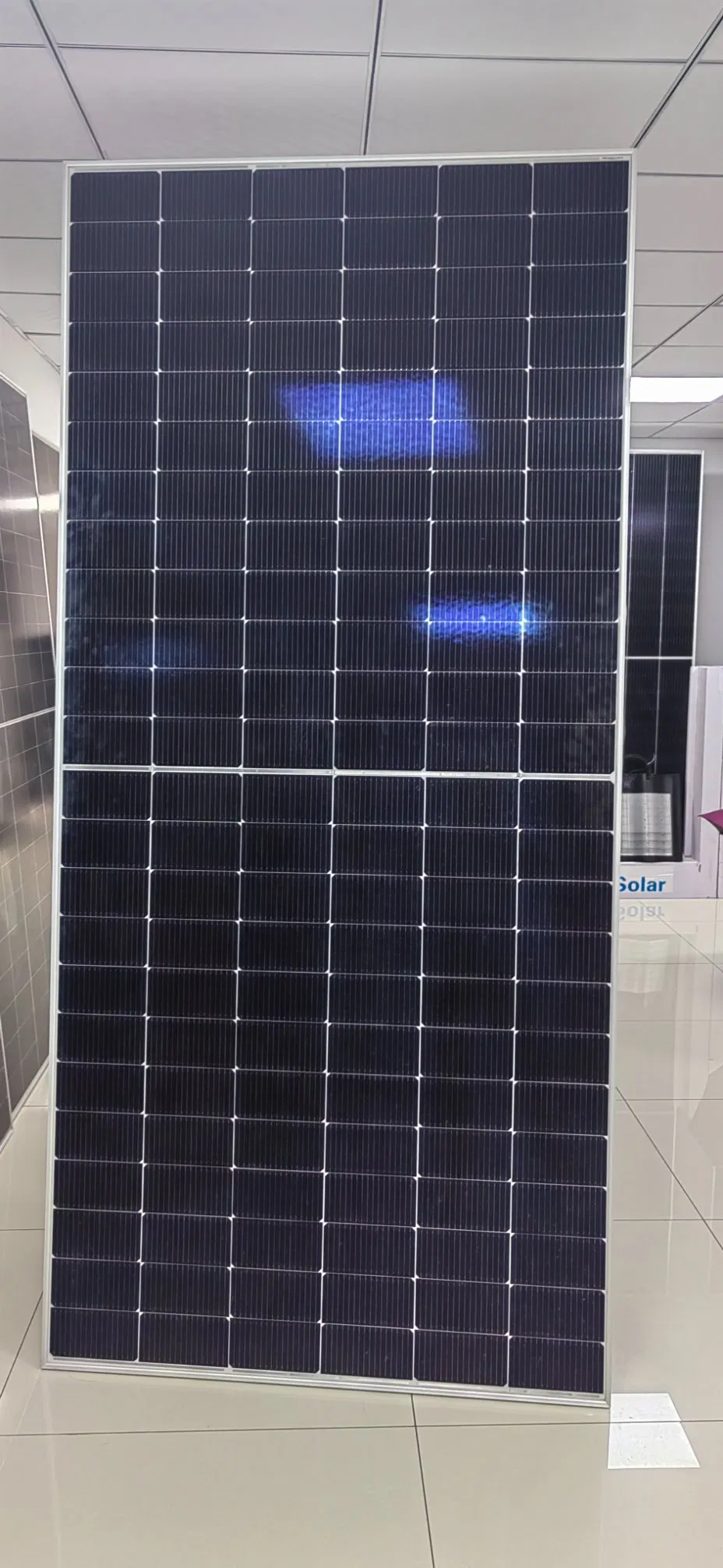

| Model | JAM78S30-580-605/MR |
| Solar Cells | 11BB, PREC monocrystalline |
| Cell Number | 156 (6*26) |

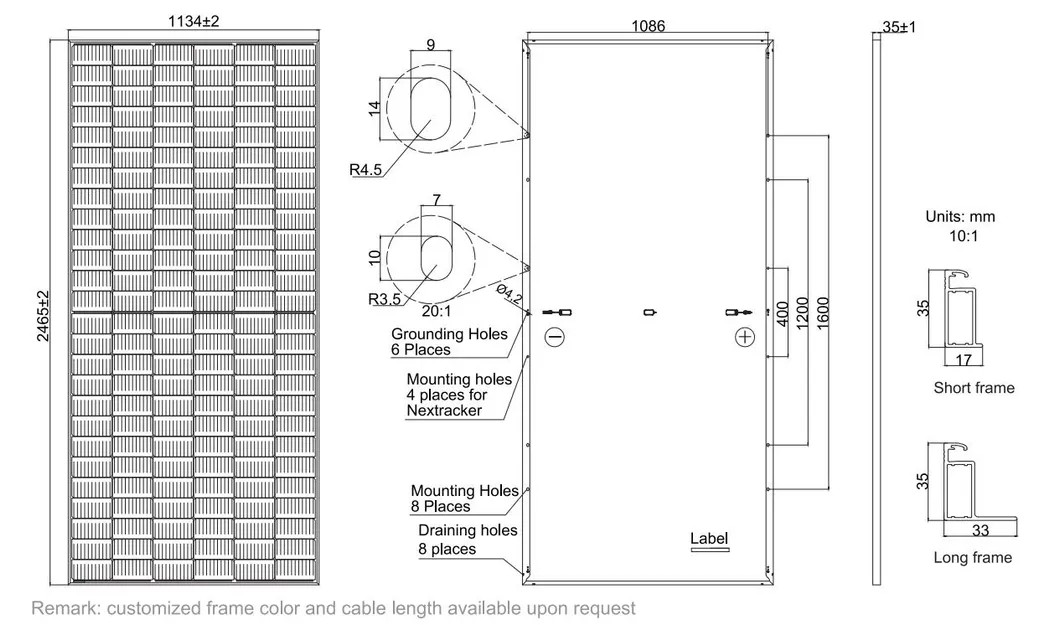

| Dimensions | 2465*1134*35mm |
| Weight | 30.5kg |
| Junction Box | IP68, 3 diodes |

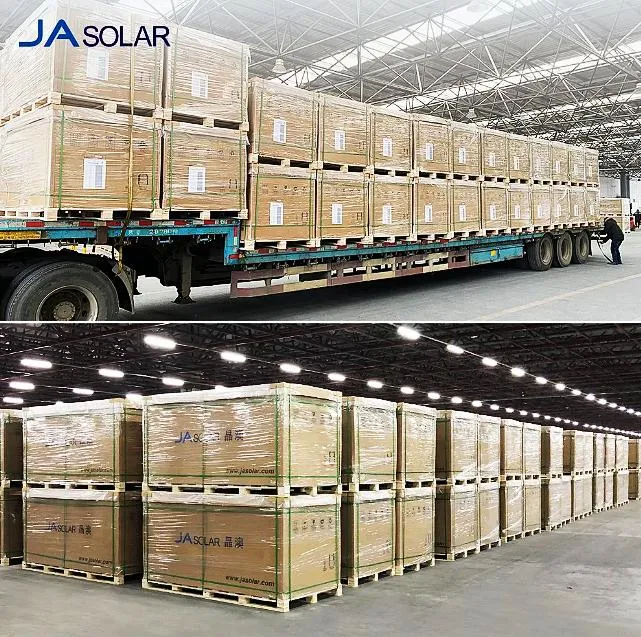

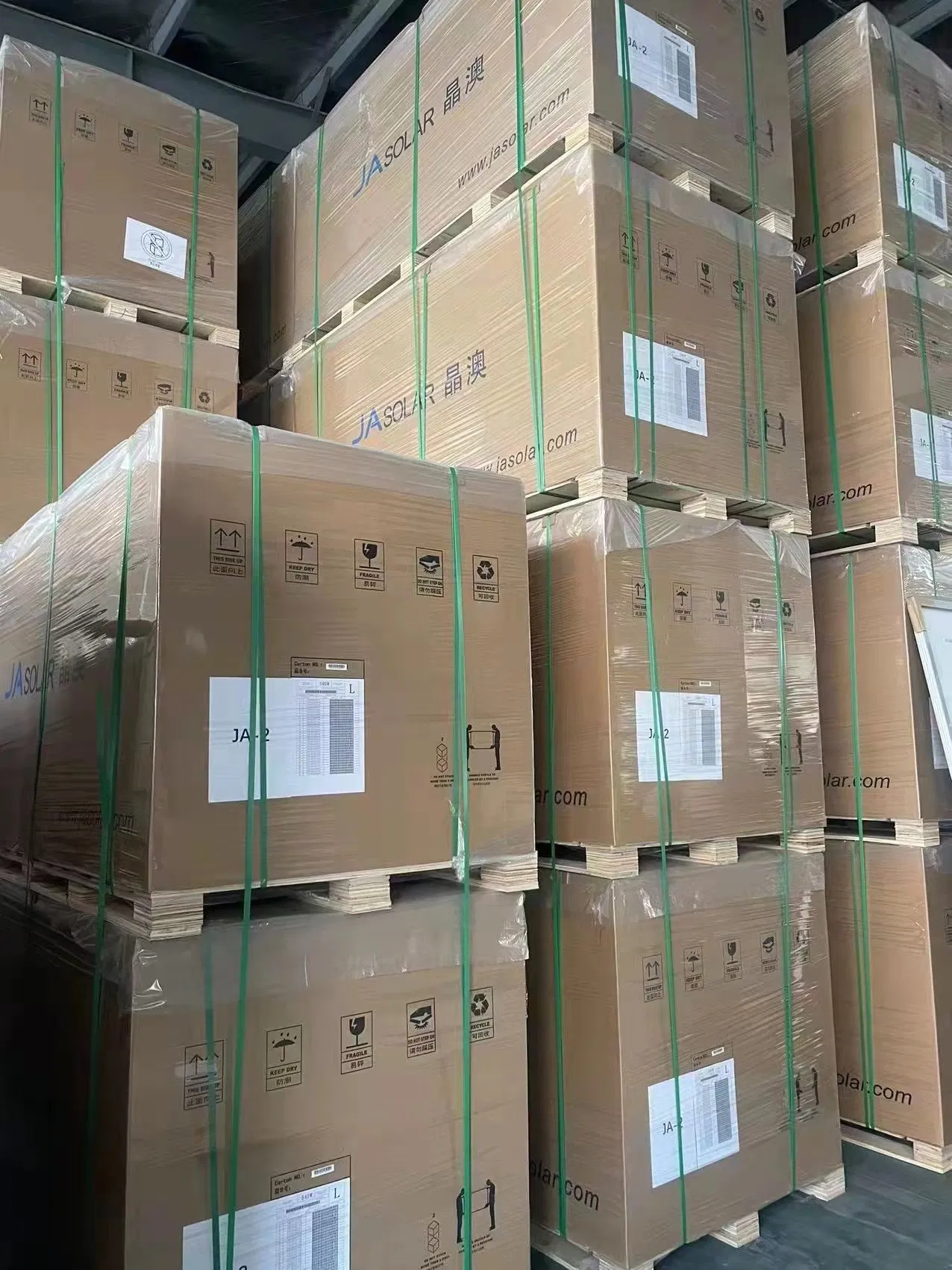

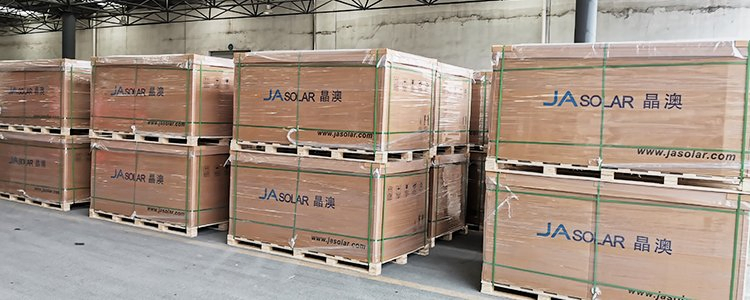

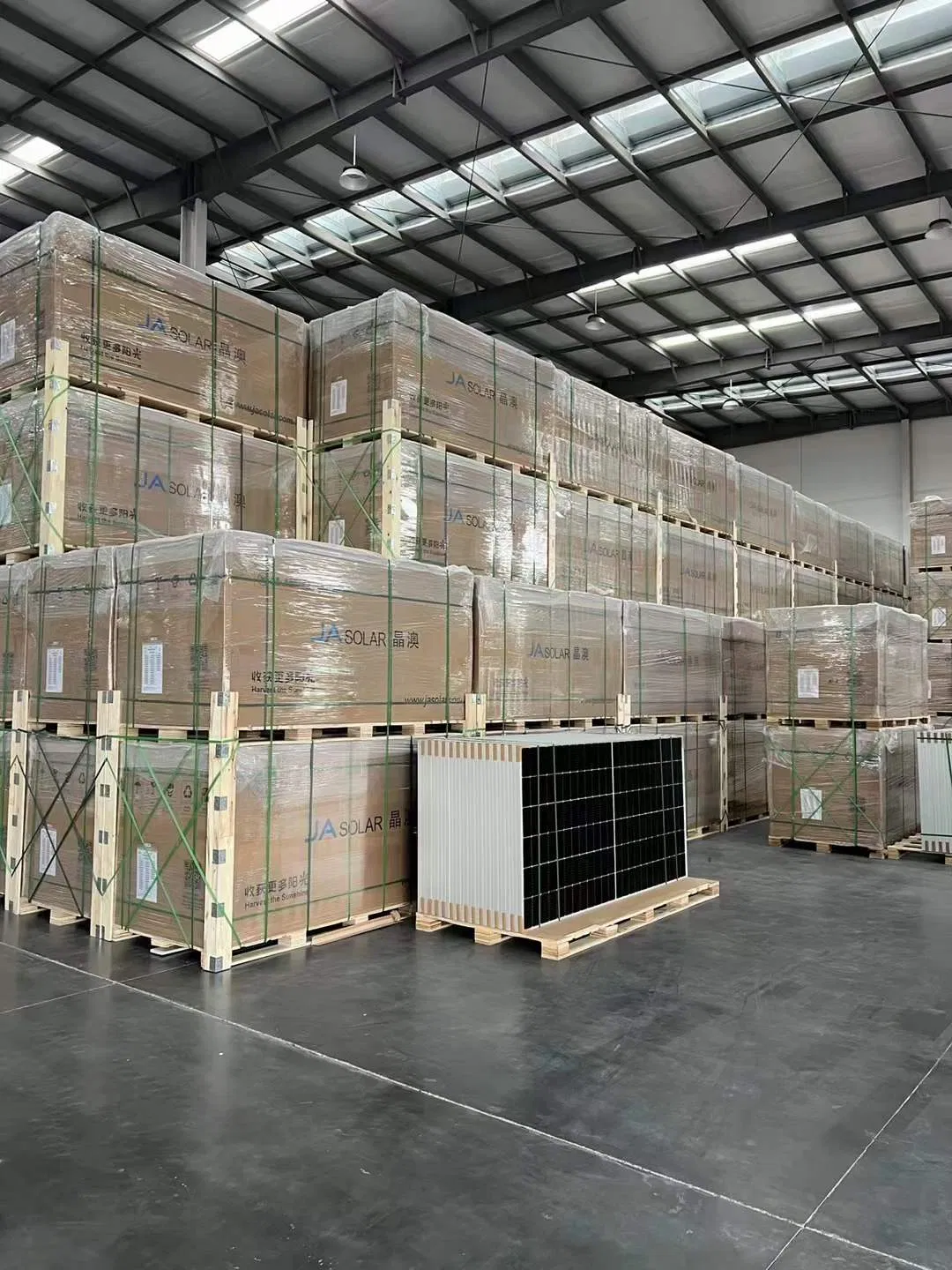

| Packaging Configuration | 31pcs/Pallet, 496pcs/40HQ Container |
| Type (JAM78S30) | 580/MR | 590/MR | 600/MR | 605/MR |
|---|---|---|---|---|
| Max Power (Pmax) [W] | 580 | 590 | 600 | 605 |
| Open Circuit Voltage (Voc) [V] | 53.11 | 53.30 | 53.50 | 53.61 |
| Max Power Voltage (Vmp) [V] | 44.35 | 44.80 | 45.30 | 45.53 |
| Short Circuit Current (Isc) [A] | 13.84 | 13.93 | 14.03 | 14.08 |
| Module Efficiency (%) | 20.7% | 21.1% | 21.5% | 21.6% |

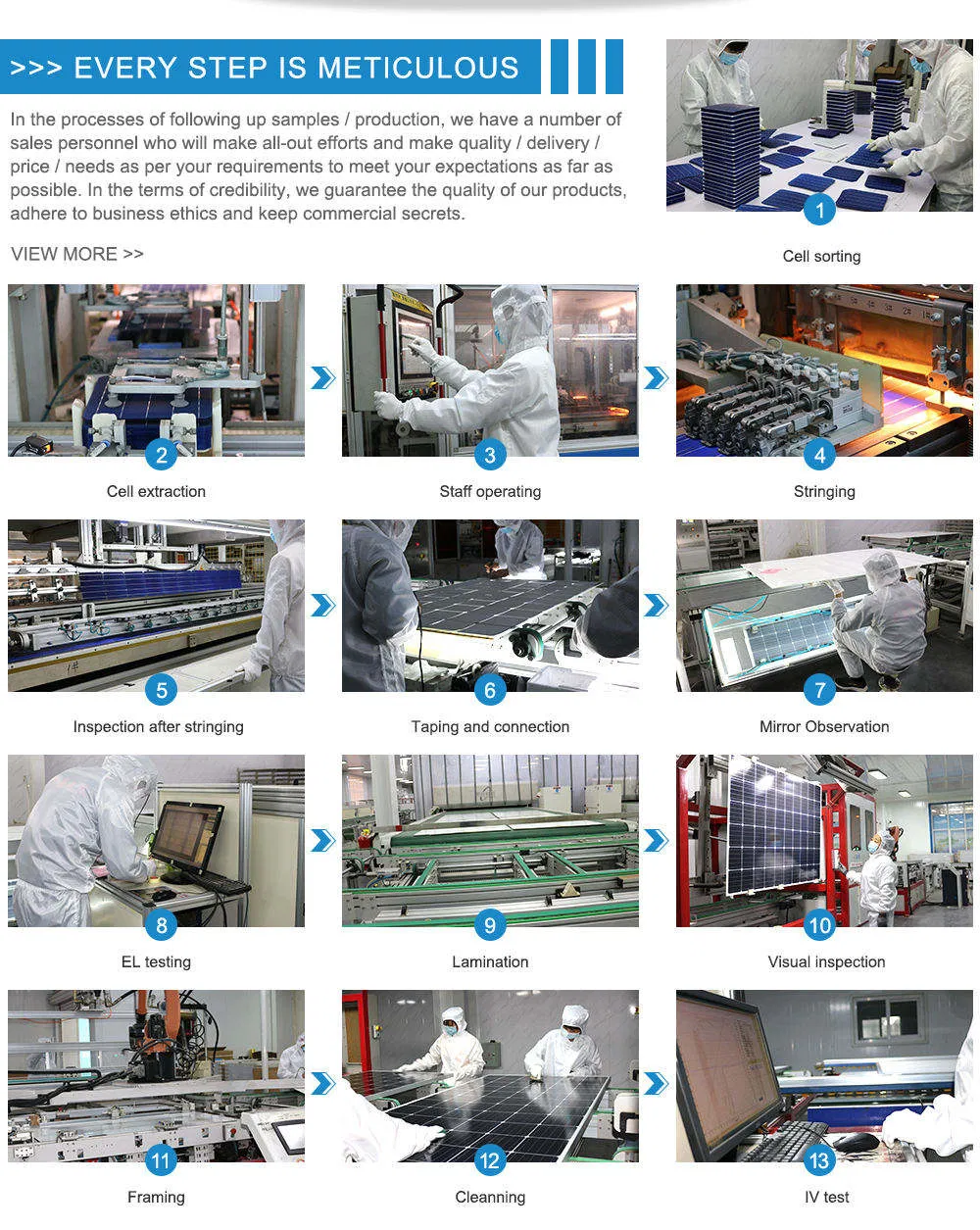

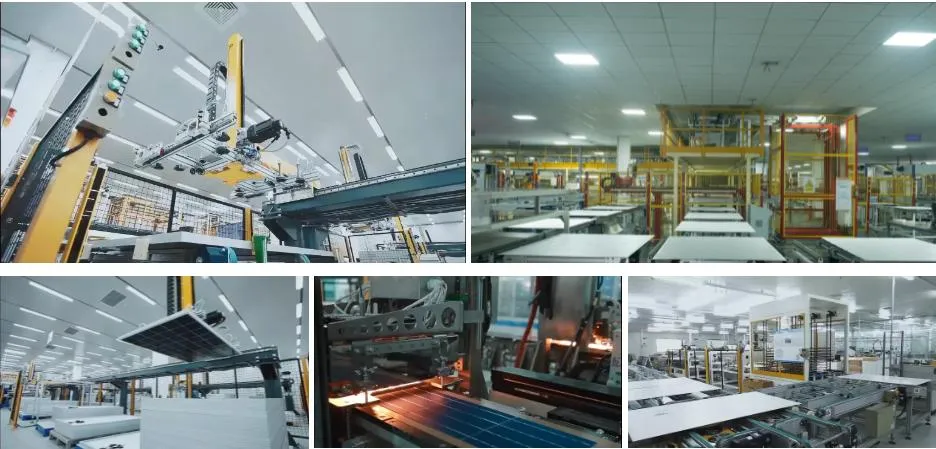

As a professional and fast-growing company, our business covers the R&D, production, and sales of PV modules, power stations, and PV system products, power generation, and operation and maintenance services. Located in a major production base of the photovoltaic industry, we are a manufacturer and supplier of solar cells, solar PV modules, and solar systems. Covering an area of 46,000 square meters with more than 200 employees, our annual production capacity reaches 800MW, with 90% exported globally.
The advanced production system and excellent quality control have enabled us to win the trust and support of our customers. We hold certificates including TUV and CE. Our global sales network covers over 70 countries/regions, mainly spanning Europe, Asia, and South America.
