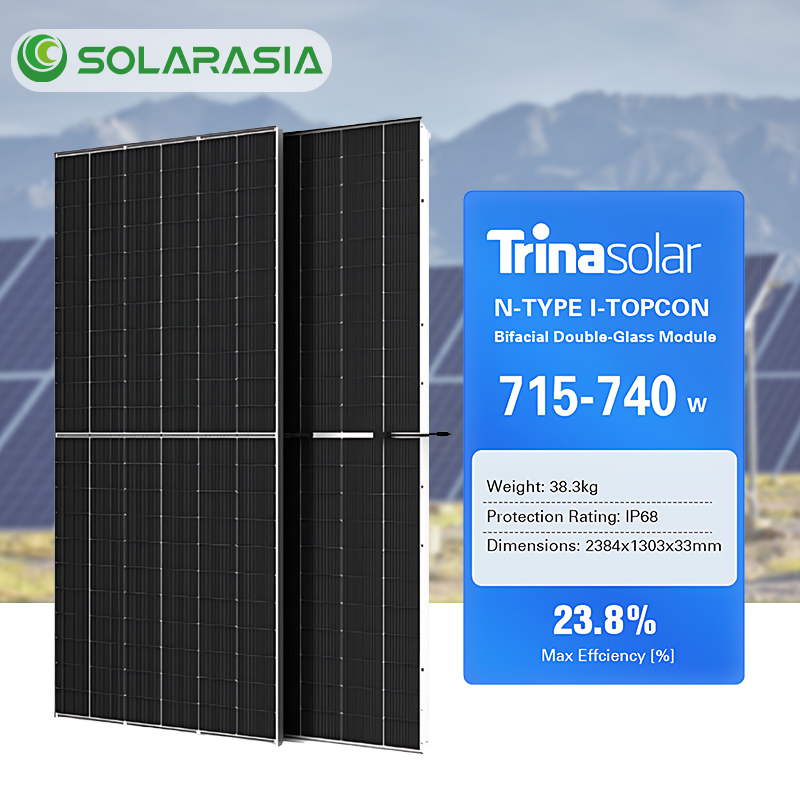

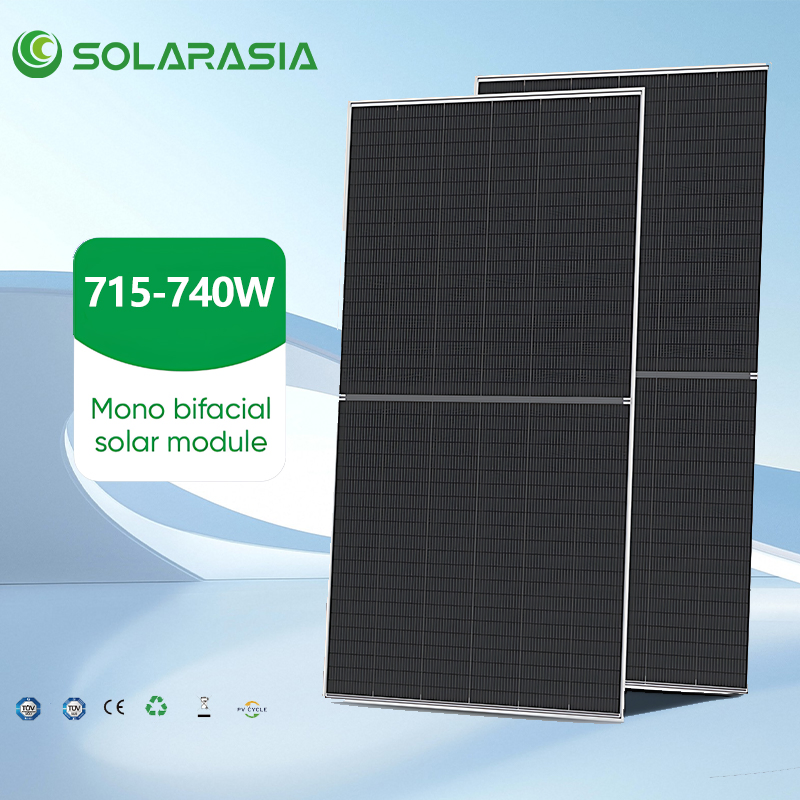

Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
1 / 5
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems
Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems

Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems

Customization: Available
After-sales Service: Yes
Number of Cells: 132 Cells
Send Inquiry

Product Description

Basic Information

Model NO.
TSM-NEG21C. 20
Application
Industrial
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
J-Box
IP 68 Rated
Weight
38.3 Kg
Cell Size
182mmx210mm
Solar Cells
N-Type I-Topcon Monocrystalline
Specification
2384*1303*33 mm
Origin
China

Product Description

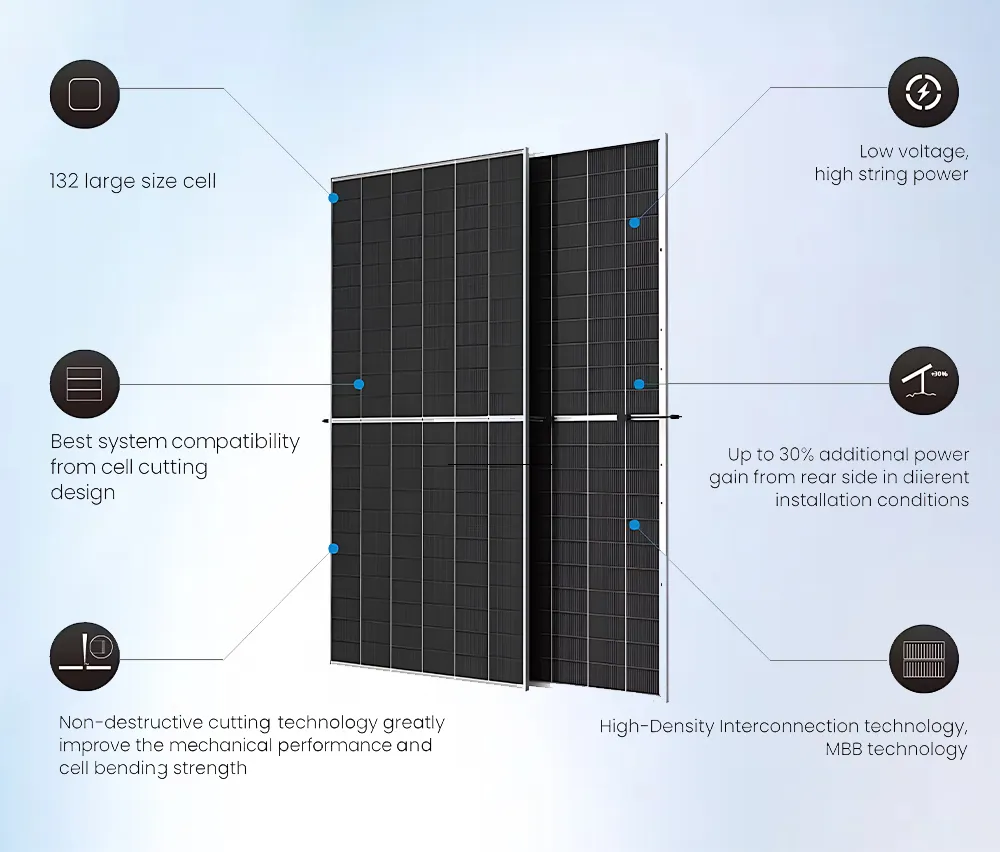

High Efficiency PV Module Monocrystalline Solar Panel Solar Panel Details

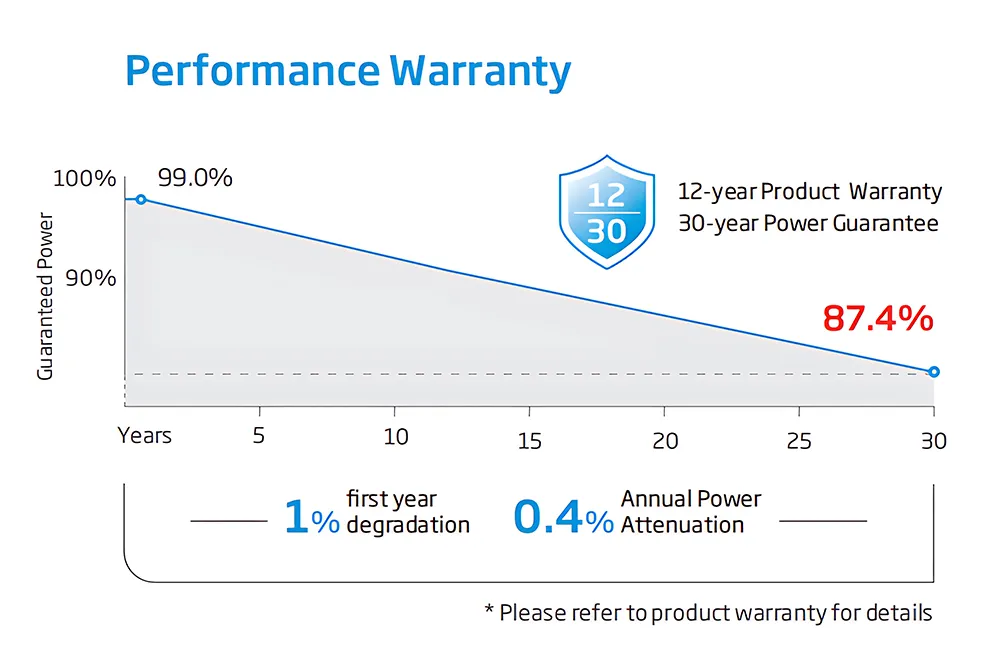

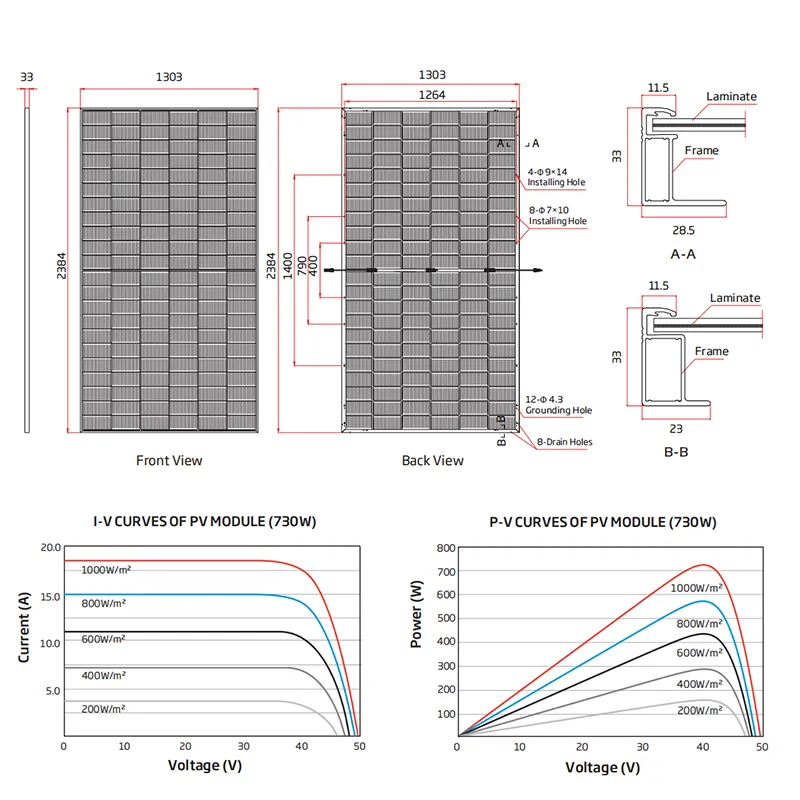

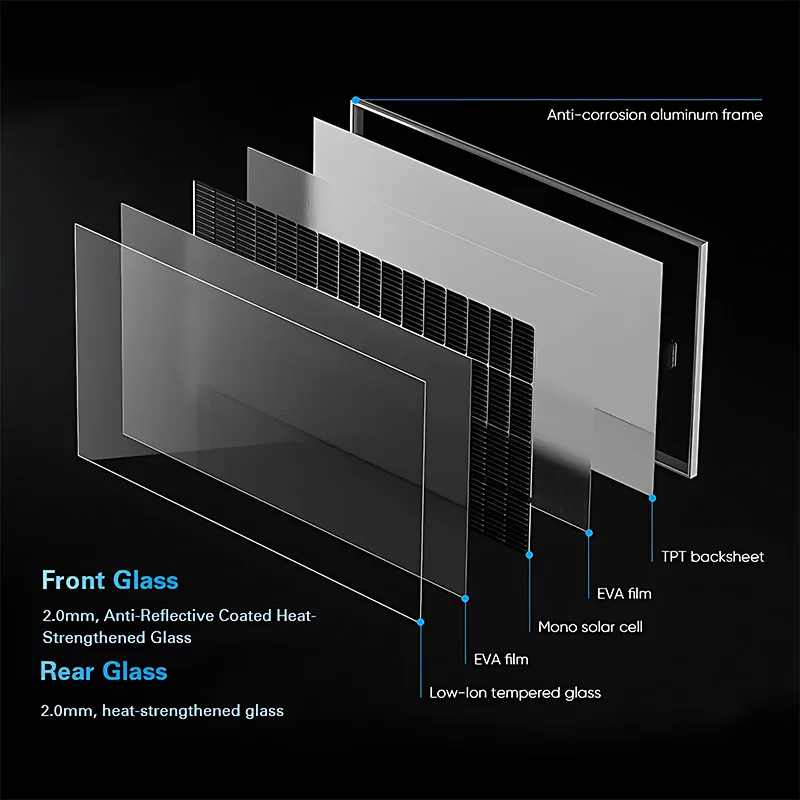

Panel Features Module Structure Technical Specs View

Product Parameters

Model No. 715 720 725 730 735 740
Max Power (Pmax)715 Wp720 Wp725 Wp730 Wp735 Wp740 Wp
Max Power Voltage (Vmpp)41.1 V41.3 V41.5 V41.7 V41.9 V42.1 V
Max Power Current (Impp)17.4 A17.44 A17.47 A17.51 A17.55 A17.58 A
Open Circuit Voltage (Voc)49.2 V49.4 V49.6 V49.9 V50.1 V50.3 V
Short Circuit Current (Isc)18.44 A18.49 A18.54 A18.58 A18.62 A18.66 A
Panel Efficiency23%23.20%23.30%23.50%23.70%23.80%
Operating Temp-40 - 70 °C
Max System Voltage1500 V

Packing & Delivery

Package Size
240.00cm * 135.00cm * 5.00cm
Package Gross Weight
50.000kg
Shipping Package

Project Cases

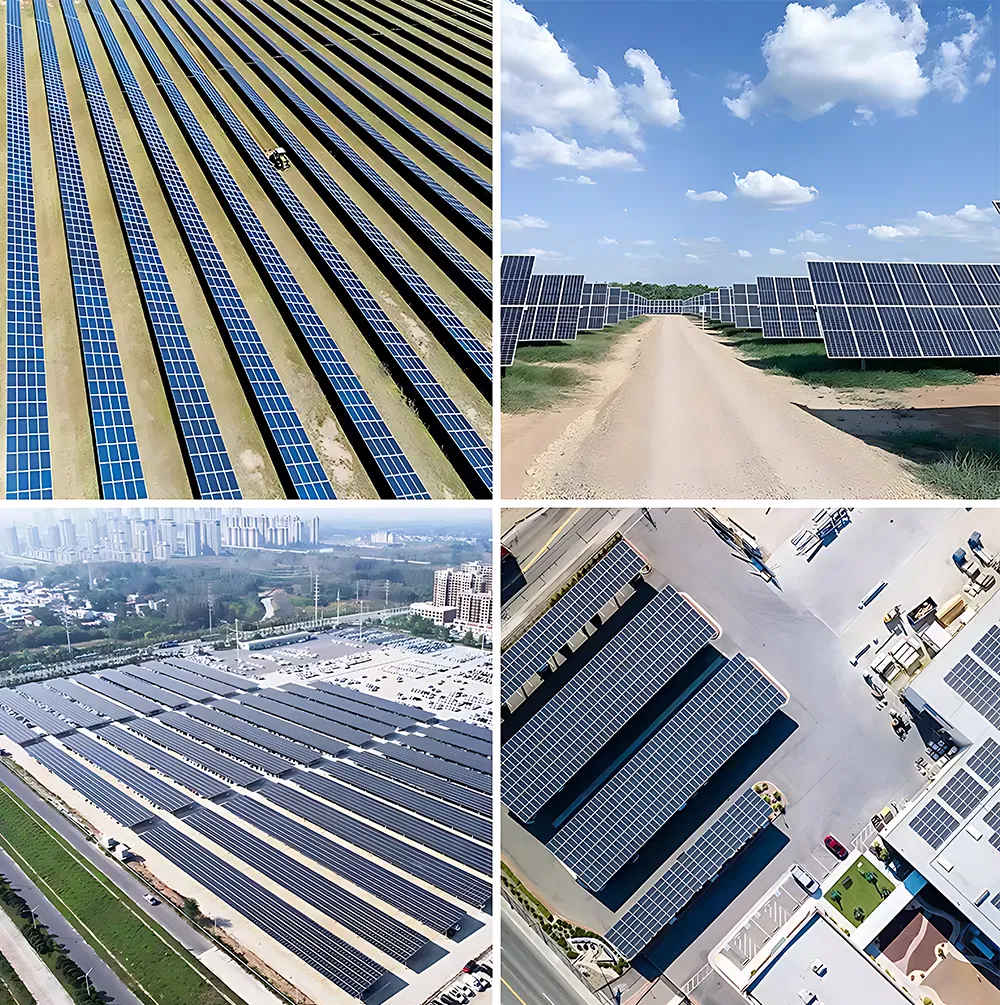

Installation Case

Certifications

Industry Certifications

Frequently Asked Questions

1. What is the power output range of the TSM-NEG21C.20 series?
This series provides ultra-high power output ranging from 715W to 740W, making it ideal for utility-scale solar plants and large-scale commercial installations.
2. What are the advantages of N-type i-TOPCon cell technology?
N-type i-TOPCon technology offers higher module efficiency, lower annual power degradation, and superior performance in high-temperature environments compared to traditional P-type modules.
3. Does this module support bifacial power generation?
Yes, the module is designed to capture solar energy from both sides, providing a significant bifacial energy gain depending on the installation surface's reflectivity.
4. What is the expected durability and warranty?
The modules come with a 30-year linear power output warranty and a 12-year product warranty, ensuring long-term operational stability and investment security.
5. Is it compatible with standard mounting and tracking systems?
Yes, despite its high wattage and large format, the module is optimized for compatibility with mainstream trackers and fixed-tilt mounting solutions to reduce Balance of System (BOS) costs.
6. What certifications do these solar panels hold?
The panels are fully compliant with international standards including IEC 61215 and IEC 61730, along with ISO certifications for manufacturing quality and safety.
