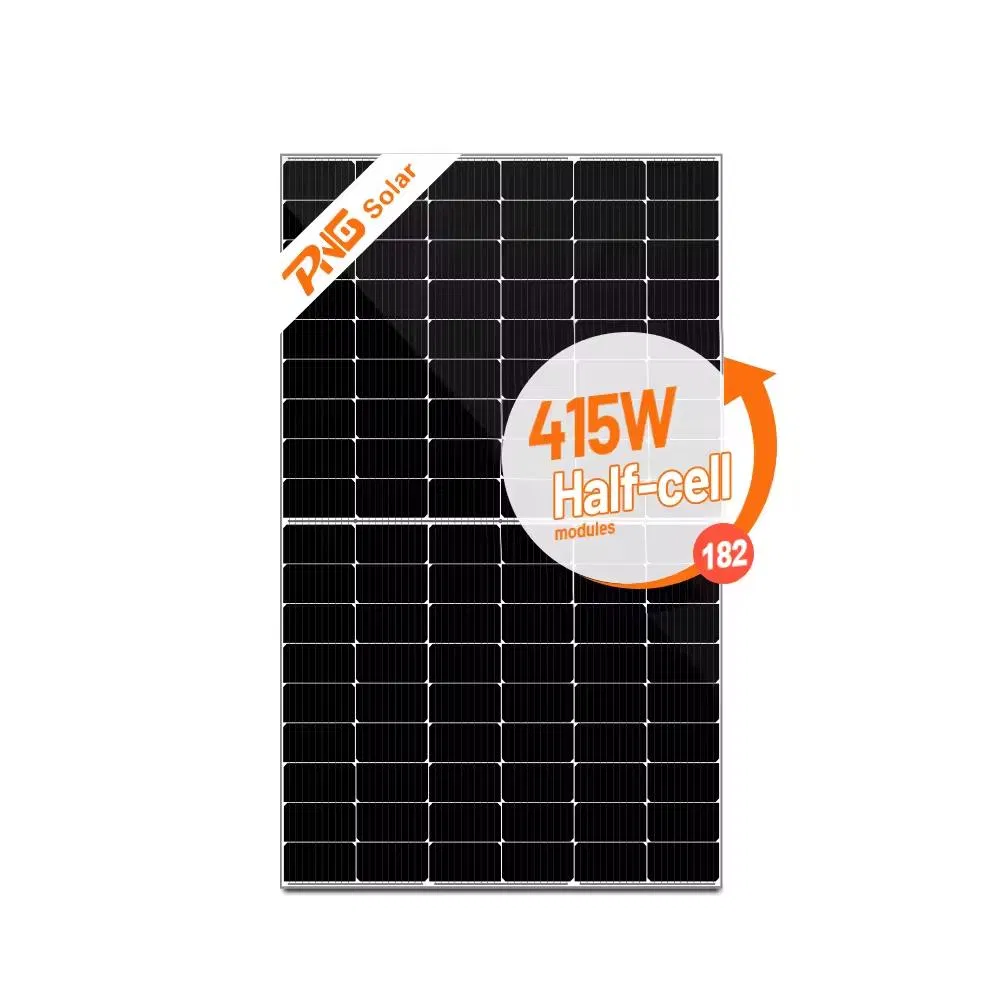

PNG Mono Professional Factory 400W 405W 410W 415W 420W Half Cut PV Module A Grade Monocrystalline Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

i

Basic Specifications

Number of Cells
144PCS
Application
Residential, Industrial, Commercial
Condition
New
Certification
CE, TUV
Material
Monocrystalline Silicon
Solar Cell
a-Grade
Junction Box
IP 68 Rated
Service
OEM Available
Glass
3.2mm Tempered Low Iron
Type
Half Cut Cell
Weight
24.5kg
Panel Efficiency
19.92%
Backsheet
Tpt Material
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm Tempered Glass
Cable
4mm^2 300mm PV Cable
Transport Package
30PCS in Pallet
Specification
2108*1048*35mm
Origin
China
HS Code
85414020
Production Capacity
800mwatt/Years

Product Details

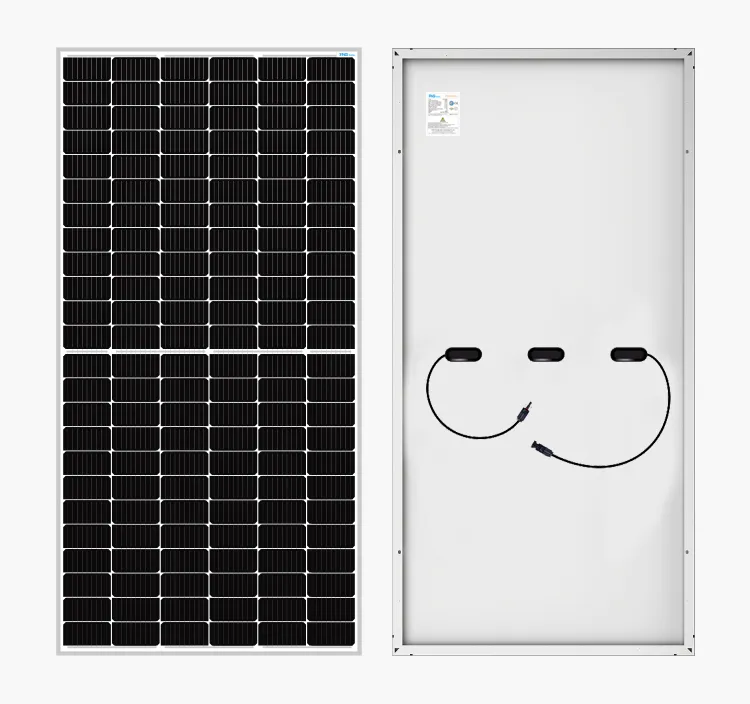

Solar Module Detail Half Cut Cell Technology Mono Solar Panel Grade A
Electrical Characteristics

Electrical Data (STC)

Module Type 108M-395 108M-400 108M-405 108M-410 108M-415
Rated output (Pmp/Wp) 395400405410415
Short Circuit Current(Isc) 13.68A13.77A13.86A13.95A13.95A
Open Circuit Voltage(Voc) 37.0V37.1V37.2V37.4V37.6V
Maximum Power Current(Impp) 12.81A12.88A12.97A13.05A13.14A
Maximum Power Voltage(Vmpp) 30.9V31.1V31.2V31.4V31.6V
Module efficiency(%) 20.25%20.50%20.76%21.01%21.25%
Power Tolerance (W) 0~+5W

Electrical Data (NOCT)

Module Type 108M-395 108M-400 108M-405 108M-410 108M-415
Rated output (Pmp/Wp) 297301305309313
Short Circuit Current(Isc) 10.9311.0111.1011.1711.17
Open Circuit Voltage(Voc) 34.834.935.135.335.5
Maximum Power Current(Impp) 10.2310.3110.3810.4510.52
Maximum Power Voltage(Vmpp) 29.029.229.429.629.8

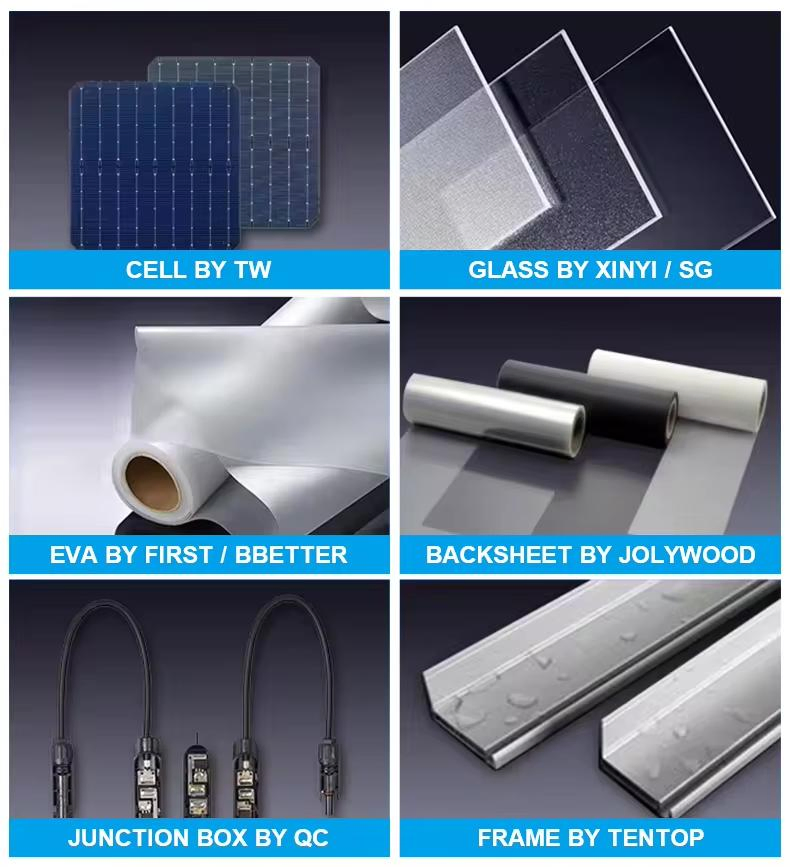

A-Grade Materials & Quality

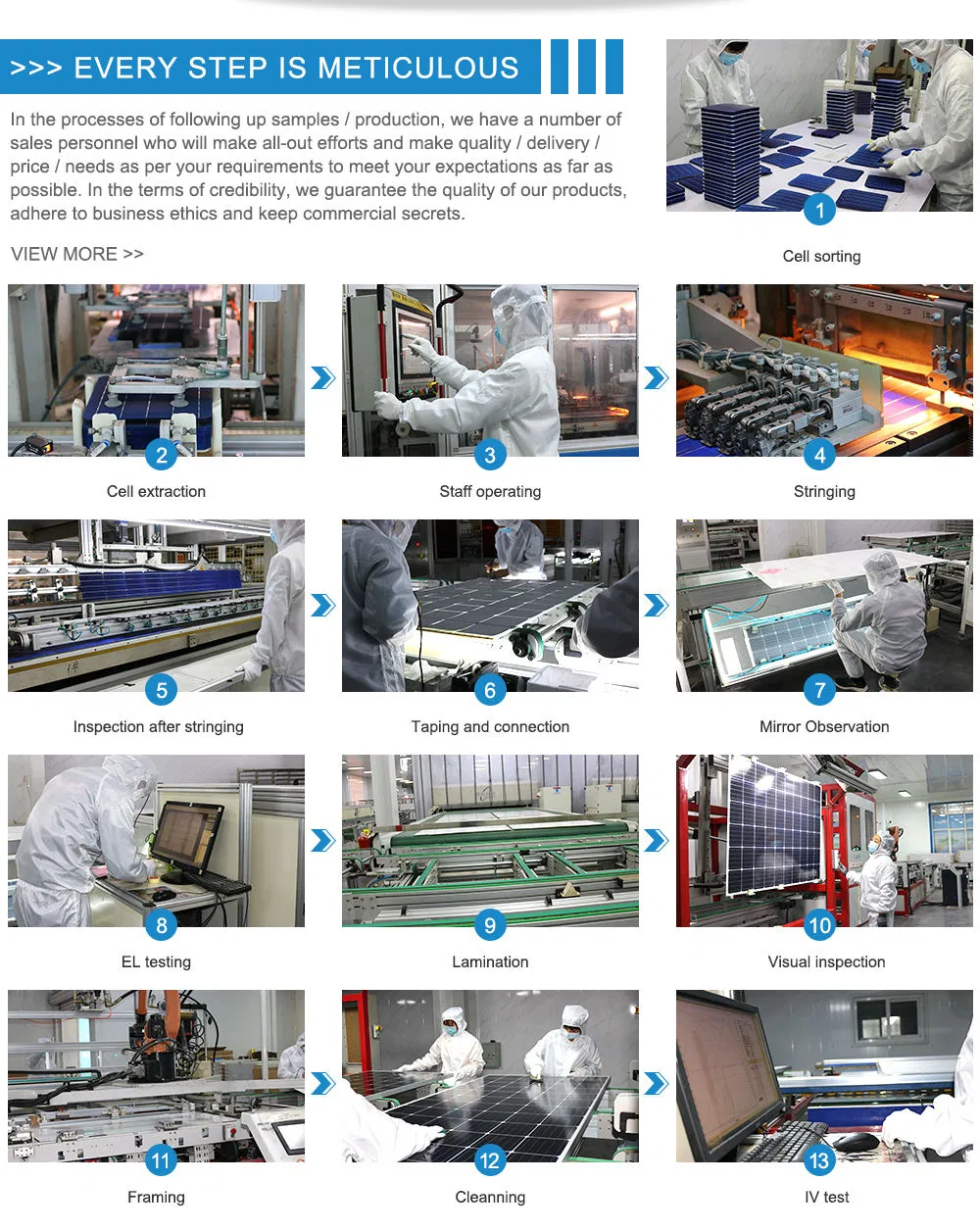

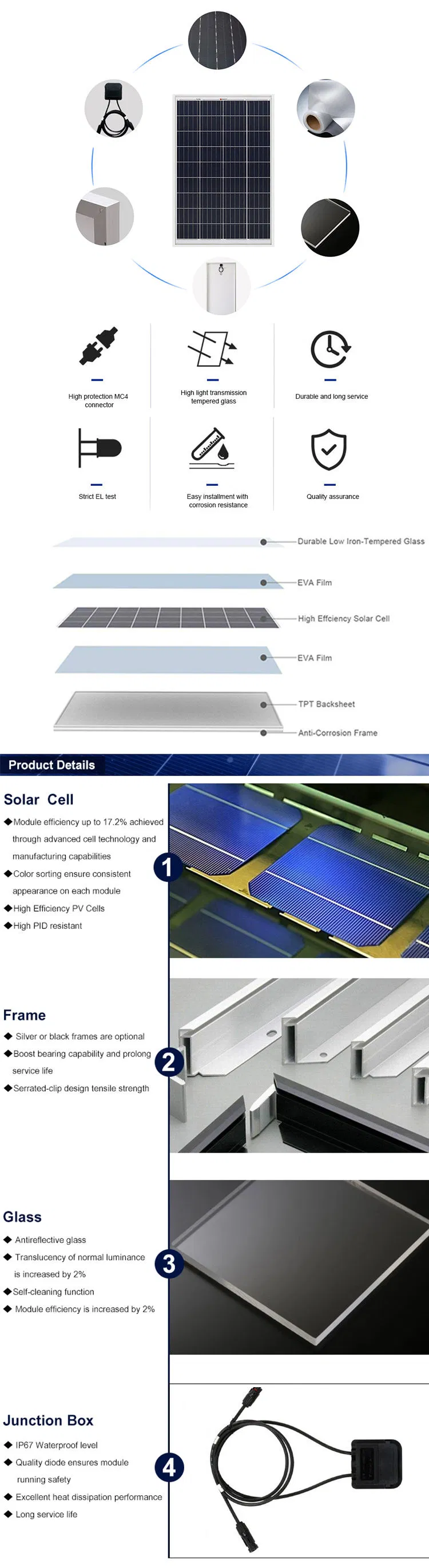

Internal Structure Production Process
Quality Control Material Inspection
🏠

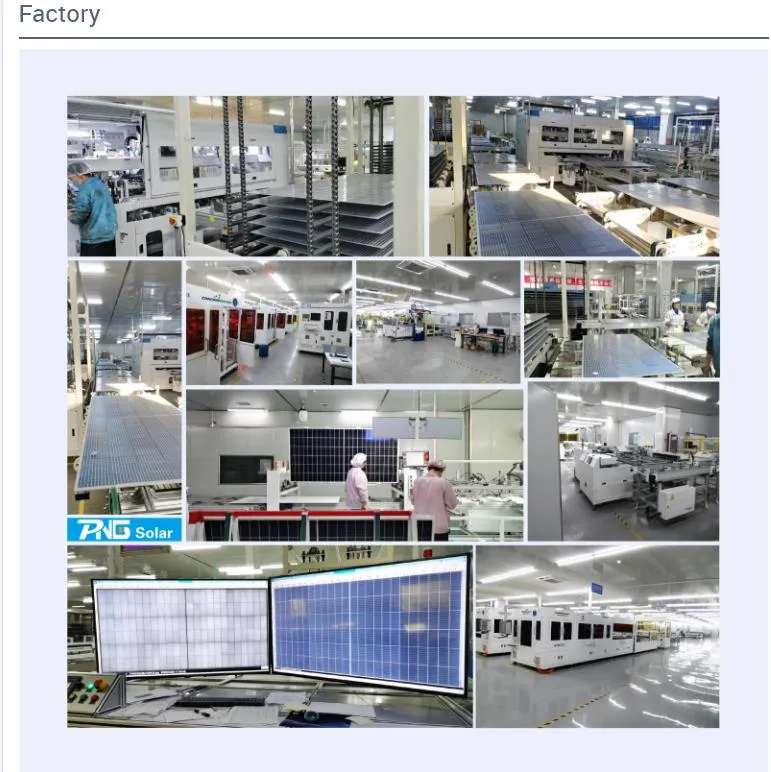

Project Cases & Factory

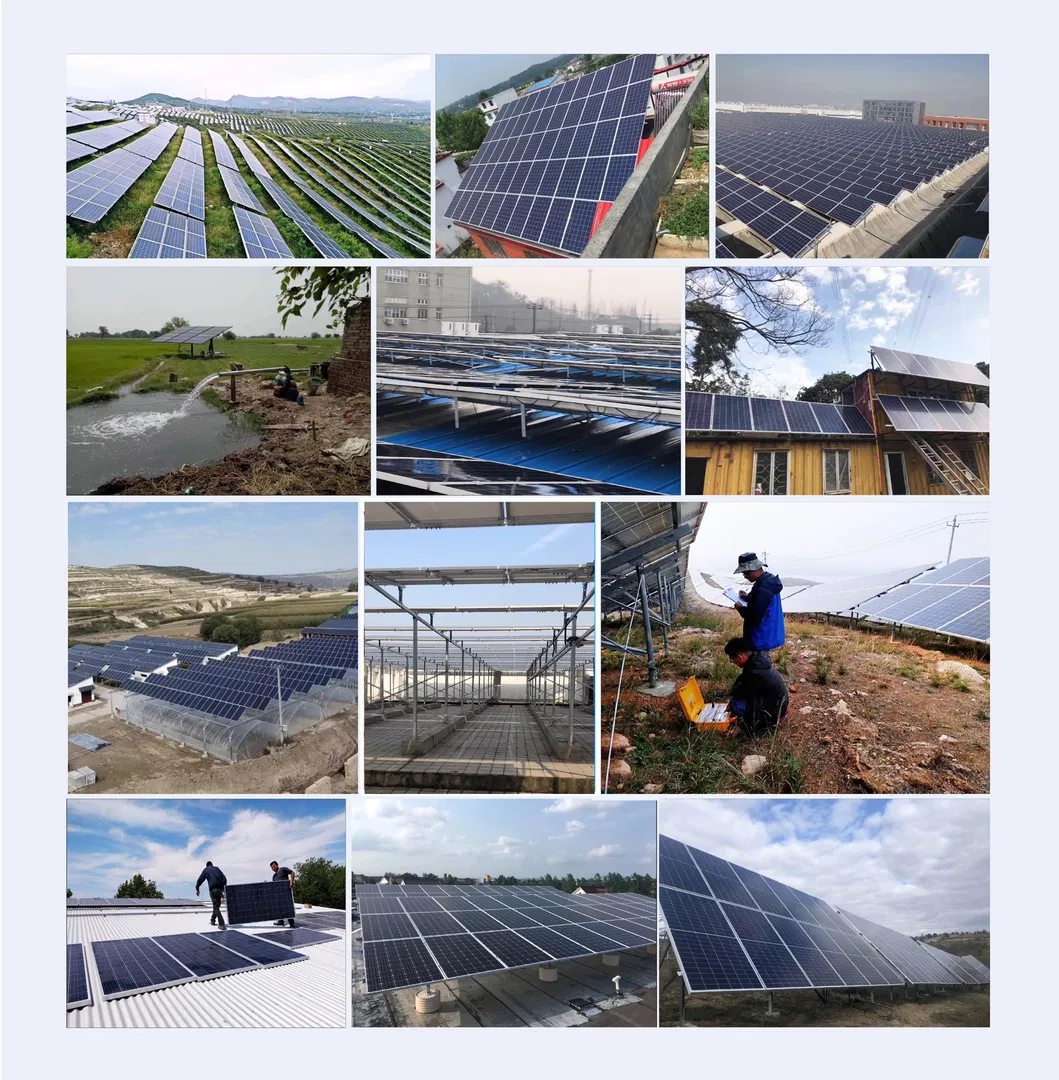

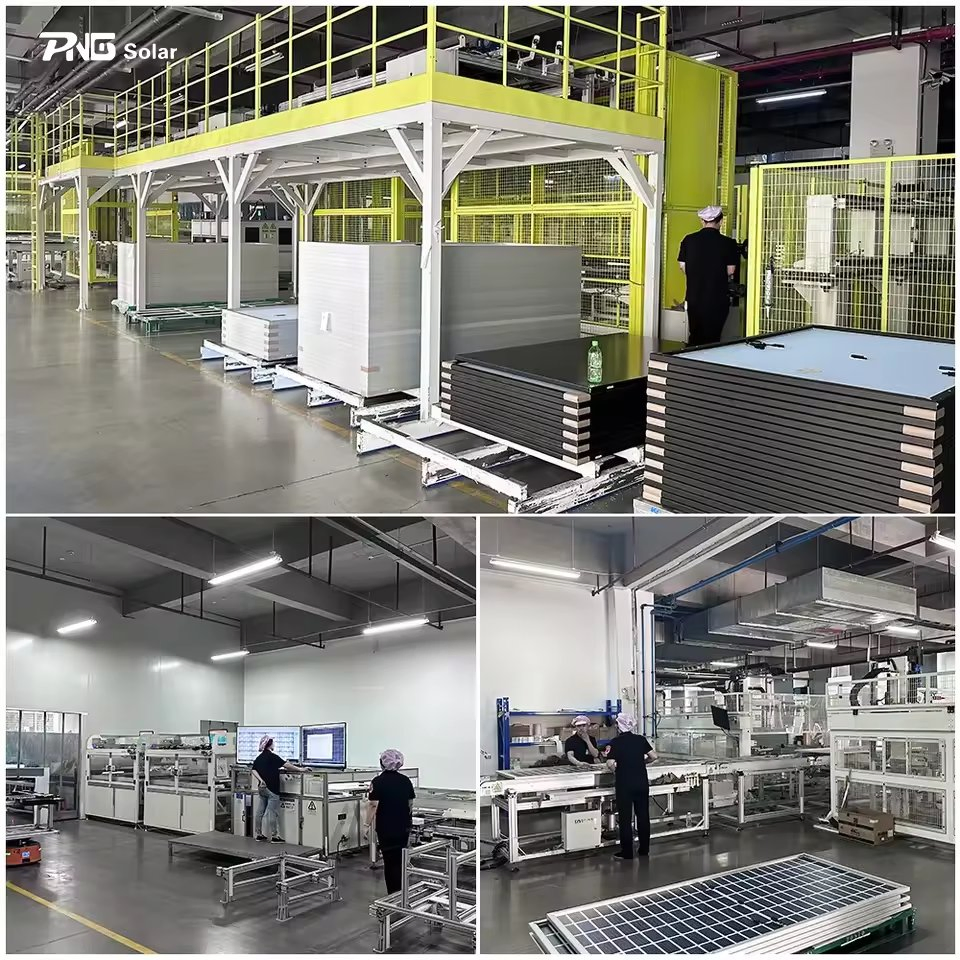

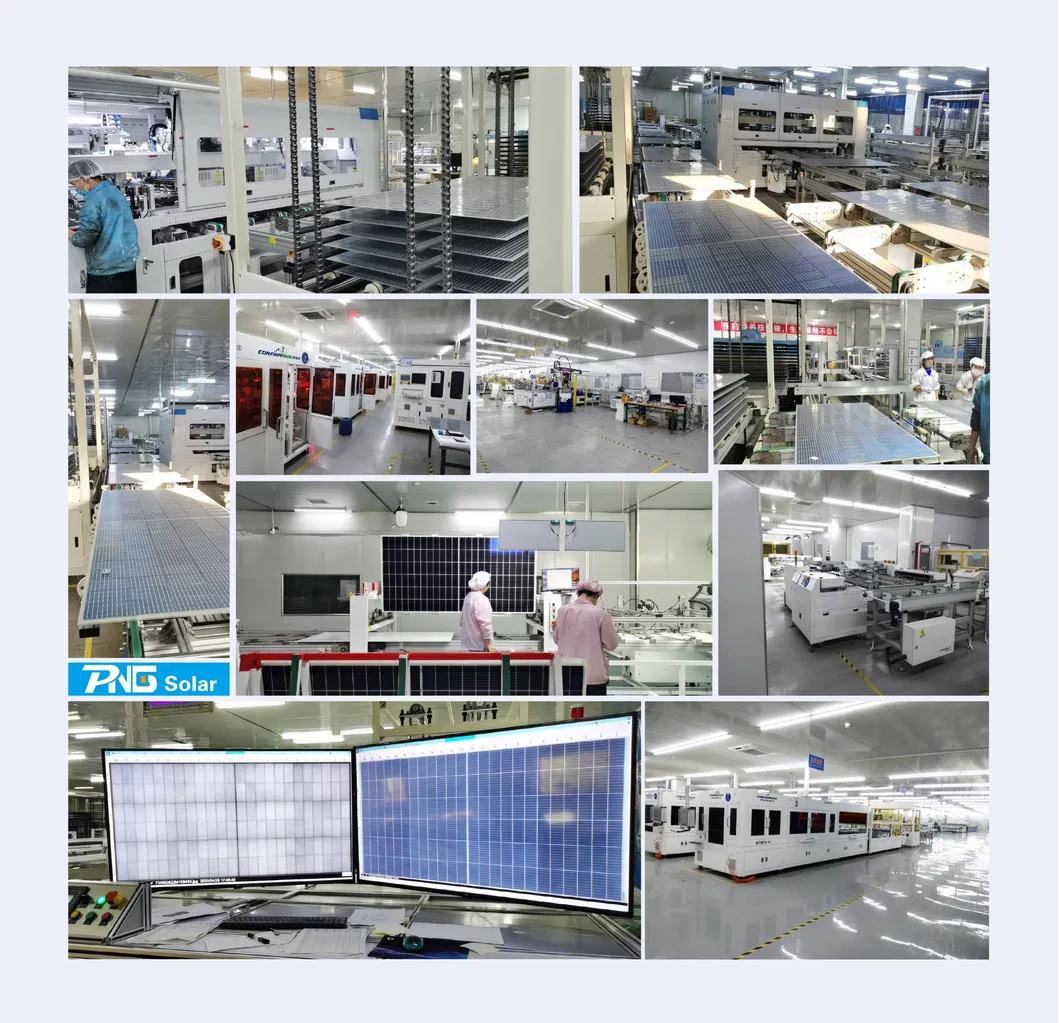

Solar Project Installation Manufacturing Facility
🚢

Delivery Methods

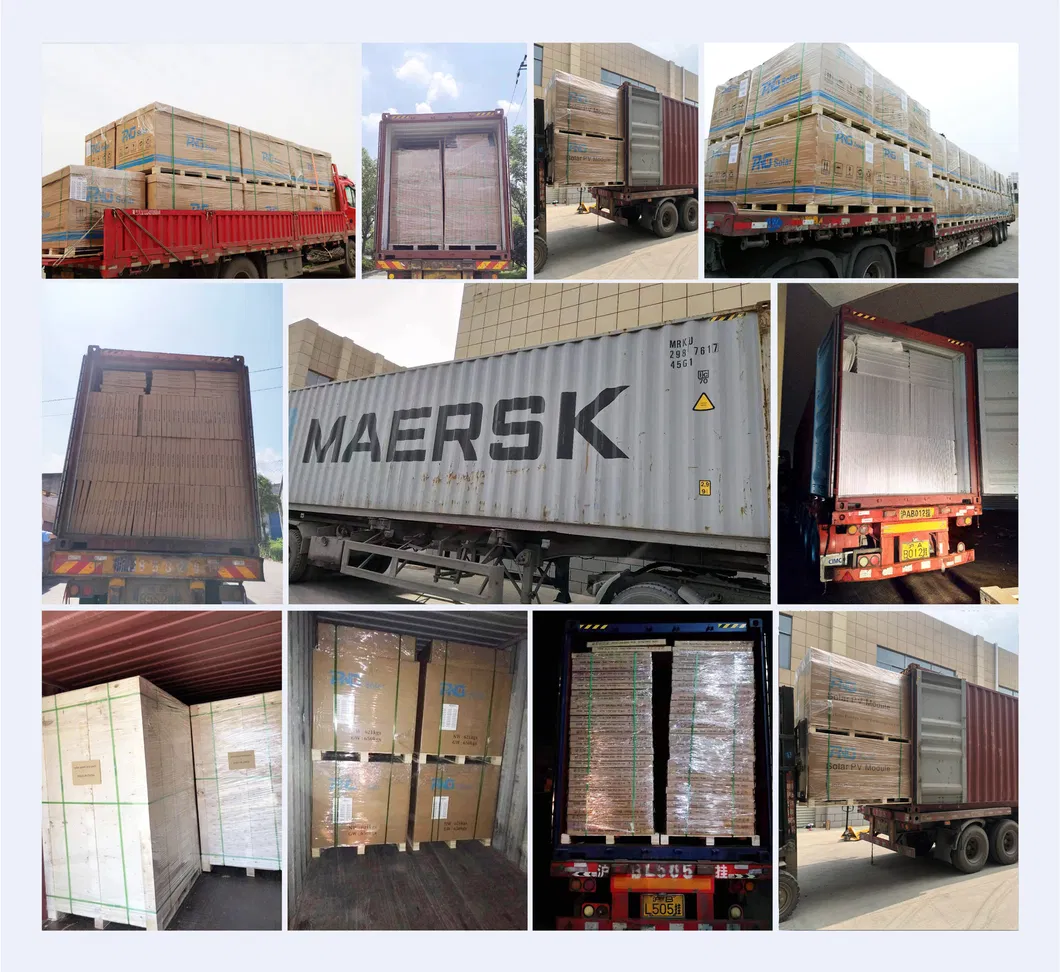

Packing Loading Shipping
?

Frequently Asked Questions

What are your payment terms?
We accept TT, Letter of Credit, Paypal, Western Union, and other standard methods.
Is it possible to receive a free sample?
While samples are charged initially, the sample fee will be fully returned to you when you place your next bulk order.
Can we print our own logo on the solar panels?
Yes, absolutely. We provide full OEM services including logo printing.
What are the main advantages of your products?
As a professional factory, we focus on providing superior price-to-quality ratios and dedicated service to develop long-term customer relationships.
What is the quality grade of the solar cells?
We use only A-Grade Monocrystalline silicon cells to ensure maximum efficiency and longevity.
What applications are these solar modules suitable for?
Our half-cut PV modules are ideal for Residential, Industrial, and Commercial rooftop or ground-mount systems.
