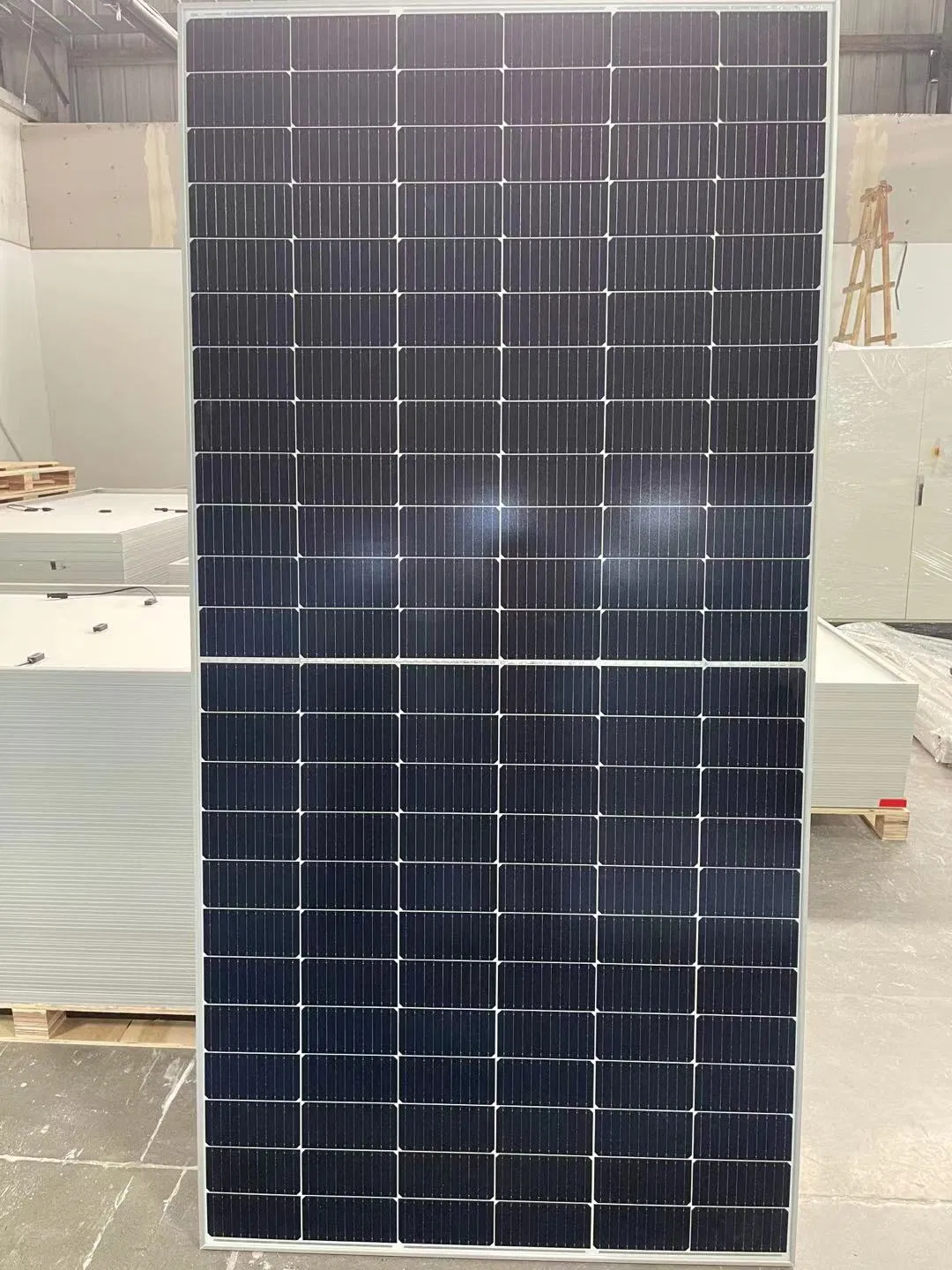

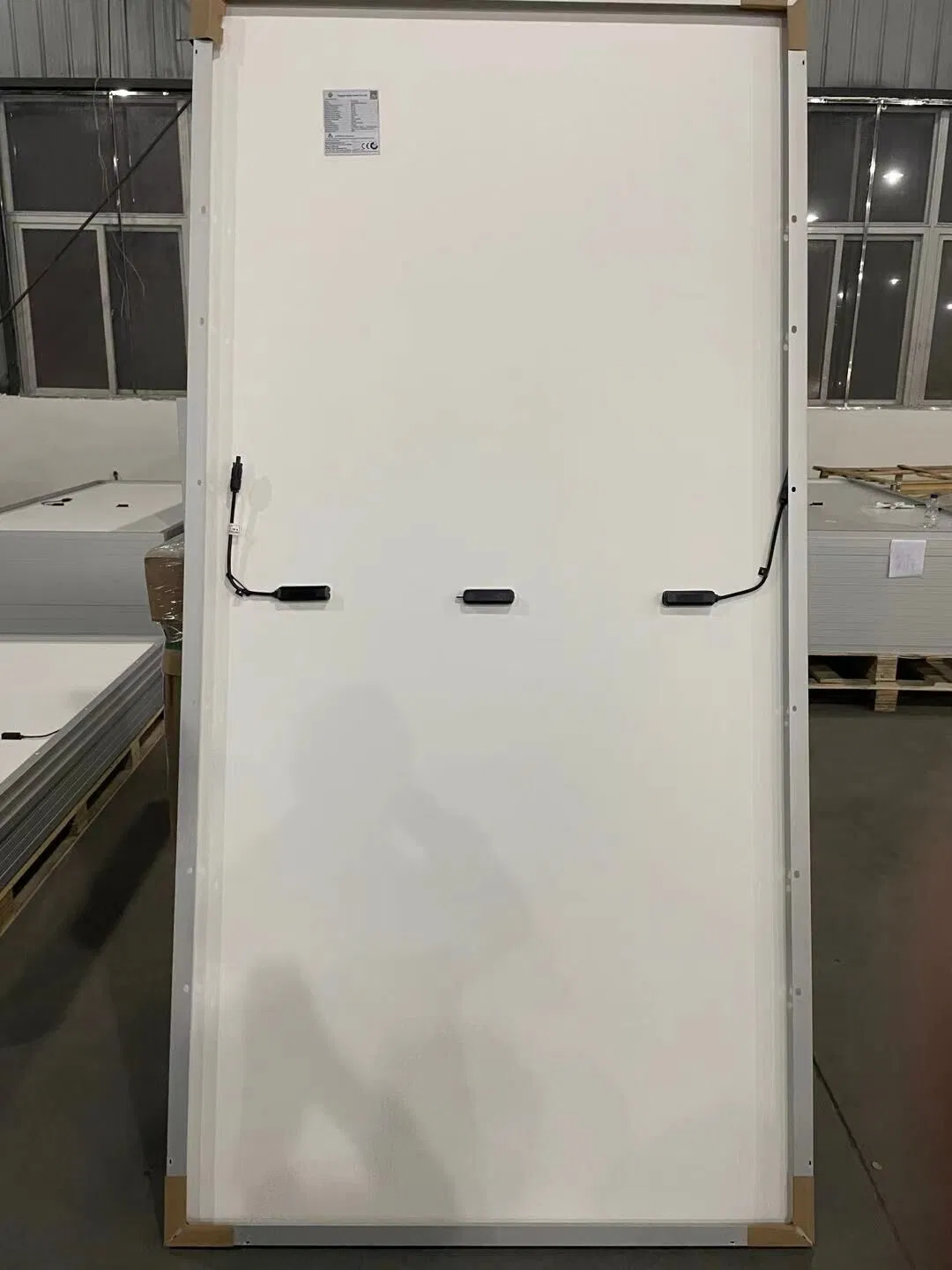

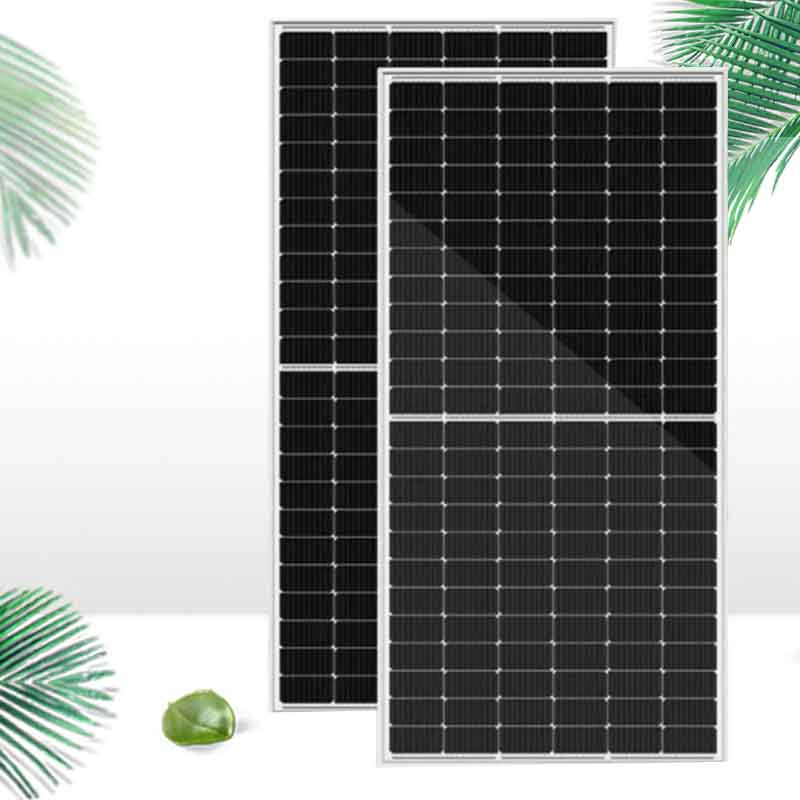

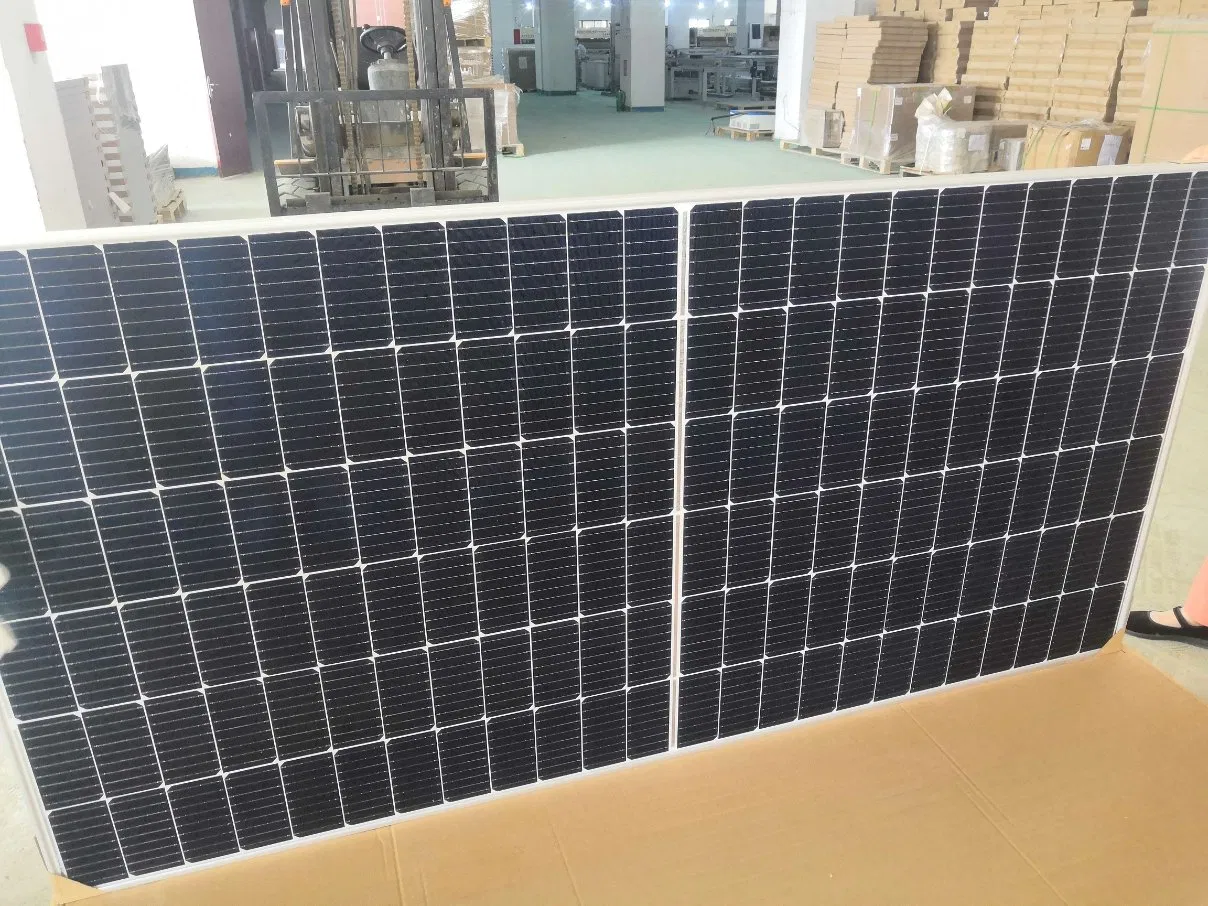

Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
1 / 5
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO

Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
YS550M-72
Number of Cells
144PCS
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 182X91mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
2274*1134*35mm
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
OEM Order
Acceptable
Frame Color
Silvery or Black
Weight
28.9 Kg
Production Capacity
12000 Pieces /Week
Origin
China
Product Overview

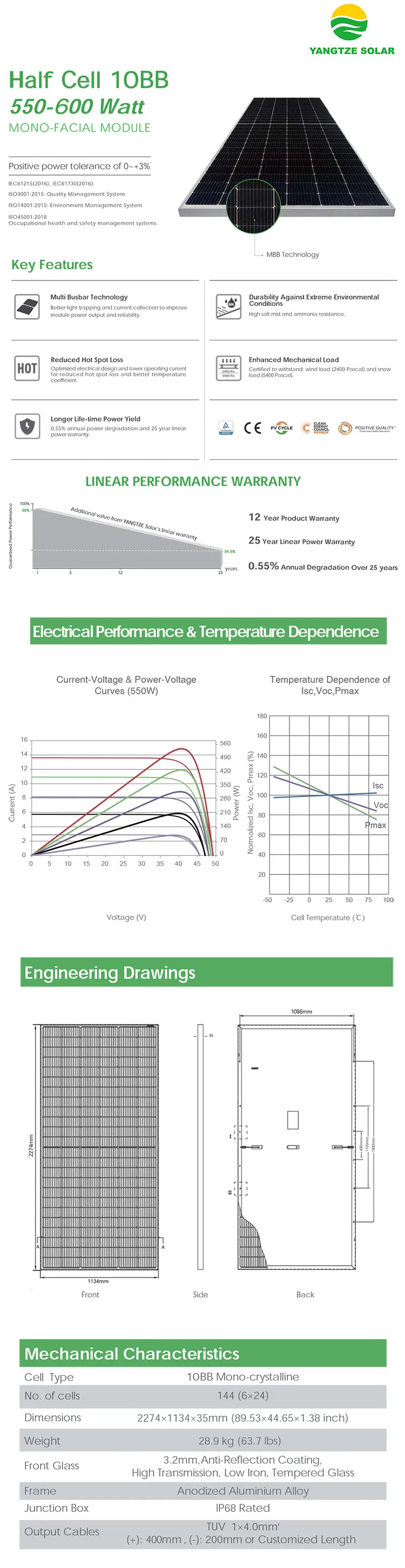

High Efficiency Solar Module
Technical Specifications
Module type YS550M-72 YS560M-72 YS570M-72 YS580M-72 YS590M-72 YS600M-72
Maximum Power (Pmax) 550W 560W 570W 580W 590W 600W
Maximum Power Voltage (Vmp) 40.90V 41.10V 41.30V 41.50V 41.90V 42.10V
Maximum Power Current (Imp) 13.45A 13.63A 13.27A 13.98A 14.08A 14.25A
Open-circuit Voltage (Voc) 49.62V 49.72V 49.82V 49.91V 49.95V 49.99V
Short-circuit Current (Isc) 14.03A 14.33A 14.62A 14.81A 14.92A 14.97A
Module Efficiency STC 21.33% 21.72% 22.10% 22.49% 22.87% 23.27%
Operating Temperature -40~+85ºC
Maximum System Voltage 1000VDC/1500VDC (IEC)
Temperature coefficients of Pmax -0.35%/ºC
Nominal operating cell temperature (NOCT) 45±2ºC

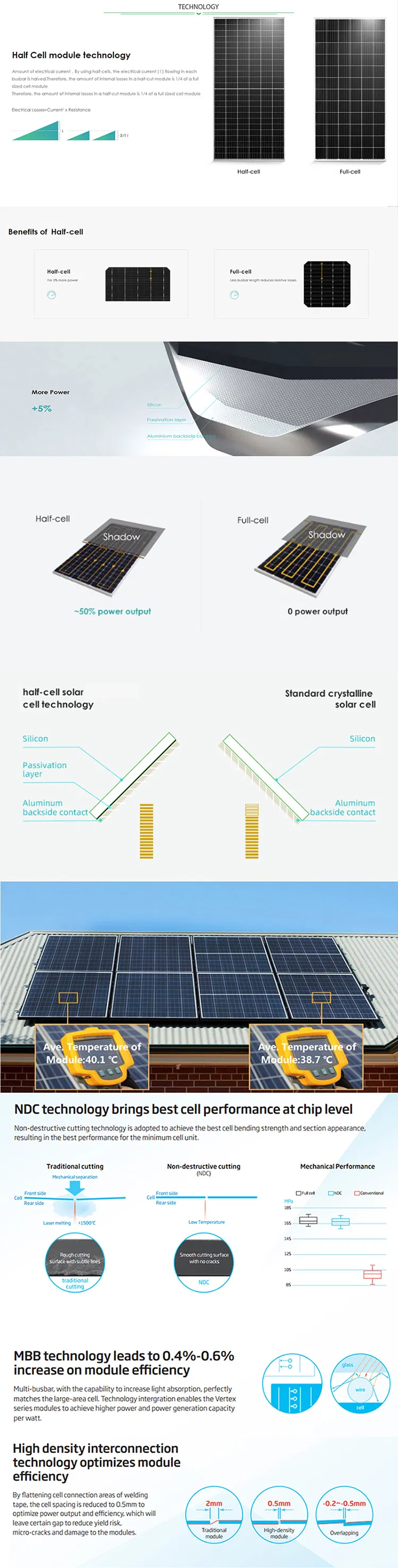

Solar Panel Technical Details Industrial Solar Installation
Key Performance Features
  • High production capacity with modules ranging from 3W to 700W for polycrystalline and monocrystalline options.
  • 10 years workmanship and materials warranty for peace of mind.
  • Linear power output warranty: 10 years for at least 90% and 25 years for 80%.
  • 100% EL (Electroluminescence) testing conducted before packaging and shipping to ensure cell integrity.
  • Products are certified by TUV (Germany) and CE for international quality standards.
  • Global reach with products exported to more than 150 countries.
  • Turn-key solar systems offered to save time and cost for large-scale projects.

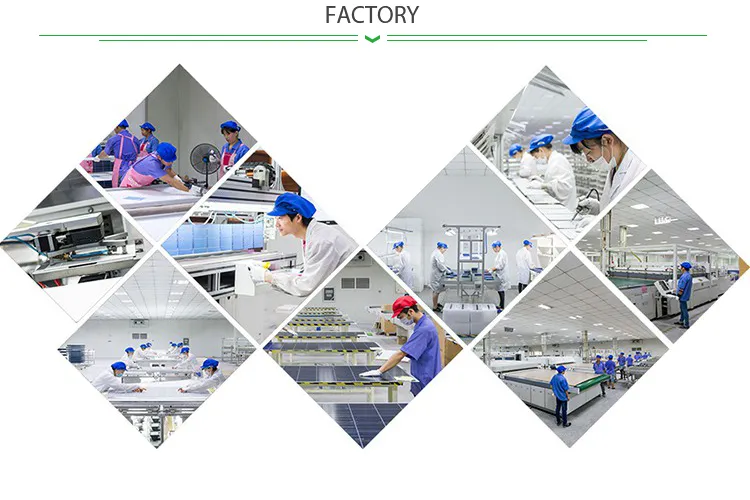

Manufacturing Process 1 Manufacturing Process 2 Quality Control

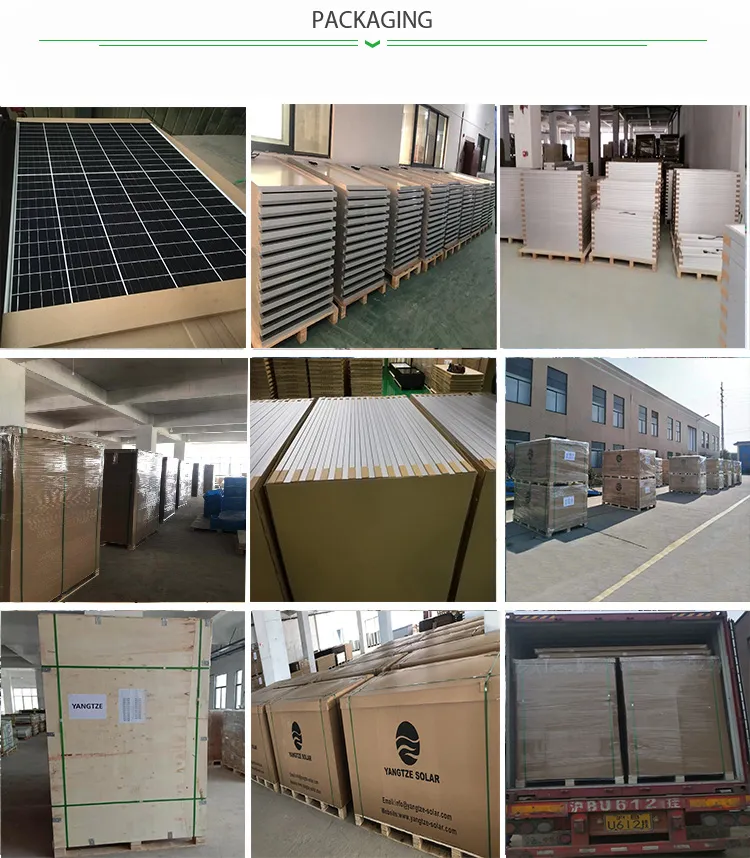

Warehouse and Shipping 1 Warehouse and Shipping 2
Frequently Asked Questions
What is the maximum power output of these solar panels?
These monocrystalline solar panels offer a power range from 550W up to 600W, depending on the specific model selected.
What kind of warranty is provided with these modules?
We provide a 10-year total workmanship and materials warranty, along with a linear power output warranty of 25 years (at least 80% output).
How do you ensure the quality of each panel?
Every panel undergoes a 100% EL (Electroluminescence) test before being packaged and shipped to ensure there are no micro-cracks or defects.
Are these panels suitable for extreme weather conditions?
Yes, the panels are designed with an IP68 waterproof junction box and are rated to operate in temperatures ranging from -40ºC to +85ºC.
What certifications do these solar panels hold?
The products are certified by major international bodies including TUV (Germany), CE, ISO, TUV, Cec, and IEC61215/61730.
Can I customize the color of the frame or backsheet?
Yes, we accept OEM orders. Frame colors are available in silvery or black, and backsheets can be ordered in white, black, or transparent options.
