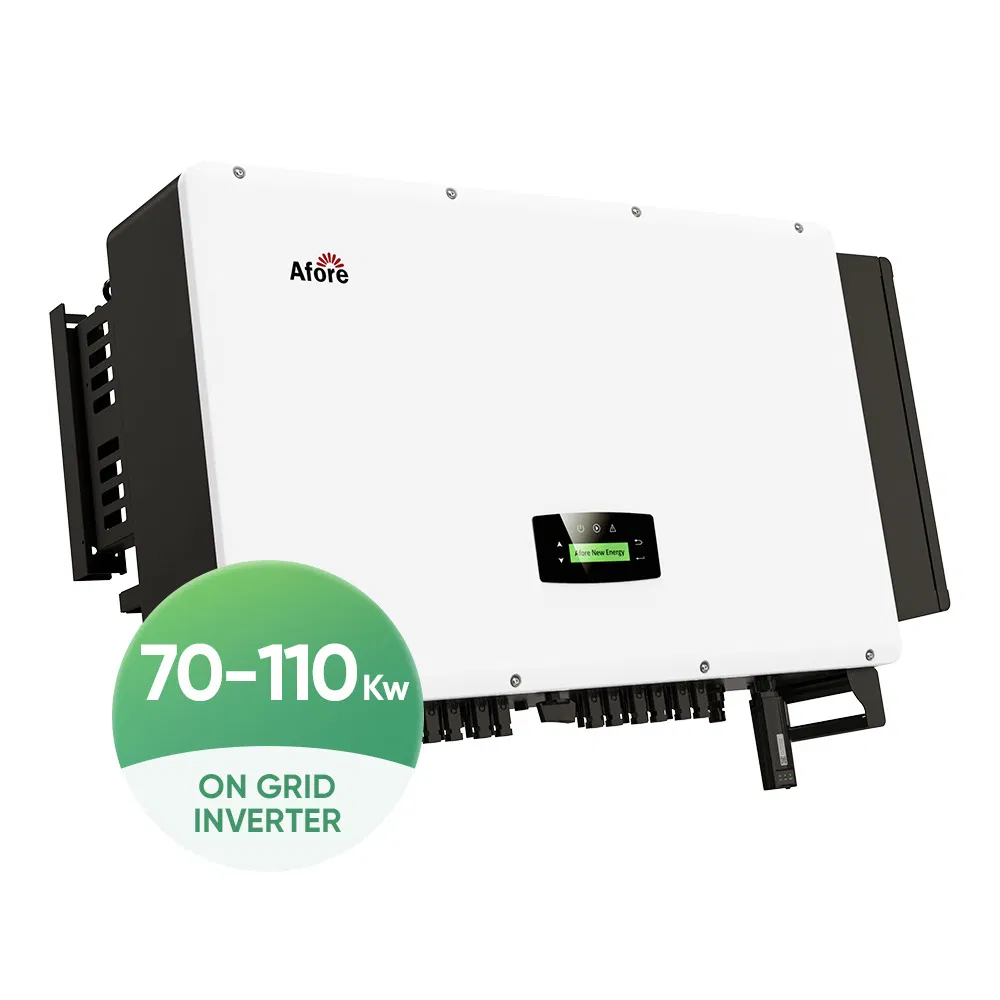

Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
1 / 5
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter

Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter

Customization: Available
After-sales Service: 10 Years
Warranty: 10 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
AF 3 Phase 70-110KW-ON
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
70-110KW
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
PV Input Power
105KW-165KW
MPPT Voltage Range
200 - 1000 v
No. of MPPT inputs
6 /12
Protection Degree
IP65
Specification
979 x 610 x 310 mm
P

Product Description

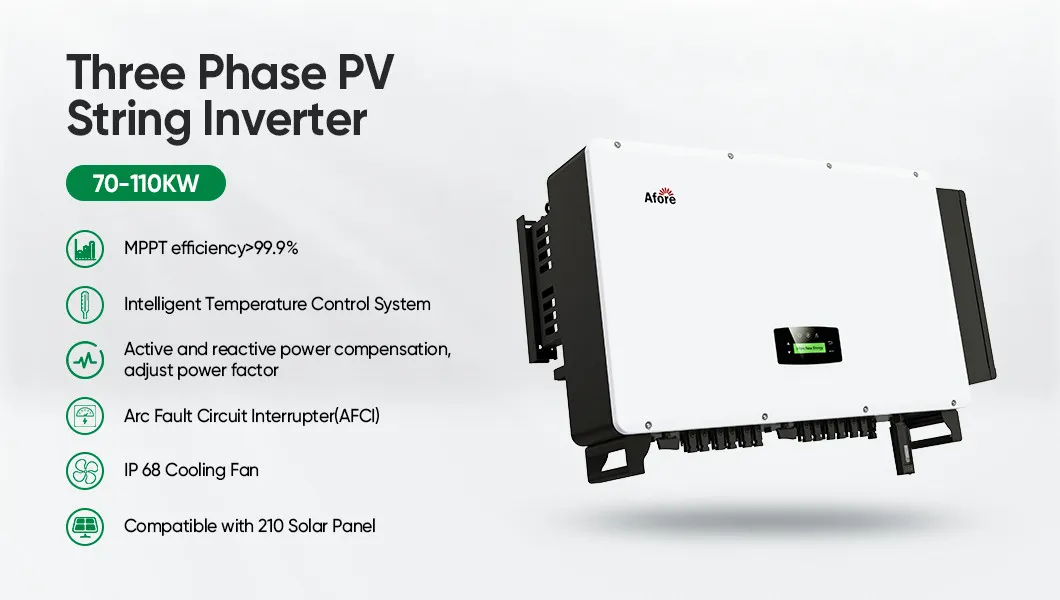

Three Phase Solar Inverter 1

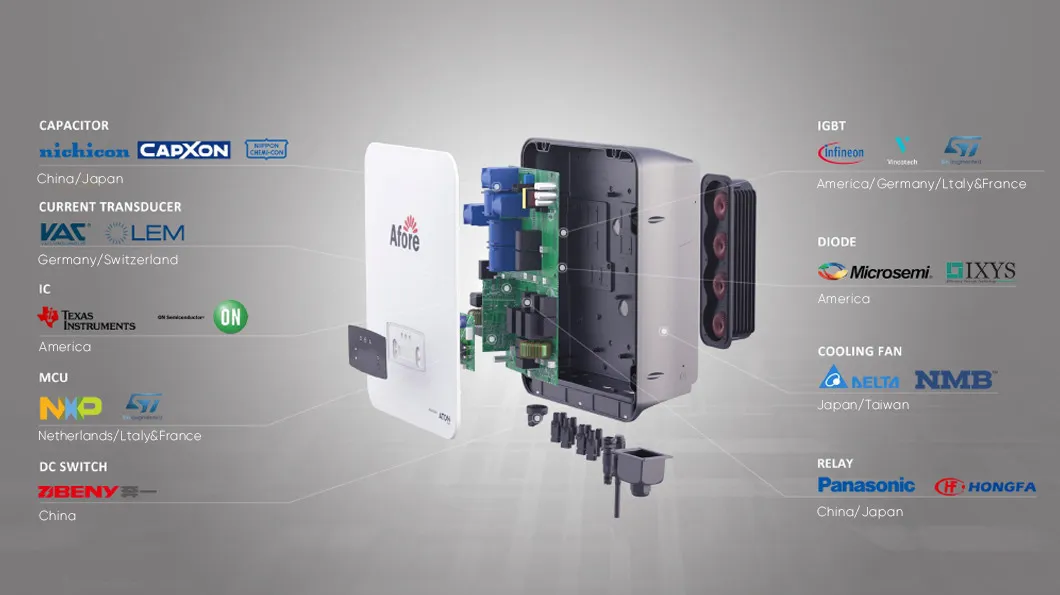

Three Phase Solar Inverter 2
T

Technical Specifications

Module BNT070KTL BNT075KTL BNT080KTL BNT090KTL BNT100KTL BNT110KTL
PV Input Data
Max. DC Power (W)105000112500120000135000150000165000
Max. DC Voltage (V)1100
MPPT Voltage Range (V)200 - 1000
Rated Input Voltage (V)620
Max. Input Current (A)38 x 6
No. of MPP Tracker6 / 12
AC Output Data
Max. Output Power (VA)77000825008800099000110000110000
Nominal Output Power (W)70000750008000090000100000110000
Max. Output Current (A)111120127143158158
Nominal Output Voltage3P+N+PE / 3P+PE 230/400
Output Current THD<3%
Efficiency & Protection
Max. Efficiency99.00%
Protection FeaturesReverse Polarity, short Circuit, Over Current, Over Voltage, Anti-Islanding, Residual Current, Surge Protection (Type II)
General Data
Dimensions (mm)979 x 610 x 310
Weight (kg)7276
Ambient Temp Range-25 to 60°C
CommunicationRS485 / WiFi / Wire Ethernet / GPRS
S

System Diagram

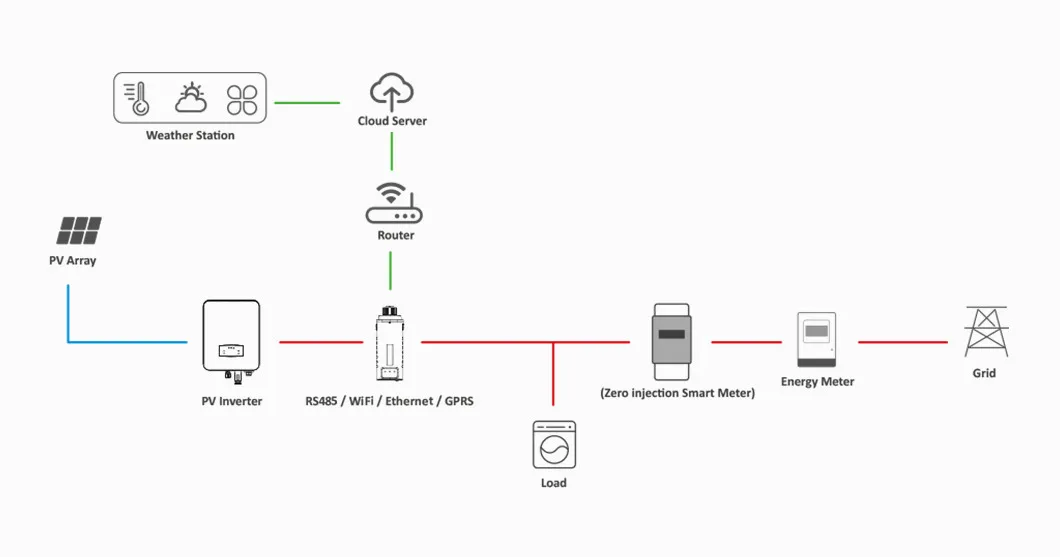

System Diagram 1

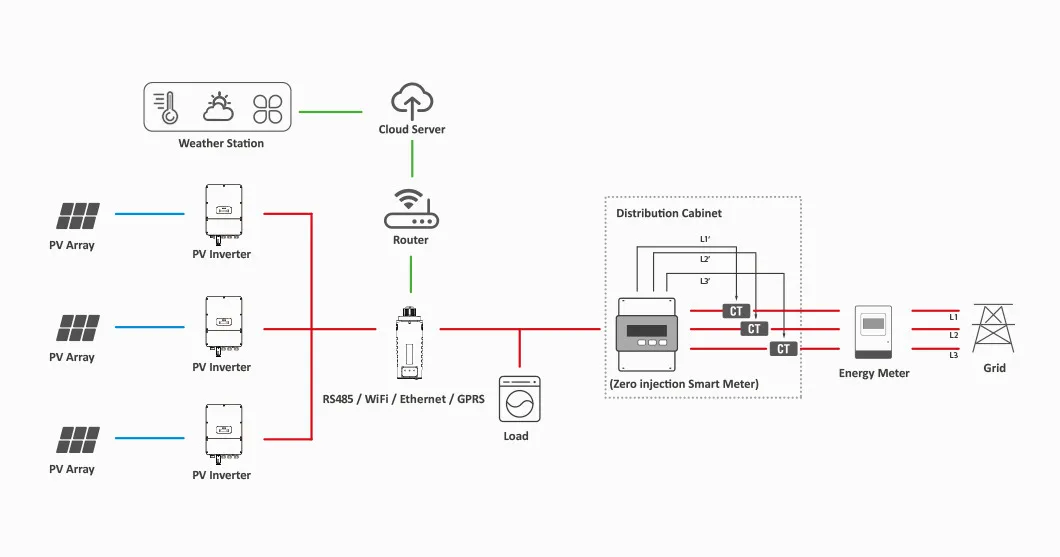

System Diagram 2
C

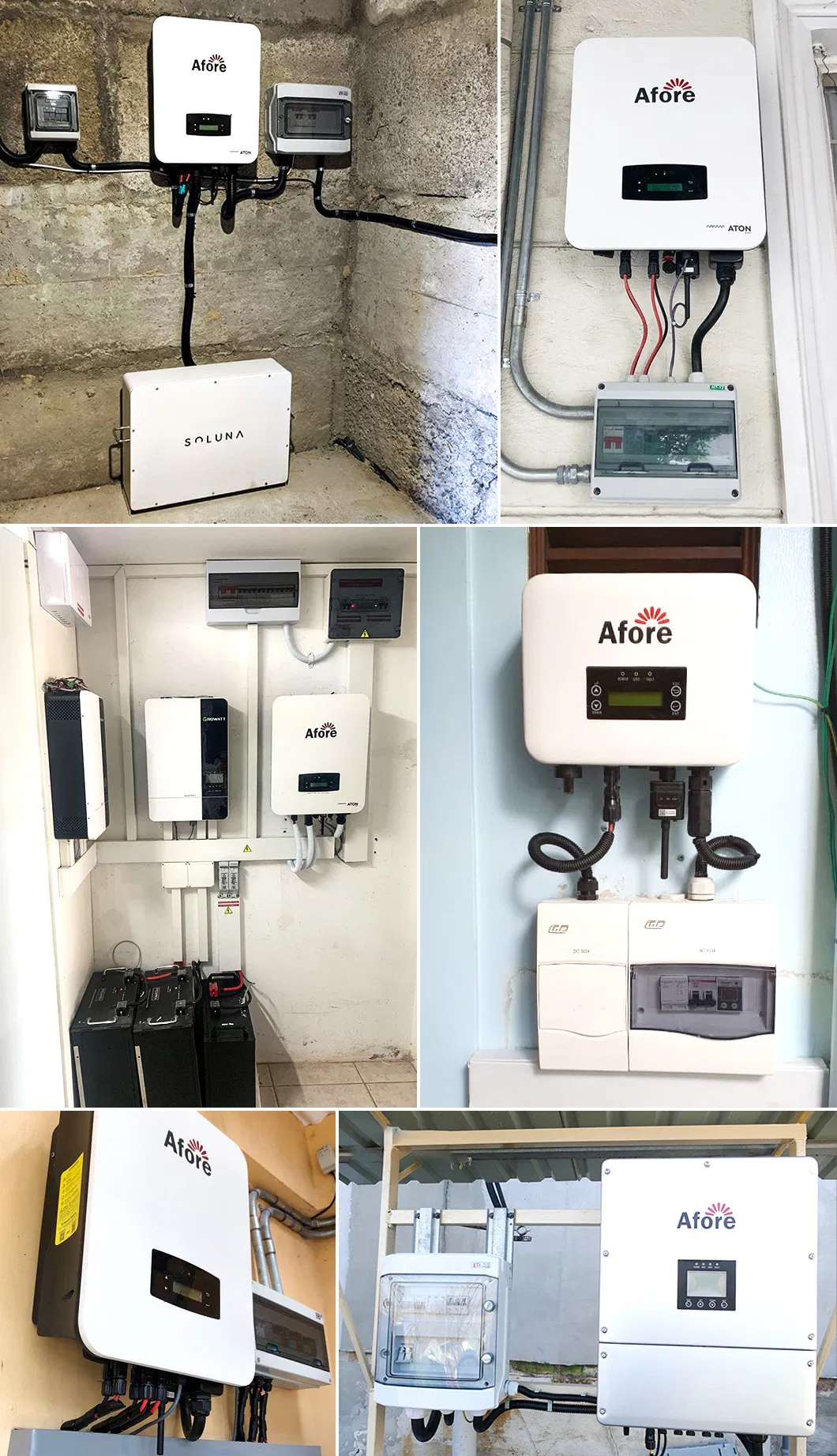

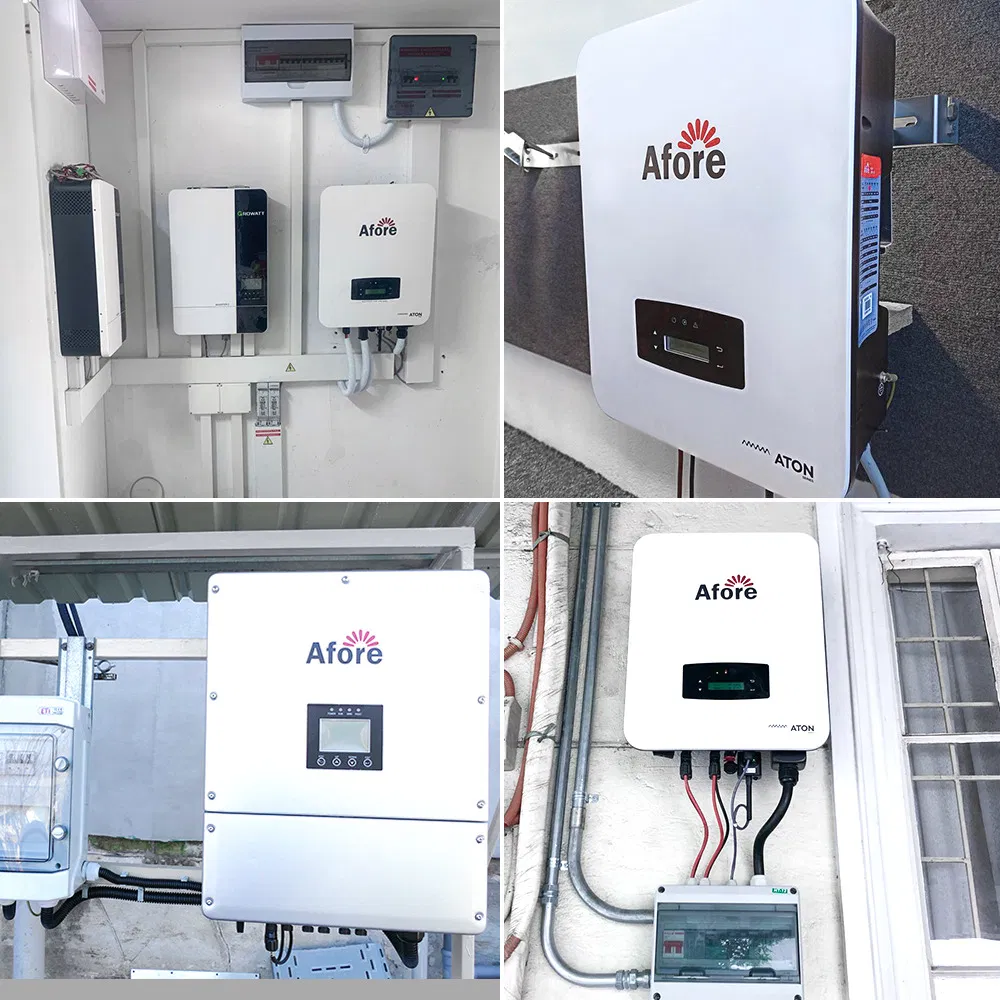

Project Cases

Project Cases
V

Visuals & Packaging

Packaging details
R

Complete System Request

System Request Information
?

Frequently Asked Questions

What is the maximum efficiency of this 3-phase solar inverter?
The inverter achieves a maximum efficiency of up to 99.00%, ensuring minimal energy loss during the DC to AC conversion process.
What is the protection rating and is it suitable for outdoors?
Yes, it features an IP65 protection degree, which means it is dust-tight and protected against water jets, making it highly suitable for outdoor installations.
How many MPPT trackers are included in the 70-110KW models?
These models come equipped with 6 independent MPPT trackers and 12 PV string inputs, allowing for flexible system design and optimized performance even with varying panel orientations.
What communication interfaces are supported for monitoring?
The system supports multiple interfaces including RS485, WiFi, Wire Ethernet, and optional GPRS/4G for comprehensive remote monitoring and data management.
Does the inverter include built-in safety protections?
Yes, it includes integrated DC switches, Type II Surge Protection, Anti-islanding protection, AC short circuit protection, and smart IV curve scanning for enhanced safety and maintenance.
