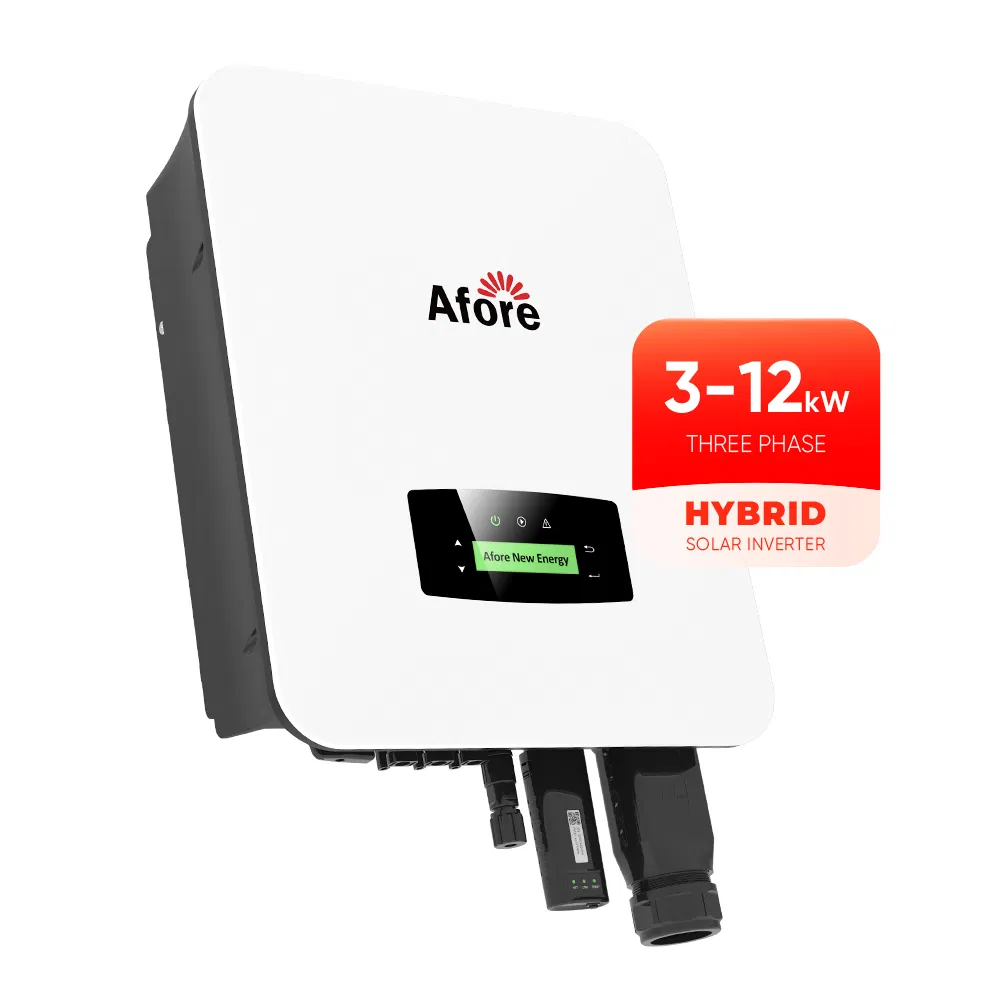

| Module | AF3K-THP | AF4K-THP | AF5K-THP | AF6K-THP |
|---|---|---|---|---|
| PV Input | ||||
| Max. DC Input Power (kW) | 5 | 6 | 7.5 | 9 |
| Max. PV Voltage (V) | 1000 | |||
| DC Input Range (V) | 150 - 1000 | |||
| Start-up Voltage (V) | 160 | |||
| Battery Port | ||||
| Max. Charge Current (A) | 50 | |||
| Compatible Type | Li-ion battery | |||
| AC Grid Output | ||||
| Nominal Output (VA) | 3000 | 4000 | 5000 | 6000 |
| Max. Output Current (A) | 5.3 | 7 | 8.5 | 10.5 |
| Efficiency (Max) | 98.00 % | |||
| Module | AF8K-THP | AF10K-THP | AF12K-THP |
|---|---|---|---|
| PV Input | |||
| Max. DC Input Power (kW) | 12 | 15 | 18 |
| Full MPPT Range (V) | 300 - 850 | 500 - 850 | |
| Battery Port | |||
| Max. Charge Power (W) | 8K | 10K | 12K |
| Efficiency | |||
| Europe Efficiency | 97.50 % | ||
| Max. Efficiency | 98.20 % | 98.30 % | |
Rated active power: 1-10KW
MPP voltage range: 70 - 550V
AC voltage range: 220 V / 230 V / 240 V
Rated active power: 3 - 110KW
MPP voltage range: 150 - 1000V
AC voltage: 380V / 400 V

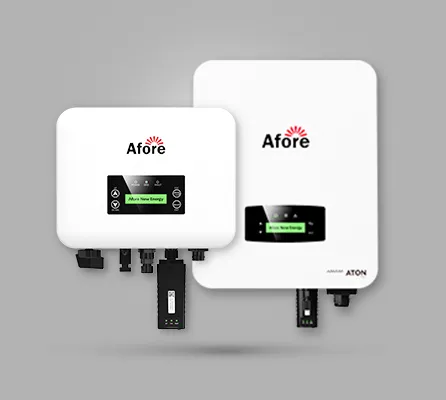

Rated active power: 1 - 6KW
MPP voltage range: 80 - 550V
AC voltage: 220V / 230V
Rated active power: 3 - 30KW
MPP voltage range: 150 - 1000V
AC voltage: 380V / 400 V
The series achieves a maximum efficiency of up to 98.30%, with a European efficiency rating of 97.50%.
Yes, all units feature an IP65 enclosure protection level, making them resistant to dust and water for outdoor environments.
The system is specifically designed to be compatible with high-voltage Li-ion battery systems.
The inverter provides a seamless transition to back-up mode with a switching time of less than 10 milliseconds.
The units support a wide range of interfaces including LCD, LED, RS485, CAN, Wi-Fi, GPRS, and 4G for comprehensive remote monitoring.

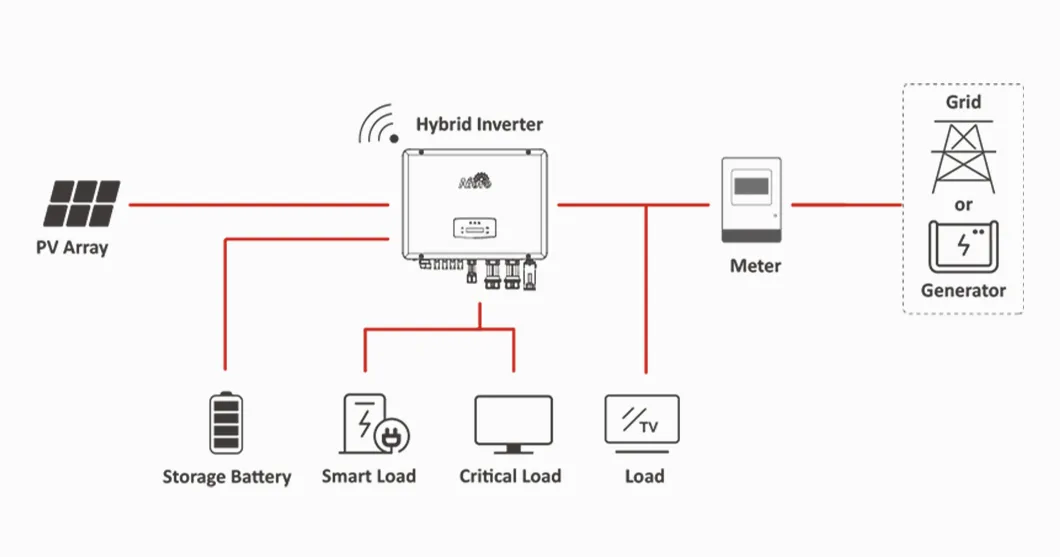

Yes, the three-phase hybrid design is engineered to handle residential and commercial power requirements efficiently.
