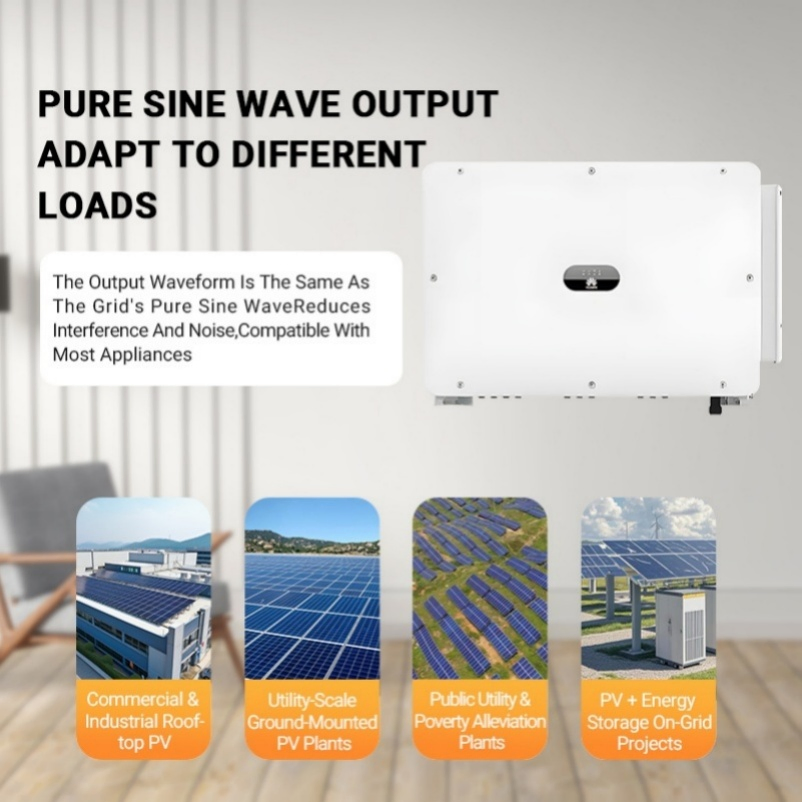

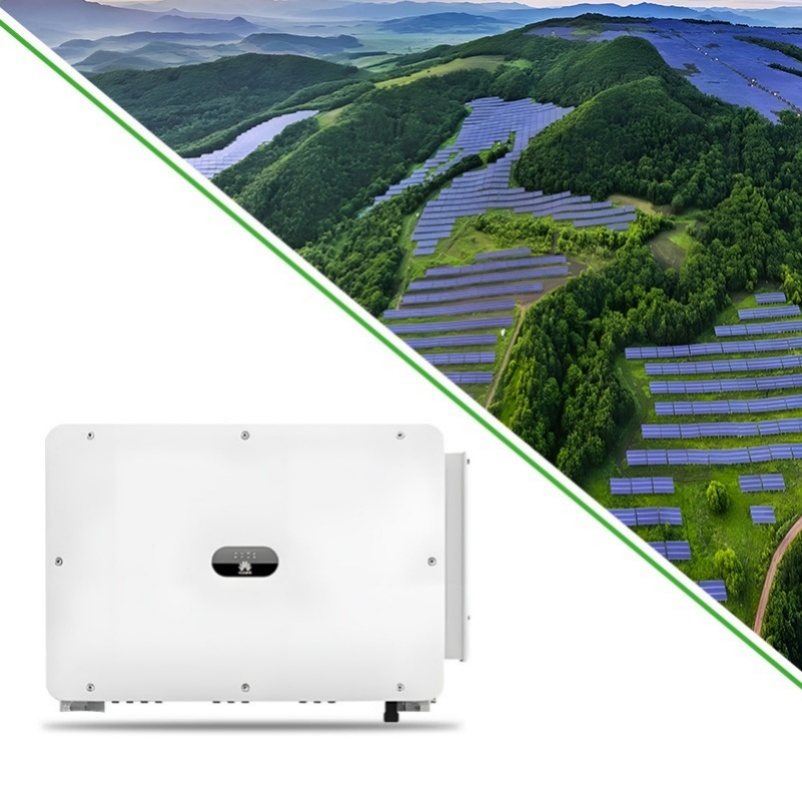

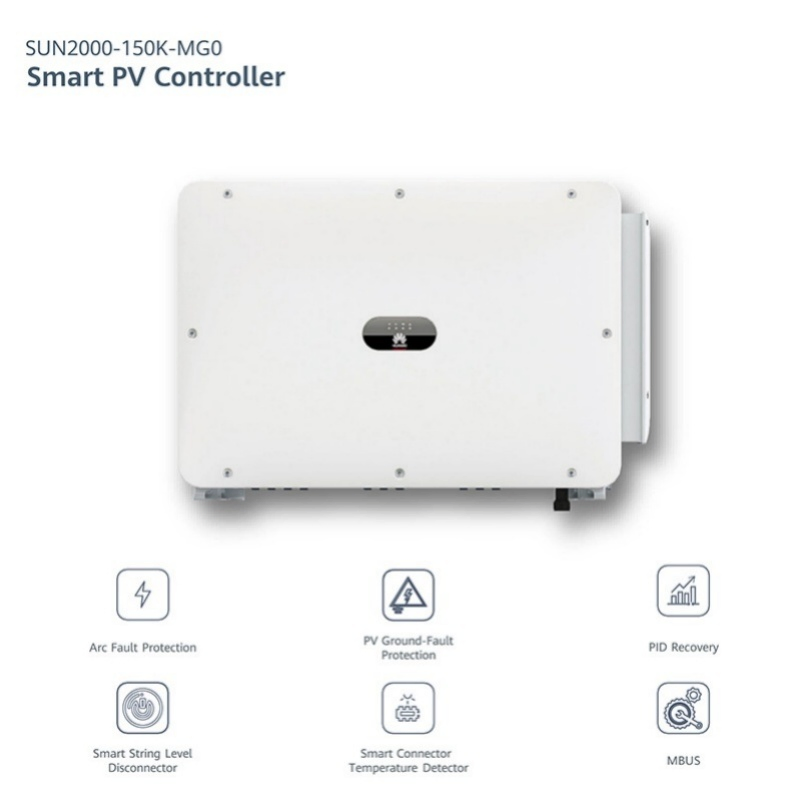

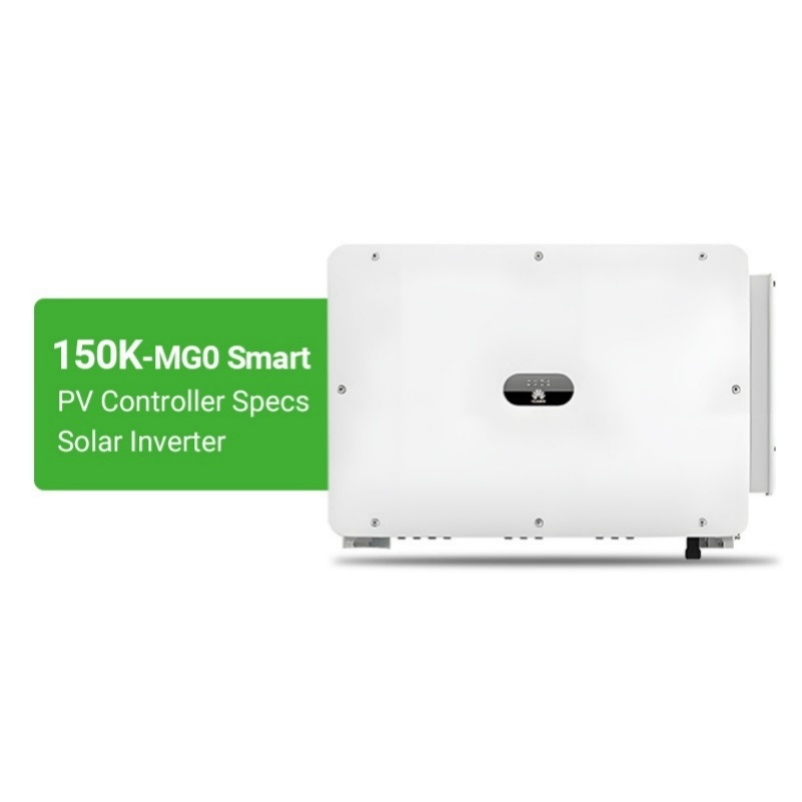

The SUN2000-150K-MG0 Solar Inverter is a high-performance 150kW three-phase smart string inverter designed for large-scale commercial and utility solar power plants.
Powered by advanced digital control technology and intelligent monitoring systems, this inverter delivers higher energy yield, enhanced safety protection, and long-term operational stability. It is an ideal solution for industrial rooftops, ground-mounted solar farms, and distributed photovoltaic power stations that require reliable high-capacity power conversion.
Rated Output Power: 150kW. Designed for large commercial and utility-scale PV projects to reduce system BOS cost.

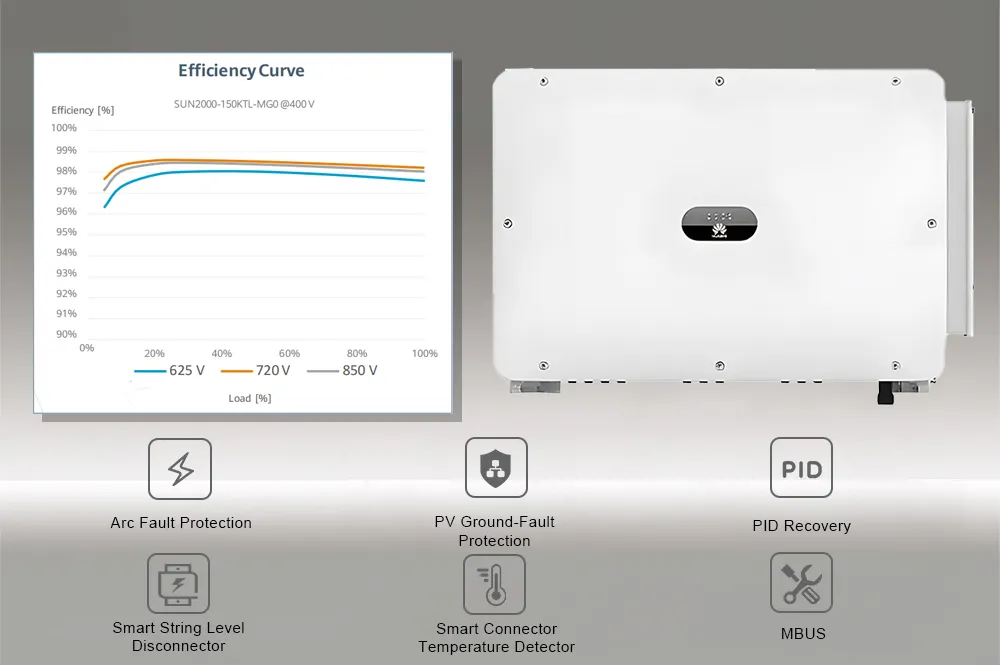

Max Efficiency up to 98%+. Multiple MPPT design for complex layouts, maximizing energy harvest.

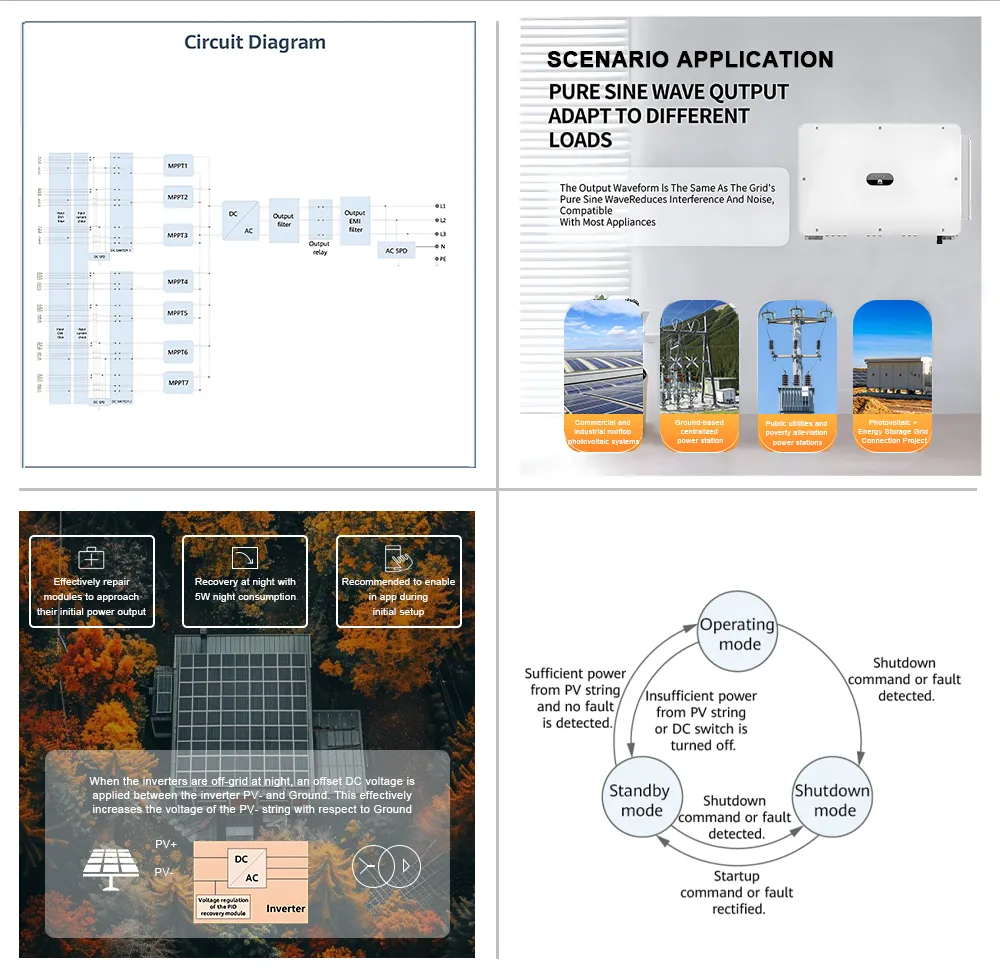

Smart I-V curve diagnosis and real-time monitoring via smart communication systems.

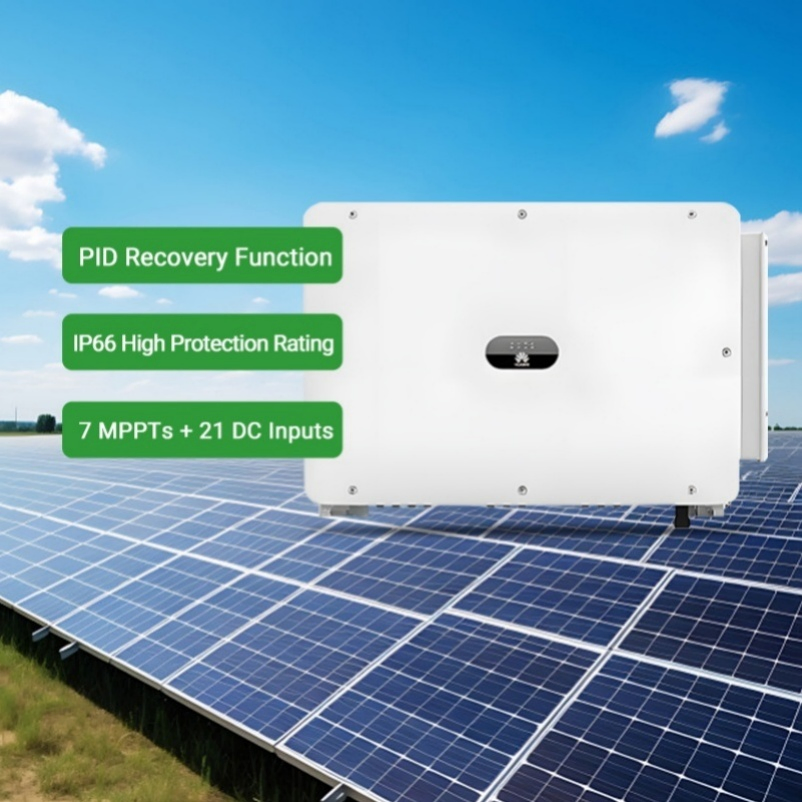

Integrated DC & AC surge protection, Anti-PID protection, and IP66 rating for outdoor durability.
| Technical Specification | SUN2000-150K-MG0 |
|---|---|
| Input Parameters | |
| Max. Input Voltage | 1,100 V |
| Max. Current per MPPT | 48A |
| Start Voltage | 200 V |
| MPPT Operating Voltage Range | 200 V ~ 1,000 V |
| Number of MPP trackers | 7 |
| Output Parameters | |
| Nominal AC Active Power | 150,000 W |
| Max. AC Apparent Power | 165,000 VA |
| Nominal Output Voltage | 380 V/400 V/480Vac |
| Rated AC Grid Frequency | 50 Hz / 60 Hz |
| Max. Output Current | 253.2 A @380 V |
Ideal for: Industrial factory rooftops, commercial buildings, large warehouse installations, agricultural solar projects, and utility-scale solar farms.
