Overview & Basic Information
Model NO.
SUN-10K-SG02LP1-EU-AM3
Nature of Source Flow
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Cooling Type
Intelligent Air Cooling
Battery Type
Lead-Acid or Lithium-Ion

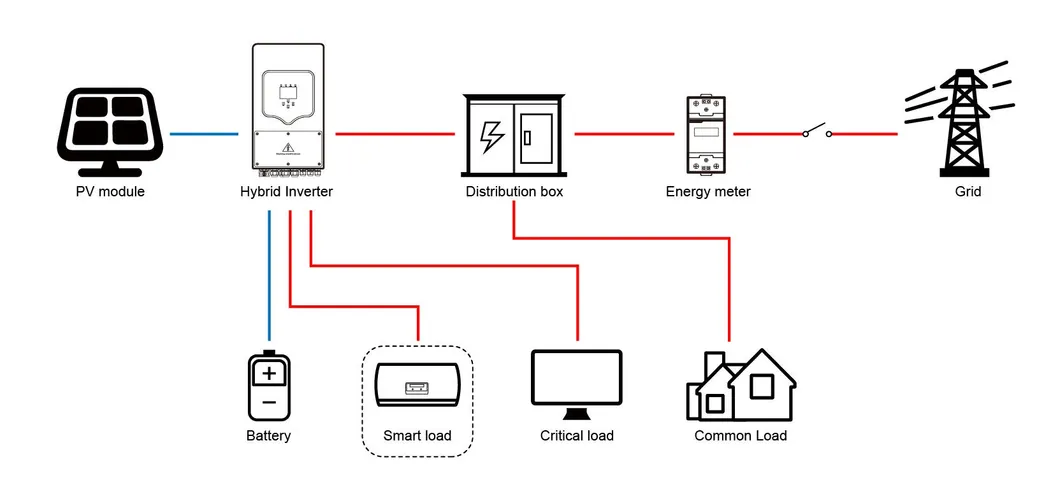

Solution Briefing
Energy Storage Solutions
- Maximizing solar self-consumption: During the day, PV system generates electricity for loads first, then excess energy charges the battery via hybrid inverter.
- Providing backup for critical loads: Independent critical load output port powers refrigerators, routers, lamps, and computers within 4ms during grid failure.
- Reducing electricity bills: 6 time periods for battery charge/discharge allow charging at off-peak and discharging at peak times.
Product Description

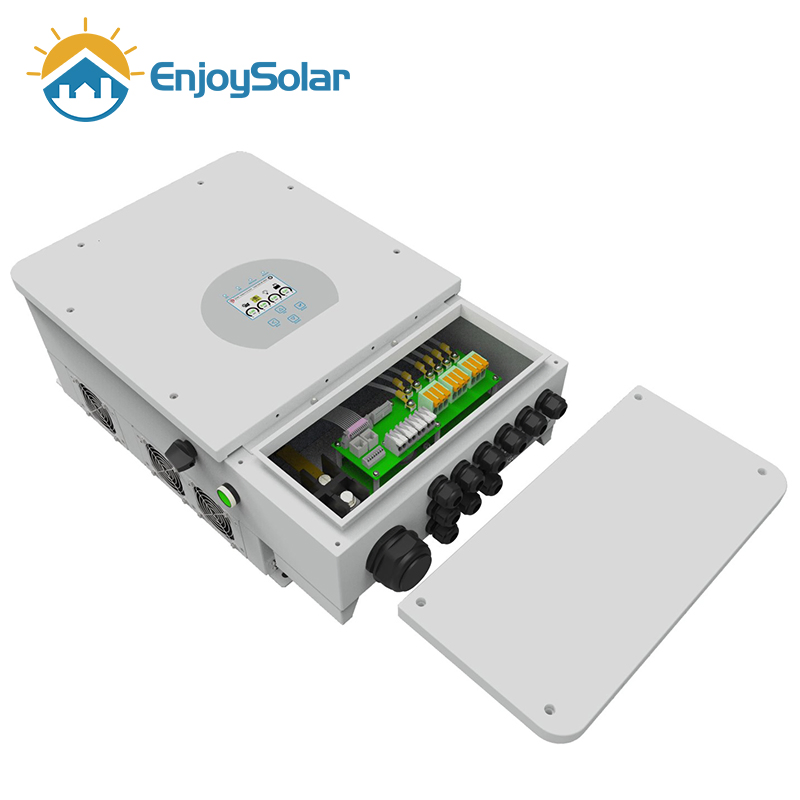

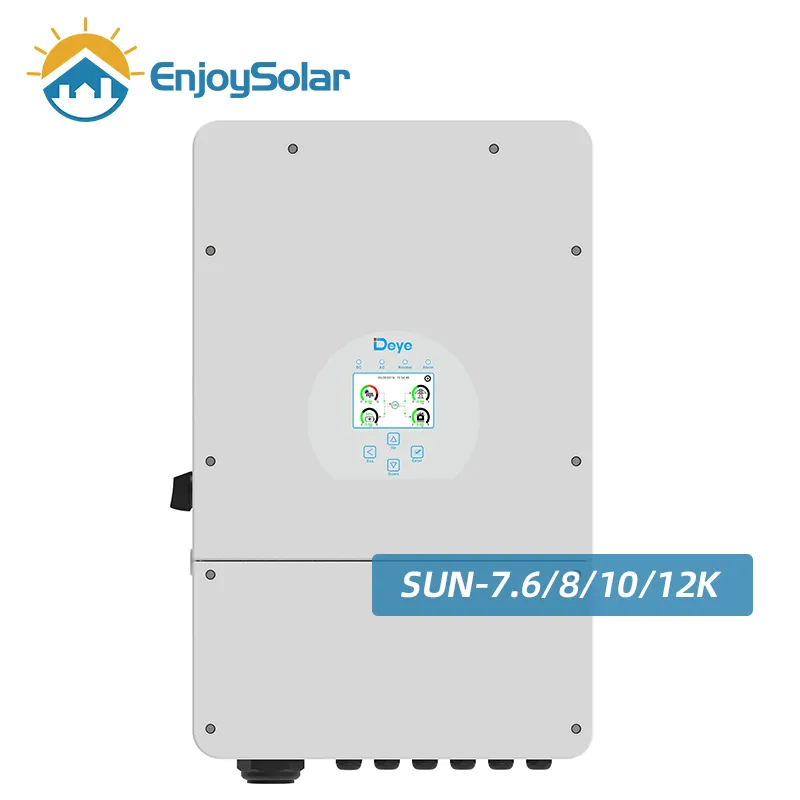

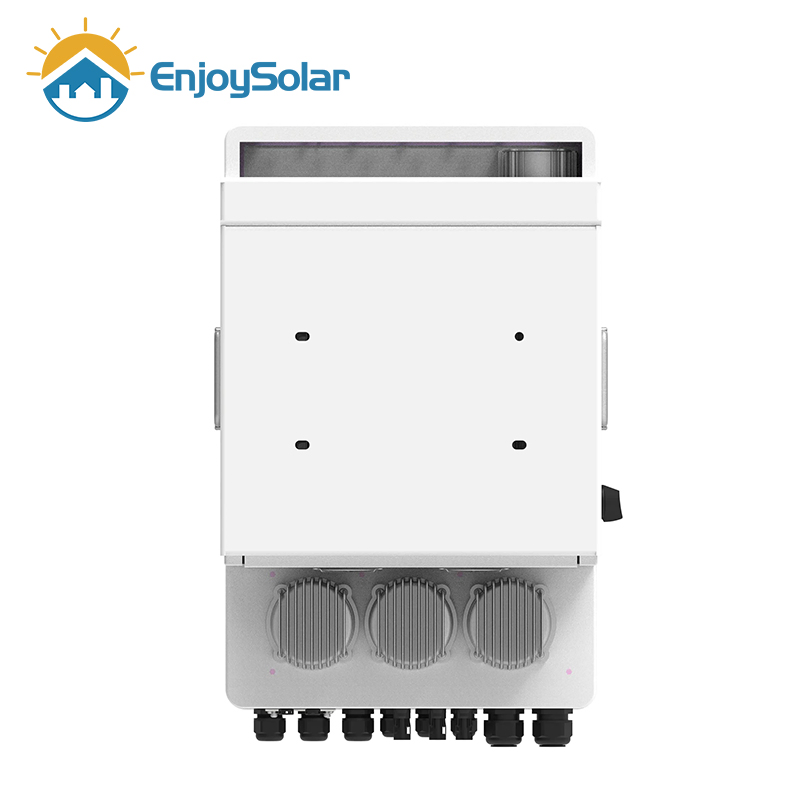

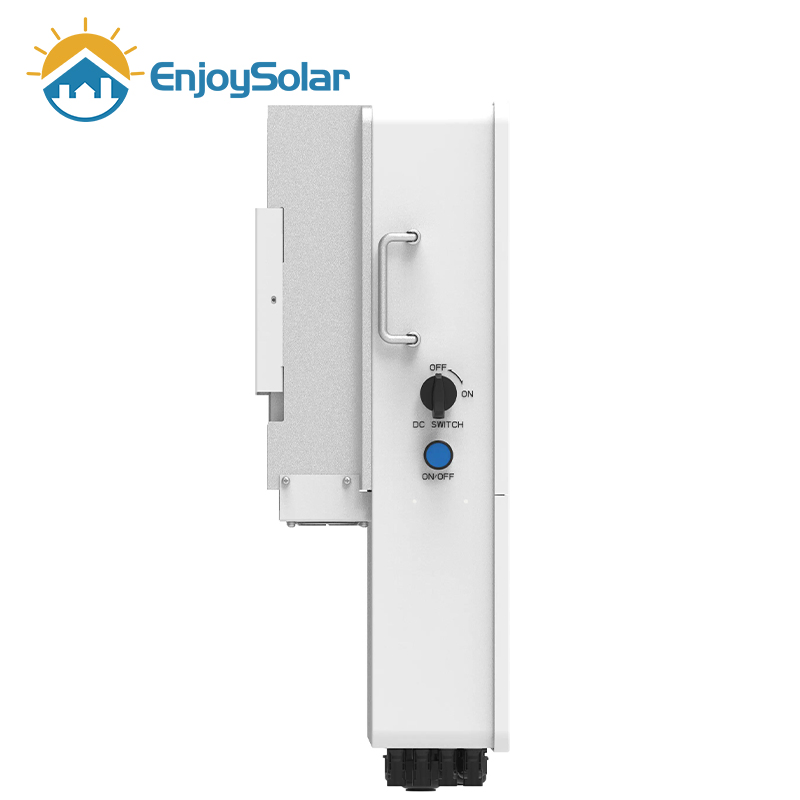

SUN-7.6/8/10/12K-SG02LP1-EU | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. charging/discharging current of 250A
- 6 time periods for battery charging/discharging
- Max. 16 pcs parallel for on-grid and off-grid operation
- Support multiple batteries parallel
Technical Parameters
| Model |
SUN-7.6K-SG02LP1 |
SUN-8K-SG02LP1 |
SUN-10K-SG02LP1 |
SUN-12K-SG02LP1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 190 | 190 | 220 | 250 |
| Max. Discharging Current (A) | 190 | 190 | 220 | 250 |
| Max. PV Access Power (W) | 15200 | 16000 | 20000 | 24000 |
| Max. DC Input Voltage (V) | 500 |
| MPPT Voltage Range (V) | 150-425 |
| Rated AC Output Power (W) | 7600 | 8000 | 10000 | 12000 |
| Max. Efficiency | 97.60% |
| Ingress Protection | IP 65 |

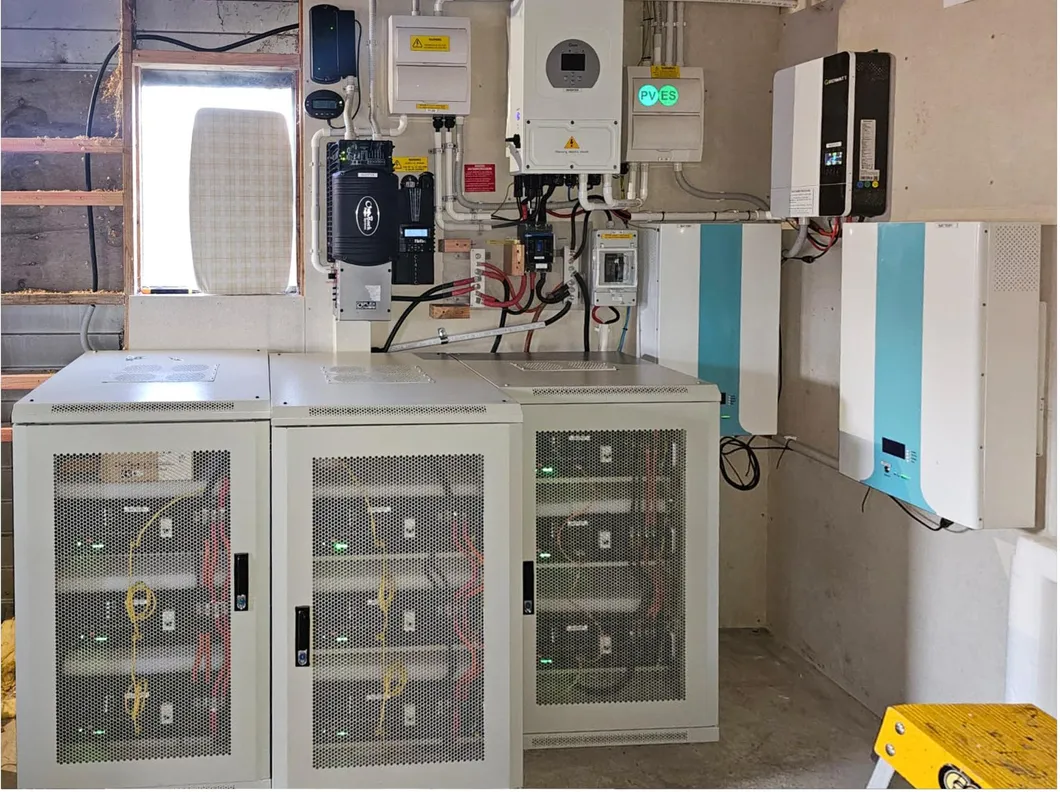

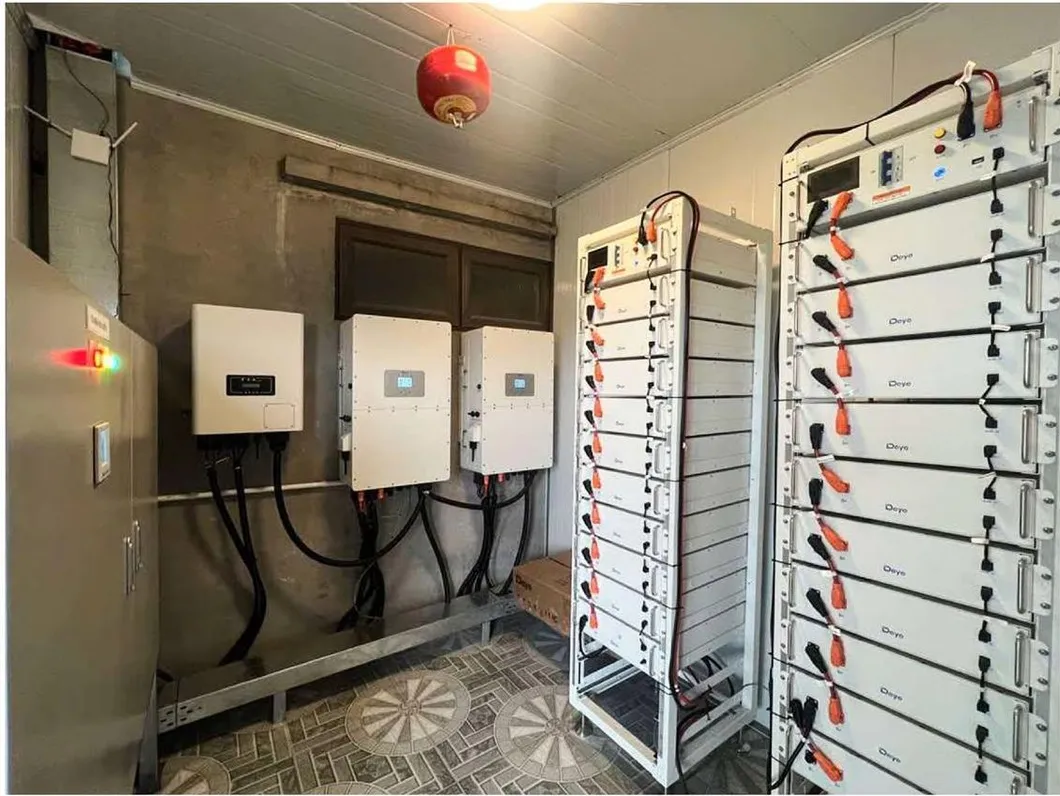

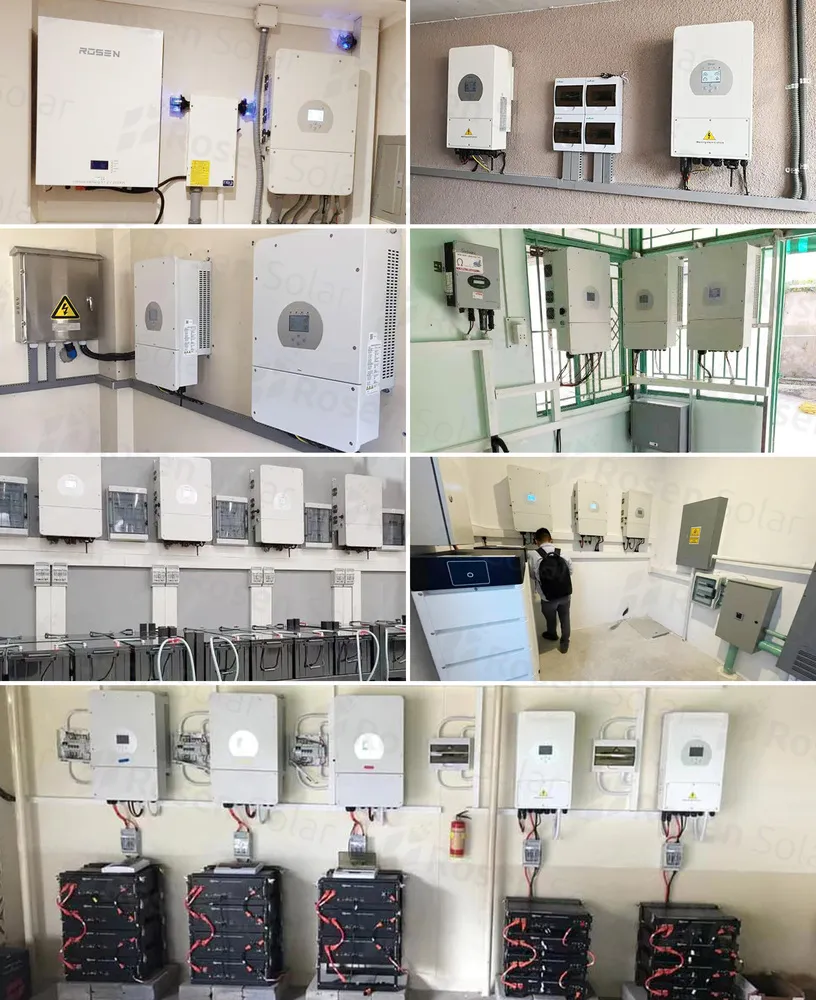

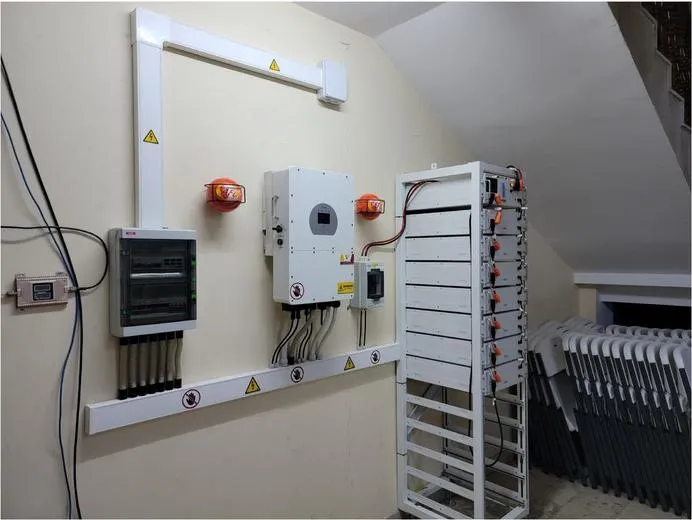

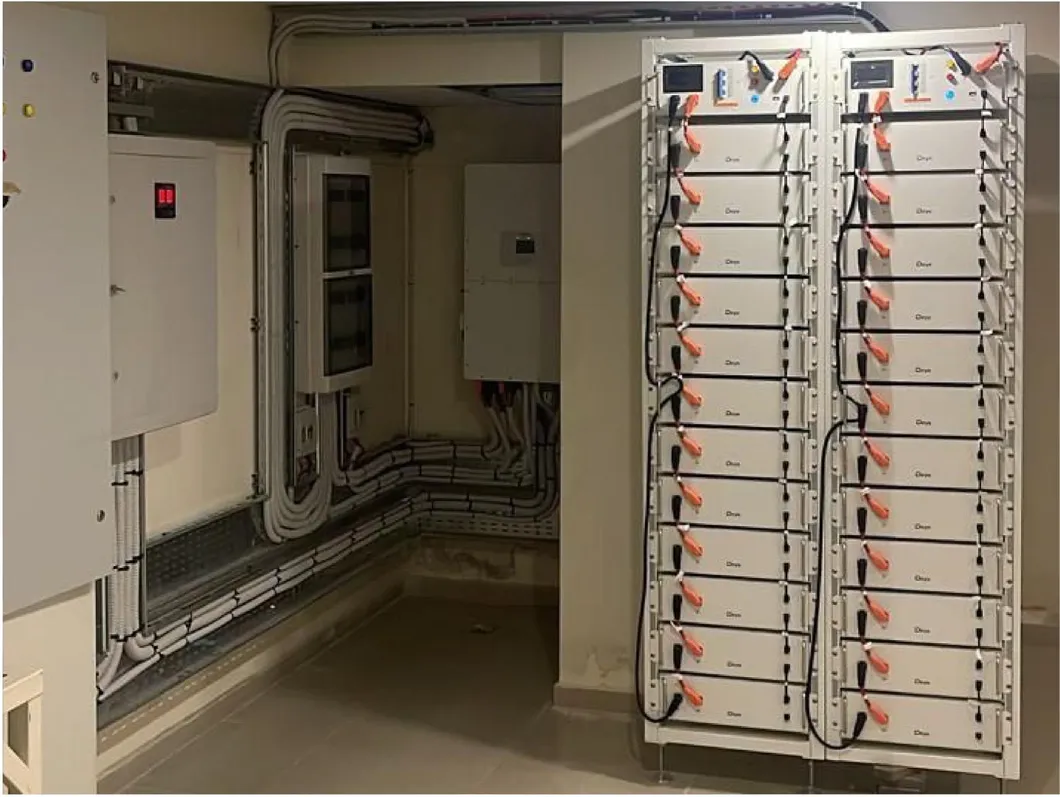

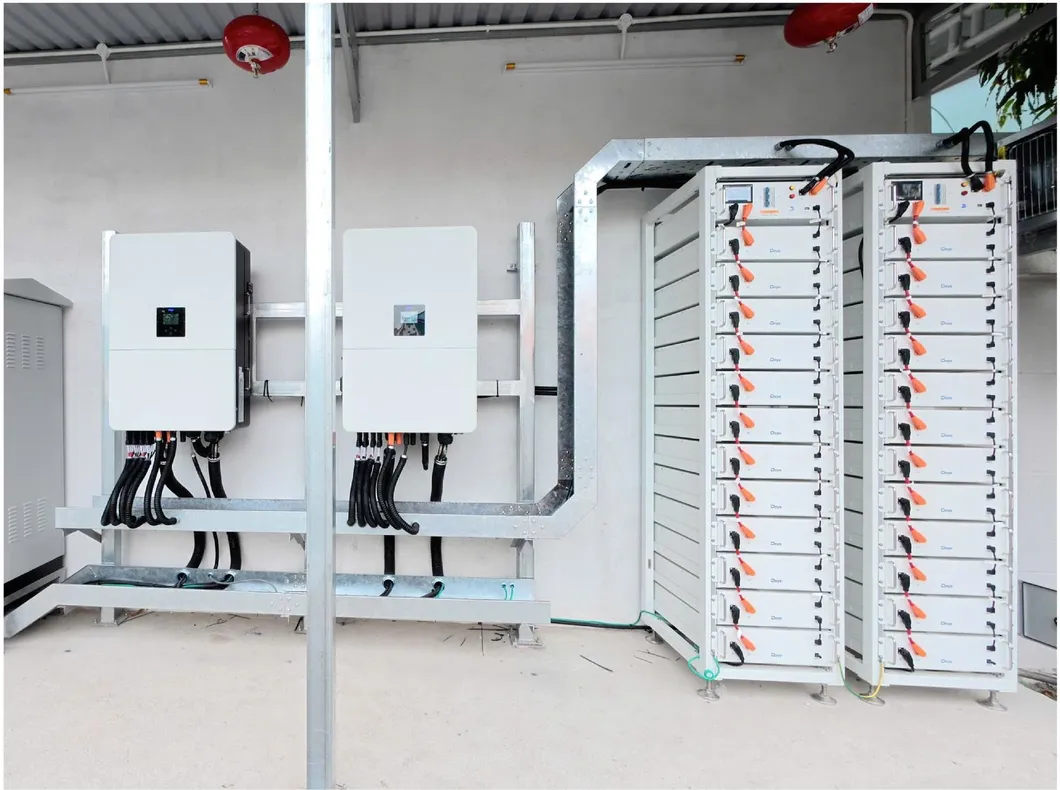

Project Portfolio
Frequently Asked Questions
What is the expected lifespan of this photovoltaic system?
The lifespan of photovoltaic panels is generally 25-30 years, while the hybrid inverters typically last about 10-15 years, depending on usage and maintenance.
How much maintenance is required?
Maintenance is simple. It involves regular cleaning of the panels and monitoring the system's status via the provided online platform.
Can this system work during a grid failure?
Yes, the hybrid inverter features an independent critical load port that can switch to backup mode within 4 milliseconds to keep your essential appliances running.
Is it possible to combine this with battery storage later?
Absolutely. These hybrid inverters are designed to work with both lead-acid and lithium-ion batteries and support AC coupling to retrofit existing systems.
Are these systems environmentally friendly?
Yes, they use solar energy, which is a clean and renewable source, significantly reducing greenhouse gas emissions.
How long does the installation process take?
Residential installations typically take 1-3 days, while larger commercial or industrial systems may take several weeks depending on the scale.
