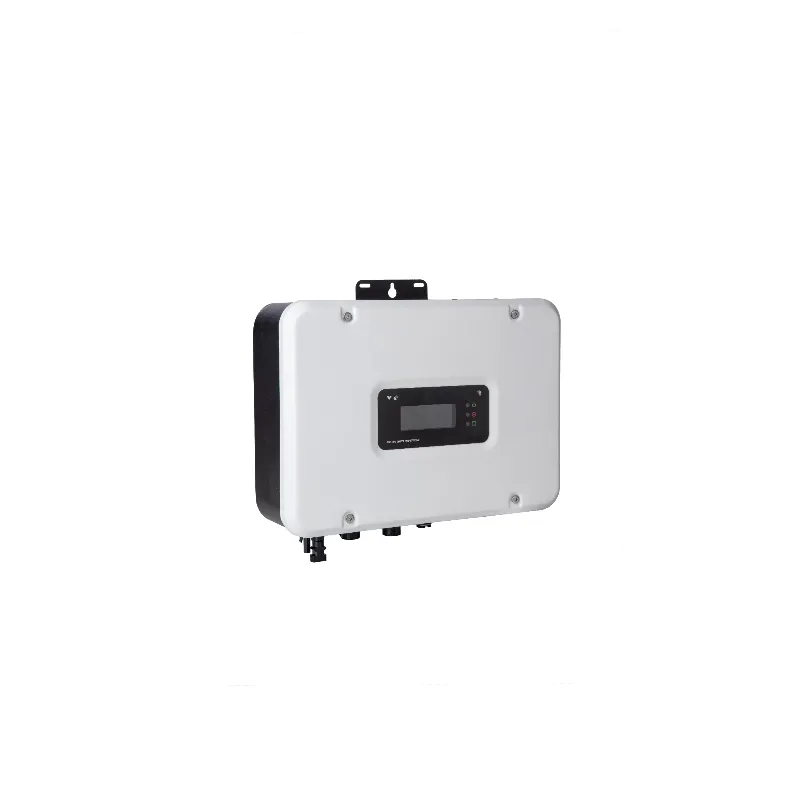

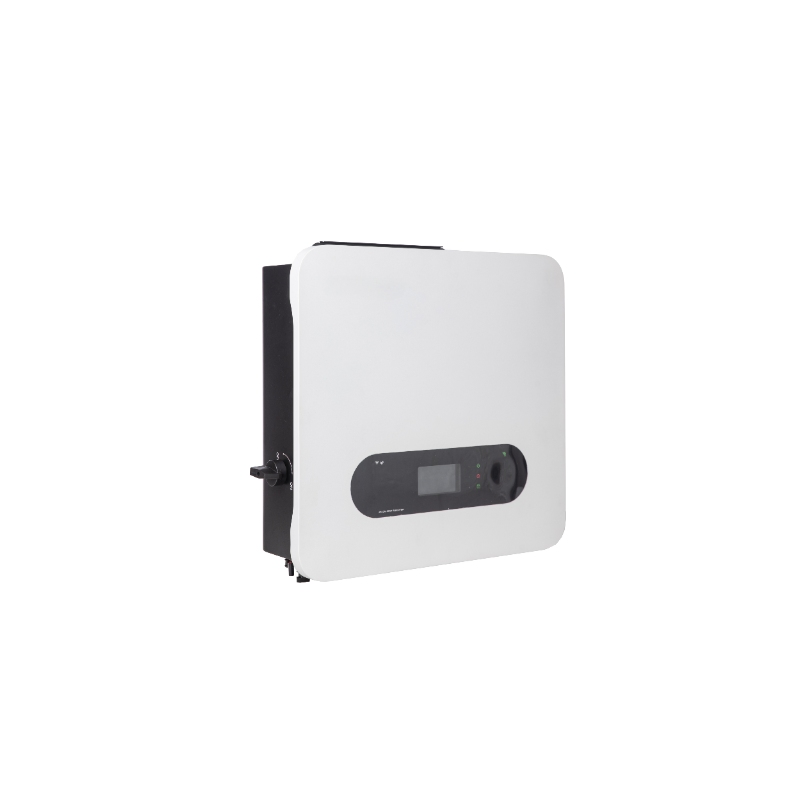

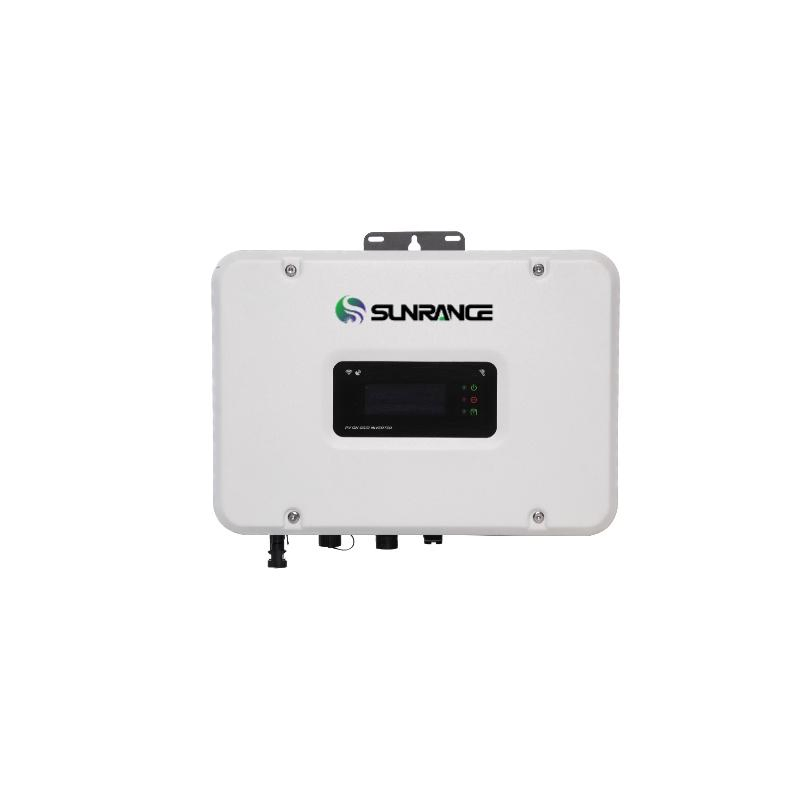

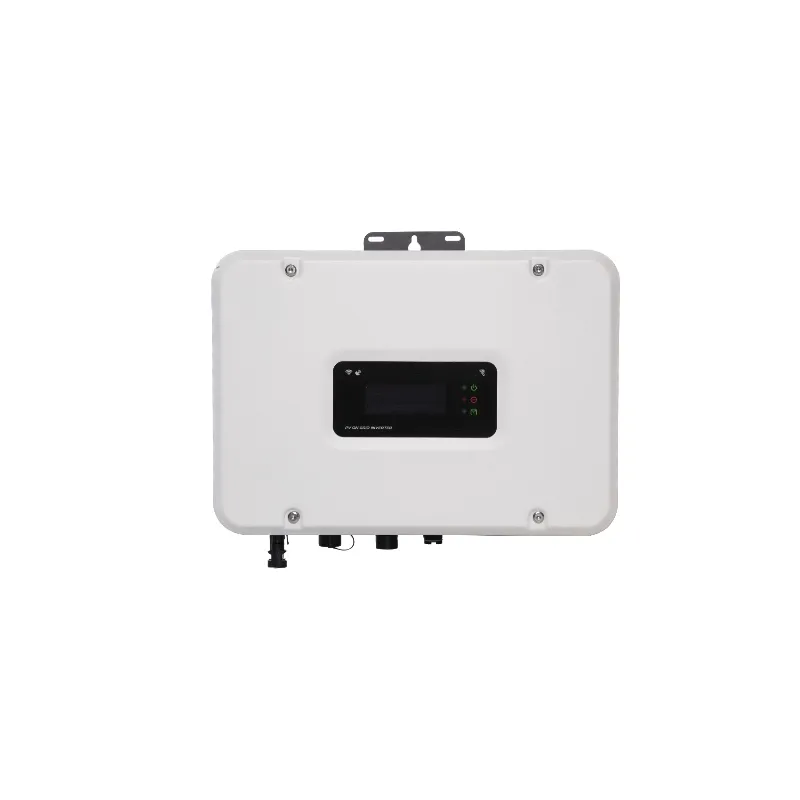

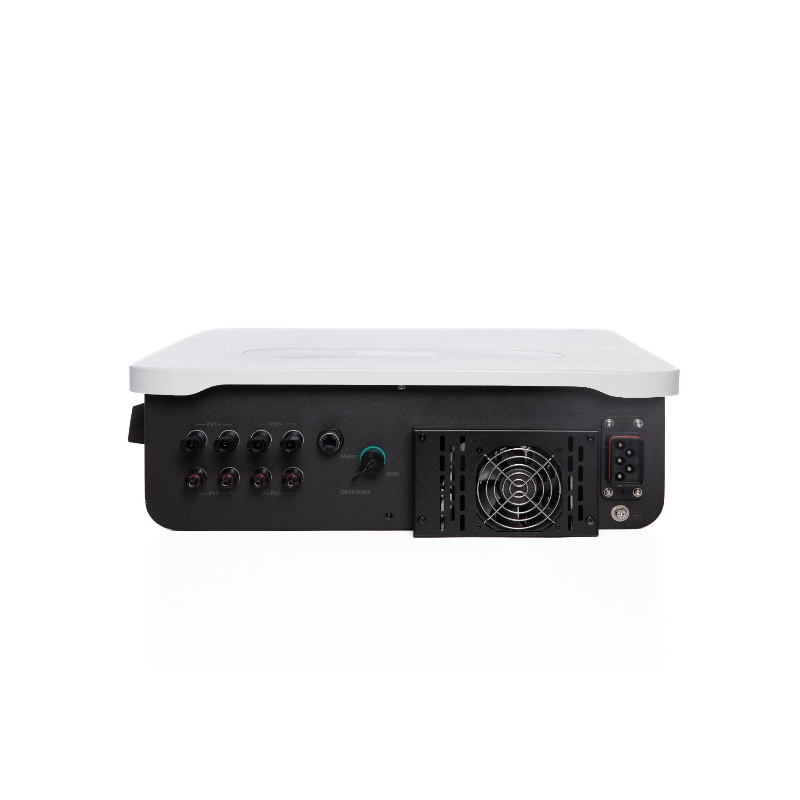

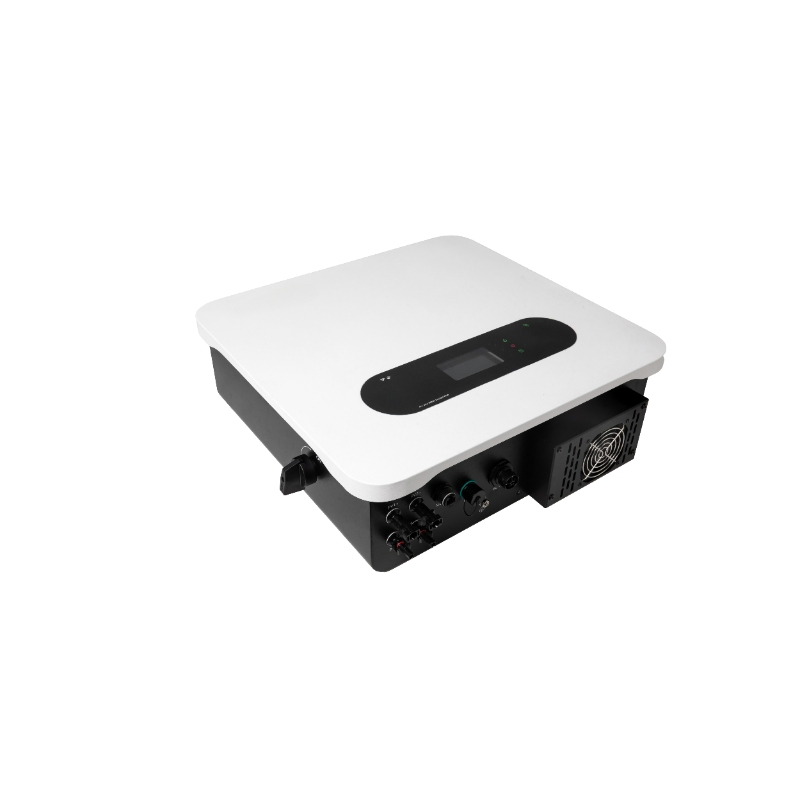

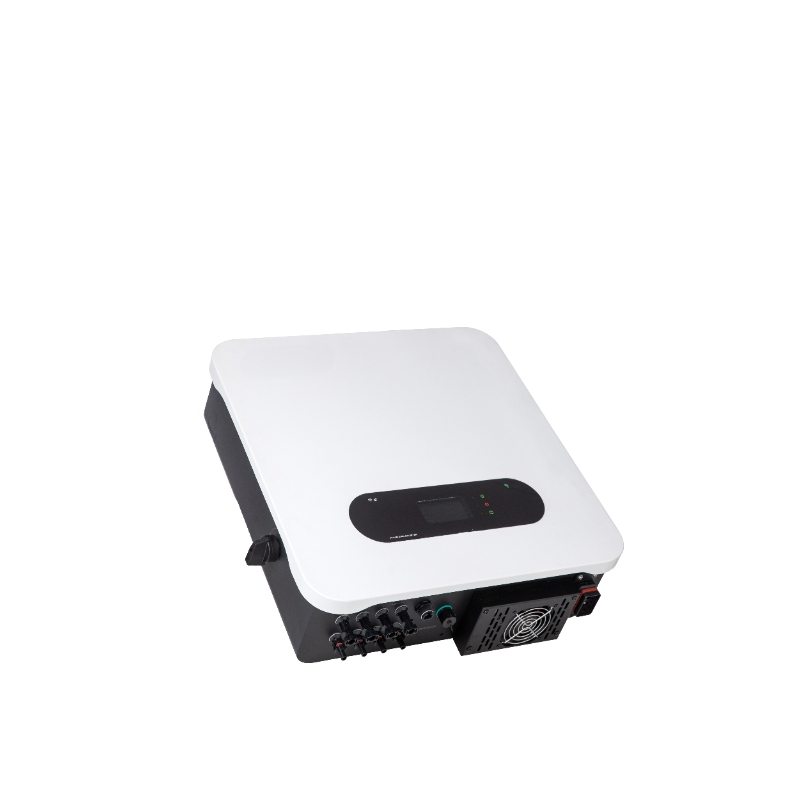

Solar Single Phase On Grid 1kw-10kw Inverter with 2 MPPT
The S series 1kw-10kw inverter is a compact residential solar grid-connected inverter specifically designed to bring comfort and high efficiency to households. It features a clear display view from a large LCD screen, easy remote settings, and intuitive graphic operations via app and web.
| Model No | S1000TL | S2200TL | S3000TL | S3600TL | S5000TL | S6000TL |
|---|---|---|---|---|---|---|
| Max DC Power | 1500W | 3300W | 4500W | 5400W | 7500W | 7500W |
| Max DC Voltage | 450V | 450V | 500V | 500V | 500V | 500V |
| MPPT Voltage Range | 100V - 450V | |||||
| Nominal Output Power | 1000W | 2200W | 3000W | 3600W | 5000W | 6000W |
| Max Efficiency | 97.3% | 97.4% | 97.5% | 97.8% | 97.5% | 97.6% |
| Model No | S6000TL(Pro) | S8000TL | S10000TL |
|---|---|---|---|
| Max DC Power | 9000W | 12000W | 15000W |
| Max DC Voltage | 550V d.c. | ||
| Nominal Output Power | 6000W | 8000W | 10000W |
| Max Efficiency | 98.10% | ||
| Protection Degree | IP65 | ||
