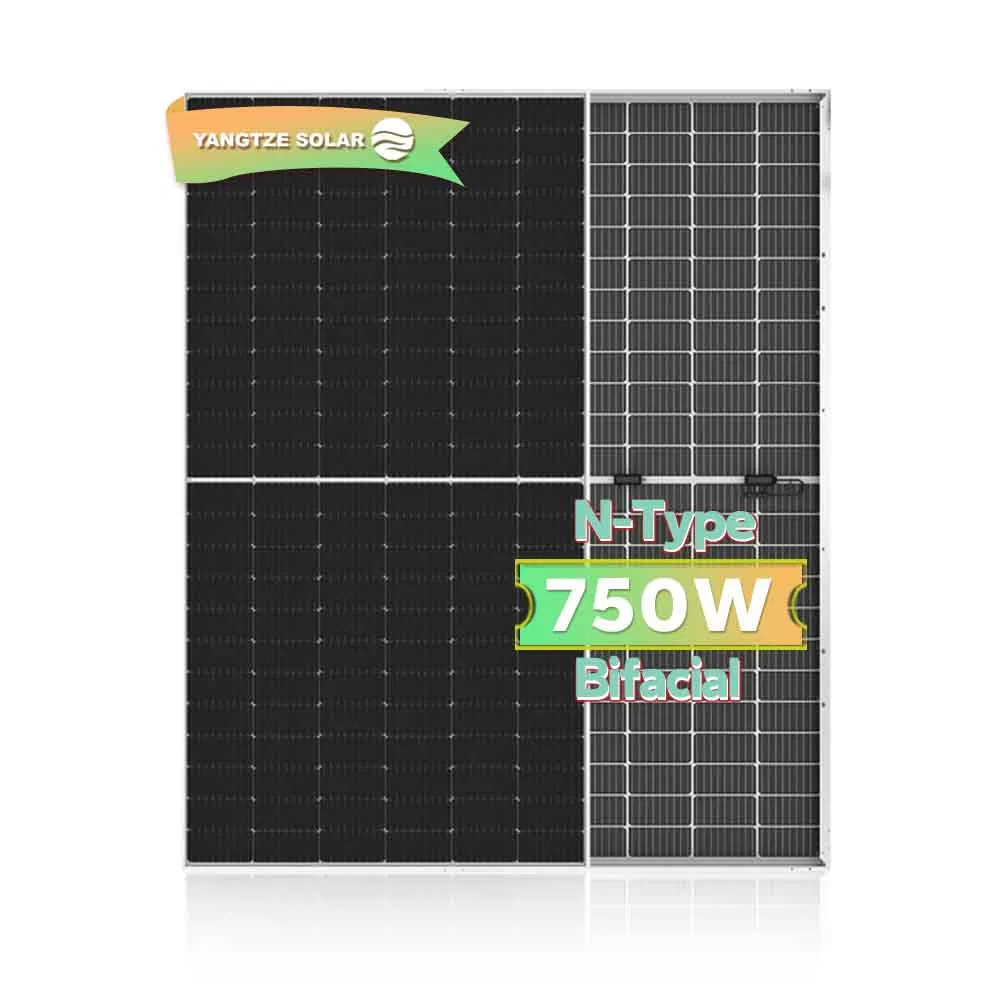

N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
1 / 5
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline

N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Specifications
Model NO.:YS750M-132
Number of Cells:66
Application:Industrial
Condition:New
Certification:ISO, CE
Material:Monocrystalline Silicon
Solar Cell:Mono 210X210 mm Cell
Junction Box:IP68 Waterproof
Size:2384*1303*35mm
Weight:36kg
Power:750W
HS Code:8541402000
★
Product Description

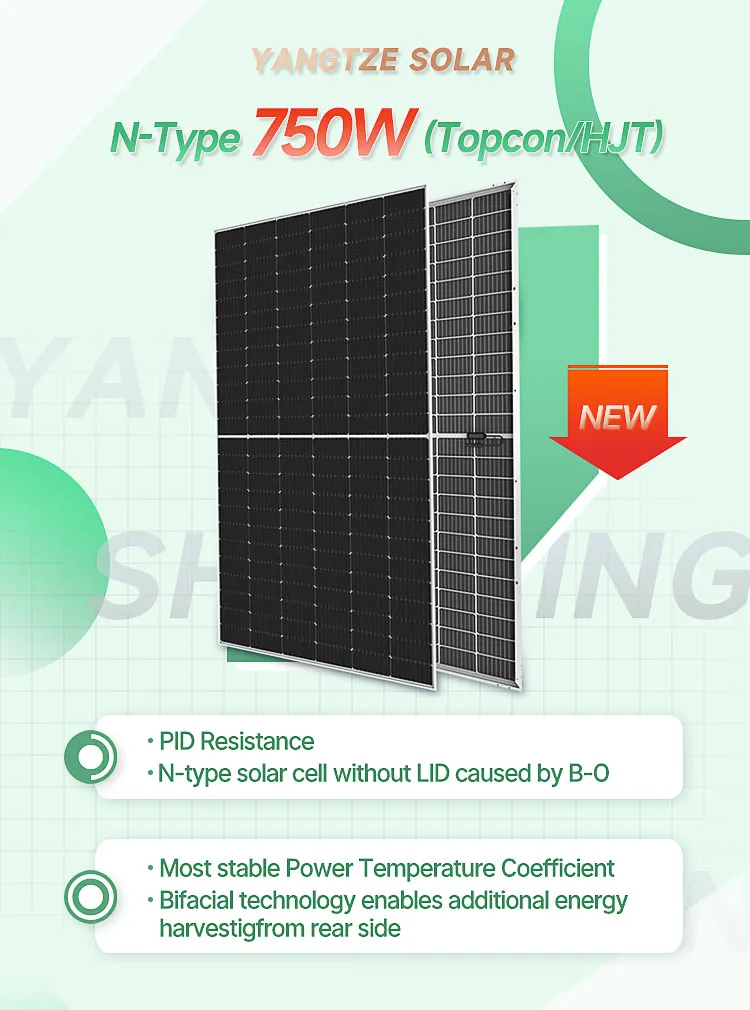

750W Monocrystalline Solar Panel
Model Type YS710M-132 YS720M-132 YS730M-132 YS740M-132 YS750M-132
Rated Max Power (STC) 710W 720W 730W 740W 750W
Max Power Voltage (Vmp) 40.48V 40.86V 41.04V 41.34V 41.52V
Max Power Current (Imp) 17.54A 17.62A 17.78A 17.9A 18.06A
Open Circuit Voltage (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit Current (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 22.85% 23.17% 23.5% 23.82% 24.14%
⚙
Working Conditions
Operating Temp:-40°c~+85°c
Max System Voltage:1500V (IEC)
Max Series Fuse:25A
Power Tolerance:0~+5W
Solar Panel Technical Details
Solar Panel Performance Curves
✔
Quality Features
● N-Type HJT bifacial technology for higher efficiency and better low-light performance.
● 10 years total workmanship and materials warranty.
● 25 years for 80% linear power output warranty.
● 100% EL test performed before package and shipping to ensure zero micro-cracks.
● Certified by TUV (Germany) and CE for international safety standards.
● High transmission low iron tempered glass with 3.2mm thickness.
Manufacturing Capability
Certifications
?
Frequently Asked Questions
What are the advantages of N-Type HJT solar panels?
N-Type Heterojunction (HJT) panels offer higher conversion efficiency, a lower temperature coefficient, and better performance in low-light conditions compared to traditional P-type panels.
Can these solar panels withstand extreme weather?
Yes, the panels feature 3.2mm high-transmission tempered glass and an anodized aluminum alloy frame, rated for operating temperatures from -40°C to +85°C and equipped with an IP68 waterproof junction box.
What is the expected lifespan of these monocrystalline modules?
These modules come with a 25-year linear power output warranty, ensuring they maintain at least 80% of their rated power after two and a half decades.
Is the 750W solar panel suitable for residential use?
While primarily designed for industrial and utility-scale projects due to their high power output and large physical size (2384*1303mm), they can be used for residential systems if roof space and mounting structures allow.
What does bifacial technology mean?
Bifacial technology allows the solar panel to capture sunlight from both the front and the back side (via reflection from the ground), significantly increasing the total energy yield.
Are the solar panels tested before shipment?
Every single panel undergoes a 100% EL (Electroluminescence) test before packaging to ensure there are no hidden defects or micro-cracks in the cells.
