Smart Energy
1 / 5

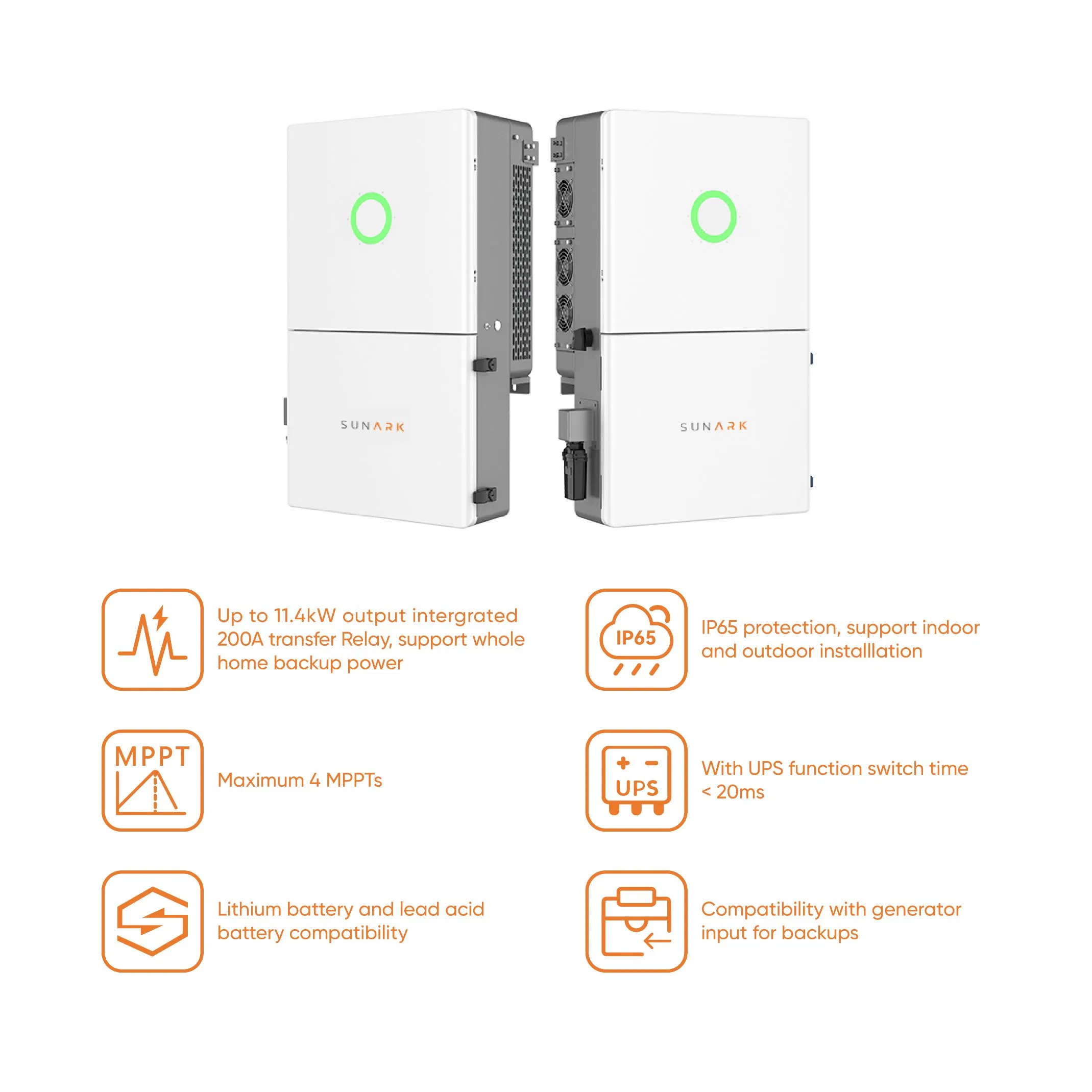

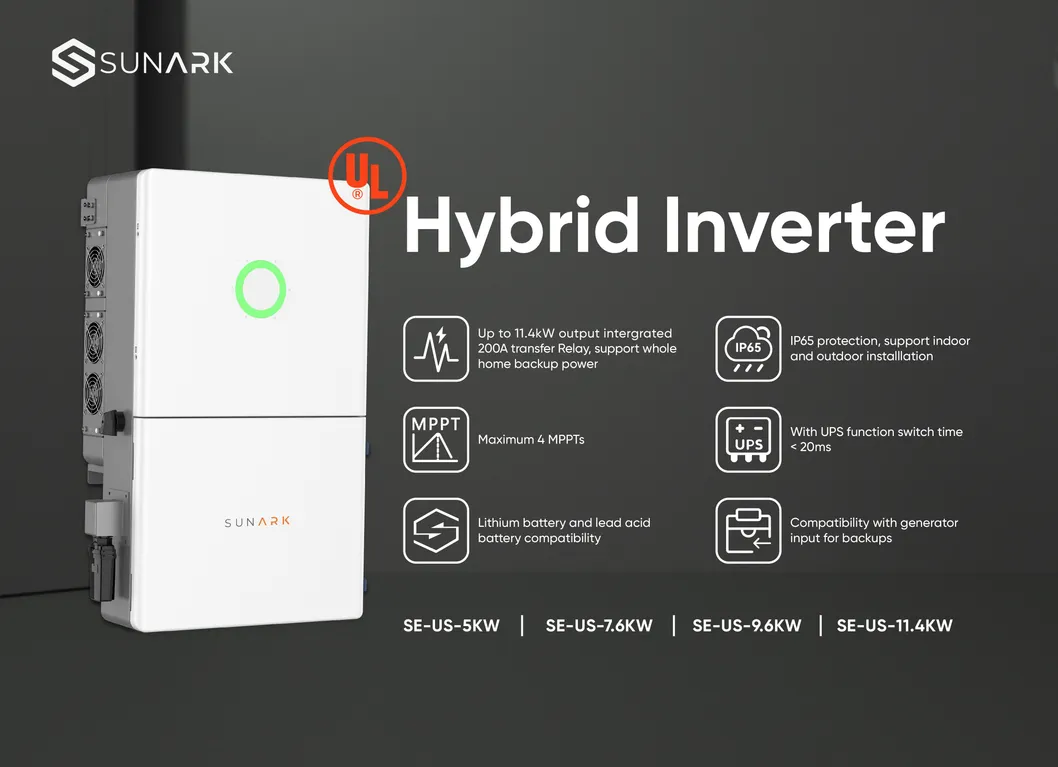

The product is designed for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.
| MODEL | SE-US-5KW | SE-US-7.6KW | SE-US-9.6KW | SE-US-11.4KW |
|---|---|---|---|---|
| Max PV Array Power | 7500Wp | 11400Wp | 14400Wp | 17100Wp |
| Max DC Voltage | 600V | |||
| MPPT Voltage Range | 90~550V | |||
| Nominal DC Voltage | 380V | |||
| Number of MPPT | 3 | 4 | ||
| Battery Type | Lead-acid / Lithium battery | |||
| Rated AC Voltage | L1/L2/N/PE, 120/240V | |||

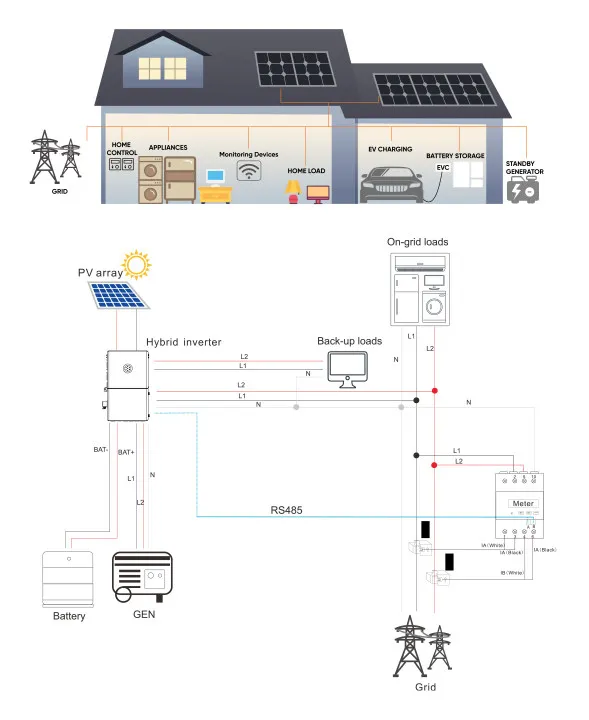

Split Phase Hybrid Solar System Wiring Diagram

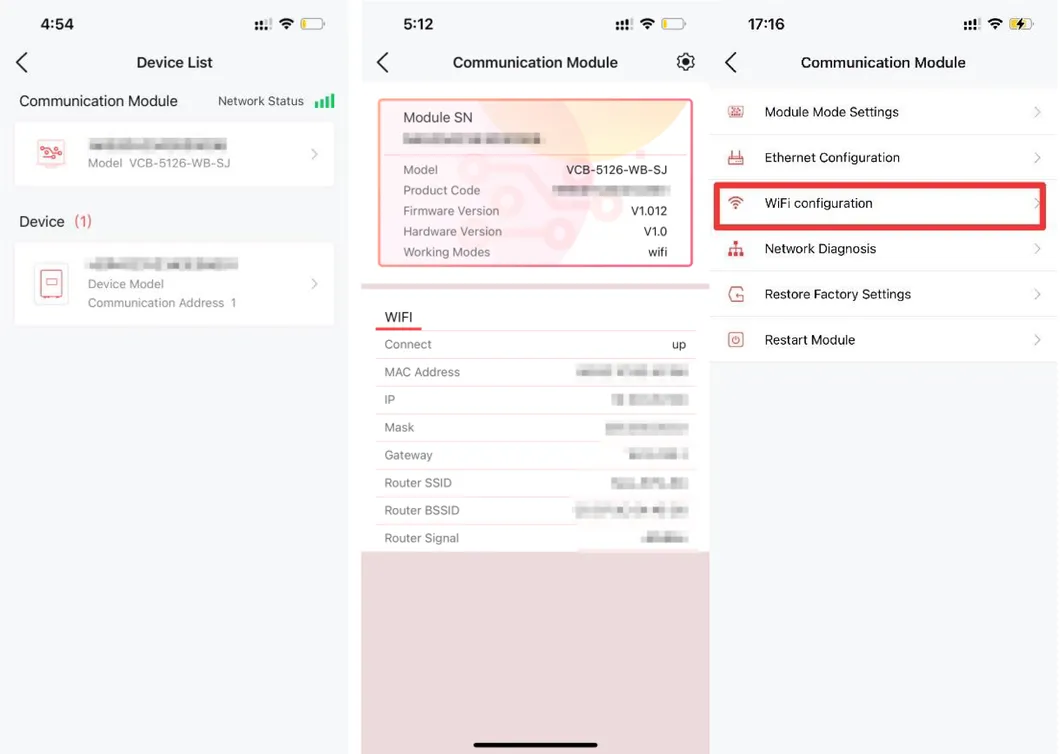

Monitoring Interface
Certifications
We are a leading global energy storage solution and service provider, specializing in residential, commercial and utility applications. With over 20 years of experience producing energy storage products, our systems are actively running in 80+ countries. We maintain a national high-tech enterprise status with innovative platforms including accredited laboratories and research institutes. Our core technology patents cover new materials and structures for battery power supplies, and we contribute to international industrial standards.
