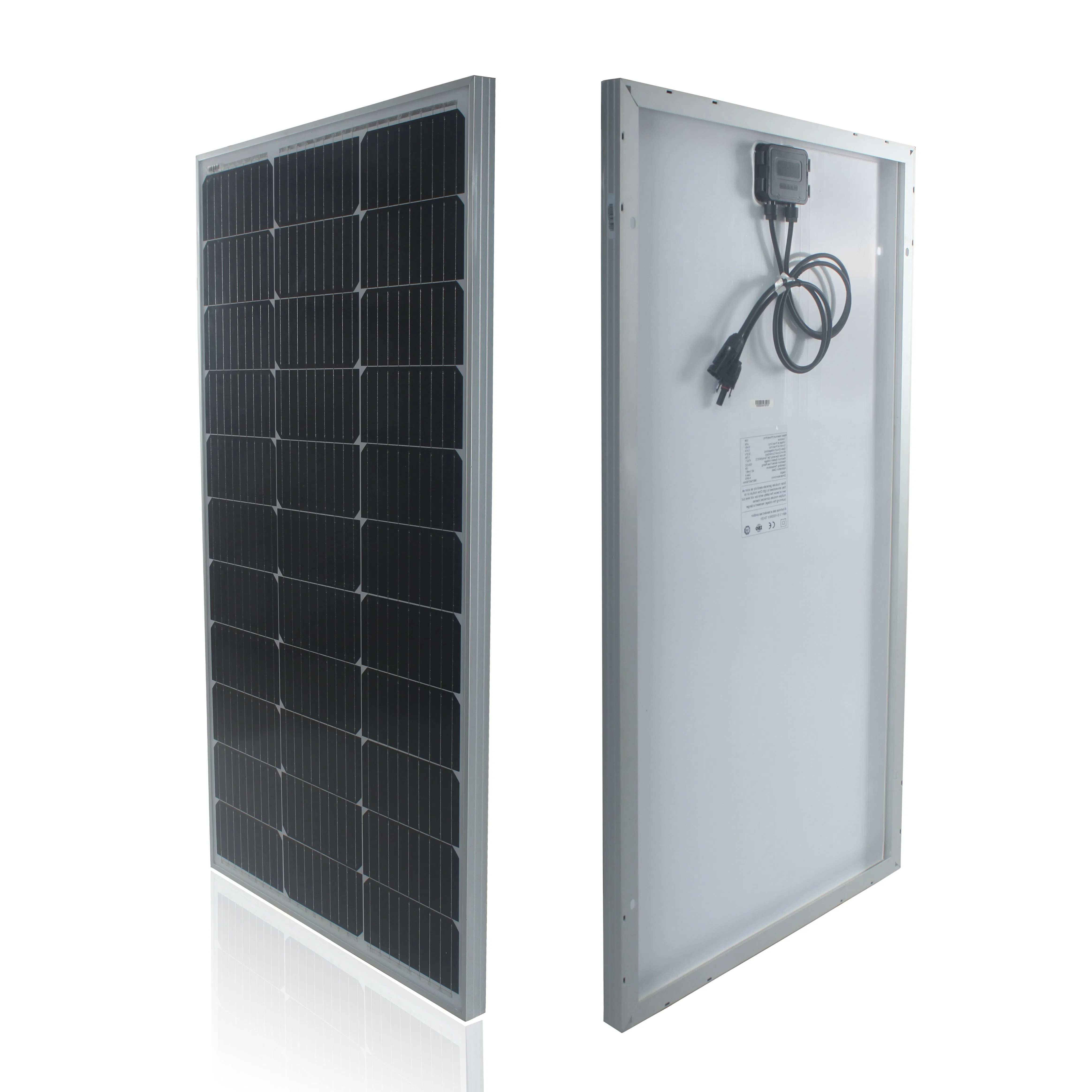

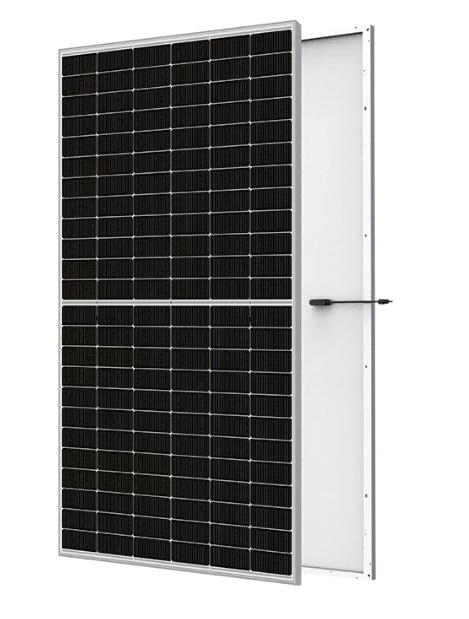

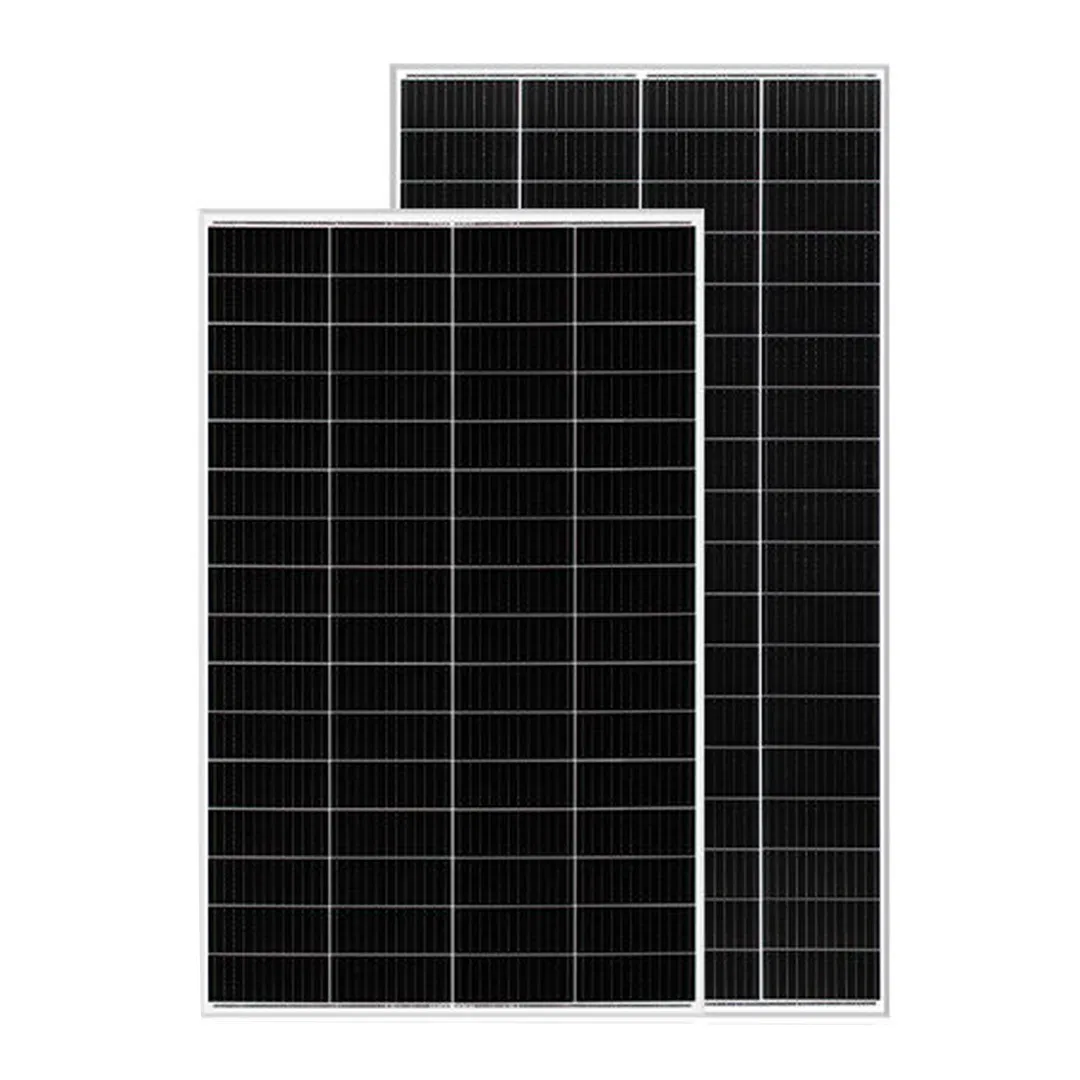

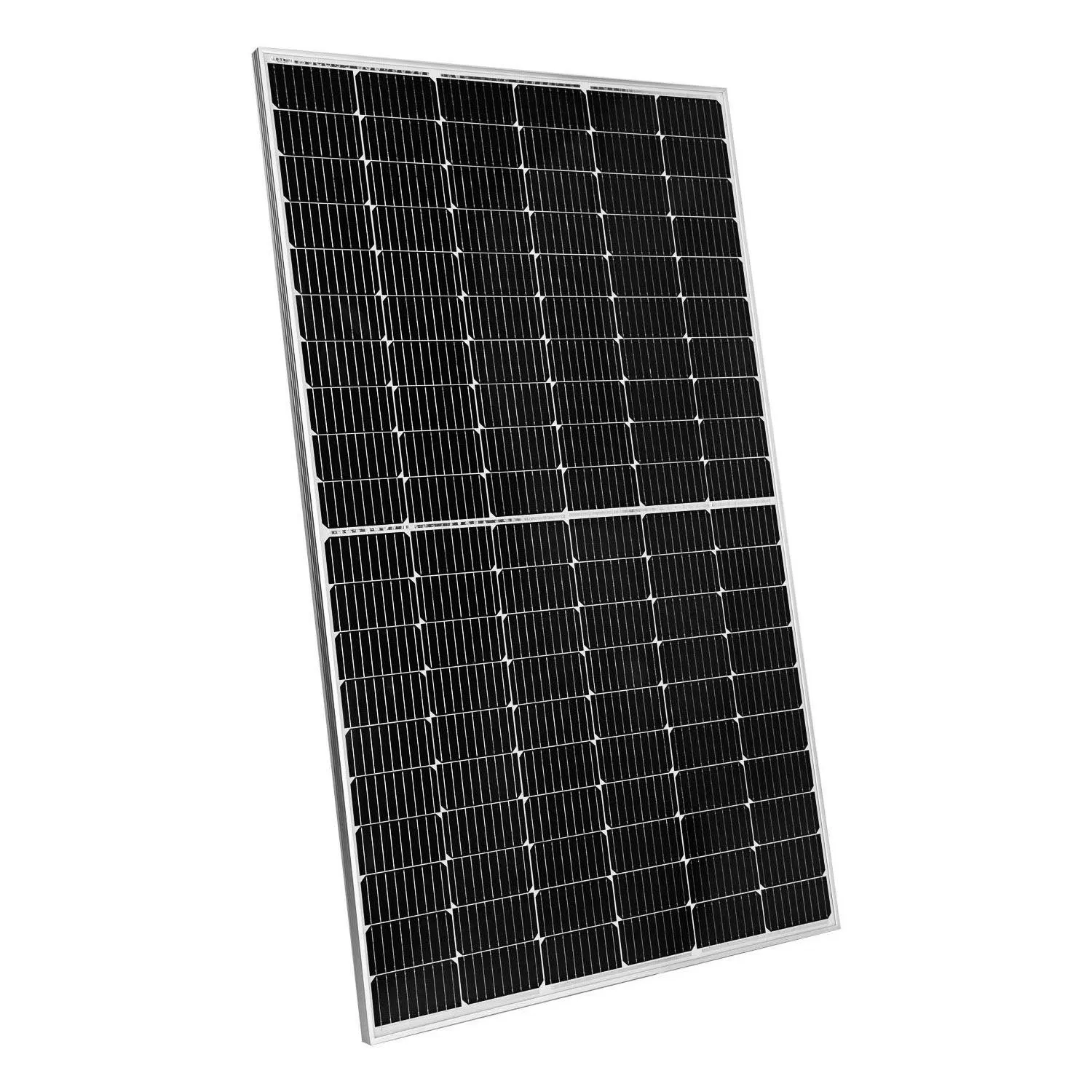

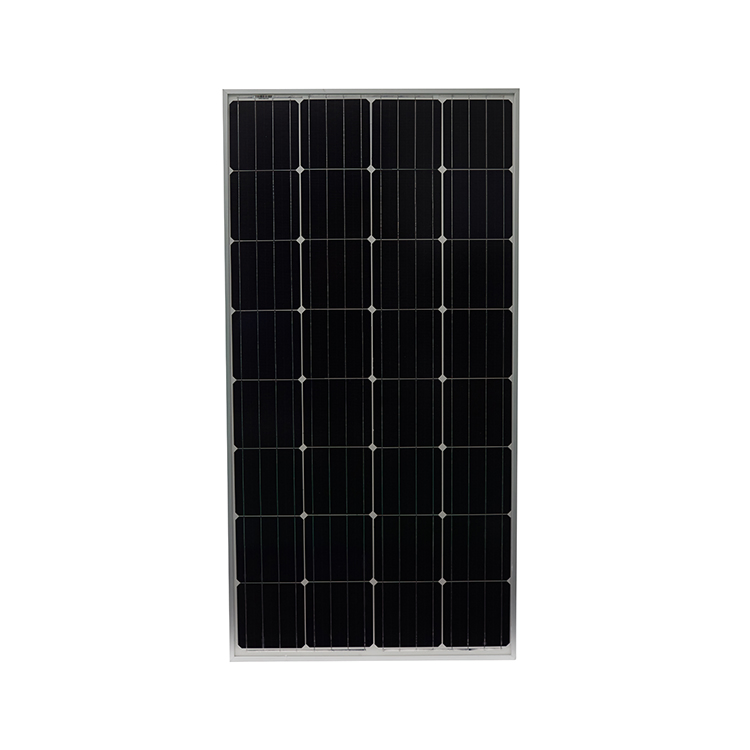

Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
1 / 5
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV
Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV

Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV

After-sales Service: 1 Year
Warranty: 25 Years
Number of Cells: 72pcs
Send Inquiry

Product Description

📋 Basic Product Information
Model NO.VSMH-M-580w
ApplicationAgriculture
ConditionNew
CertificationEST, ISO, CE
MaterialMonocrystalline Silicon
Working Voltage41.76V
Working Current13.17A
Open Circuit Voltage47.52V
Weight26.6kg
Package Size230.00cm * 116.00cm * 6.00cm
Specification2279*1134*35mm
HS Code8541430000
💡 Product Description
- Based on M10 wafer, best choice for ultra-large power plants
- Advanced module technology delivers superior module efficiency
- Excellent outdoor power generation performance
- High module quality ensures long-term reliability

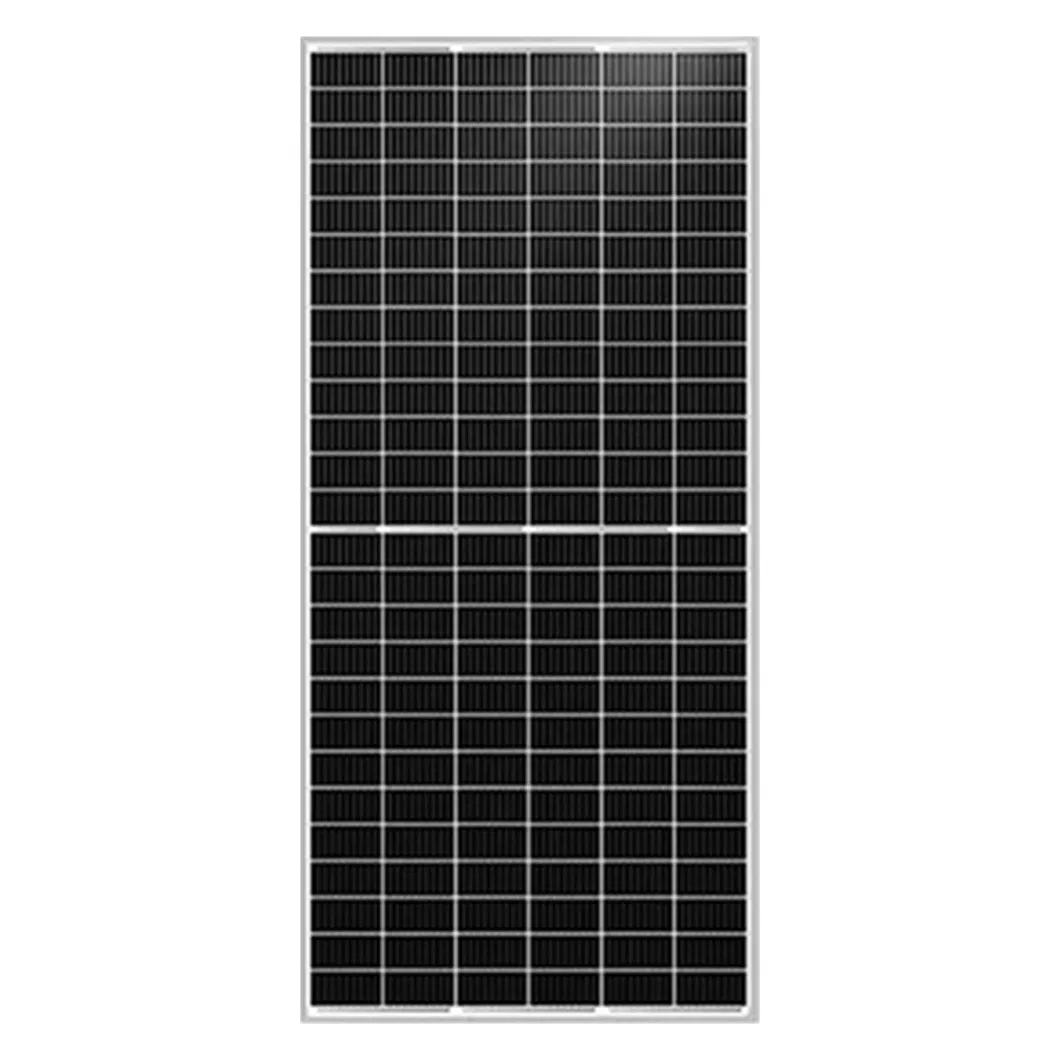

Solar Module Efficiency
📊 Product Technical Parameters
Maximum Power(Pmax) Open-circuit voltage(Voc) Short circuit current(Isc) Working voltage(Vmp) Working current(lmp) Size (MM) Weight (KG)
5W24.12V0.27A20.16V0.25A280*190*170.9kg
10W24.12V0.53A20.16V0.50A400*200*171.2kg
50W23.76V2.70A20.88V2.39A520*590*253.6kg
100W27.72V4.63A24.36V4.11A930*580*306.2kg
200W26.40V9.71A23.20V8.62A1280*770*3010.7kg
450W39.60V13.69A34.80V12.93A1909*1134*3522.5kg
580W47.52V13.62A41.76V13.17A2279*1134*3526.6kg
📸 Detailed Product Photos

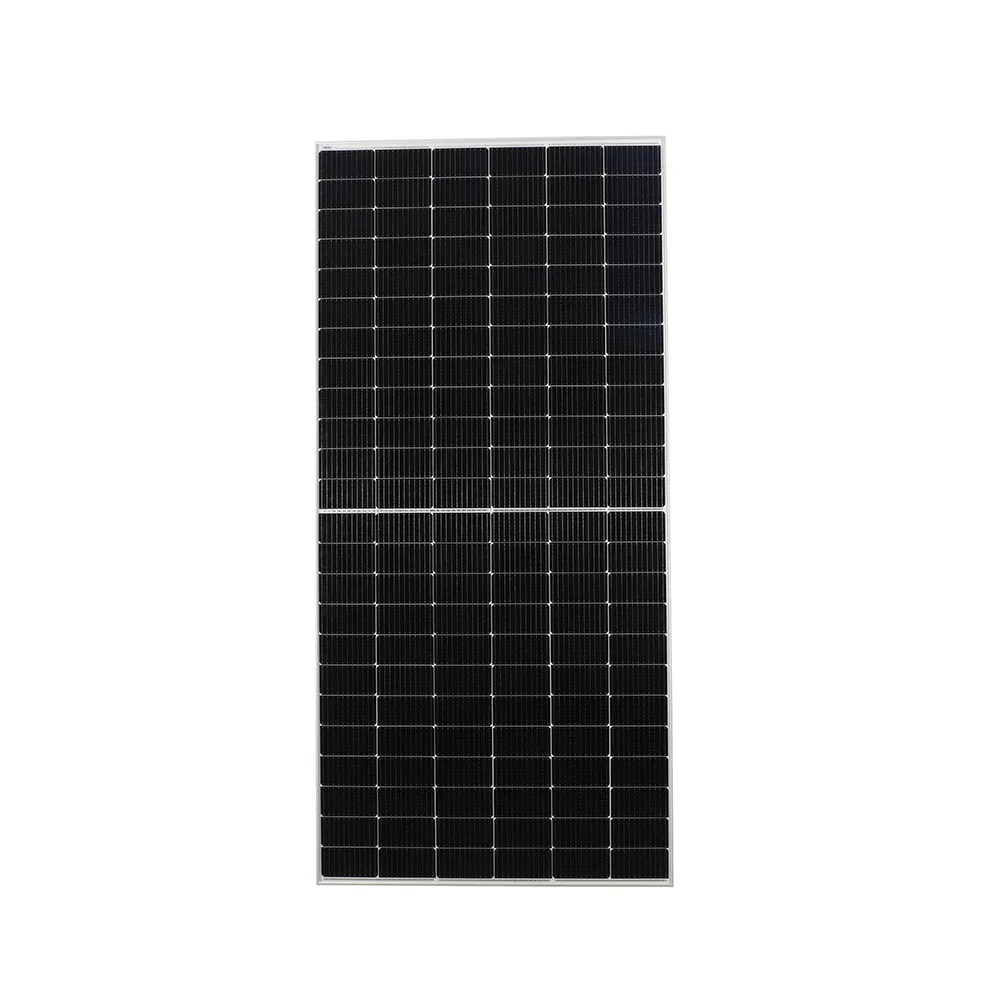

Solar Panel Detail 1

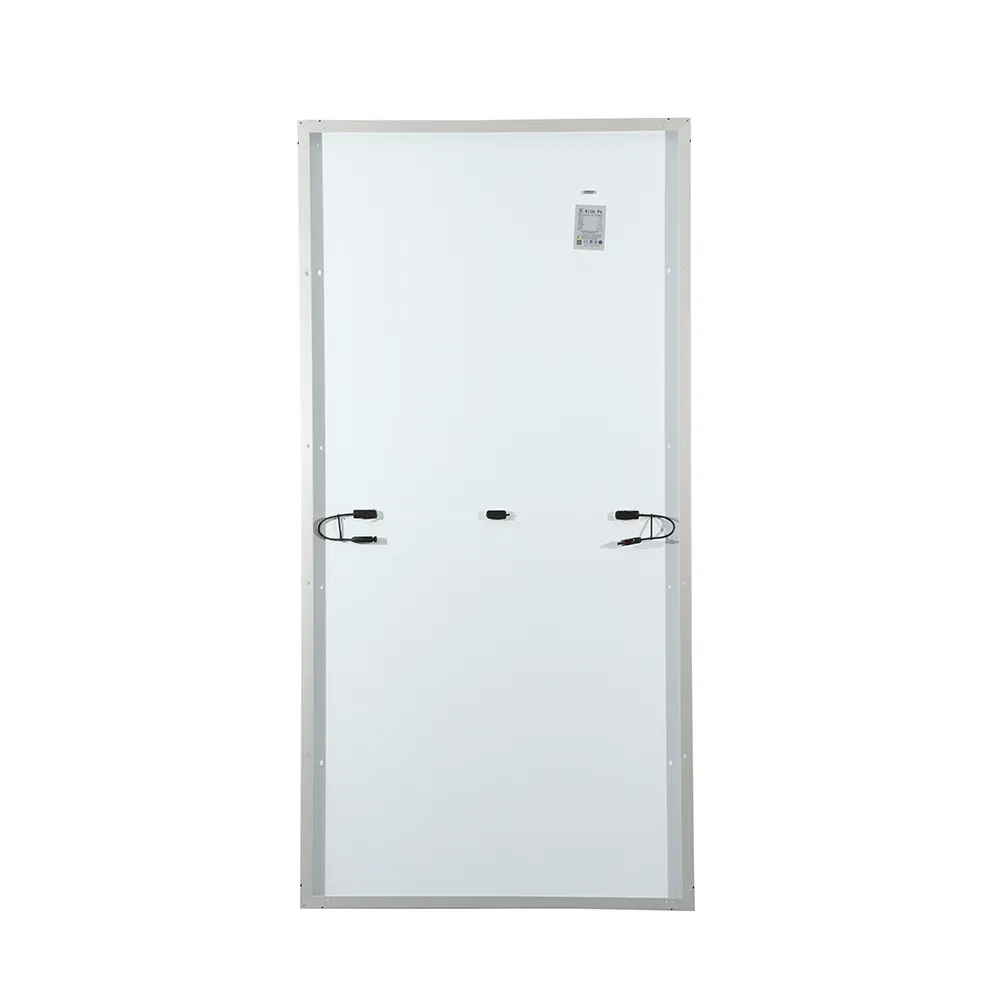

Solar Panel Detail 2

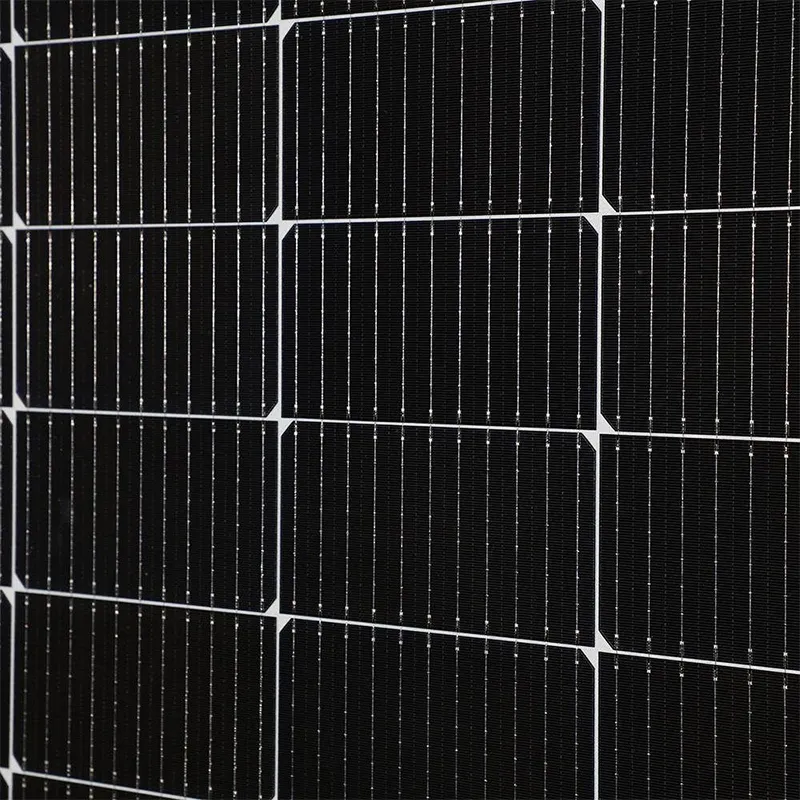

Solar Panel Detail 3

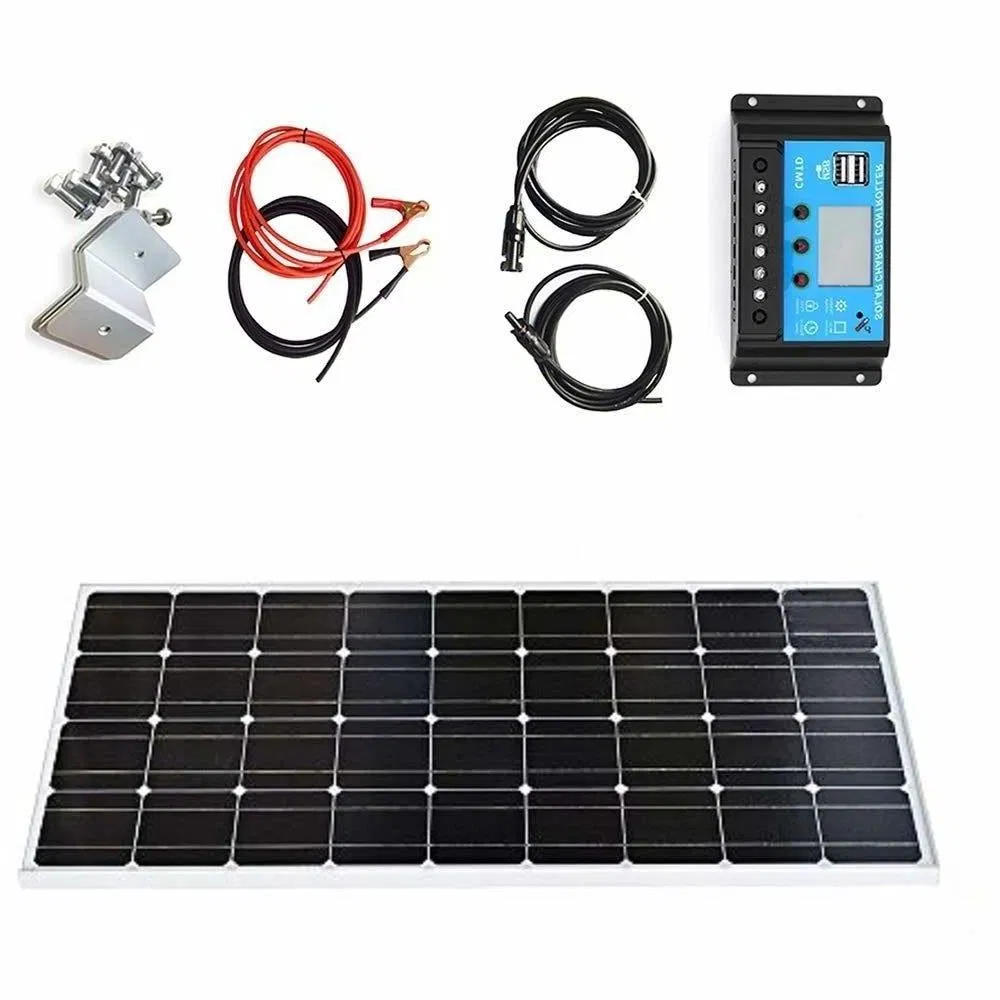

Solar Panel Detail 4

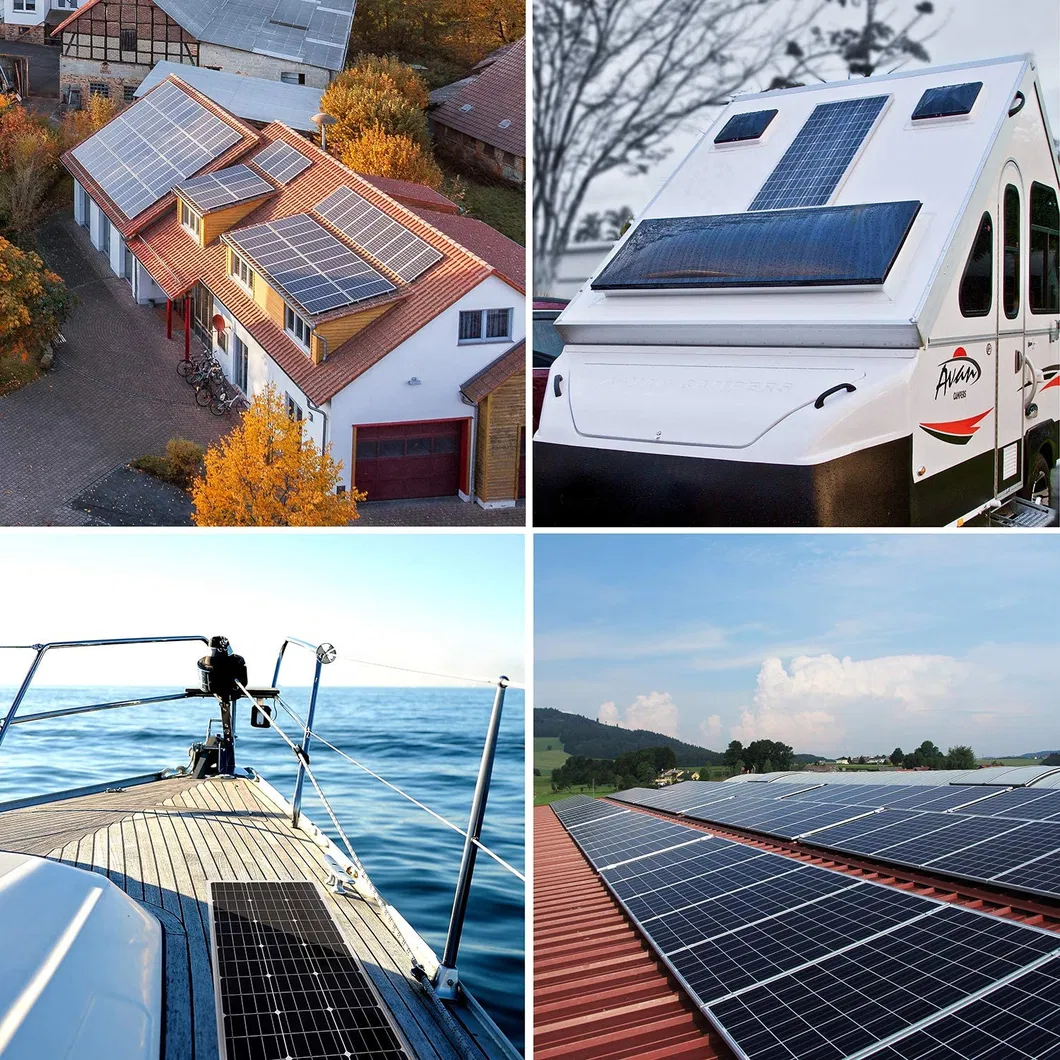

Solar Panel Detail 5

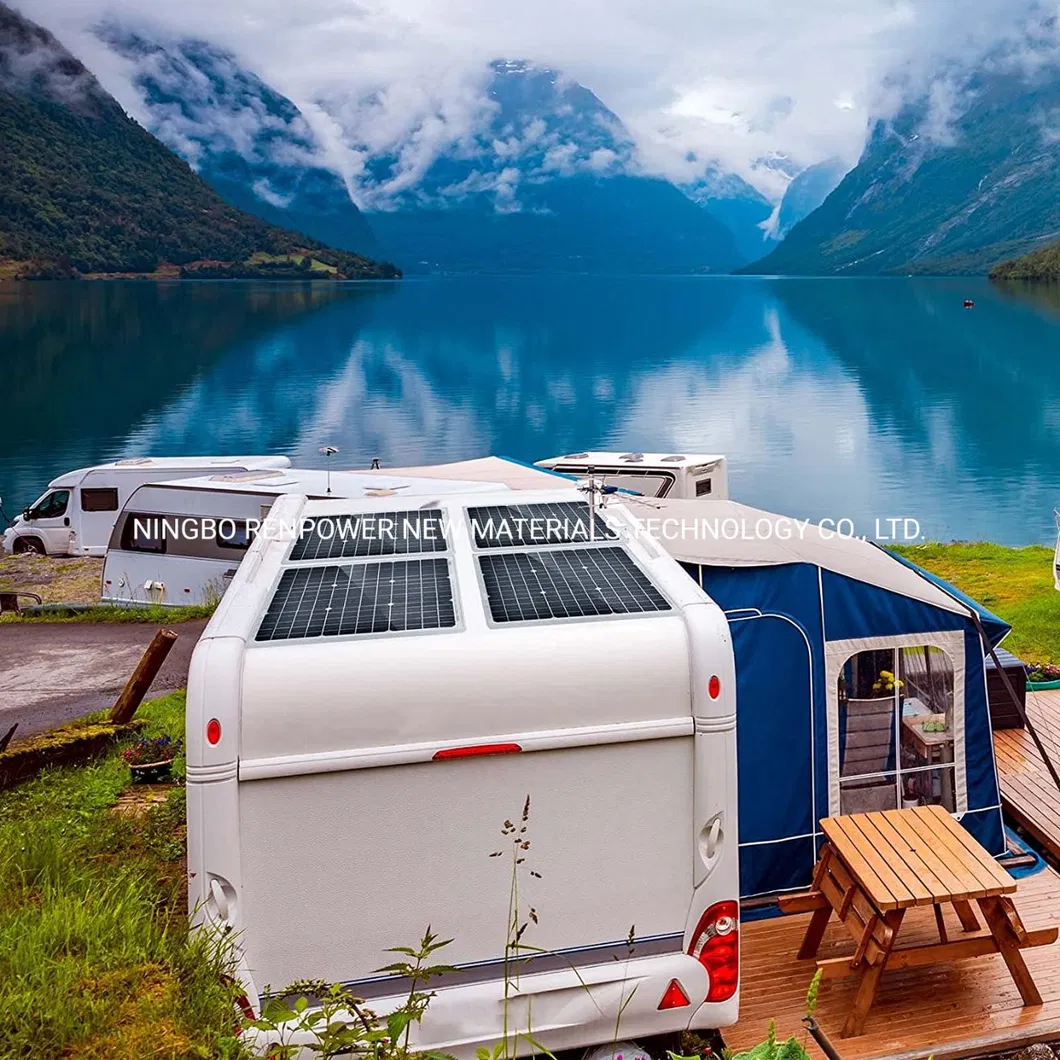

Solar Panel Detail 6
📦 Packaging & Shipping

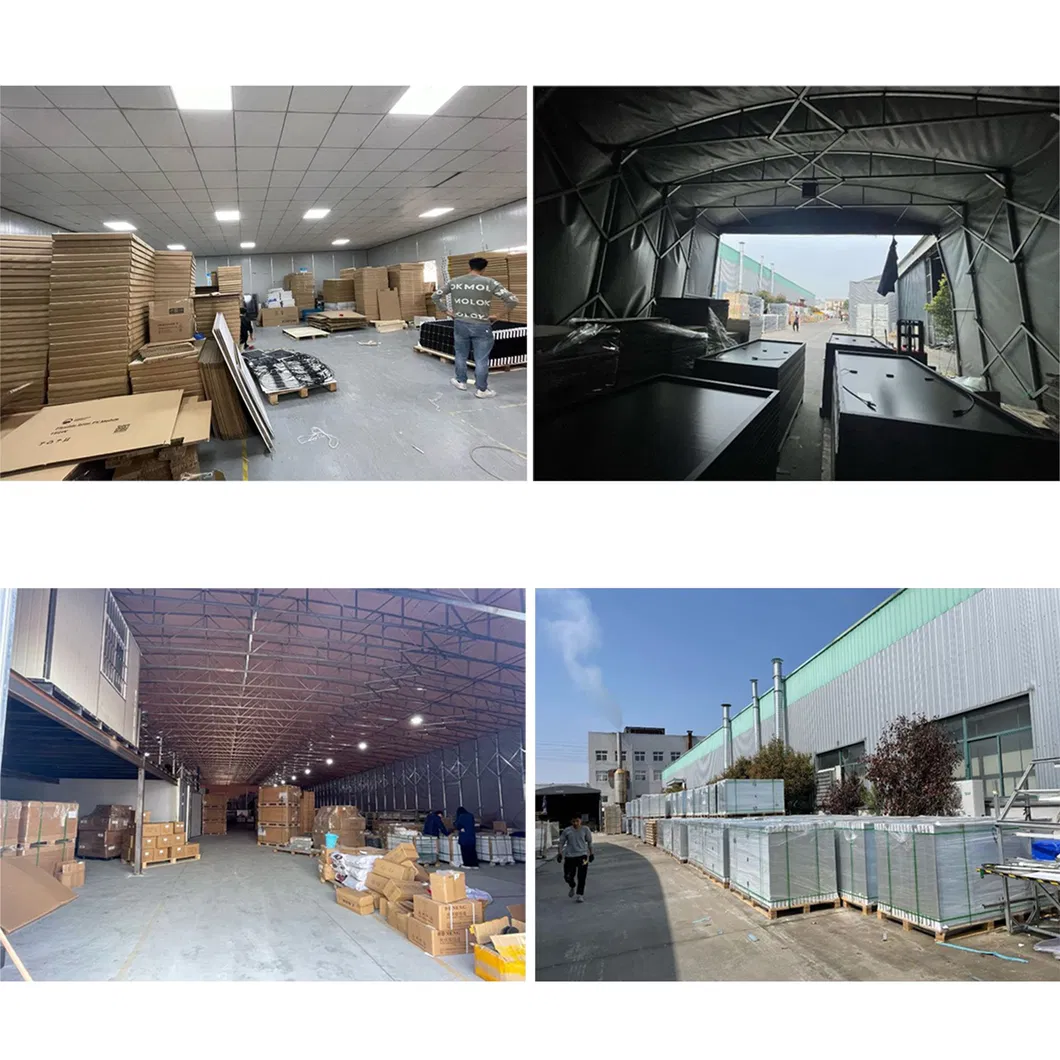

Packing 1

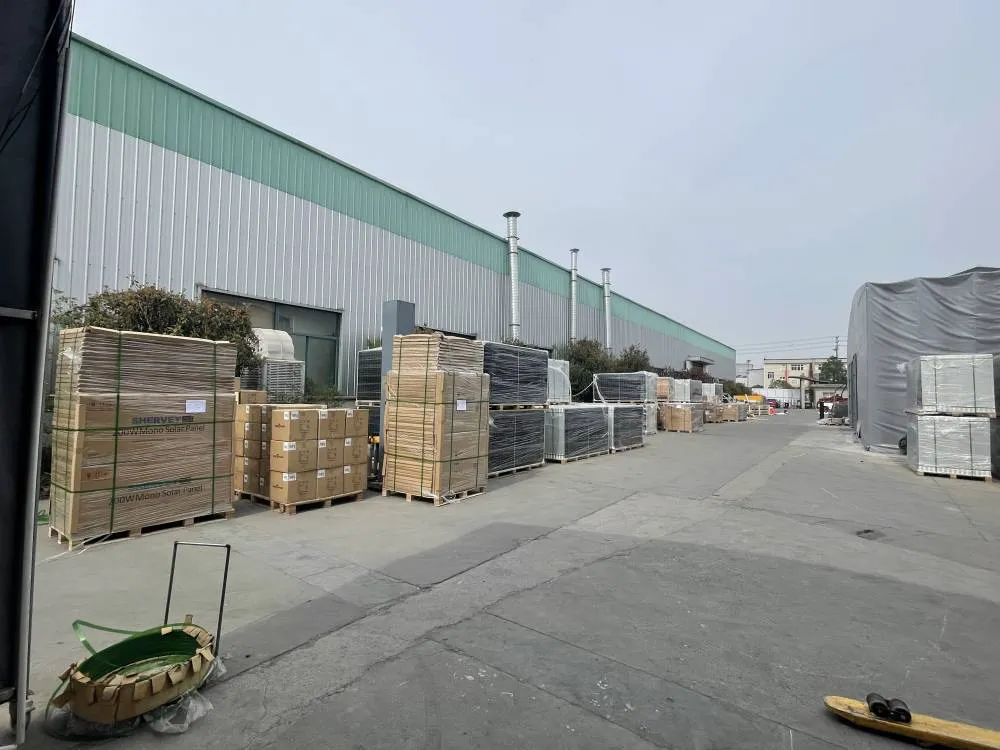

Packing 2

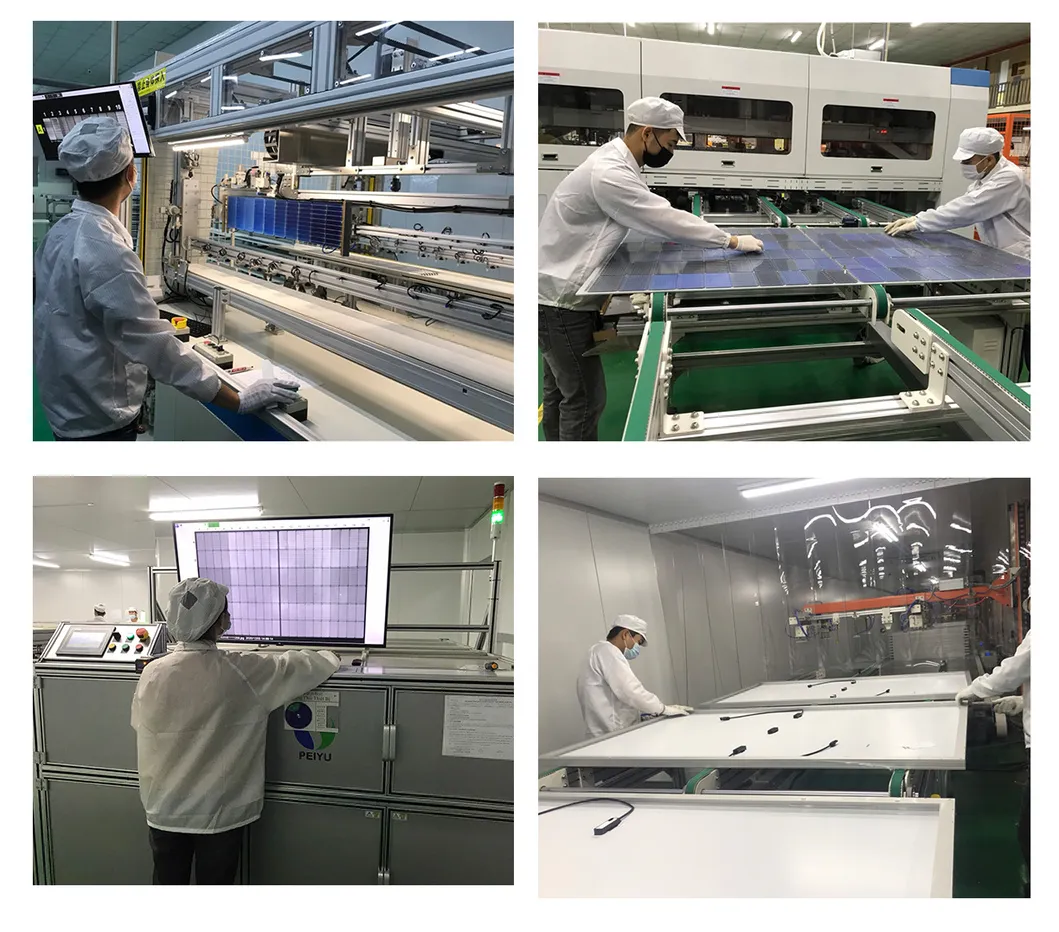

Shipping 1

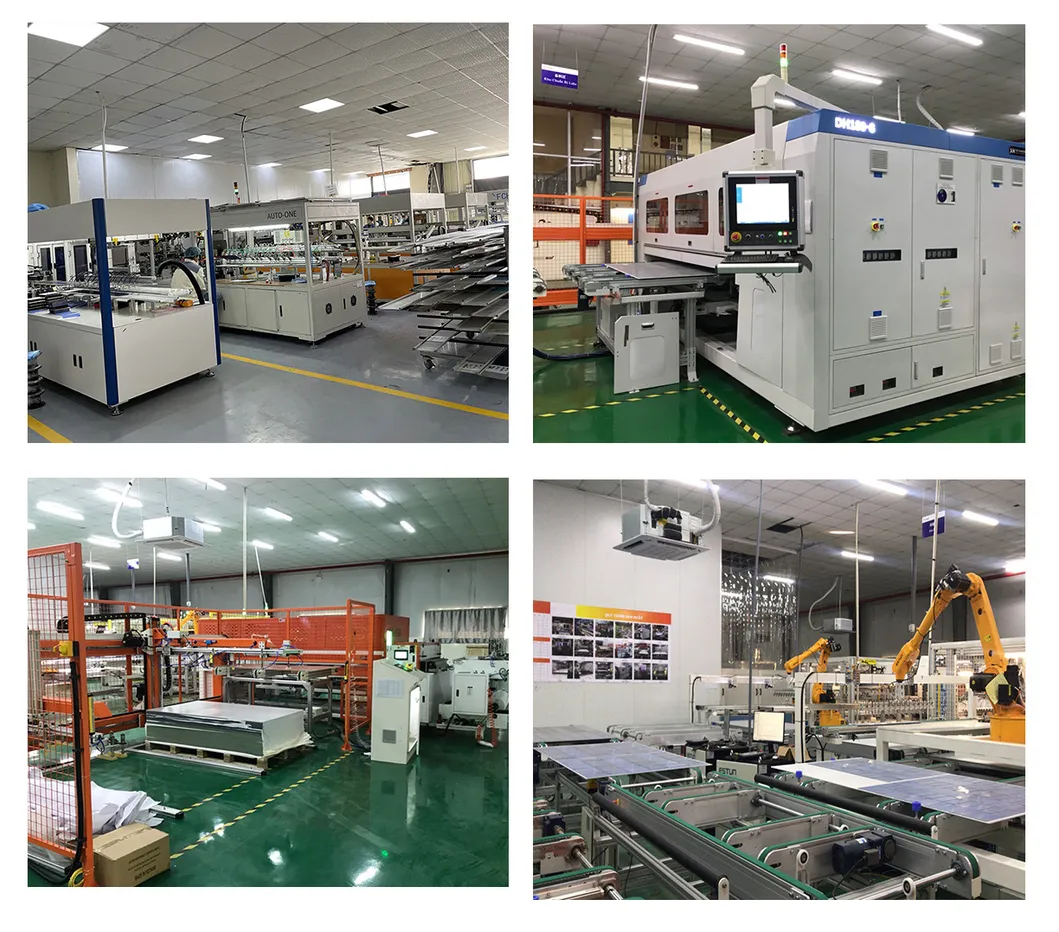

Shipping 2
📜 Quality Certifications

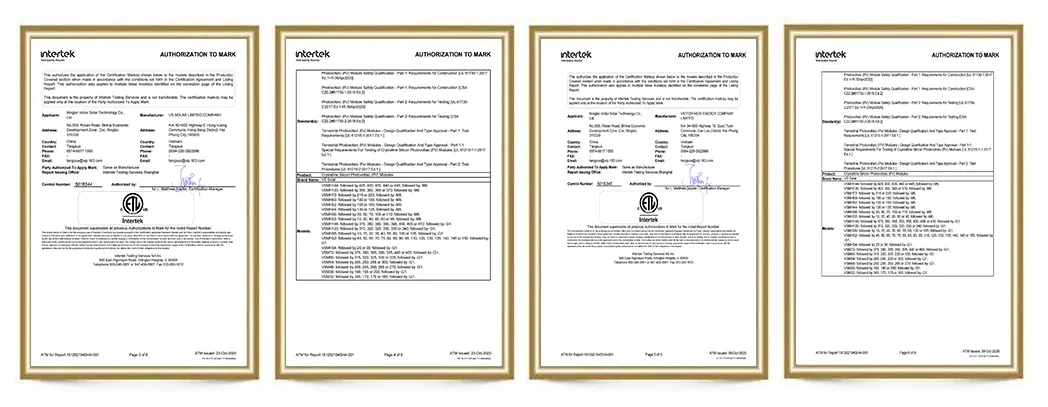

Certification 1

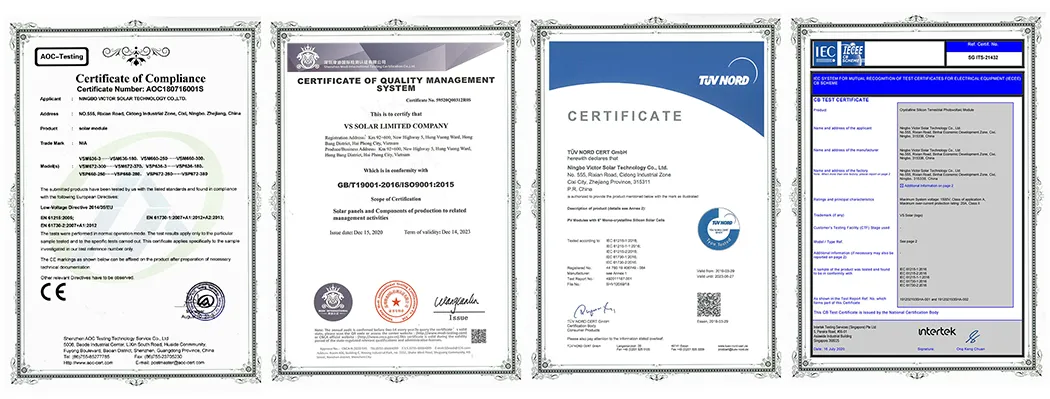

Certification 2
❓ Frequently Asked Questions
Do these panels have brackets attached to the roof?
The component itself is equipped with a junction box connector output voltage. If you need to access an off-grid system, you need to purchase additional appropriate wiring and mounting brackets.
Can this solar panel accommodate 12V/24V/36V/48V batteries?
It can be used, but must be connected to a solar controller. When selecting the controller, ensure it adapts to the maximum component input power of the PV module.
How many kilowatt hours can this solar panel produce in a day?
Under Standard Test Conditions (STC), the power generation is calculated as the product of standard power and the duration of peak sunlight (Watts * Hours).
What is the difference between high power modules and low power modules?
The primary difference lies in cell efficiency and open voltage. High power modules use higher efficiency cells and require fewer units for installation, which simplifies wiring and setup.
Which materials are used in the construction of these panels?
These modules are constructed using high-efficiency Monocrystalline Silicon, providing superior outdoor power generation performance and long-term reliability.
What certifications do these PV modules hold?
Our PV modules are manufactured according to international standards and hold certifications including EST, ISO, and CE to ensure global quality compliance.
