Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
1 / 5
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China

Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model
Jinko Solar 410W-630W
Number of Cells
144 Cells (6X24)
Material
Monocrystalline Silicon
Weight
34.8kg
Certification
ISO, CB, CE, TUV
Glass
High Transparency Solar Glass 2.0mm
Frame
Black/Silver, Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Load Resistance
2400PA (Wind) / 5400PA (Snow)
HS Code
8541402000
☀️ Product Overview

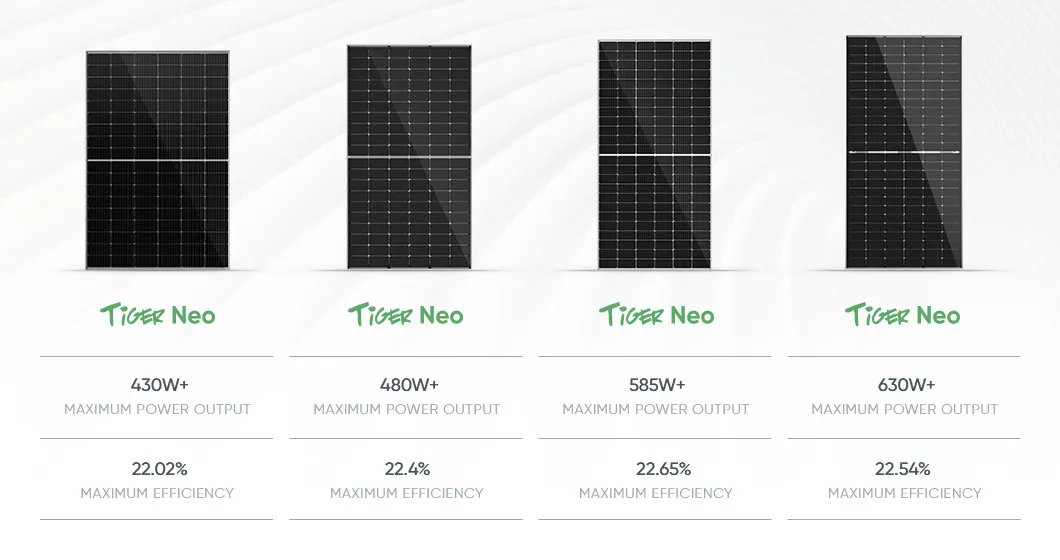

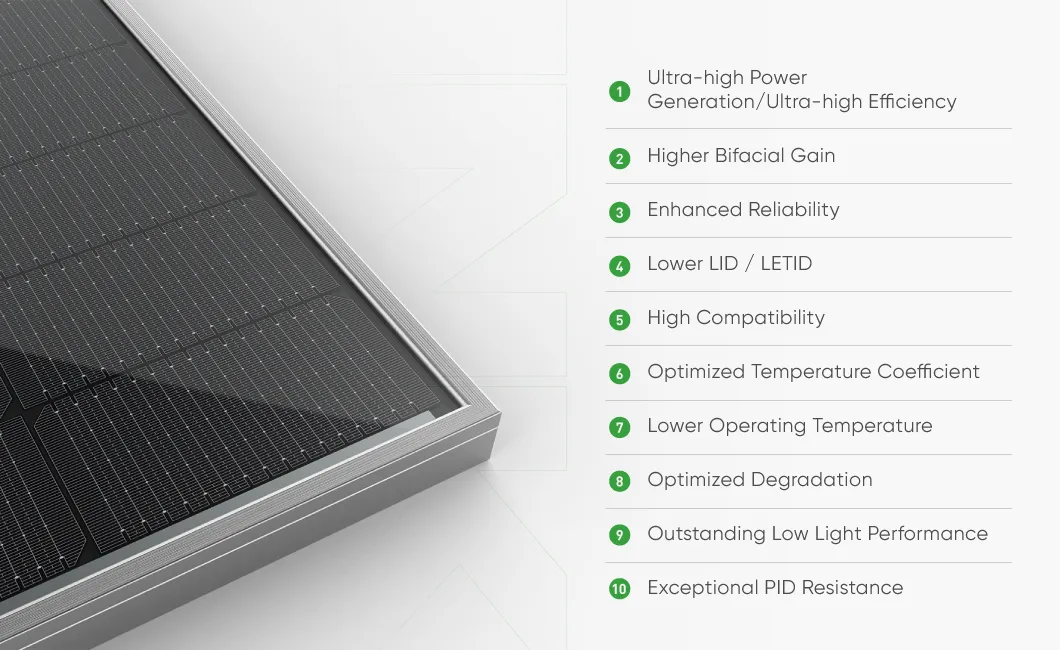

Solar Panel Feature 1 Solar Panel Feature 2 Solar Panel Feature 3
Electrical Characteristics (STC) - Tiger Pro 72HC
Maximum Power (Pmax) 550Wp 555Wp 560Wp 565Wp 570Wp
Power Voltage (Vmp) 40.90V 40.99V 41.09V 41.21V 41.34V
Power Current (Imp) 13.45A 13.54A 13.63A 13.71A 13.79A
Open-circuit Voltage (Voc) 49.62V 49.72V 49.82V 49.93V 50.04V
Module Efficiency 21.29% 21.48% 21.68% 21.87% 22.07%

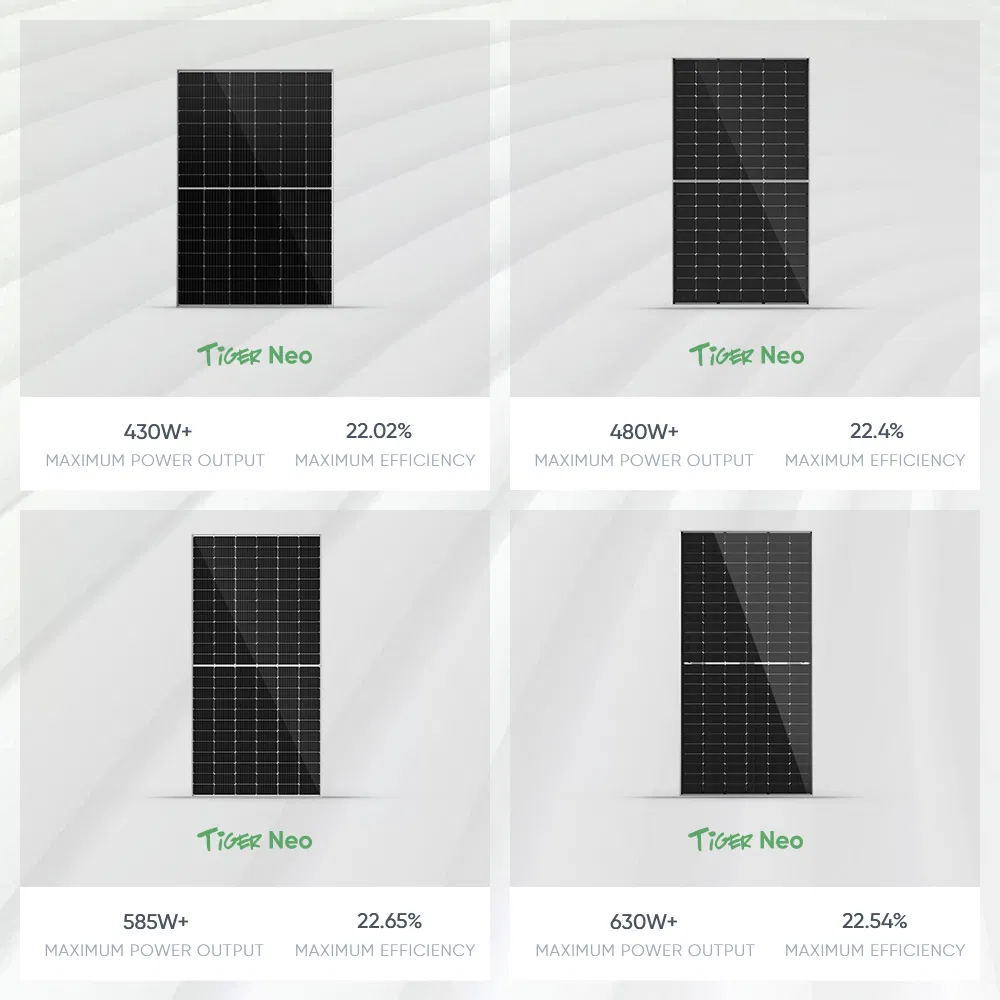

⚡ Solar Panel Categories

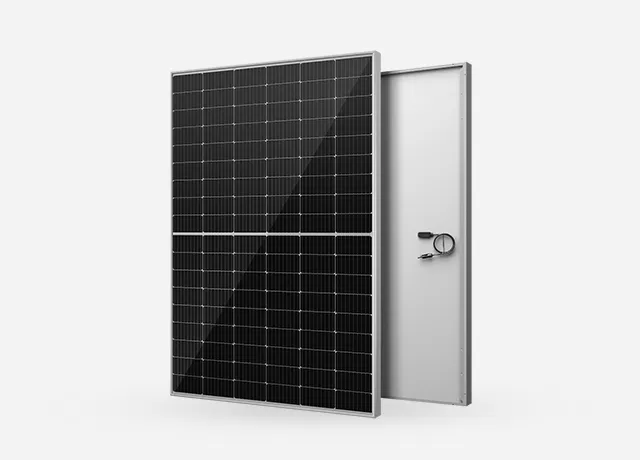

Tiger Neo 54HL4
Tiger Neo N-type 54HL4-(V)
  • Power Range: 410-430W
  • Cells: 108 cells
  • Dimension: 1722×1134×30 mm
  • Weight: 22 kg
Tiger Neo N-type 60HL4-(V)
  • Power Range: 460-480W
  • Cells: 120 cells
  • Dimension: 1903×1134×30 mm
  • Weight: 24.2 kg

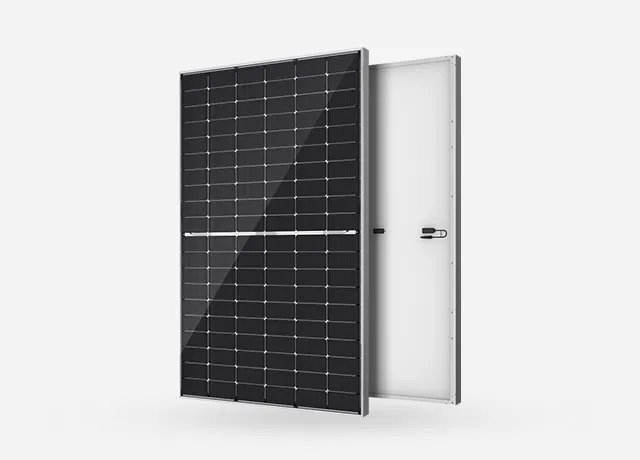

Tiger Neo 60HL4

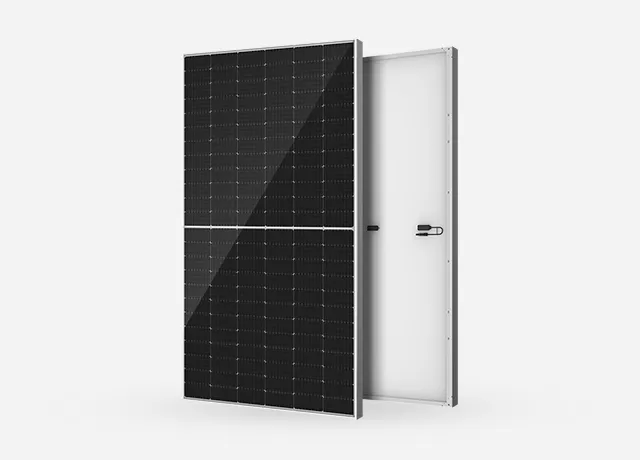

Tiger Neo 72HL4
Tiger Neo N-type 72HL4-(V)
  • Power Range: 565-585W
  • Cells: 144 cells
  • Dimension: 2278×1134×35 mm
  • Weight: 28 kg

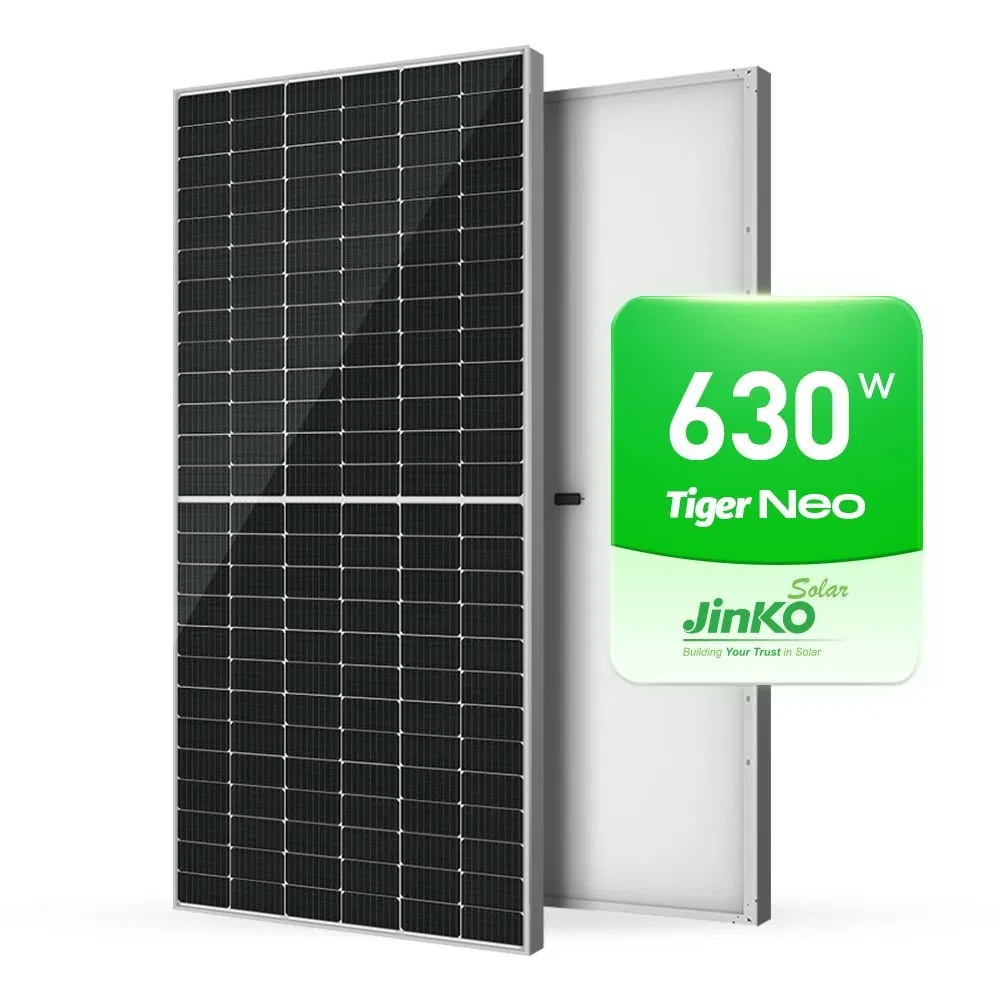

Tiger Neo N-type 78HL4-(V)
  • Power Range: 610-630W
  • Cells: 156 cells
  • Dimension: 2465×1134×35 mm
  • Weight: 30.6 kg

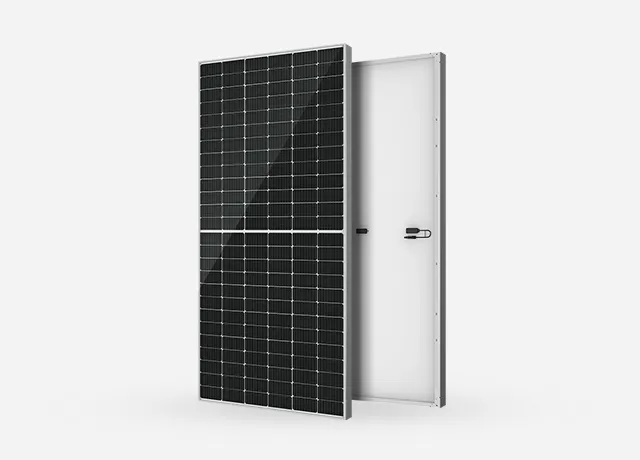

Tiger Neo 78HL4
🏆 Tier 1 Quality Standards

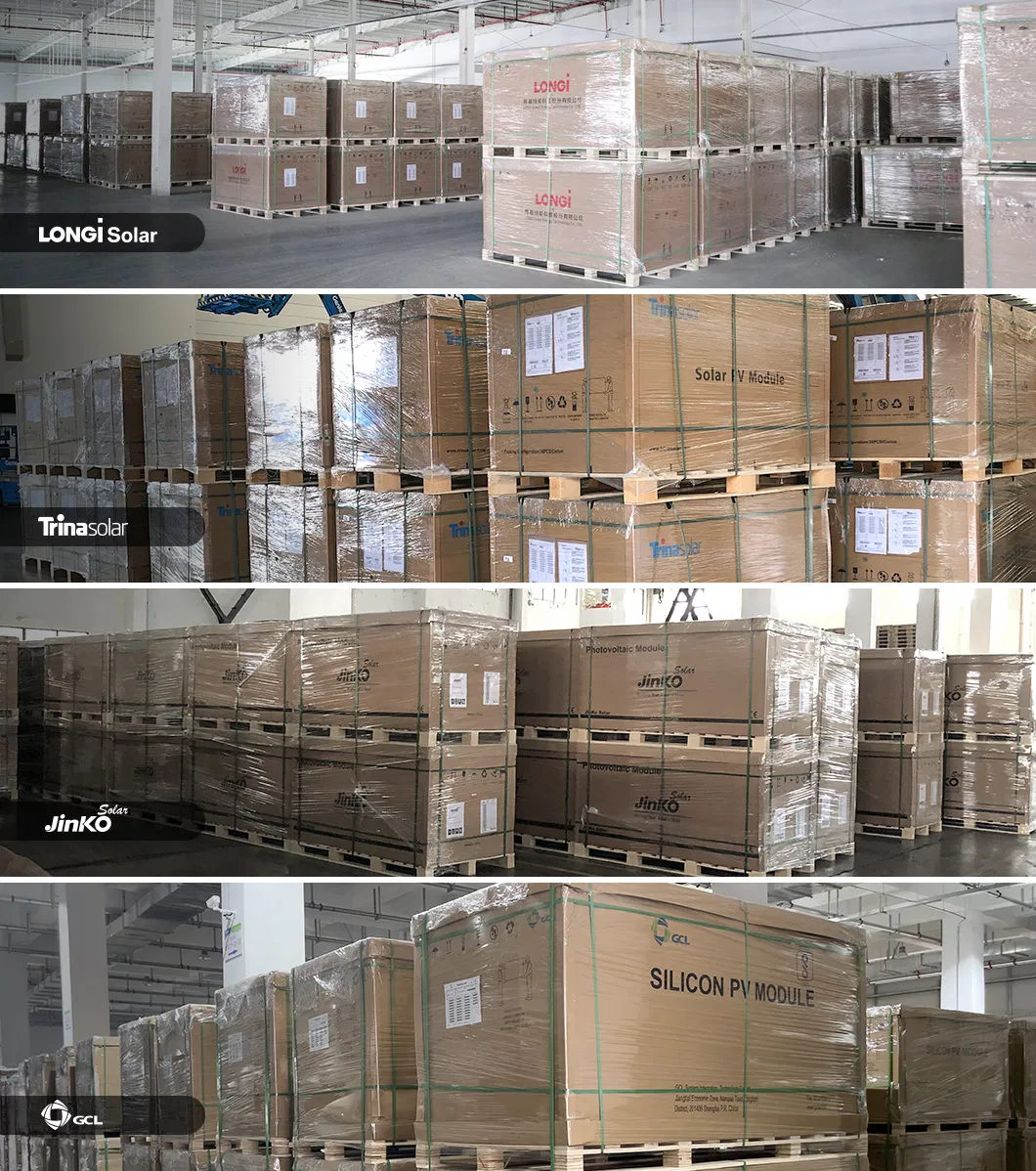

Tier 1 Banner Quality Control

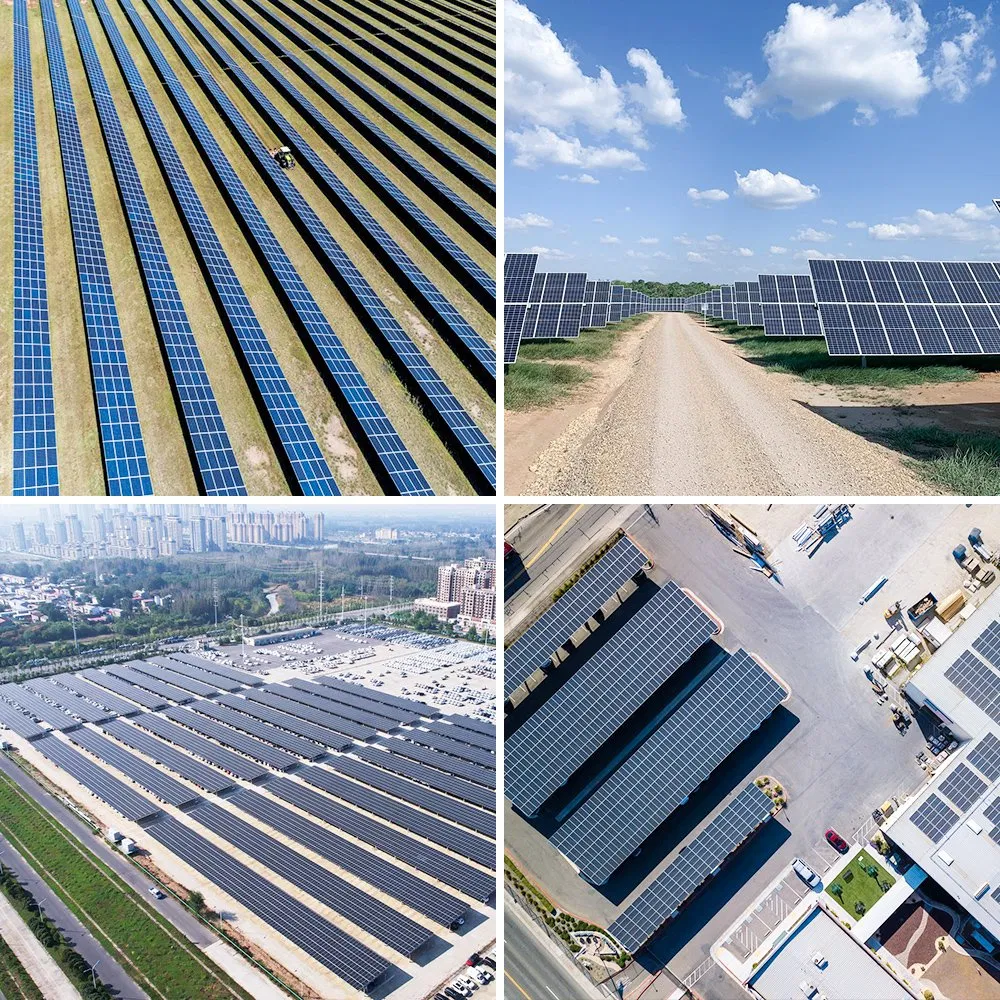

🌍 Global Project Cases

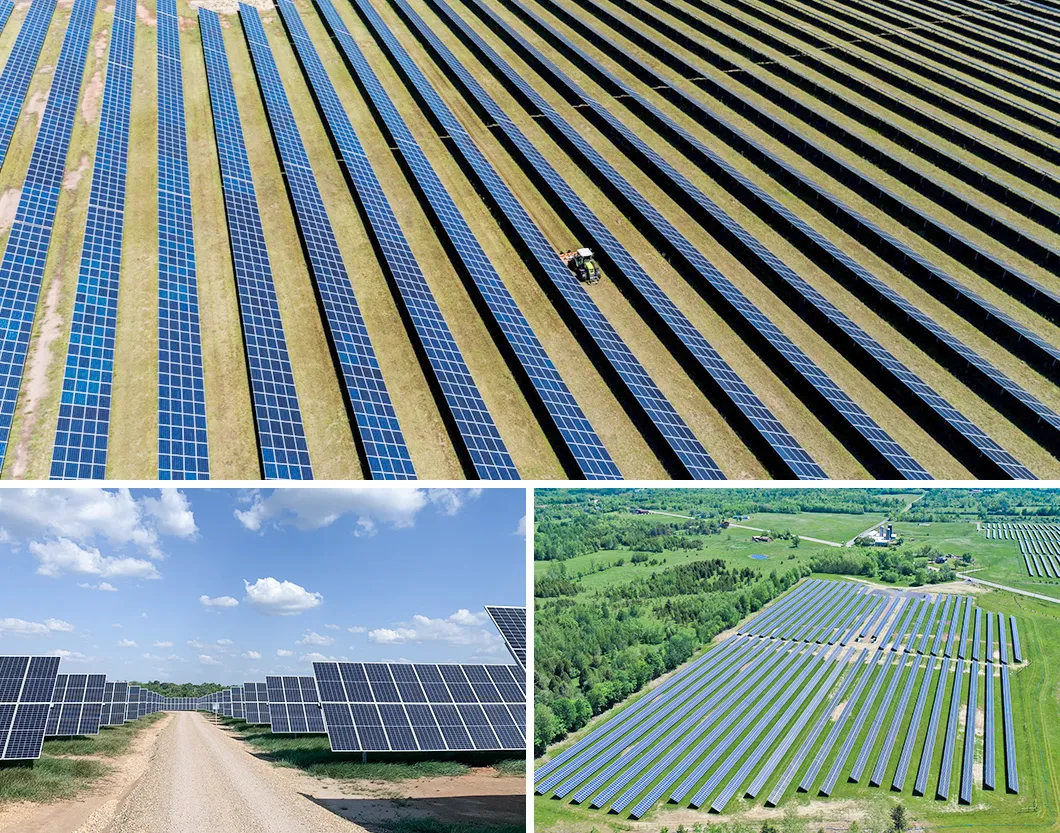

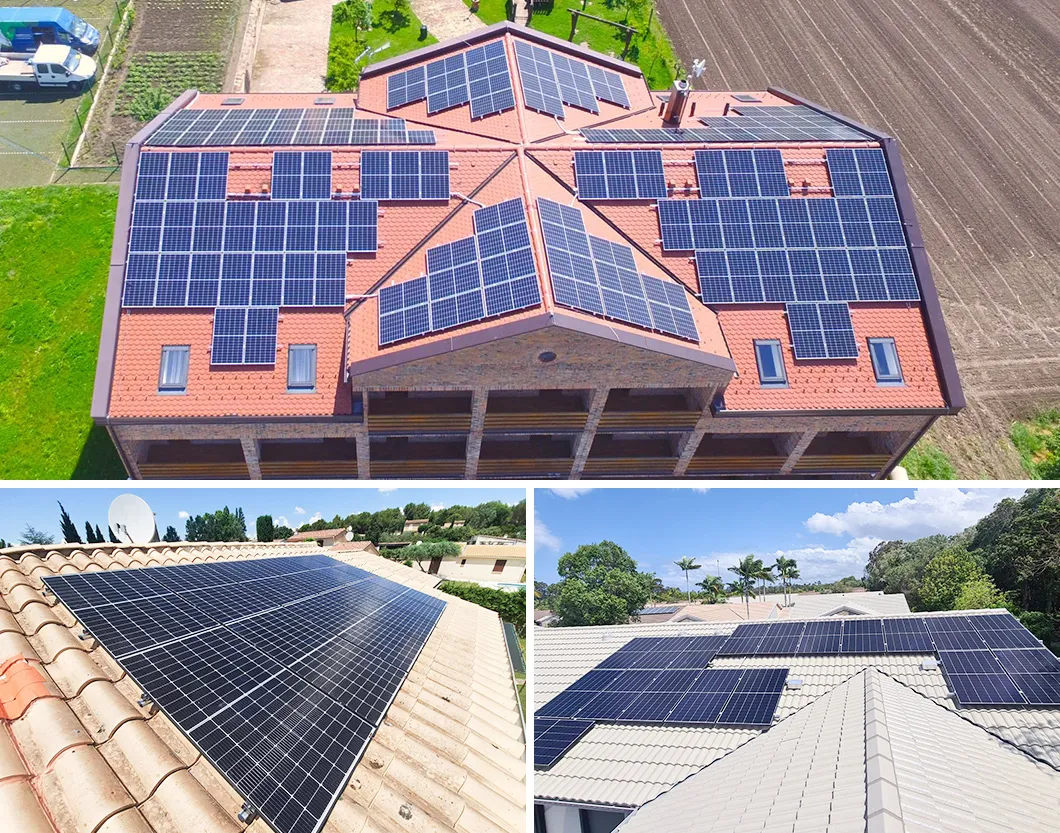

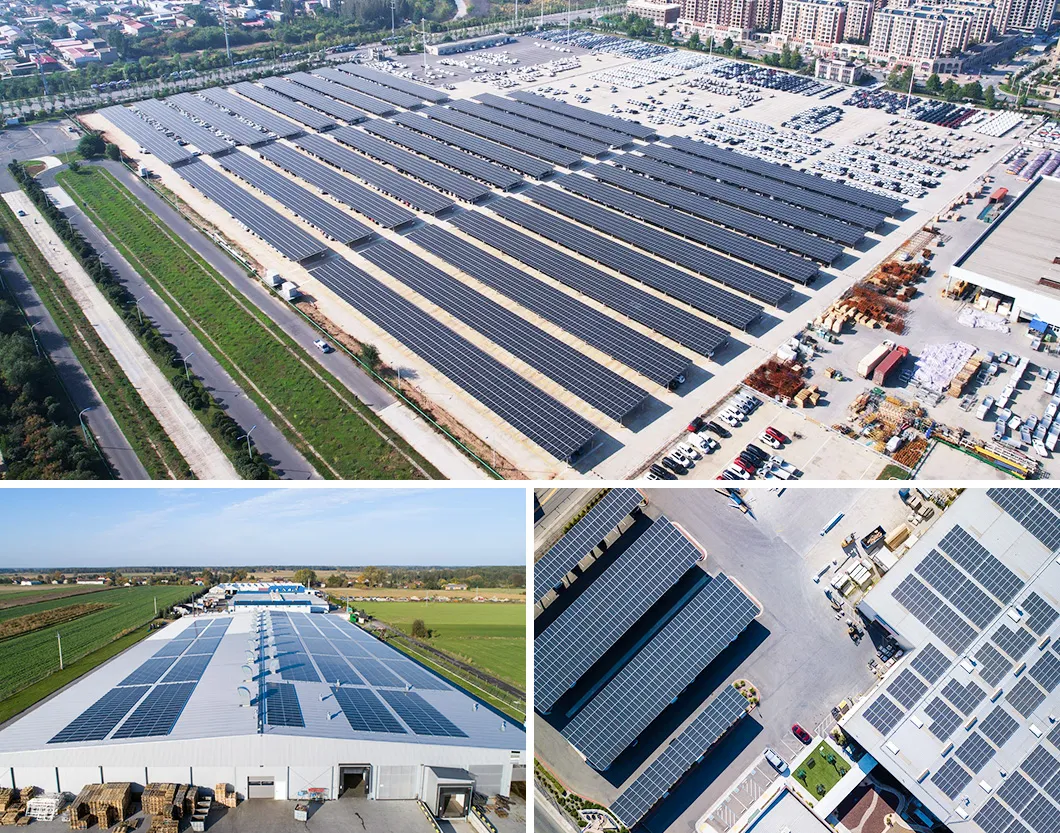

Project 1 Project 2 Project 3
❓ Frequently Asked Questions
Can the product be shipped to my area?
We export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm the specific logistics after you provide your detailed region.
What is the standard lead time for orders?
Typically, it takes 10 working days for requirements under 200kW. For larger projects exceeding 200kW, the lead time will be negotiated based on production capacity.
What are the accepted payment methods?
We primarily accept 100% TT. Alternatively, we can accept a 30% TT deposit in advance with the remaining 70% balance paid when the goods are ready before shipment.
What kind of warranty is provided?
We offer a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty to ensure long-term performance.
Are these panels certified for international standards?
Yes, all our solar modules are fully certified with ISO, CB, CE, and TUV standards, ensuring safety and efficiency for industrial and residential applications.
What is the advantage of N-type Monocrystalline cells?
N-type cells offer higher efficiency, better temperature coefficients, and lower light-induced degradation (LID) compared to traditional P-type cells, resulting in higher total energy yield.
