ELECTRICAL DATA (STC)
| Model | Cell Types | Watts | Cells | Size | Package |
|---|---|---|---|---|---|
| Tiger Neo N-type 54HL4-B | N type mono 182×182mm | 395-415W | 108 (6×18) | 1722×1134×30mm | 36pcs/pallet |
| Tiger Neo N-type 54HL4-B | N type mono 182×182mm | 410-430W | 108 (6×18) | 1722×1134×30mm | 36pcs/pallet |
| Tiger Neo N-type 72HL4-BDV | N type mono 182×182mm | 555-575W | 144 (6×24) | 2278×1134×35mm | 31pcs/pallet |

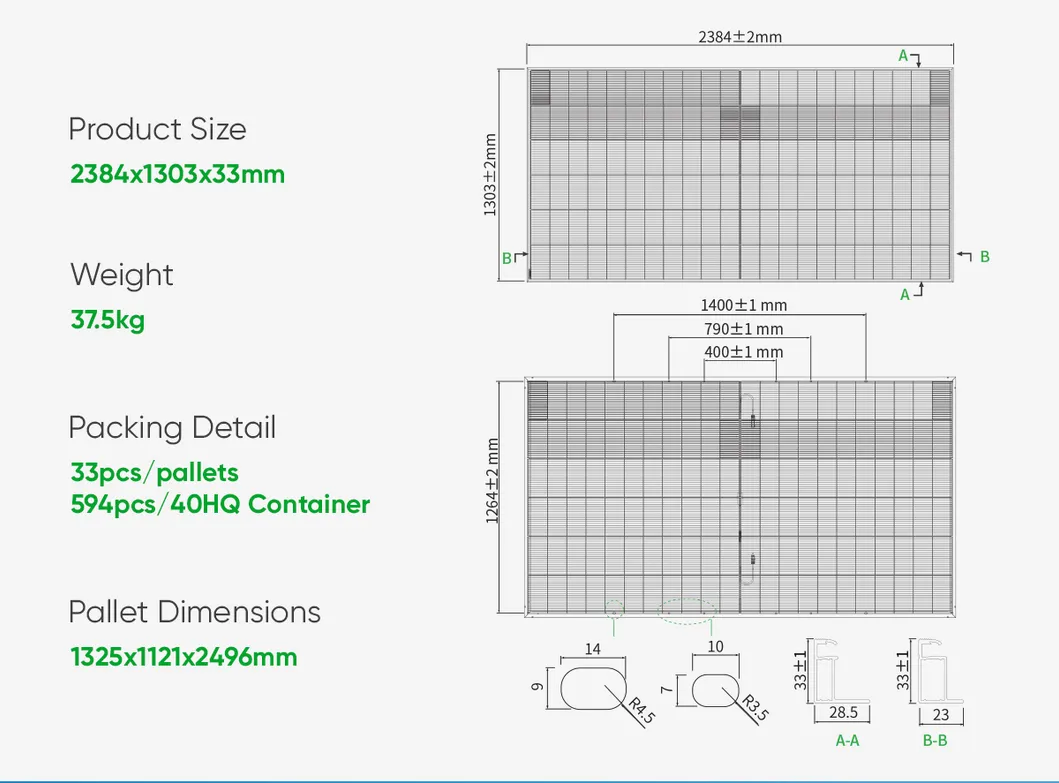

| Tiger Neo N-type 66HL5-B | N type mono 210×210mm | 710-735W | 132(66x2) | 2384x1303x33mm | 33pcs/pallet |
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. Measuring Tolerance: ±3%.

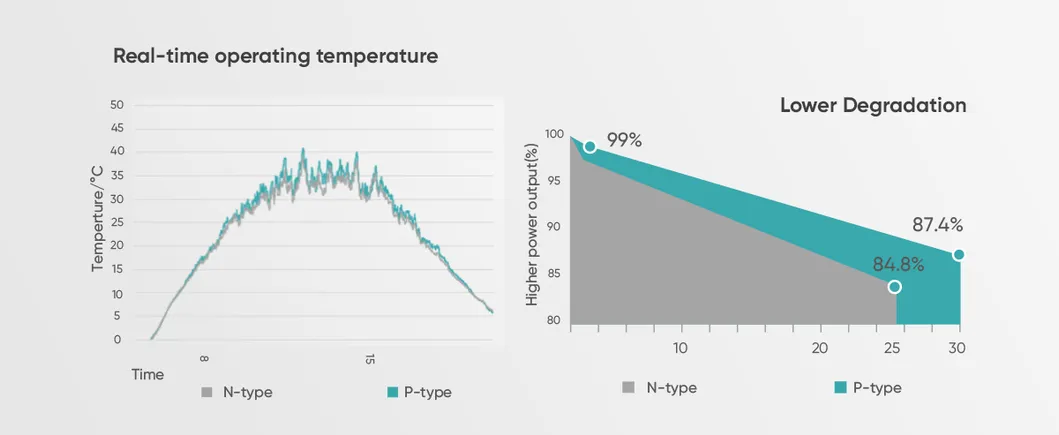

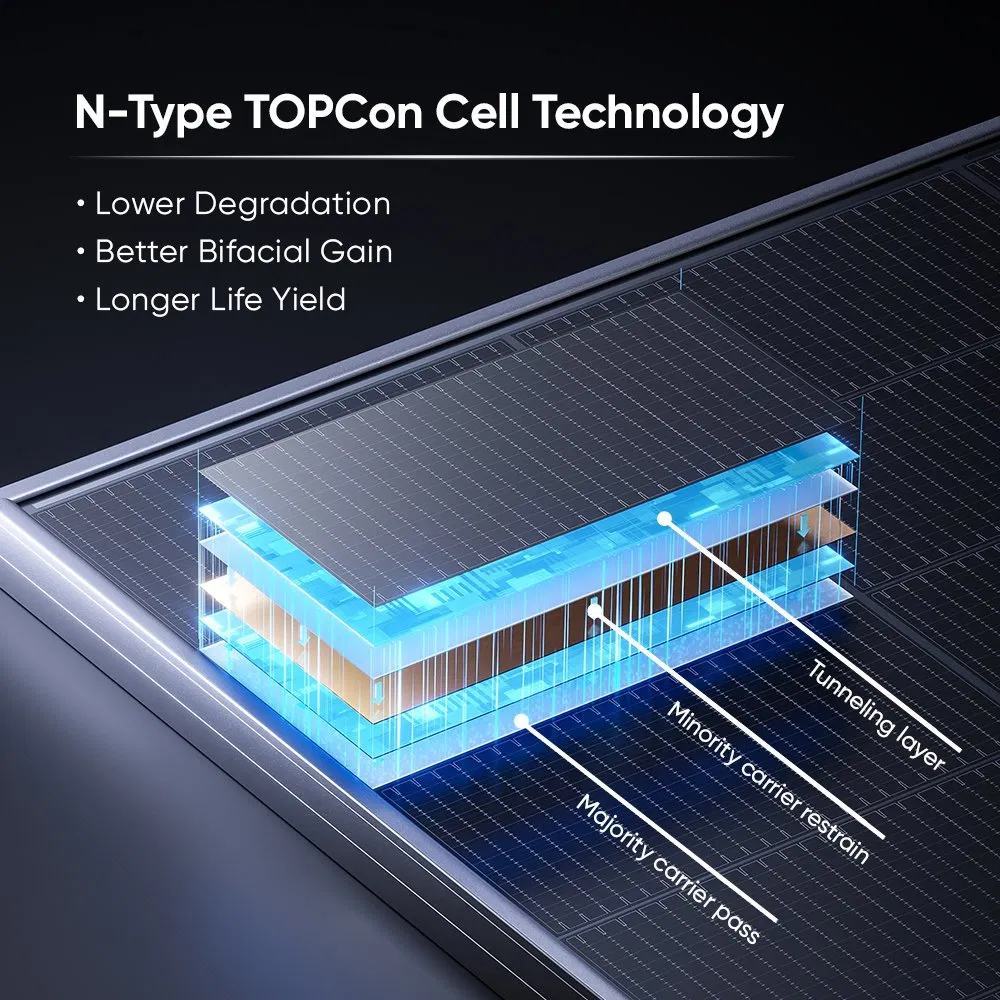

The Advantage of N-Type: Optimized Temperature Coefficient -0.29%/ºC. Compared to P-type (-0.35%/ºC), Tiger Neo generates 2% more power under high-temperature conditions.

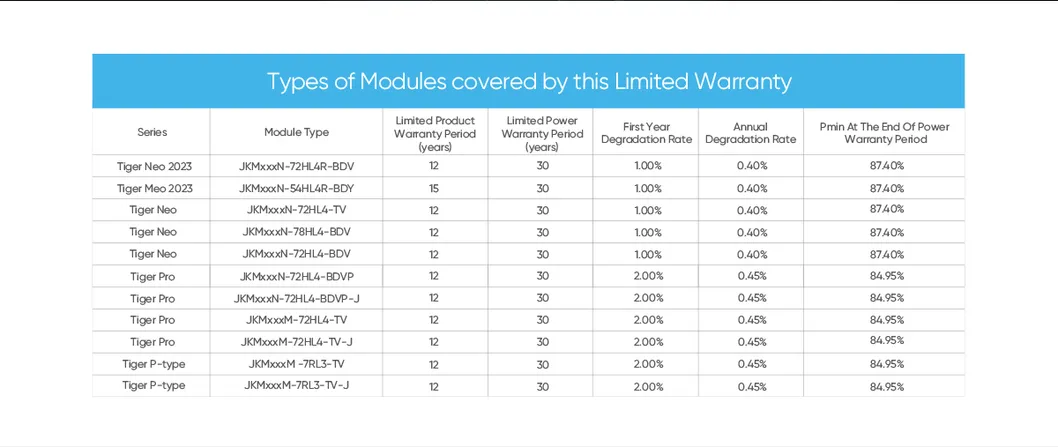

Warranty Details: We provide comprehensive warranties to the original purchaser for modules sold under agreements signed on or after 1st April, 2023, ensuring long-term power output stability and product durability.
