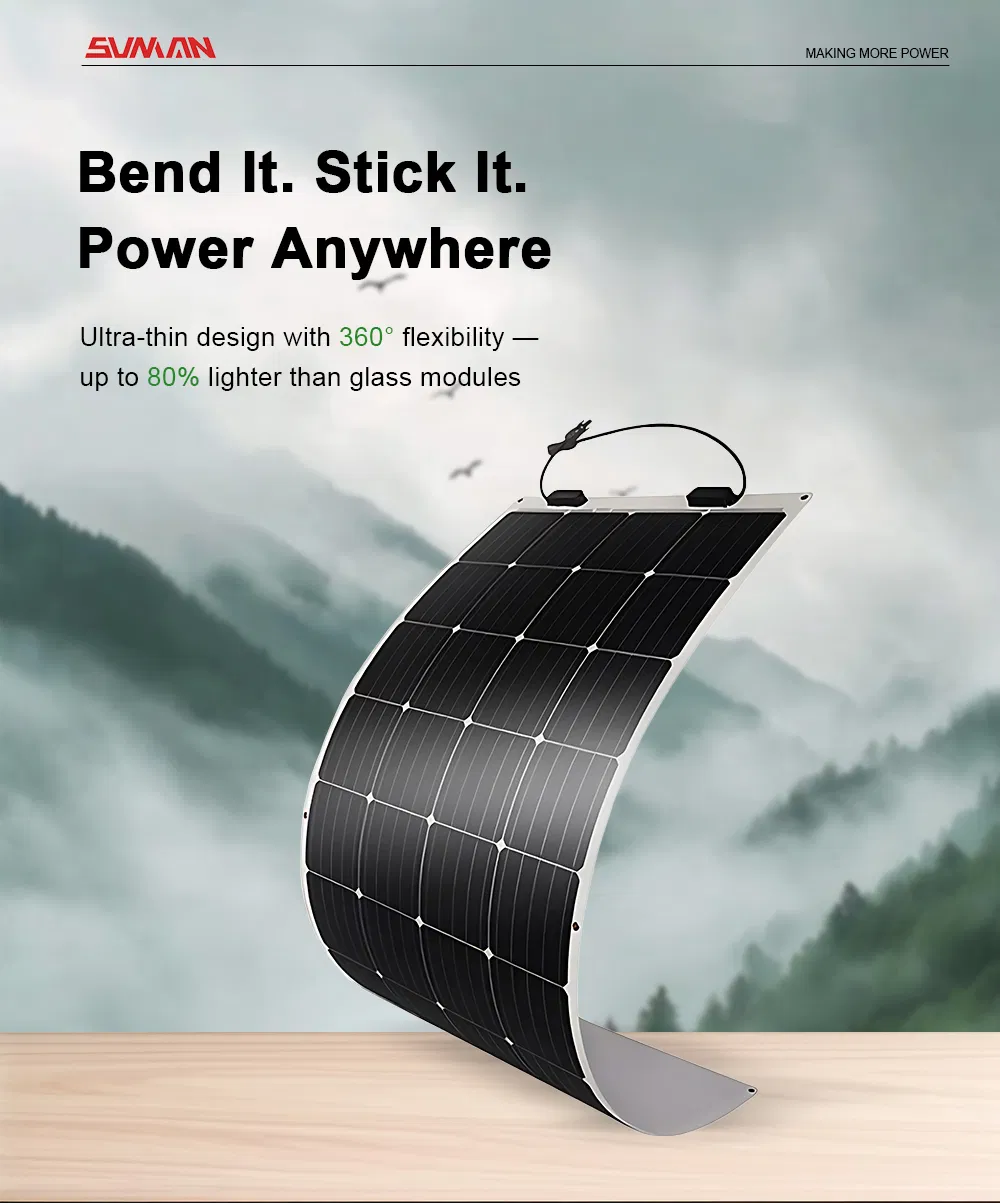

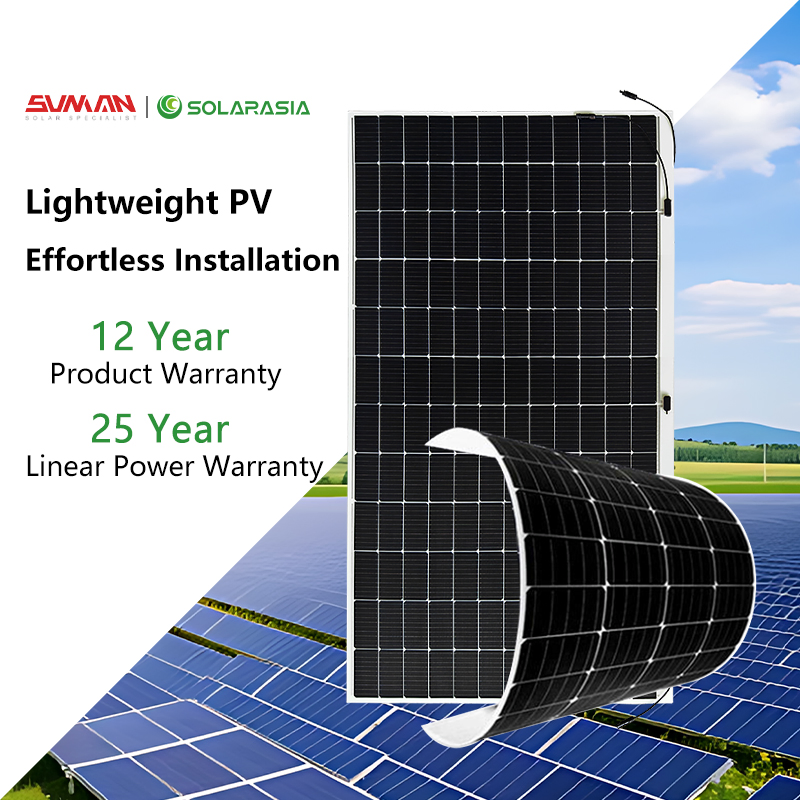

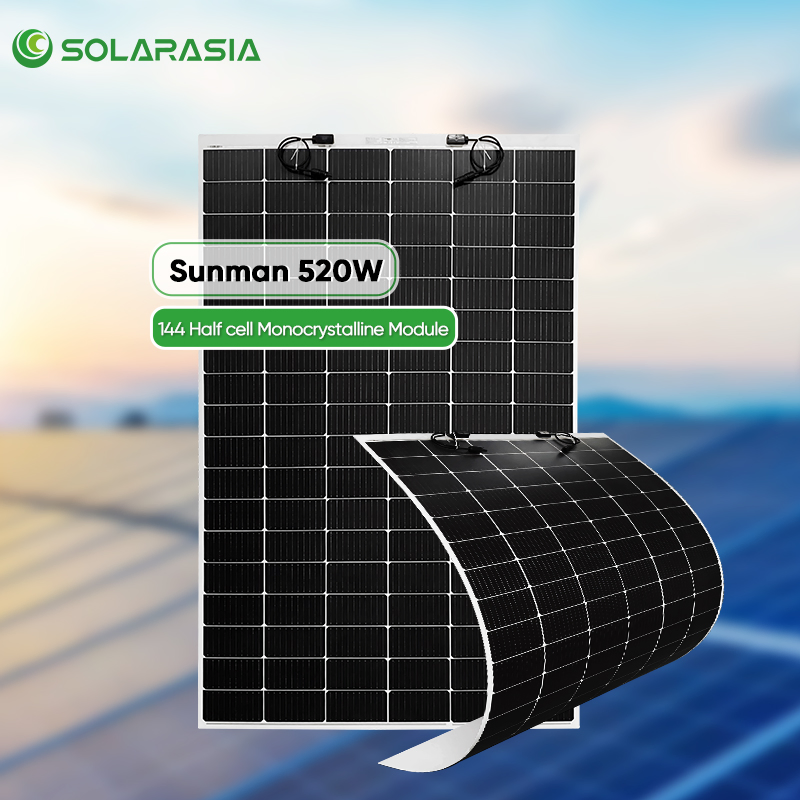

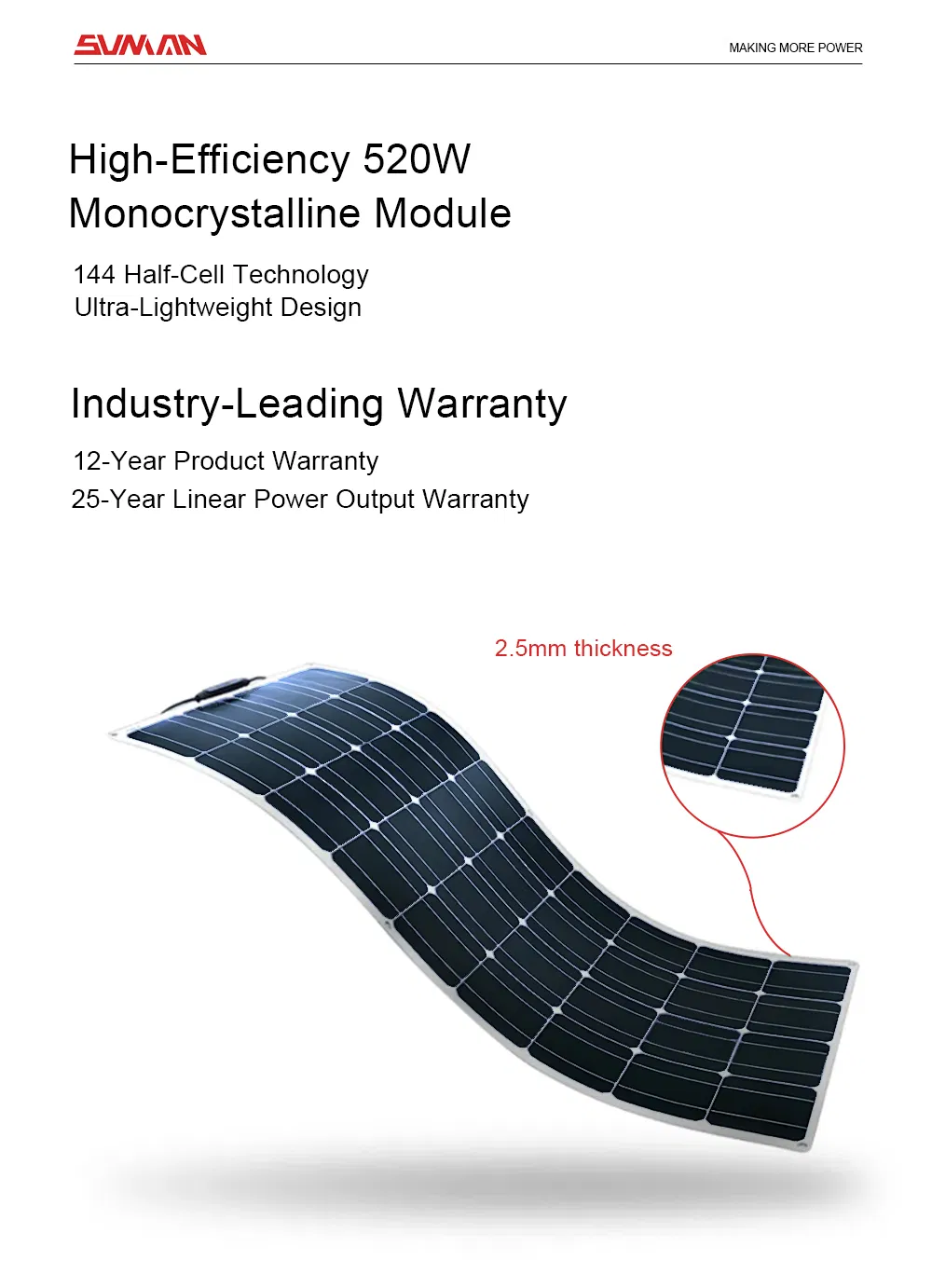

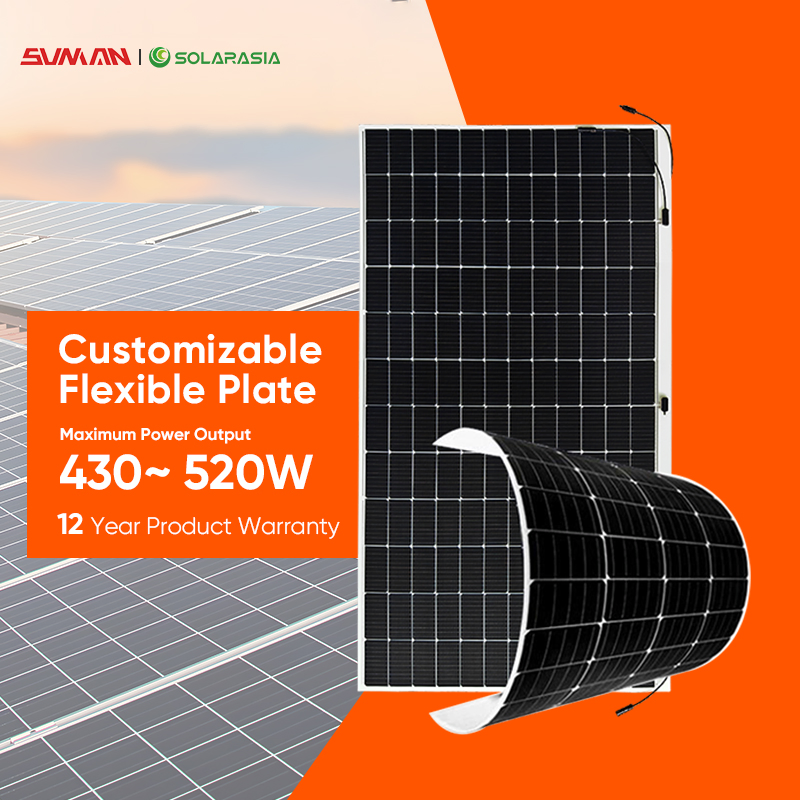

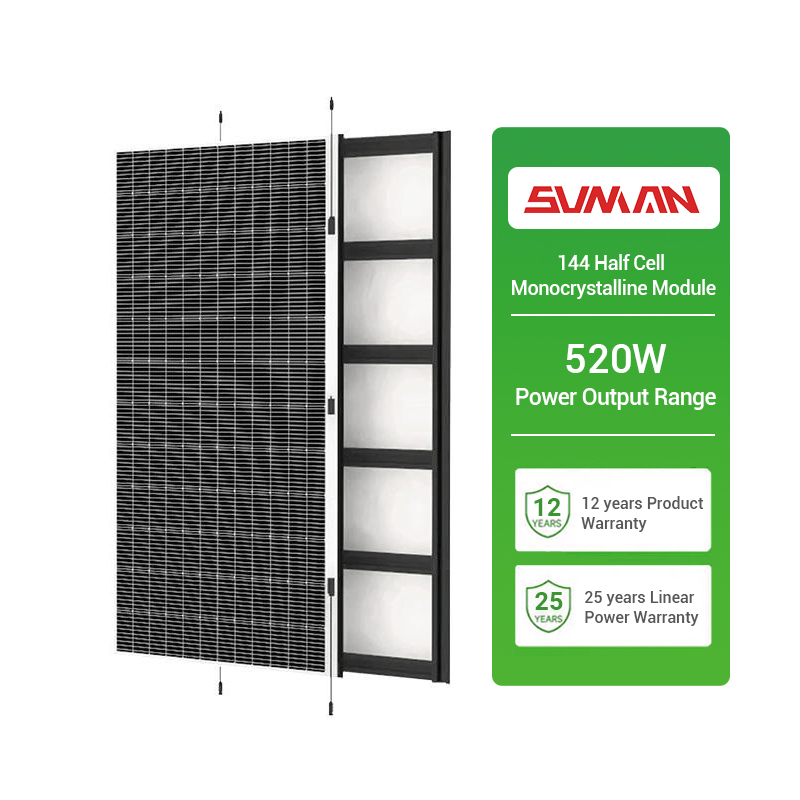

The SMF520J-12X12UW is a high-efficiency 520W flexible solar panel designed for lightweight, bendable, and space-efficient solar installations.

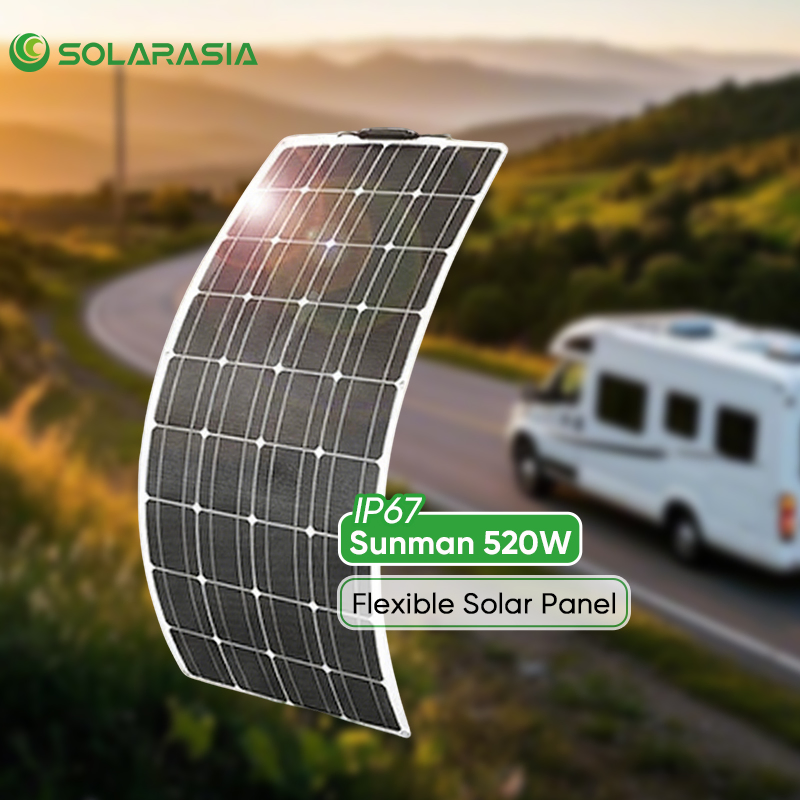

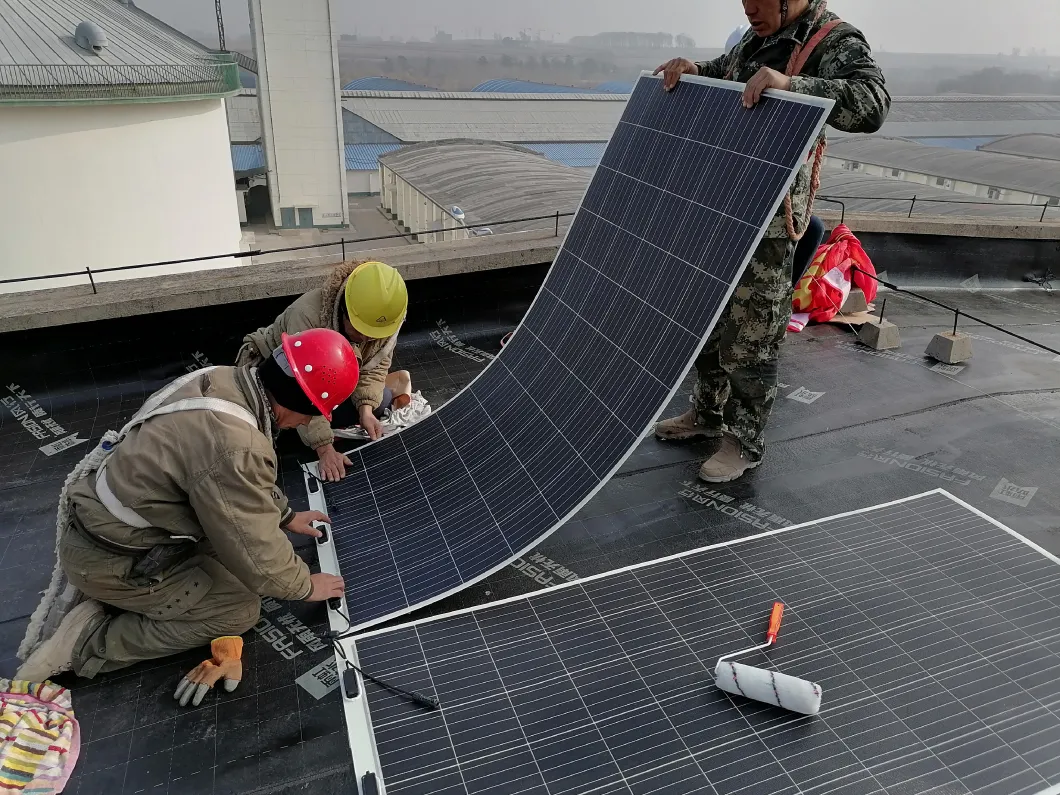

Built with advanced flexible photovoltaic technology, this panel delivers reliable power generation on curved surfaces and unconventional mounting structures where traditional rigid modules are impractical. This flexible panel is ideal for mobile applications, marine, RV, camping, tiny homes, rooftops with curvature, and light-weight structures.
| Model | SMF520J-12X12UW |
| Maximum Power (Pmax) | 520W |
| Maximum Power Voltage (Vmp) | 42.3V |
| Maximum Power Current (Imp) | 12.31A |
| Open-circuit Voltage (Voc) | 49.5V |
| Short-circuit Current (Isc) | 13.56A |
| Module Efficiency (%) | 19.3% |
| Operating Temperature | -40ºC to 85ºC |
| Maximum System Voltage | 1500V DC(IEC) |

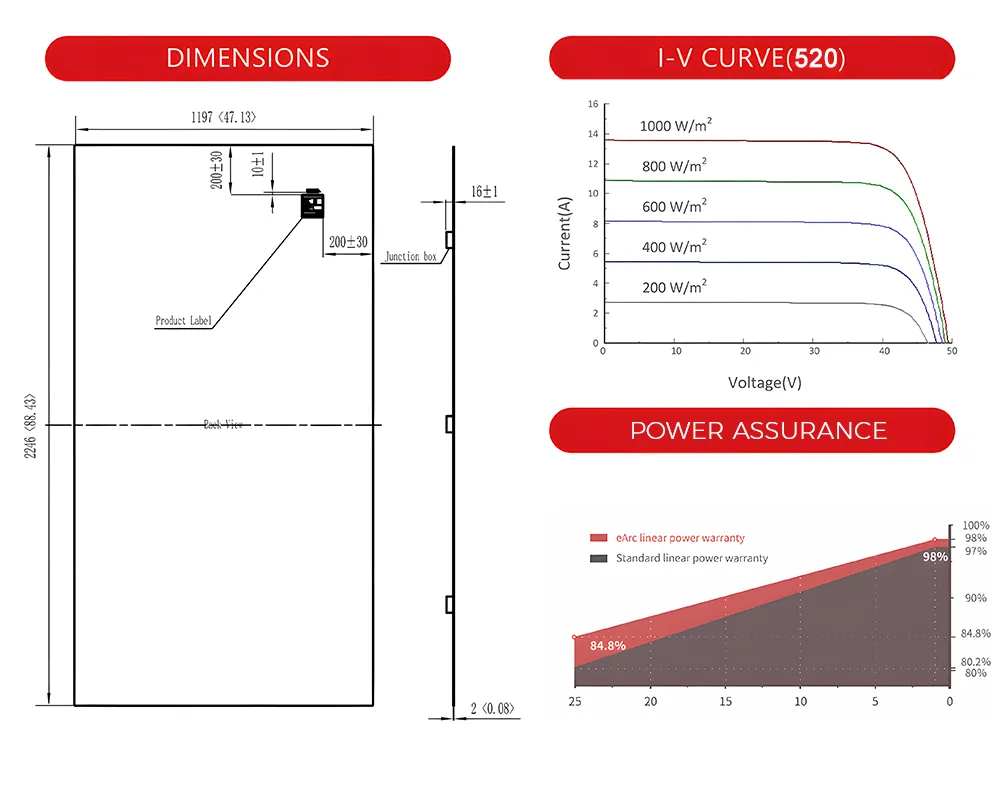

| Size | 2246*1197*2mm |

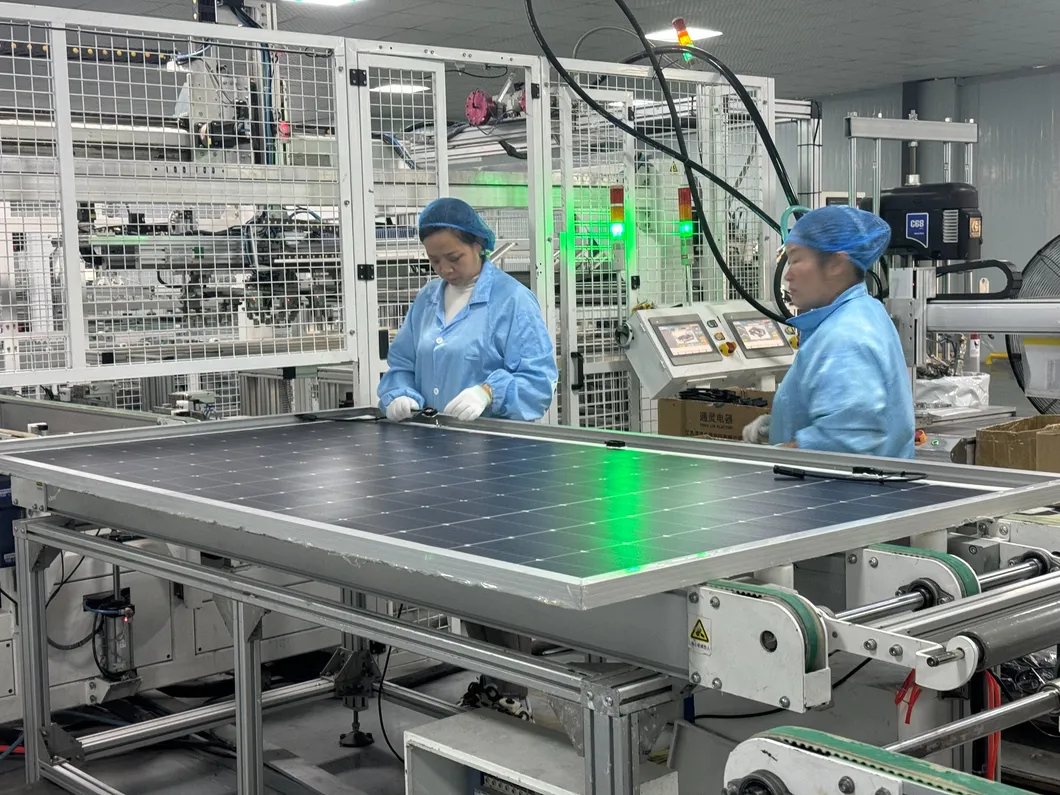

Established as a preeminent energy technology enterprise, we expertise in Solar Panels, solar inverters, Lithium batteries, and complete solar systems. Our products have traversed 100 countries, earning a great reputation from local customers. Our collaborative manufacturers possess state-of-the-art production equipment and technology, ensuring quality while adhering to ISO, TUV, and CE standards.
