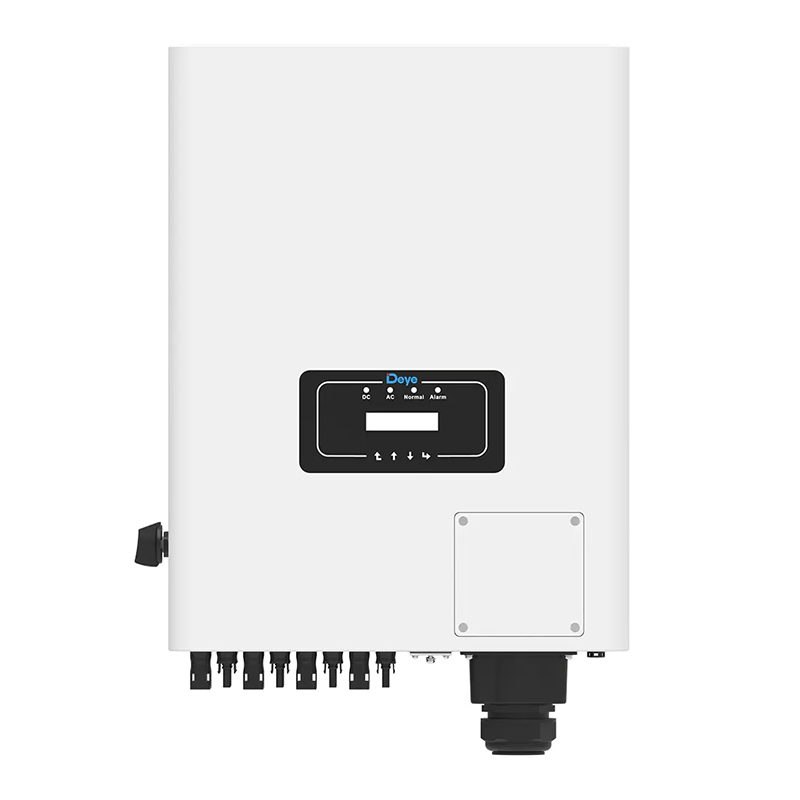

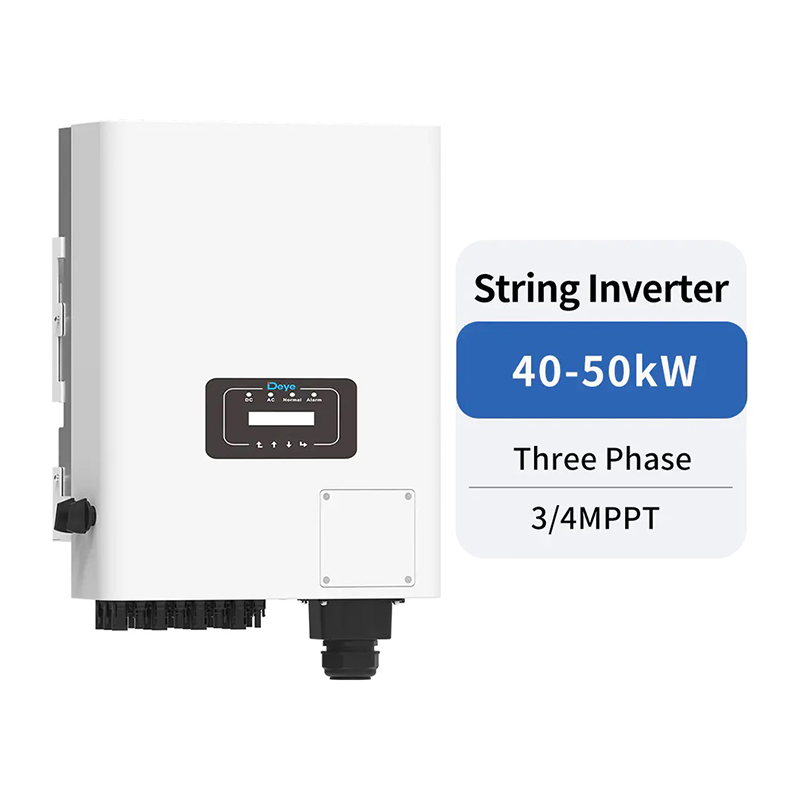

Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
1 / 5
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter
Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter

Residential Industrial Deye 50kw 3 Phase 4 MPPT Solar Energy System on Grid Solar String Inverter

Customization: Available
After-sales Service: Yes
Warranty: 1 Years
Send Inquiry

Product Description

General Overview

Model
SUN-50K-G04
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
>1000W
Certification
SAA, CE, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Rated Output
50kw
Max. Efficiency
98.7%
Operating Temp.
-25 to +60℃
Ingress Protection
IP 65

Product Highlights

Residential & Industrial 50kw 3 Phase 4 MPPT On-Grid Solar String Inverter

High EfficiencyMax. 4 MPP trackers with efficiency up to 98.7% for optimized energy harvest.
Smart ApplicationSupports zero export application and VSG application for versatile grid management.
Intelligent MonitoringOptional string intelligent monitoring for precise system health checks.
Wide RangeFeatures a wide output voltage range to suit various grid requirements.
ProtectionOptional Anti-PID function to ensure long-term panel performance.

Detailed Visuals

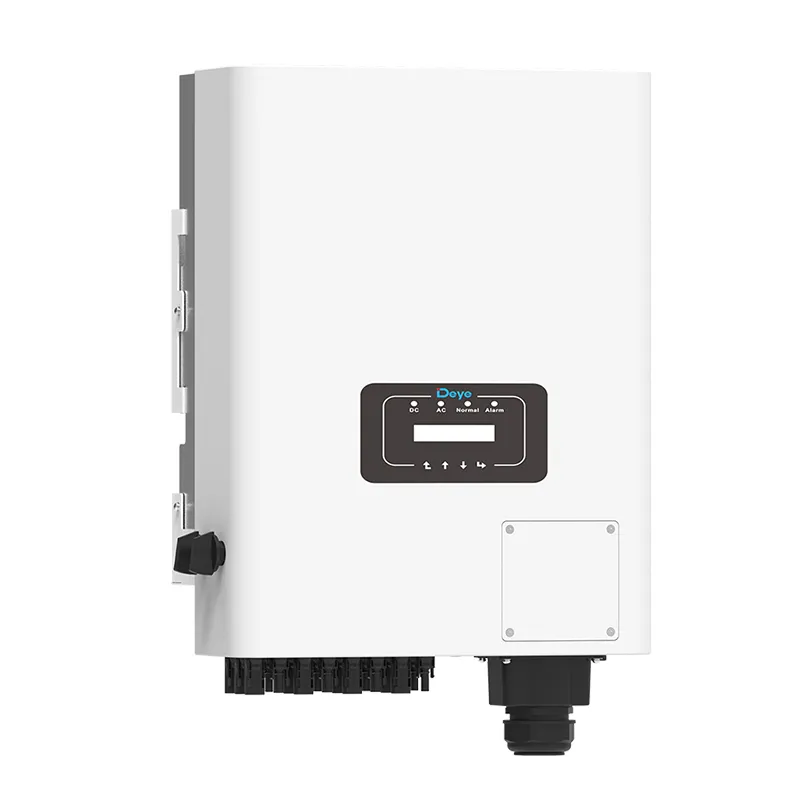

Solar Inverter View 1

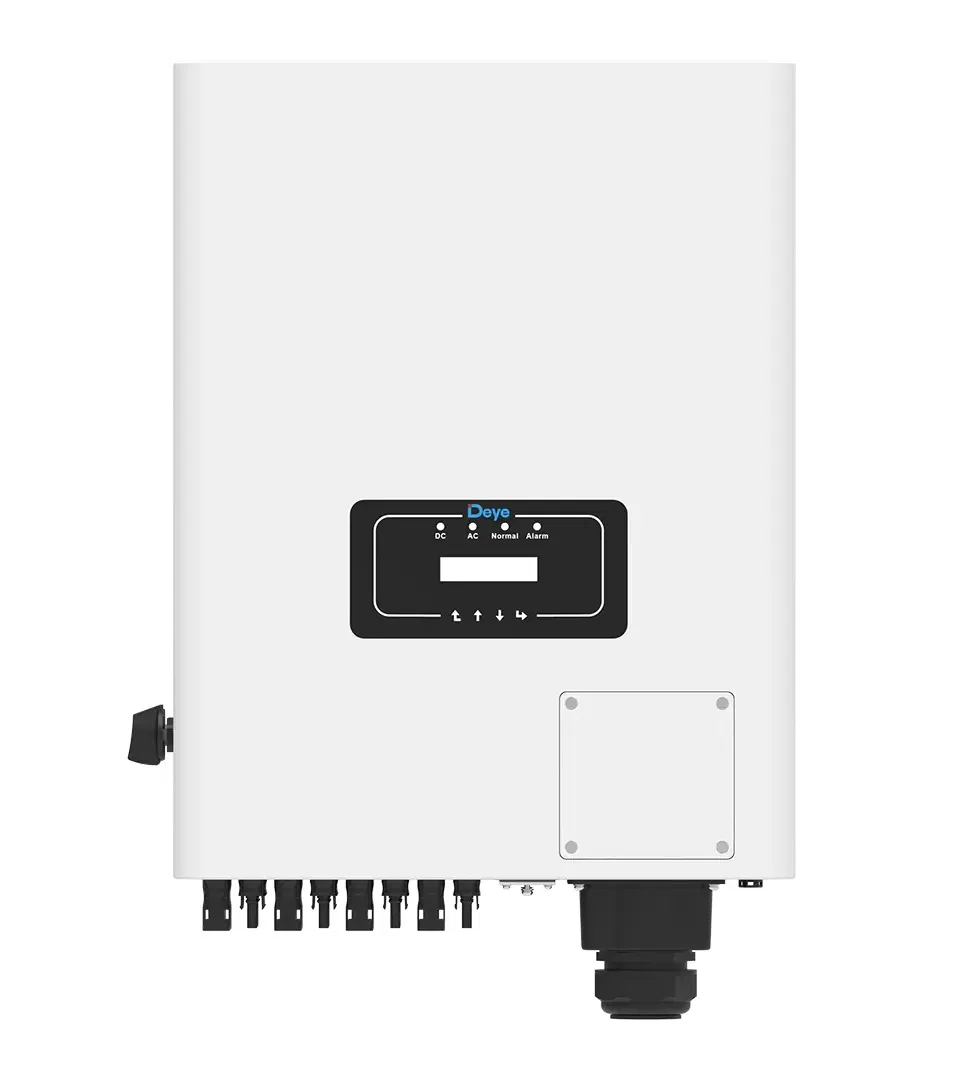

Solar Inverter View 2

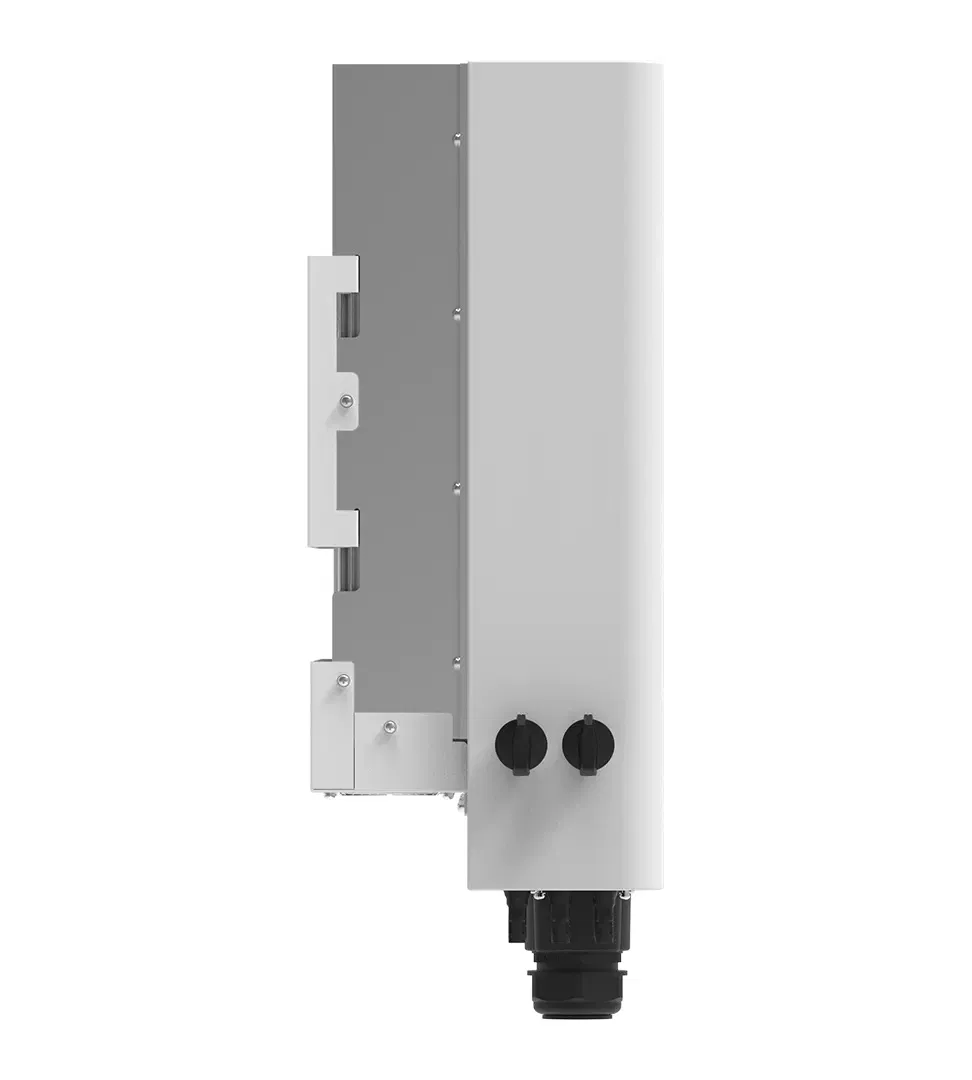

Solar Inverter View 3

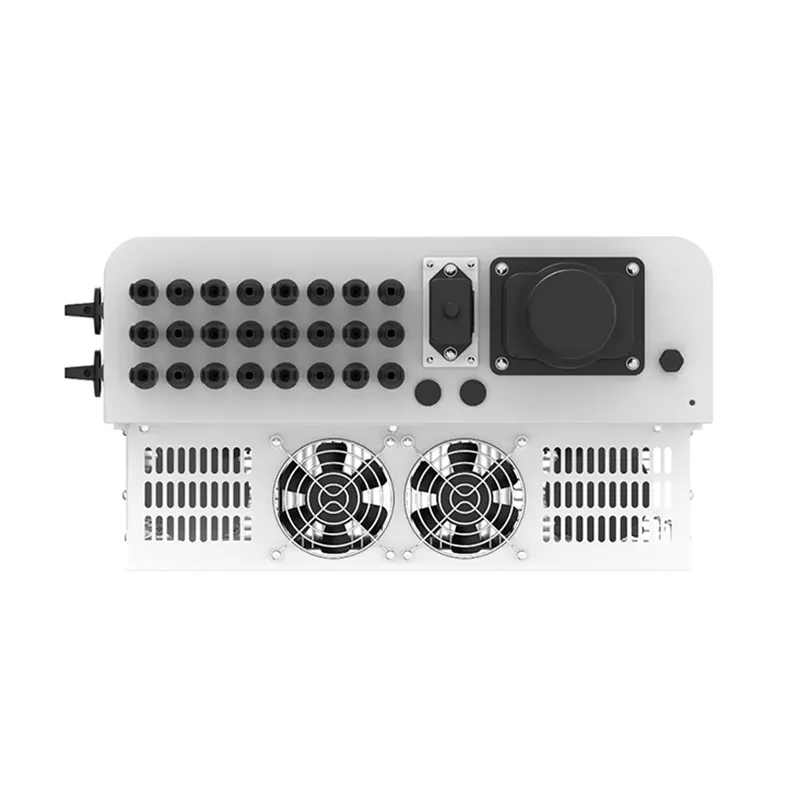

Solar Inverter View 4
Solar Inverter View 5

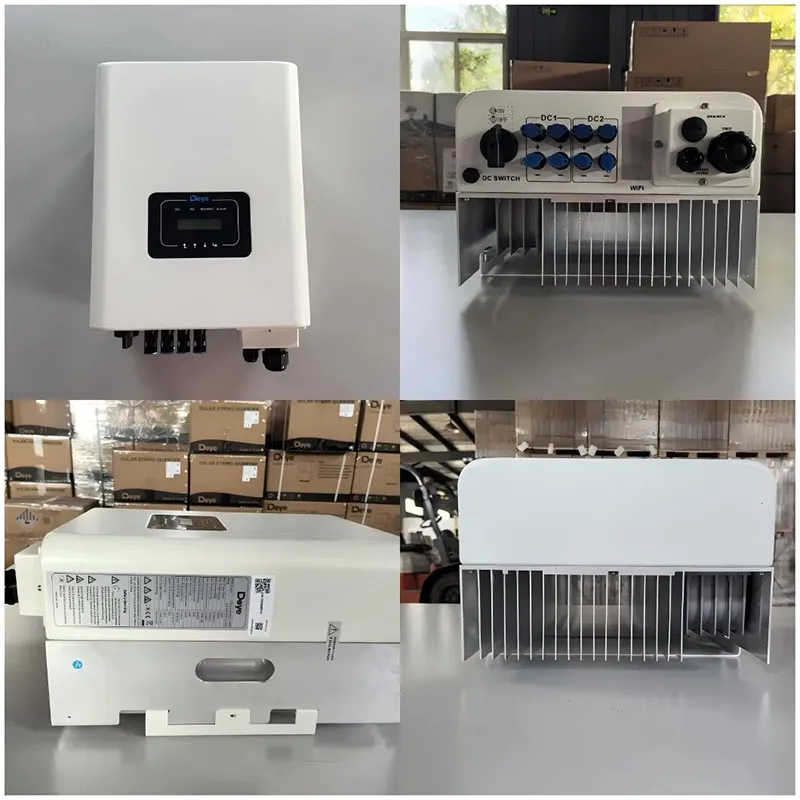

Solar Inverter View 6

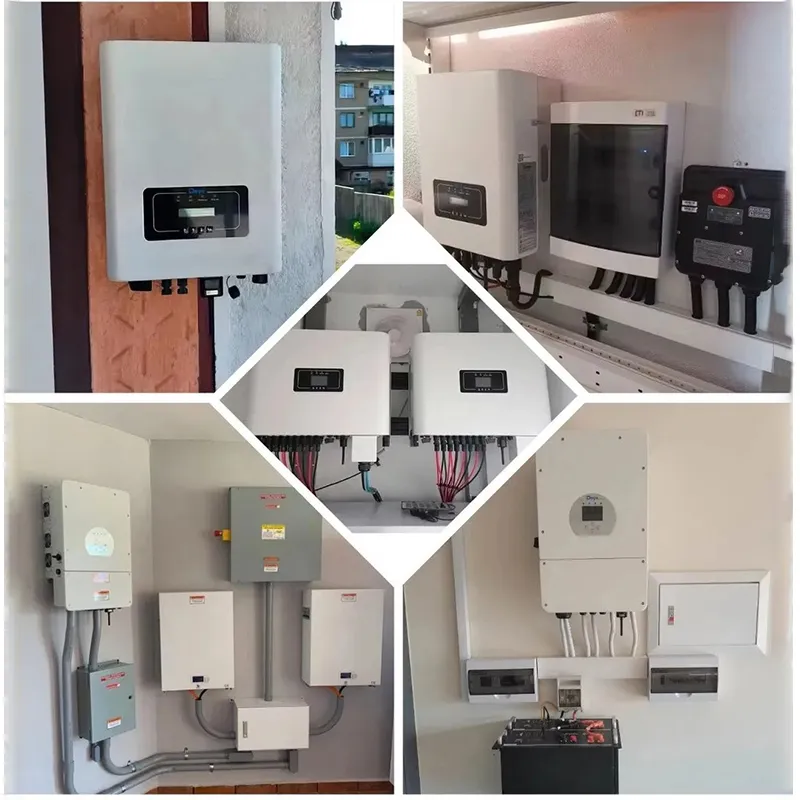

Solar Inverter View 7

Technical Parameters

Technical Specifications SUN-40K-G04 SUN-45K-G04 SUN-50K-G04
Max. PV Input Power (kW)5258.565
Max. PV Input Voltage (V)1100
Start-up Voltage (V)250
MPPT Voltage Range (V)200-1000
Rated PV Input Voltage (V)600
No. of MPP Trackers334
Rated AC Output Power (kW)404550
Max. AC Output Apparent Power (kVA)4449.555
Rated Output Voltage220/380V, 230/400V
Max. Efficiency98.7%
Euro Efficiency98.1%
Ingress Protection (IP)IP 65
Cabinet Size (W*H*D mm)434*570*243

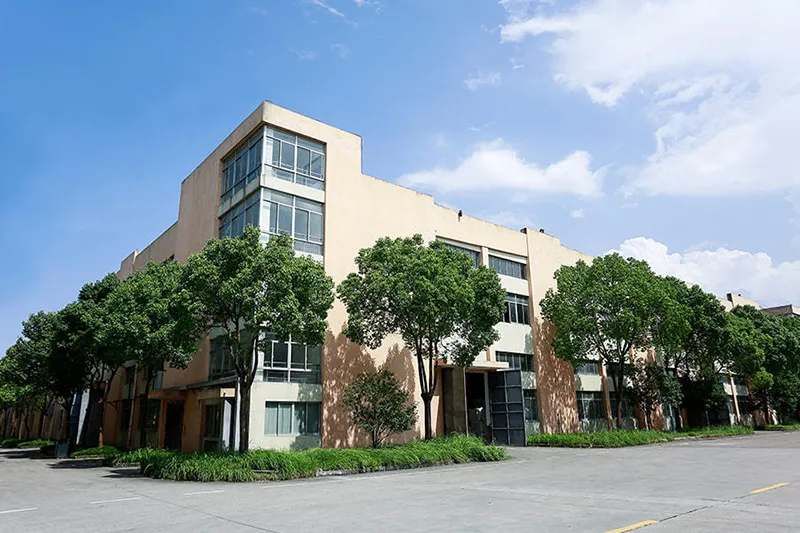

Production Facility 1

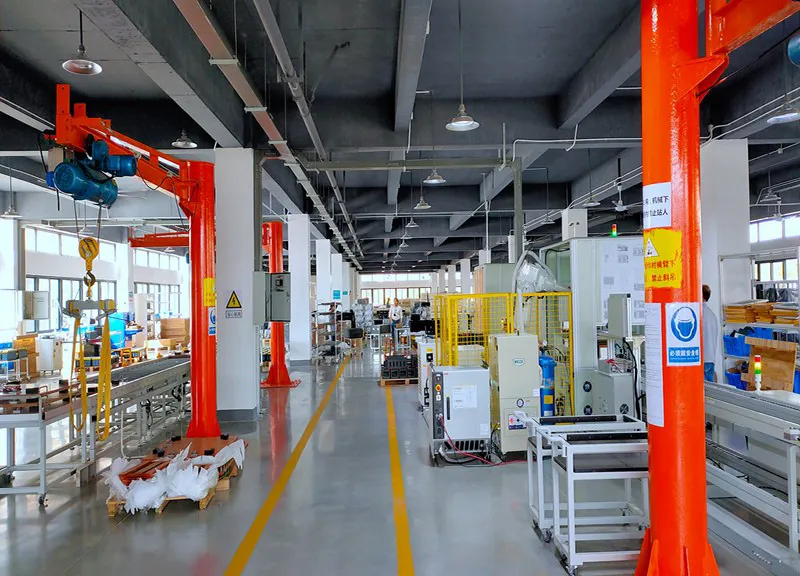

Production Facility 2

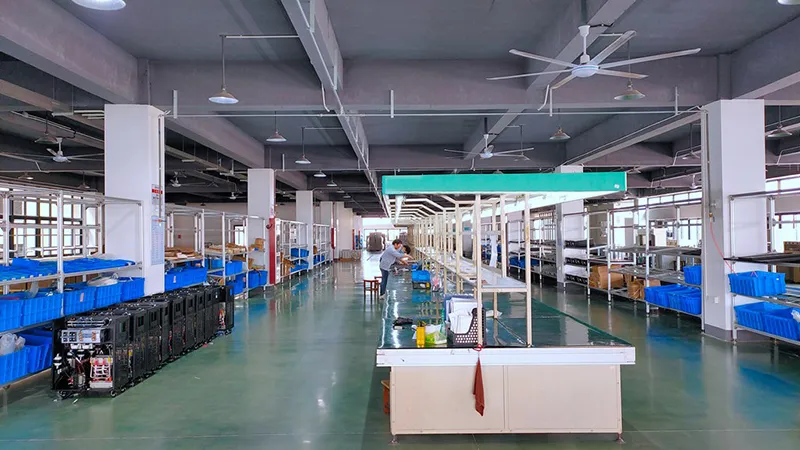

Production Facility 3

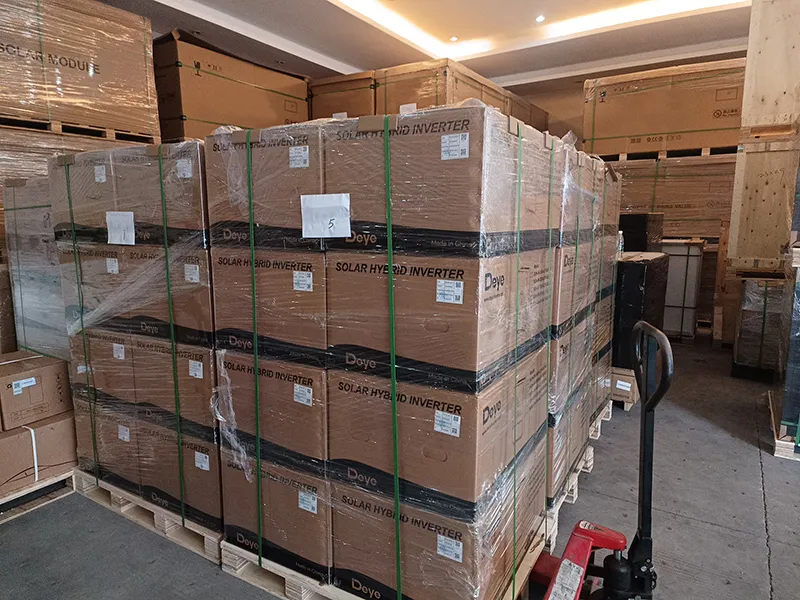

Quality Control

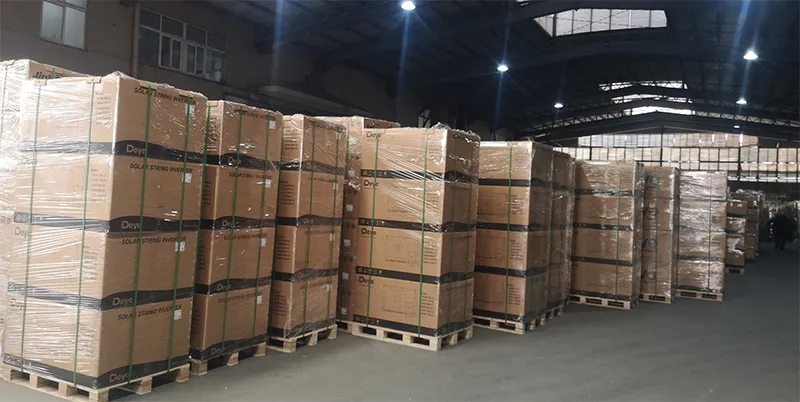

Warehouse

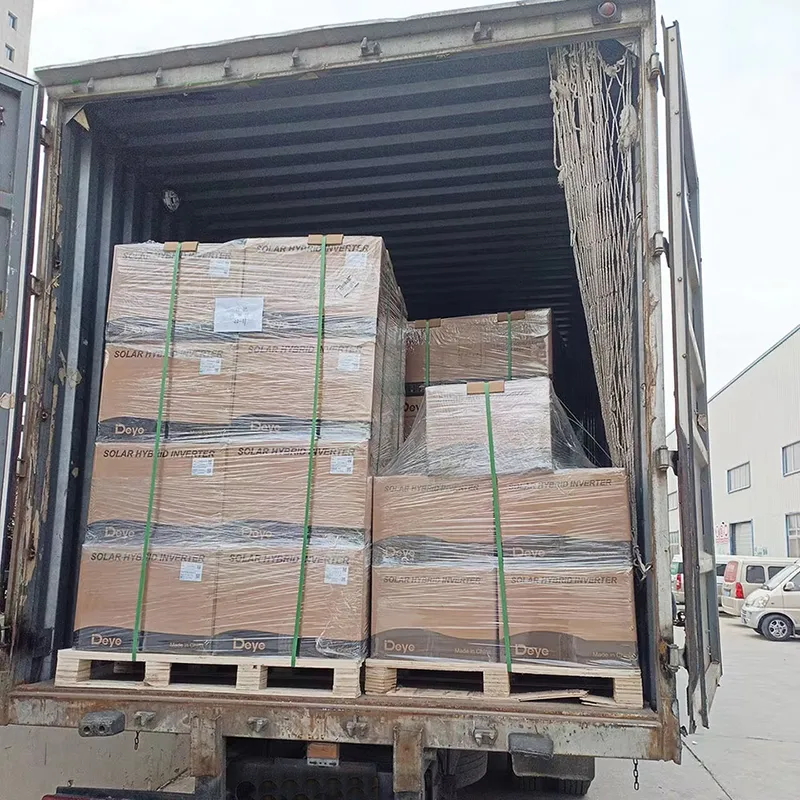

Product Display

Certifications & Standards

Product Certifications

Frequently Asked Questions

What is the maximum efficiency of this solar inverter?
The SUN-50K-G04 series achieves a maximum efficiency of up to 98.7%, ensuring minimal energy loss during the DC to AC conversion process.
How many MPPT trackers does the 50kw model have?
The 50kw model is equipped with 4 independent MPP trackers, allowing for flexible string configurations and better performance under shaded or complex roof conditions.
Is this inverter suitable for outdoor installation?
Yes, the inverter features an IP65 ingress protection rating, making it completely dust-tight and protected against water jets, suitable for various outdoor environments.
What type of cooling system is used?
This series utilizes an Intelligent Air Cooling system to manage internal temperatures efficiently, ensuring stable operation even in high-temperature environments.
Does it support remote monitoring?
Yes, it supports multiple monitoring modes including GPRS, WIFI, Bluetooth, 4G, and LAN (optional) via RS485 or RS232 interfaces.
What safety standards does the inverter comply with?
The inverter complies with major international standards including IEC/EN 62109-1/2 for safety and IEC/EN 61000-6-1/2/3/4 for EMC.
