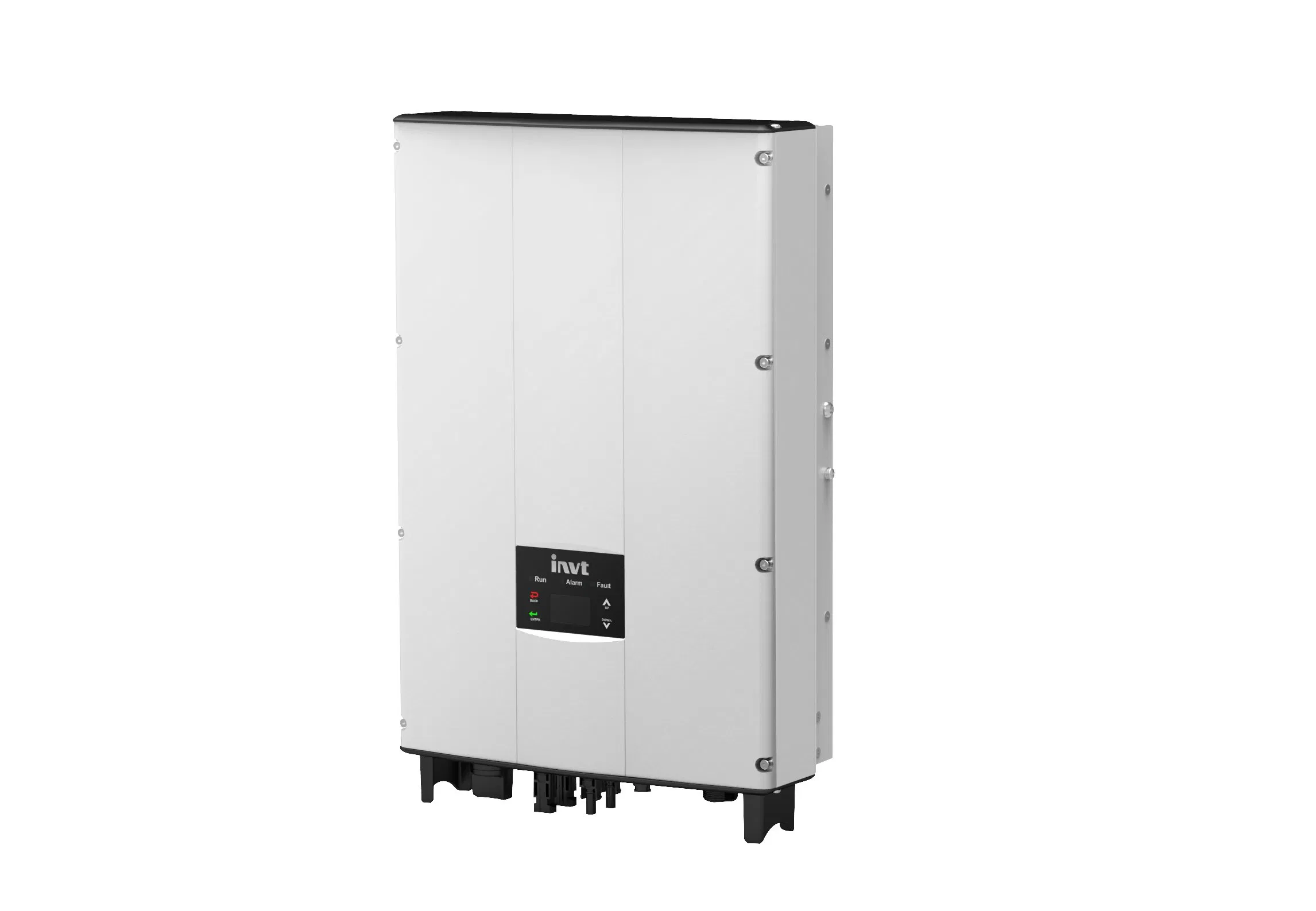

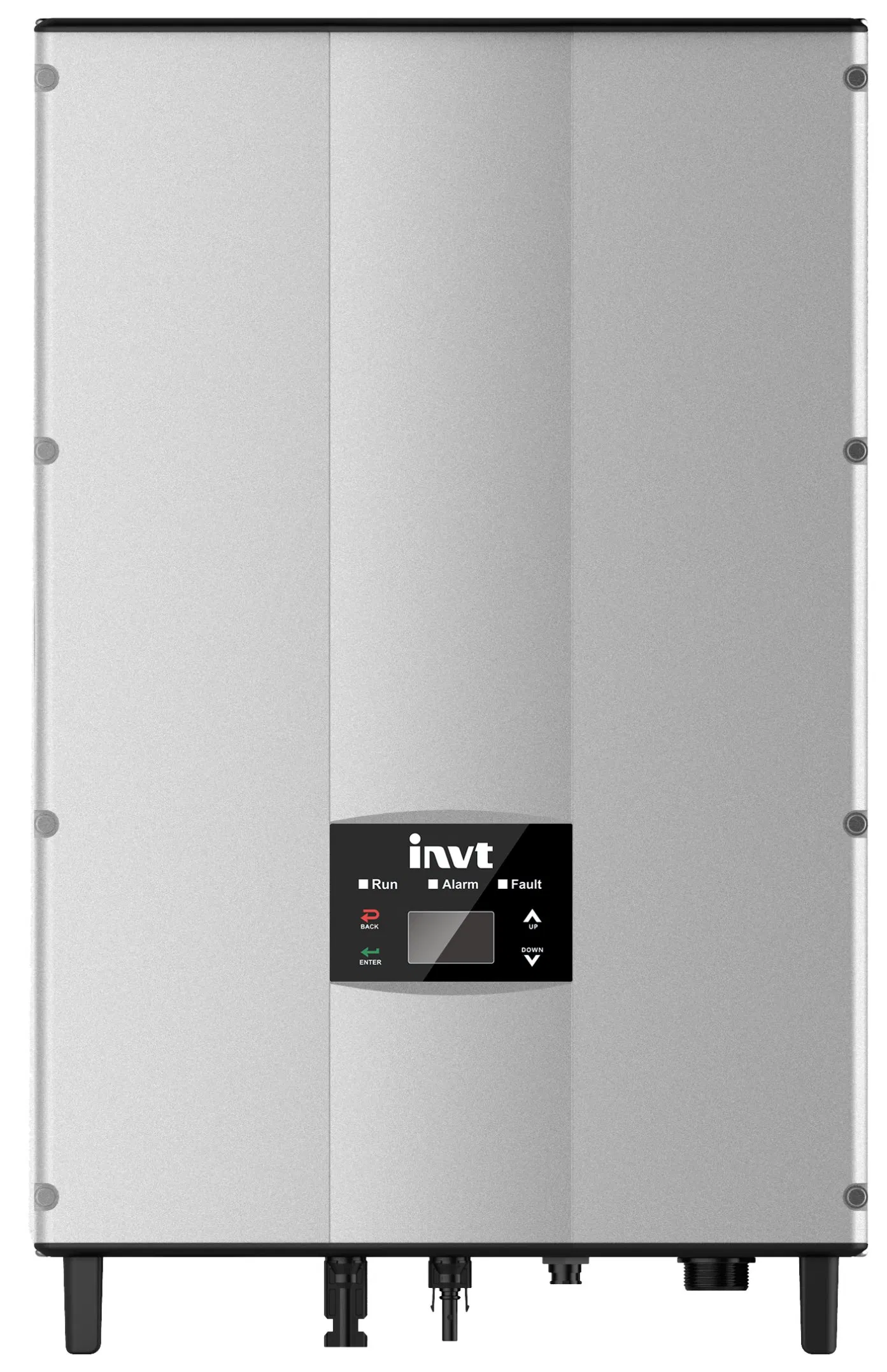

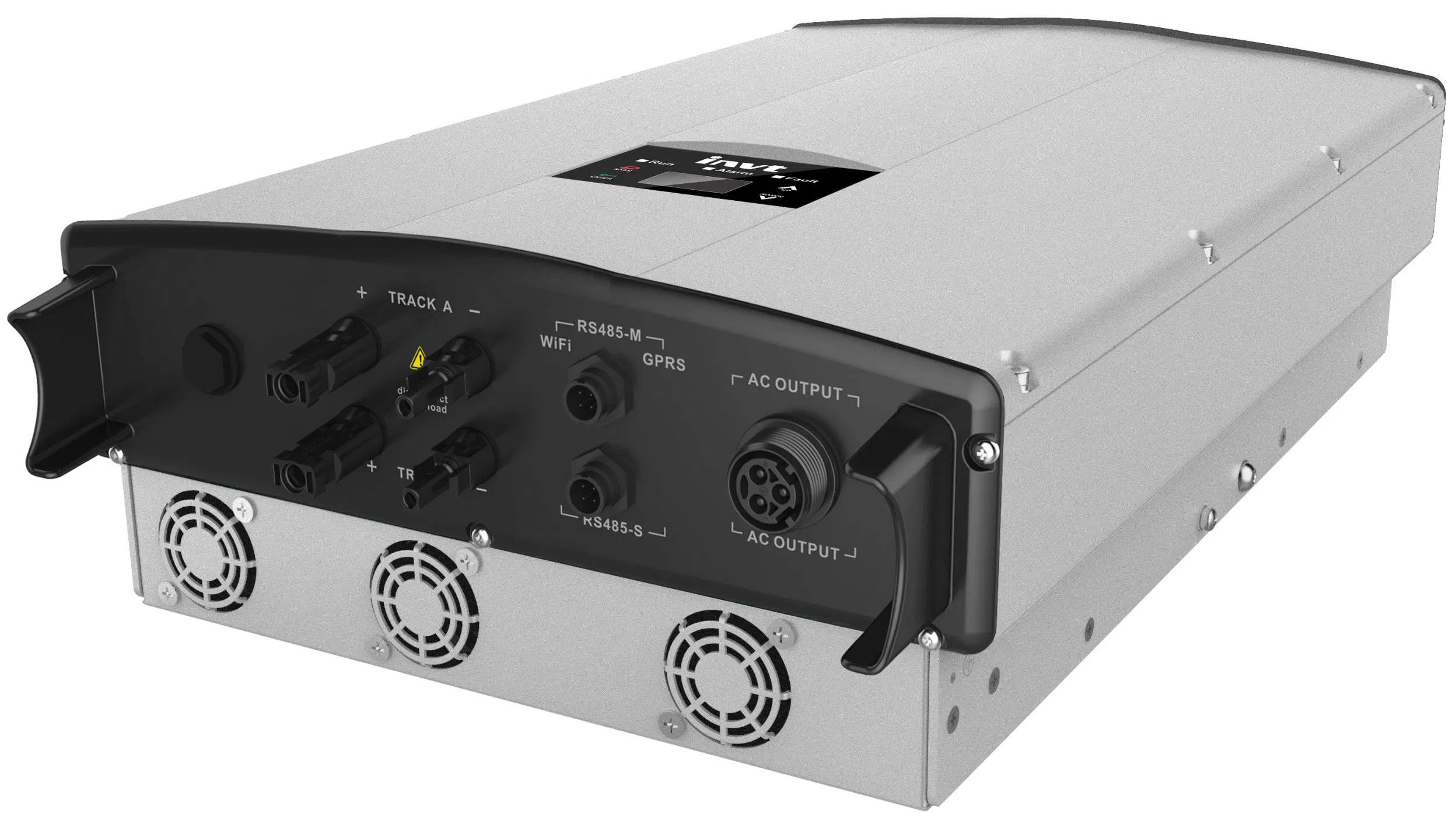

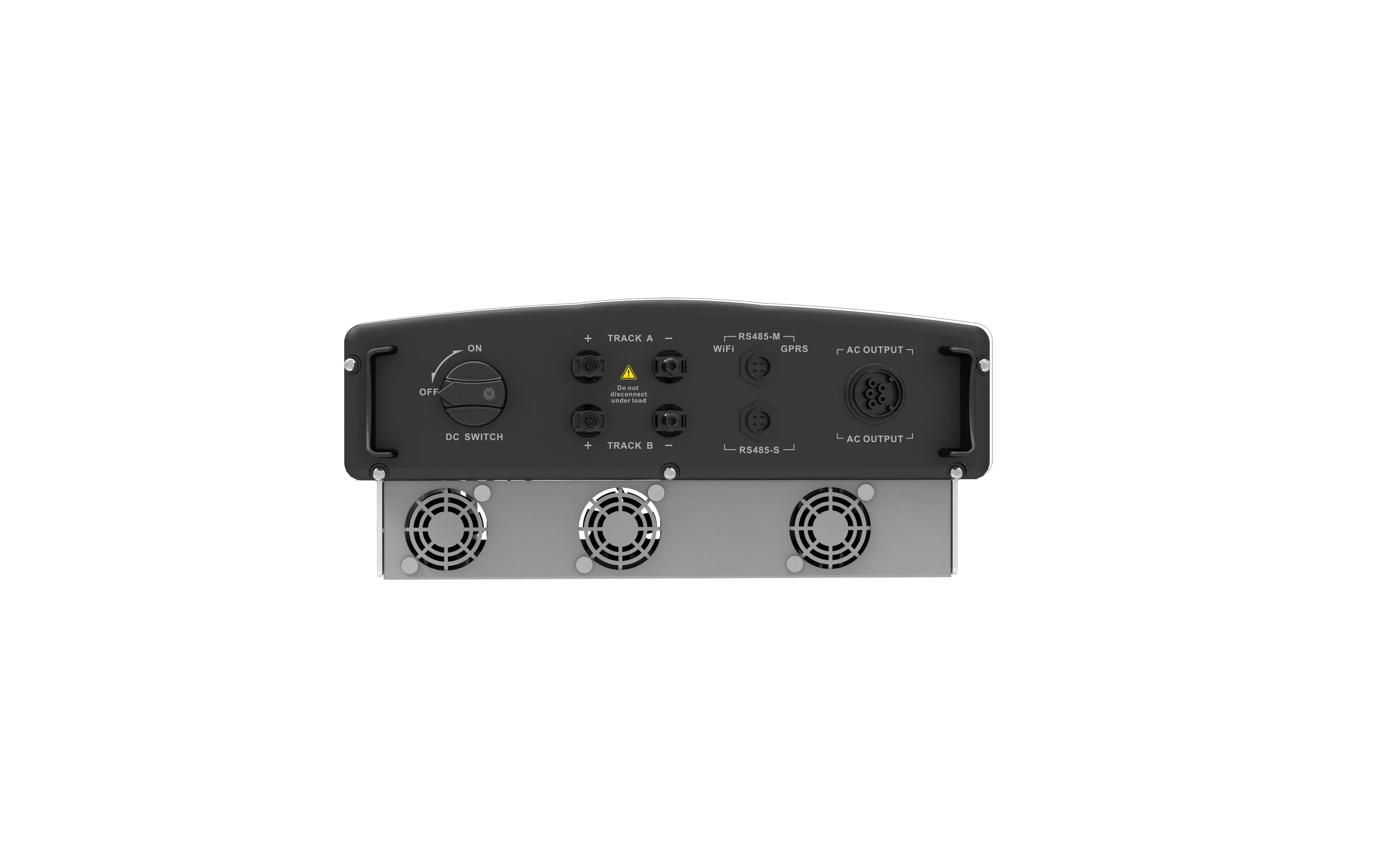

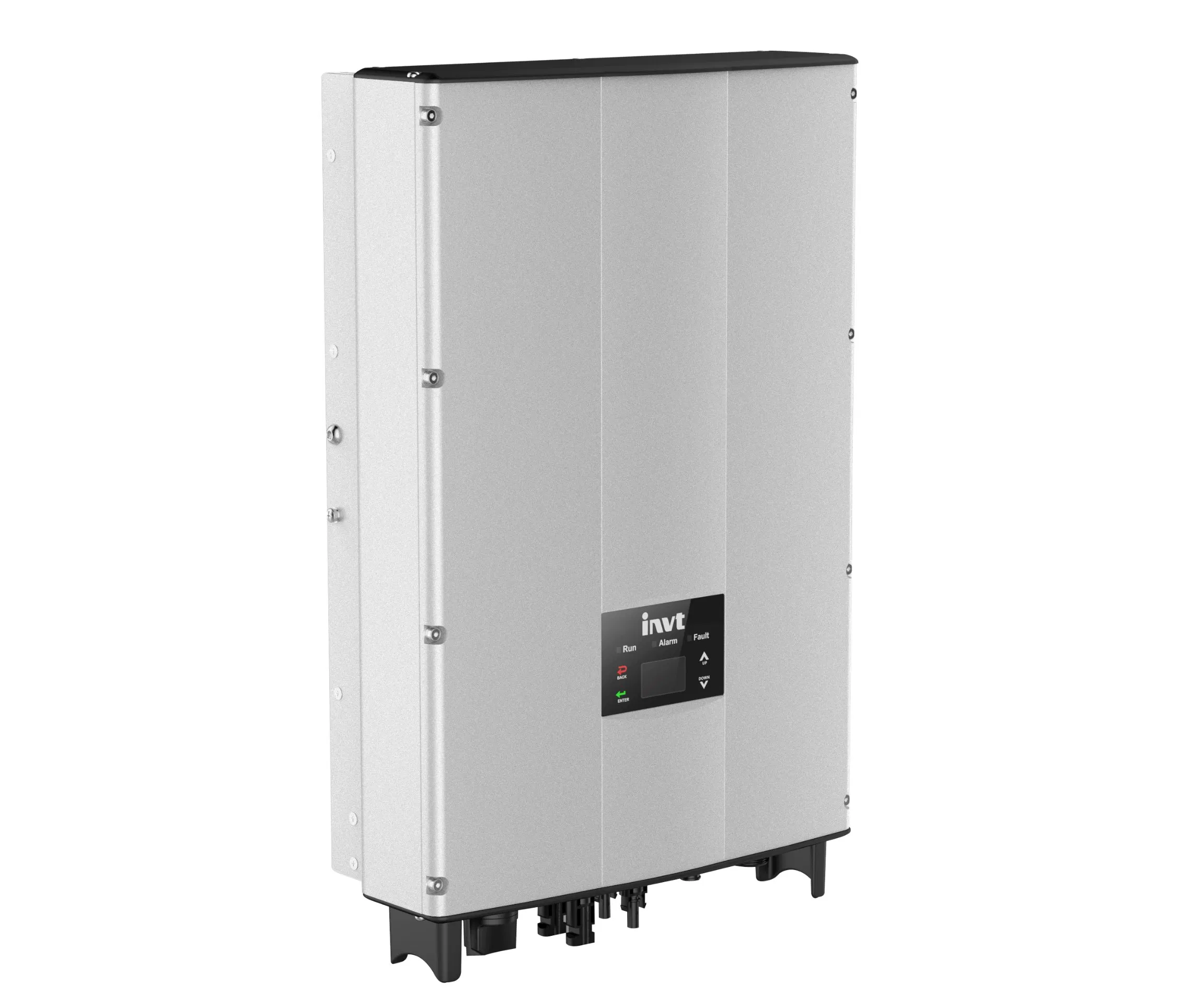

10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
1 / 5
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter
10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter

10kw MPPT on Grid Solar Power Inverters Poland Certificate 50549 with String Inverter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.BG10KTR
Output Power10kw
CertificationCE, Poland 50549, VDE
TypeDC/AC Inverters
Power SourceSolar Power
Nature of WaveSine Wave Inverter
MPPT Voltage Range180V ~ 800V
Max. Efficiency98.30%
Dimensions360 X 575 X 150 mm
CommunicationRS485 / WiFi / GPRS
💡

Product Features

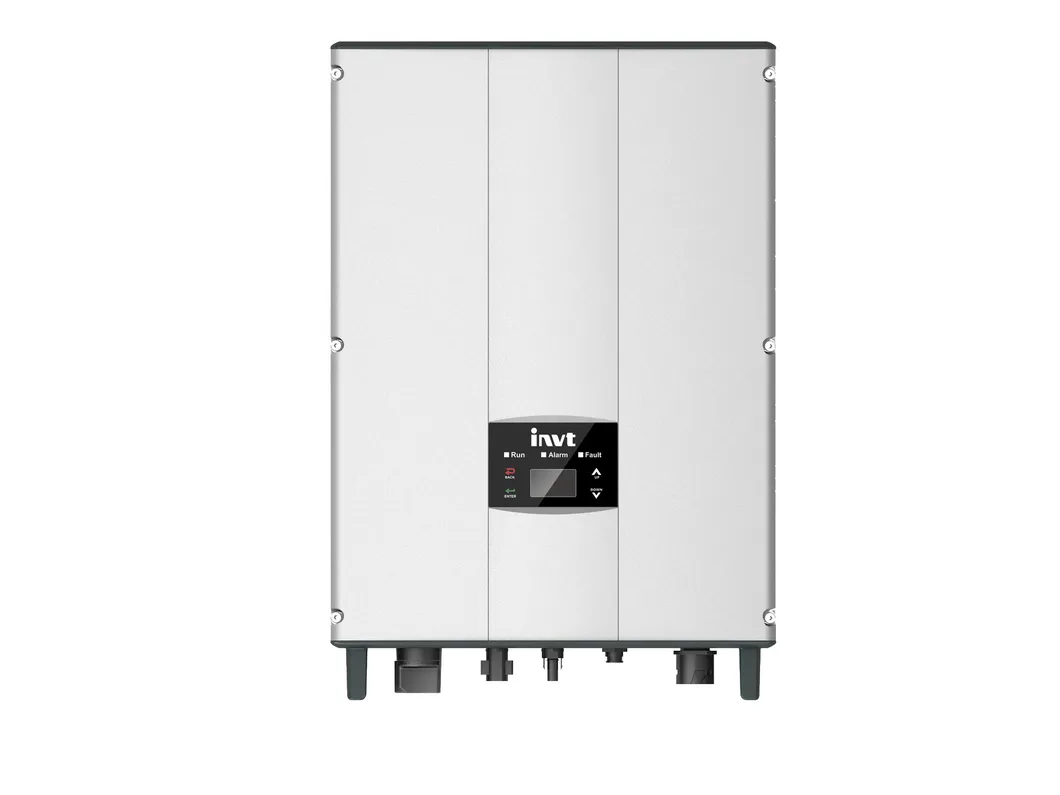

Grid Solar Power Inverter

BG4-10KW Series

  • Three Phase Grid-tied Solar Inverter
  • Zero export function (Optional)
  • External inductor
  • IP65 Protection Rating
  • Aluminum enclosure for better cooling
  • 5+5 years warranty support
Available Models:
BG4KTR, BG5KTR, BG6KTR, BG8KTR, BG10KTR
⚙️

Technical Parameters

Model Parameter BG4KTR BG5KTR BG6KTR BG8KTR BG10KTR
Max. Input Power 4.8kW 5.7kW 7.2kW 9kW 11kW
Max. Input Voltage 900V 1000V
Start Voltage 220V / 150V 220V / 180V
Max. Output Current 6.4A 8A 9.5A 12.5A 16A
Max. Efficiency 98.10% 98.10% 98.20% 98.30% 98.30%
Display LCD
Dimensions (mm) 360 x 530 x 150 360 x 575 x 150
Weight 20kg 23kg
🖼️

Product Gallery

Solar Inverter Detail 1
Solar Inverter Detail 2
Solar Inverter Detail 3
Solar Inverter Detail 4
❓

Frequently Asked Questions

What is the maximum efficiency of the BG10KTR inverter?
The BG10KTR inverter features a high maximum efficiency of 98.30%, ensuring optimal energy conversion for your solar system.
What certifications do these solar inverters hold?
These inverters are fully certified with CE, VDE, and Poland 50549 standards, making them compliant with various international grid requirements.
Can I monitor the inverter performance remotely?
Yes, while RS485 is standard, you can optionally choose WiFi, GPRS, or Ethernet communication modules for remote monitoring and data management.
Is the inverter suitable for outdoor installation?
Yes, the inverter comes with an IP65 protection rating and a durable aluminum enclosure, making it suitable for both indoor and outdoor environments.
What is the warranty period for this product?
The product comes with a standard 5+5 years warranty, providing long-term reliability and peace of mind for your investment.
Does it support zero export functionality?
Yes, the zero export function is available as an optional feature to prevent feeding power back into the grid if required by local regulations.
