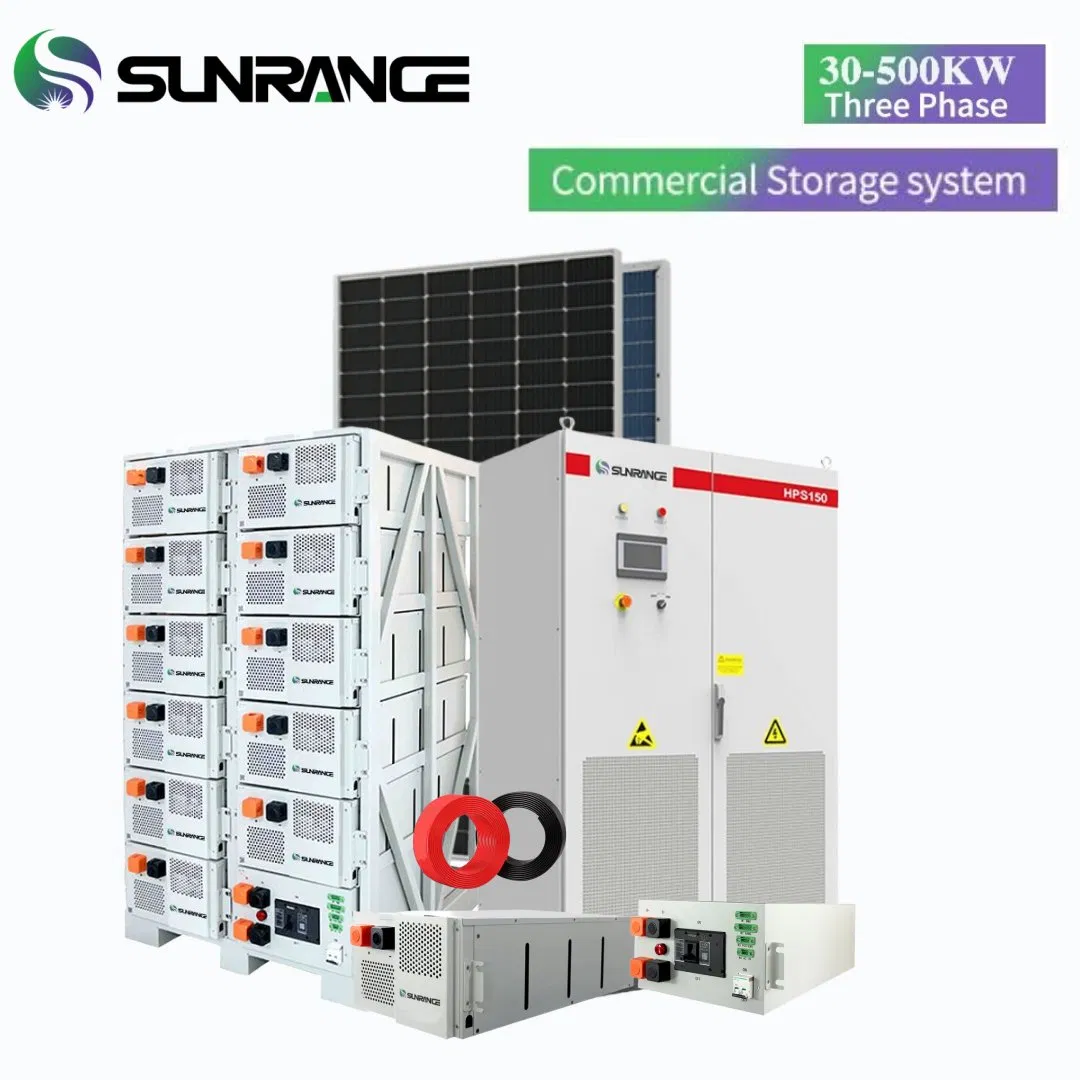

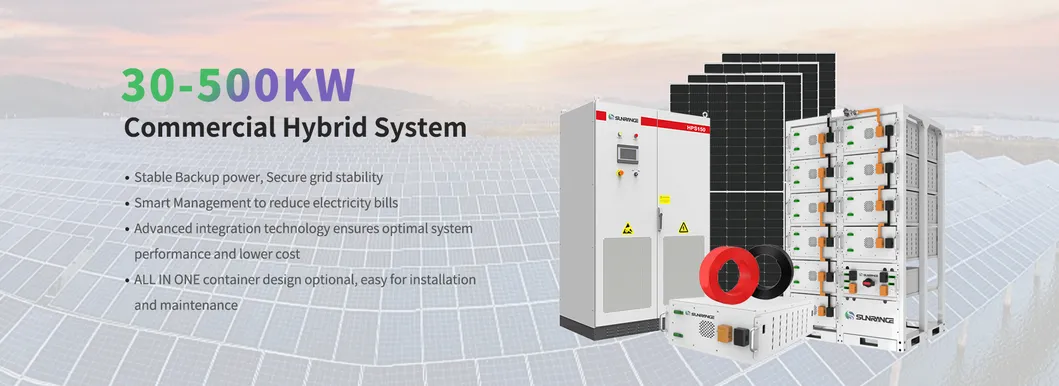

Wholesale 30kw 50kw 100kw Hybrid Solar Energy System 200kw 500kw for Commercial Project Energy Storage Solar Power System

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	5-10 Years

Basic Info

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

System Type

Hybrid Solar PV System

Battery

Gel/ LiFePO4 Battery

Solar Panel

Monocrystalline 400-700W

Origin

China

Product Description

Higher Power Output In Off-Grid Model

Support Diesel Generator Access

Pre-Wired & Easy Installation

One Stop Shop Proposal

Indoor Or Outdoor Options

30KW To 500KW Scalable System

Model No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Solar Panel Qty	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Total PV Power	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Battery Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH

Product Parameters

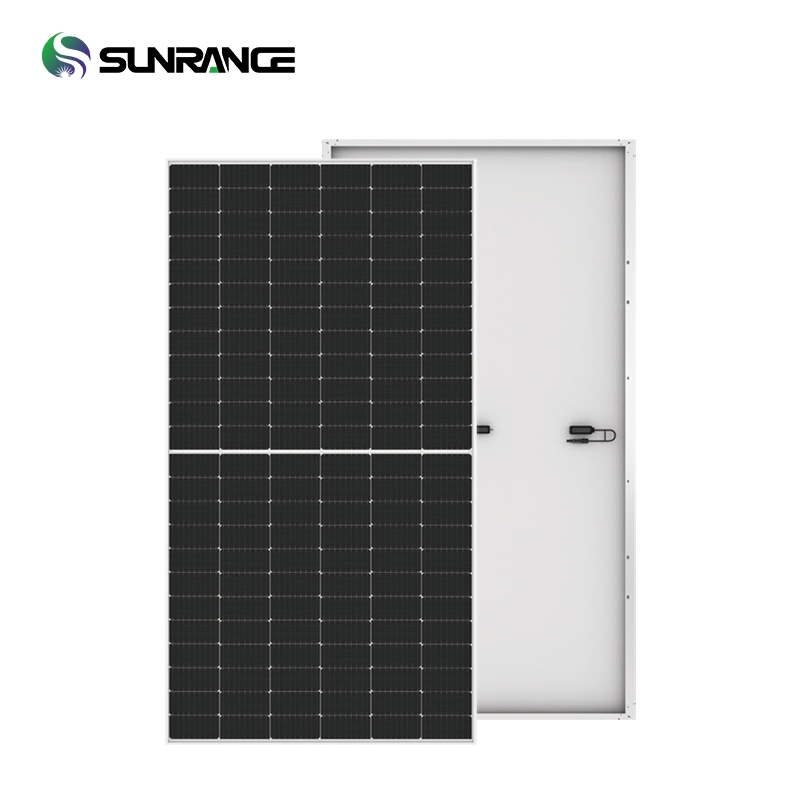

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Module Efficiency: 22.44%

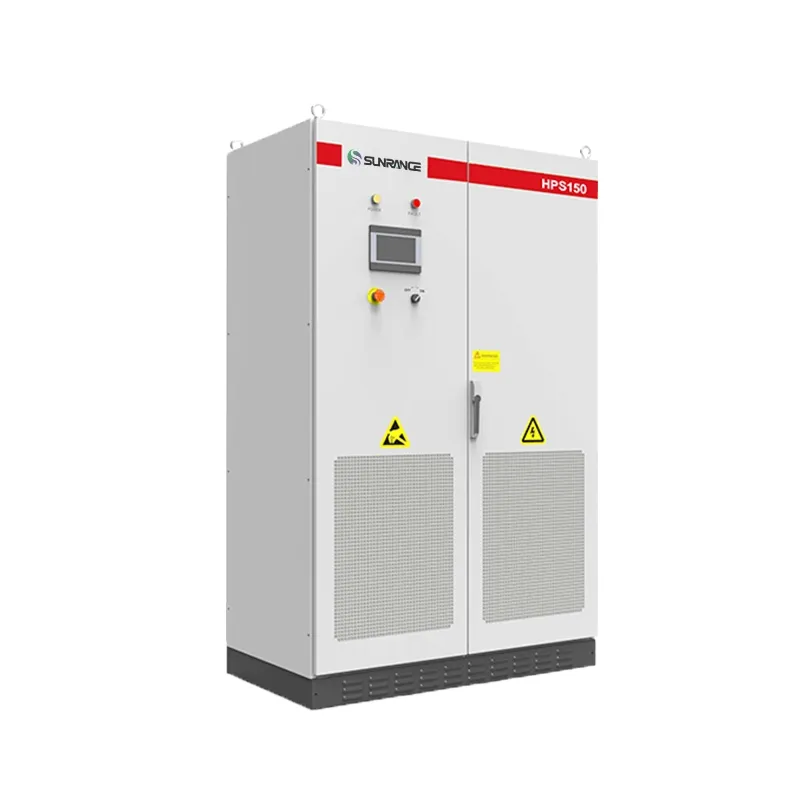

All-in-One Hybrid Inverter

Supports PV, battery, Diesel Generator, grid, and load connections in one system. Seamless switch within 6ms via SCR.

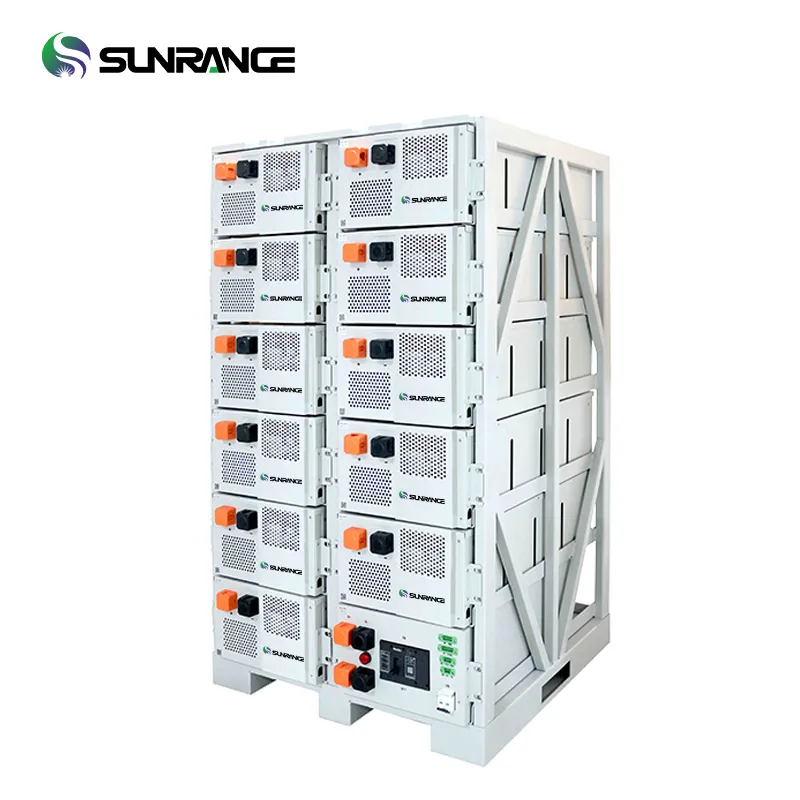

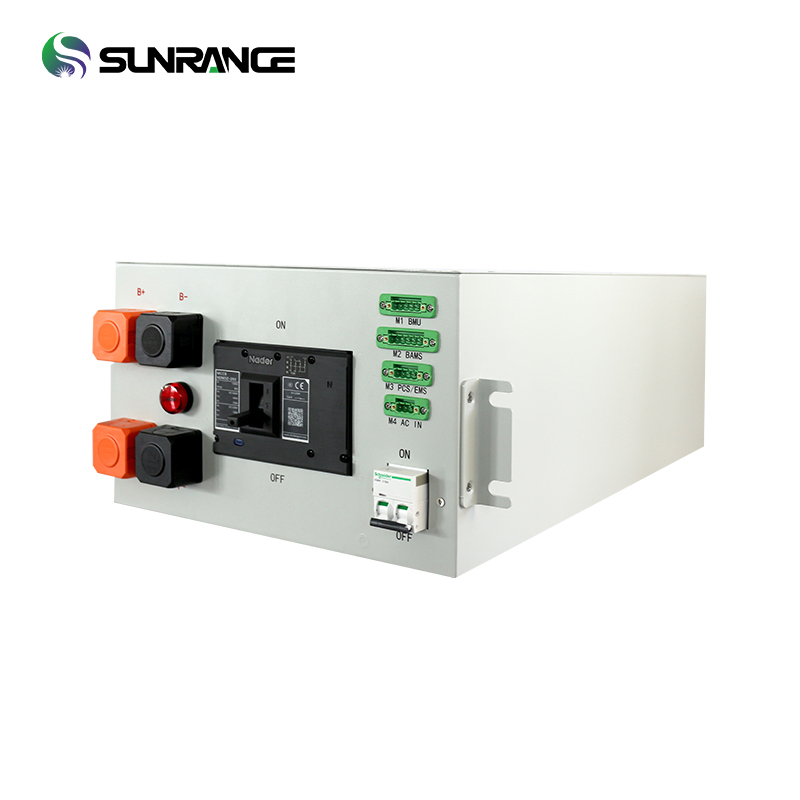

Energy Storage Battery Packs

GEL/LiFePO4 Lithium Ion options. Deep cycle with 6000+ times lifespan. Up to 90% DOD. Rack-mounted for easy maintenance.

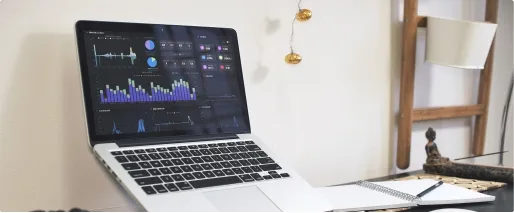

Monitoring & BOS

Online monitoring system for real-time tracking. Complete BOS including DC cables, MC4 connectors, and PV mounting systems.

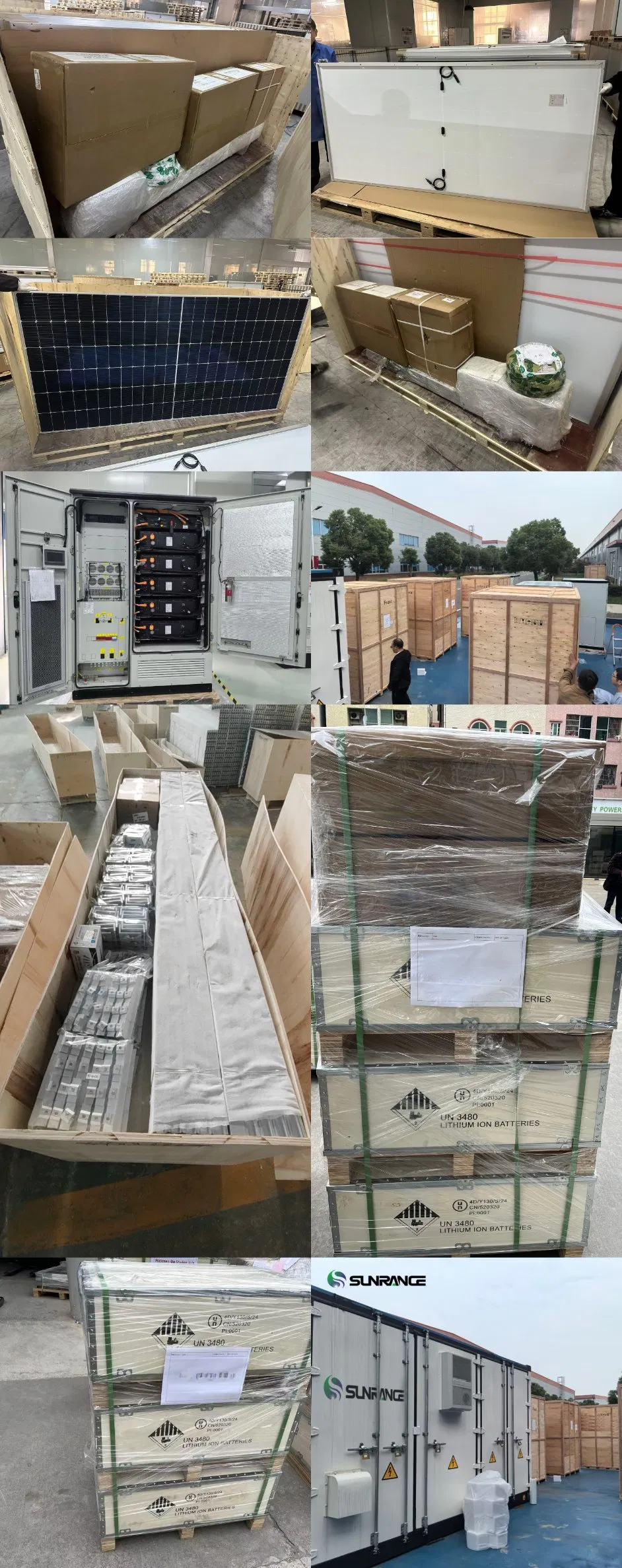

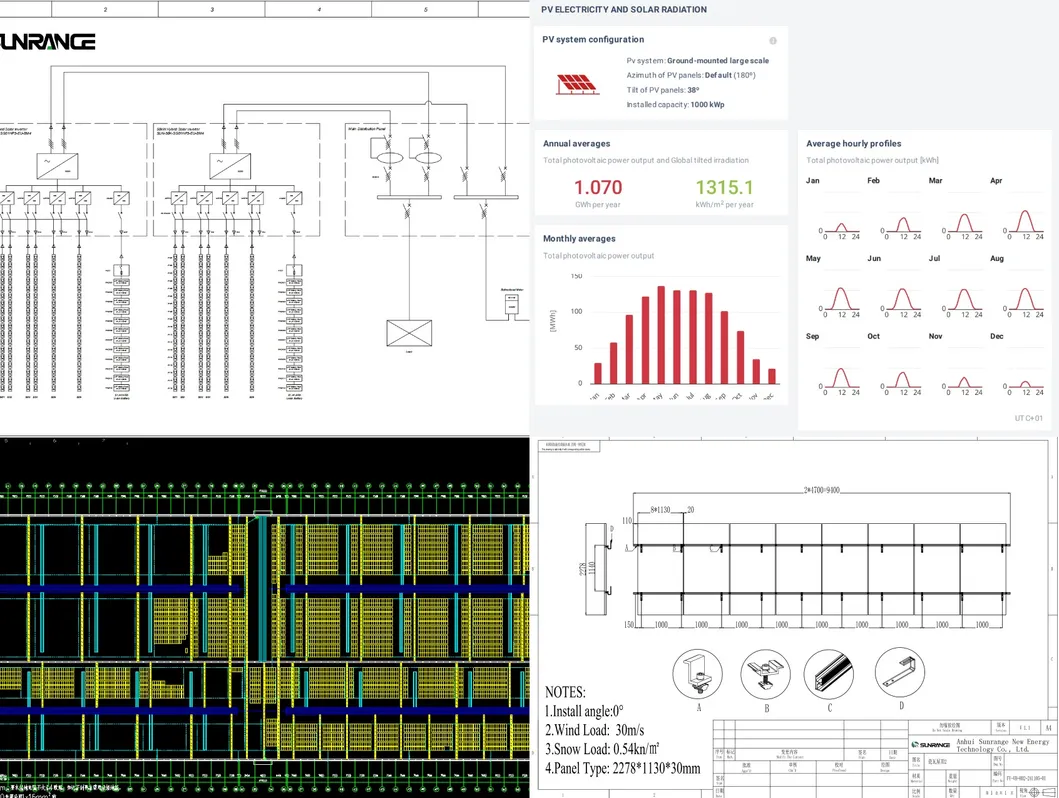

Technical Support & Logistics

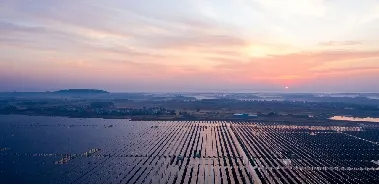

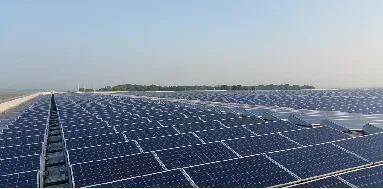

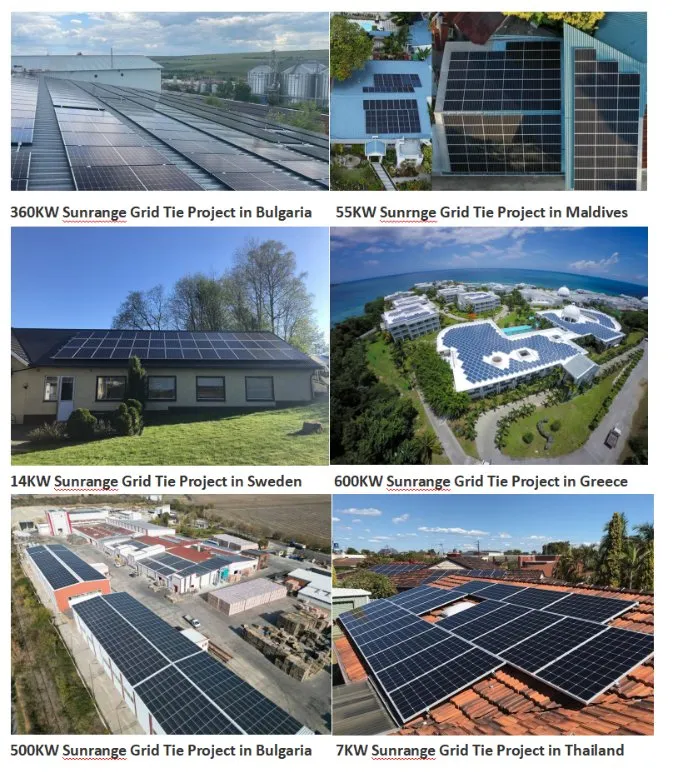

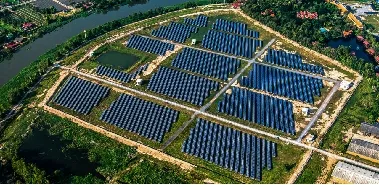

Global Project Cases

Certifications

Frequently Asked Questions

How much power can your solar energy systems provide?

We offer home systems from 5-30KW, as well as commercial and industrial systems ranging from 30KW to over 1MW.

Do you support both On-Grid and Off-Grid configurations?

Yes, we provide On-Grid, Off-Grid, and Hybrid solar power systems to meet different energy needs.

What types of batteries are used in your energy storage systems?

We primarily use high-performance GEL and LiFePO4 (Lithium Iron Phosphate) batteries with deep cycle capabilities.

What international certifications do your products hold?

Our products are certified by CE, IEC, CEC, ISO, INMETRO, and SGS to ensure global quality standards.

What is the warranty period for the system?

The complete system is guaranteed for 10 years, while the solar panels come with a performance warranty of 25-30 years.

Is the system difficult to install and maintain?

The systems are designed to be pre-wired and tested under multiple conditions for easy installation, debugging, and low maintenance.
