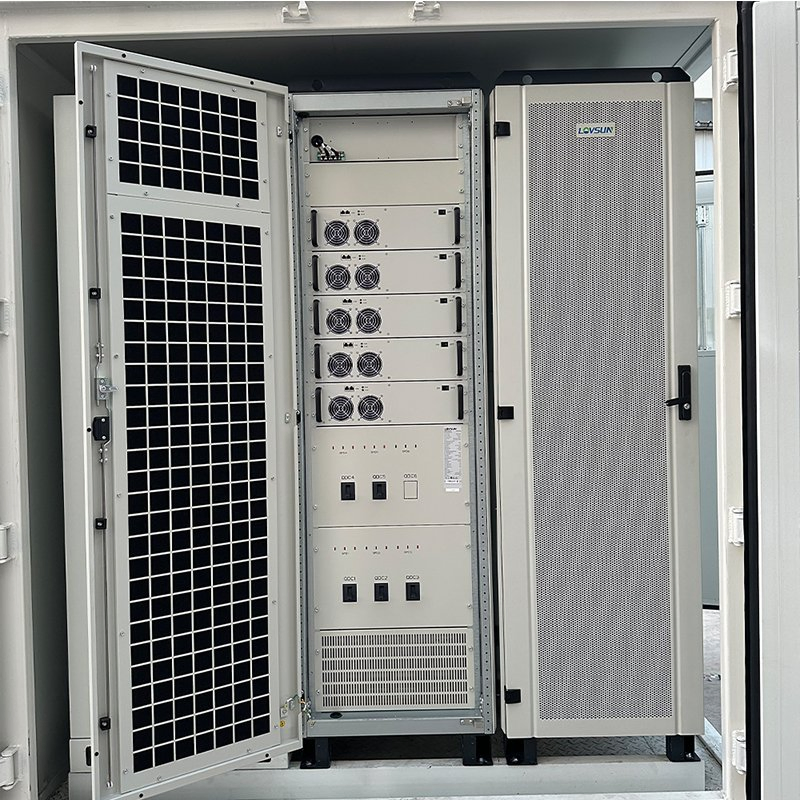

China 3years Br Customized Package Solar Battery Energy Storage Lithium System

1 / 5

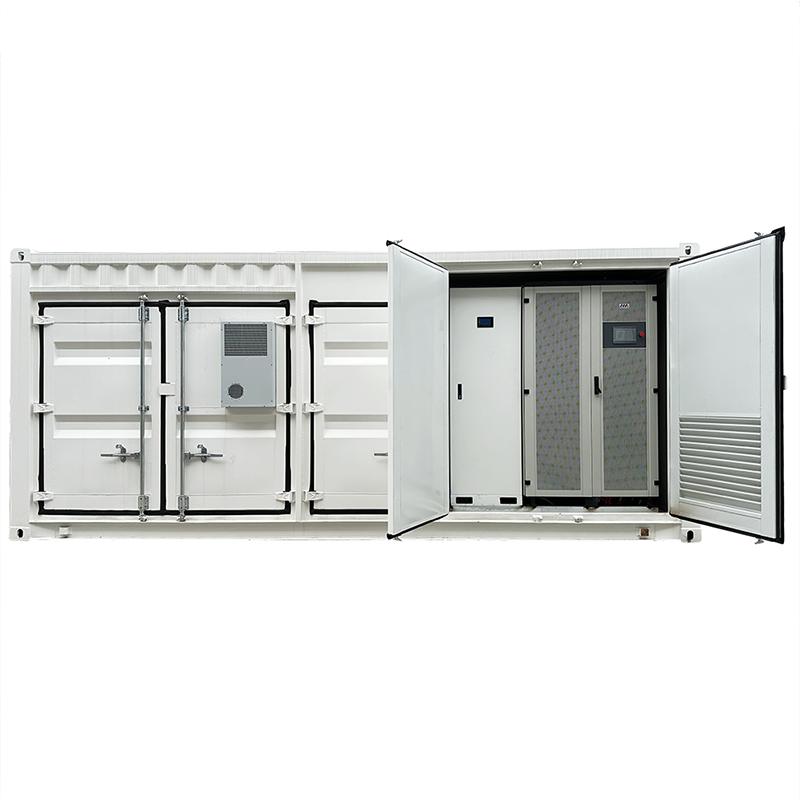

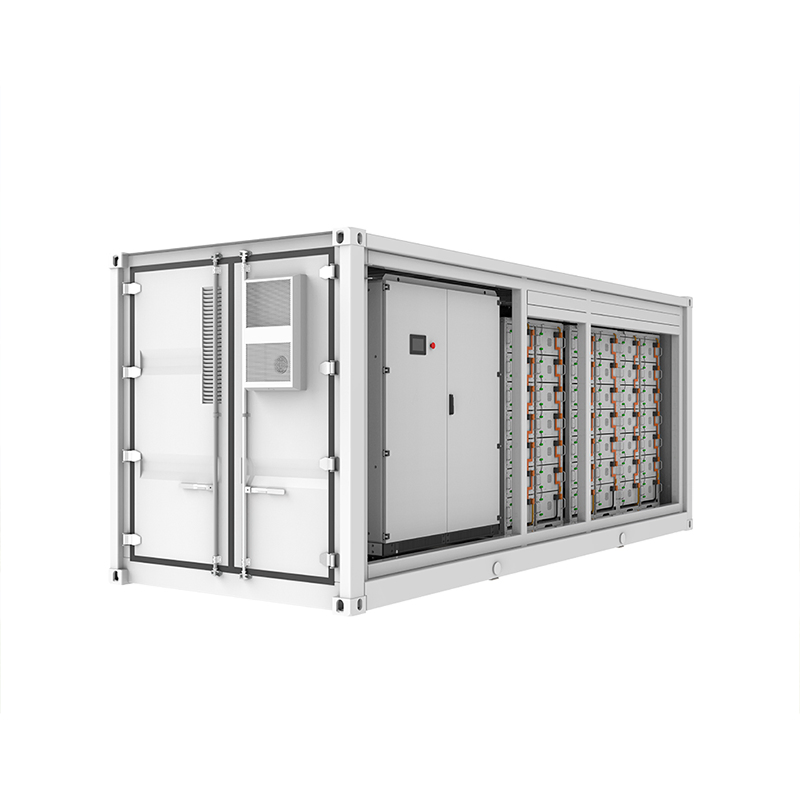

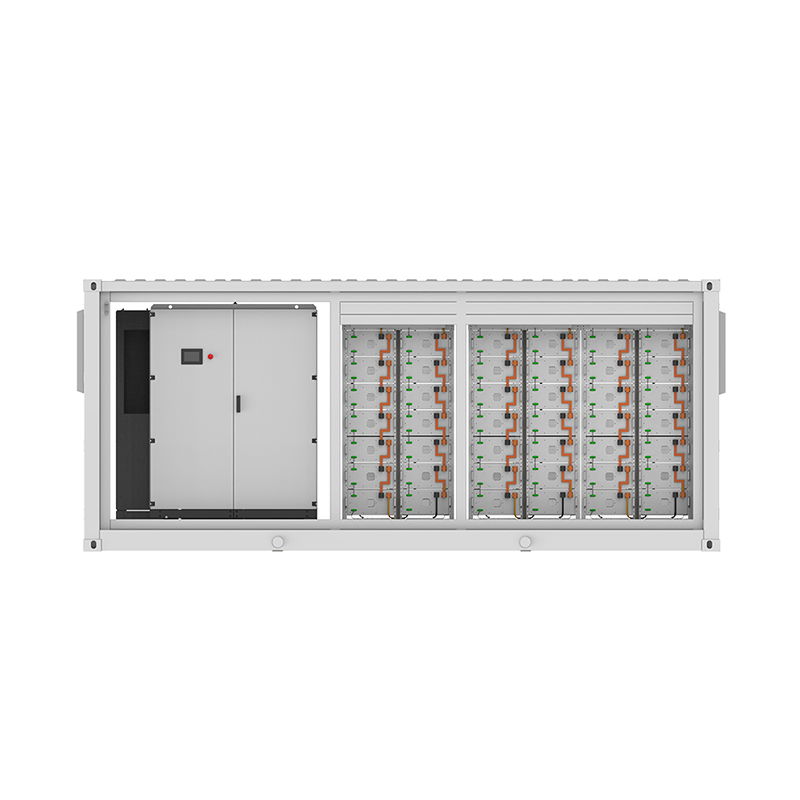

China 3years Br Customized Package Solar Battery Energy Storage Lithium System

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

Basic Specifications

Model NO.

1Mw

Nominal Voltage

200-500 V

Warranty

3 years

Nominal Capacity

2500kwh

Cycle Life

4000 Cycles

Rated Output Power

1000kw

Rated Frequency

50Hz

Application

Ess Solar Storage

Grid Connection

Hybrid Grid

Origin

China

Production Capacity

10000pieces/Years

Packaging & Delivery

Package Size

1219.20cm * 243.80cm * 259.10cm

Package Gross Weight

22000.000kg

Product Description

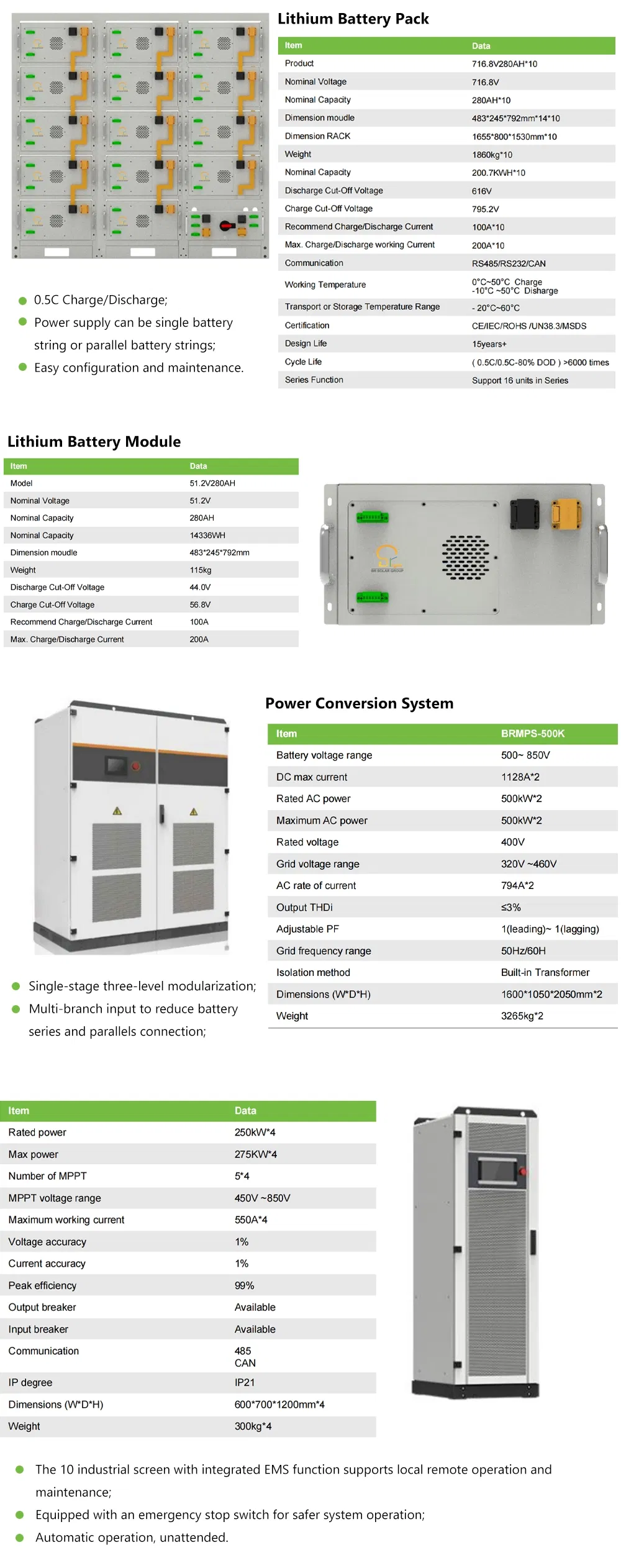

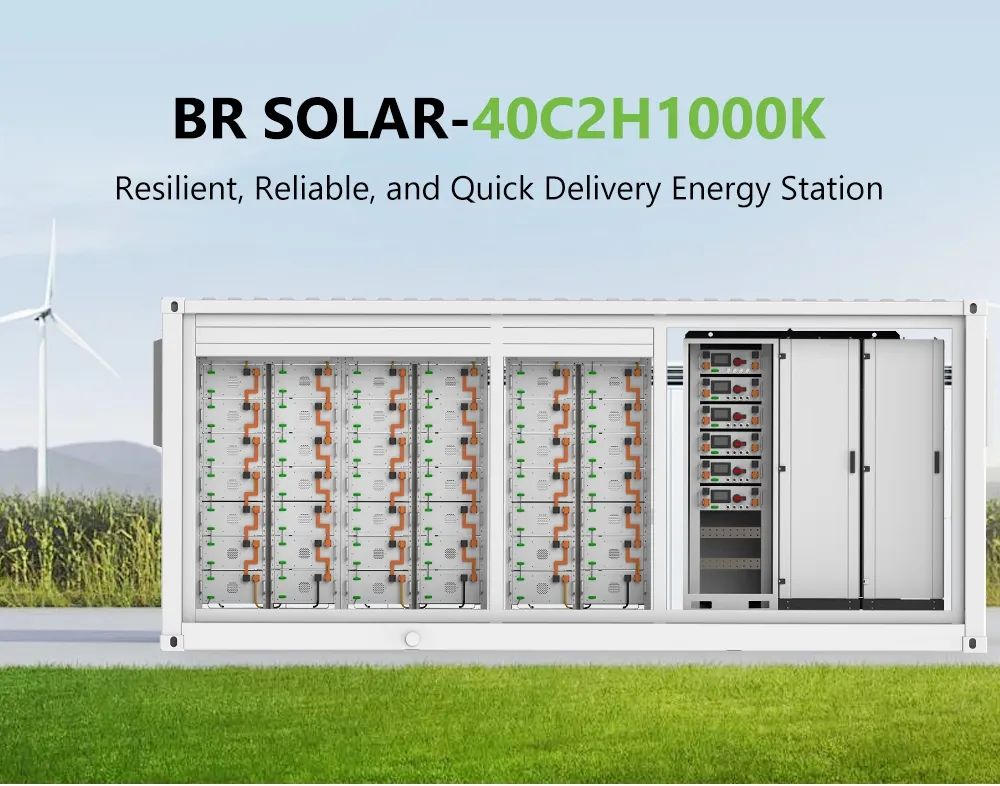

1MW/2.5MWH Energy Storage System Parameters
Rated output power	1000KW
Rated capacity	2500KWH
AC Phases	Three-phase Four-wire
Grid discharge mode	380V (±15%), 50Hz, THD <5%, PF ≥0.99
Isolated network mode	380V, Accuracy <±3%, Distortion <5%, 50±2%Hz
Grid charging mode	400V, 380±15%V, 47.5~51.5HZ, PF ≥0.99
Noise Level	<70dB
IP GRADE	IP54
External communication	Ethernet
Dimension	12192mm(L)2438mm(W)2591mm(H)
Weight	22 Ton

Frequently Asked Questions

What is the capacity and power output of this system?

The system features a rated capacity of 2500kWh (2.5MWH) and a rated output power of 1000kW (1MW).

What is the expected cycle life of the batteries?

The system is designed for a long service life with a cycle life of approximately 4000 cycles.

What kind of warranty is provided?

This energy storage system comes with a 3-year warranty for peace of mind.

Is the system suitable for outdoor installation?

Yes, the system has an IP54 protection grade, making it resistant to dust and water splashes.

What are the dimensions and weight for transport?

The unit measures 1219.20cm x 243.80cm x 259.10cm and has a gross weight of approximately 22,000kg (22 Tons).

Does the system support off-grid operation?

Yes, it supports both grid-connected discharge/charging modes and an isolated network (off-grid) operation mode.
