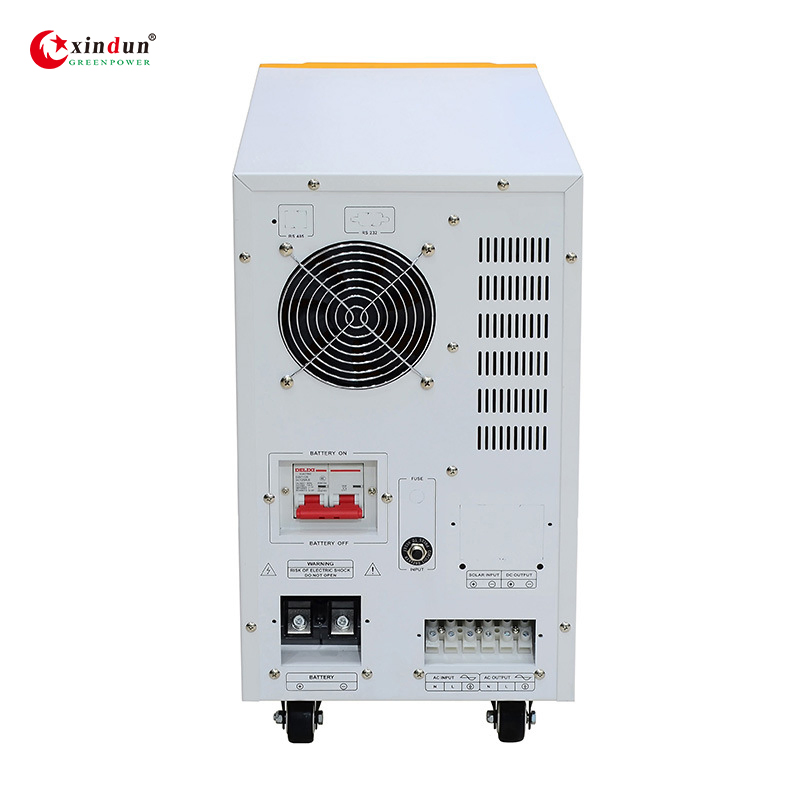

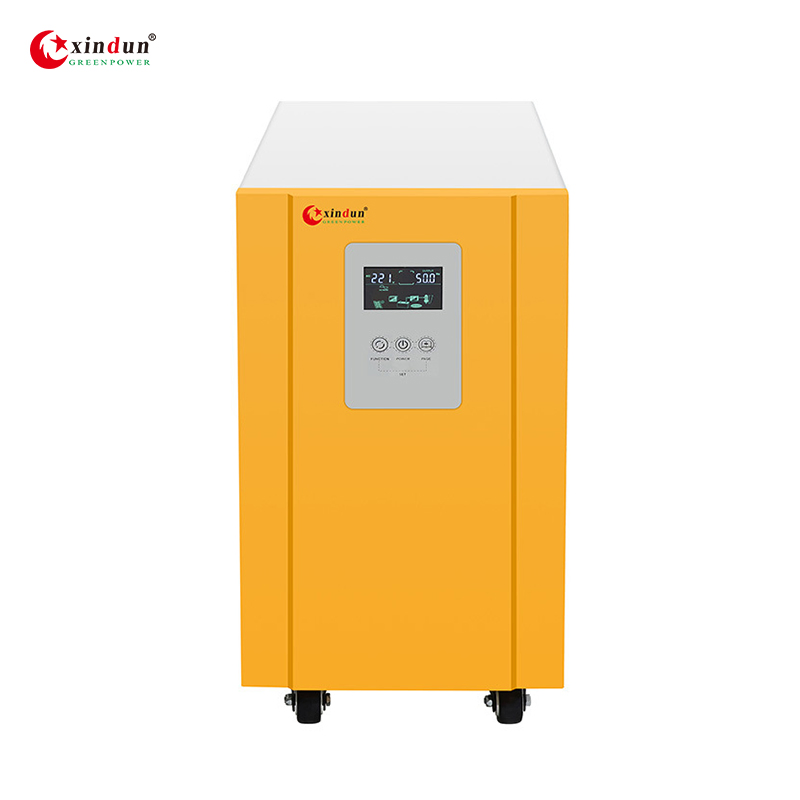

Micro off Grid Low Price 5.5kw China Wholesale 10kVA Hybrid Solar Inverter

1 / 5

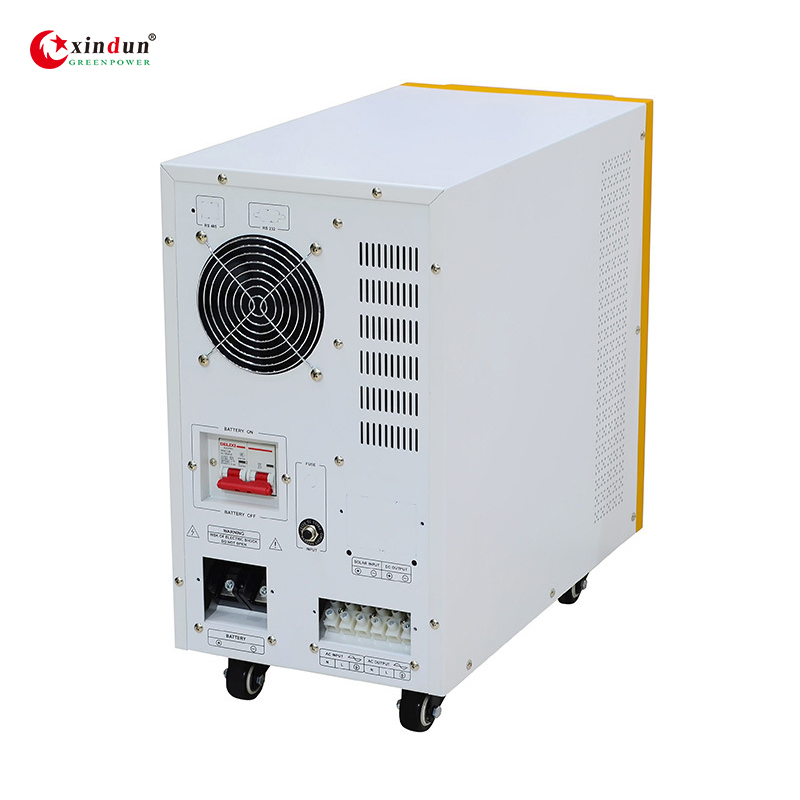

Micro off Grid Low Price 5.5kw China Wholesale 10kVA Hybrid Solar Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

XD-WD

Nature of Source Flow

Active Inverter

Phase

Single Phase Solar Inverter

Output Power

700W~40kw

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave String

Pure Sine Wave Solar Inverter

Application

Home/Industrial/Office /Solar Power System

Rated Output Voltage

208VAC/220VAC/230VAC/240VAC

Charging Mode

MPPT/PWM

Battery Type

Lithium /Lead Acid /Gel Battery and Others

Output Efficiency

>99%

Output Frequency

50Hz/60Hz

Communication

RS485/APP(WiFi or GPRS Monitoring)

Protection

Overload/Short Circuit/Temperature Protection

✨ Inverter Features

✅ Pure sine wave output

✅ High efficiency toroidal transformer lower loss

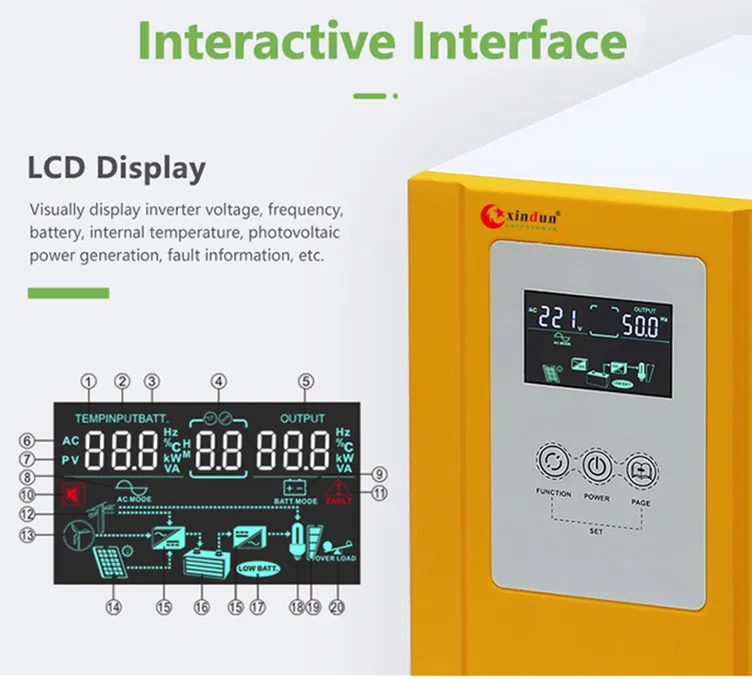

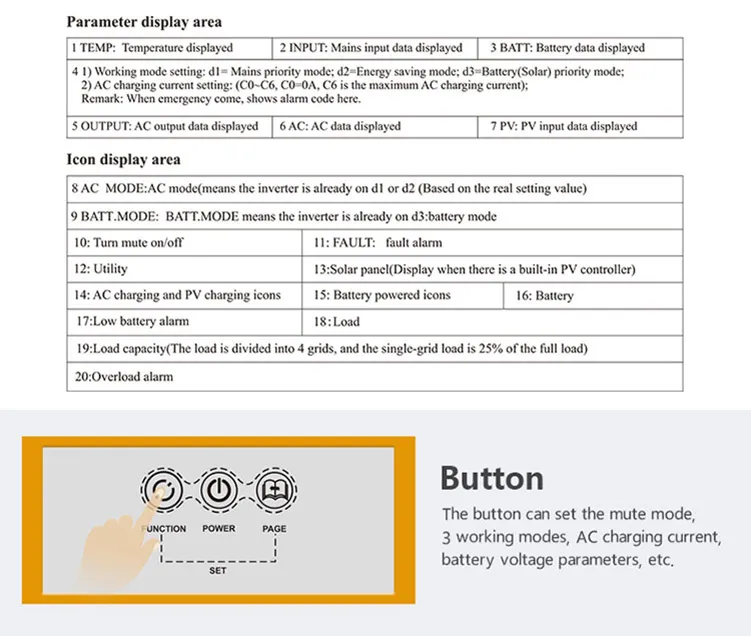

✅ Intelligent LCD integration display

✅ AC charge current 0-20A adjustable

✅ Three types working modes: AC first, DC first, Energy-saving

✅ Frequency adaptive function for different grids

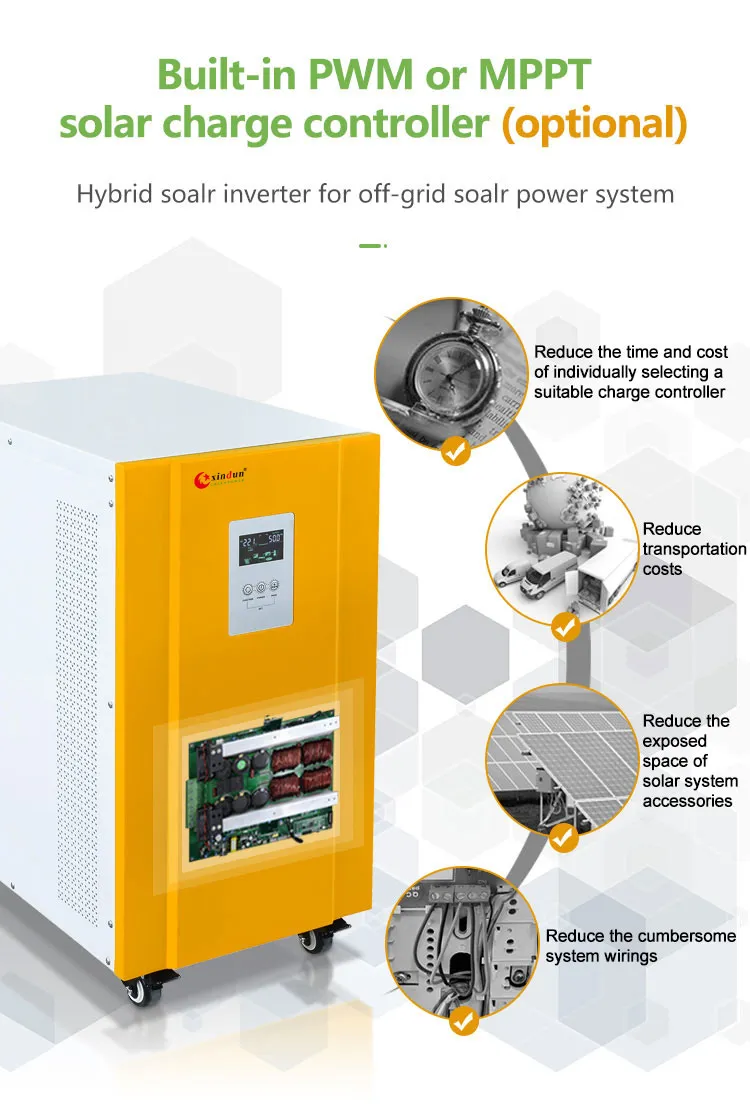

✅ Built-in PWM or MPPT controller optional

✅ Fault code query function for real-time monitoring

✅ Supports diesel or gasoline generator

✅ RS485 communication port/APP optional

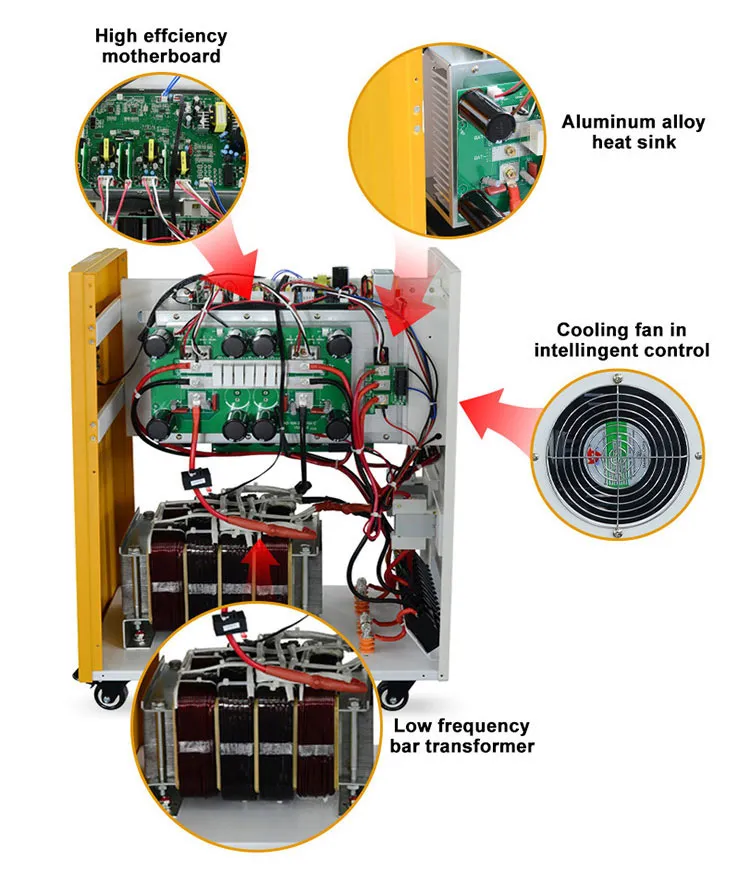

🔍 Product Detail

📋 Specifications

Model WD/WD-T		701	102	152	202	302	352	402	502	602	702
Rated Power		700W	1000W	1500W	2000W	3000W	3500W	4000W	5000W	6000W	7000W
Peak Power (20ms)		2100VA	3000VA	4500VA	6000VA	9000VA	10500VA	12000VA	15000VA	18000VA	21000VA
Battery Voltage		12/24V	12/24V	24/48V	24/48V	24/48V	48/96V	48/96V	48/96V	48/96V	48/96/192V
Input	DC Range	10.5-15VDC (Single battery)
	AC Frequency	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Efficiency	≥85% (Battery Mode) / >99% (AC Mode)
	Output Wave	Pure Sine Wave

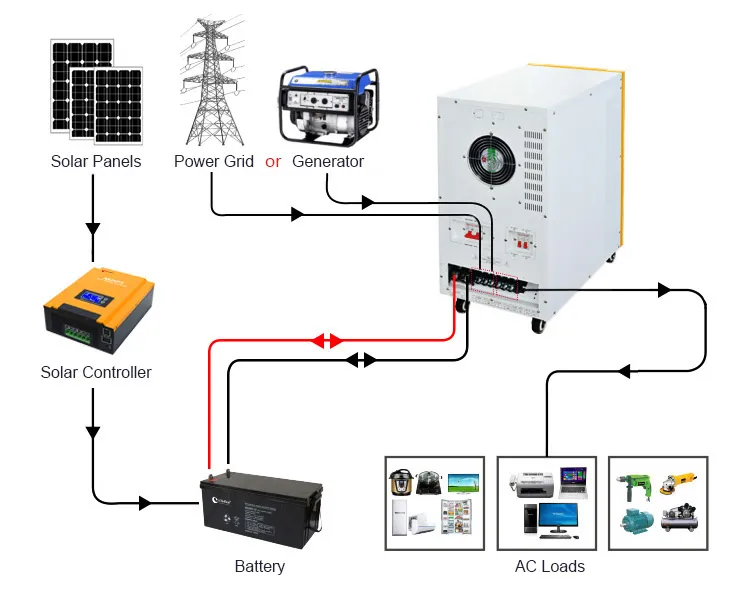

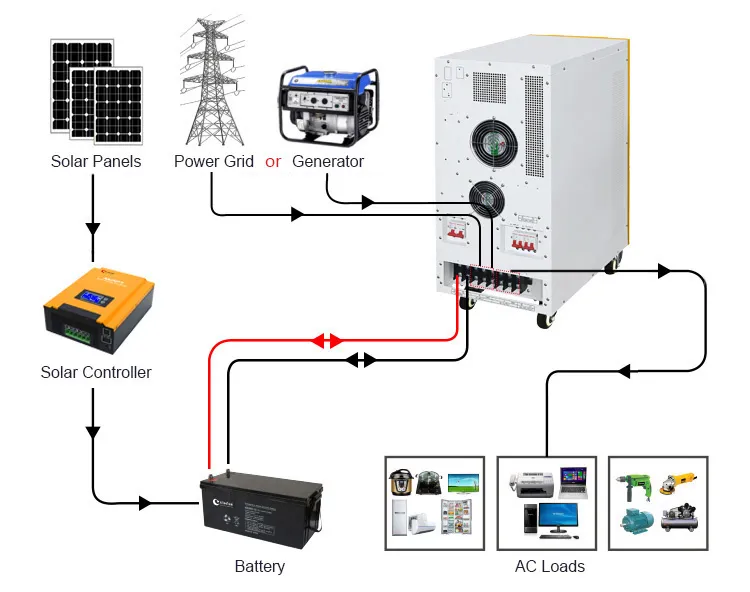

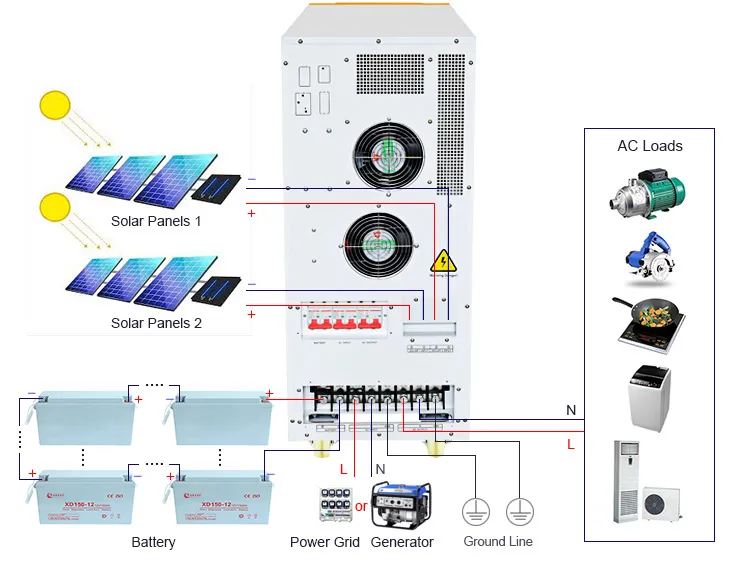

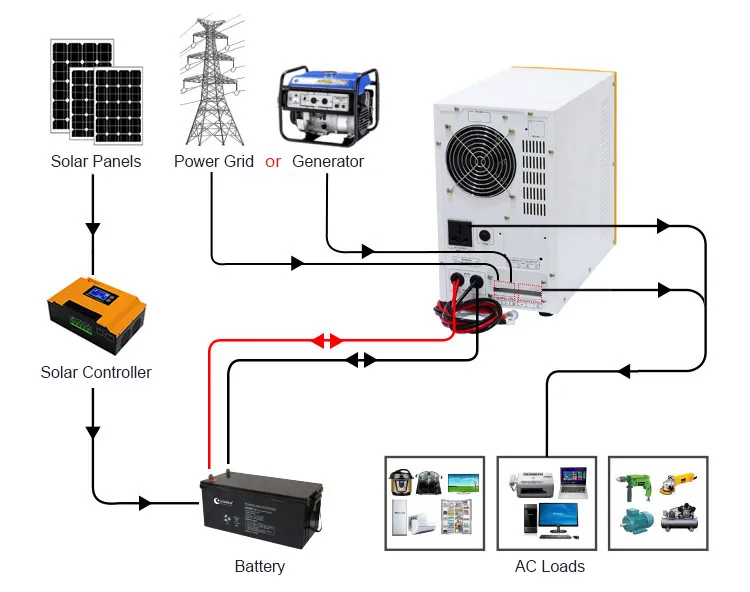

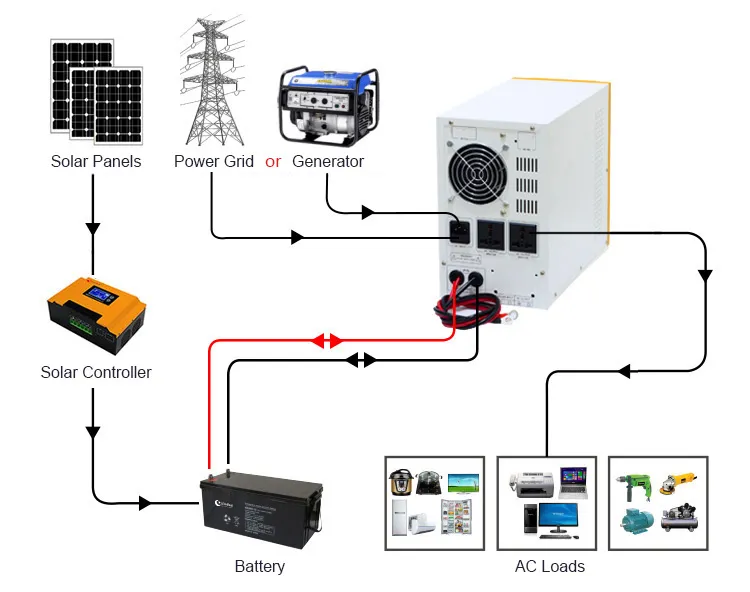

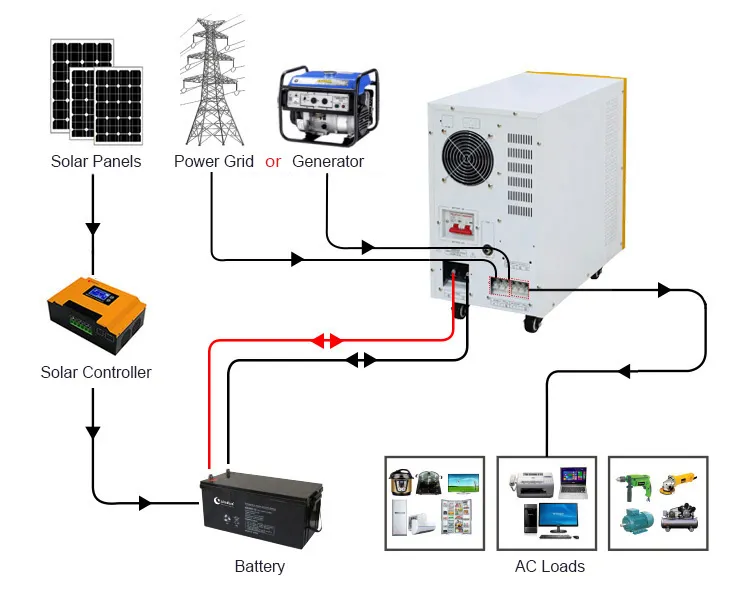

🔌 Wiring Diagram

700W~1500W

2KW~3.5KW

4KW~7KW

8KW~12KW

15KW~25KW

30KW~40KW

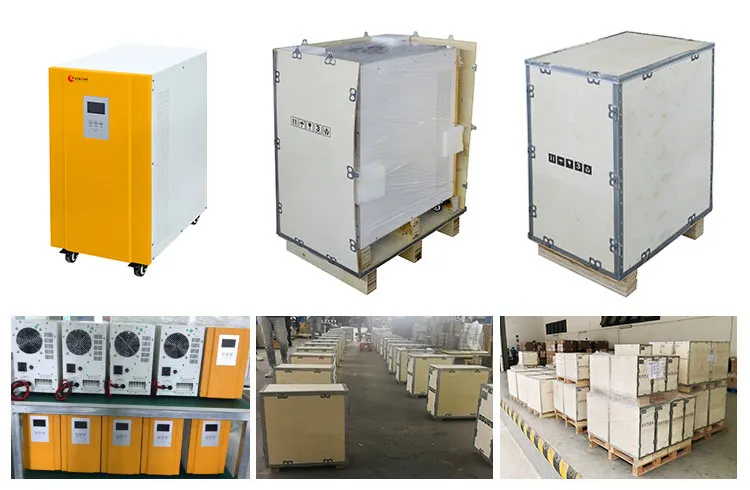

📦 Packing & Delivery

Package Details

Standard Carton Box for general packaging. For samples, a Wooden Box is advised to ensure maximum protection during transportation.

Shipping Methods

Express: FedEx/DHL/TNT/UPS for door-to-door samples.
Freight: By air or sea for batch goods.
Custom: Flexible options for customer-specified freight forwarders.
Time: ~7 days for samples; 10-25 days for batch orders.

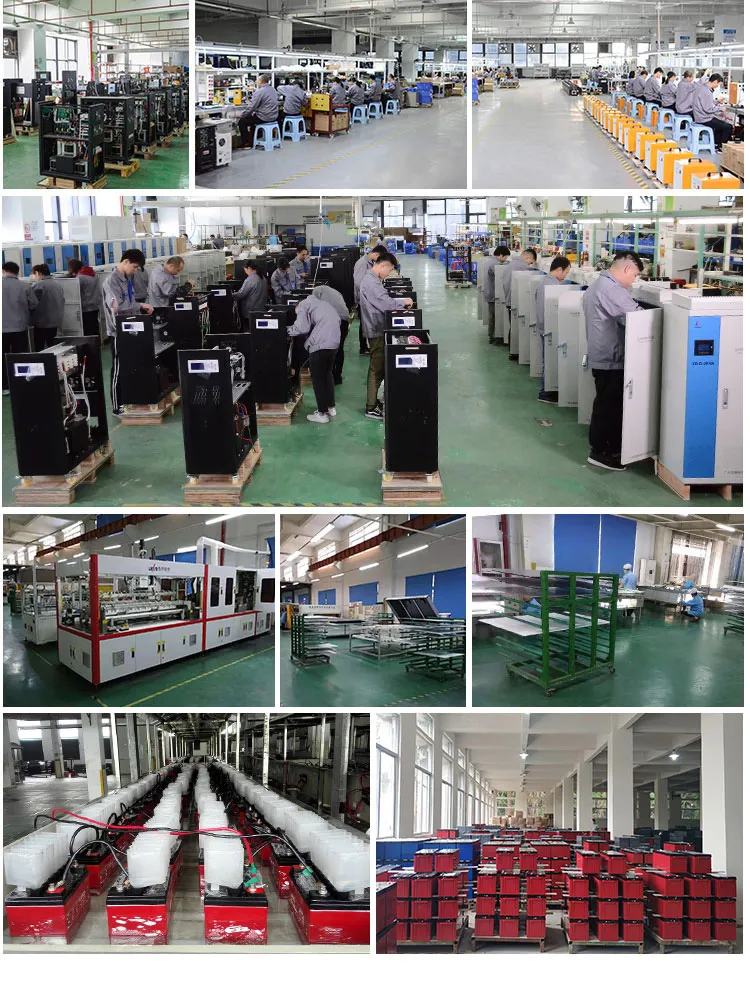

🏭 Workshop & Production

Frequently Asked Questions

What is the advantage of a Pure Sine Wave inverter?

Pure sine wave inverters provide high-quality electricity, similar to the utility grid. This ensures that sensitive electronics and appliances run smoothly, with less noise and heat, and extends their lifespan compared to modified sine wave inverters.

Can this inverter support different types of batteries?

Yes, it is compatible with Lithium, Lead-Acid, Gel, and other battery types. Users can also customize charging and discharging parameters via the operation panel.

How does the "Energy Saving Mode" work?

In Energy Saving Mode, the inverter reduces its no-load loss to ≤10W, significantly improving efficiency when there is no active demand from appliances.

Does the system protect against grid fluctuations?

Yes, it features a frequency adaptive function and wide AC input voltage ranges (e.g., 145VAC~275VAC for 220VAC systems) to adapt to tough electricity situations.

What is the transfer time between Battery and AC mode?

The typical transfer time is extremely fast, at ≤4ms, ensuring that most electronic devices continue to operate without interruption during power shifts.

Can I monitor the inverter status remotely?

Yes, the inverter supports optional RS485 communication ports and APP connectivity for WiFi or GPRS monitoring, allowing you to track operation states in real-time.
