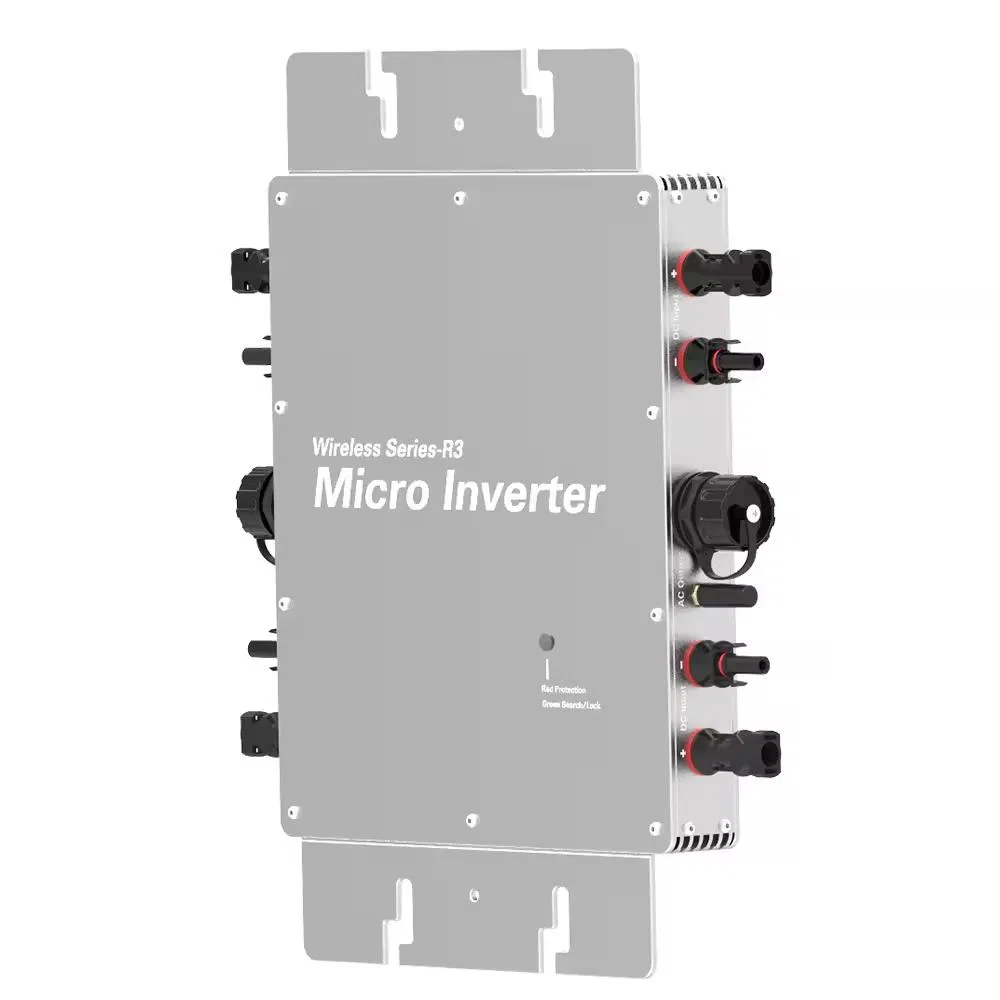

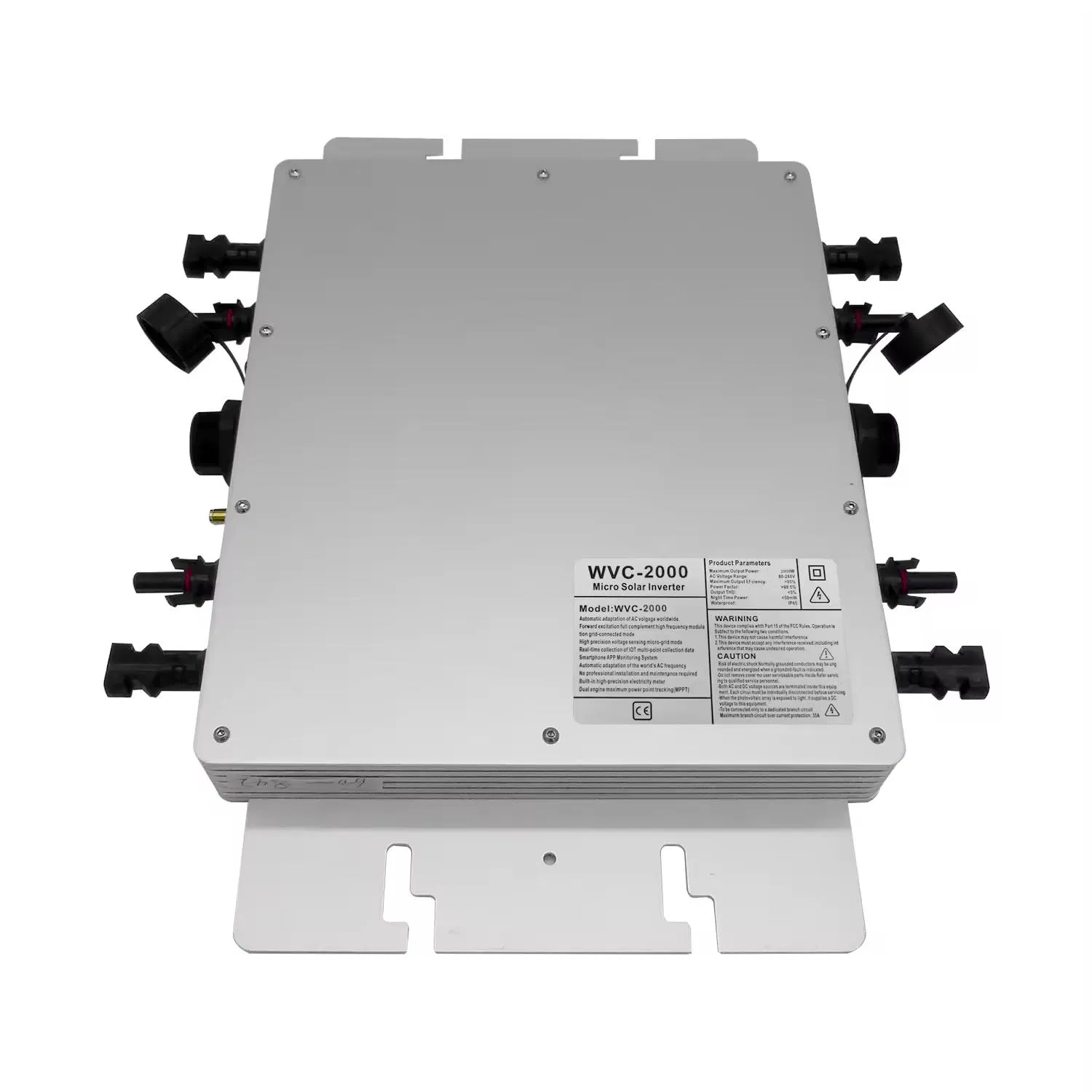

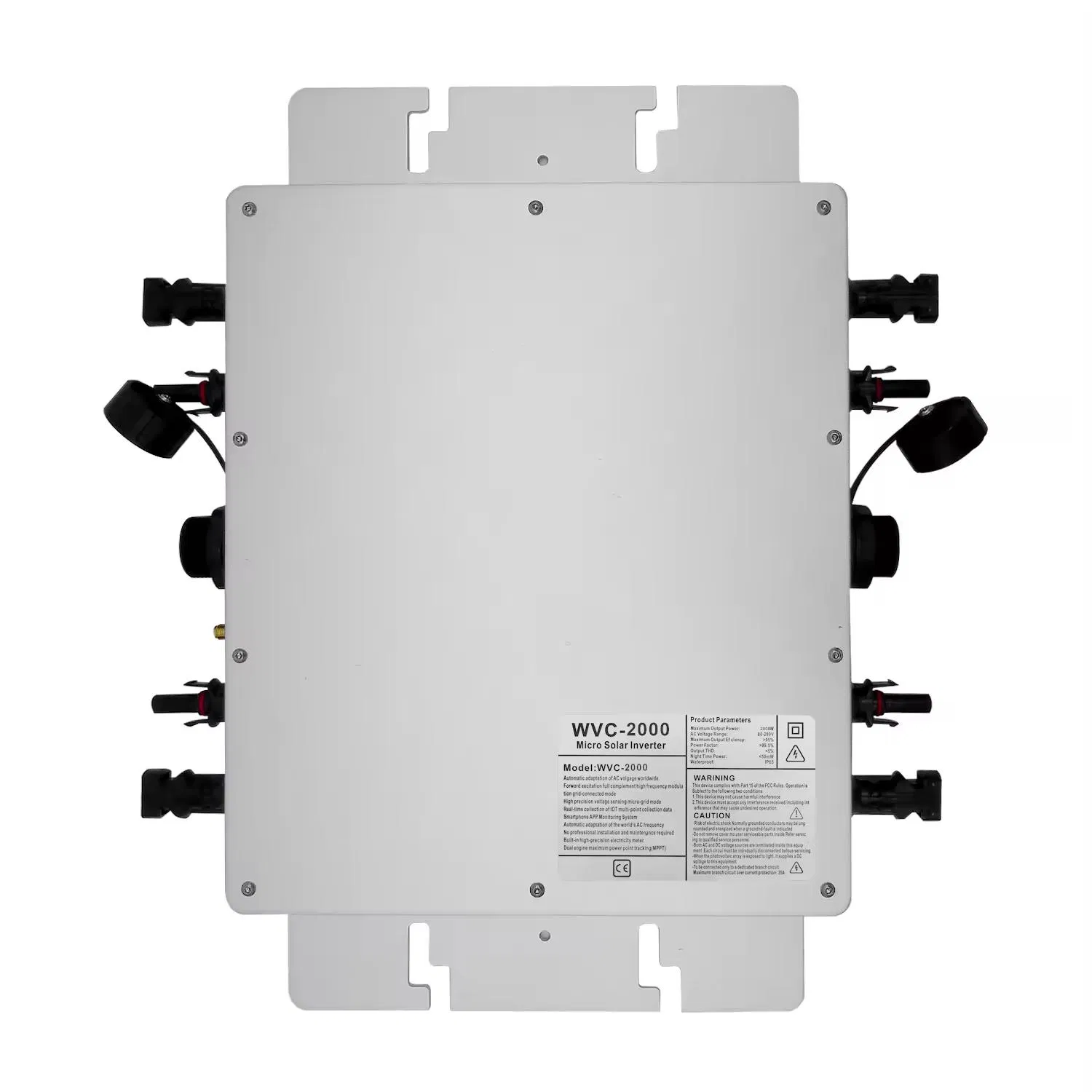

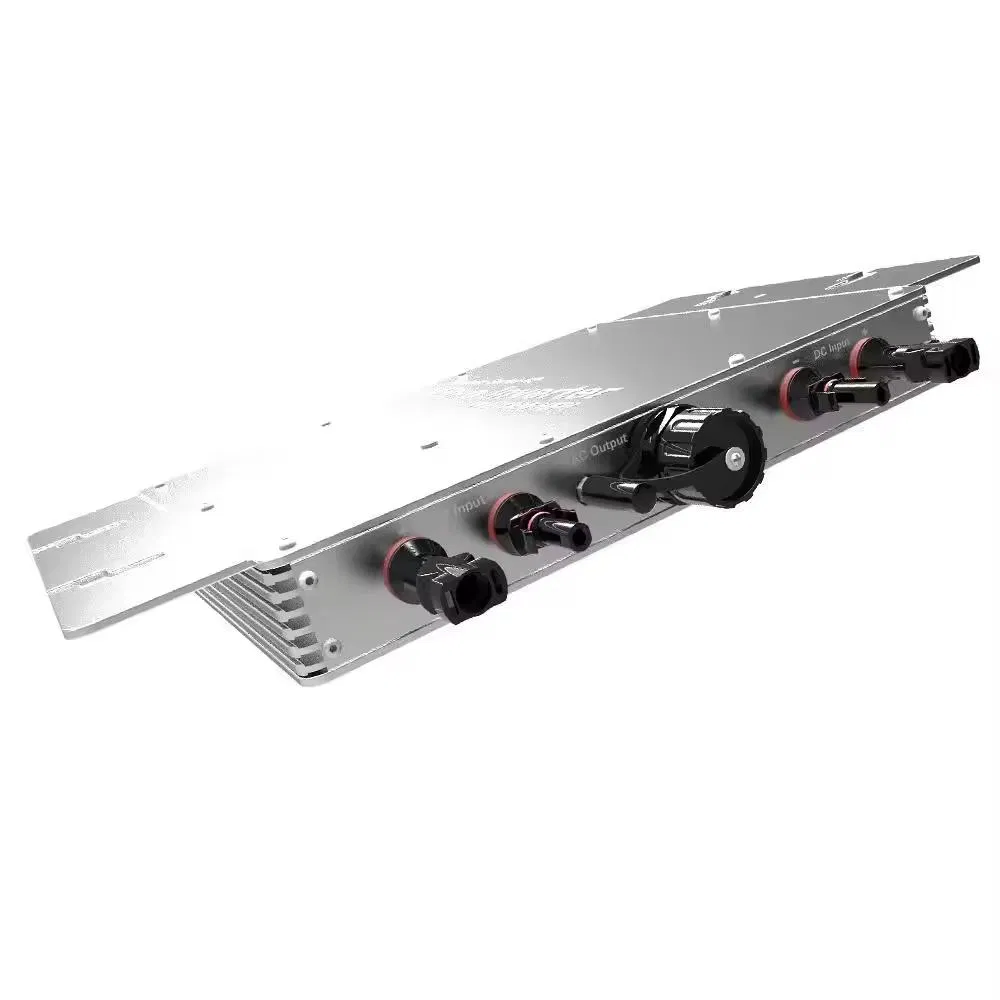

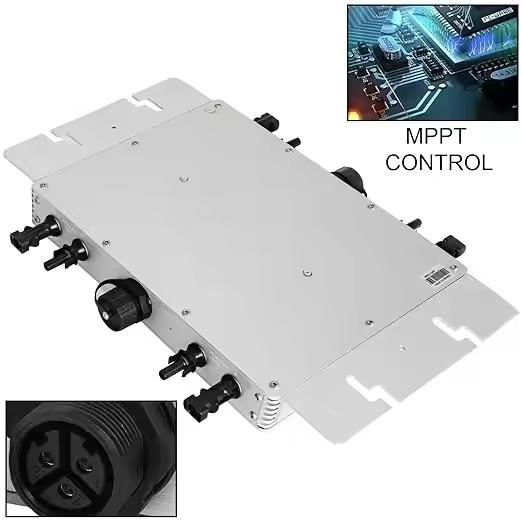

Cheap Golden Supplier Solar Micro Inverter System 2000W Deye Micro Inverter 2000W

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

📊

Basic Specifications

Model NO.
WVC-2000
Nature of Source Flow
Passive inverter
Phase
Single
Output Power
>1000W
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Recommend Use Panels
4*875watt
Output Voltage Mode
120/230V Auto Switch
PV Open Circuit Voltage
30-54voc
Operating Voltage Range
22-60V
Maximum Working Current
4*27A
Net Weight
3.0kg
Specification
370*300*41.6mm
🔍

Product Overview

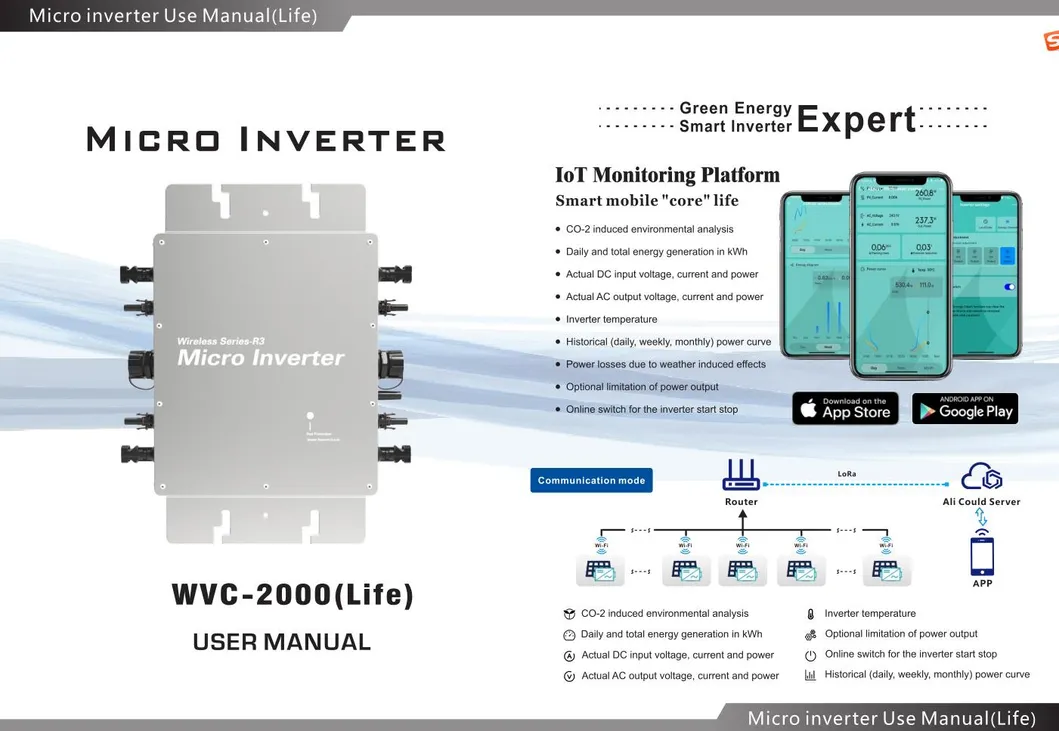

Solar Micro Inverter 2000W

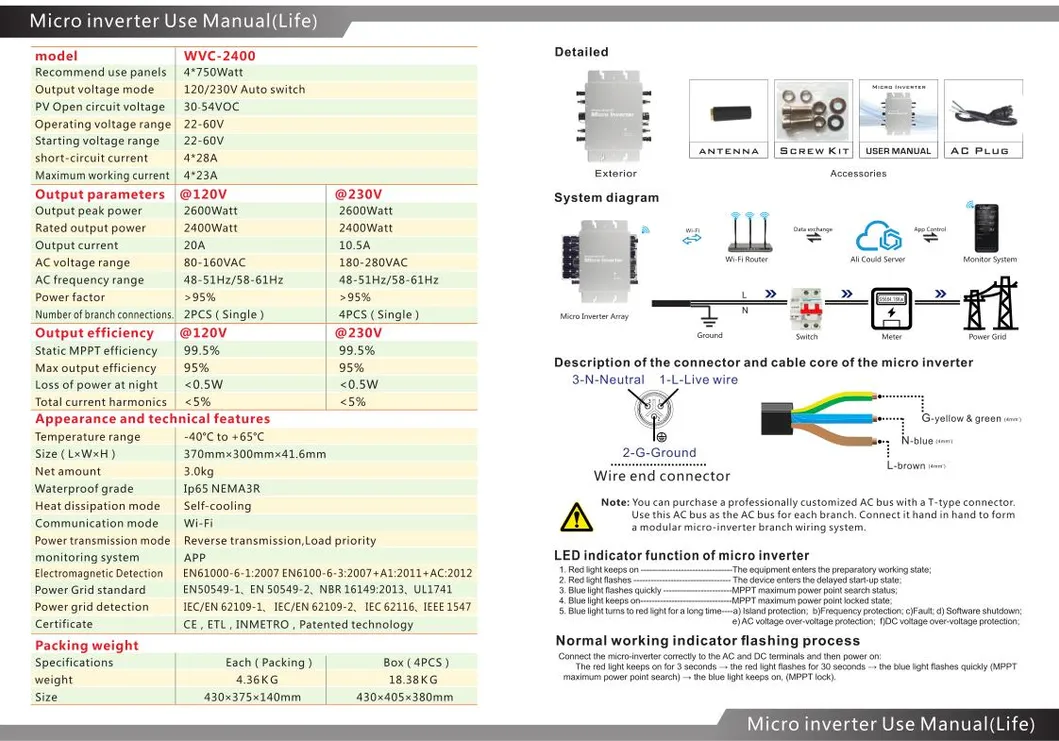

Solar Micro Inverter System

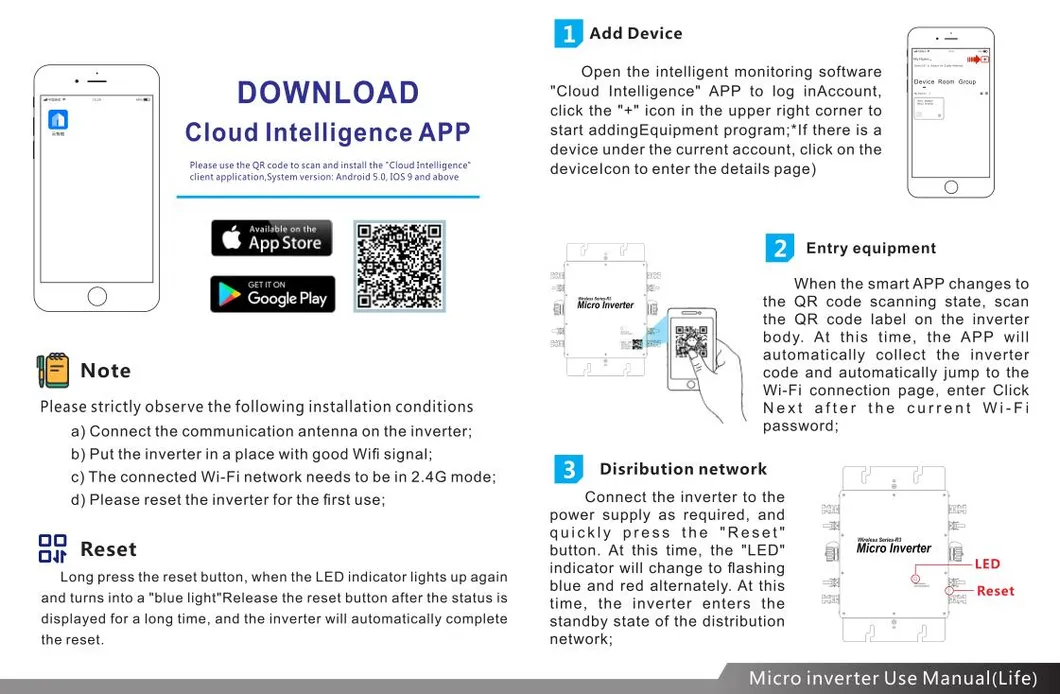

Inverter Detailed View

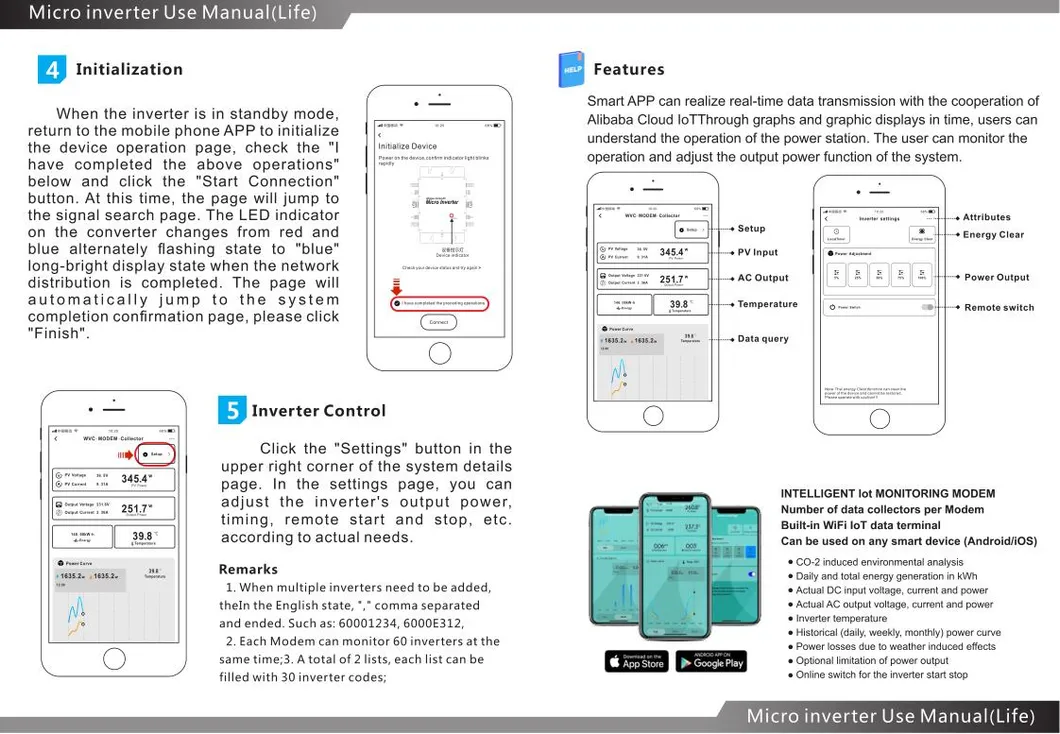

Inverter Component

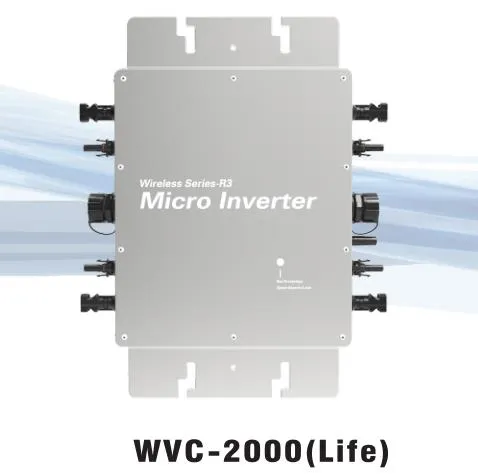

Micro Inverter Close-up

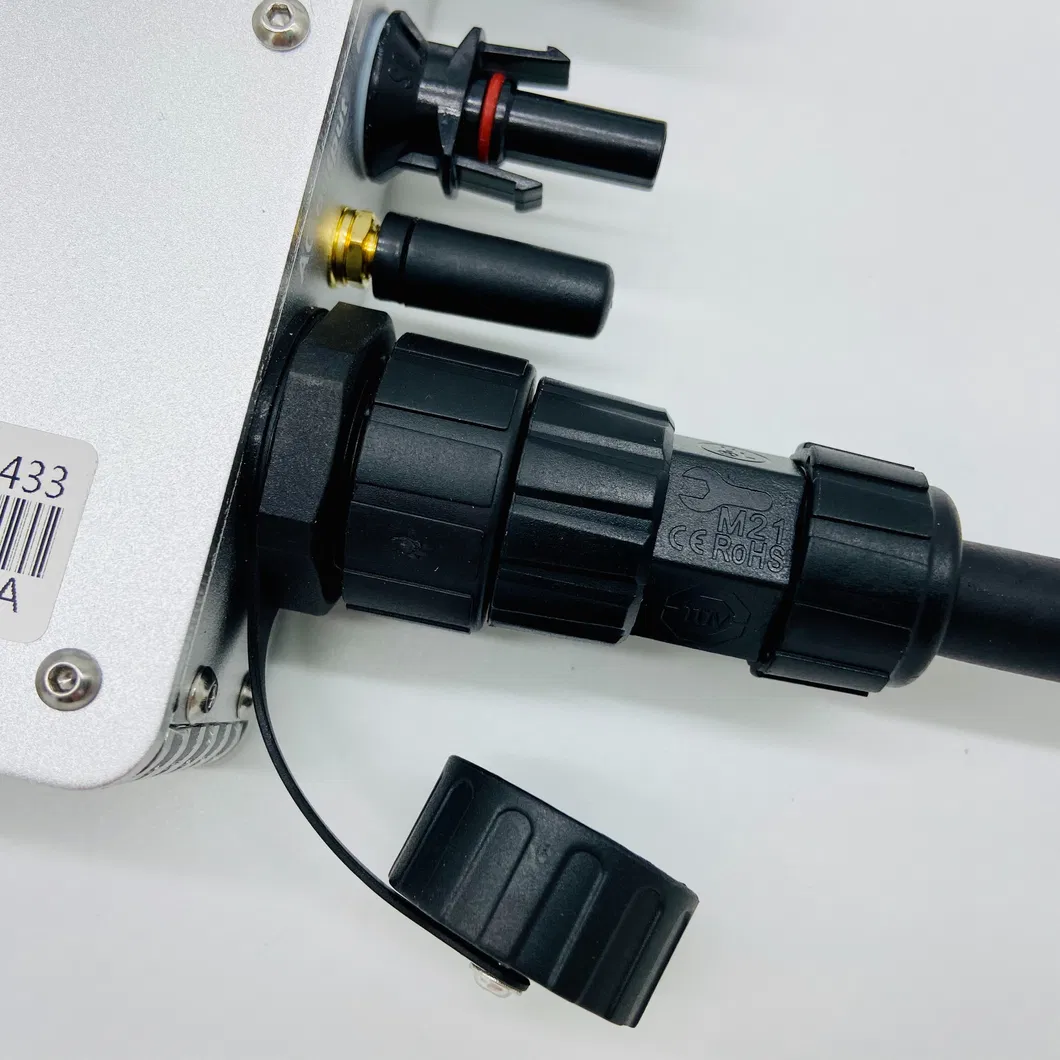

Inverter Interface
⚙️

Technical Details

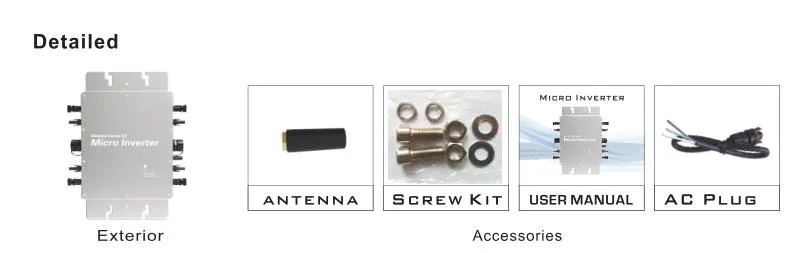

Detailed Schematic 1

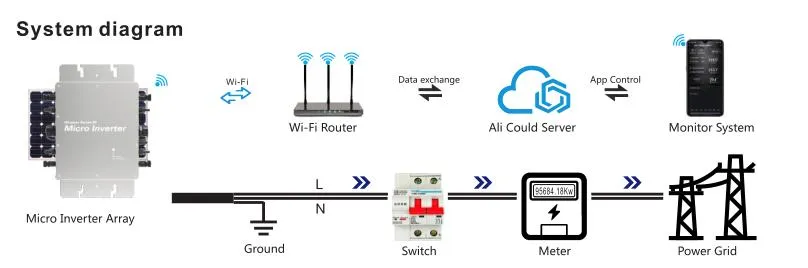

Detailed Schematic 2

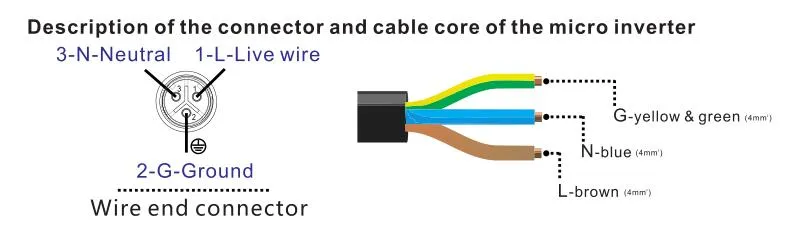

Detailed Schematic 3
📋

Output Parameters

Parameter @120V @230V
Output Peak Power2200W2200W
Rated Output Power2000W2000W
Output Current16.6A8.7A
AC Voltage Range80-160VAC180-280VAC
AC Frequency Range48-51Hz/58-61Hz48-51Hz/58-61Hz
Power Factor>95%>95%

Efficiency & Performance

Efficiency Metric @120V @230V
Static MPPT Efficiency99.5%99.5%
Max Output Efficiency95%95%
Loss of Power at Night<0.5W<0.5W
Total Current Harmonics<5%<5%
📦

Packaging & Shipping

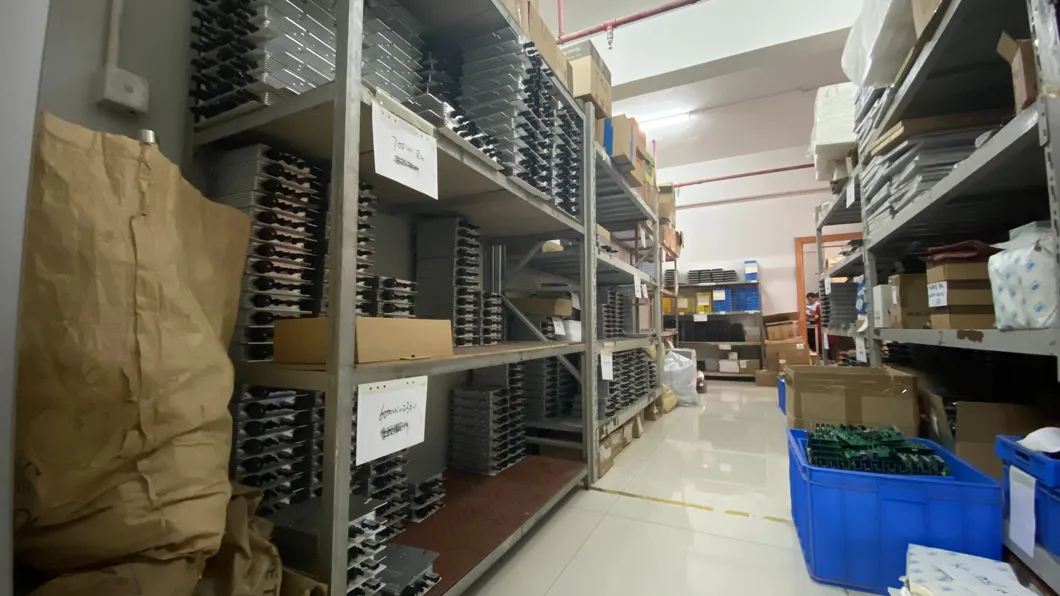

Packaging Box
Packaging Internal
Shipping Logistics
Delivery Process

Frequently Asked Questions

What is the lifespan of a photovoltaic power generation system?
The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. However, the actual lifespan depends on usage and maintenance conditions.
How much maintenance do photovoltaic power generation systems require?
Maintenance is relatively simple. Regularly clean the photovoltaic panels and check the system's operating status. Professional maintenance services are also available for optimal performance.
How much will I save on electricity bills after installing a photovoltaic system?
The amount saved depends on the system scale, generation efficiency, and your local electricity usage. Generally, these systems significantly reduce monthly electricity expenses.
What types of buildings are suitable for solar micro inverter systems?
They are suitable for various structures, including residential, commercial, and industrial buildings. The key requirement is a location with sufficient sunlight exposure.
Can these systems be combined with battery energy storage?
Yes, photovoltaic systems can be integrated with energy storage solutions like batteries to improve energy utilization and ensure a stable power supply during non-sunny periods.
Are photovoltaic power generation systems environmentally friendly?
Absolutely. They use clean, renewable solar energy to generate electricity, which helps reduce greenhouse gas emissions and minimizes environmental impact.
