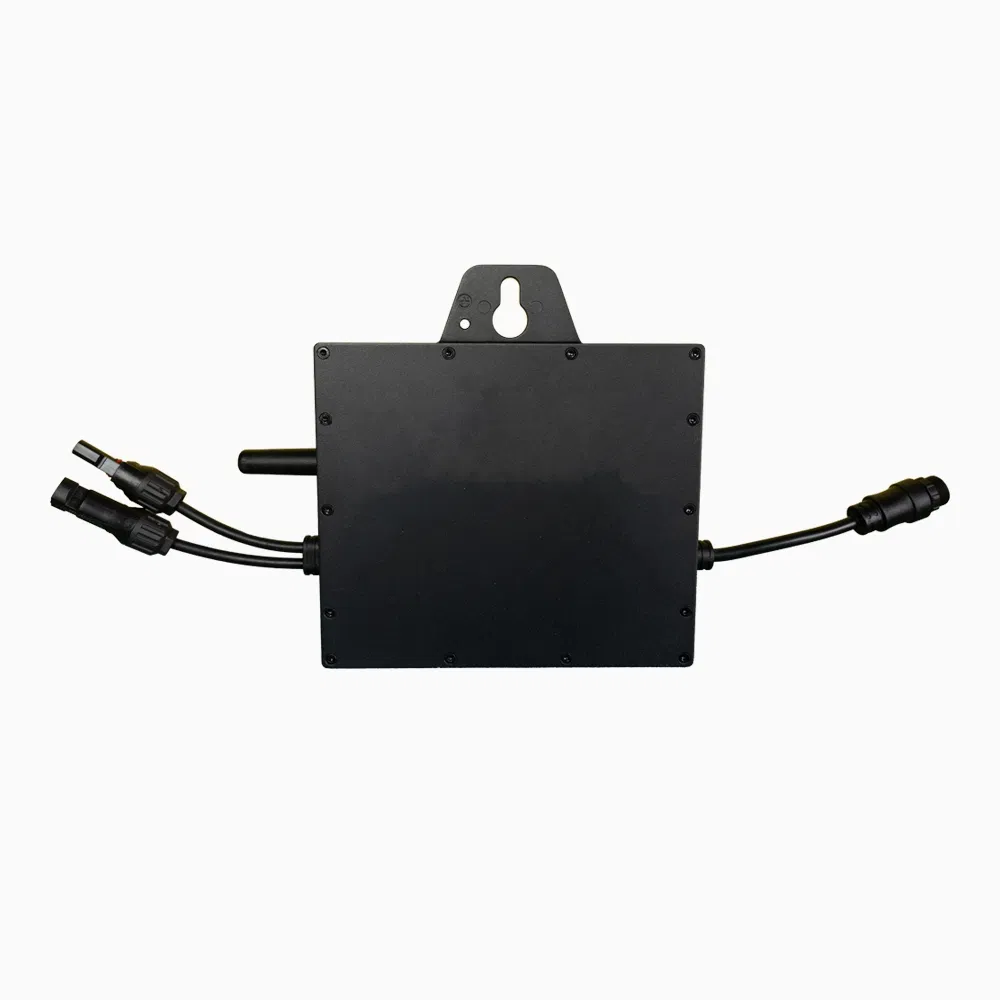

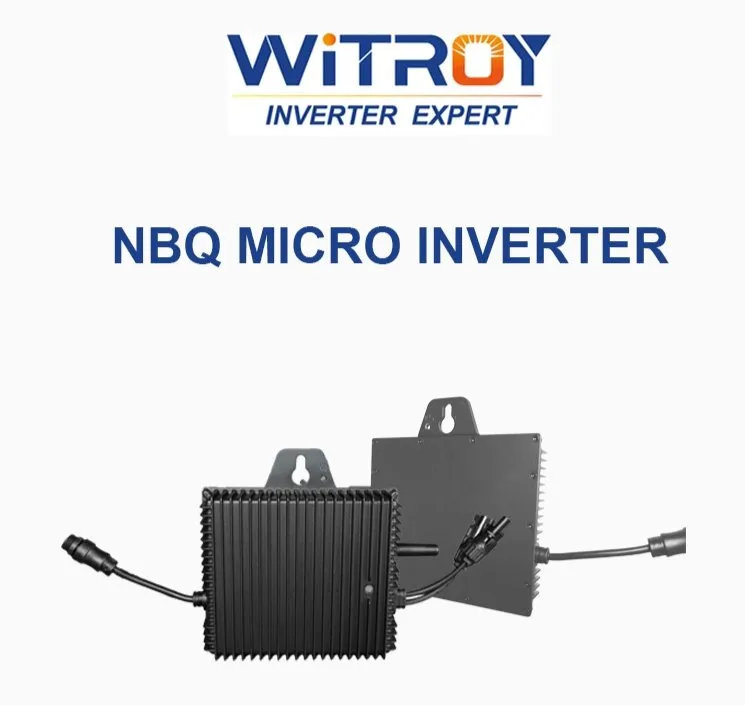

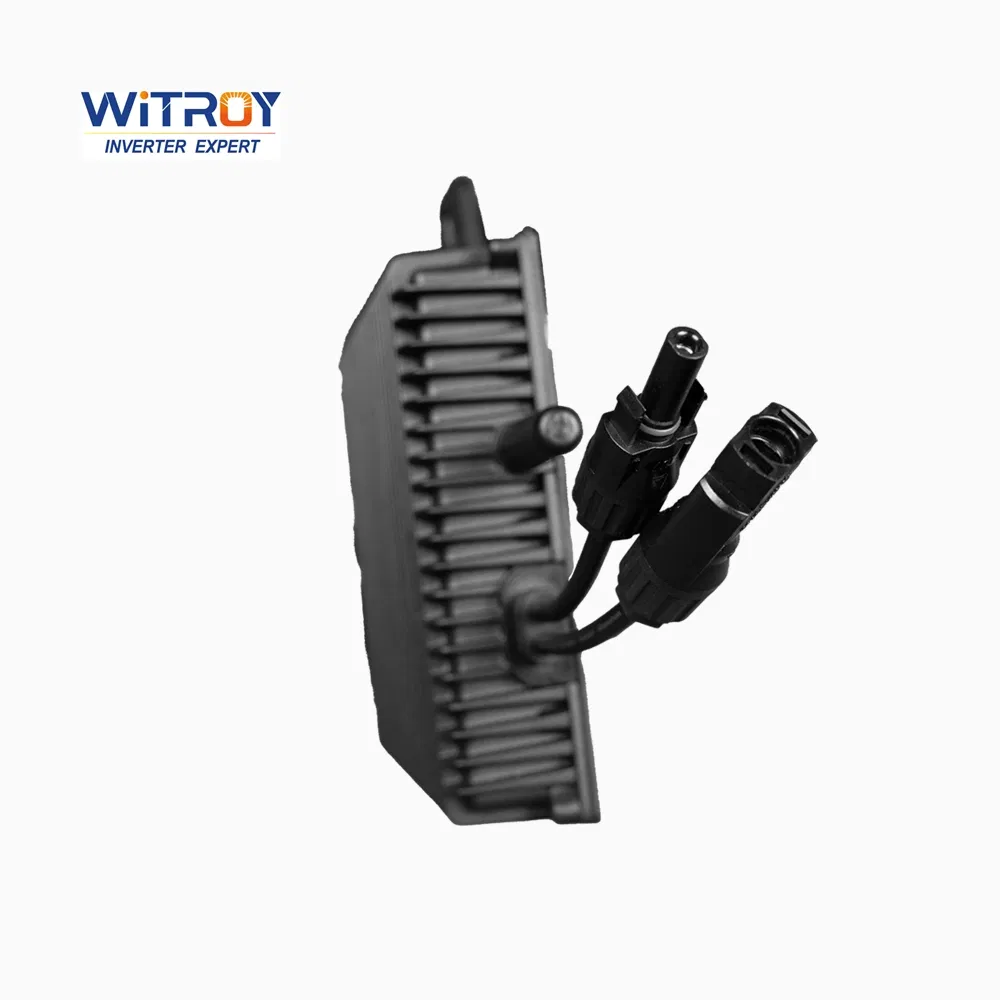

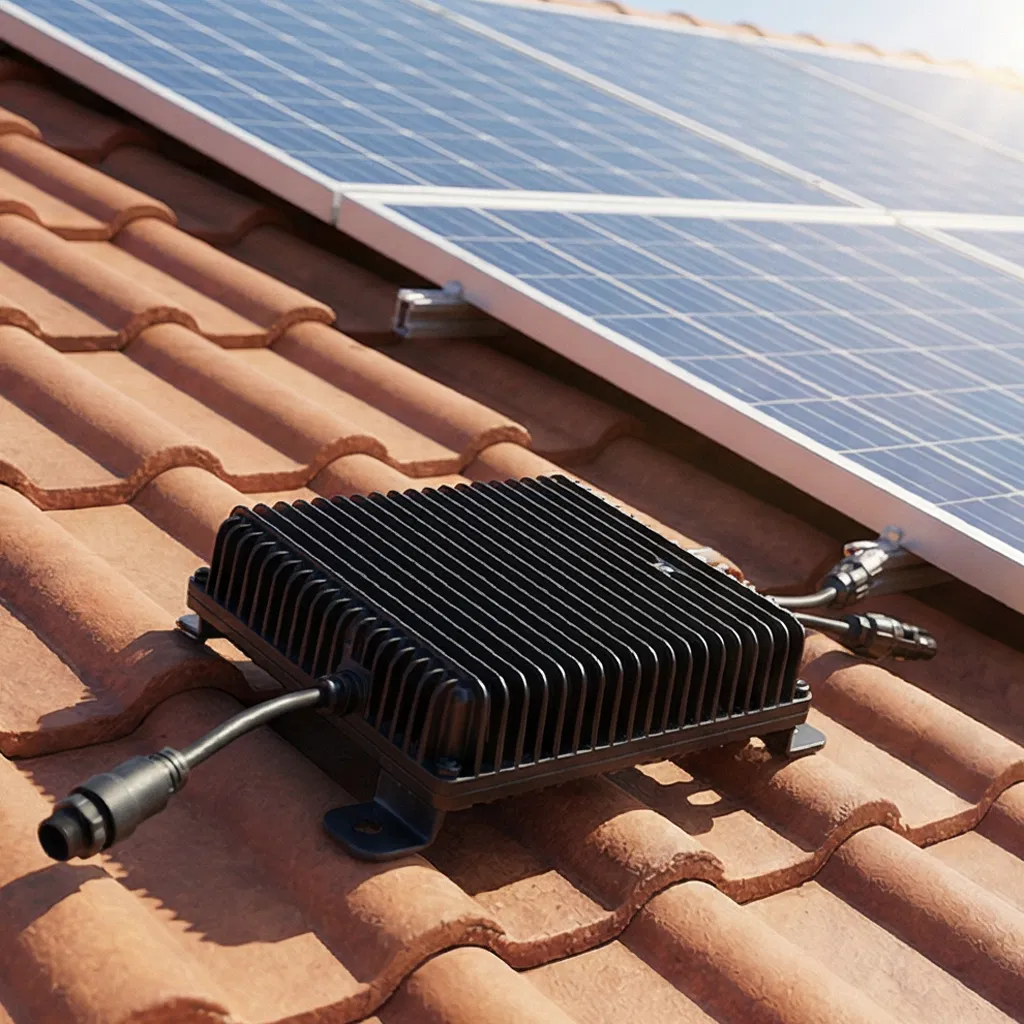

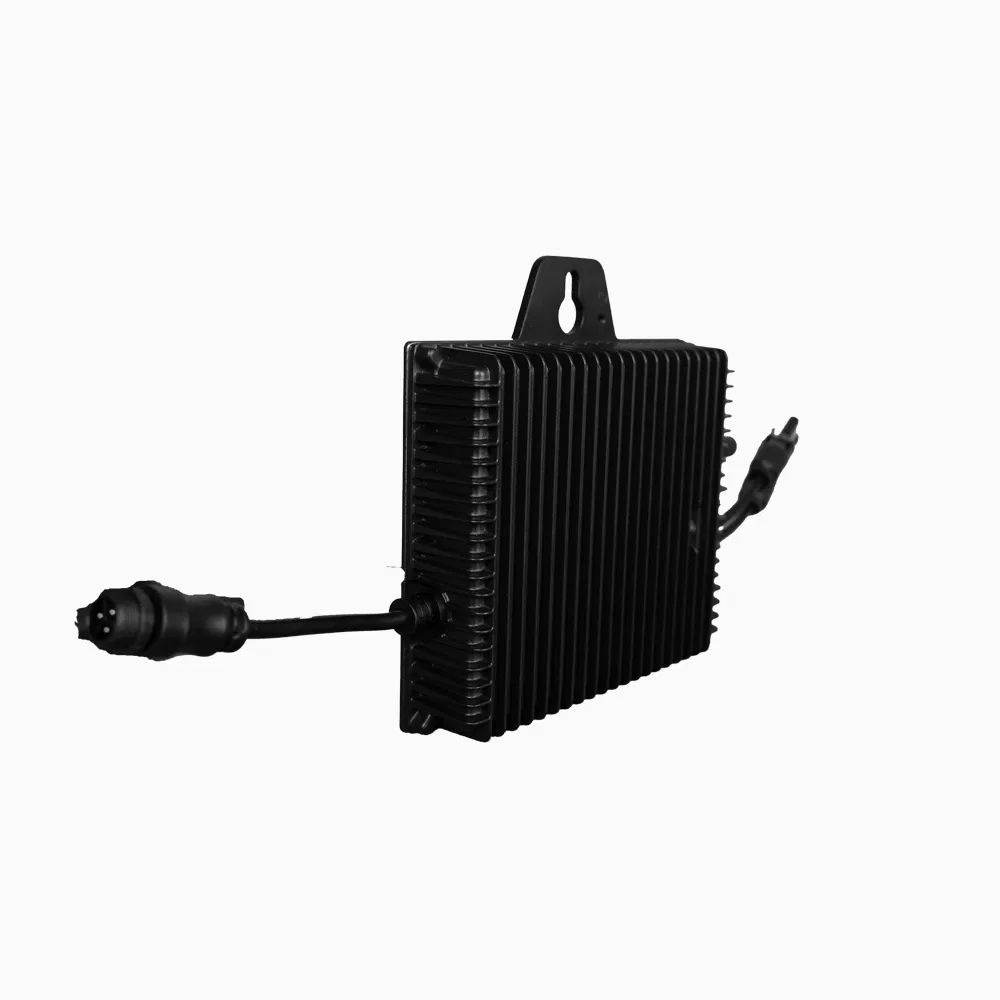

Boost your solar gains with the WBQ Series EU micro inverters (400-2000VA)!
Flex 1/2 MPPTs for uneven light, lock in 96.5% peak efficiency (more power = more profit), and rely on IP67 waterproofing + natural cooling for zero-fuss outdoor durability. Wi-Fi/Bluetooth lets you monitor remotely—CE/VDE-certified, ideal for grid-tied PV setups.
Resists outdoor moisture and dust for long-term reliability.
Boosts power generation efficiency under uneven light conditions.
96.5% peak efficiency + less than 50mW night power loss.
2.4G Wi-Fi + Bluetooth for cloud and local app monitoring.
Maintenance-free and low-noise for outdoor operation.
Complies with EN50549/VDE/CE standards for direct access.

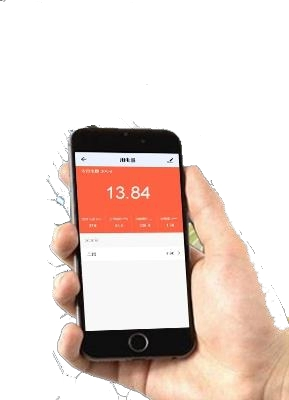

1. DOWNLOAD APP

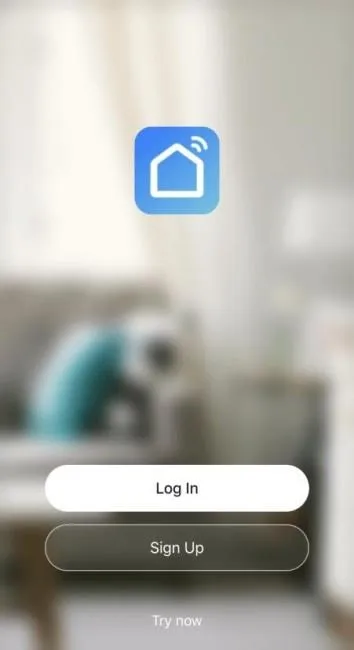

2. REGISTER & LOG IN

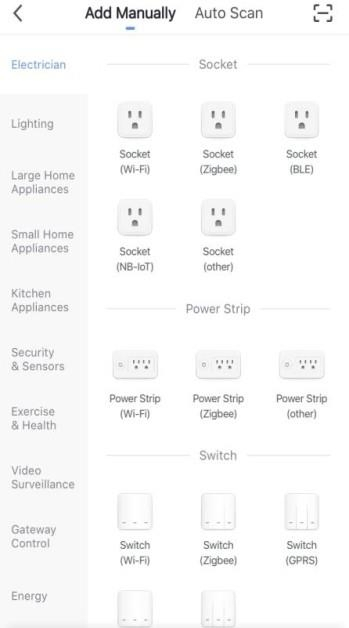

3. SELECT WIFI BUTTON
| Model: NBQ600-EU | |
| Input Data (DC) | |
| Module Power (W) | 275~530W * 1 |
| Maximum Input Voltage (V) | 60V |
| MPPT Voltage Range (V) | 22-55V |
| Working Voltage Range (V) | 16-60V |
| Number of MPPTs | 1 |
| Output Data (AC) | |
| Rated Output Power (VA) | 400W |
| Nominal Output Voltage | 230V |
| Frequency Range | 50/60 Hz |
| Total Harmonic Distortion | < 5% |
| Mechanical & Efficiency | |
| Peak Efficiency | 96.5% |
| IP Grade | IP67 |
| Operating Temperature | -40℃ to +65℃ |
| Dimensions (W*H*D) | 181*193*38.5mm |
| Weight | 2.54 kg |
