Energy you can trust
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year.
Plug-and-play design, ready to get your solar ecosystem running sooner.
Configure microinverters to match your installation and layout.
Low failure rates and built-in surge protection.
Compliant with standards like EN50549-1:2019.
Looking to go off grid and power your house with a solar energy system? If you plan on using appliances and lights that use AC (Alternating Current) electricity, you will need an off-grid inverter. Solar panels convert sunlight directly into DC electricity, which is then stored in deep cycle batteries. In an off-grid solar system it's the job of a solar inverter to convert the DC electricity to AC electricity.

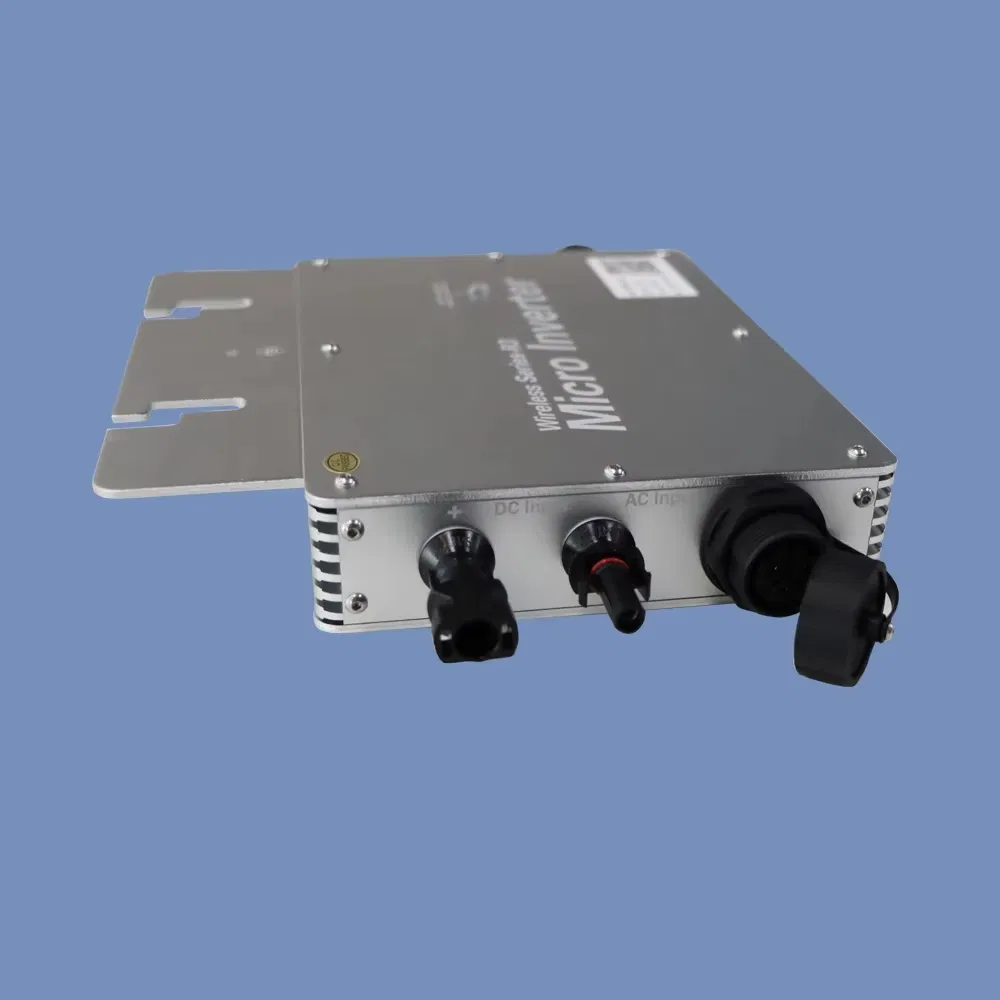

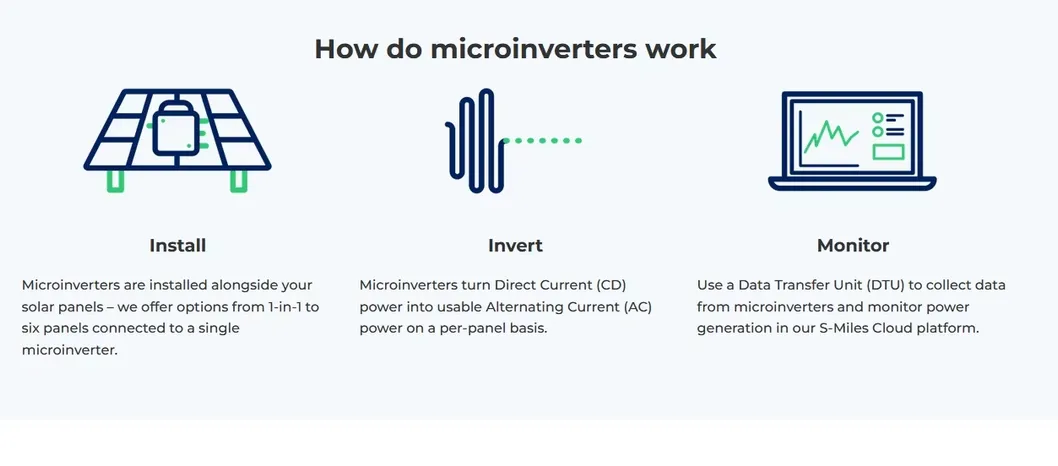

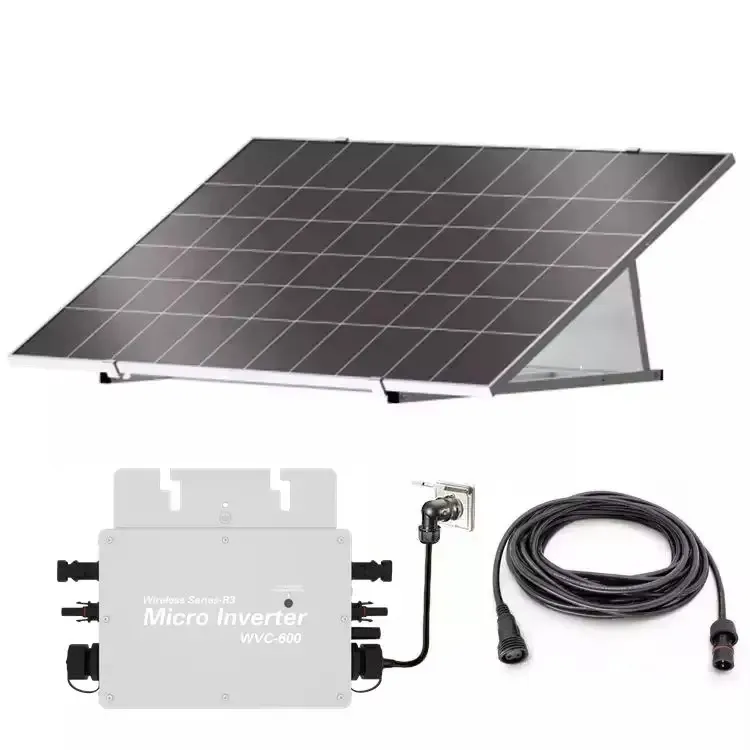

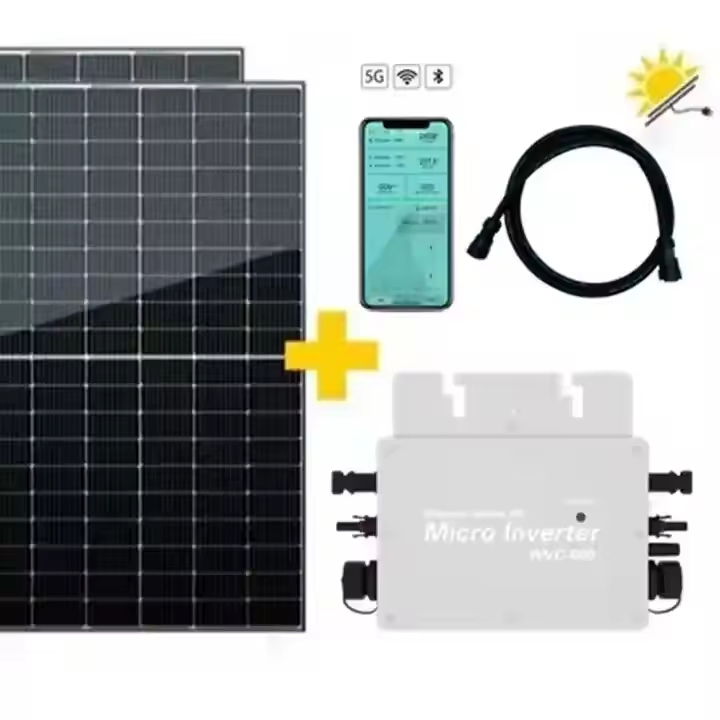

Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. Get frustration-free, long-lasting performance with simple installation, premium quality and low failure rates.

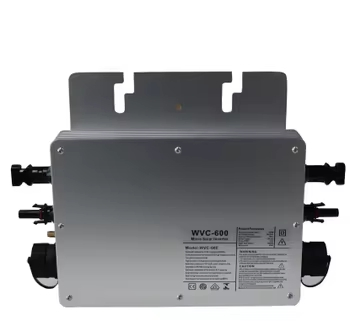

| Model# | WVC-600 |
| Input Data (DC) | |
| Recommended module power (W) | Max 2*375W |
| Peak power MPPT voltage range (V) | 30~60 |
| Start-up voltage (V) | 22 |
| Operating voltage range (V) | 22~60 |
| Maximum input voltage (V) | 60 |
| Maximum input current (A) | 2×12 |
| Nominal MPPT efficiency | 99.8% |
| Output Data (AC) | |
| Rated output power (VA) | 600 |
| Rated output current (A) | 5@120v / 2.6@230v |
| Nominal output voltage range (V) | @120v 85-160VAC, @230V 180-265VAC |
| Nominal frequency range (Hz) | 48-51HZ / 58-61HZ |
| Power factor (adjustable) | 0.8 leading…0.8 lagging |
| Maximum units per branch | 6@120v / 12@230v |
