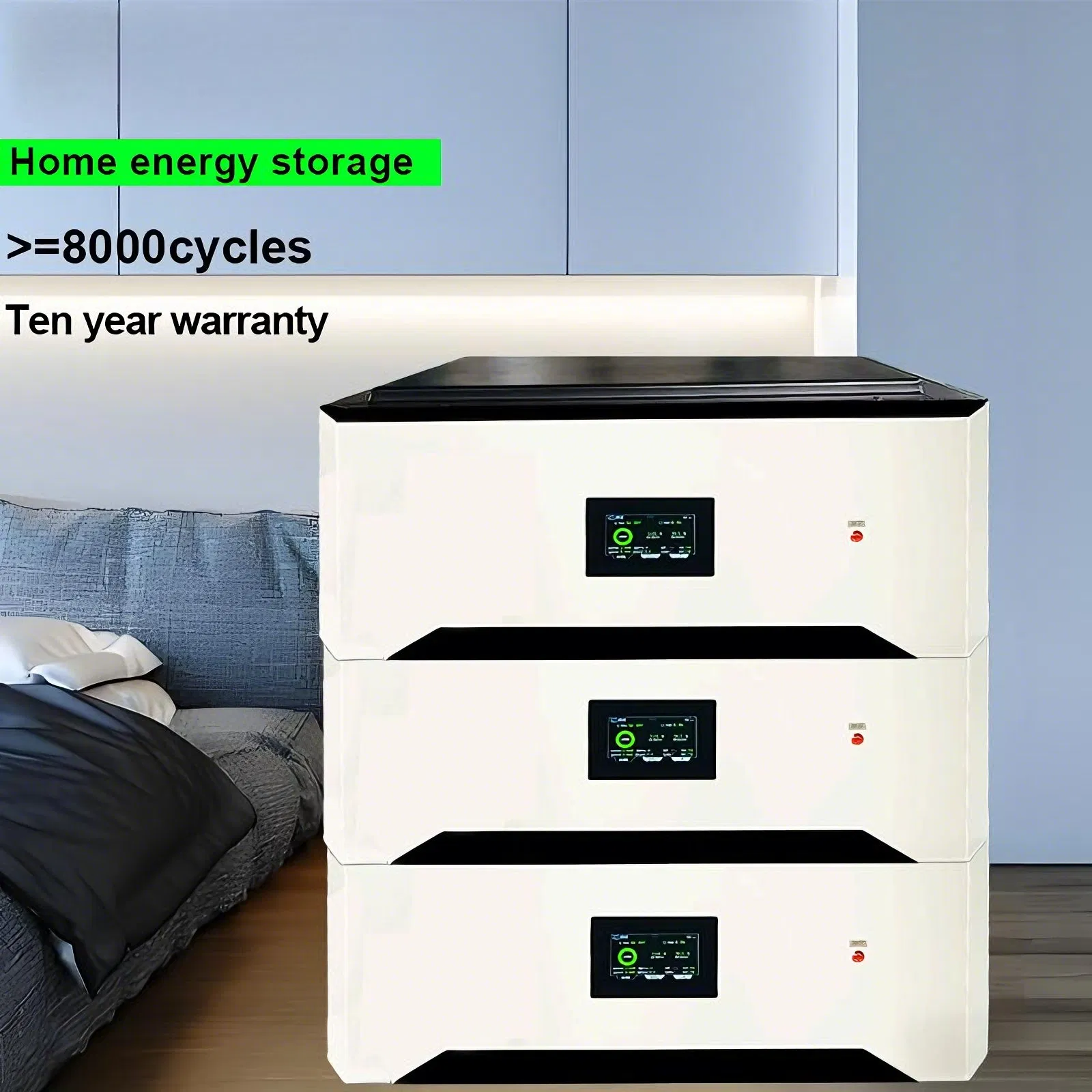

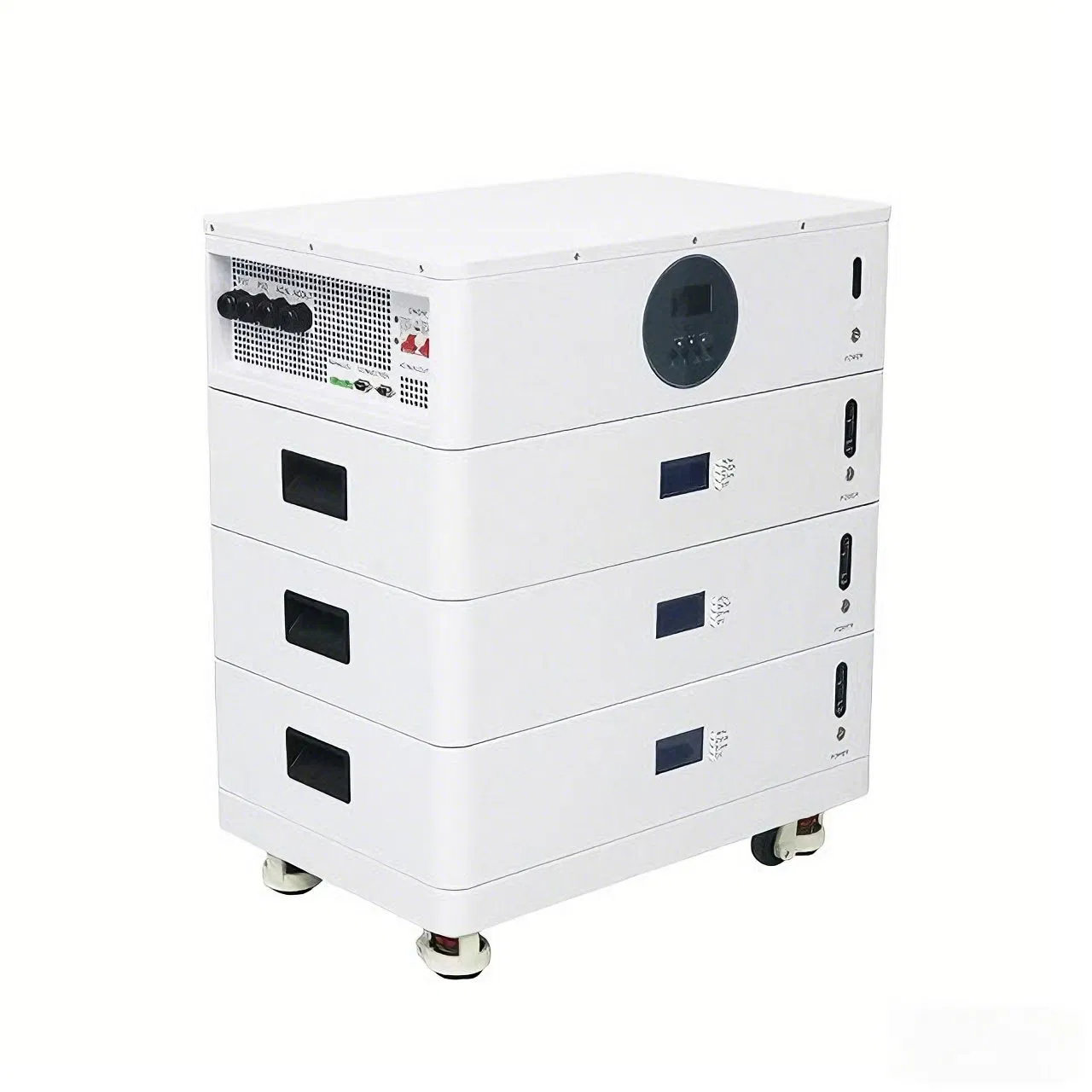

Low Voltage Stack Energy Storage System

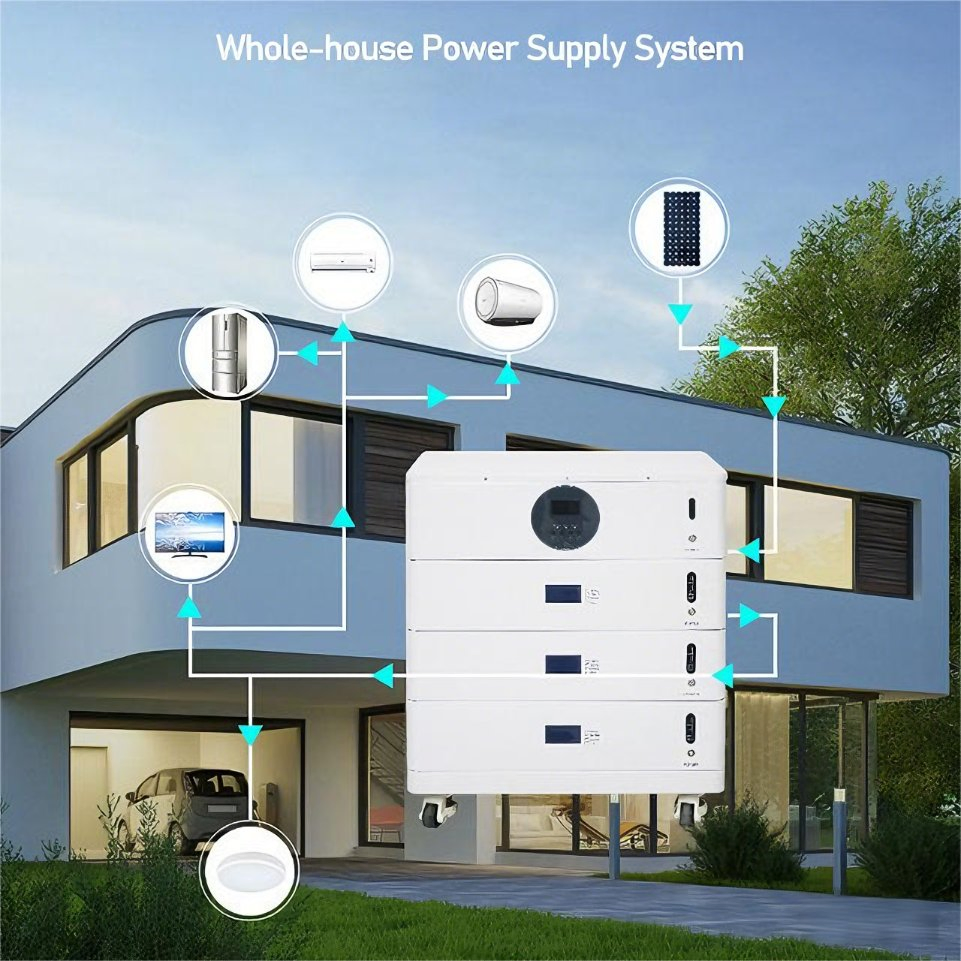

This product adopts a stacked design, flexible expansion, and a beautiful shape. System one-button start, side hidden wiring is convenient for customers to use; Screen direct selection market mainstream inverter protocol, direct communication; Comprehensive and multi-level battery protection strategies and fault isolation measures are adopted to ensure the safe operation of the system, which is widely used in small commercial and home energy storage.

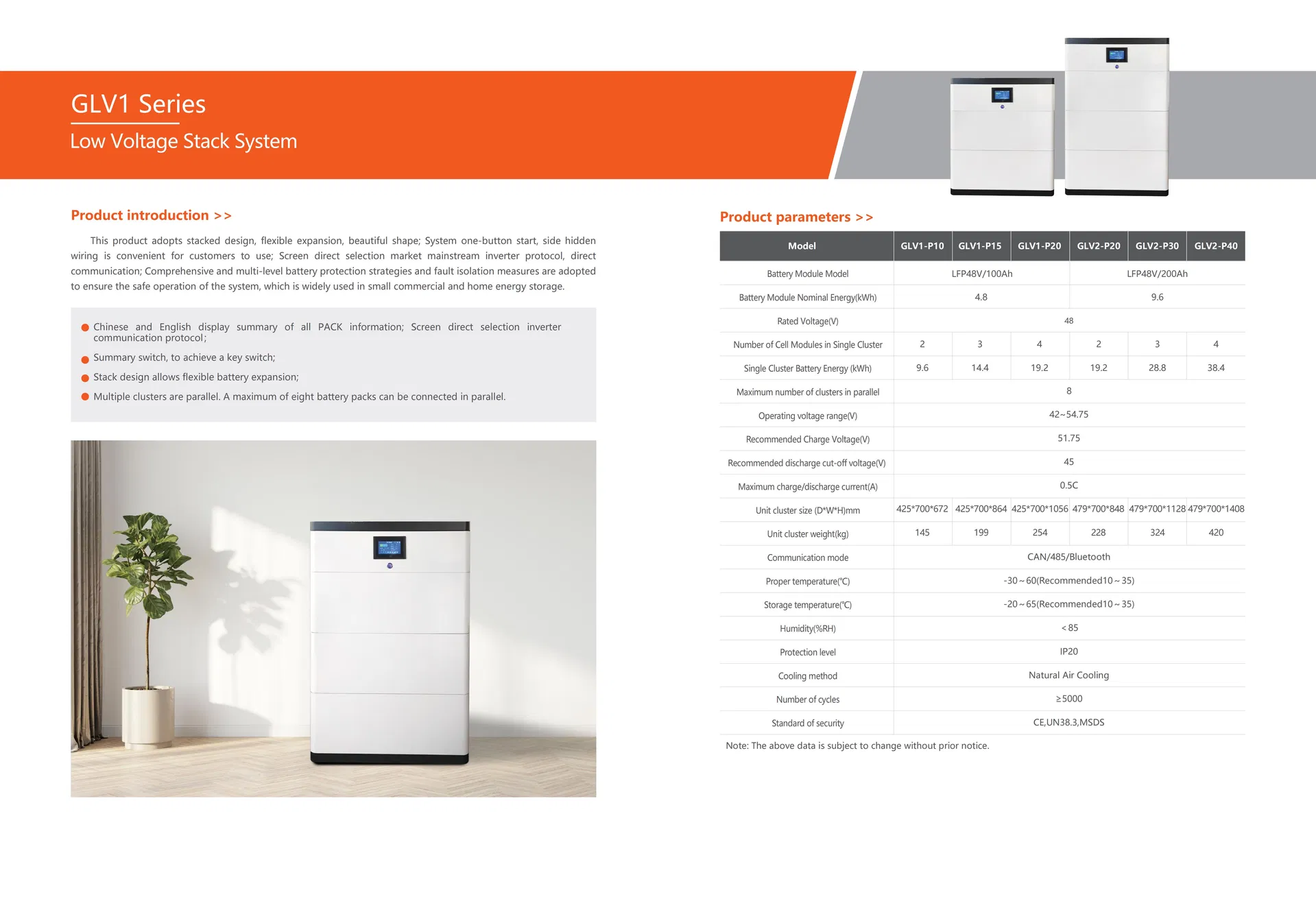

| Low Voltage Stack System Parameters | ||||||
|---|---|---|---|---|---|---|
| Model | GLV1-P10 | GLV1-P15 | GLV1-P20 | GLV2-P20 | GLV2-P30 | GLV2-P40 |
| Battery Module | LFP48V/100Ah | LFP48V/200Ah | ||||
| Energy (kWh) | 4.8 | 9.6 | ||||
| Rated Voltage (V) | 48 | |||||
| Cell Modules per Cluster | 2 | 3 | 4 | 2 | 3 | 4 |
| Single Cluster Energy (kWh) | 9.6 | 14.4 | 19.2 | 19.2 | 28.8 | 38.4 |
| Max Parallel Clusters | 8 | |||||
| Operating Voltage (V) | 42 ~ 54.75 | |||||
| Comm Mode | CAN / 485 / Bluetooth | |||||
| Cycle Life | ≥5000 | |||||
| Certifications | CE, UN38.3, MSDS | |||||
1. Chinese and English display with full PACK information summary; Direct selection of inverter protocols.
2. One-button summary switch for easy operation.

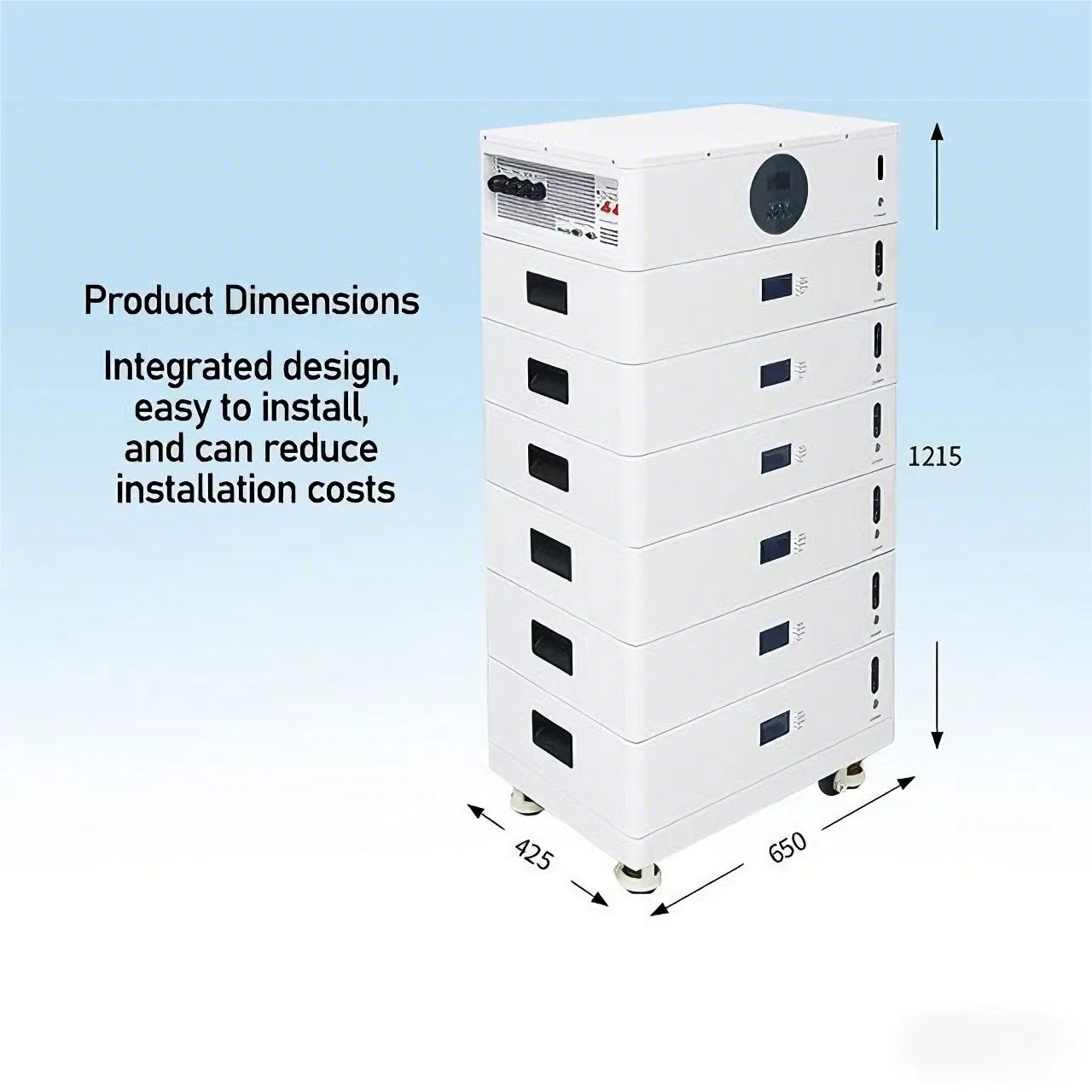

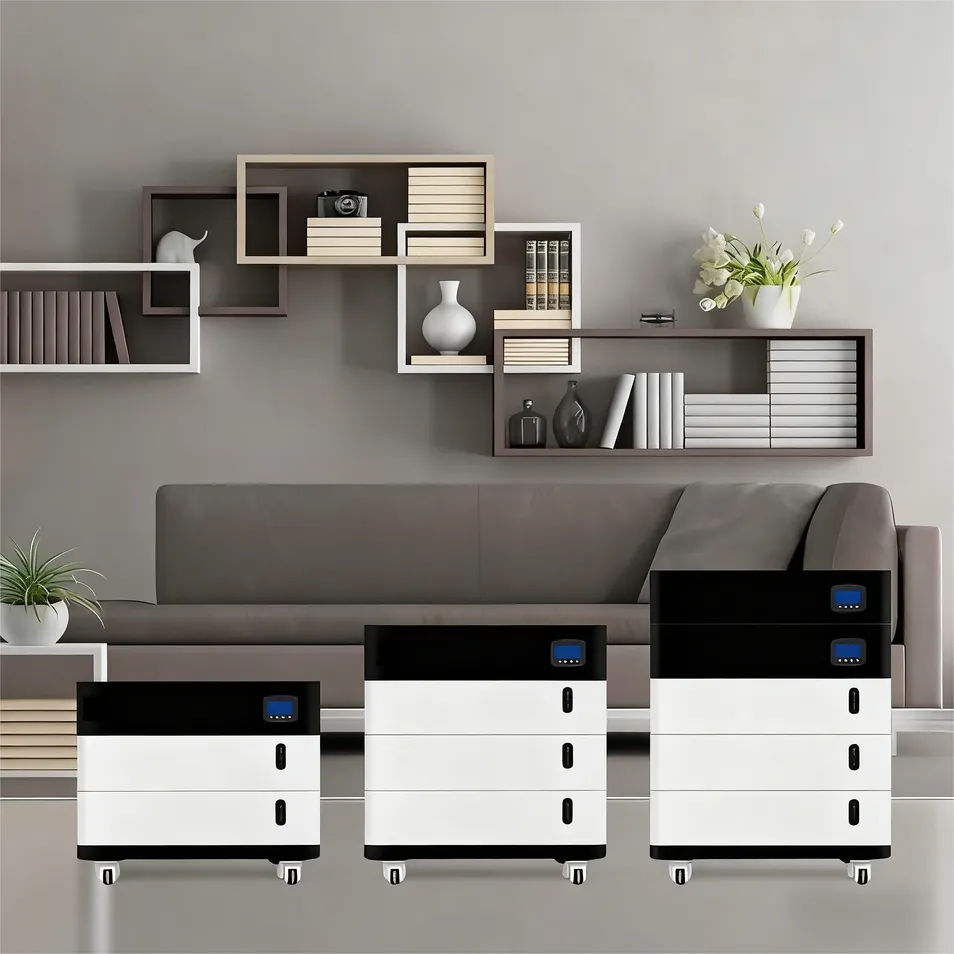

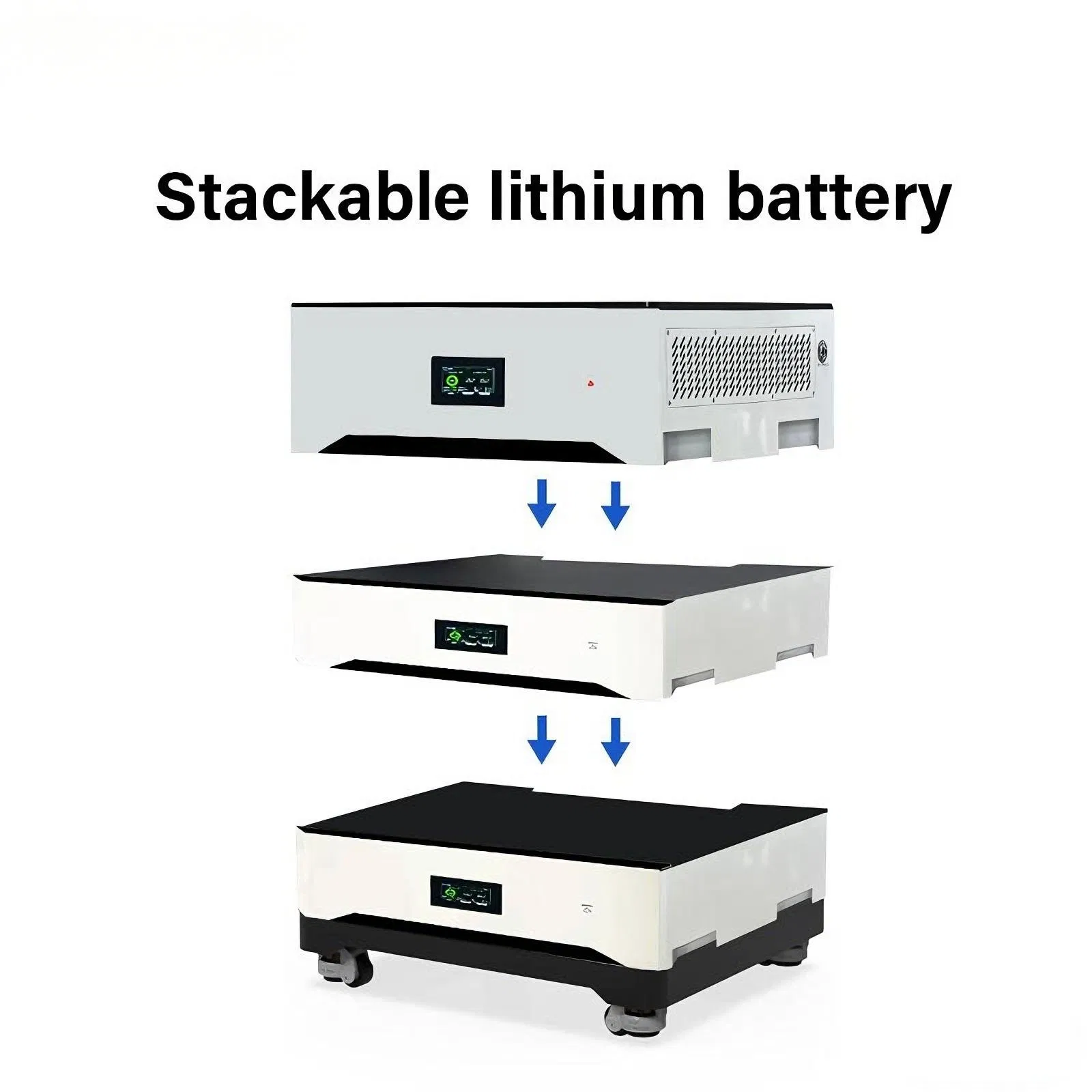

3. Stackable design allows for flexible and modular battery expansion.
4. Supports up to 8 battery packs connected in parallel for high capacity.
5. Wide compatibility with mainstream global inverter brands.
As a clean energy product manufacturer, we provide comprehensive solutions for photovoltaic systems and energy storage applications. Our automated production lines ensure high daily output for solar panels, inverters, and home/commercial energy storage systems.
