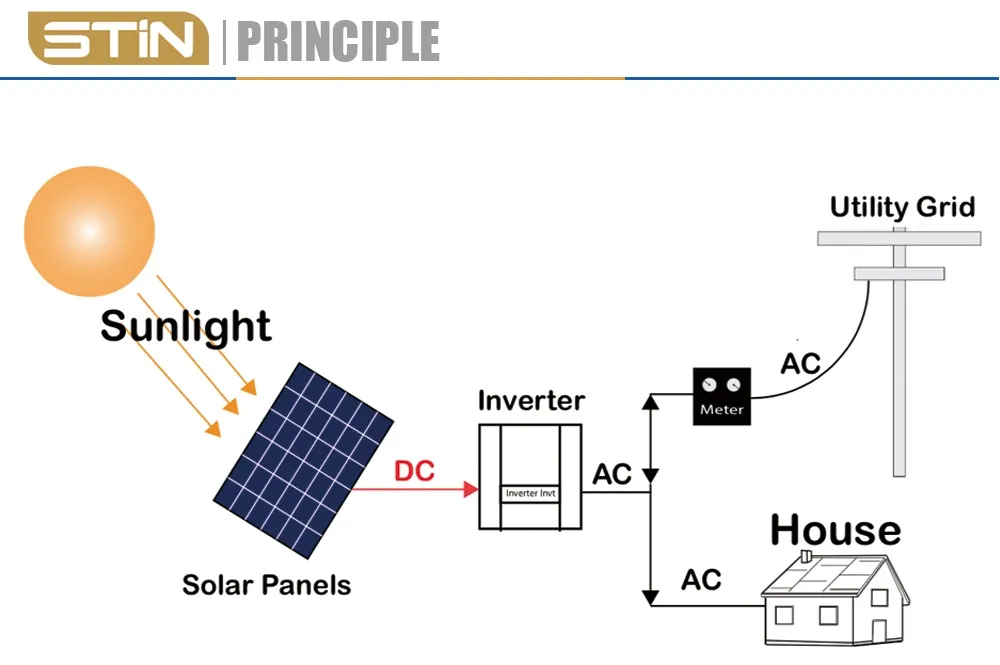

The solar photovoltaic power system connected to the public grid is called an on-grid photovoltaic power generation system. The system structure includes solar battery arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components.
The grid-connected photovoltaic power generation system can convert the DC power output by the solar cell array into AC power with the same amplitude, frequency, and phase as the grid voltage, realizes the connection with the grid, and transmits electricity to the grid. When sunshine is strong, the system supplies the AC load with excess electric energy while feeding it into the grid; when sunshine is insufficient, it obtains electrical energy from the grid.

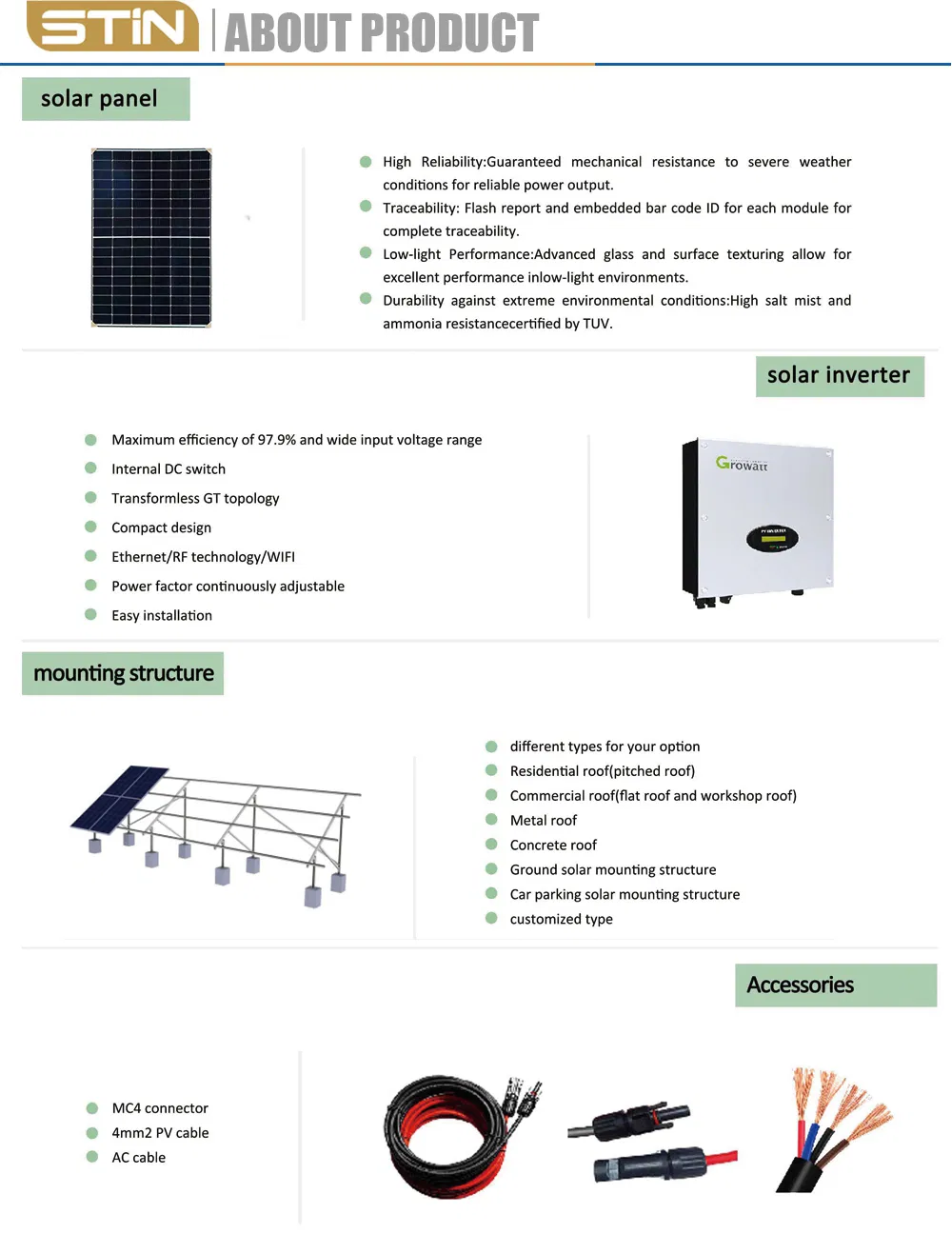

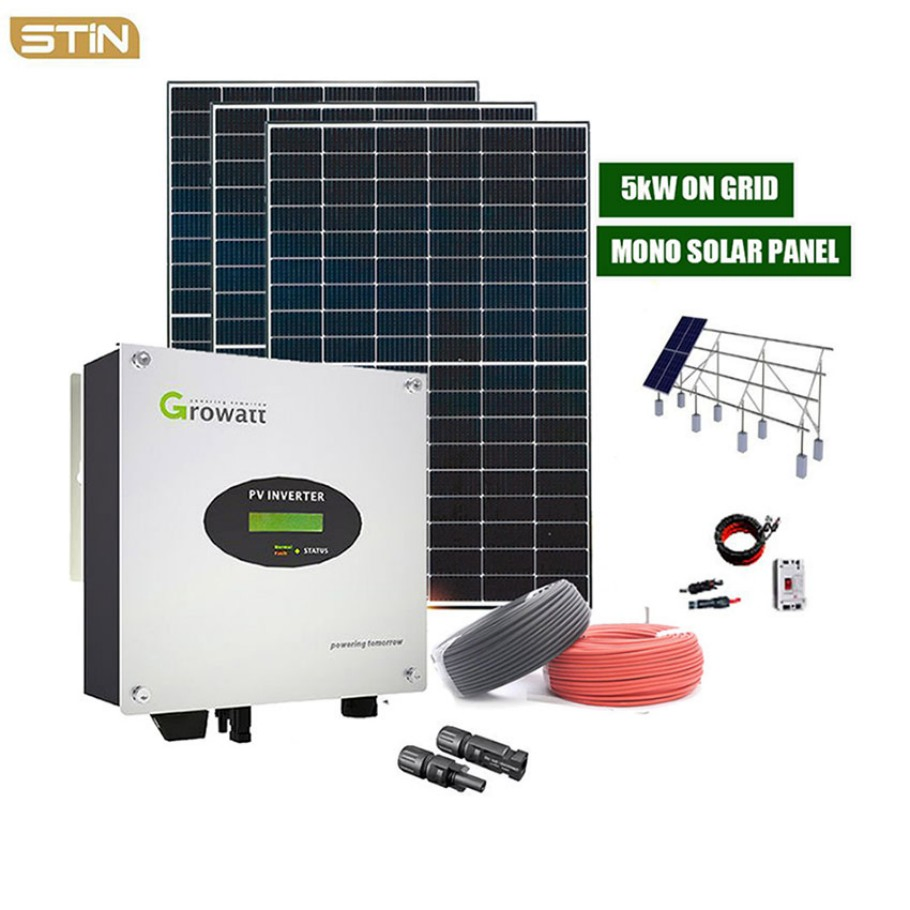

| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar panel | Mono 410W | 9 PCS | 3pcs in string and 3 strings in parallel |

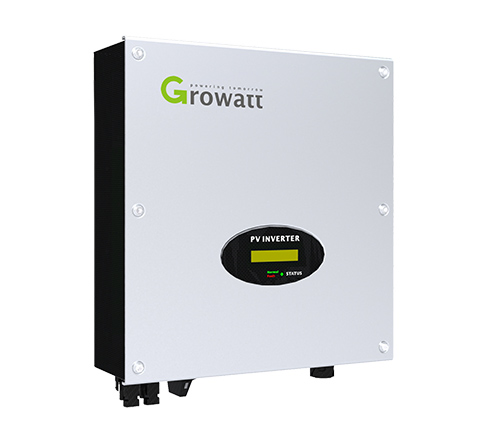

| 2 | Inverter | Growatt-5000MTL-S | 1 SET | Single phase output |
| 3 | Bracket | C-shaped steel | 1 SET | Hot-dip zinc |

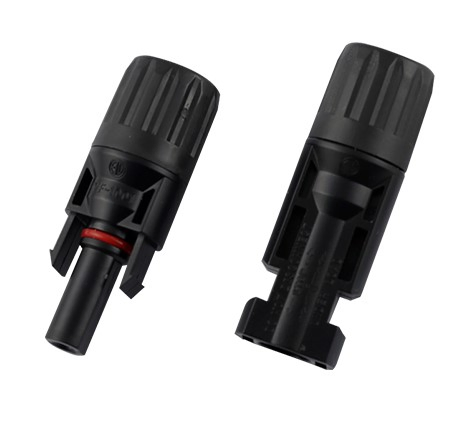

| 4 | Connector | MC4 | 2 Pairs | - |
| 5 | Wifi Module | Monitoring Device | 1 PC | - |

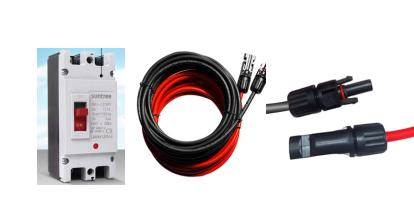

| 6 | AC cables | 2*6mm² | 20M | - |

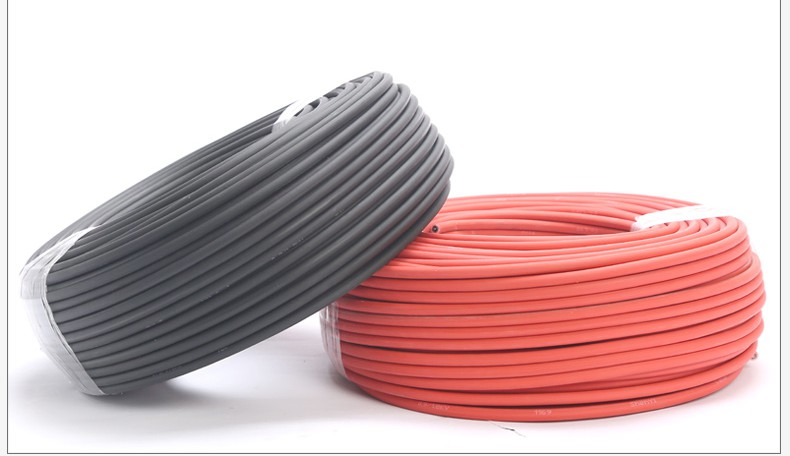

| 7 | PV cables | 4mm² | 100M | Solar panel to inverter |
| 8 | AC distribution box | With breaker and SPD | 1 SET | - |

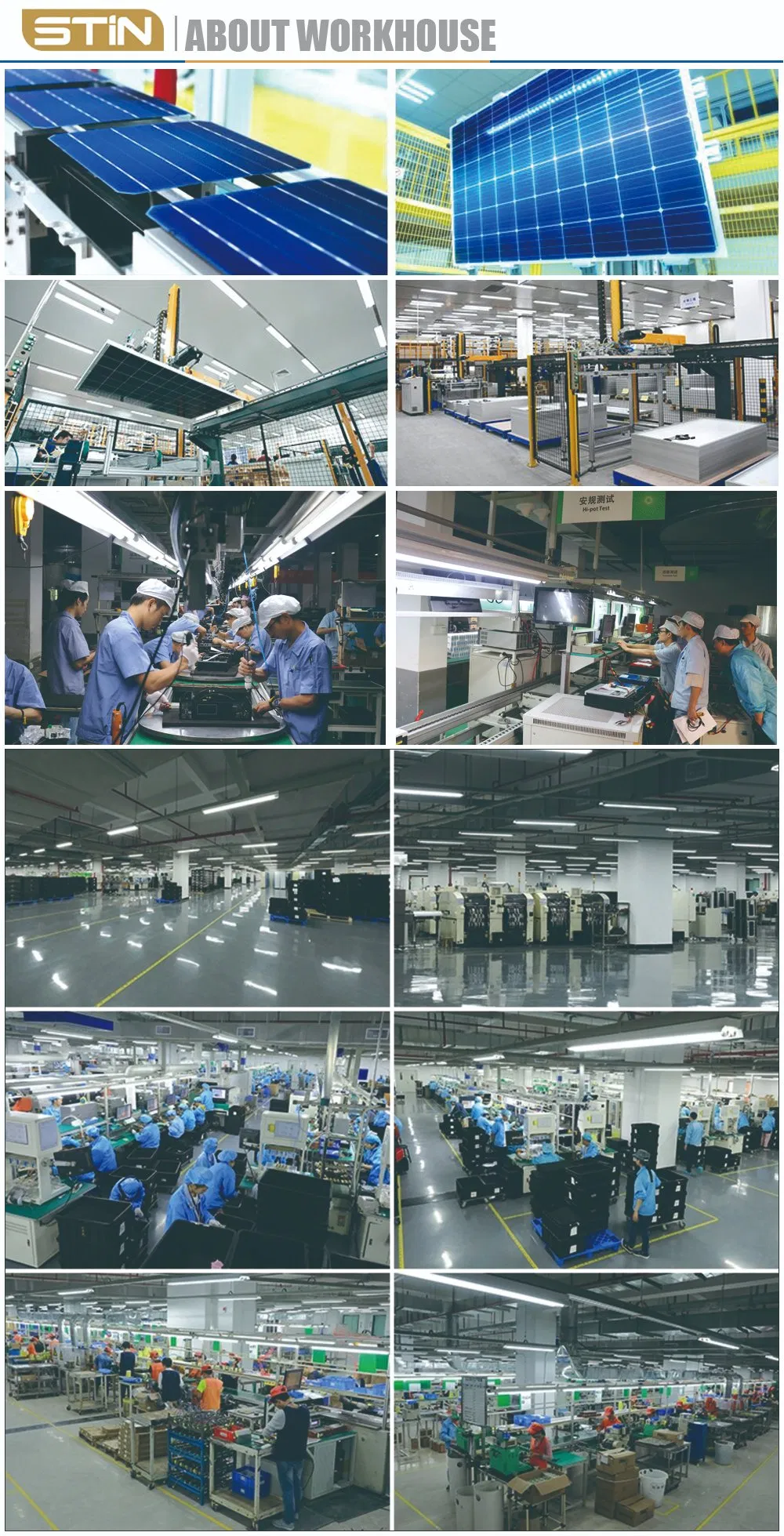

Nowadays, the world is faced with instability of nuclear power generation and environmental problems. Our focus is on being a Total Solution Provider based on clean sustainable solar energy. Dealing with polysilicon, wafers, cells, and modules, we provide full support for solar industry needs, including PV Equipment and EPC services.
We make efforts for green energy independence globally. From supplying high-quality raw materials to providing residential solutions for various regions, we keep solving global environmental problems by protecting precious sustainable values.
