Basic Information
Model NO.GPSW-II
Source FlowActive Inverter
PhaseSingle
Output Power>1000W
CertificationCE, ISO9001
TypeDC/AC Inverters
Power SourceSolar Power
Circuit TopologyHalf-Bridge Type
Nature of WaveSine Wave Inverter
Power Range1-8kw
Power Factor0.9~1.0
Efficiency>95% (AC), >88% (DC)

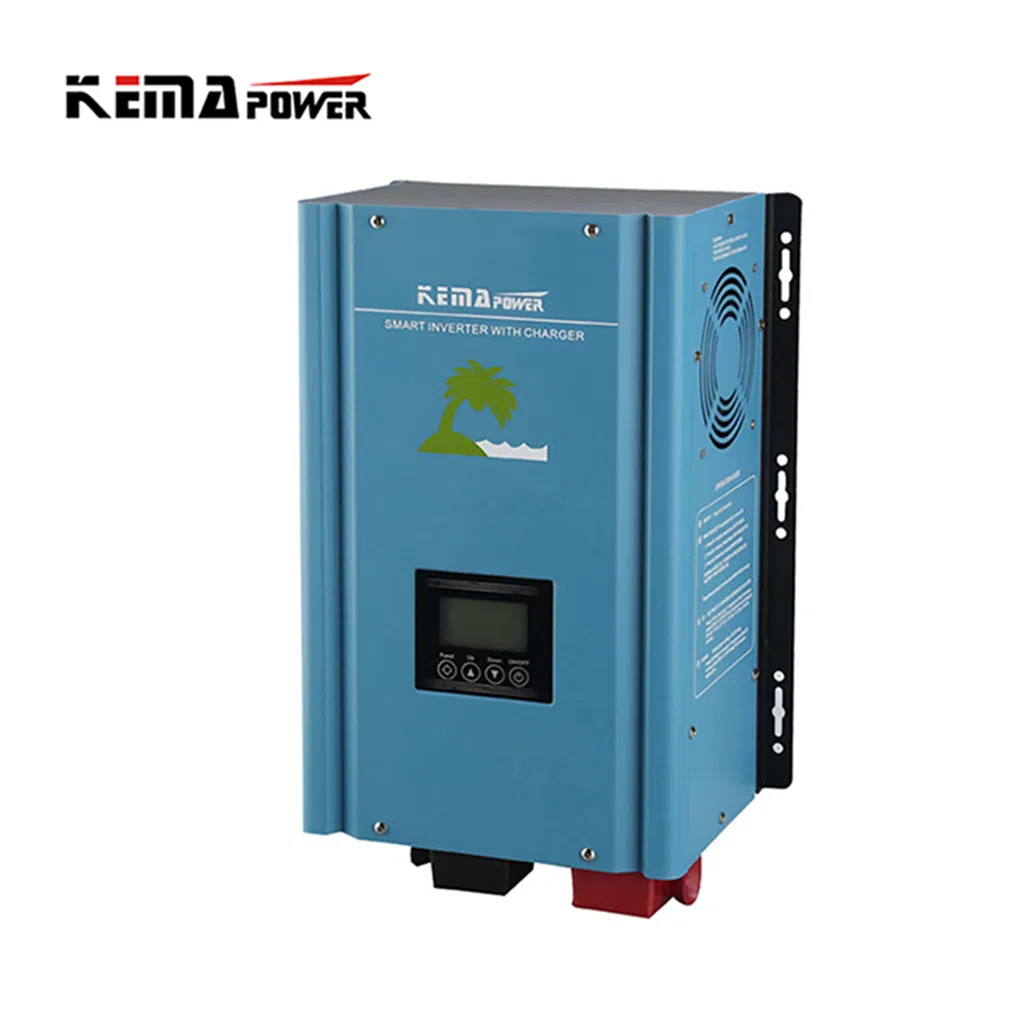

Pure Sine Wave Power Inverter with Charger (1-6KW)
Key Features & Advantages
- ✔Low Frequency Power Inverter with built-in charger
- ✔2-in-1 Off Grid hybrid design: Inverter + Power Charger
- ✔Selectable Priority: Grid power, Solar power, or Power Saver modes
- ✔Dual Application: Backup HOME UPS or Off-grid solar inverter
- ✔Low frequency toroidal transformer with Pure Sine Wave AVR

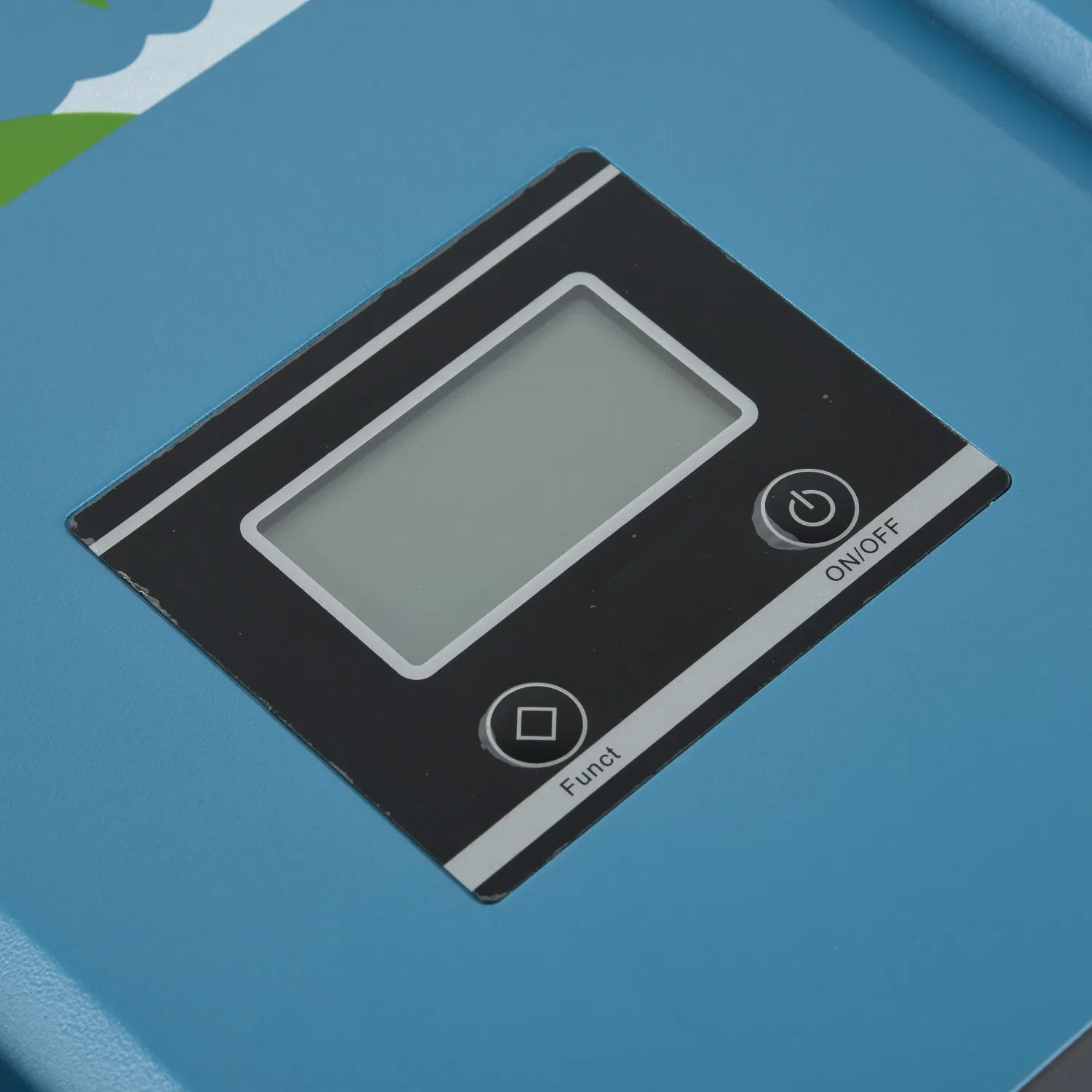

- ✔Intelligent LCD display for smart setup and easy operation
- ✔Fast Automatic Transfer Time (less than 10ms)
- ✔Adjustable Charge Current (Max 30A) with selectable battery types
- ✔Comprehensive Protection: Overload, Short-circuit, Low Battery, and Temperature
- ✔Smart cooling fan system and audible alarm notifications

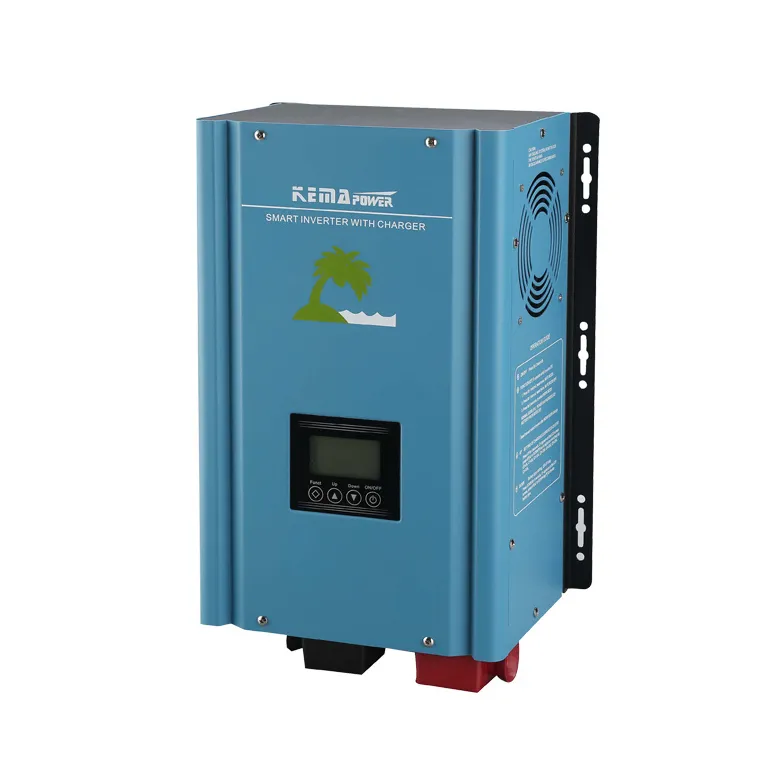

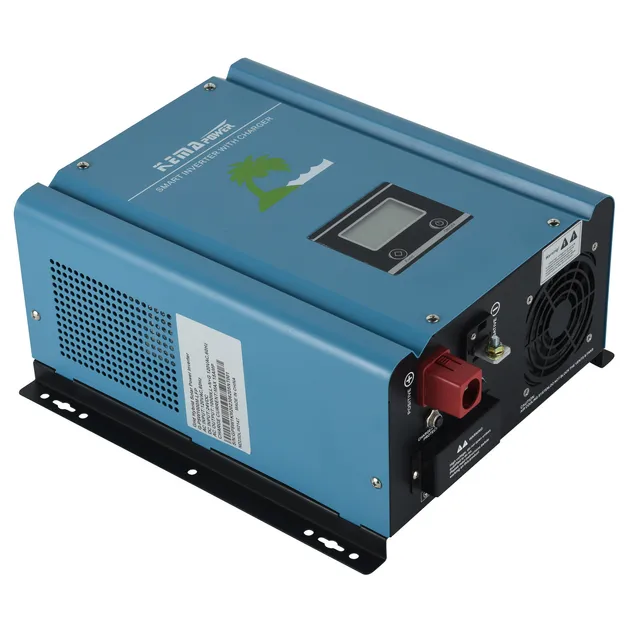

Product Display
Technical Specifications
Note: Custom configurations are available upon request to meet specific power needs.
| Rated Power |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
| Efficiency |
>95% AC mode / >88% DC mode (Toroidal transformer) |
| Battery Voltage |
12/24/48VDC |
24/48VDC |
24/48VDC |
48/96VDC |
| Charge Current |
30A (Default), adjustable via LCD |
| Transfer Time |
Typical < 10ms |
| Wave Form |
Pure Sine Wave |
| Output Voltage |
110VAC / 220VAC ±5% (Battery mode) |
| Protection |
Over voltage, Low voltage, Overload, Short circuit, Over temperature |

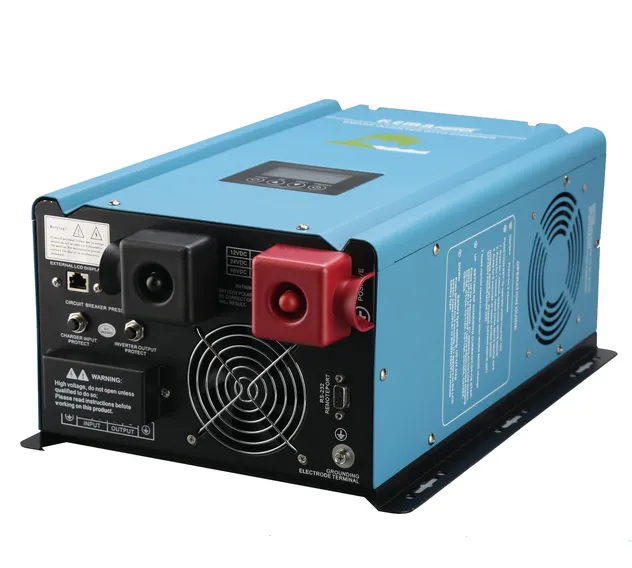

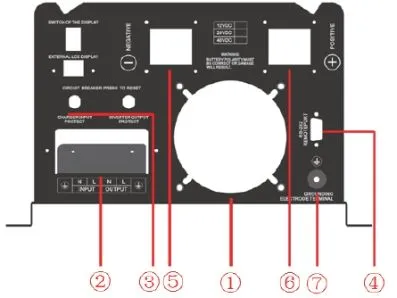

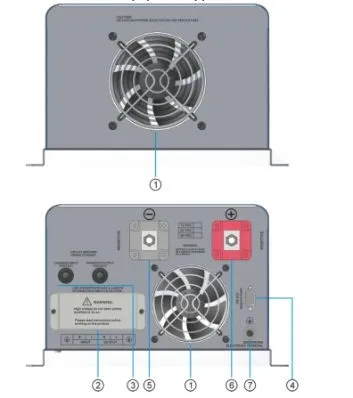

System Interface & Connection
Operation Guide:

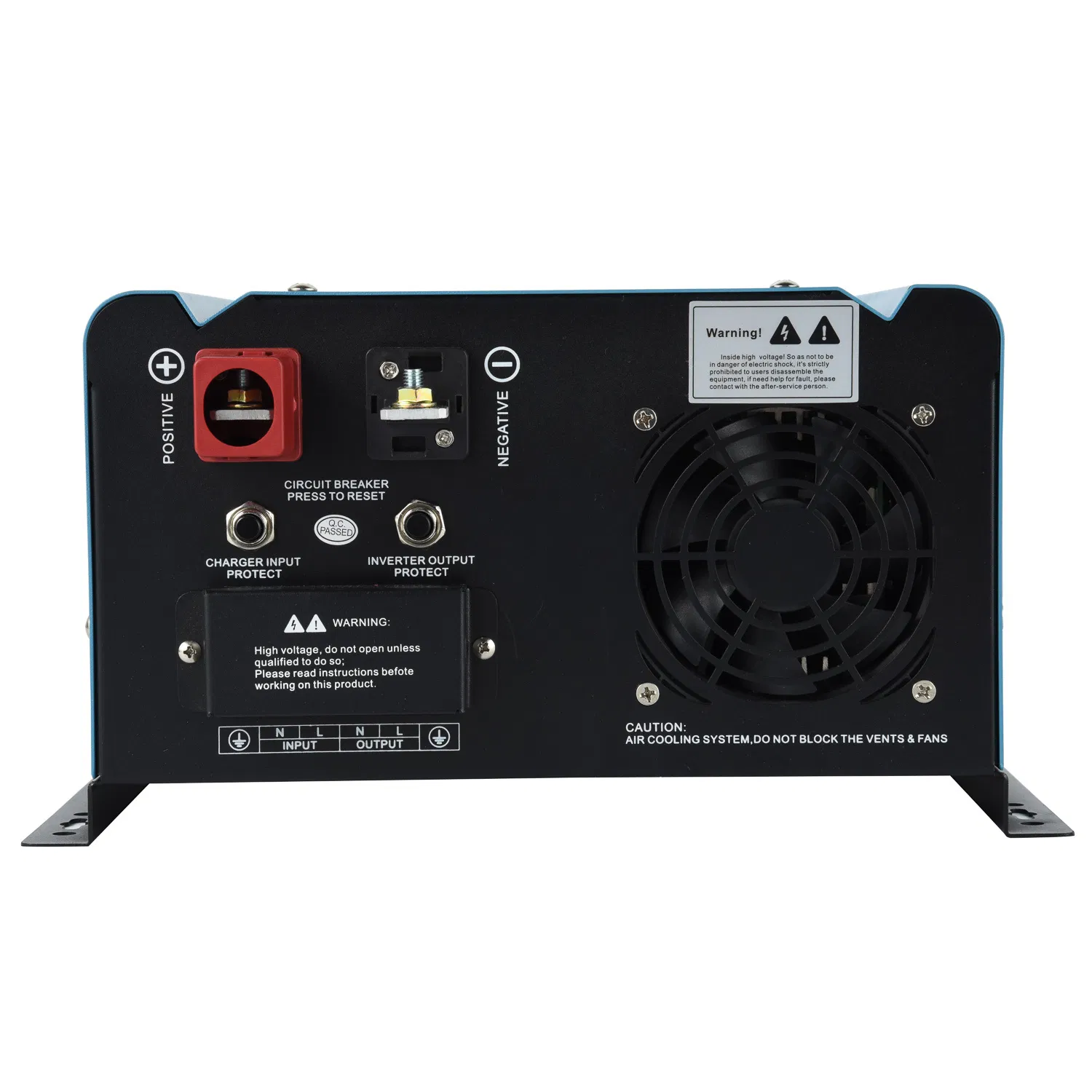

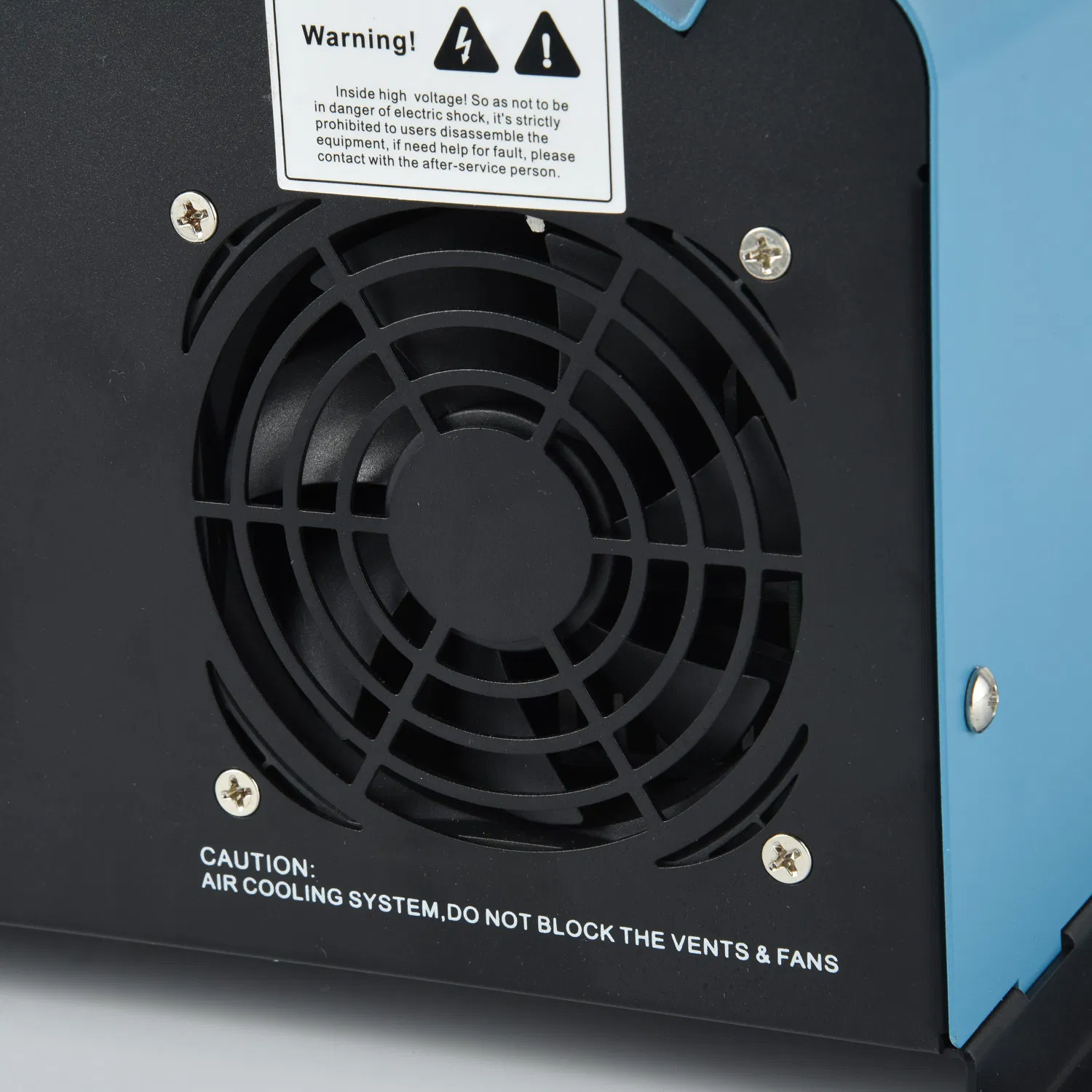

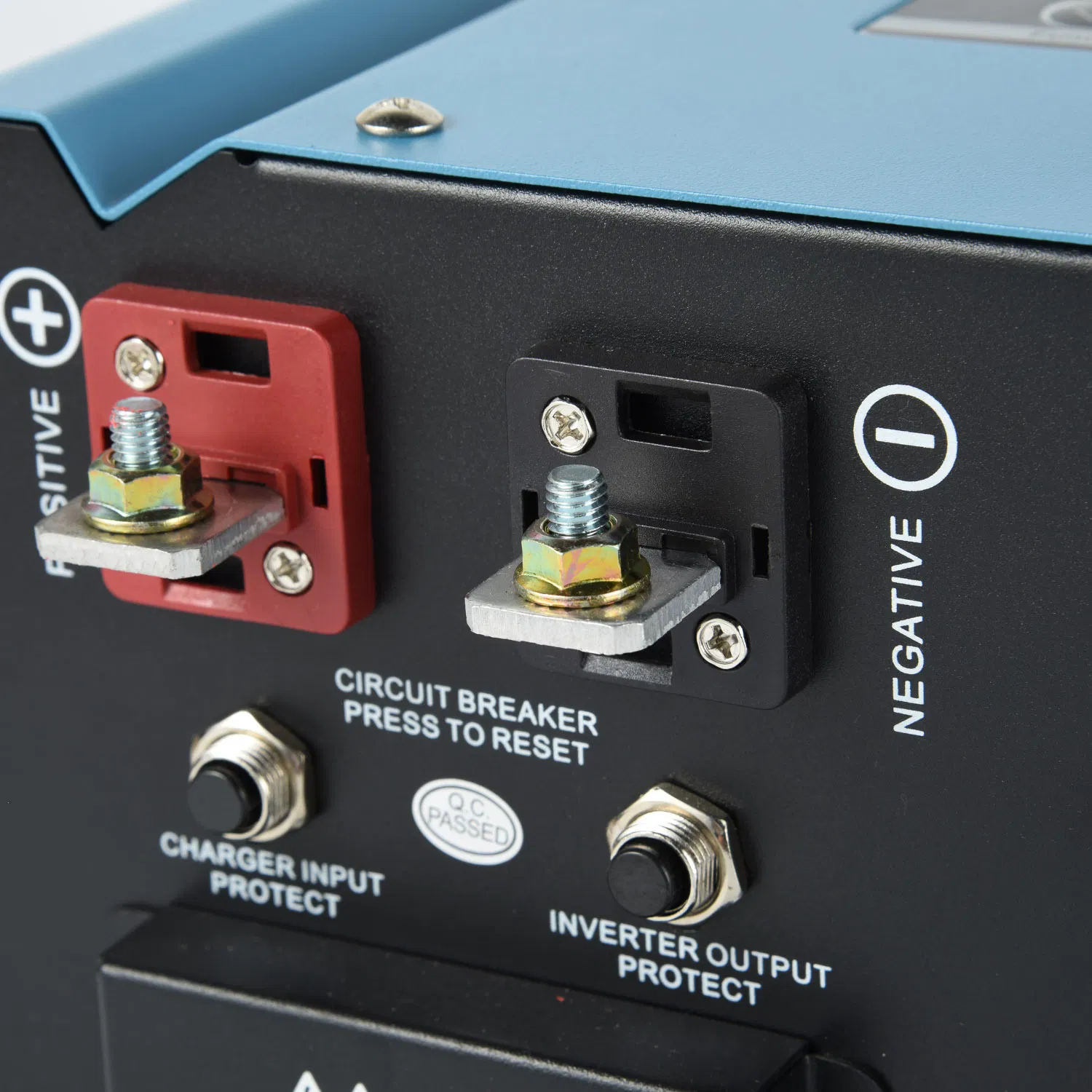

1. Cooling Fan | 2. AC Input/Output Terminals | 3. Fuse Holder | 4. RS232 Interface (Optional) | 5. Negative Battery Terminal | 6. Positive Battery Terminal | 7. Ground Terminal

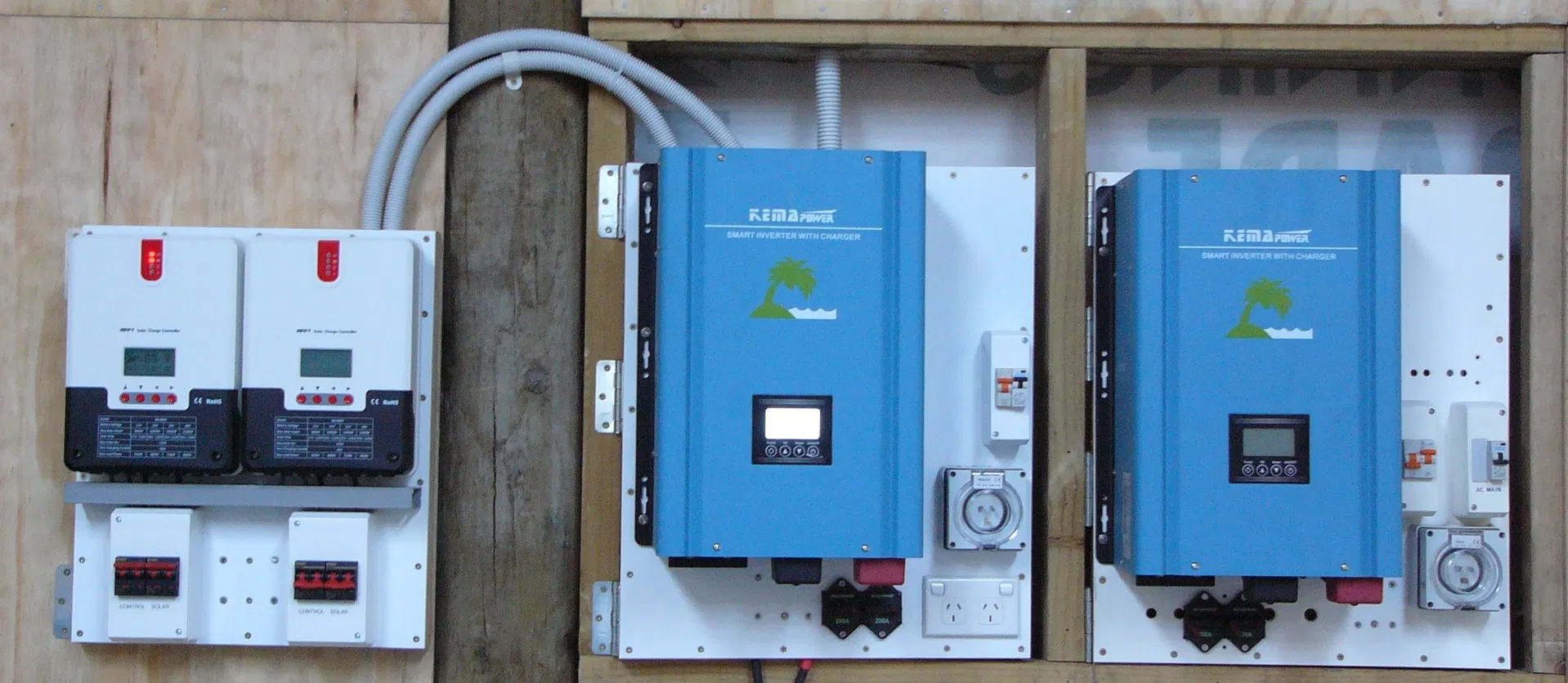

Application Scenarios
Frequently Asked Questions (FAQ)
What is the main benefit of the low frequency toroidal transformer?
The toroidal transformer provides high efficiency (up to 95%), better voltage regulation (AVR), and the ability to handle high-impact loads compared to high-frequency alternatives.
Can I switch between solar and grid priority?
Yes, the GPSW-II series features selectable priority modes (Grid Priority or Solar/Battery Priority) which can be easily configured via the smart LCD panel.
Does this unit include a solar charge controller?
No, this specific inverter model does not have a built-in solar charge controller. It is designed as a pure inverter/charger system that works alongside external controllers.
How fast does the unit switch to battery power during a blackout?
The automatic transfer time is typically less than 10 milliseconds, ensuring a seamless power supply for computers and sensitive home electronics (UPS function).
Is the charge current adjustable for different battery sizes?
Yes, the charge current is adjustable up to 30A (C0-C6 settings), allowing you to optimize the charging speed based on your battery bank capacity.
What types of protections are built into the system?
The system includes comprehensive protection against battery over/low voltage, output overload, short circuits, and internal over-temperature.
