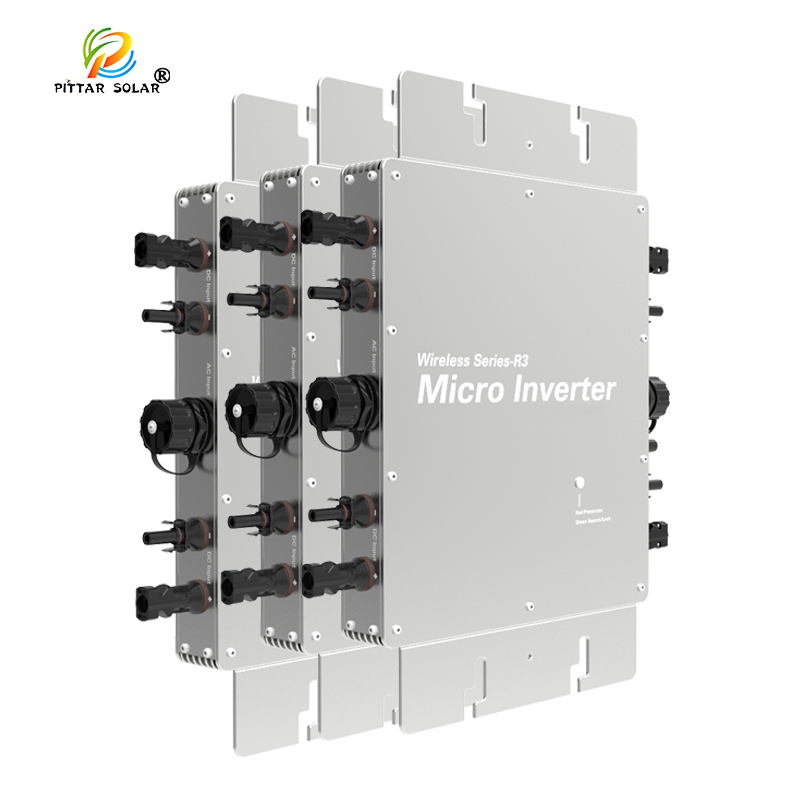

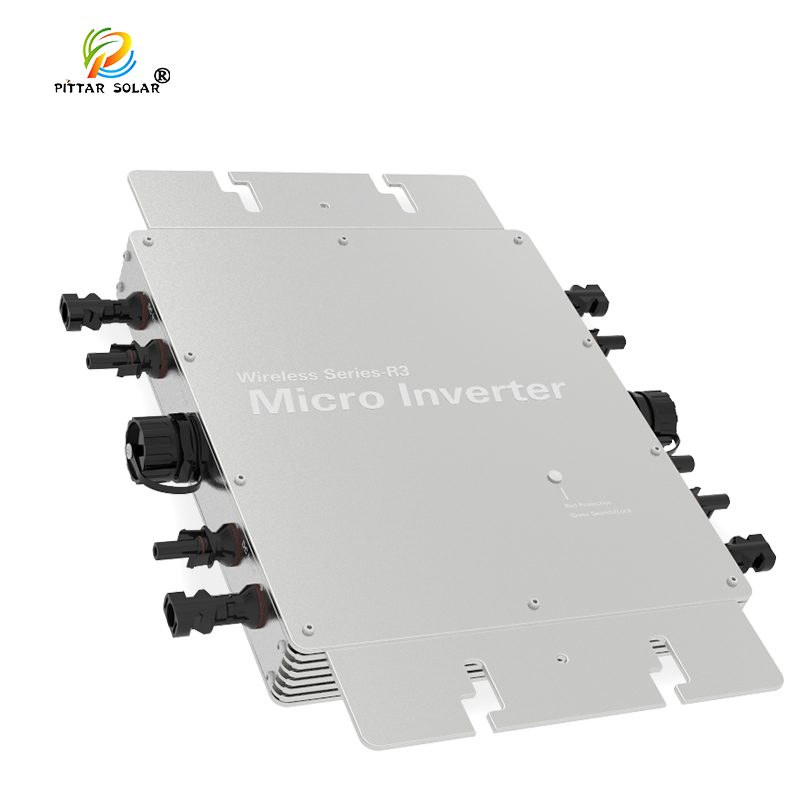

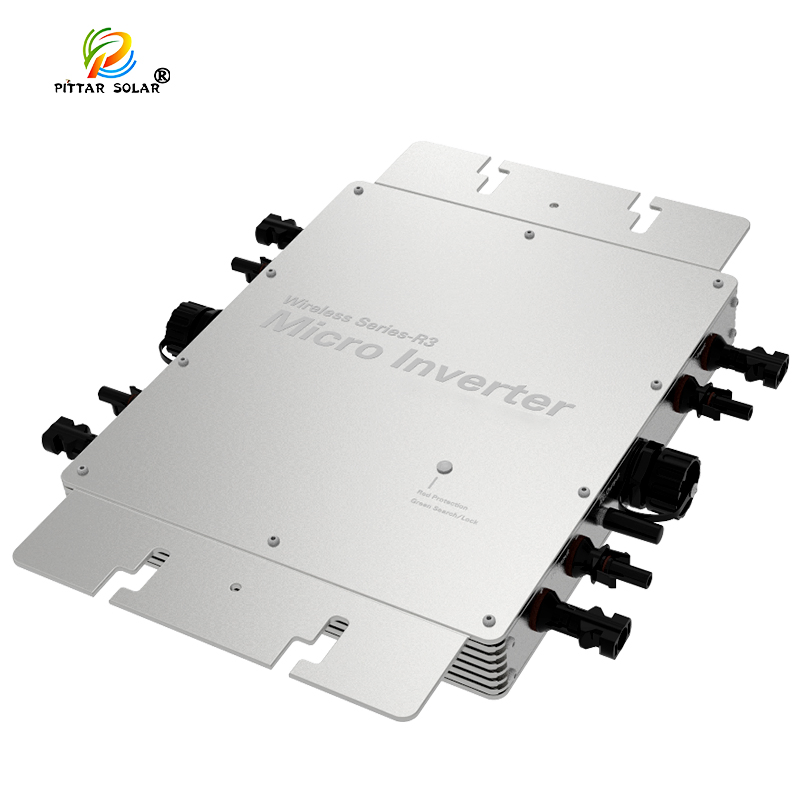

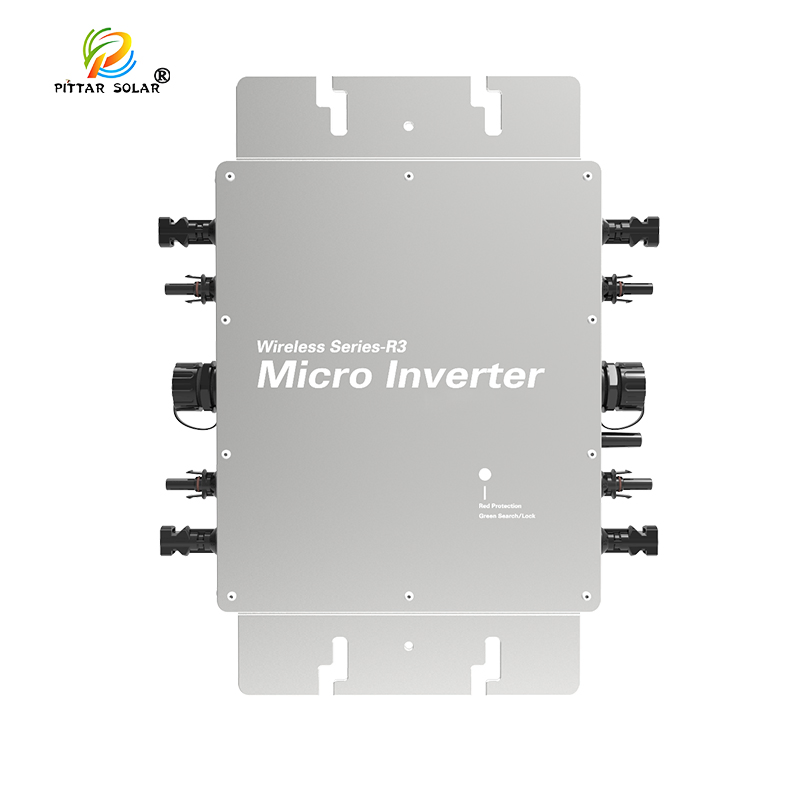

Kaideng Solar Micro Inverter Wvc 1400W Grid Tie DC to AC for PV Module MPPT IP65 High Frequency
❮
❯
1
/
5
Kaideng Solar Micro Inverter Wvc 1400W Grid Tie DC to AC for PV Module MPPT IP65 High Frequency
Still deciding? Get samples of $ !
US$ 175/Piece
Order Sample
Send Inquiry
Product Description
📊
Basic Specifications
Model NO.
Pittar-1400W
Output Power
1400W
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Wave String
Sine Wave Inverter
Max Input Power
4*400watt
Origin
Guangdong
HS Code
9405100000
Capacity
500,000 pieces/Year
📦
Packaging & Delivery
Package Size
37.00cm * 30.00cm * 4.16cm
Gross Weight
3.000kg
⚙️

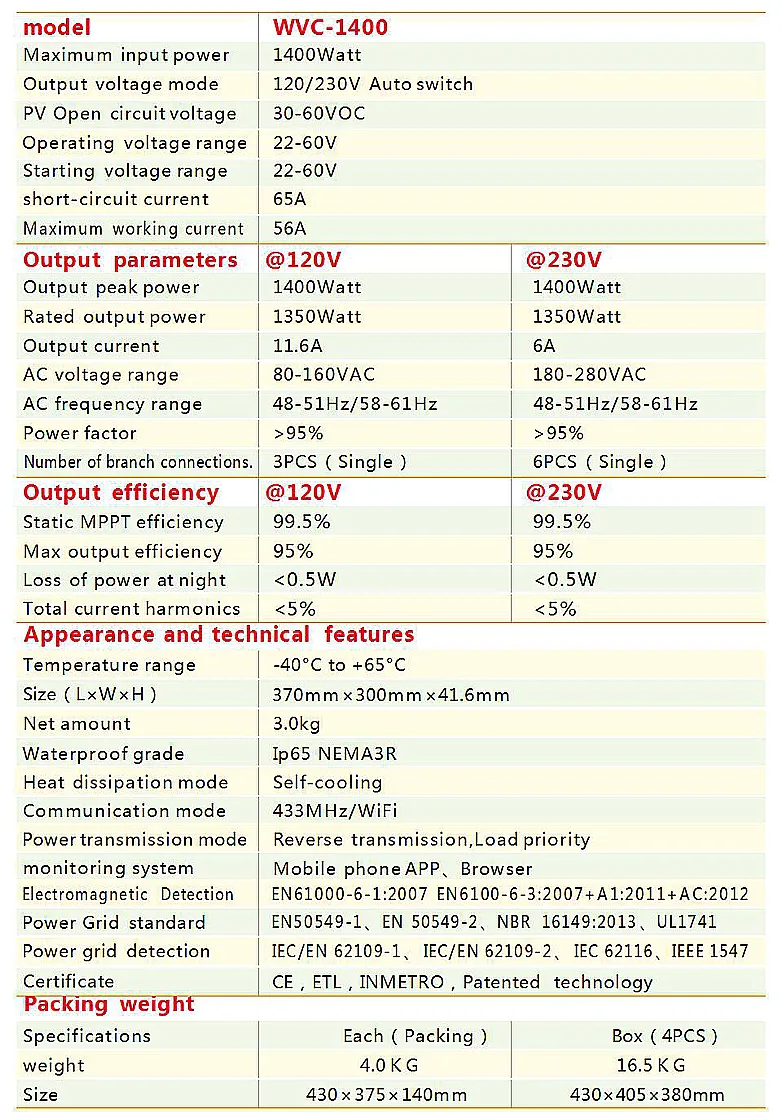

Technical Parameters
Maximum input power
4*400Watt
Output voltage mode
120/230V Auto Switch
PV Open circuit voltage
30-60Voc
Operating voltage range
22-60V
Starting voltage range
22-60V
Short-circuit current
65A
Maximum working current
56A
Rated Output Power
1350watt
Output current
11.6A/6A AC
AC frequency range
47.5-52/57.5-62Hz
Static MPPT efficiency
99.5%
Max output efficiency
95%
Waterproof grade
IP65
Temperature range
-40°C to +65°C
Heat dissipation
Self-cooling
Communication
433MHz
❓
Frequently Asked Questions
What is the maximum output power of this inverter?
The inverter provides a maximum output power of 1400W, with a rated output power of 1350W.
Is the device suitable for outdoor installation?
Yes, it features an IP65 waterproof grade and can operate in temperatures ranging from -40°C to +65°C, making it highly durable for outdoor use.
How efficient is the MPPT tracking?
This solar micro inverter achieves a static MPPT efficiency of 99.5%, ensuring maximum energy harvest from your solar panels.
What are the input voltage requirements?
The PV open circuit voltage range is 30-60Voc, with an operating and starting voltage range of 22-60V.
Does it support different AC voltage standards?
Yes, it features an Auto Switch mode for 120V and 230V output, covering AC voltage ranges of 80-160VAC and 180-280VAC respectively.

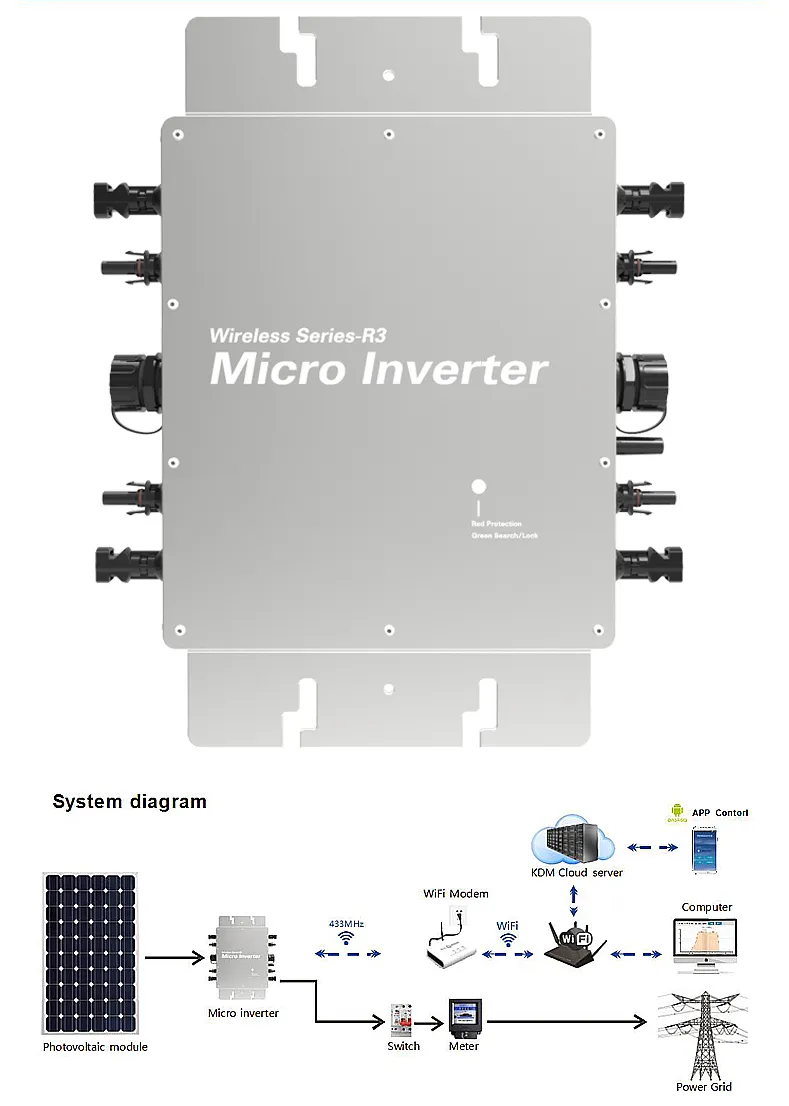

What communication method does the inverter use?
The system utilizes 433MHz communication for data transmission and monitoring.
