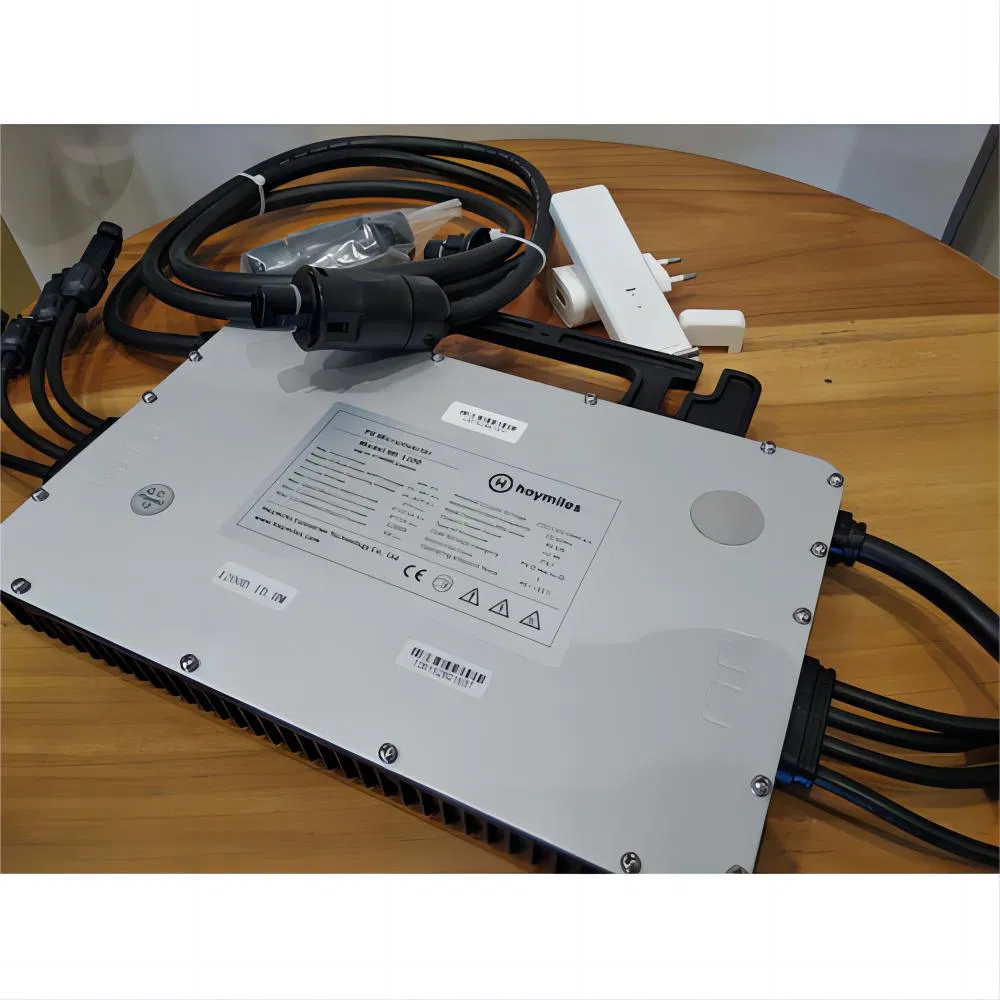

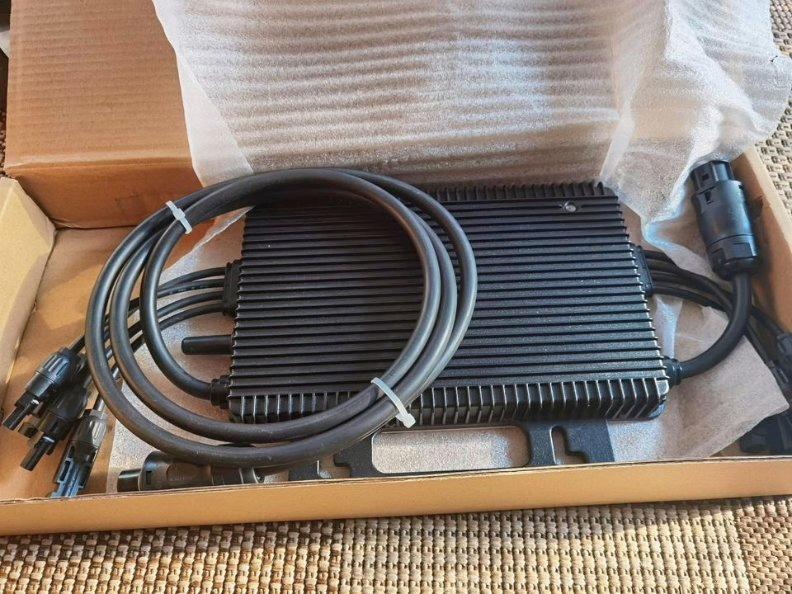

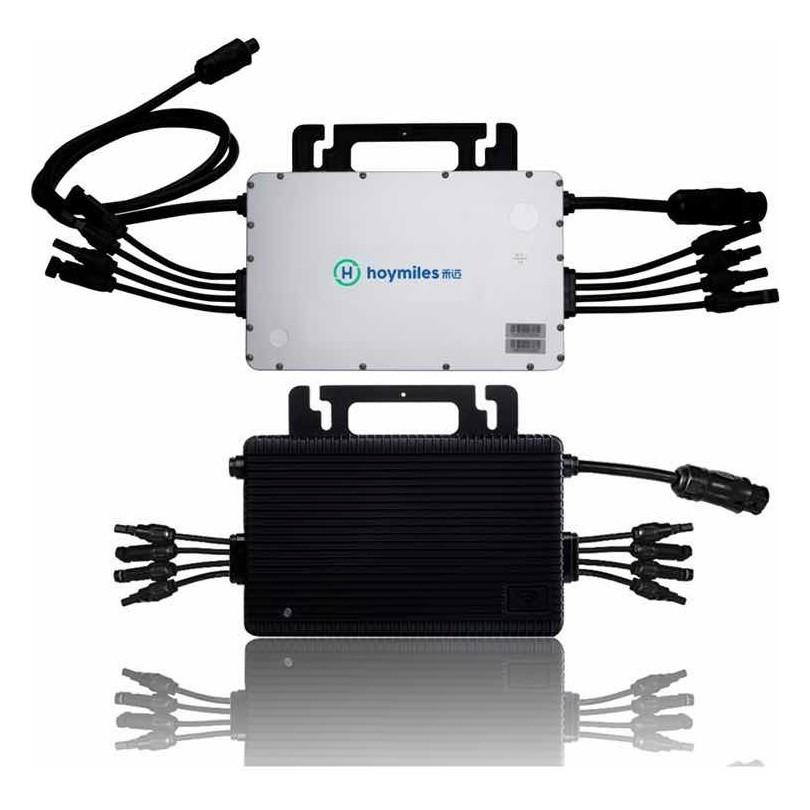

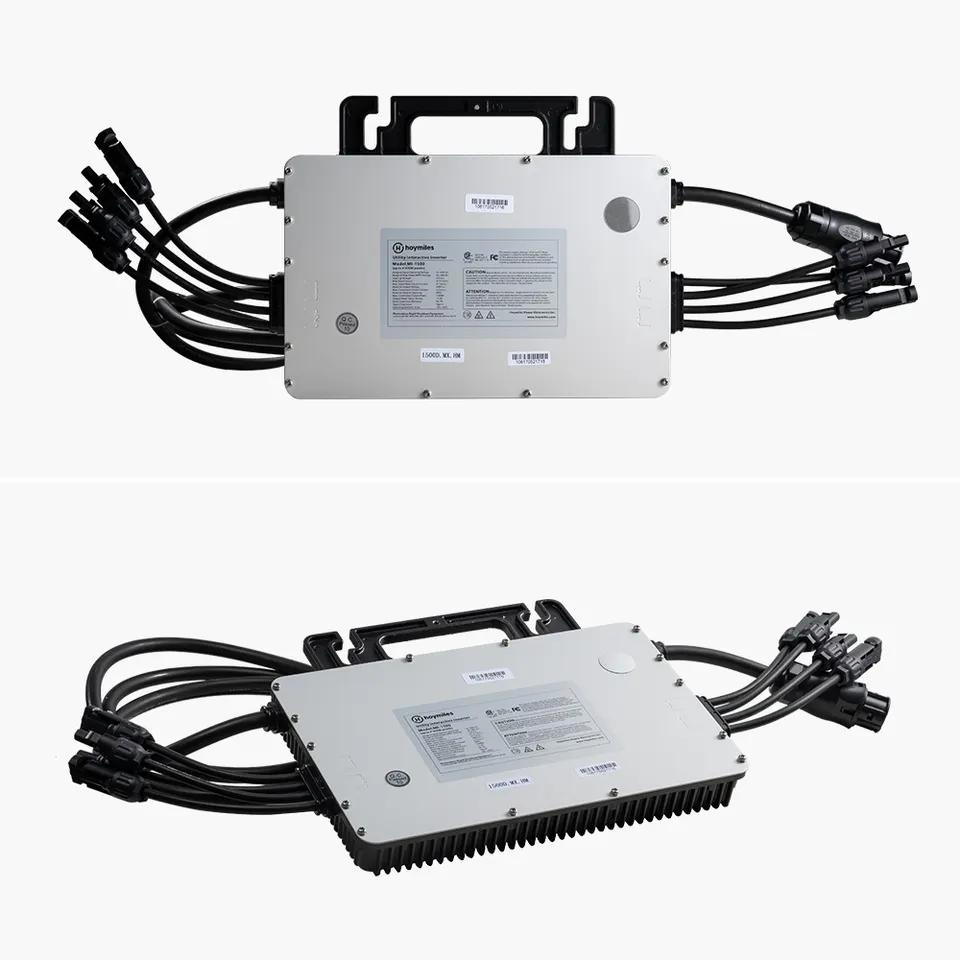

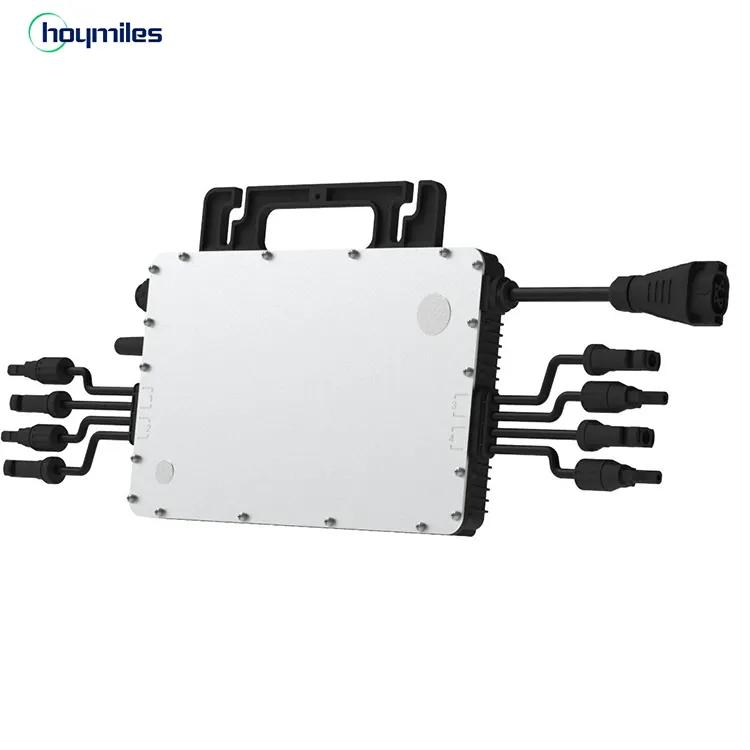

600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
1 / 5
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200
600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200

600W 800W 1200W Solar Inverter Hoymile on Grid 220V230V Micro Inverter Hm-1200

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

i
Overview & Basic Info
Model NO.
HM-1200/1500
Phase
Single
Output Power
240W-405+W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Max Input Voltage
60V
MPPT Voltage Range
16-60V
Start-up Voltage
22V
Max Input Current
4X11.5A
CEC Peak Efficiency
96.70%
MPPT Efficiency
99.80%
★
Product Description

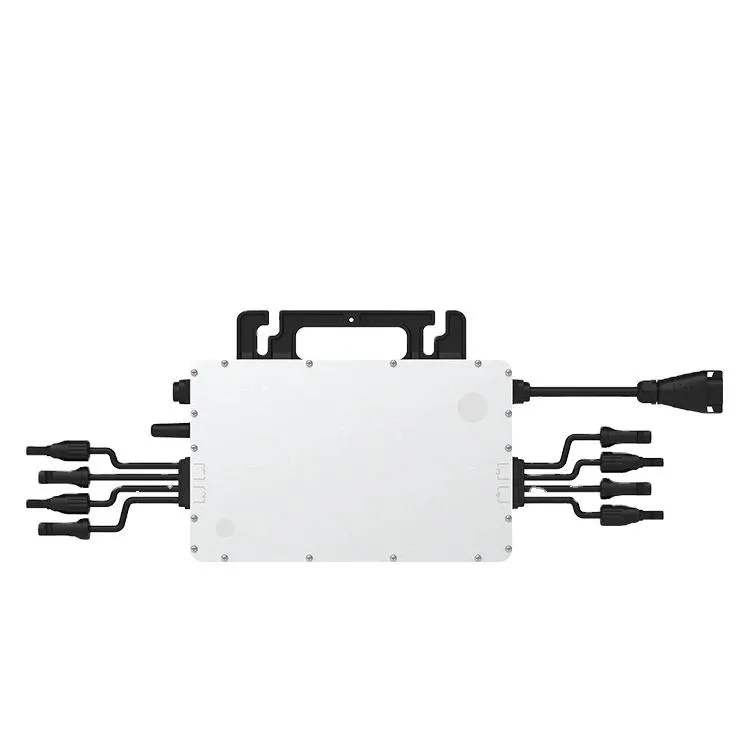

Solar Inverter Display 1
Solar Inverter Display 2

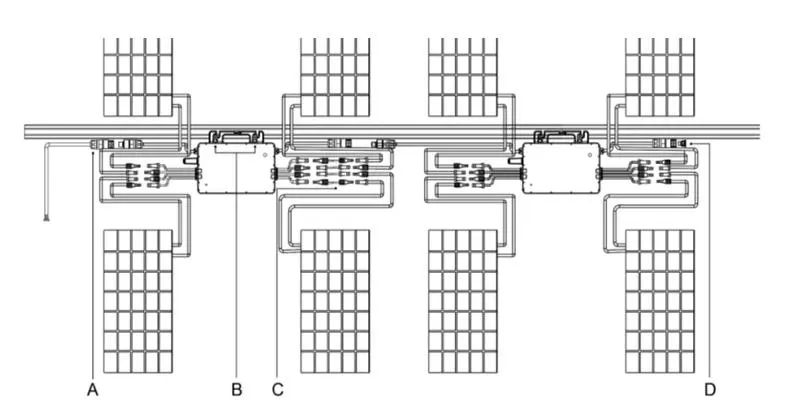

Solar Inverter Display 3
⚙
Product Parameters
Model HM-1200 HM-1500
Commonly used module power (W) 240-405+ 300-505+
Input Data (DC)
Maximum input voltage (V) 60
MPPT voltage range (V) 16-60
Maximum input current (A) 4×11.5
Output Data (AC)
Rated output power (VA) 1200 1500
Nominal output voltage (V) 230/180-275
Total harmonic distortion <3%
Mechanical Data
Ambient temperature range (°C) -40 to +65
Dimensions (W×H×D mm) 280×176×33mm
Enclosure rating Outdoor IP67 (NEMA 6)
✓

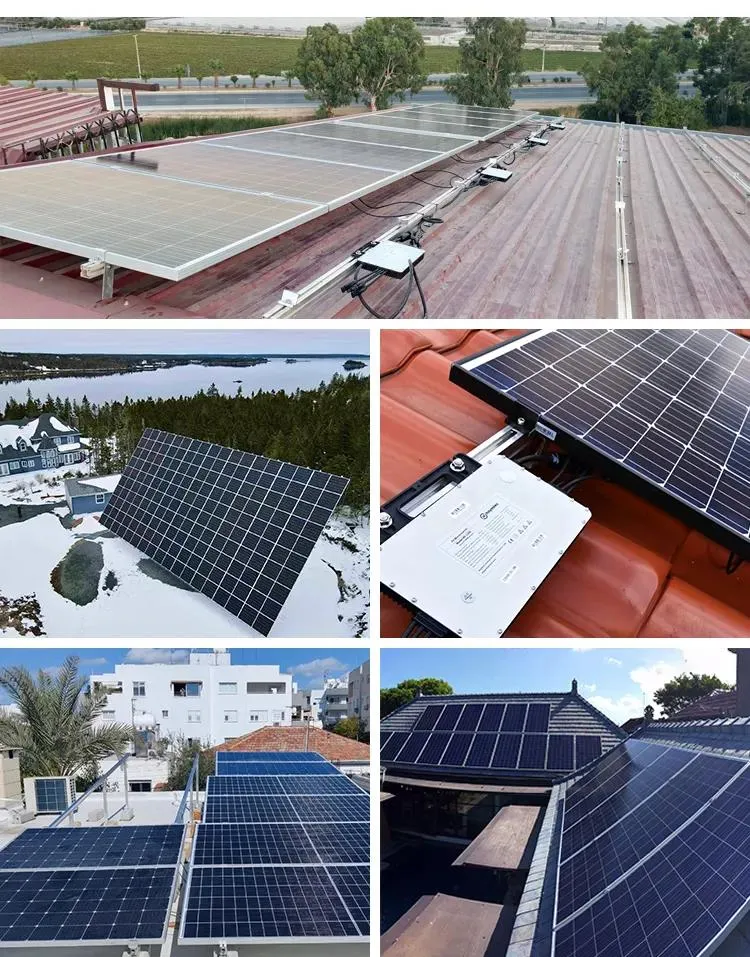

Installation Case
Installation Case
📦
Packing & Delivery
Package Size
33.00cm * 22.60cm * 8.30cm
Package Gross Weight
4.000kg

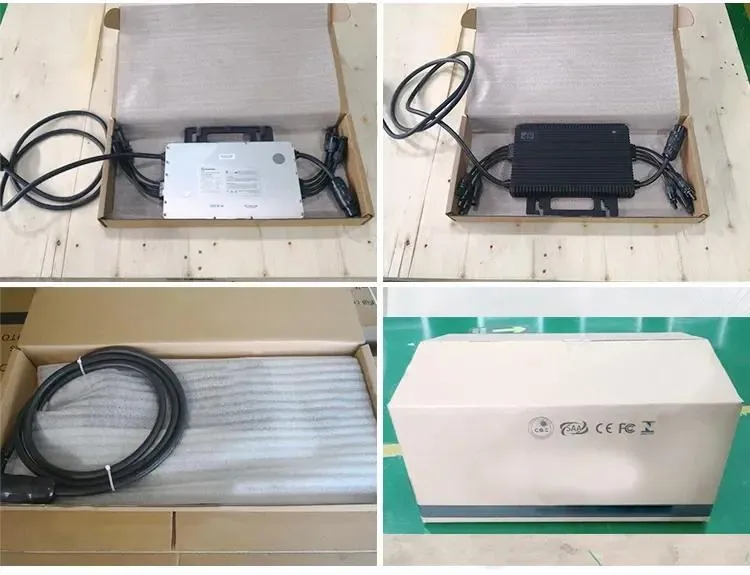

Packaging display
💬
Frequently Asked Questions
Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM. We can tailor the logo and functions as per your requirement.
How can I make sure it's a secure transaction?
Transactions can be protected through global trade platforms which ensure buyer's interests. Payments are typically held by the platform and only released after the goods are delivered and confirmed.
How to solve technical problems during installation?
We offer 24-hour after-service support and can provide live instruction to help you resolve any technical issues with inverters and charge controllers.
What is the output voltage of your inverters?
Common output voltages available are 110V, 115V, 120V, 220V, 230V, and 240V at 50/60Hz.
What factors should I consider when choosing an inverter?
You should consider the total open voltage, the current of your solar panels, the total power of your loads, and the specific AC voltage required by your loads to ensure a proper match.
What is the efficiency rating of these micro inverters?
These units feature a high CEC peak efficiency of 96.70% and a nominal MPPT efficiency of 99.80% for maximum energy harvest.
