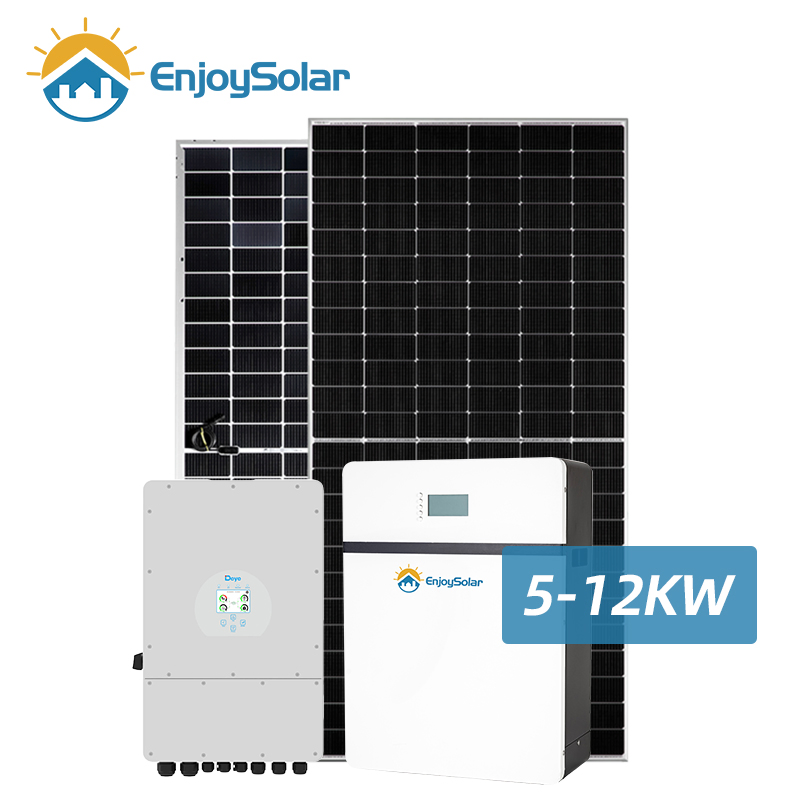

Home Solar Energy Storage System 5kw 8kw 10kw 15kw 220V Single Phase Residential Solar Power System

1 / 5

Home Solar Energy Storage System 5kw 8kw 10kw 15kw 220V Single Phase Residential Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Specifications

Model NO.

10KW

Condition

New

Certification

Application

Home, Industrial, Commercial

Battery Type

Lead Acid, Lithium Ion, LiFePO4

Output Voltage

220V Single Phase / 400V 3phase

Monitoring

WiFi/LAN/GPRS

HS Code

8543709990

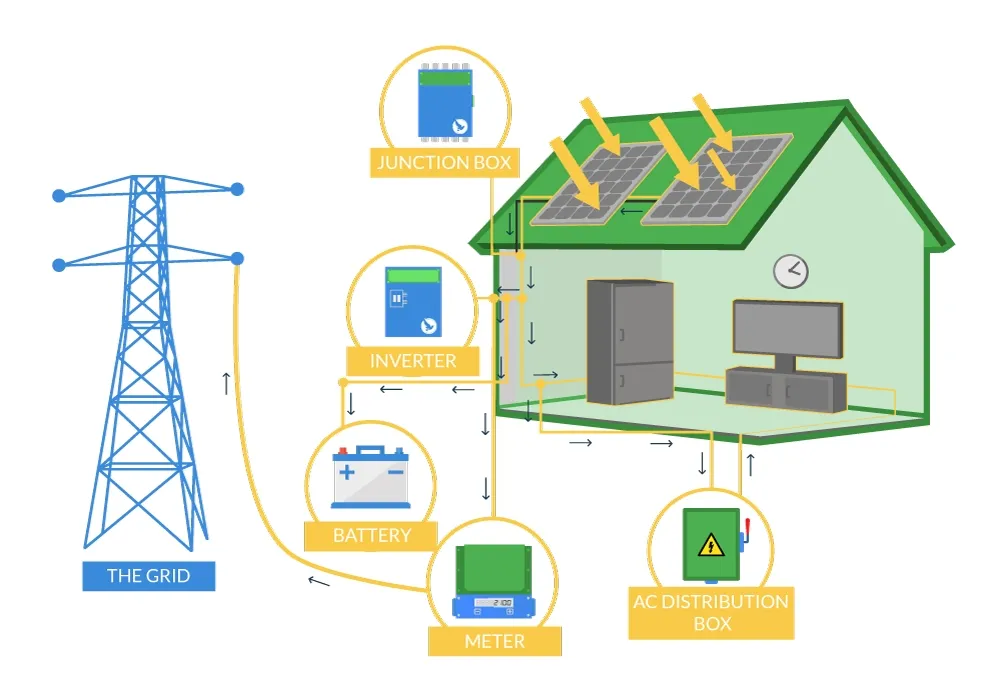

How It Works?

System Solutions Design

Component / Model	5KW	10KW	15KW	20KW
Mono Solar Panel 570W	9 PCS	18 PCS	26 PCS	36 PCS
Hybrid Inverter	5KVA 1PC	10KVA 1PC	15KVA 1PC	20KVA 1PC
LiFePO4 Battery	10.24KWH	14.336KWH	20.48KWH	37.99KWH
DC Cable 4mm²	200 Meters	400 Meters	400 Meters	600 Meters
MC4 Connector	4 Pairs	6 Pairs	10 Pairs	15 Pairs

System Components

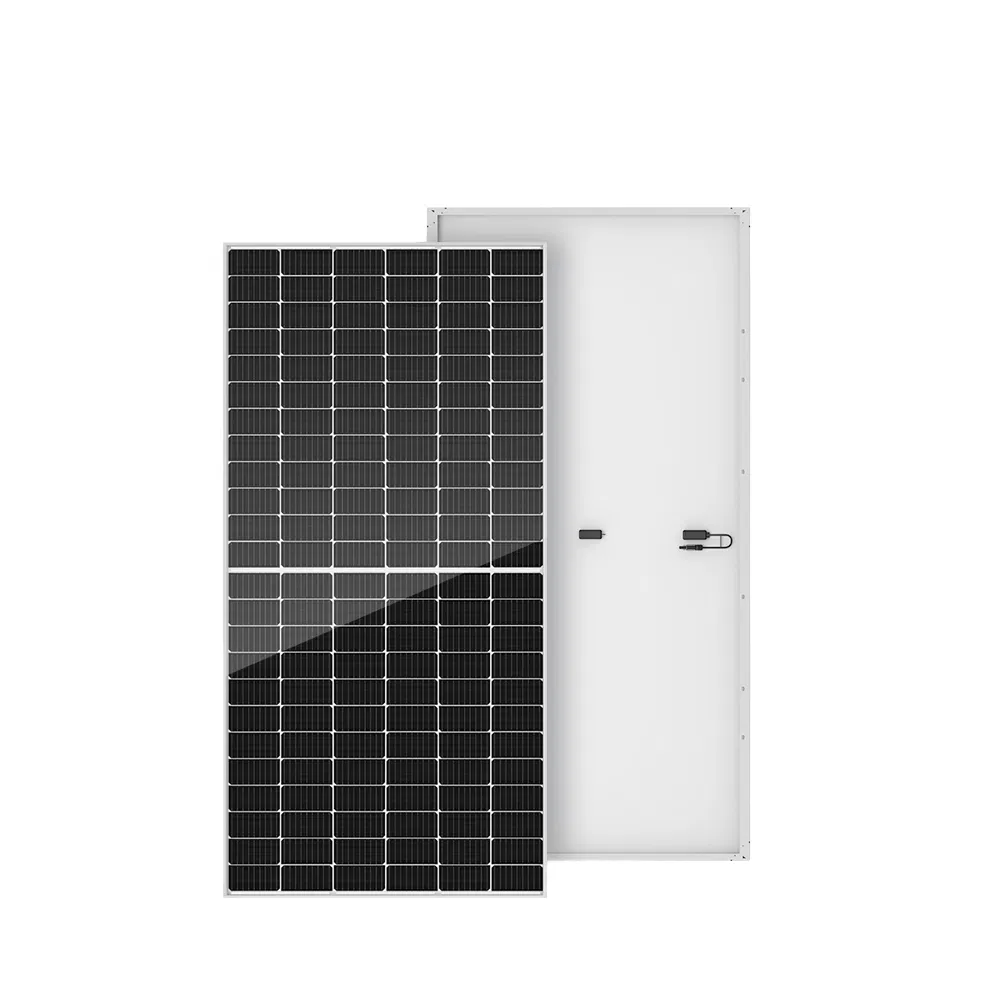

Mono Solar Panel (570W)

Efficiency: 22.07%

Max Power: 570Wp

Dimensions: 2278*1134*35mm

High-efficiency half-cell technology for better performance under partial shade.

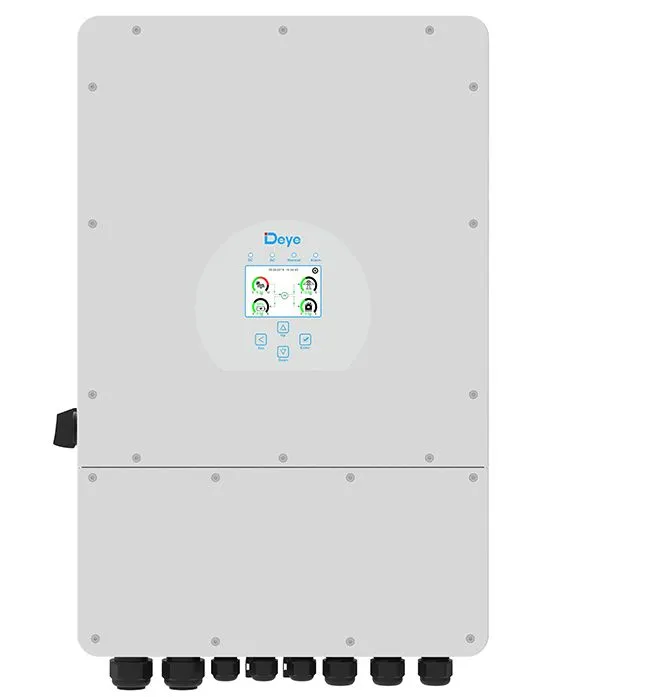

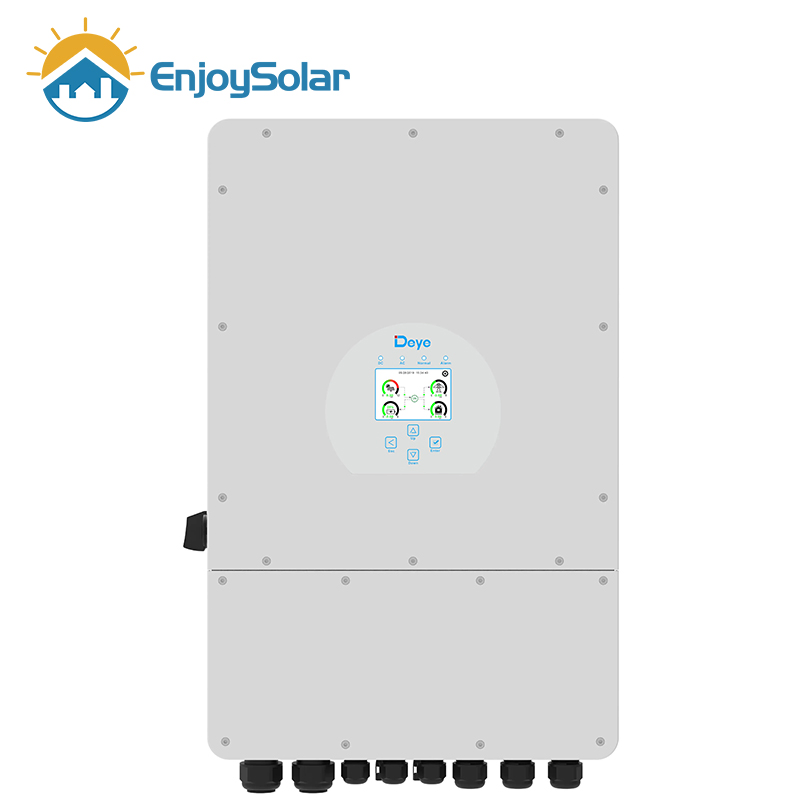

All-in-one Hybrid Inverter

• Smart Monitoring & Remote Firmware Upgrade

• Built-in Anti-feed-in Function

• AFCI & Rapid Shutdown Ready

• Supports Time-of-use Optimization

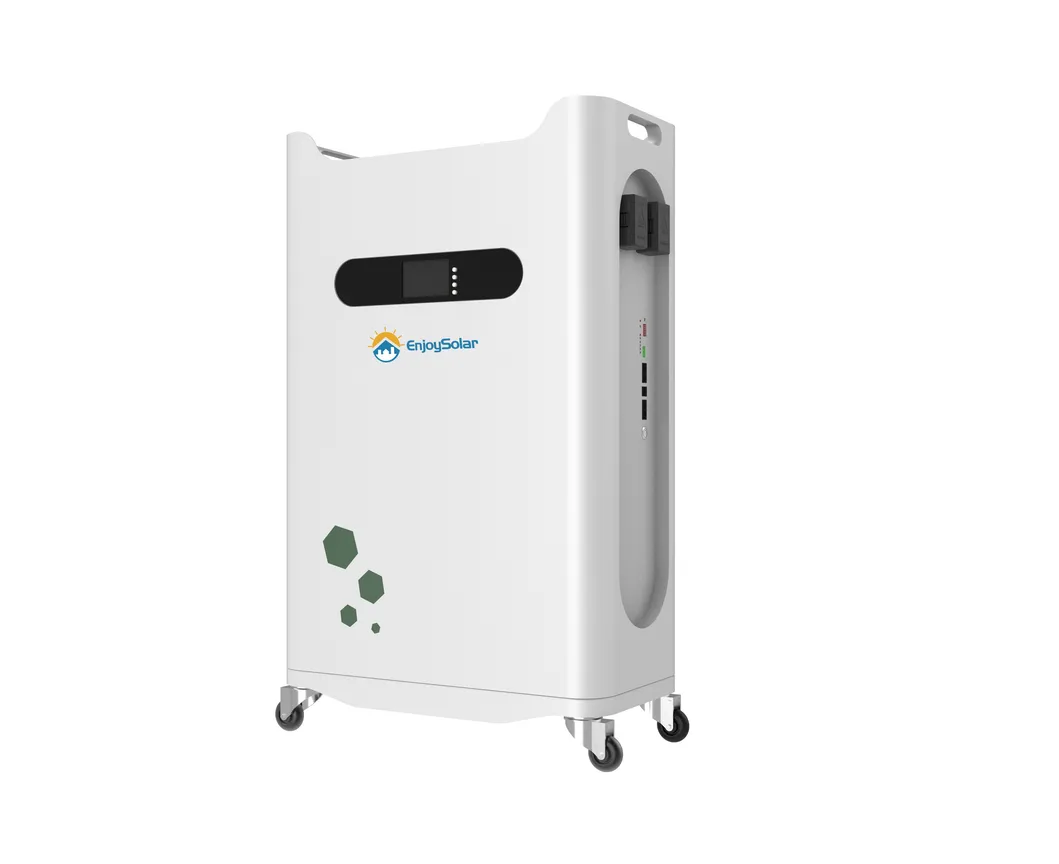

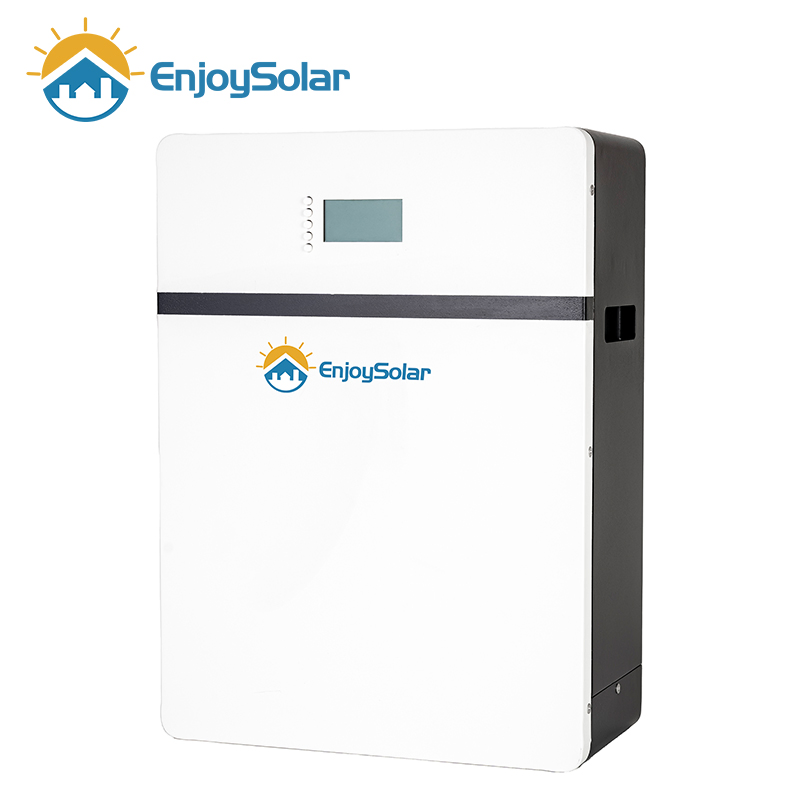

Battery Storage Bank

• Deep Cycle long lifespan (>6000 cycles)

• 90% Depth of Discharge (DOD)

• Compatible with Lithium-Ion / LiFePO4

• Maintenance-free installation

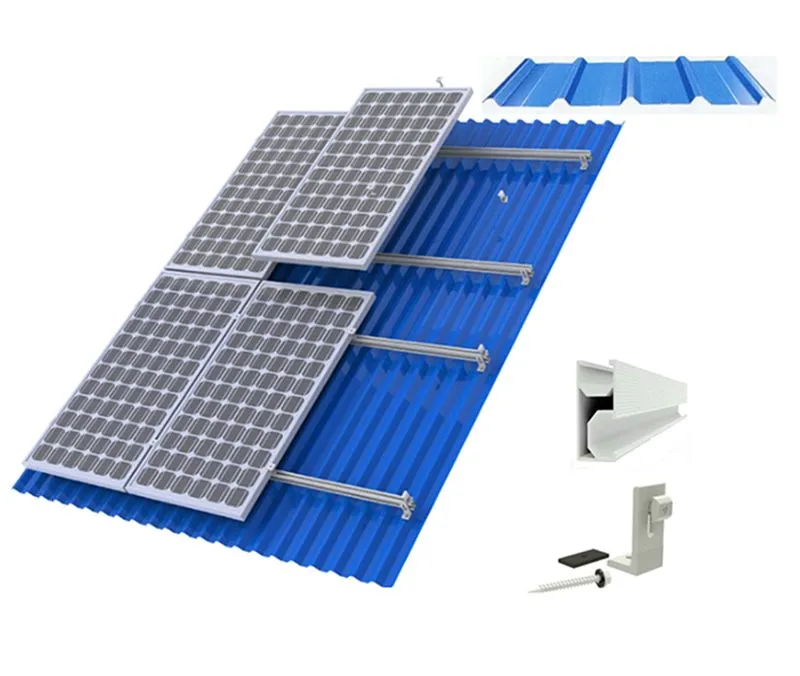

PV Mounting System

Material: AI6005 & SUS304 Bolts

Application: Roof, Ground, or Carport

Customized designs provided based on installation site requirements.

Packaging & Shipping

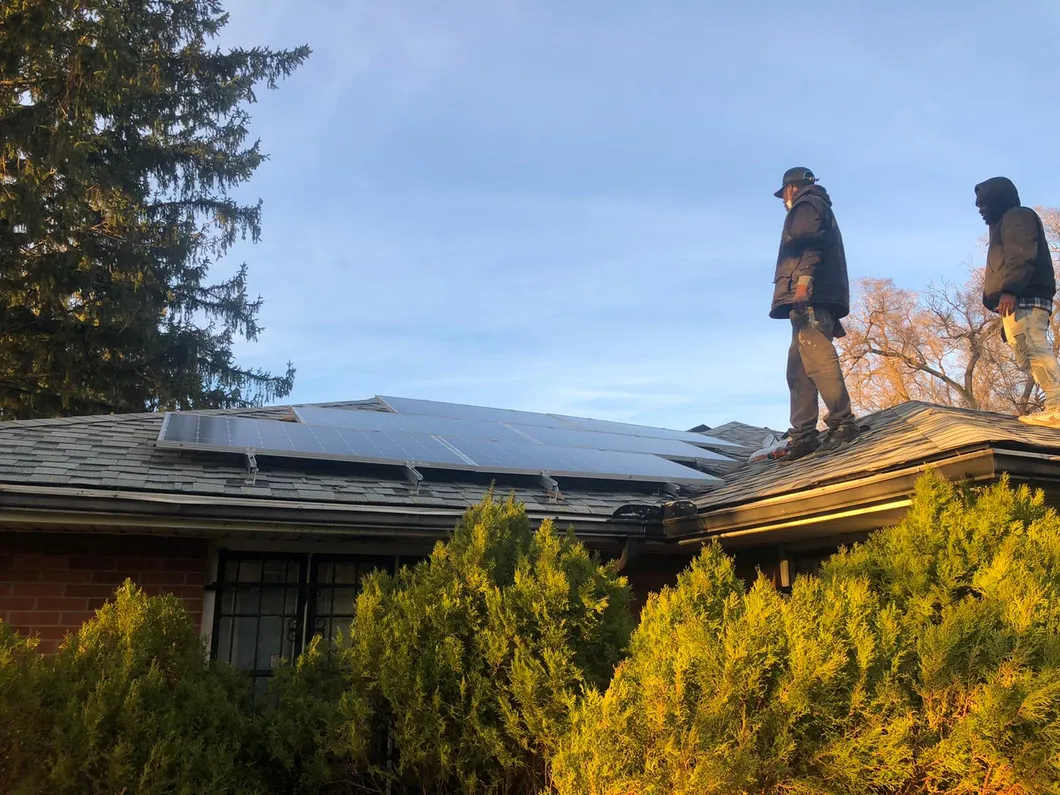

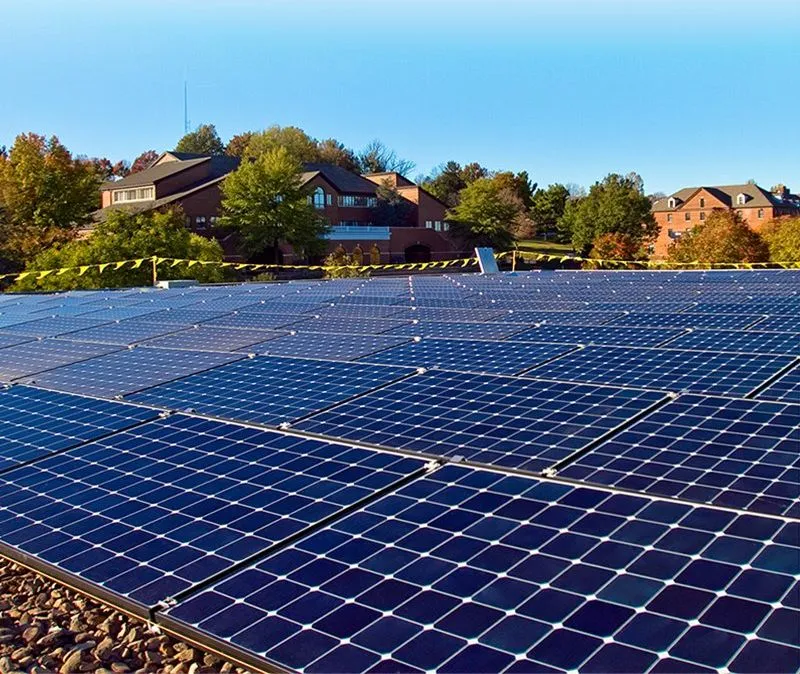

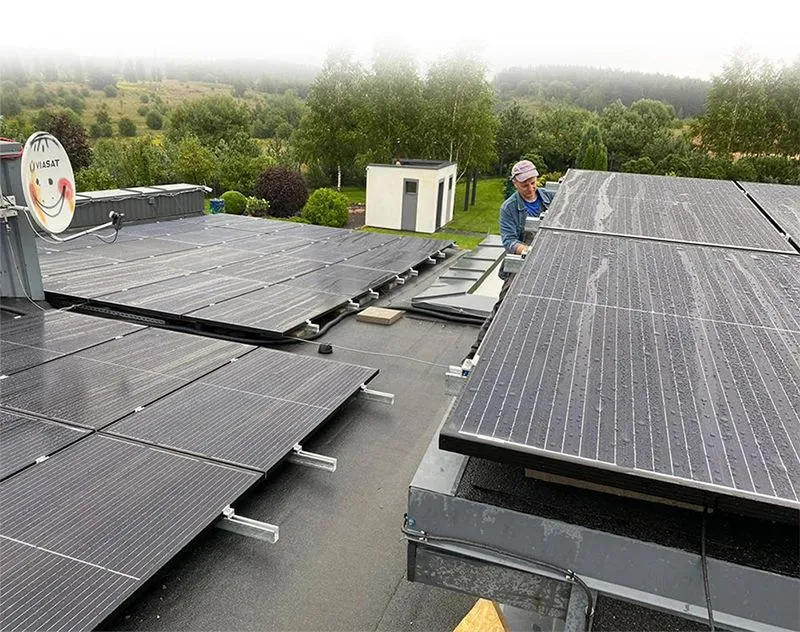

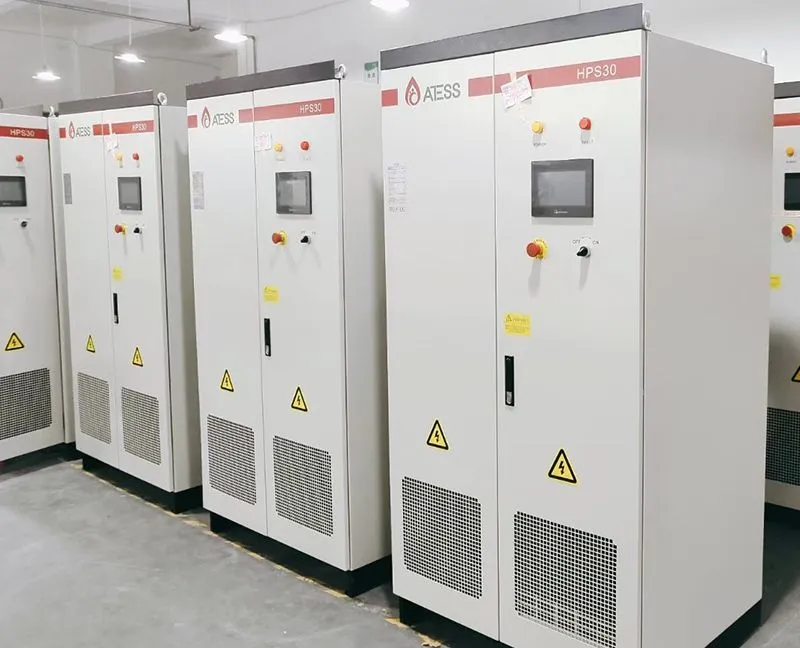

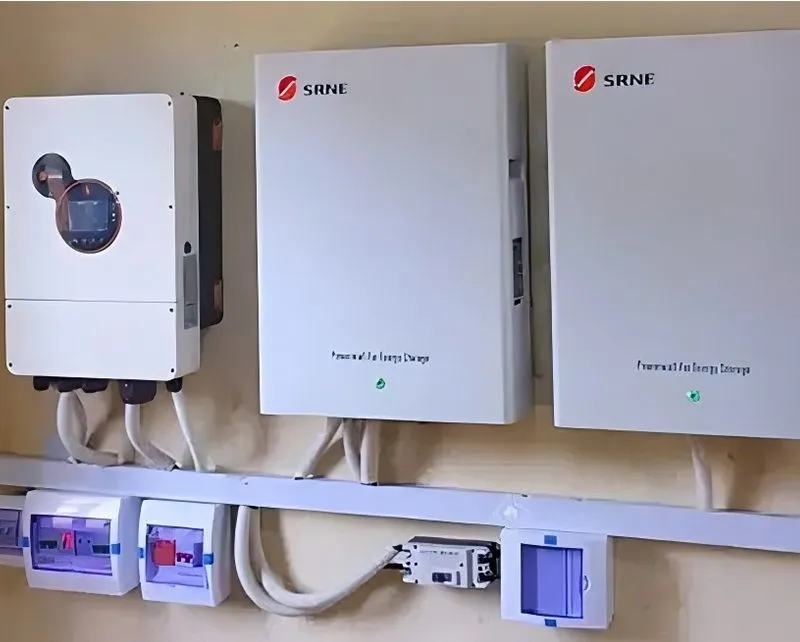

Global Projects Showcase

Frequently Asked Questions

What is the lifespan of the battery bank?

The system uses deep-cycle batteries, including LiFePO4 options that support more than 6000 cycles with up to 90% Depth of Discharge (DOD).

Can I monitor the system performance remotely?

Yes, the system includes an online monitoring platform accessible via WiFi, LAN, or GPRS. You can track real-time data and system logs.

Is the system compatible with three-phase power?

Absolutely. While the standard single-phase output is 220V, the system can also be configured for 400V 3-phase applications.

What kind of maintenance does the solar system require?

The system is designed to be largely maintenance-free. Solar panels may require occasional cleaning, and the hybrid inverter features smart diagnostics for remote troubleshooting.

Does the system support different mounting surfaces?

Yes, we provide customized mounting kits for flat roofs, pitched roofs, ground installation, and even carports using durable AI6005 and SUS304 materials.

Is the system certified for safety?

Yes, the entire solar power system and its components are CE certified, ensuring compliance with international safety and quality standards.
