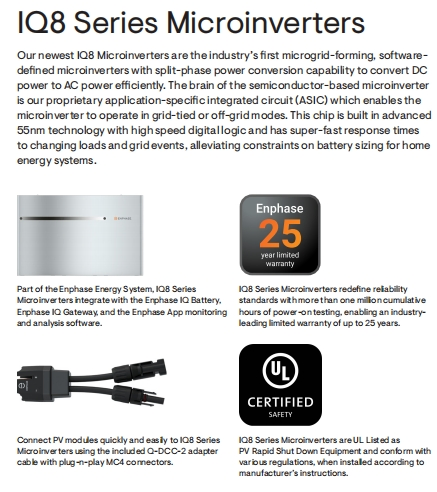

Our newest IQ8 Microinverters are the industry's first microgrid-forming, software-defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
🛠️ Easy to Install
Lightweight and compact with plug-n-play connectors
Power Line Communication (PLC) between components
Faster installation with simple two-wire cabling
⚡ High Productivity
Produce power even when the grid is down*
More than one million cumulative hours of testing
Class II double-insulated enclosure
Optimized for the latest high-powered PV modules
🌐 Microgrid-forming
Complies with the latest advanced grid support**
Remote automatic updates for the latest grid requirements
Configurable to support a wide range of grid profiles
Meets CA Rule 21 (UL 1741-SA) requirements
What makes the IQ8 series different from traditional inverters?
IQ8 series are software-defined, microgrid-forming microinverters. They use a proprietary ASIC chip that allows them to switch between grid-tied and off-grid modes efficiently with super-fast response times.
Can the IQ8 microinverter operate during a power outage?
Yes, these microinverters are designed with microgrid-forming capabilities, allowing them to produce power even when the grid is down, depending on the system configuration.
Is the installation process complex for the IQ8 series?
No, the installation is designed to be fast and simple. It features lightweight, compact designs with plug-n-play connectors and uses simple two-wire cabling.
What is the environmental protection rating for this model?
The IQ8AC-72-M-US is rated as NEMA Type 6, making it suitable for outdoor installation with high resistance to environmental factors.
What is the output power range and efficiency?
The output power is rated between 501 - 1000W, optimized for the latest high-powered PV modules using advanced 55nm ASIC technology for high-speed logic and efficiency.
Does the product support remote updates?
Yes, the microinverters support remote automatic updates to ensure compliance with the latest grid requirements and profiles.
