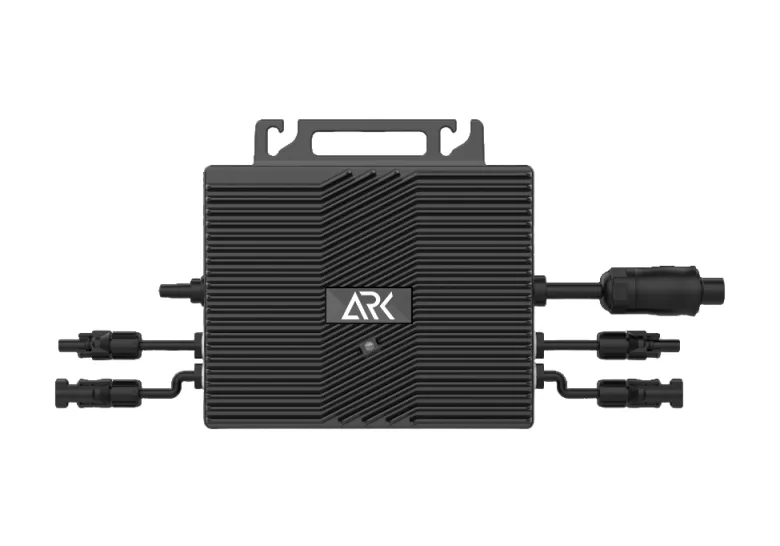

Microinverters consume almost no power at night (<50mW) when not generating electricity.

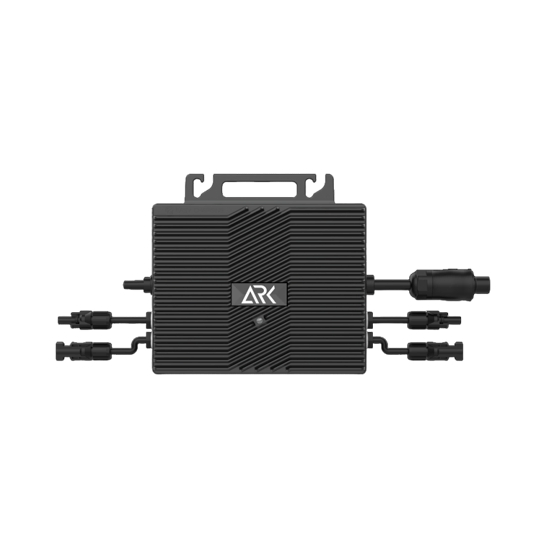

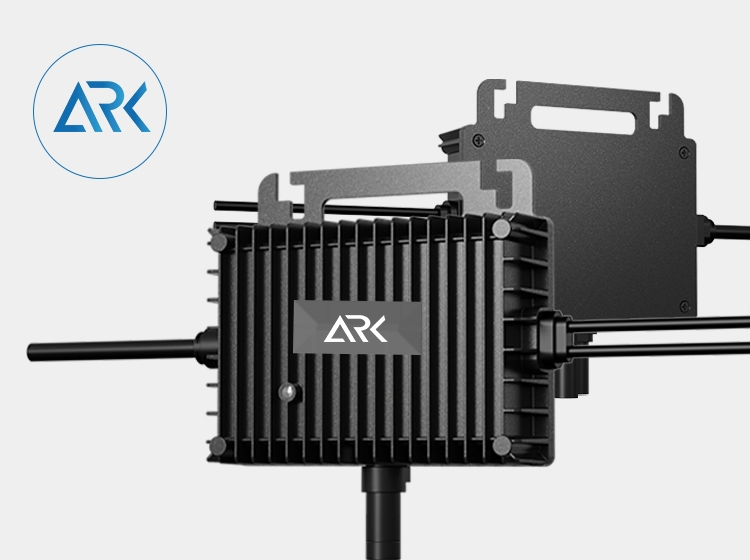

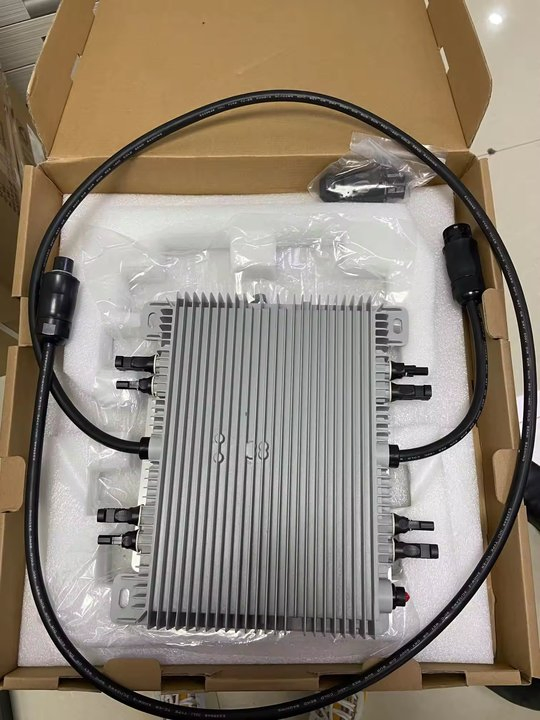

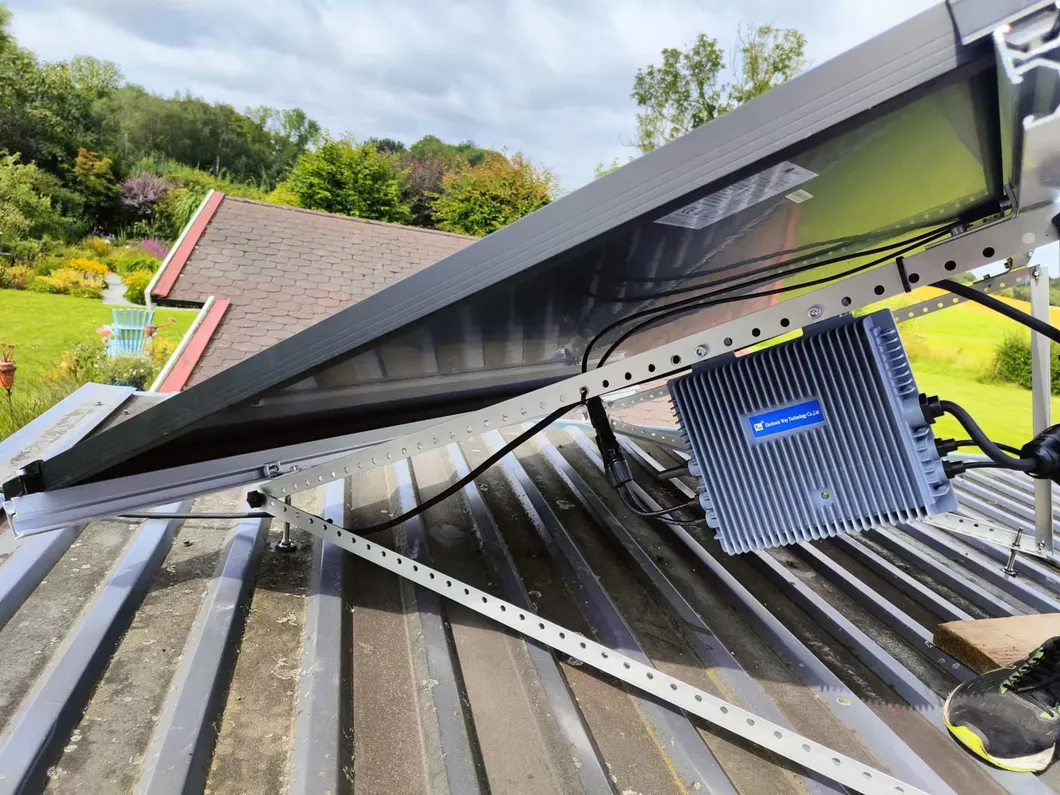

Dimensions: 233*232*42 (mm), Weight: 2kg. Easy to install on various roof types.
Wide power range compatible with different PV module brands. CEC efficiency of 95.5% for maximum energy conversion.
Industry-leading peak efficiency ensures you get the most from your solar panels.
Individual MPPT for each panel ensures optimal performance even with shading or mismatched panels.
Operates from -40°C to 70°C, with minimal derating (only 10% at 55°C).

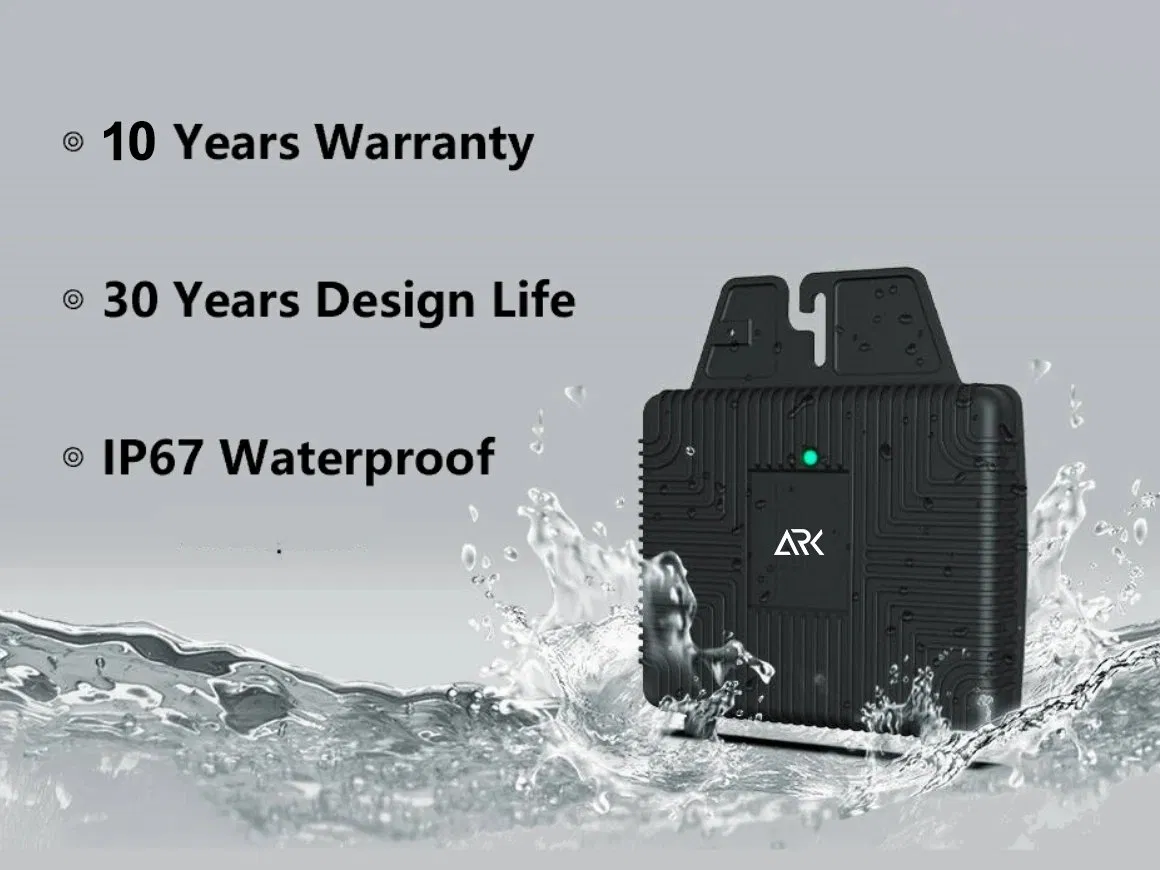

Rated IP67 for lasting performance in any climate and harsh environmental conditions.
Built with world-class components and a 10-year warranty for decades of peace of mind.
Low DC voltage design minimizes risks, ensuring a safe installation process.
Independent R&D
Independently design PCBA schemes, energy management systems (EMS), and intelligent IoT monitoring platforms.

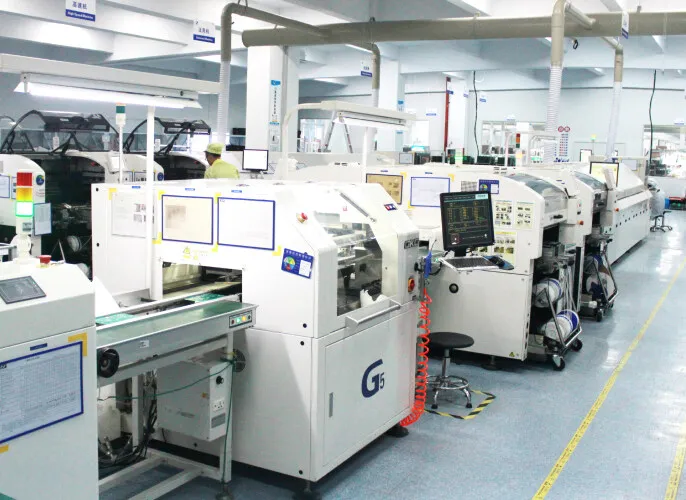

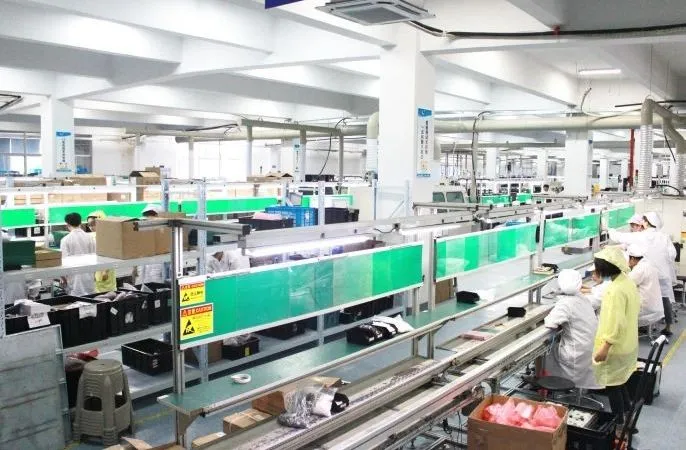

In-house Production
Self-produce key microinverter components and monitoring devices to ensure strict quality control.
| Model Details | 400W Series | 800W Series | 2000W Series |
|---|---|---|---|
| Input Data (DC) | |||
| Recommended Module Power [W] | 300~550/MPPT | 300~550/MPPT | 300~550/MPPT |
| Start up Voltage [V] | 18 | 18 | 18 |
| MPPT Voltage Range [V] | 17.5~55 | 17.5~55 | 17.5~55 |
| Max. Input Voltage [V] | 60 | 60 | 60 |
| Max. Input Current [A] | 13.3 | 13.3 | 13.3 |
| Output Data (AC) | |||
| Max. Continuous Power [VA] | 400 | 800 | 2000 |
| Nominal Output Current [A] | 1.74 | 3.48 | 8.7 |
| Nominal Output Voltage [V] | 220/230/240, L/N/PE | ||
| Nominal Frequency [Hz] | 50/60 | ||
| Max. Units Per Branch | 18 | 9 | 3 |
| Efficiency & Mechanical | |||
| CEC Weighted Efficiency | 95.50% | 95.50% | 95.50% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% |
| Night Power Consumption [mW] | <50 | <50 | <50 |
| Dimensions (W*H*D mm) | 227*183*42 | 233*232*42 | 380*233*42 |
| Weight [kg] | 1.8 | 2 | 3.75 |
