24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

1 / 5

24ah to 200ah 250ah 100ah 150ah Deep Cycle Rechargeable Maintenance Free 12VDC Energy Storage AGM Solar Gel Battery

Customization:	Available
Type:	Lead-Acid Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Send Inquiry

Product Description

Basic Information

Model NO.

GEL

Nominal Voltage

12V

Discharge Rate

Low Discharge Rate

Shape

Square Battery

Electrolyte

Acid

Installation

Packaged

Rechargeable

Chargeable

Size

520*240*224cm

Application

Solar Power System

Product Name

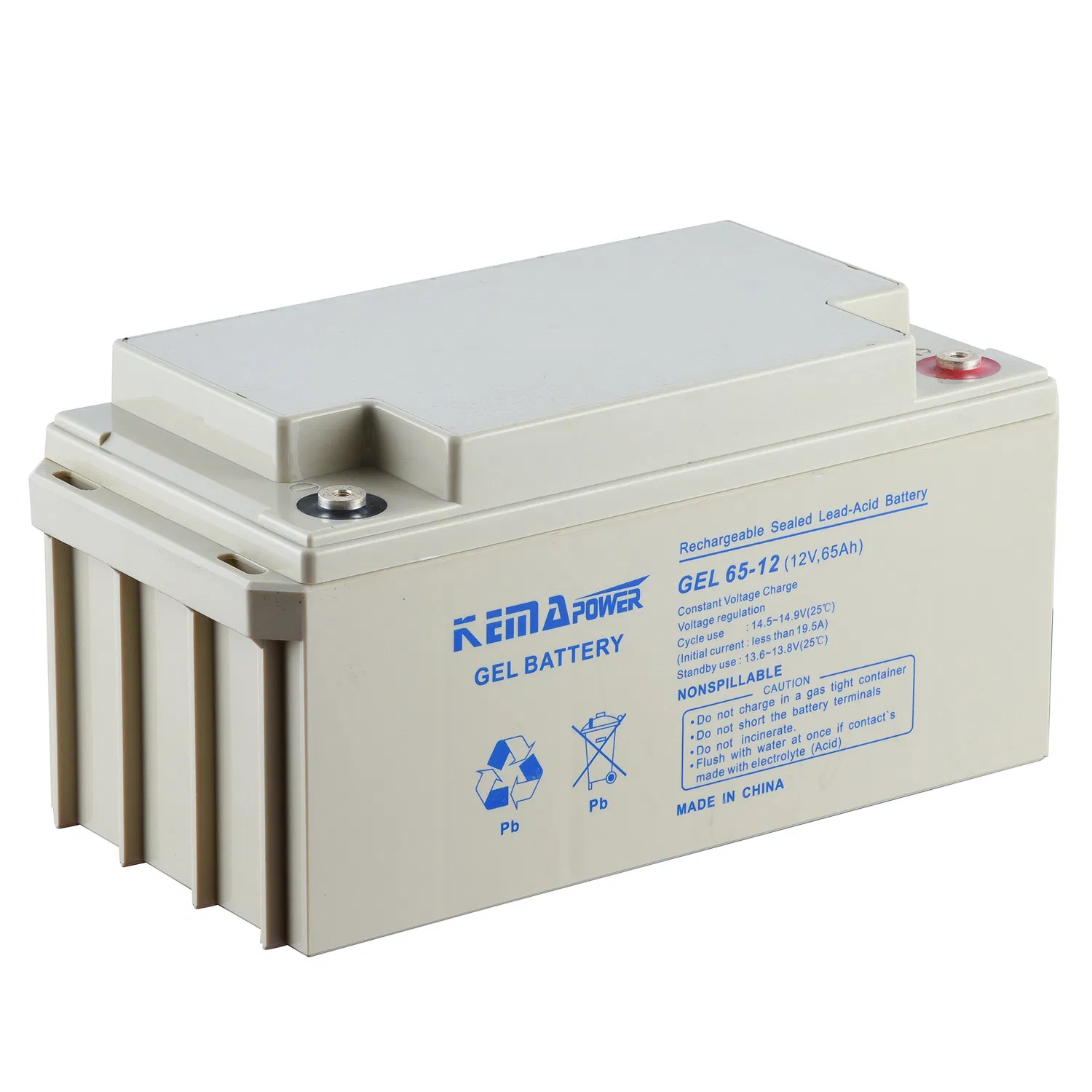

Gel65-12 Flat Plate Gel VRLA 12VDC Battery

Service Life

10 years

Production Capacity

60,000PCS/Year

Key Features

✔

Primary material is gas silicon dioxide from import.

✔

Fully sealed cover and pole design to prevent electrolyte leakage and dust entry.

✔

Free maintenance: No need for water compensation during use.

✔

Safety: Reliable gas pressure venting and anti-explosion device.

✔

Long cycle life: Anti-erosion pb-ca multi-alloy and high sealed efficiency.

✔

Temperature adaptability: Safe operation between -25ºC and 50ºC.

Technical Specifications

BATTERY MODEL	Voltage	Capacity	Resistance	Charge Voltage (VDC)		Charge Current	Product Size (MM)				Weight	Terminal
BATTERY MODEL	(VDC)	(Ah)	(mΩ)	Cycle	Float	Max Amp	L	W	H	T/H	KG	Terminal
GEL24-12	12	24	<=13	14.4-15	13.65	6A	166	125	175	182	8.00	M6
GEL38-12	12	38	<=10	14.4-15	13.65	9.5A	197	165	170	182	12.00	M6
GEL65-12	12	65	<=6.1	14.4-15	13.65	16.25A	350	166	178	178	21.00	M6

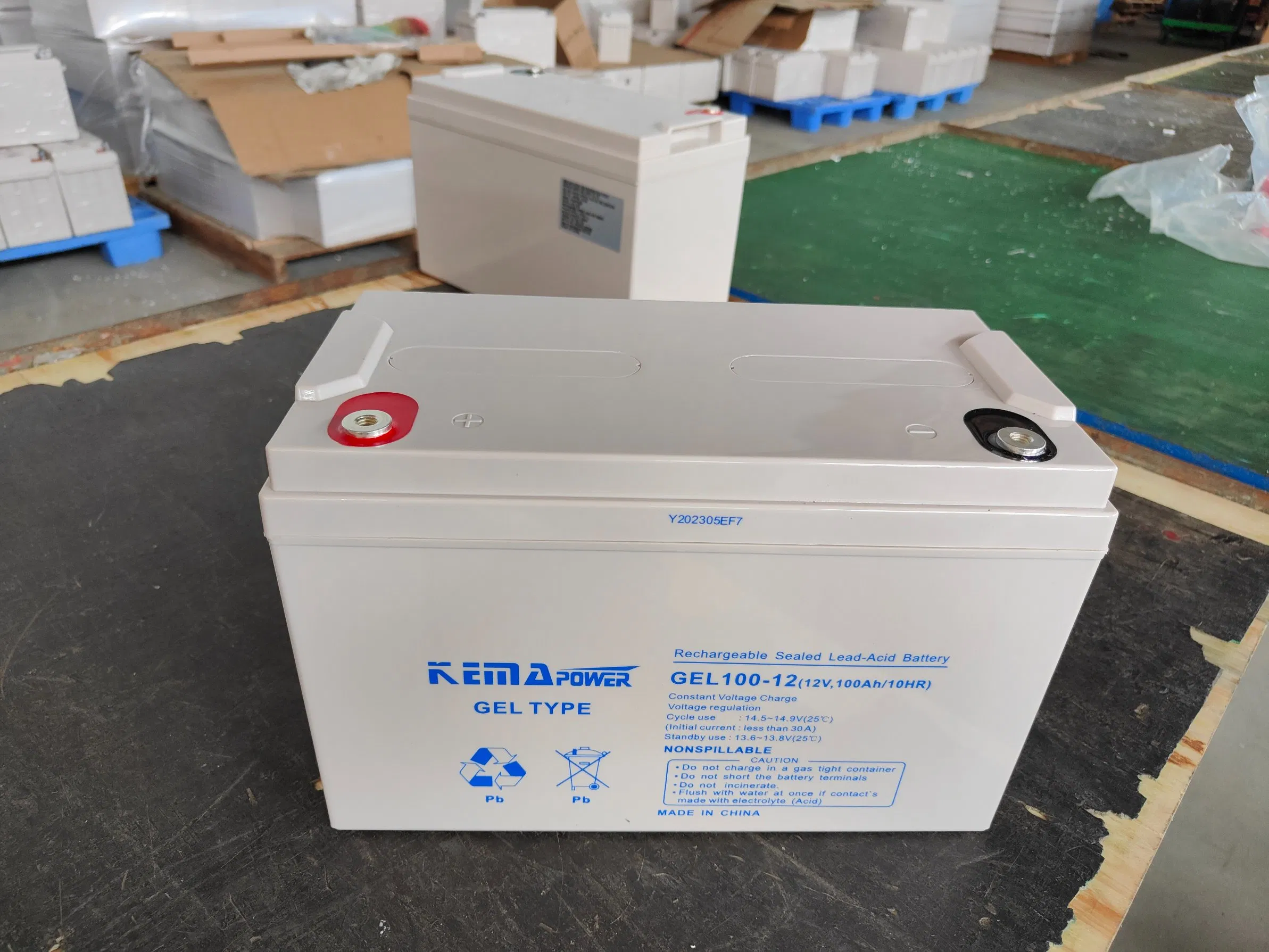

GEL100-12M	12	100	<=4.4	14.4-15	13.65	25A	407	174	238	238	31.00	M8
GEL150-12	12	150	<=3	14.4-15	13.65	35A	485	171	241	241	37.00	M8
GEL200-12	12	200	<=3	14.4-15	13.65	50A	520	240	224	244	57.00	M8
GEL230-12	12	230	<=1	14.4-15	13.65	55A	520	269	203	203	67.00	M8

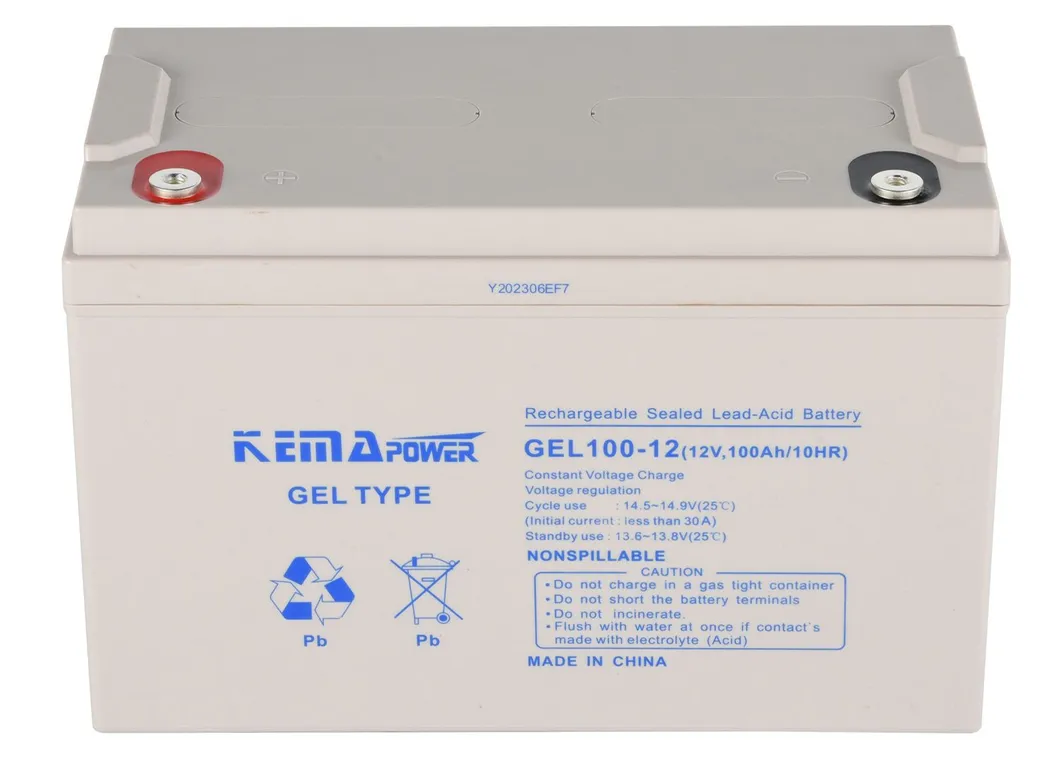

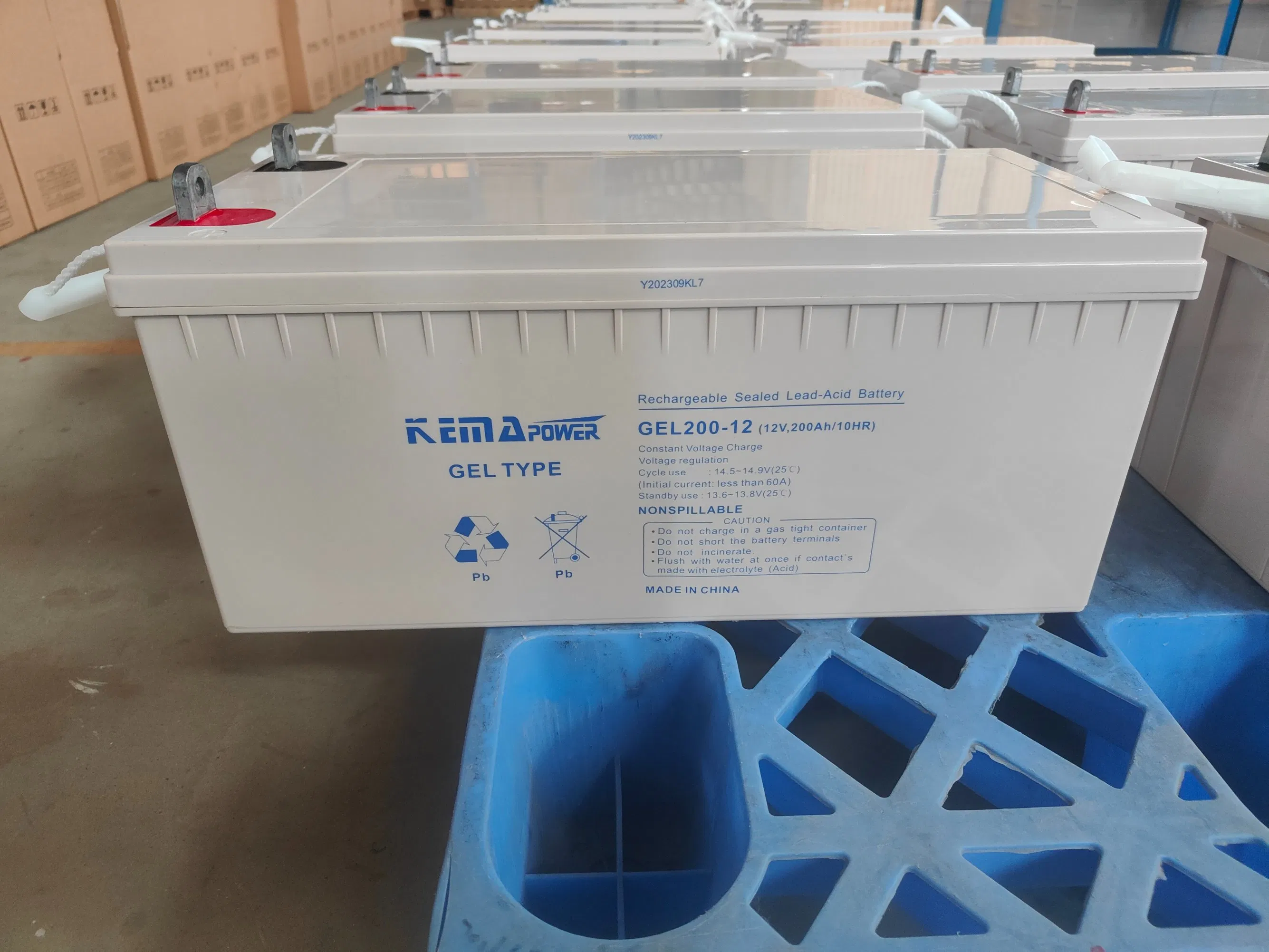

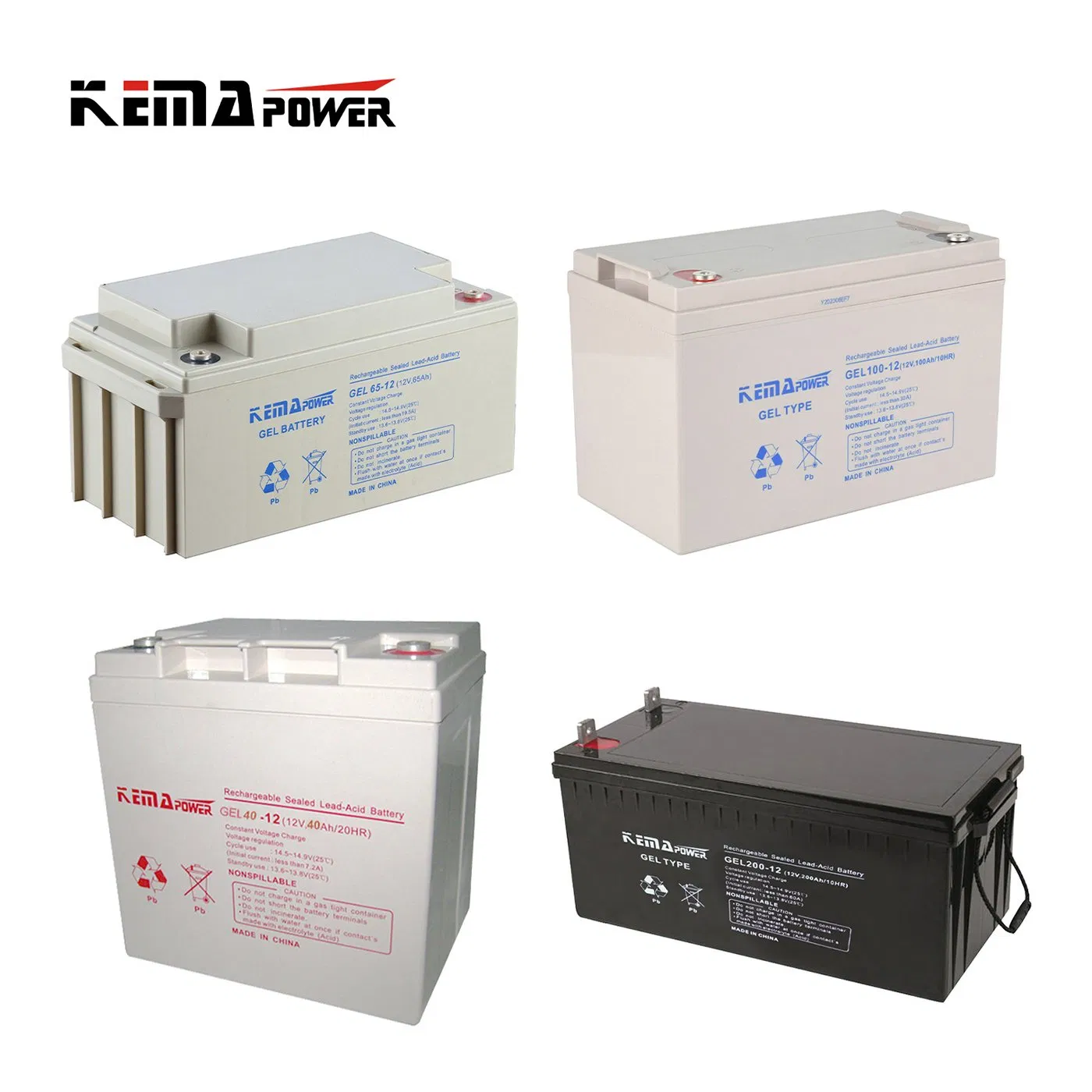

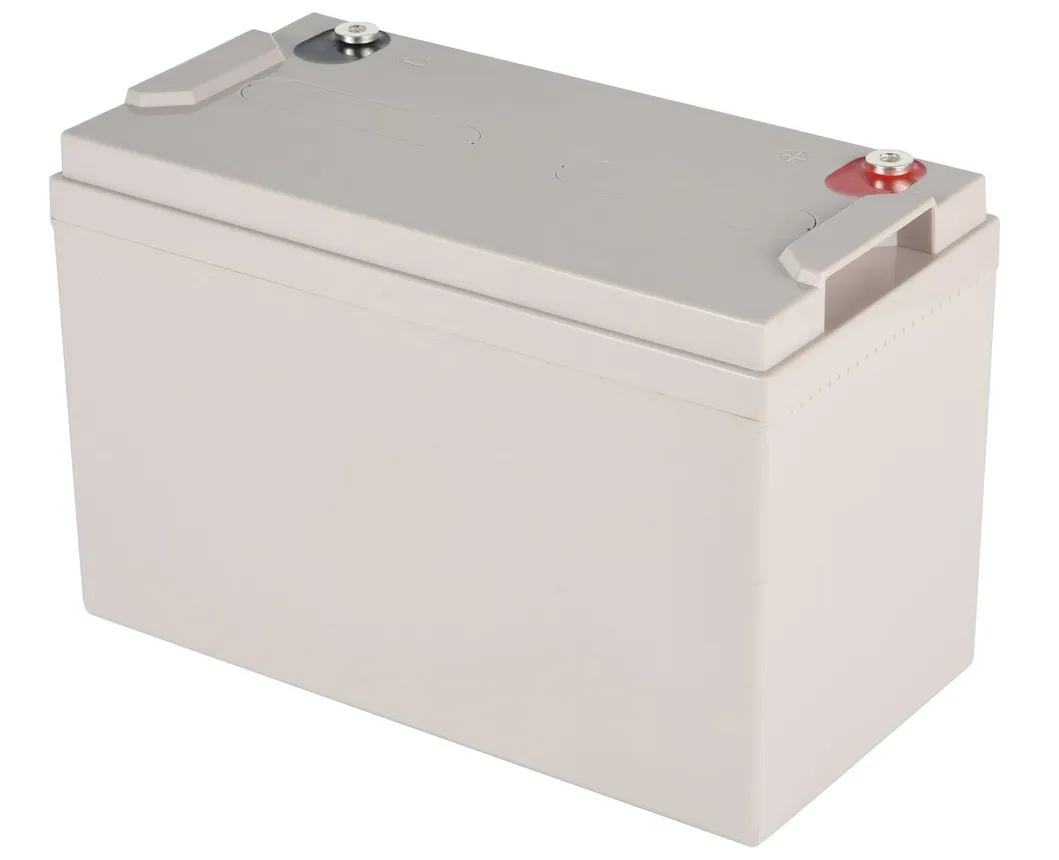

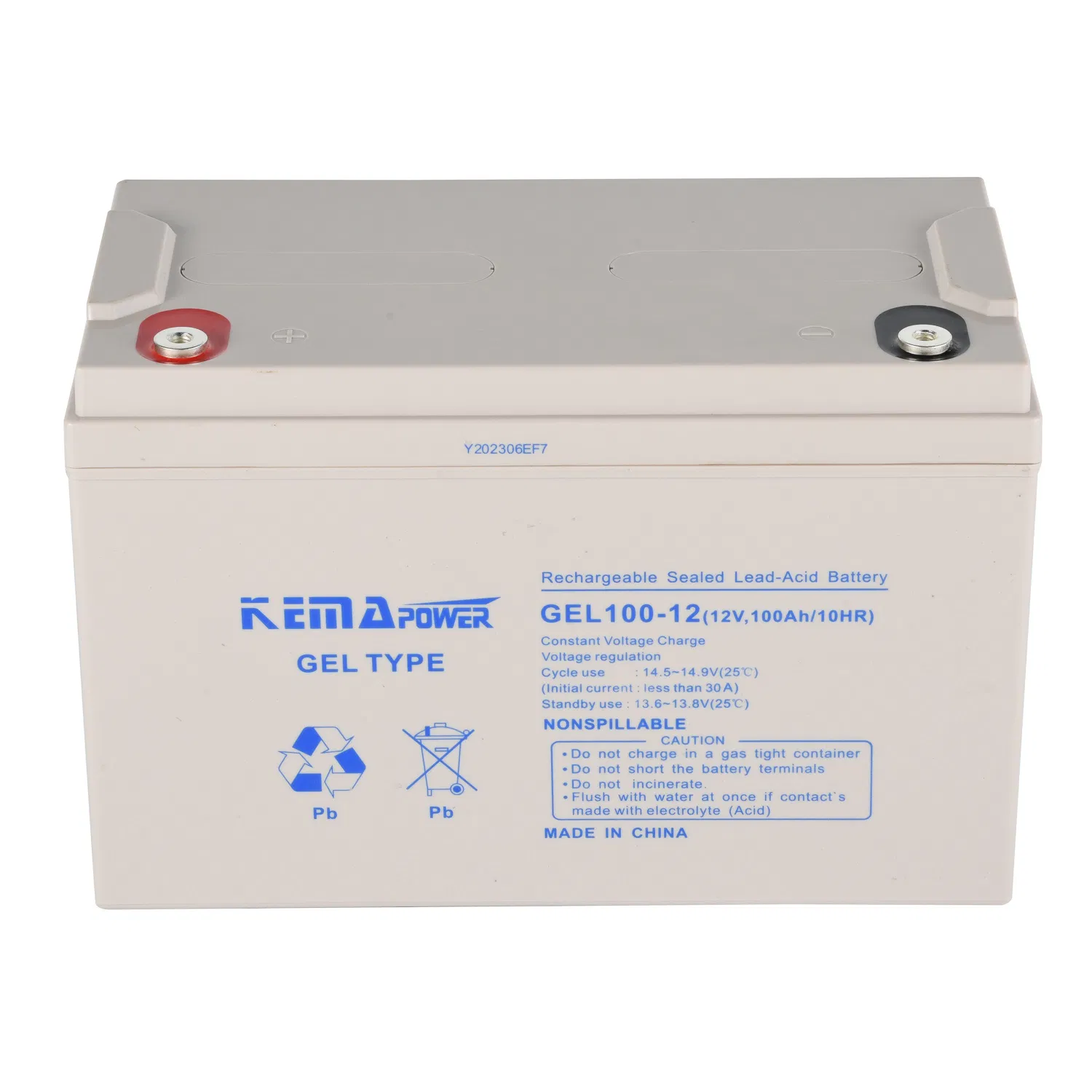

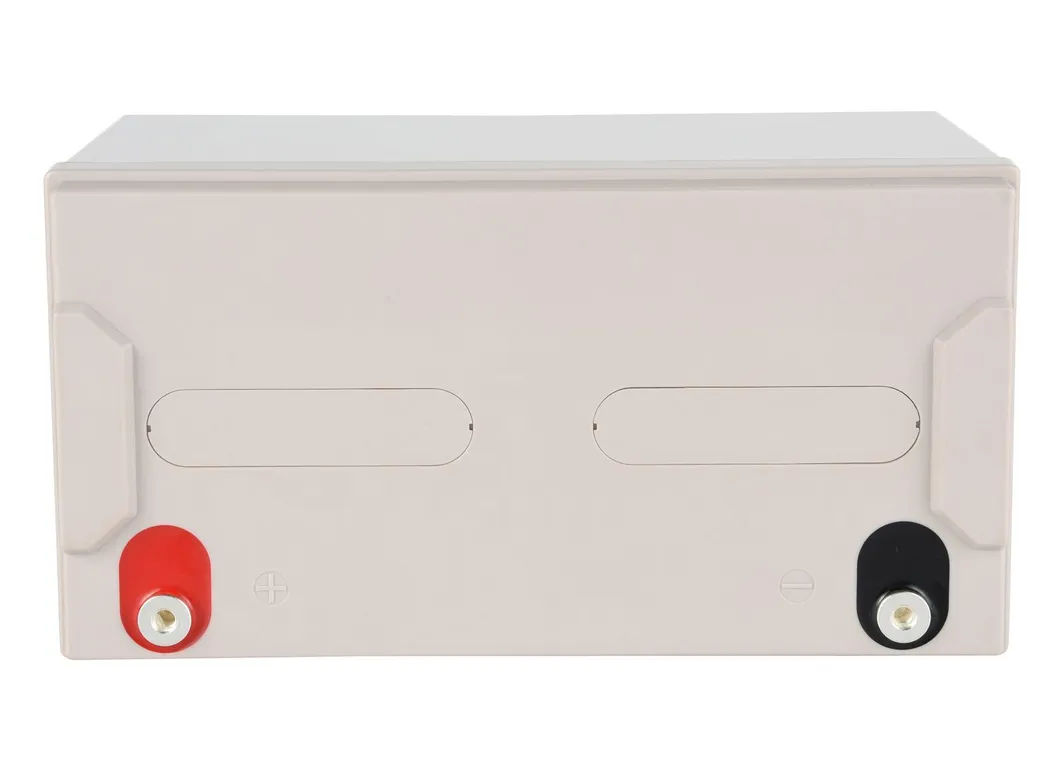

Product Display

Frequently Asked Questions

What is the expected service life of this GEL battery?

The battery is designed for a long service life of up to 10 years, thanks to its anti-erosion pb-ca multi-alloy and high sealed reaction efficiency.

Is this battery maintenance-free?

Yes, it is fully sealed and features high water reproduction efficiency, which means no water compensation or maintenance is required during its use.

What are the temperature limitations for operation?

The battery is highly adaptable and can be used safely within a wide temperature range of -25ºC to 50ºC.

Can this battery be transported easily?

Absolutely. Since there is no free electrolysis and it is fully sealed, it can be transported by sea and railway as non-hazardous material.

What safety features are included?

The battery includes a reliable gas pressure venting system and an anti-explosion device, ensuring it remains safe even under rigorous use conditions.

What is the primary application for this battery model?

It is primarily designed for Solar Power Systems, offering an economical and reliable energy storage solution with deep cycle capabilities.
