Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

1 / 5

Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.HTL12-200 (12V 200Ah)

Nominal Voltage12V / 6V / 8V

ElectrolyteGel

Discharge Rate0.2-0.5c

InstallationFixed

Size522 * 240 * 216 mm

Weight58.7 kgs

Warranty3 Years

Design Life20 Years

DOD50% Dod 1600 Cycles

TerminalPure Copper Screw M8

CertificateIEC60896, IEC61427, MSDS, CE, UL

Packaging & Delivery

Package Size55.00cm * 22.00cm * 24.00cm

Gross Weight60.000kg

Product Overview

Constant Safe Power For You!

HTL12V Patented High-Temp Deep Cycle Solar Gel Battery

Recognized as a reliable and high-quality battery system, designed with advanced patented GEL technology. Offers 15-20 years of service life and 1500-1600 cycles at 50% DOD. Complies with international standards: IEC60896-21/22, BS6290-4, and Eurobat Guide.

Advanced Features

Environmentally Friendly
Completely Maintenance-Free
Non-Spillable Construction
Operating Temp: -20°C to +60°C
Longer Life (20 years design)
Explosion Proof
High Discharge Rate Capability
Low Self Discharge
Ease of Shipment
No Memory Effect

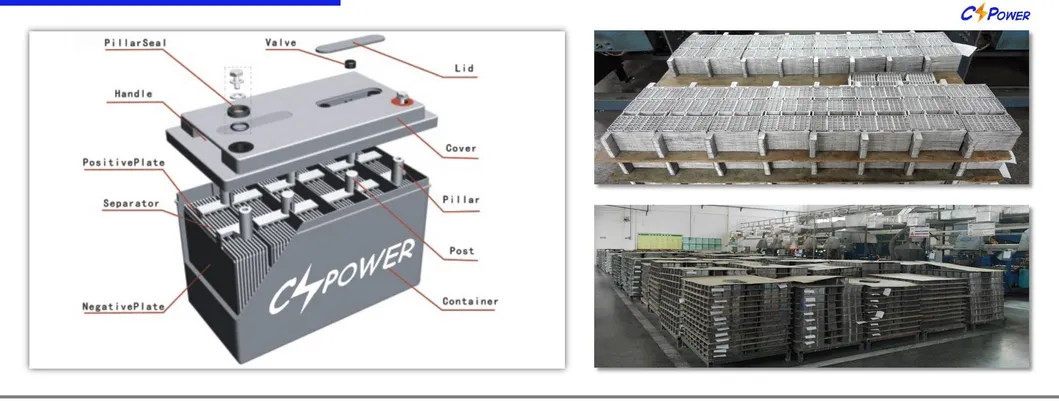

Product Model & Structure

Component	Positive Plate	Negative Plate	Container	Safety Valve	Terminal	Separator	Electrolyte
Features	Thick high Sn low Ca grid	Balanced Pb-Ca grid	Fire resistance ABS	Flame Si-Rubber	Female Copper Insert	Advanced PVC/AGM	Silicon Gel

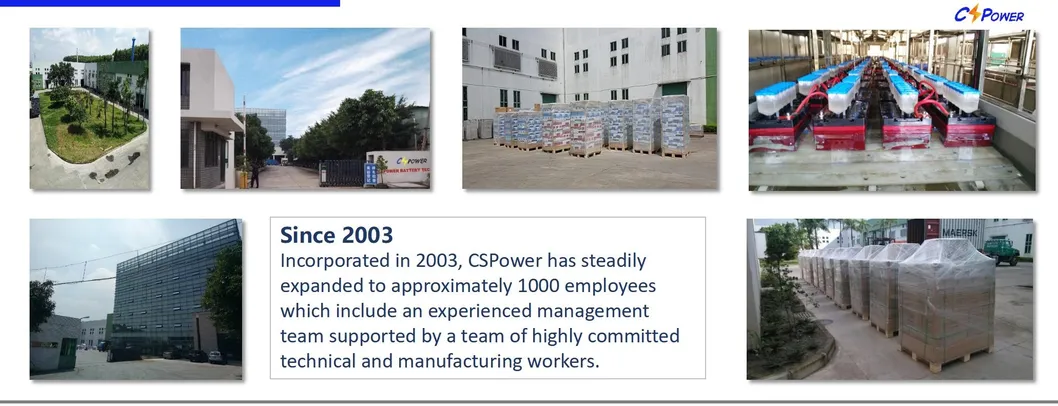

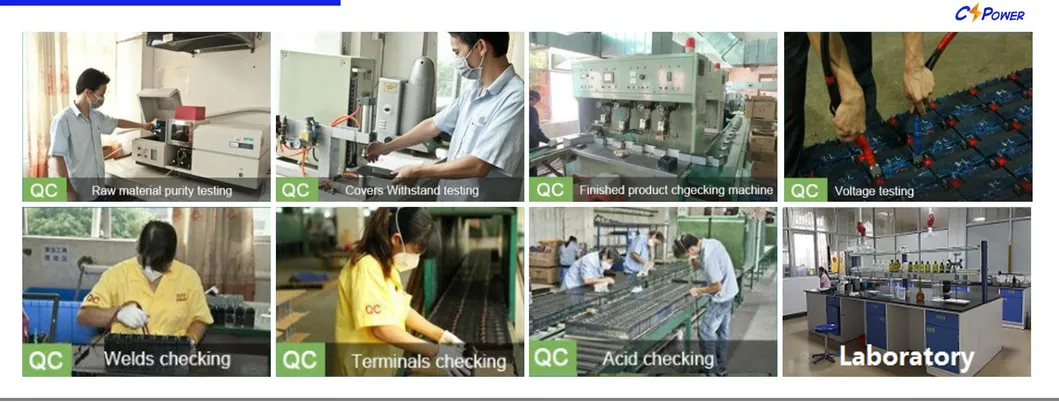

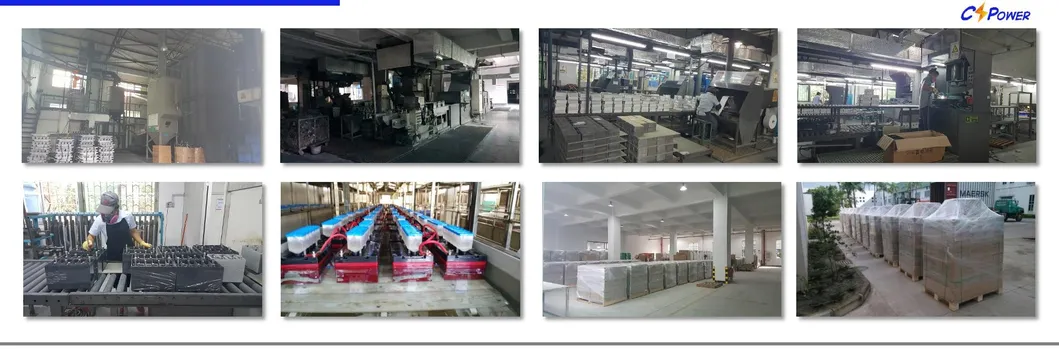

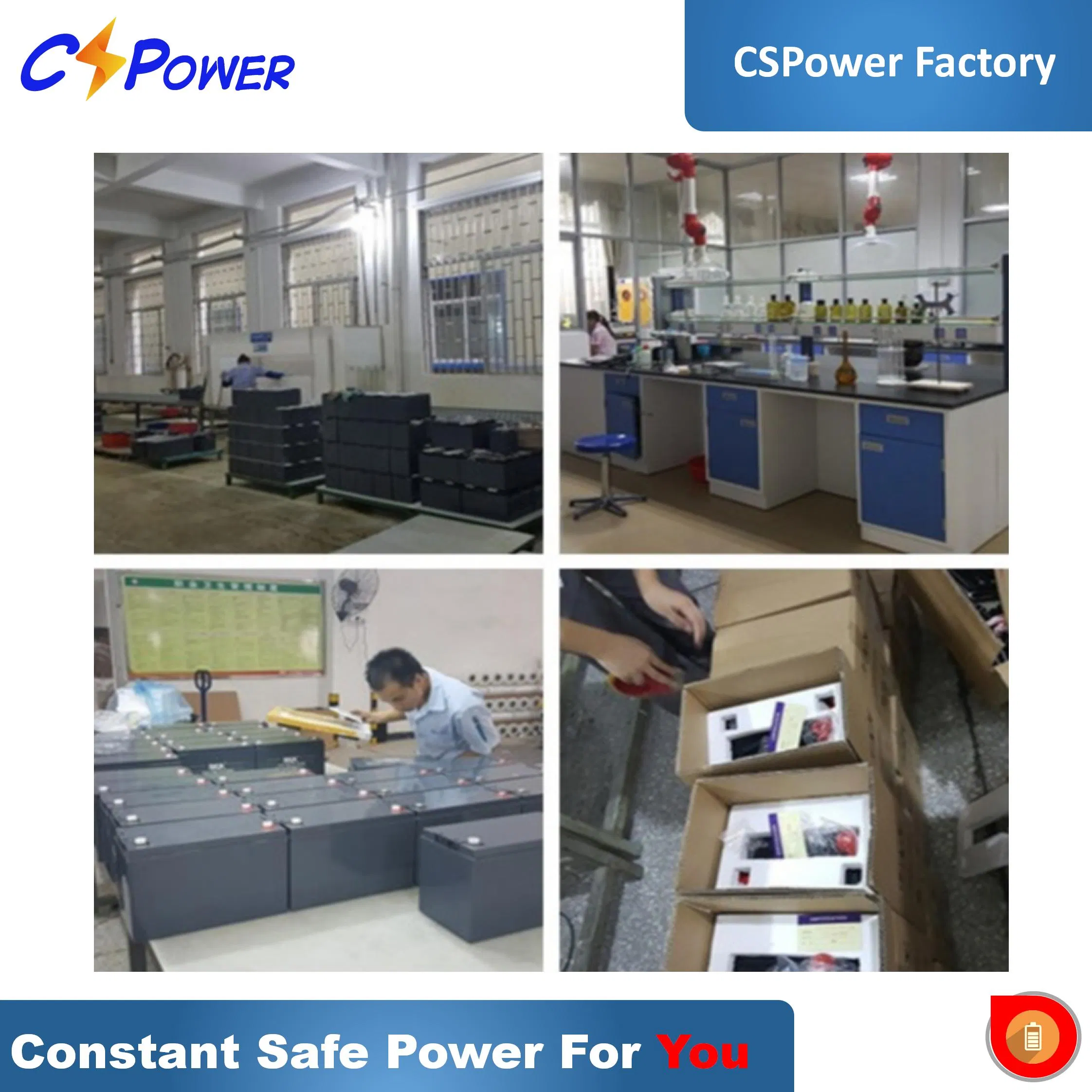

Manufacturing & Quality Control

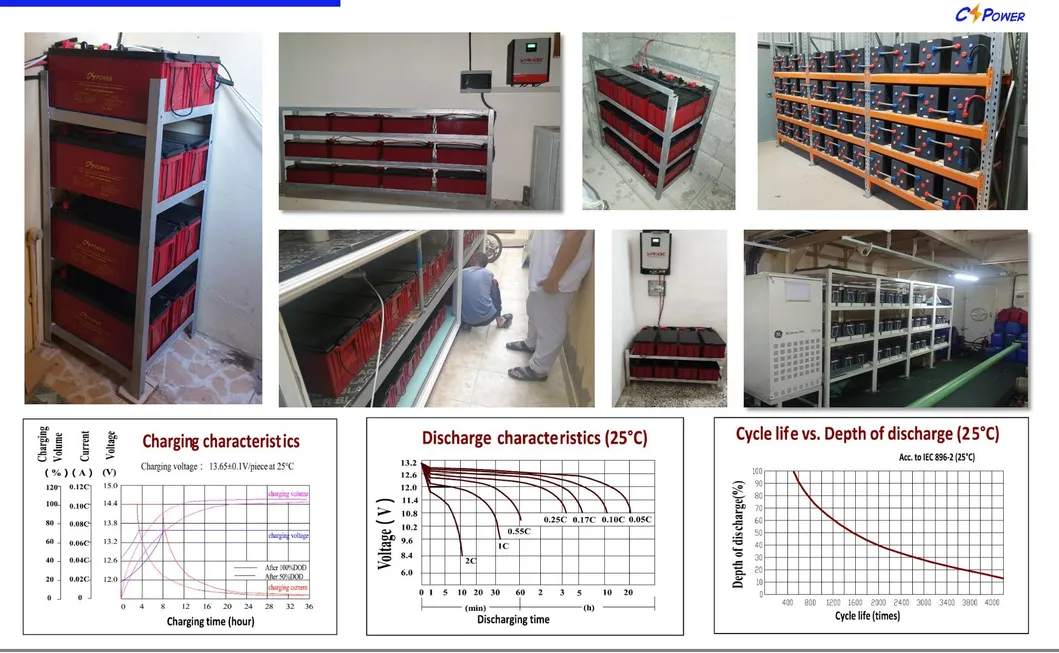

Global Applications

Telecommunication Equipment
Solar & Wind Power Systems
Uninterruptible Power Supplies (UPS)
Electric Powered Vehicles
Emergency Lighting & Security
Medical Equipment
Marine & Power Generation Plants

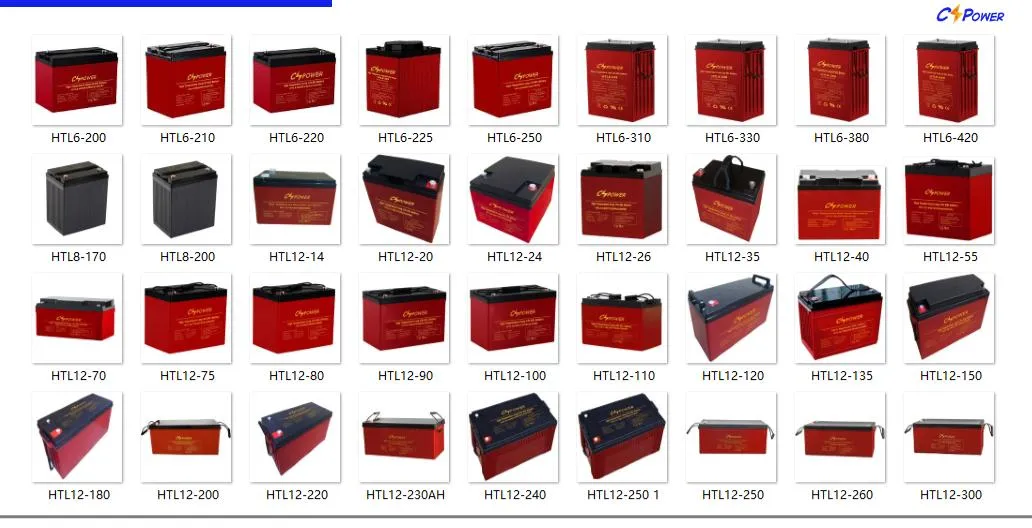

Full Model List

Model	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Weight (kgs)	Terminal
HTL12-100	12	100	307	169	211	30.5	M8
HTL12-150	12	150	484	171	241	45.8	M8
HTL12-200	12	200	532	206	215	58.7	M8
HTL6-200	6	200	306	168	220	30.3	M8
HTL8-170	8	170	260	182	266	34.3	M8

Frequently Asked Questions

Can your battery be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We have MSDS and test reports for safe transport as non-dangerous products.

Can I fast charge my battery?

Fast charging is not recommended as it is harmful to the battery's longevity and health.

Can I do a partial replacement of my batteries?

Partial battery replacement of lead-acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.

How about your delivery time usually?

Usually about 7 days for stock products, around 20 days for half-container products, and 30 days for 20ft full-container products.

What is the shelf life of a VRLA battery?

VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging. In hot climates, recharge every 3 months.

Why does the battery have different capacities at different hour rates?

Battery capacity is dynamic and depends on the discharge current. A lower discharge rate (like 20-hr) allows the battery to deliver more Ahs than a high discharge rate (like 2-hr).
