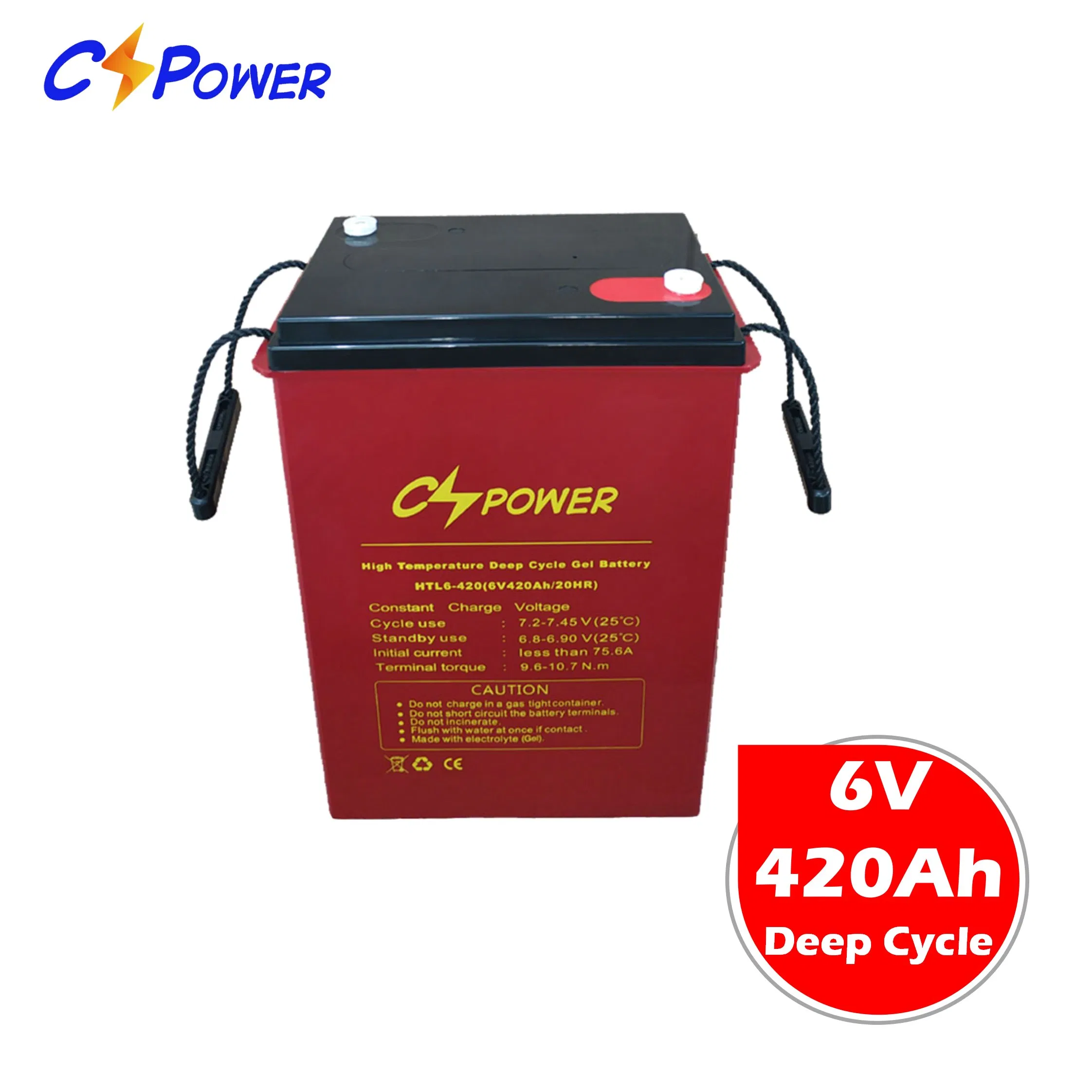

High-Temperature Deep Cycle GEL Battery
| Item | Specifications | ||
|---|---|---|---|
| Nominal Voltage | 6V (3 cells per unit) | ||
| Design Floating Life @ 25ºC | 20 Years | ||
| Nominal Capacity @ 25ºC | 420Ah (20 hour rate) | ||
| Capacity @ 25ºC | 10 hour rate | 378Ah | |
| 5 hour rate | 334Ah | ||
| 1 hour rate | 233.3Ah | ||
| Internal Resistance | ≤1.5mΩ (Full Charged) | ||
| Self-Discharge @ 25ºC | 3% per Month | ||
| Dimensions (L*W*H) | 295 * 178 * 404 mm (Total H: 424mm) | ||
| Weight | 57kg ± 3% | ||

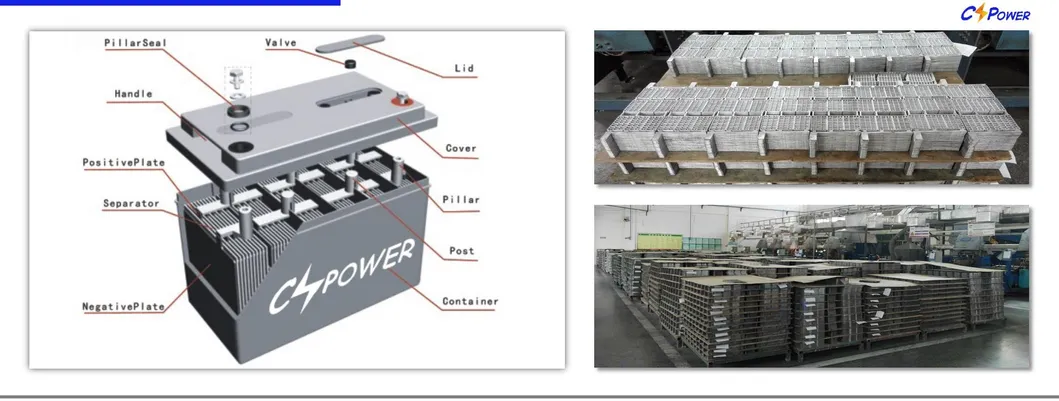

| Component | Positive Plate | Negative Plate | Separator | Electrolyte |
|---|---|---|---|---|
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Advanced PVC/AGM | Silicon Gel (Nano GEL) |

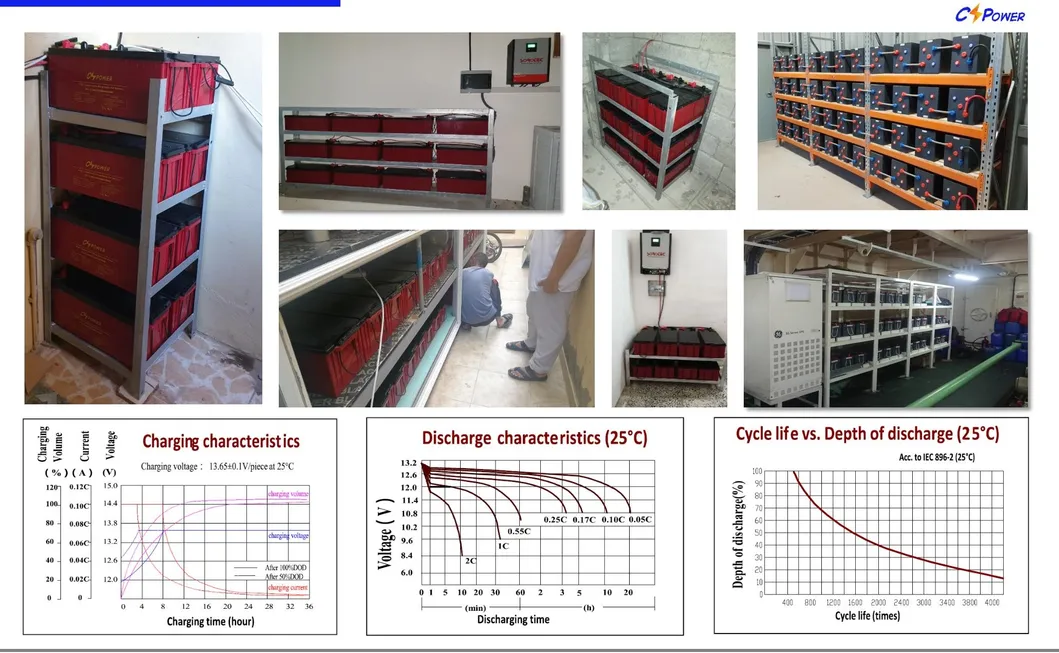

Ideal For: Solar/Wind Power Systems, BTS Stations, Electric Vehicles, UPS Systems, Emergency Lighting, and Medical Equipment.
| Model | Voltage (V) | Capacity (Ah) | L*W*H (mm) | Weight (kg) |
|---|---|---|---|---|

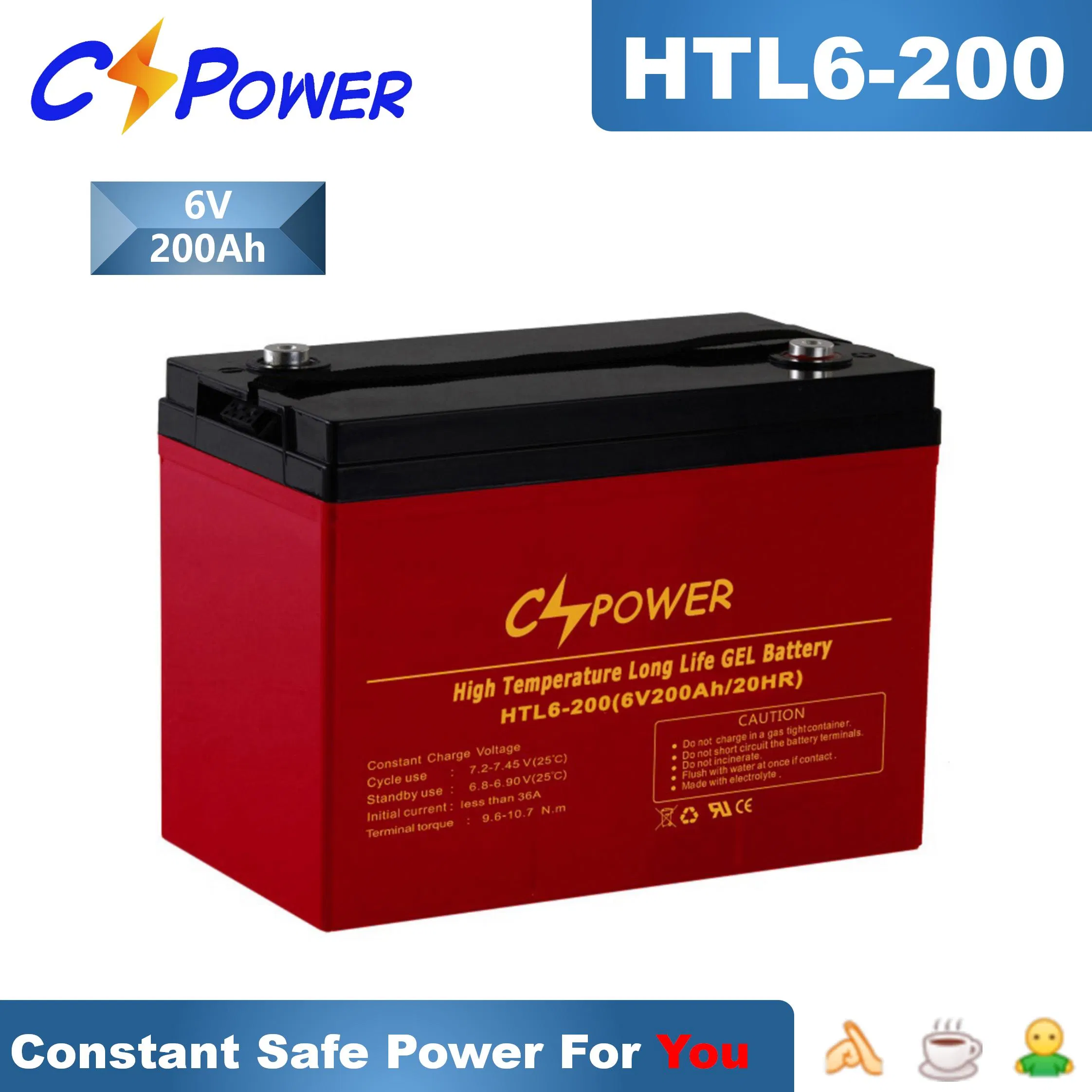

| HTL6-200 | 6 | 200 | 306*168*225 | 30.3 |

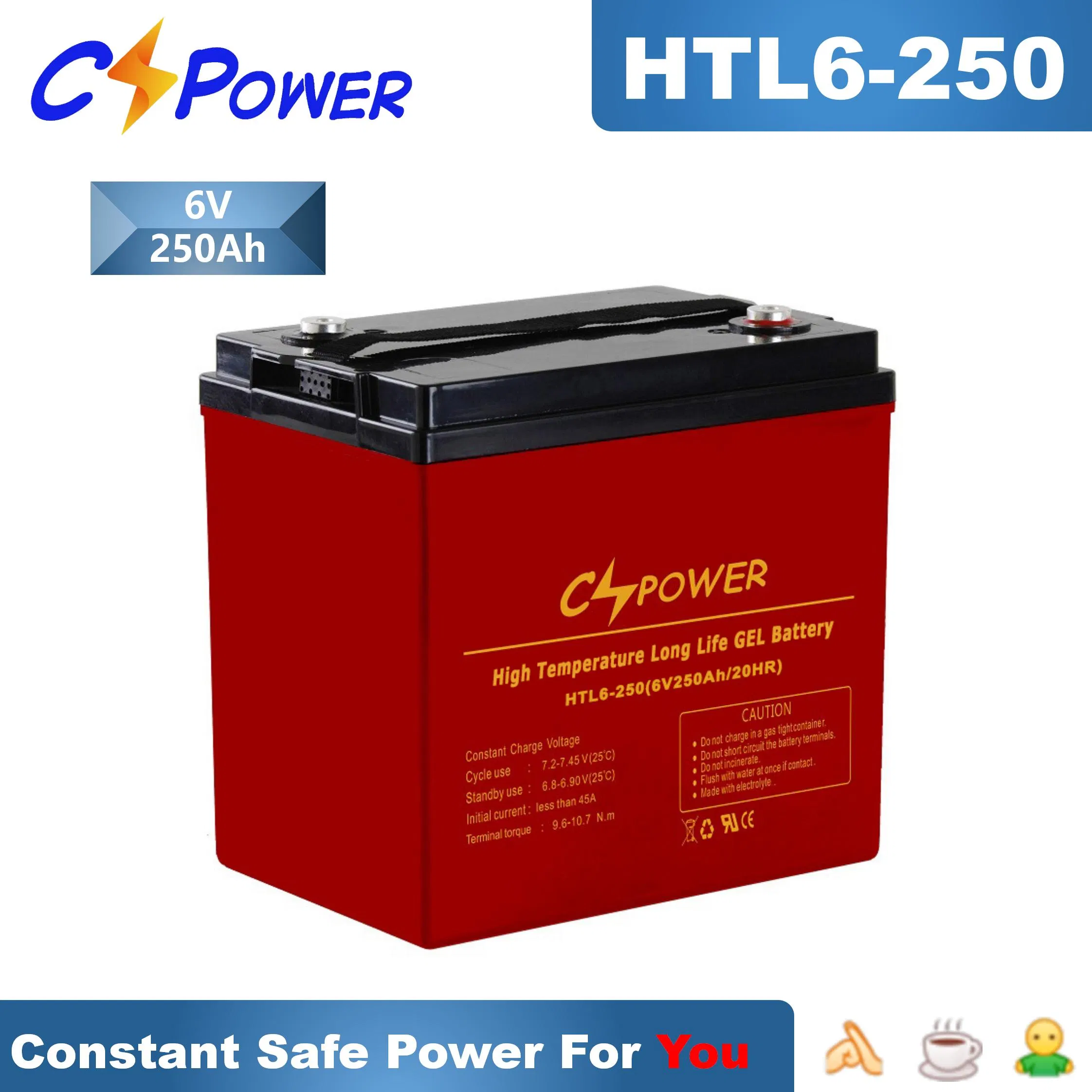

| HTL6-250 | 6 | 250 | 260*180*272 | 34.8 |

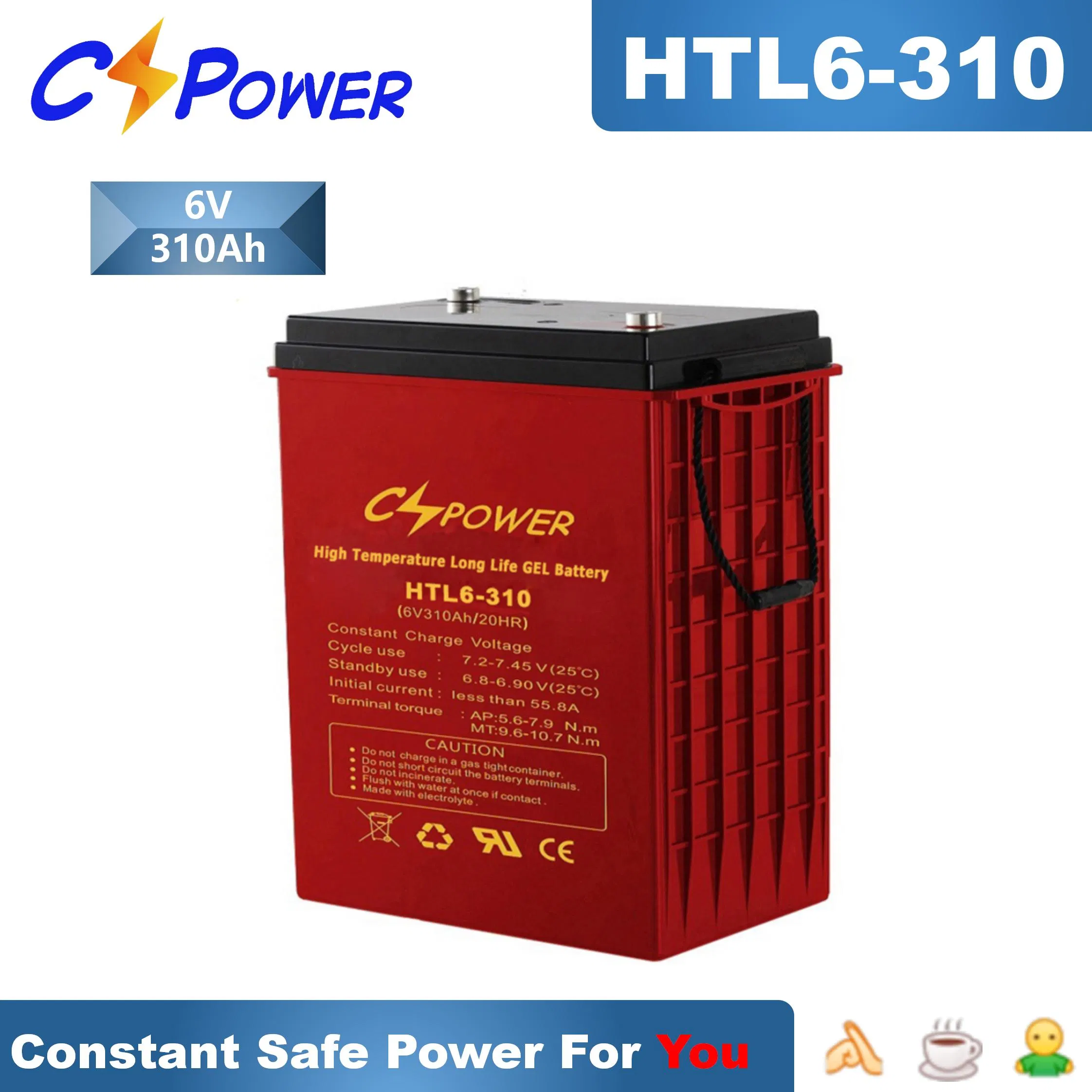

| HTL6-310 | 6 | 310 | 295*178*360 | 46.3 |
| HTL6-420 | 6 | 420 | 295*178*410 | 57.1 |
| HTL8-170 | 8 | 170 | 260*182*271 | 34.3 |
| HTL8-200 | 8 | 200 | 260*182*301 | 38.3 |
