Basic Specifications
Model NO.OPzV Tubular Gel Battery
Nominal Voltage2V 12V 6V
Discharge Rate0.2c-0.5c
ElectrolytePVC+Gel+Acid
Warranty3-5 Years
Expected Cycle Life20-25 Years
CertificateCE, IEC, ISO
CasingABS or UL94 Fire Resistance
HS Code8507200000
Production Capacity36000kwh/Month

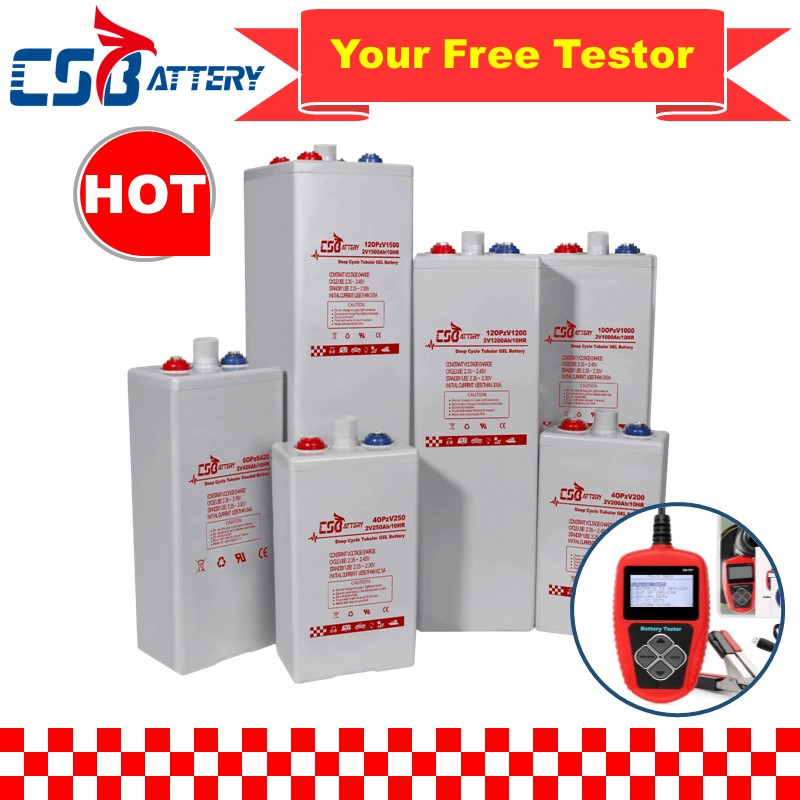

OPzV Super Deep Cycle Tubular GEL Solar Battery 2Volt 200Ah up to 3000Ah
OPzV Tubular Deep Cycle Solar gel batteries are designed with advanced patented GEL technology, offering a 20-25 year long life. They are the ideal partner for large-scale Solar Power Systems and Telecom Systems, complying with international standards such as IEC60896-21/22 and Eurobat Guide.
Advanced Features
✔Environmentally Friendly
✔Completely Maintenance-Free
✔Non-Spillable Construction
✔Wide Operating Temp (-20°C~+60°C)
✔20-Year Design Life
✔Explosion Proof & Valve Regulated
✔Low Self Discharge
✔High Discharge Rate Capability
Technical Specifications
| Model |
Voltage (V) |
Capacity (Ah) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Terminal |
| 4OPzV200 | 2 | 200 | 103 | 206 | 390 | 18 | M8 |
| 6OPzV300 | 2 | 300 | 145 | 206 | 390 | 25 | M8 |
| 6OPzV600 | 2 | 600 | 145 | 206 | 681 | 46 | M8 |

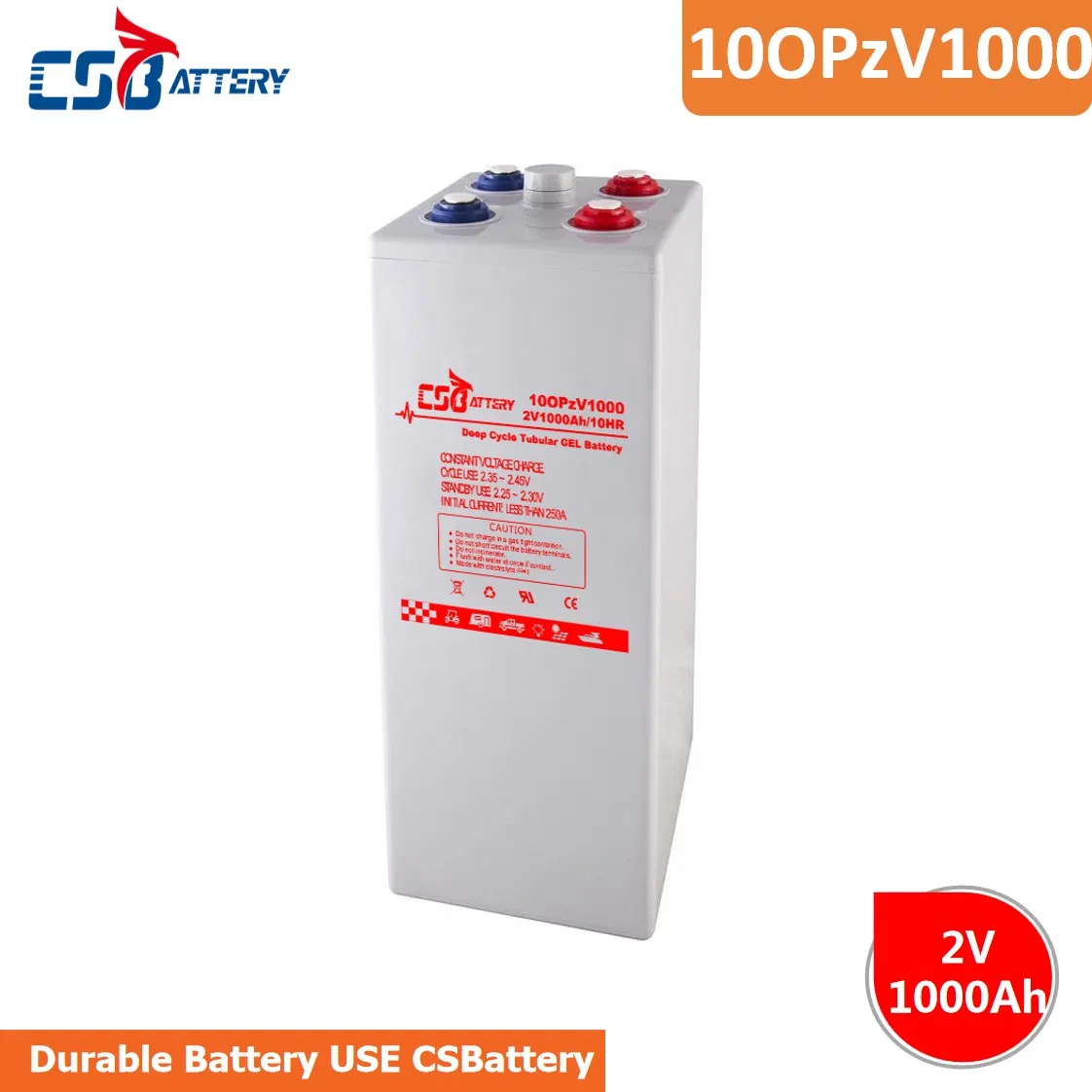

| 10OPzV1000 | 2 | 1000 | 233 | 210 | 681 | 74 | M8 |
| 12OPzV1500 | 2 | 1500 | 275 | 210 | 831 | 112 | M8 |
| 24OPzV3000 | 2 | 3000 | 576 | 212 | 807 | 225 | M8 |
| 12VOPzV100 | 12 | 100 | 407 | 177 | 225 | 36 | M8 |
| 12VOPzV200 | 12 | 200 | 521 | 262 | 225 | 73 | M8 |

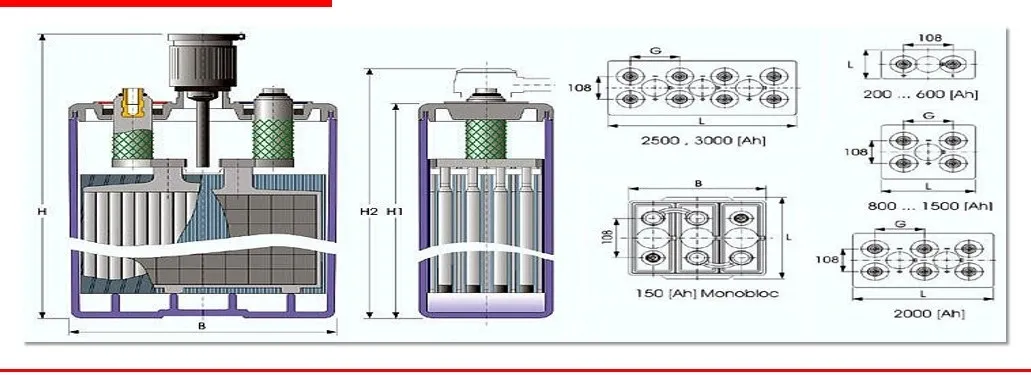

Product Structure
| Component | Positive Plate | Negative Plate | Container | Separator | Electrolyte |
| Features |
Tubular Plate high Sn low Ca |
Balanced Pb-Ca grid |
Fire Resistance ABS |
Advanced PVC Separator |
Nano Silicon Gel |

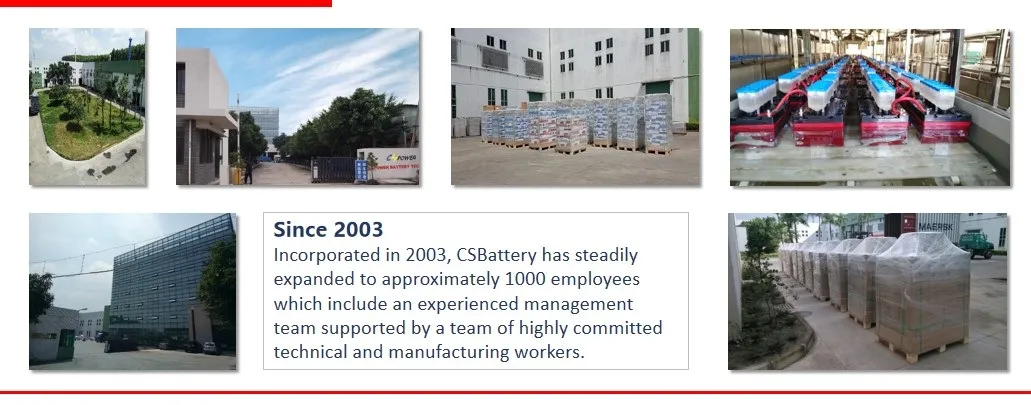

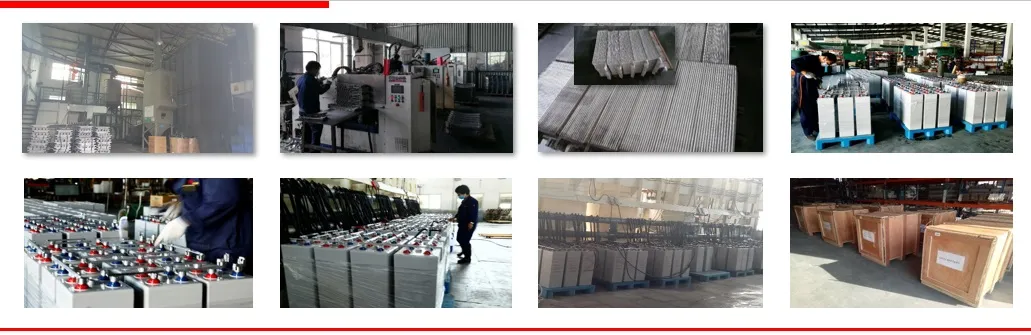

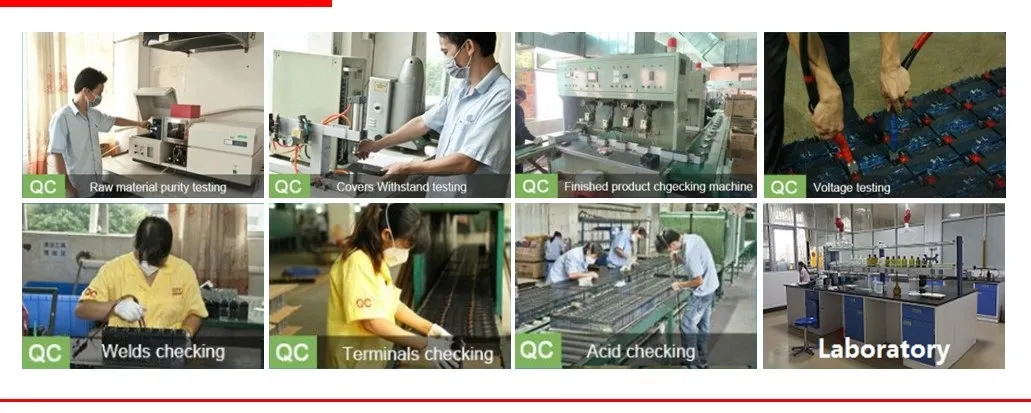

Production & Quality Control

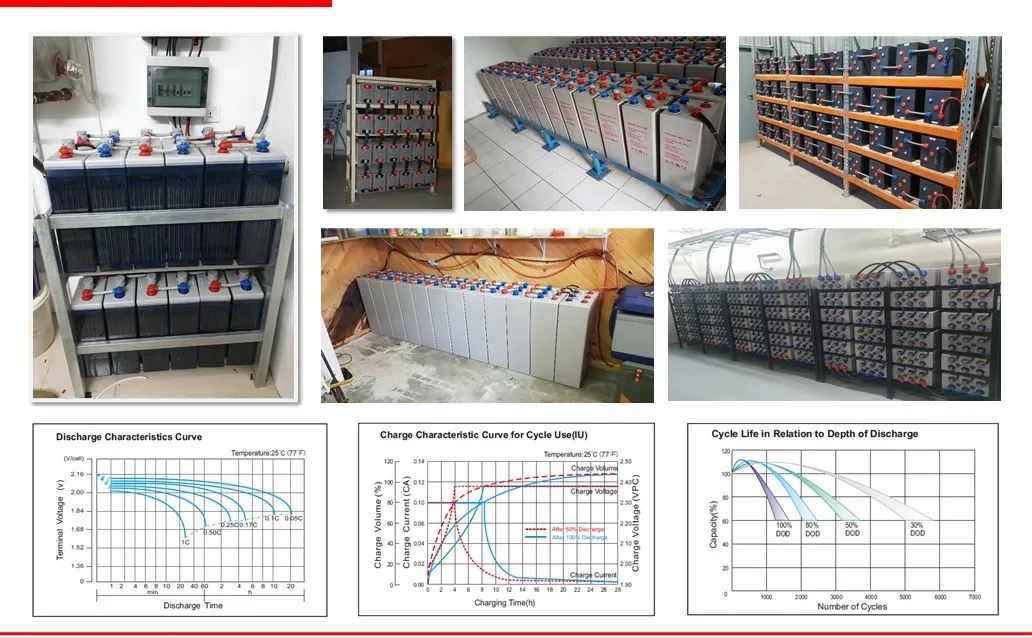

Certifications & Global Projects
🔋 UPS & Telecom Systems
🌞 Solar & Wind Energy
🏥 Medical Equipment
🚢 Marine & Power Stations
Frequently Asked Questions
❓ Q1. Can your battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.
❓ Q2. What is the expected life of the OPzV battery?
The OPzV tubular GEL batteries are designed for long-term reliability with a design life of 20-25 years in standby applications.
❓ Q3. Can I fast charge this battery?
Fast charging is generally not recommended for these batteries as it can be harmful to the long-term health and capacity of the unit.
❓ Q4. How about the delivery time?
Typically, it takes about 7 days for stock items, 20 days for partial container orders, and 30 days for full 20ft container orders.
❓ Q5. What is the shelf life and maintenance required?
VRLA batteries self-discharge less than 3% per month at 25°C. They should be recharged every 6 months (or 3 months in hot climates) if stored.
❓ Q6. How is quality controlled during production?
We adopt the ISO 9001 system, including Incoming Quality Control (IQC), Production Quality Control (PQC) with full inspections, and Outgoing Quality Control (OQC).
